Америка

Модель

RAV4 (JPP)

VIN

Дата

2008/08

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Класс

LIMITED TYPE

Фрейм

ASA33

КПП

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT Канада 426W

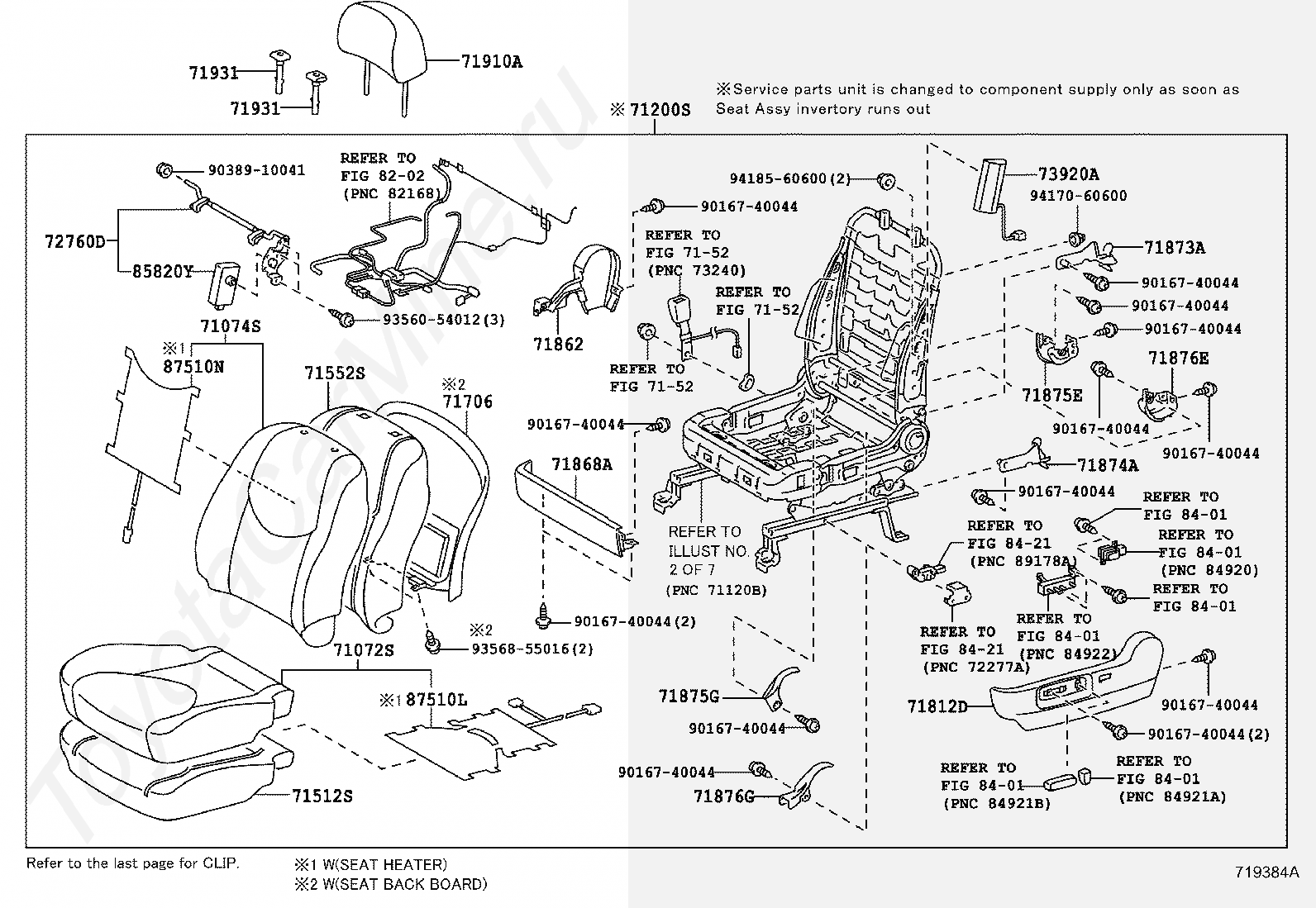

Кресла TOYOTA RAV4 (JPP)

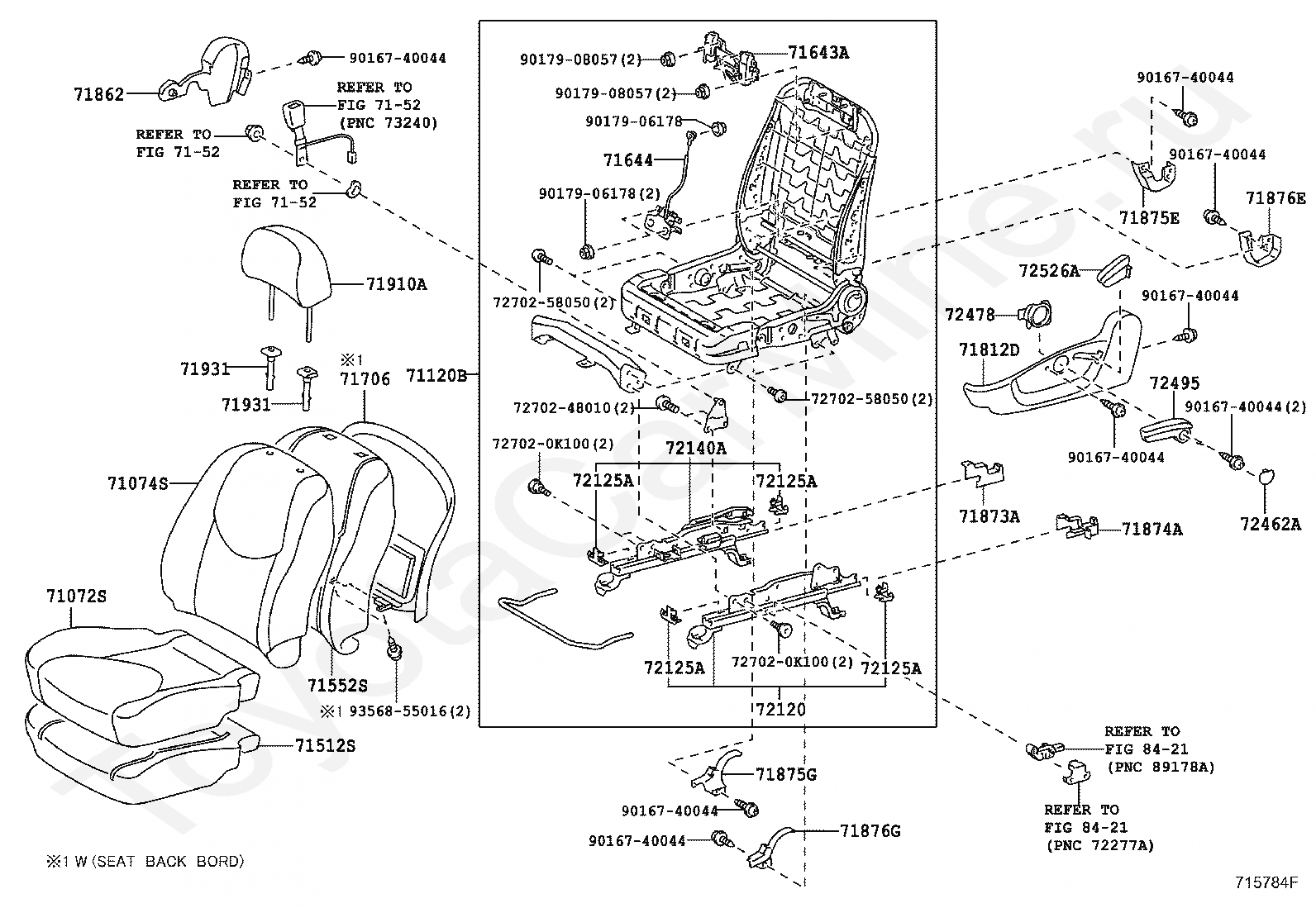

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72462A

COVER, VERTICAL ADJUSTER LH

72478

BUSH, VERTICAL ADJUSTER

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

727020K100

Крепеж

727020K100

Крепеж

7270248010

Крепеж

7270258050

Крепеж

7270258050

Крепеж

8421

переход к группе запчастей

8421

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9017908057

Крепеж

9356855016

Крепеж

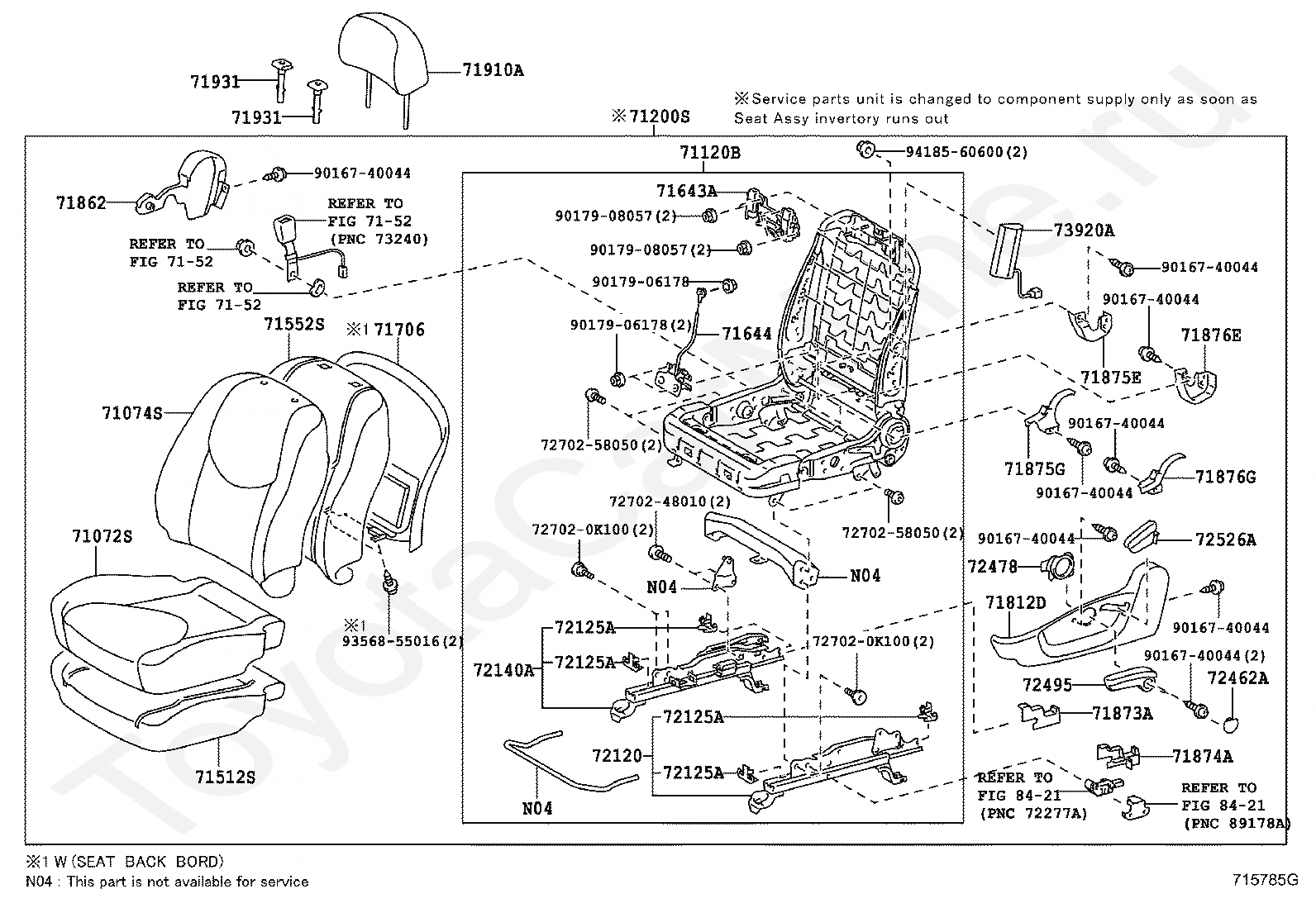

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72462A

COVER, VERTICAL ADJUSTER LH

72478

BUSH, VERTICAL ADJUSTER

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

727020K100

Крепеж

727020K100

Крепеж

7270248010

Крепеж

7270258050

Крепеж

7270258050

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

8421

переход к группе запчастей

8421

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9017908057

Крепеж

9356855016

Крепеж

9418560600

Крепеж

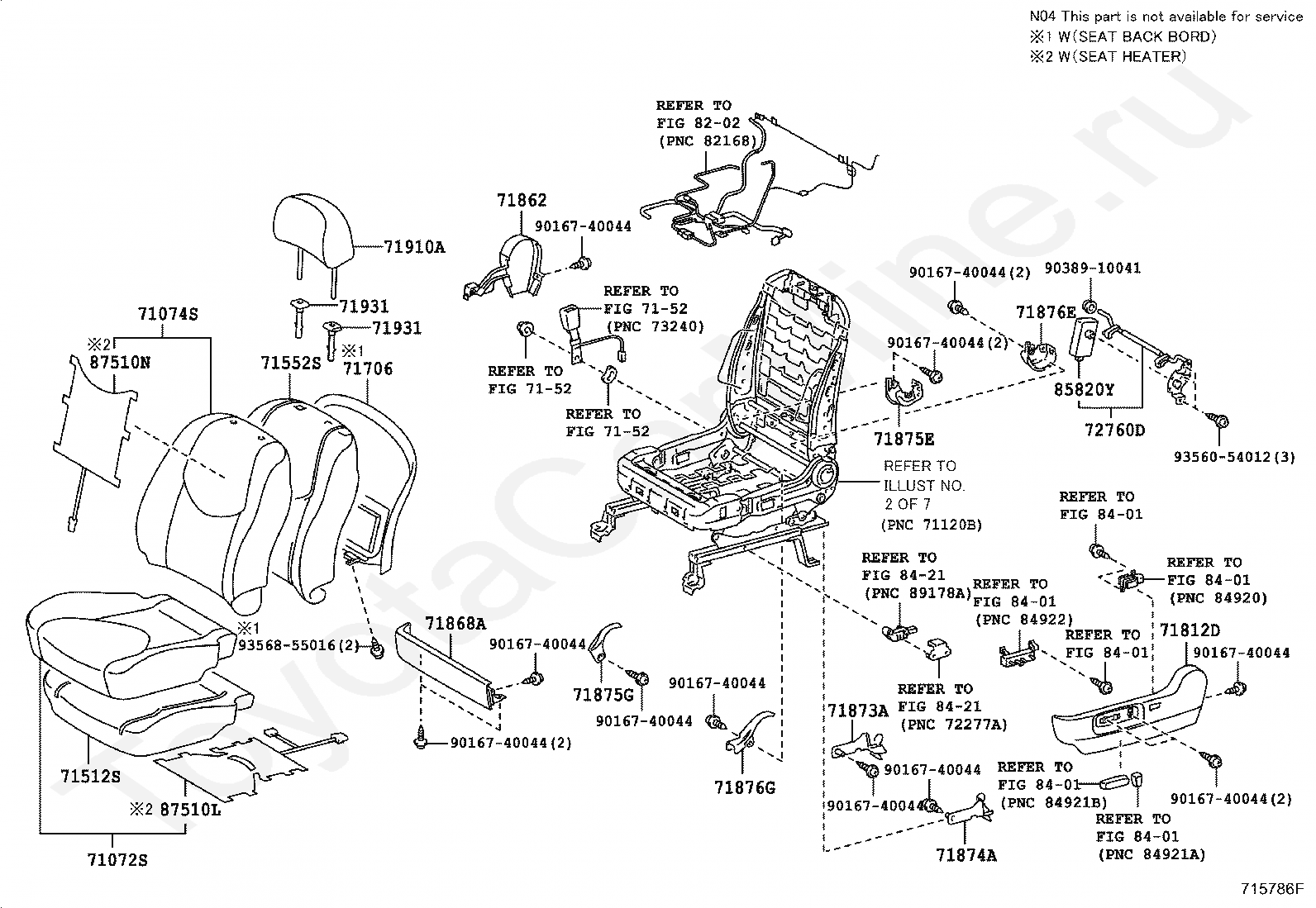

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

85820Y

MOTOR ASSY, POWER SEAT

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038910041

Крепеж

9356054012

Крепеж

9356855016

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

85820Y

MOTOR ASSY, POWER SEAT

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038910041

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9418560600

Крепеж

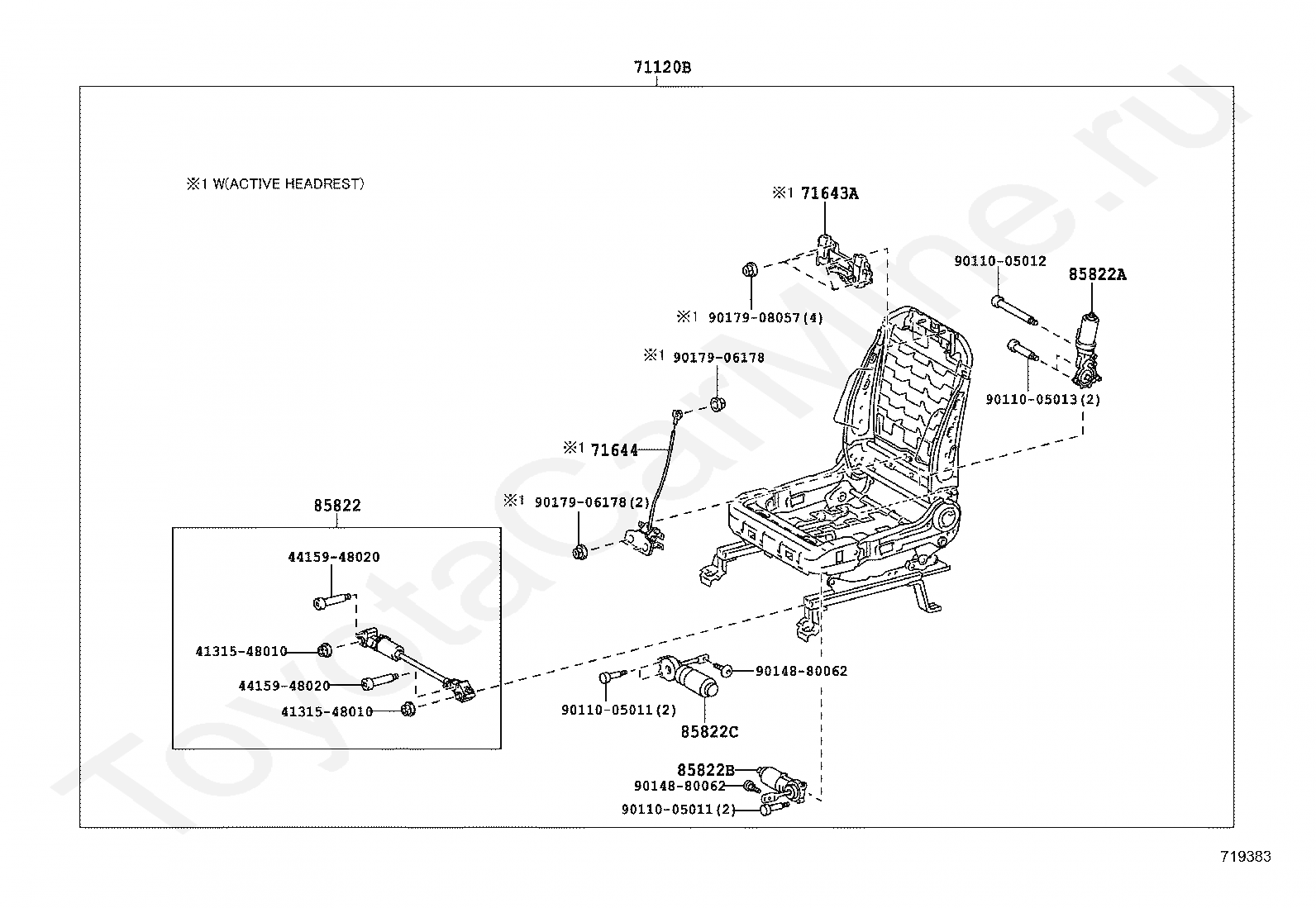

Код

Описание

4131548010

Крепеж

4131548010

Крепеж

4415948020

Крепеж

4415948020

Крепеж

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

85822

MOTOR ASSY, POWER SEAT SLIDE, LH

85822A

MOTOR ASSY, POWER SEAT RECLINING, LH

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

9011005011

Крепеж

9011005011

Крепеж

9011005012

Крепеж

9011005013

Крепеж

9014880062

Крепеж

9014880062

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

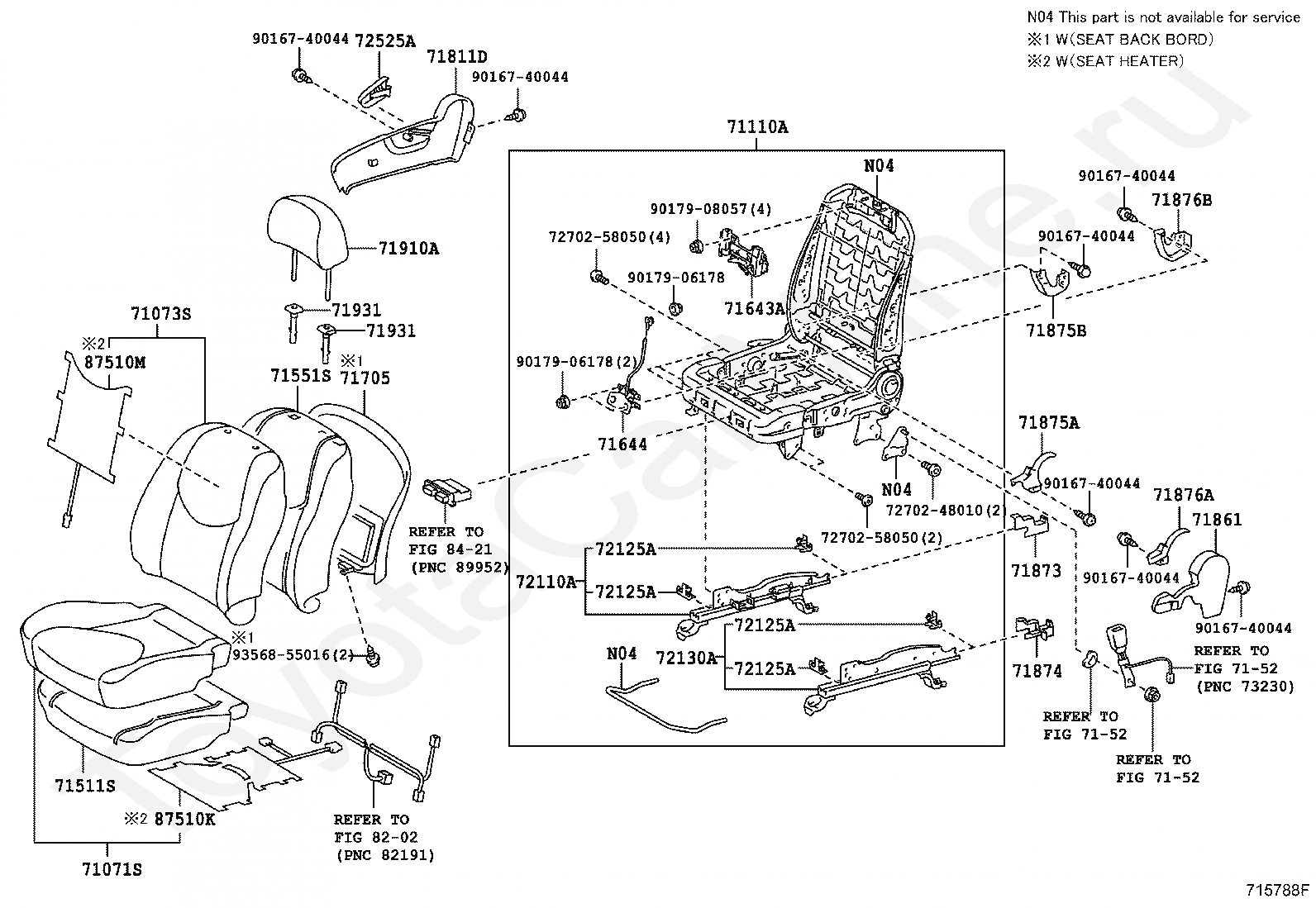

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270248010

Крепеж

7270258050

Крепеж

7270258050

Крепеж

8202

переход к группе запчастей

8421

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9356855016

Крепеж

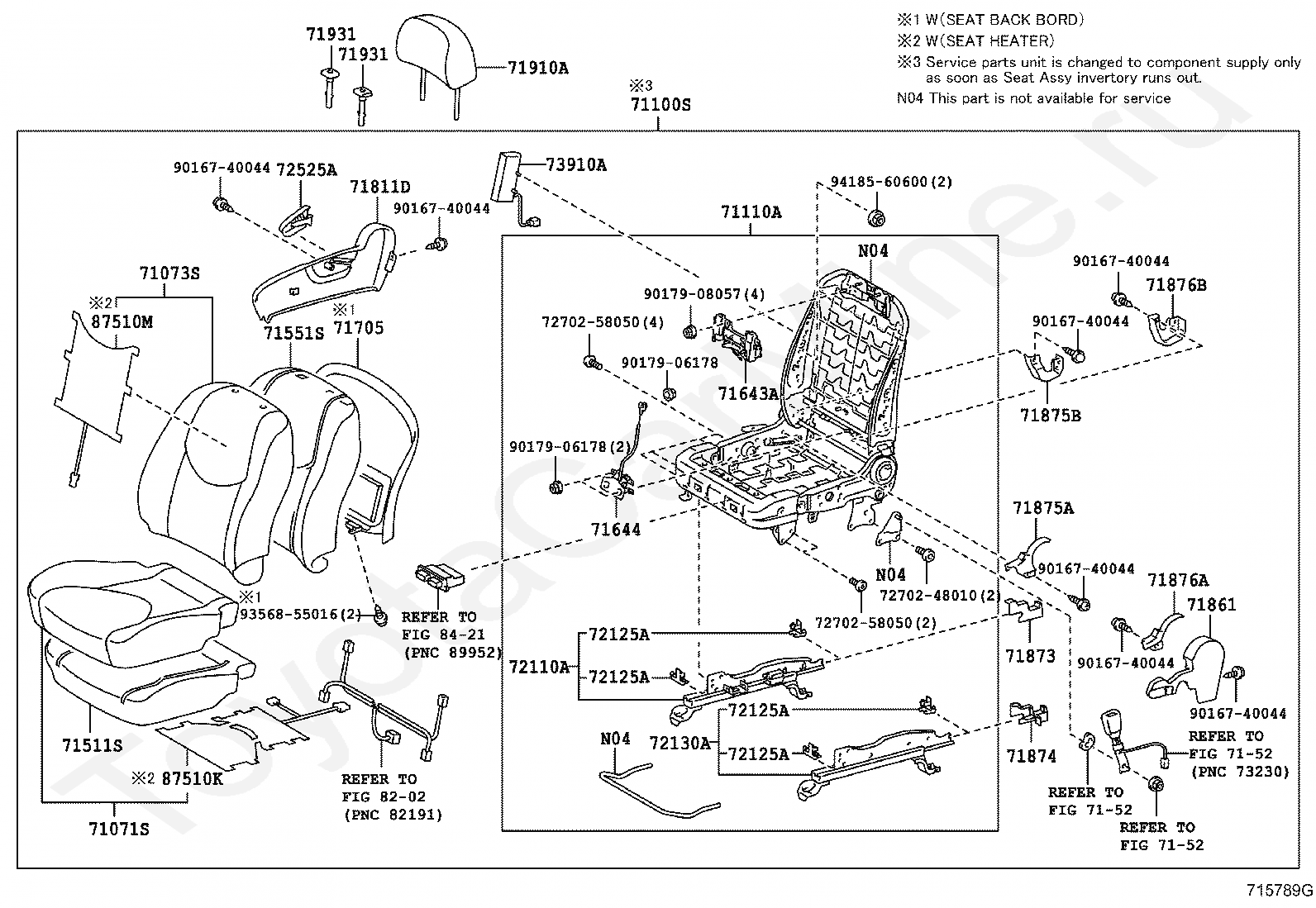

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71643A

UNIT, ACTIVE HEADREST, UPR

71644

UNIT, ACTIVE HEADREST, LWR

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270248010

Крепеж

7270258050

Крепеж

7270258050

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8421

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017908057

Крепеж

9356855016

Крепеж

9418560600

Крепеж

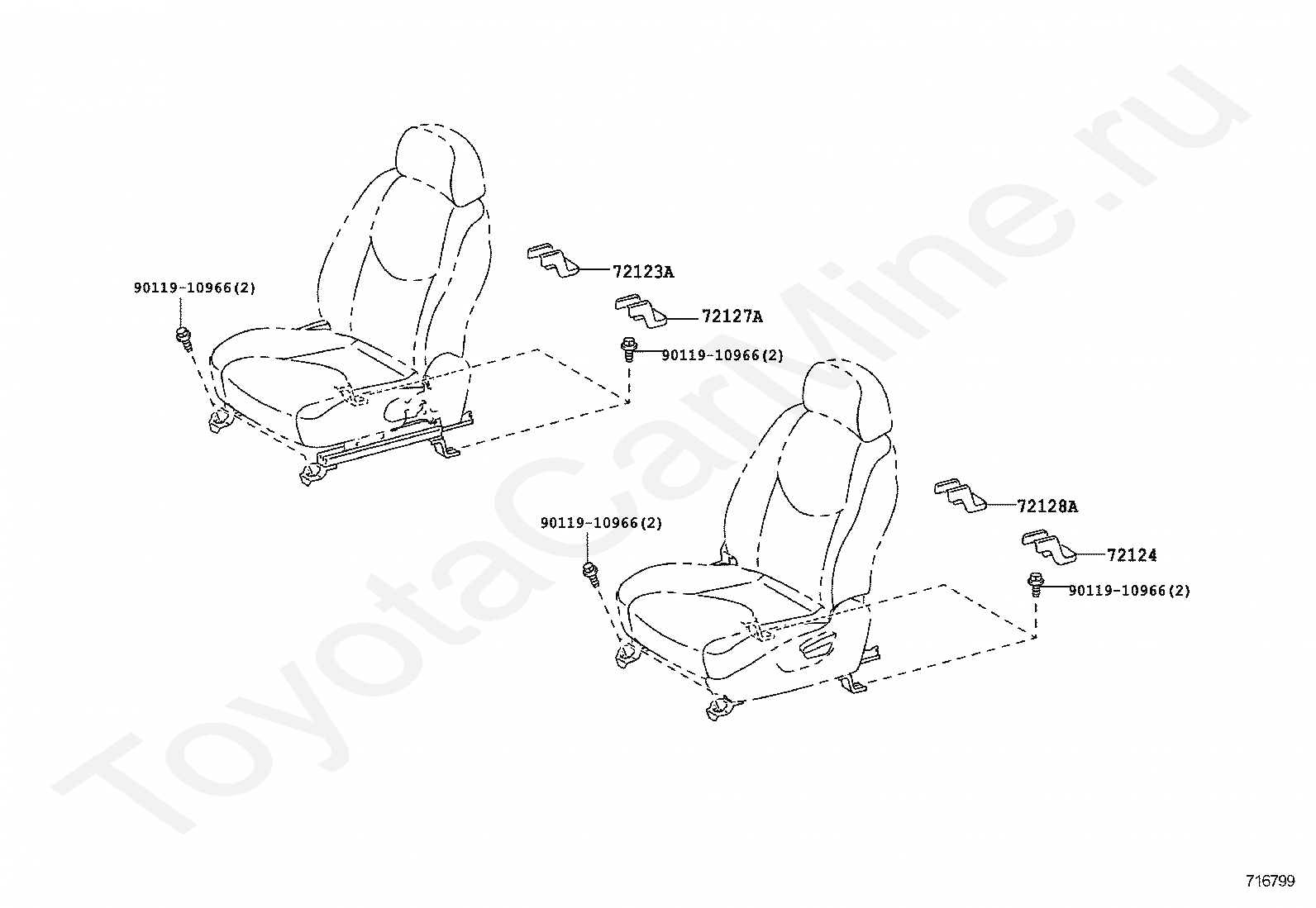

Код

Описание

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

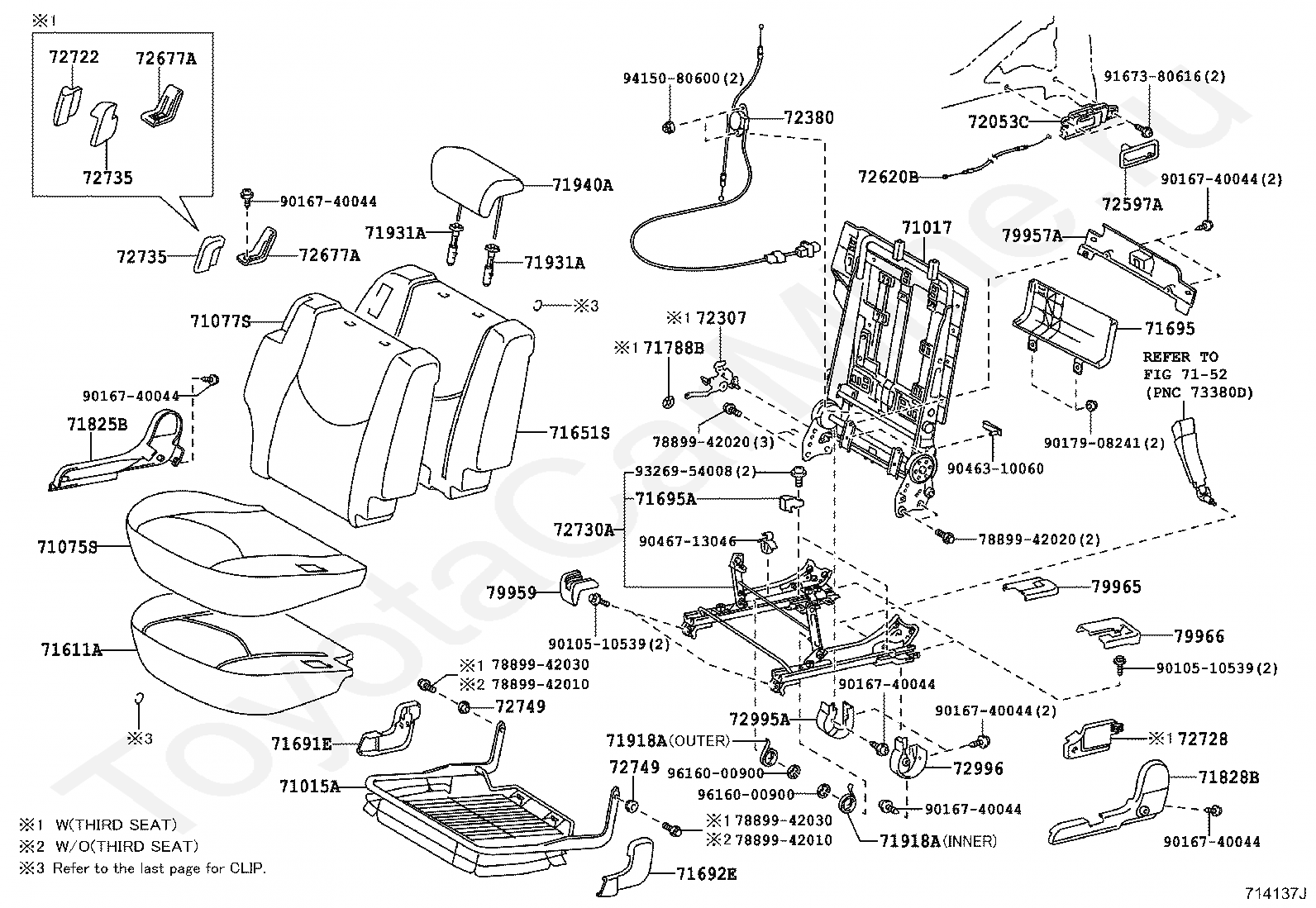

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71695

PROTECTOR, REAR SEAT BACK

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71918A

SPRING, CENTER SEAT CUSHION CATCH

71918A

SPRING, CENTER SEAT CUSHION CATCH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72053C

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72597A

BEZEL, RECLINING REMOTE CONTROL LEVER, RH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72677A

BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH

72677A

BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH

72722

LEVER, REAR SEAT RECLINING CONTROL

72728

PROTECTOR, REAR SEAT RECLINING, INNER RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72735

LEVER, REAR SEAT RECLINING RELEASE

72735

LEVER, REAR SEAT RECLINING RELEASE

72749

SPACER, REAR SEAT RECLINING

72749

SPACER, REAR SEAT RECLINING

72995A

COVER, REAR SEAT

72996

COVER, REAR SEAT BACK, RH

7889942010

Крепеж

7889942010

Крепеж

7889942020

Крепеж

7889942020

Крепеж

7889942030

Крепеж

7889942030

Крепеж

79957A

COVER, REAR SEAT REAR BRACKET, RH

79959

COVER, RR SEAT LEG

79965

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

9010510539

Крепеж

9010510539

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908241

Крепеж

9046310060

Крепеж

9046713046

Крепеж

9167380616

Крепеж

9326954008

Крепеж

9415080600

Крепеж

9616000900

Крепеж

9616000900

Крепеж

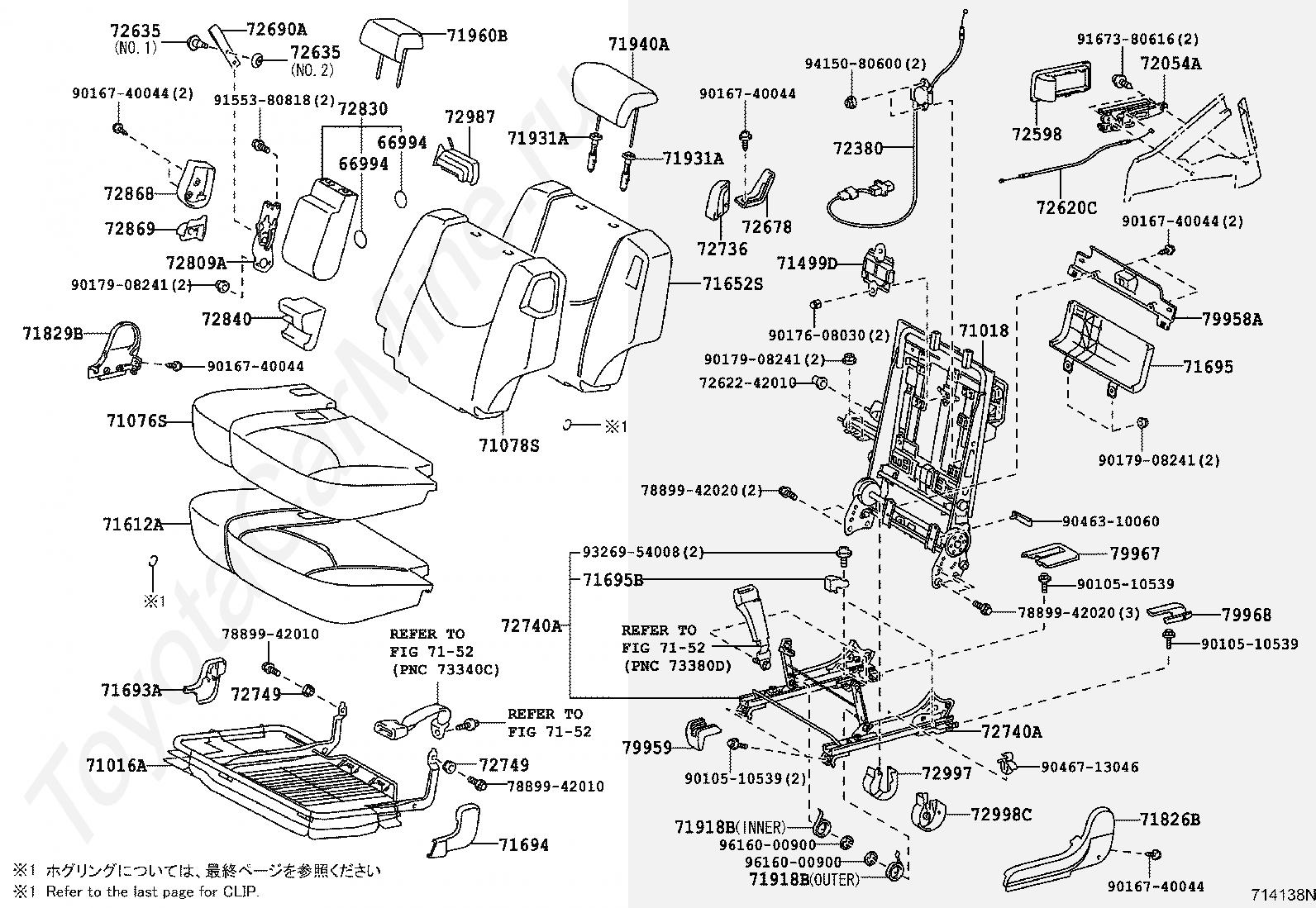

Код

Описание

66994

COVER, CUP HOLDER

66994

COVER, CUP HOLDER

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71499D

DAMPER, REAR SEAT BACK SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71695

PROTECTOR, REAR SEAT BACK

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71918B

SPRING, CENTER SEAT CUSHION CATCH, NO.2

71918B

SPRING, CENTER SEAT CUSHION CATCH, NO.2

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72054A

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72598

BEZEL, RECLINING REMOTE CONTROL LEVER, LH

72620C

CABLE ASSY, REAR NO.1 SEAT LOCK

7262242010

Крепеж

72635

HOOK, REAR SEAT BACK LOCK

72635

HOOK, REAR SEAT BACK LOCK

72678

BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

72736

LEVER, REAR SEAT RECLINING RELEASE, LH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72749

SPACER, REAR SEAT RECLINING

72749

SPACER, REAR SEAT RECLINING

72809A

LOCK SUB-ASSY, CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72868

COVER, CENTER ARMREST HINGE, RH

72869

COVER, CENTER ARMREST HINGE, LH

72987

COVER, REAR SEAT CENTER ARMREST

72997

COVER, REAR SEAT BACK, LH

72998C

COVER, REAR SEAT, LH

7889942010

Крепеж

7889942010

Крепеж

7889942020

Крепеж

7889942020

Крепеж

79958A

COVER, REAR SEAT REAR BRACKET, LH

79959

COVER, RR SEAT LEG

79967

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

9010510539

Крепеж

9010510539

Крепеж

9010510539

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608030

Крепеж

9017908241

Крепеж

9017908241

Крепеж

9017908241

Крепеж

9046310060

Крепеж

9046713046

Крепеж

9155380818

Крепеж

9167380616

Крепеж

9326954008

Крепеж

9415080600

Крепеж

9616000900

Крепеж

9616000900

Крепеж

Код

Описание

71208A

WIRE SUB-ASSY, REAR SEAT CUSHION

7152

переход к группе запчастей

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71695C

PROTECTOR, REAR SEAT, NO.1

71696

PROTECTOR, REAR SEAT, NO.2

71696C

CLIP, REAR SEAT PROTECTOR

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72690D

LEVER ASSY, SEAT CUSHION LOCK RELEASE, NO.1

72690E

LEVER ASSY, SEAT CUSHION LOCK RELEASE, NO.2

7270242020

Крепеж

72905

LINK SUB-ASSY, 3RD SEAT, RH

72906

LINK SUB-ASSY, 3RD SEAT, LH

76519A

CLIP, REAR SEAT CUSHION COVER

78890

CABLE ASSY, SUB SEAT LOCK CONTROL

78890

CABLE ASSY, SUB SEAT LOCK CONTROL

78890

CABLE ASSY, SUB SEAT LOCK CONTROL

78890

CABLE ASSY, SUB SEAT LOCK CONTROL

78890A

CABLE ASSY, SUB-SEAT LOCK CONTROL

78890B

CABLE ASSY, SUB-SEAT LOCK CONTROL

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79235D

PAD, NO.2 SEAT CUSHION, RH

79236A

COVER, NO.2 SEAT LEG

79245C

PAD, NO.2 SEAT CUSHION, LH

79246B

COVER, NO.2 SEAT LEG, B

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

79997

PROTECTOR, SEAT LEG BOX, NO.1

79998

PROTECTOR, SEAT LEG BOX, NO.2

9010510535

Крепеж

9010510535

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046816019

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9415080800

Крепеж

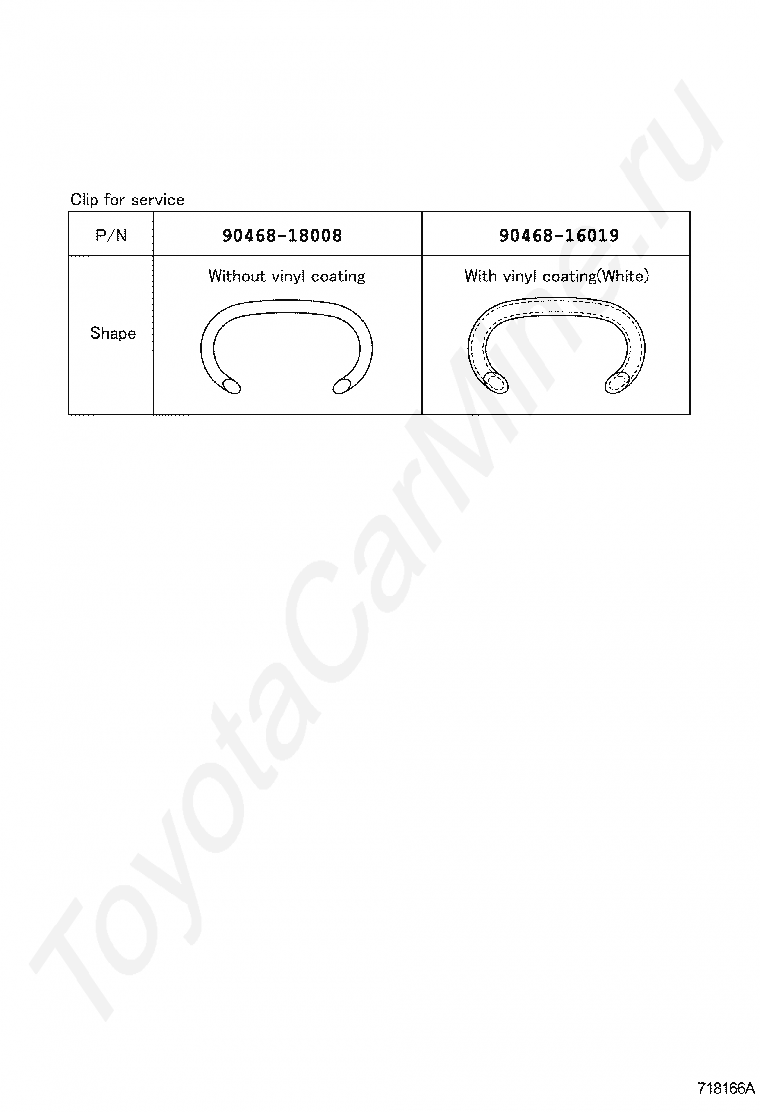

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти RAV4 > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
