Каталог

Америка

Модель

RAV4 (JPP)

VIN

Дата

2008/08

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Класс

LIMITED TYPE

Фрейм

ASA33

КПП

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT Канада 426W

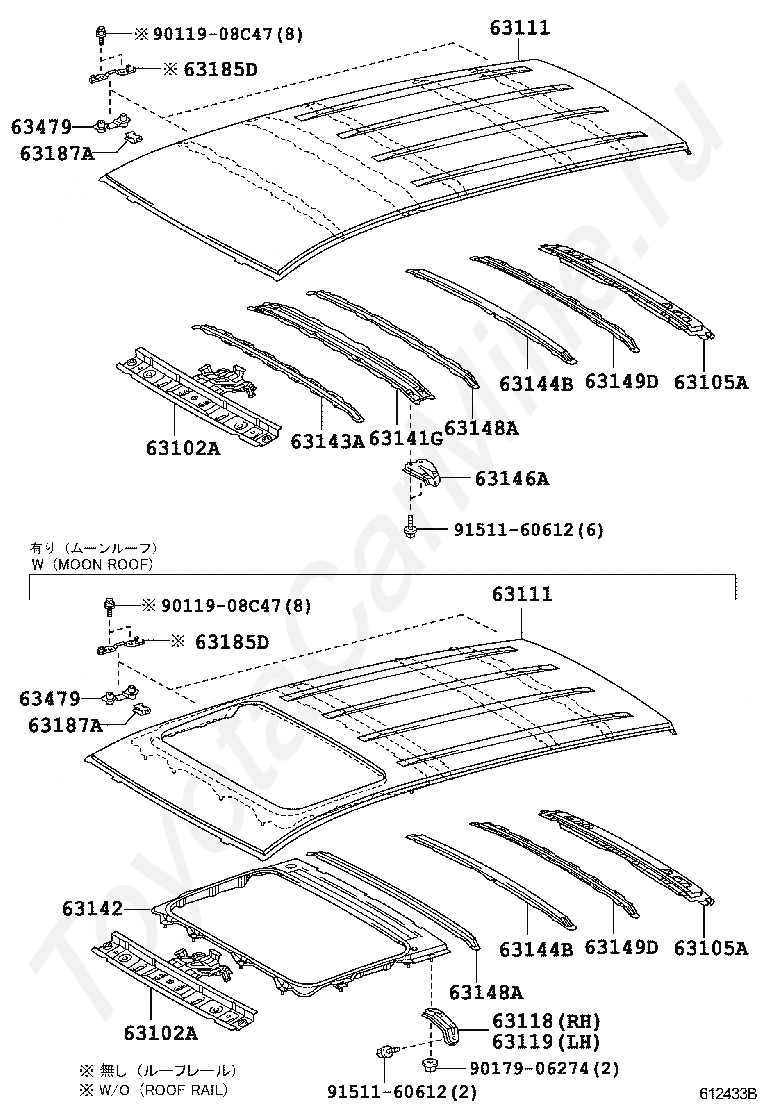

ROOF PANEL & BACK PANEL TOYOTA RAV4 (JPP)

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63111

PANEL, ROOF

63118

SUPPORT, ROOF PANEL, RH

63119

SUPPORT, ROOF PANEL, LH

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63143A

REINFORCEMENT, ROOF PANEL

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63146A

BRACKET, ROOF PANEL REINFORCEMENT, NO.1

63148A

REINFORCEMENT, ROOF PANEL, NO.7

63148A

REINFORCEMENT, ROOF PANEL, NO.7

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63185D

BRACKET, ROOF RACK, FRONT

63185D

BRACKET, ROOF RACK, FRONT

63187A

BRACKET, ROOF RACK, REAR

63187A

BRACKET, ROOF RACK, REAR

63479

RETAINER, ROOF INNER RACK

63479

RETAINER, ROOF INNER RACK

9011908C47

Крепеж

9011908C47

Крепеж

9017906274

Крепеж

9151160612

Крепеж

9151160612

Крепеж

Код

Описание

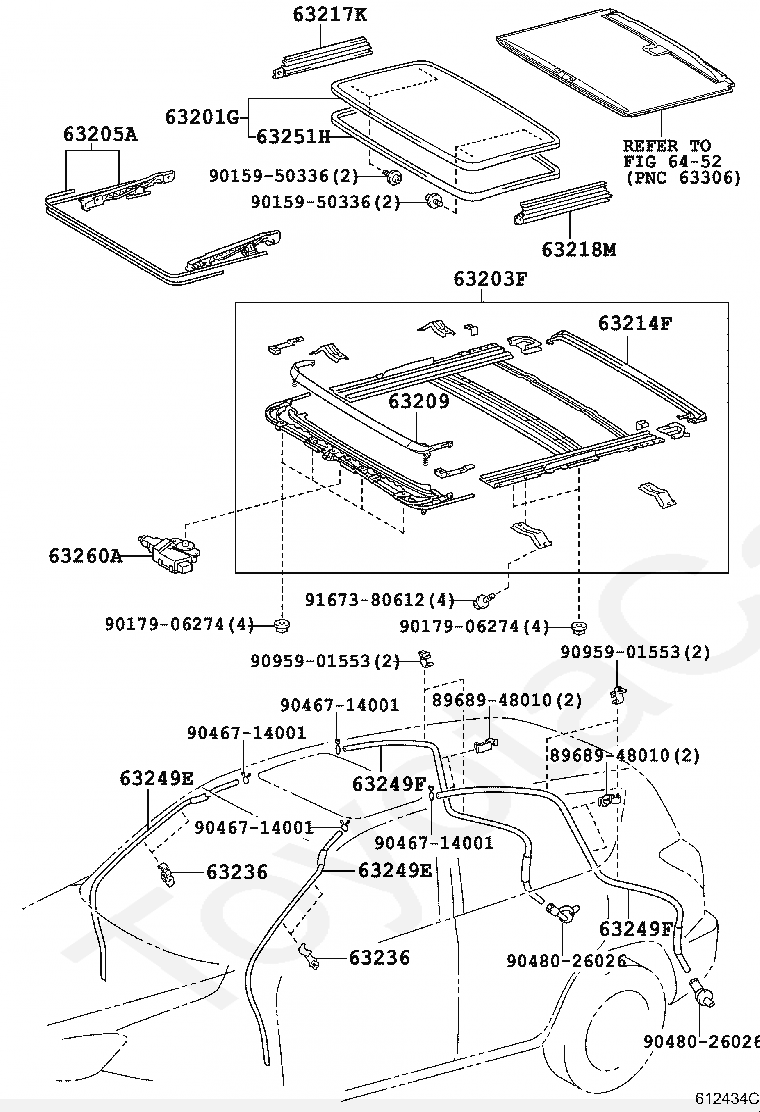

63201G

GLASS SUB-ASSY, SLIDING ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63205A

CABLE SUB-ASSY, SLIDING ROOF DRIVE

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63214F

CHANNEL, ROOF DRIP, REAR

63217K

GARNISH, SLIDING ROOF SIDE, RH

63218M

GARNISH, SLIDING ROOF SIDE, LH

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63249E

HOSE, SLIDING ROOF DRAIN

63249E

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63251H

WEATHERSTRIP, SLIDING ROOF

63260A

GEAR SUB-ASSY, SLIDING ROOF DRIVE

6452

переход к группе запчастей

8968948010

Крепеж

8968948010

Крепеж

9015950336

Крепеж

9015950336

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9048026026

Крепеж

9048026026

Крепеж

9095901553

Крепеж

9095901553

Крепеж

9167380612

Крепеж

Код

Описание

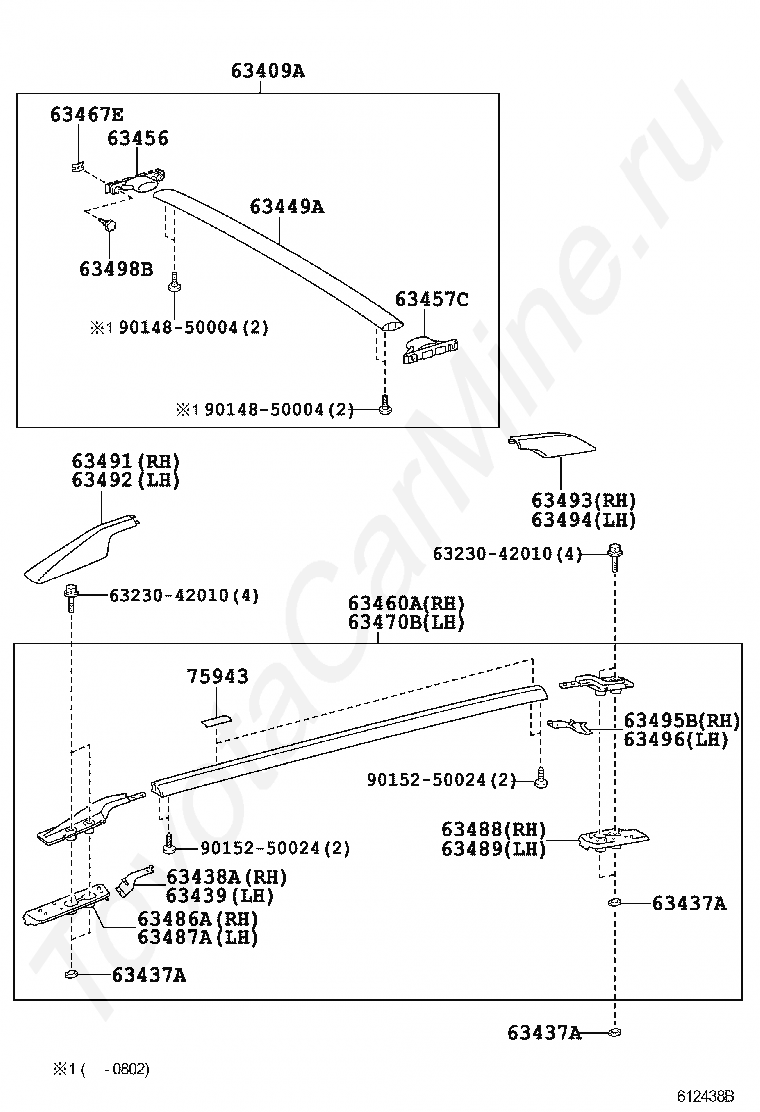

6323042010

Крепеж

6323042010

Крепеж

63409A

SUPPORT SUB-ASSY, ROOF RACK, CENTER

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63438A

COVER, ROOF RACK END, NO.1

63439

COVER, ROOF RACK END, NO.2

63449A

BAR, ROOF RACK, FRONT

63456

JOINT, ROOF RACK BAR

63457C

JOINT, ROOF RACK BAR, NO.2

63460A

RACK ASSY, ROOF, RH

63467E

PLATE, ROOF RACK, REAR

63470B

RACK ASSY, ROOF, LH

63486A

CUSHION, ROOF RACK LEG, FRONT RH

63487A

CUSHION, ROOF RACK LEG, FRONT LH

63488

CUSHION, ROOF RACK LEG, REAR RH

63489

CUSHION, ROOF RACK LEG, REAR LH

63491

COVER, ROOF RACK LEG, FRONT RH

63492

COVER, ROOF RACK LEG, FRONT LH

63493

COVER, ROOF RACK LEG, REAR RH

63494

COVER, ROOF RACK LEG, REAR LH

63495B

COVER, ROOF RACK LEG, CENTER RH

63496

COVER, ROOF RACK LEG, CENTER LH

63498B

CAP, ROOF CARRIER

75943

STRIPE, ROOF

9014850004

Крепеж

9014850004

Крепеж

9015250024

Крепеж

9015250024

Крепеж
