Ближний Восток

Модель

RAV4

VIN

Дата

1994/04

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

HARD TOP SERIES

Фрейм

SXA10

КПП

механика

Опции

правый руль Австралия 3 двери

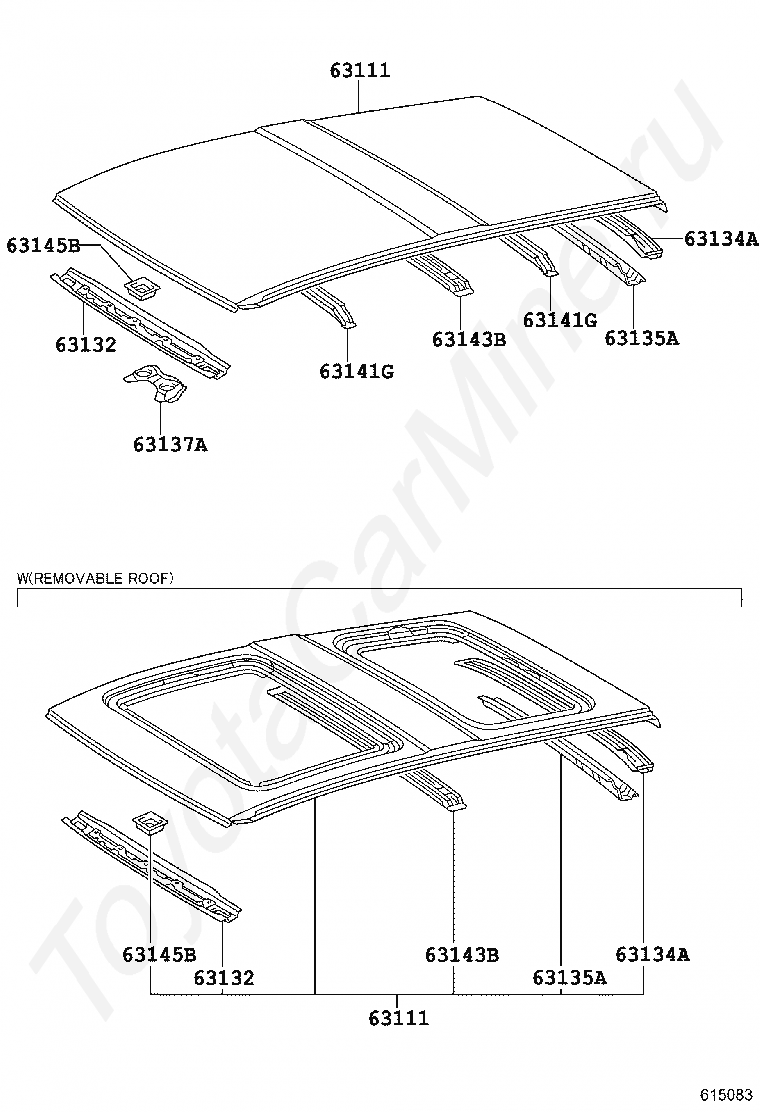

ROOF PANEL & BACK PANEL TOYOTA RAV4







Код

Описание

63111

PANEL, ROOF

63111

PANEL, ROOF

63132

PANEL, WINDSHIELD HEADER, INNER

63132

PANEL, WINDSHIELD HEADER, INNER

63134A

FRAME, BACK DOOR OPENING, UPPER

63134A

FRAME, BACK DOOR OPENING, UPPER

63135A

FRAME, BACK DOOR OPENING, LOWER

63135A

FRAME, BACK DOOR OPENING, LOWER

63137A

BRACKET, DOME LAMP, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63145B

REINFORCEMENT, WINDSHIELD HEADER PANEL

63145B

REINFORCEMENT, WINDSHIELD HEADER PANEL

Код

Описание

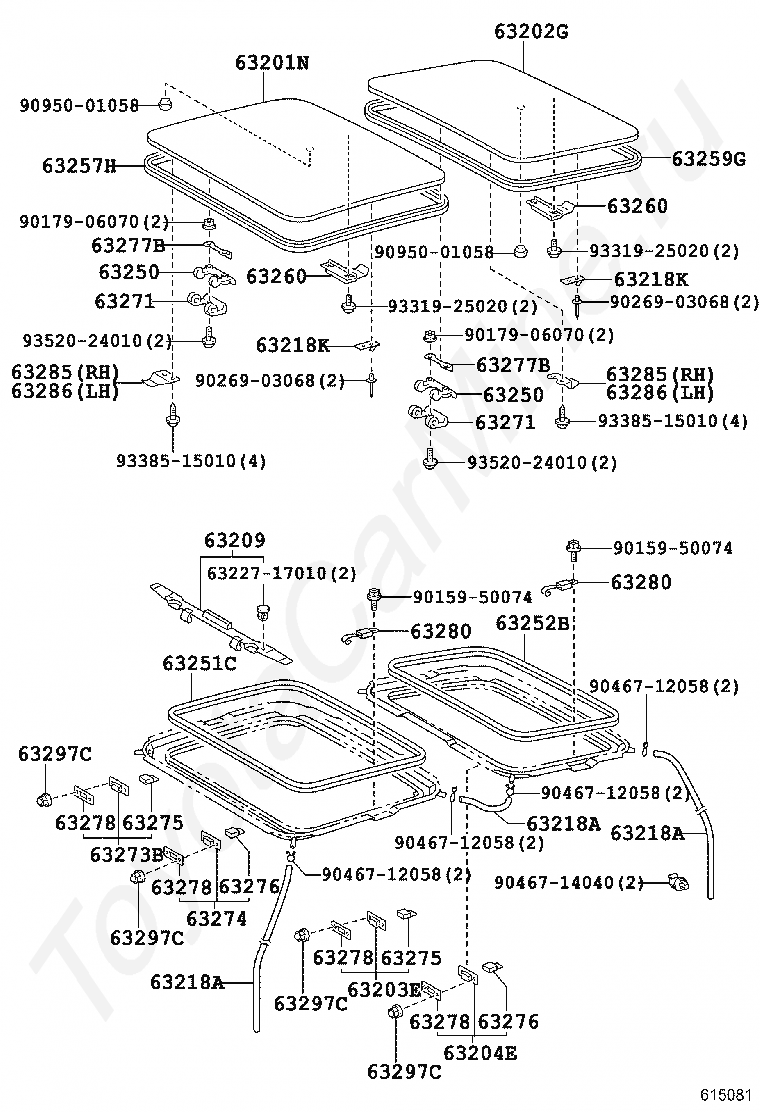

63201N

PANEL SUB-ASSY, REMOVABLE ROOF

63202G

PANEL SUB-ASSY, SLIDE ROOF, REAR

63203E

LOCK SUB-ASSY, REMOVABLE ROOF, RH

63204E

LOCK SUB-ASSY, REMOVABLE ROOF, LH

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63218A

HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

63218A

HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

63218A

HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

63218K

HOOK, REMOVABLE ROOF AUXILIARY

63218K

HOOK, REMOVABLE ROOF AUXILIARY

6322717010

Крепеж

63250

BASE ASSY, REMOVABLE ROOF LOCK

63250

BASE ASSY, REMOVABLE ROOF LOCK

63251C

WEATHERSTRIP, REMOVABLE ROOF

63252B

WEATHERSTRIP, REMOVABLE ROOF, REAR

63257H

SEAL, REMOVABLE ROOF

63259G

SEAL, REMOVABLE ROOF, NO.2

63260

HANDLE ASSY, REMOVABLE ROOF LOCK

63260

HANDLE ASSY, REMOVABLE ROOF LOCK

63271

GARNISH, REMOVABLE ROOF LOCK

63271

GARNISH, REMOVABLE ROOF LOCK

63273B

RETAINER, ROOF WINDOW HINGE

63274

CASE, REMOVABLE ROOF HINGE, LH

63275

HOLDER, REMOVABLE ROOF HINGE, RH

63275

HOLDER, REMOVABLE ROOF HINGE, RH

63276

HOLDER, REMOVABLE ROOF HINGE, LH

63276

HOLDER, REMOVABLE ROOF HINGE, LH

63277B

SPACER, REMOVABLE ROOF LOCK BASE

63277B

SPACER, REMOVABLE ROOF LOCK BASE

63278

SEAL, REMOVABLE ROOF HINGE CASE

63278

SEAL, REMOVABLE ROOF HINGE CASE

63278

SEAL, REMOVABLE ROOF HINGE CASE

63278

SEAL, REMOVABLE ROOF HINGE CASE

63280

CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH

63280

CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH

63285

HINGE, REMOVABLE ROOF, RH

63285

HINGE, REMOVABLE ROOF, RH

63286

HINGE, REMOVABLE ROOF, LH

63286

HINGE, REMOVABLE ROOF, LH

63297C

BOLT, REMOVABLE ROOF HINGE CASE

63297C

BOLT, REMOVABLE ROOF HINGE CASE

63297C

BOLT, REMOVABLE ROOF HINGE CASE

63297C

BOLT, REMOVABLE ROOF HINGE CASE

9015950074

Крепеж

9015950074

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9026903068

Крепеж

9026903068

Крепеж

9046712058

Крепеж

9046712058

Крепеж

9046712058

Крепеж

9046712058

Крепеж

9046714040

Крепеж

9095001058

Крепеж

9095001058

Крепеж

9331925020

Крепеж

9331925020

Крепеж

9338515010

Крепеж

9338515010

Крепеж

9352024010

Крепеж

9352024010

Крепеж

Код

Описание

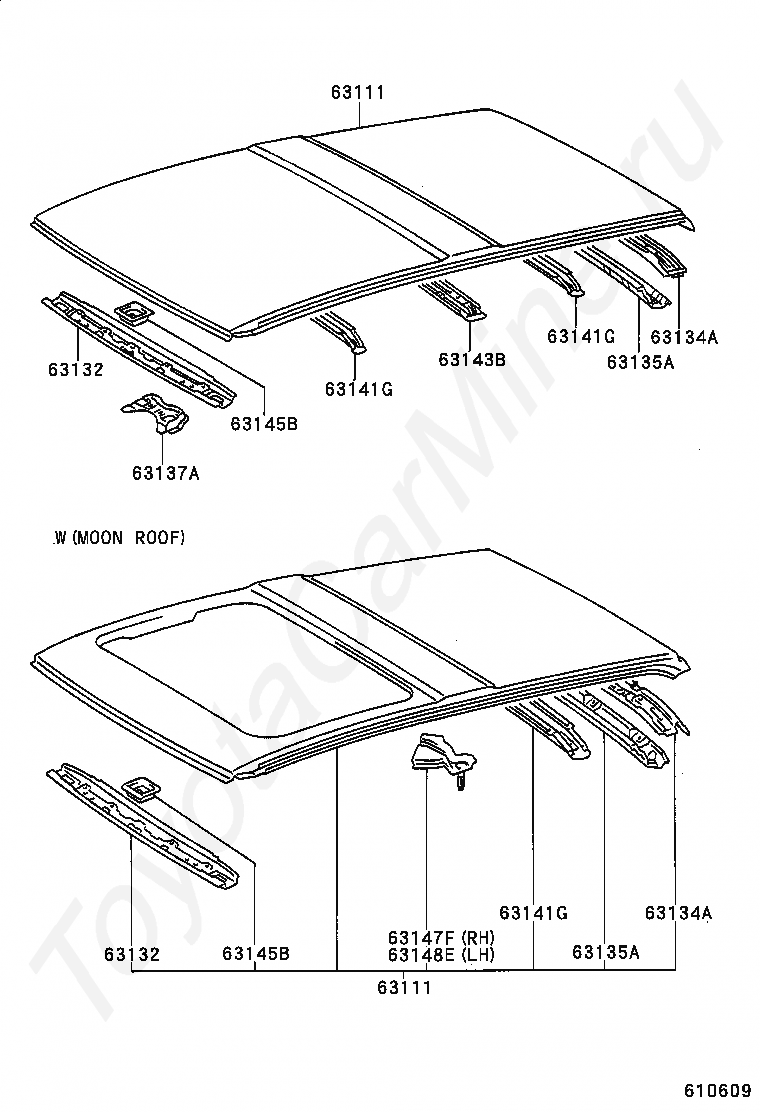

63111

PANEL, ROOF

63111

PANEL, ROOF

63132

PANEL, WINDSHIELD HEADER, INNER

63132

PANEL, WINDSHIELD HEADER, INNER

63134A

FRAME, BACK DOOR OPENING, UPPER

63134A

FRAME, BACK DOOR OPENING, UPPER

63135A

FRAME, BACK DOOR OPENING, LOWER

63135A

FRAME, BACK DOOR OPENING, LOWER

63137A

BRACKET, DOME LAMP, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63145B

REINFORCEMENT, WINDSHIELD HEADER PANEL

63145B

REINFORCEMENT, WINDSHIELD HEADER PANEL

63147F

BRACKET, ROOF PANEL REINFORCEMENT, RH

63148E

BRACKET, ROOF PANEL REINFORCEMENT, LH

Код

Описание

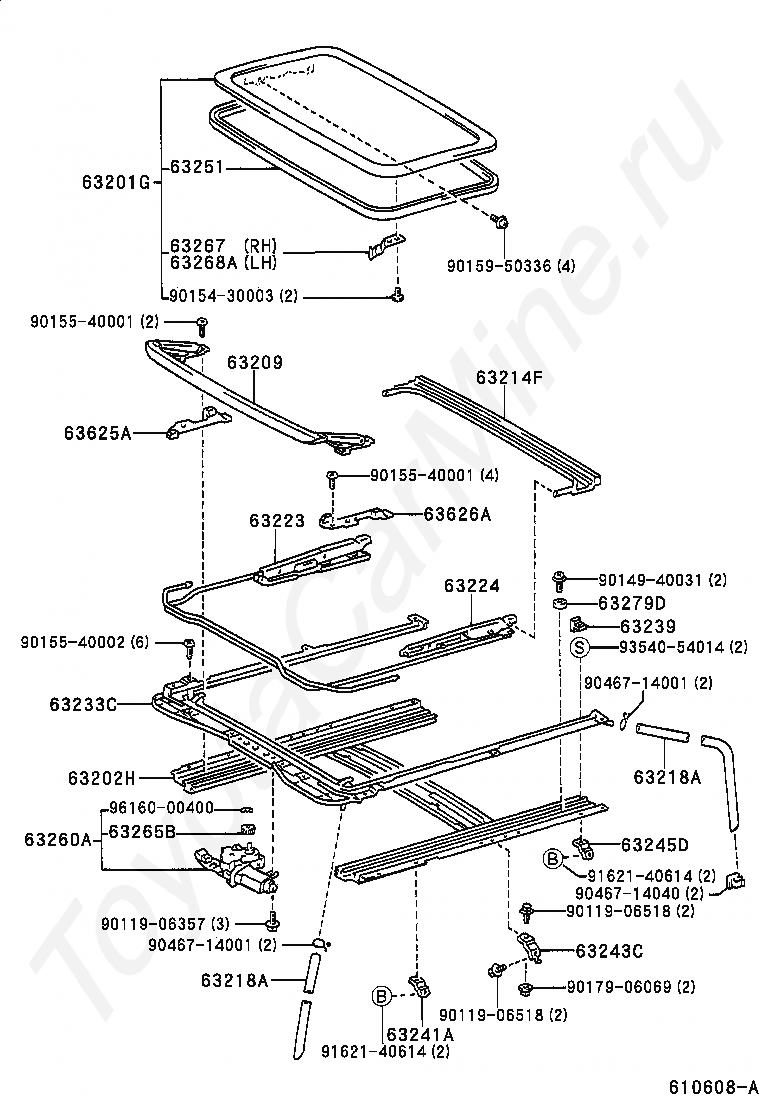

63201G

GLASS SUB-ASSY, SLIDING ROOF

63202H

RAIL SUB-ASSY, SLIDE ROOF

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63214F

CHANNEL, ROOF DRIP, REAR

63218A

HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

63218A

HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

63223

CABLE, SLIDING ROOF DRIVE, RH

63224

CABLE, SLIDING ROOF DRIVE, LH

63233C

PANEL, SLIDING ROOF HOUSING

63239

STOPPER, SLIDING ROOF PANEL

63241A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH

63243C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

63245D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH

63251

WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF

63260A

GEAR SUB-ASSY, SLIDING ROOF DRIVE

63265B

GEAR, SLIDING ROOF DRIVE

63267

PROTECTOR, SLIDING ROOF WEATHERSTRIP

63268A

PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH

63279D

STOPPER, SLIDING ROOF GUIDE RAIL

63625A

BLOCK, SLIDING ROOF GUIDE, RH

63626A

BLOCK, SLIDING ROOF GUIDE, LH

9011906357

Крепеж

9011906518

Крепеж

9011906518

Крепеж

9014940031

Крепеж

9015430003

Крепеж

9015540001

Крепеж

9015540001

Крепеж

9015540002

Крепеж

9015950336

Крепеж

9017906069

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9046714040

Крепеж

9162140614

Крепеж

9162140614

Крепеж

9354054014

Крепеж

9616000400

Крепеж
