Каталог оригинальных запчастей Тойота РАВ 4

Код

Описание

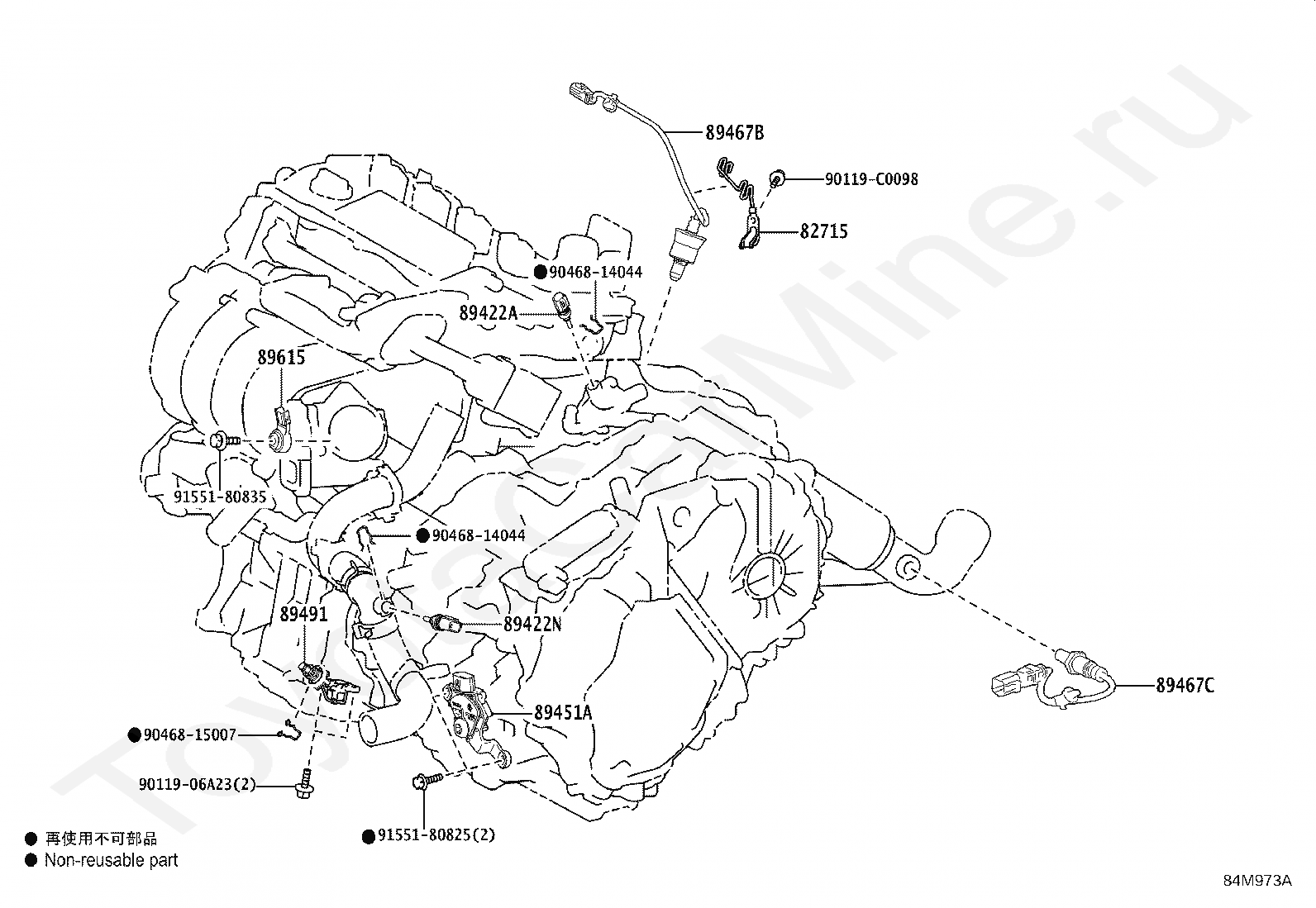

82715

BRACKET,WIRING HARNESS CLAMP

89422A

SENSOR, WATER TEMPERATURE

89422N

SENSOR, WATER TEMPERATURE, NO.2

89451A

SENSOR, SHIFT LEVER POSITION

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9011906A23

Крепеж

90119C0098

Крепеж

9046814044

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180825

Крепеж

9155180835

Крепеж

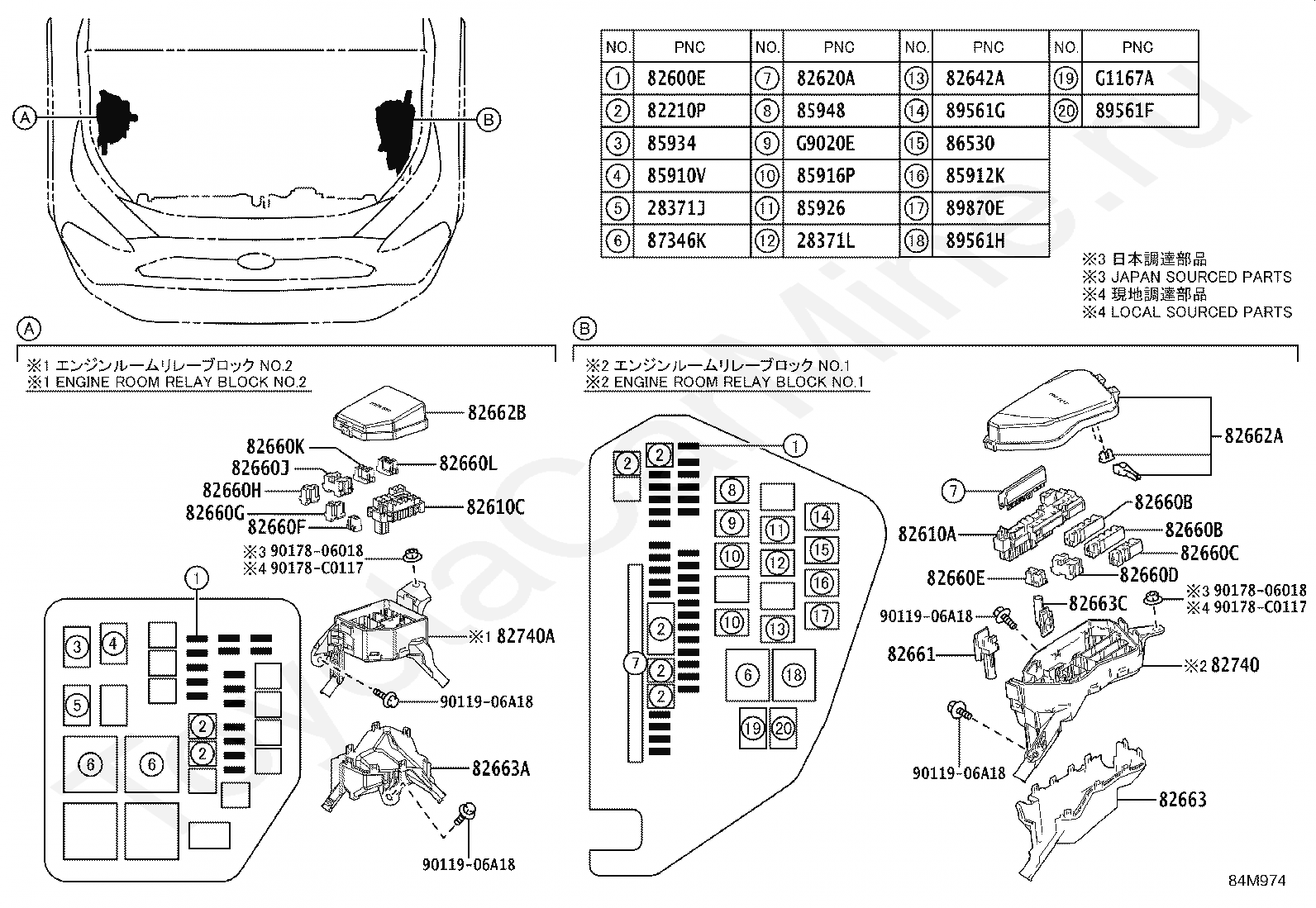

Код

Описание

28371J

RELAY, IGB

28371L

RELAY, IGP

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82642A

RELAY, RUNNING LIGHT

82660B

BLOCK ASSY, RELAY

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82660G

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82660J

BLOCK ASSY, RELAY

82660K

BLOCK ASSY, RELAY

82660L

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663C

COVER, RELAY BLOCK LOWER, NO.4

82740

BLOCK ASSY, ENGINE ROOM RELAY

82740A

BLOCK ASSY, ENGINE ROOM RELAY, NO.2

85910V

RELAY, SEAT HEATER

85912K

RELAY, VVT

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85934

RELAY, MAGNET-CLUTCH

85948

RELAY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

87346K

RELAY, PTC HEATER

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

89870E

RELAY, ELECTRONIC DRIVER UNIT

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9017806018

Крепеж

9017806018

Крепеж

90178C0117

Крепеж

90178C0117

Крепеж

G1167A

RELAY (FOR OIL PUMP MOTOR)

G9020E

RELAY, HYBRID WATER PUMP

Код

Описание

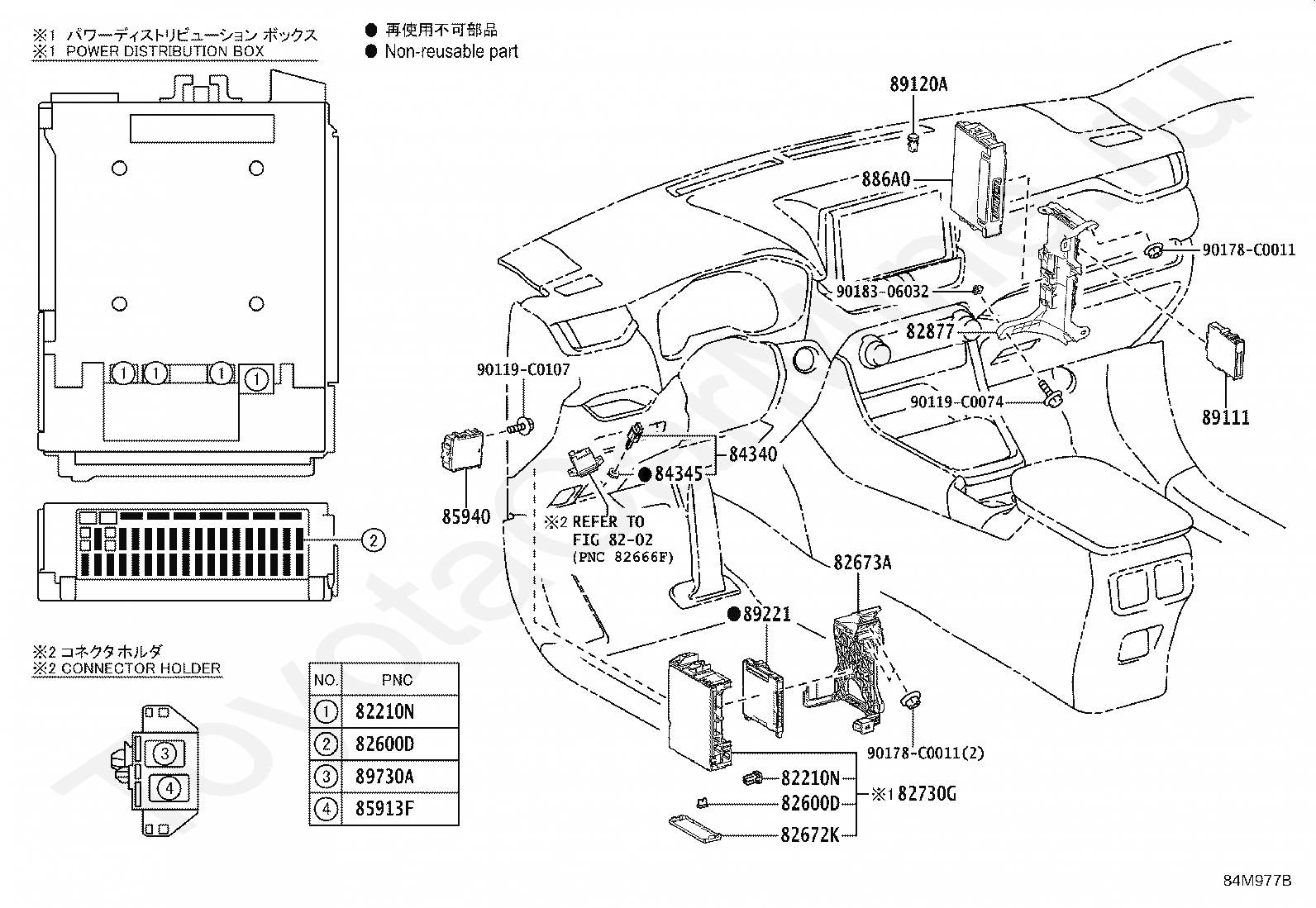

8202

переход к группе запчастей

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672K

COVER, POWER DISTRIBUTION BOX

82673A

BRACKET, JUNCTION BLOCK

82730G

BOX ASSY, POWER DISTRIBUTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85913F

RELAY, STEERING HEATER

85940

RELAY ASSY, WINDSHIELD WIPER

886A0

COMPUTER ASSY, HEAT PUMP

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

90119C0074

Крепеж

90119C0107

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9018306032

Крепеж

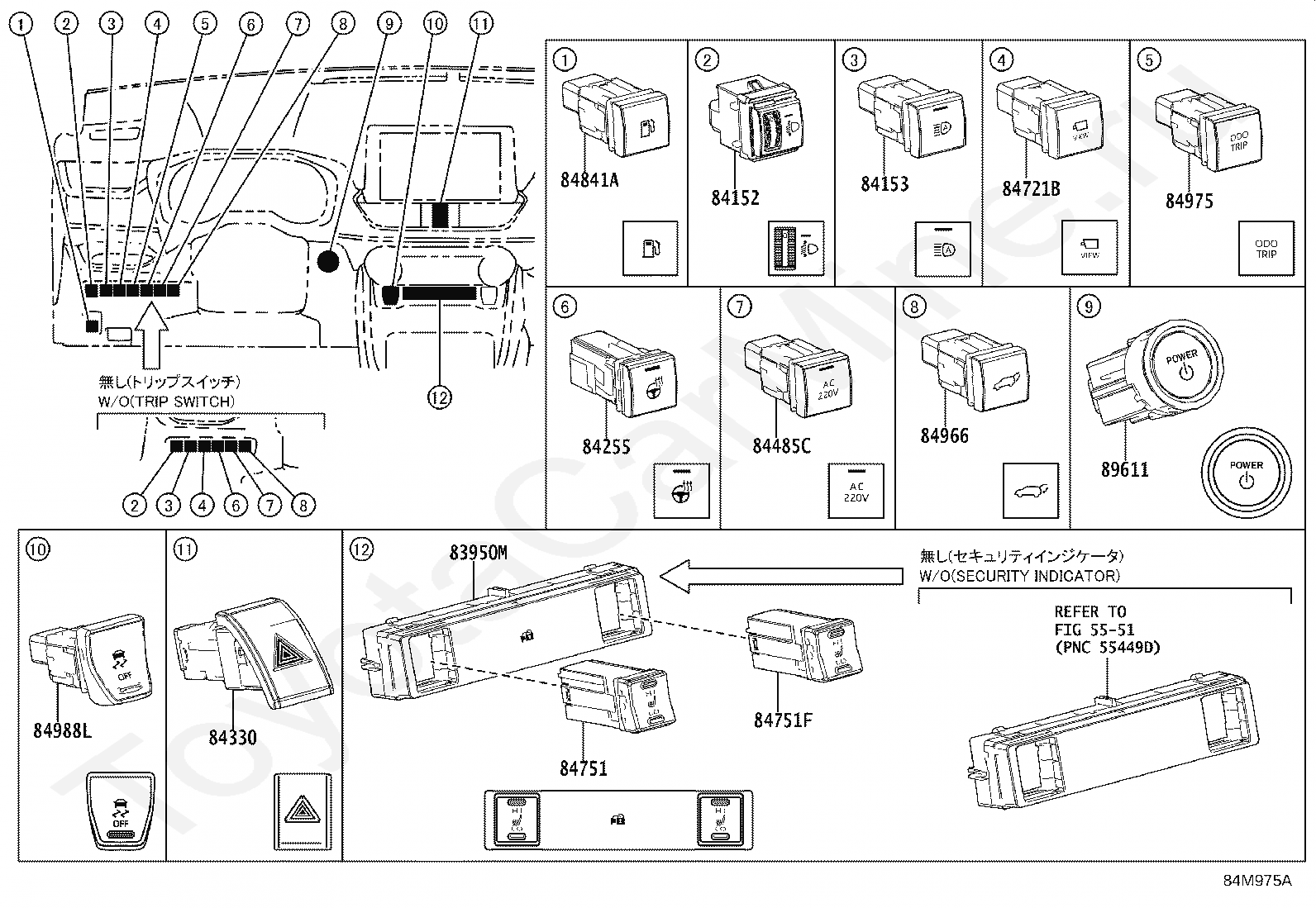

Код

Описание

5551

переход к группе запчастей

83950M

LAMP ASSY, TELLTALE

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84485C

SWITCH, POWER OUTLET

84721B

SWITCH, PANORAMIC VIEW MONITOR

84751

SWITCH, SEAT HEATER

84751F

SWITCH, SEAT HEATER

84841A

SWITCH, FUEL LID OPENER

84966

SWITCH, POWER BACK DOOR CONTROL

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

89611

SWITCH, PUSH START

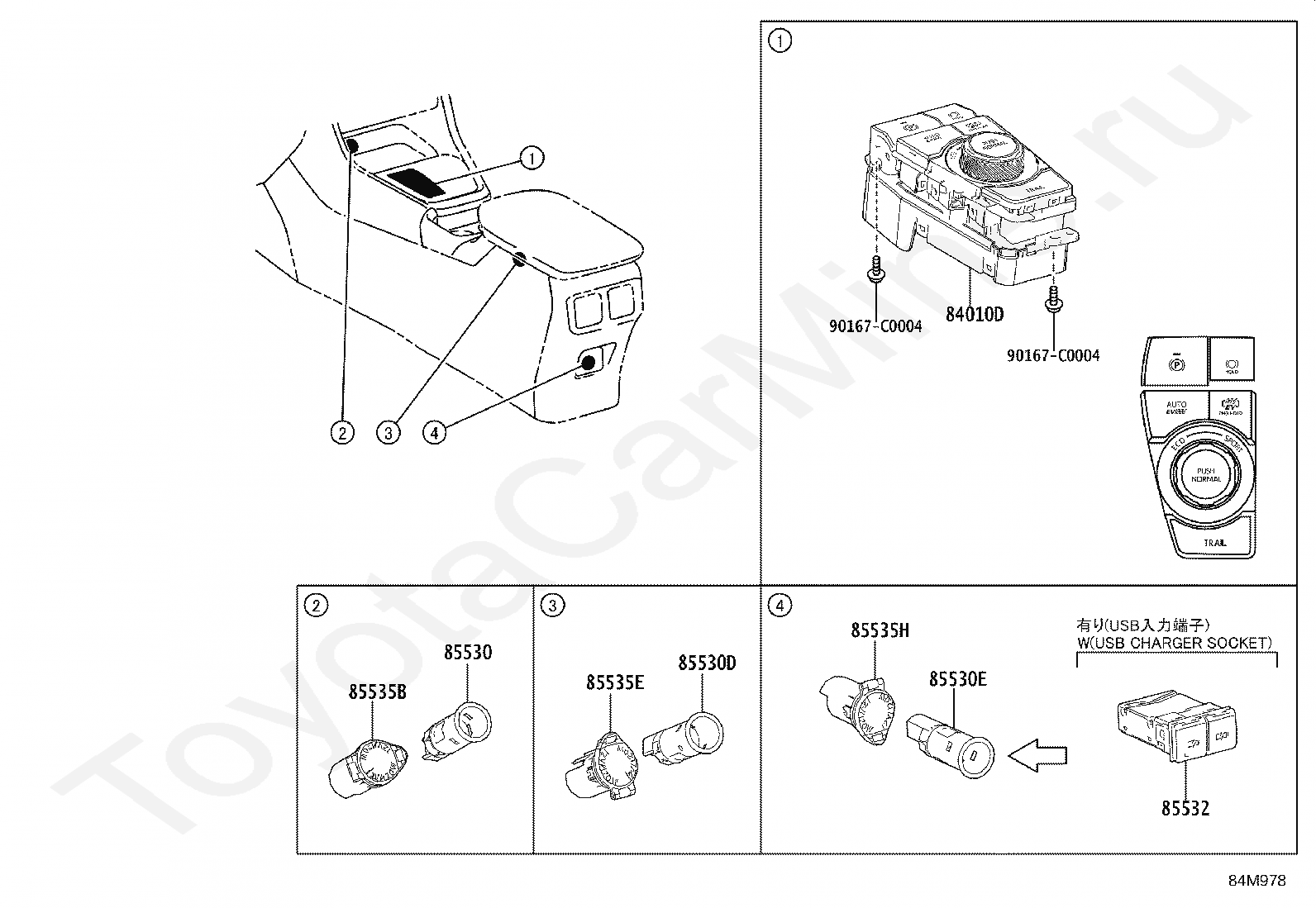

Код

Описание

84010D

CONTROL & PANEL ASSY, INTEGRATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535E

COVER, POWER OUTLET SOCKET, NO.2

85535H

COVER, POWER OUTLET SOCKET, NO.3

90167C0004

Крепеж

90167C0004

Крепеж

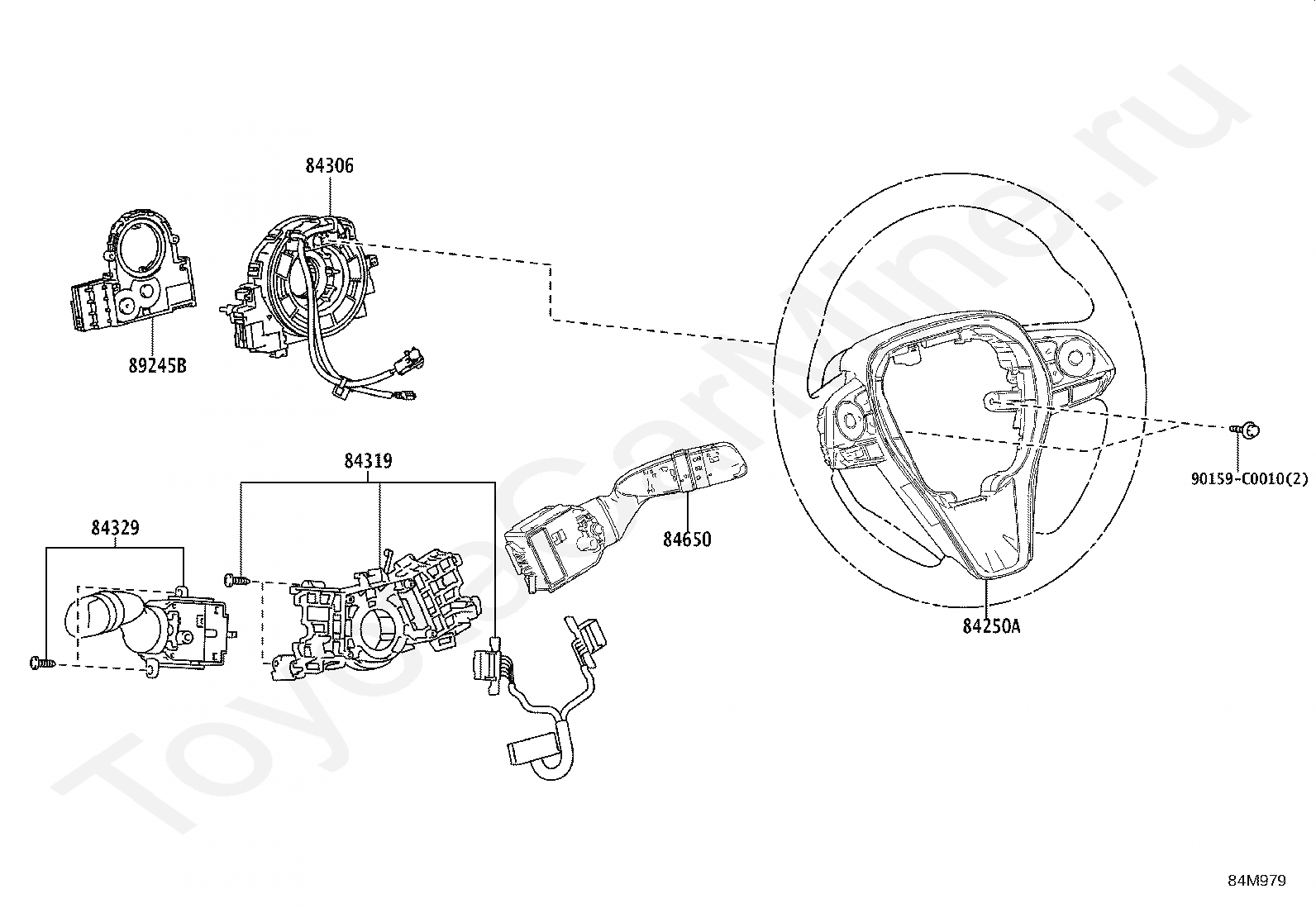

Код

Описание

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

90159C0010

Крепеж

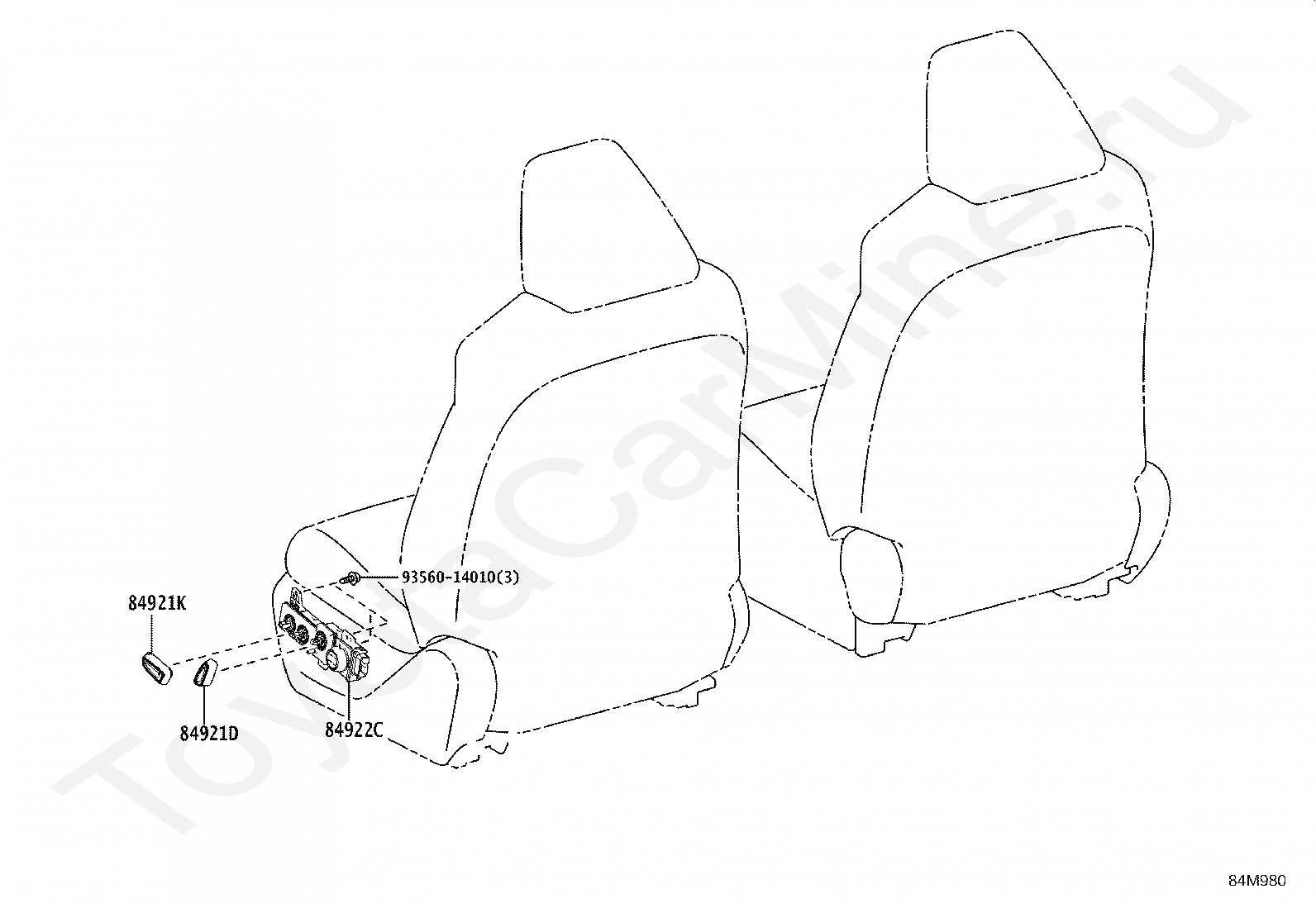

Код

Описание

84921D

KNOB, POWER SEAT SWITCH, LH

84921K

KNOB, POWER SEAT SWITCH, LH

84922C

SWITCH, FRONT POWER SEAT, LH

9356014010

Крепеж

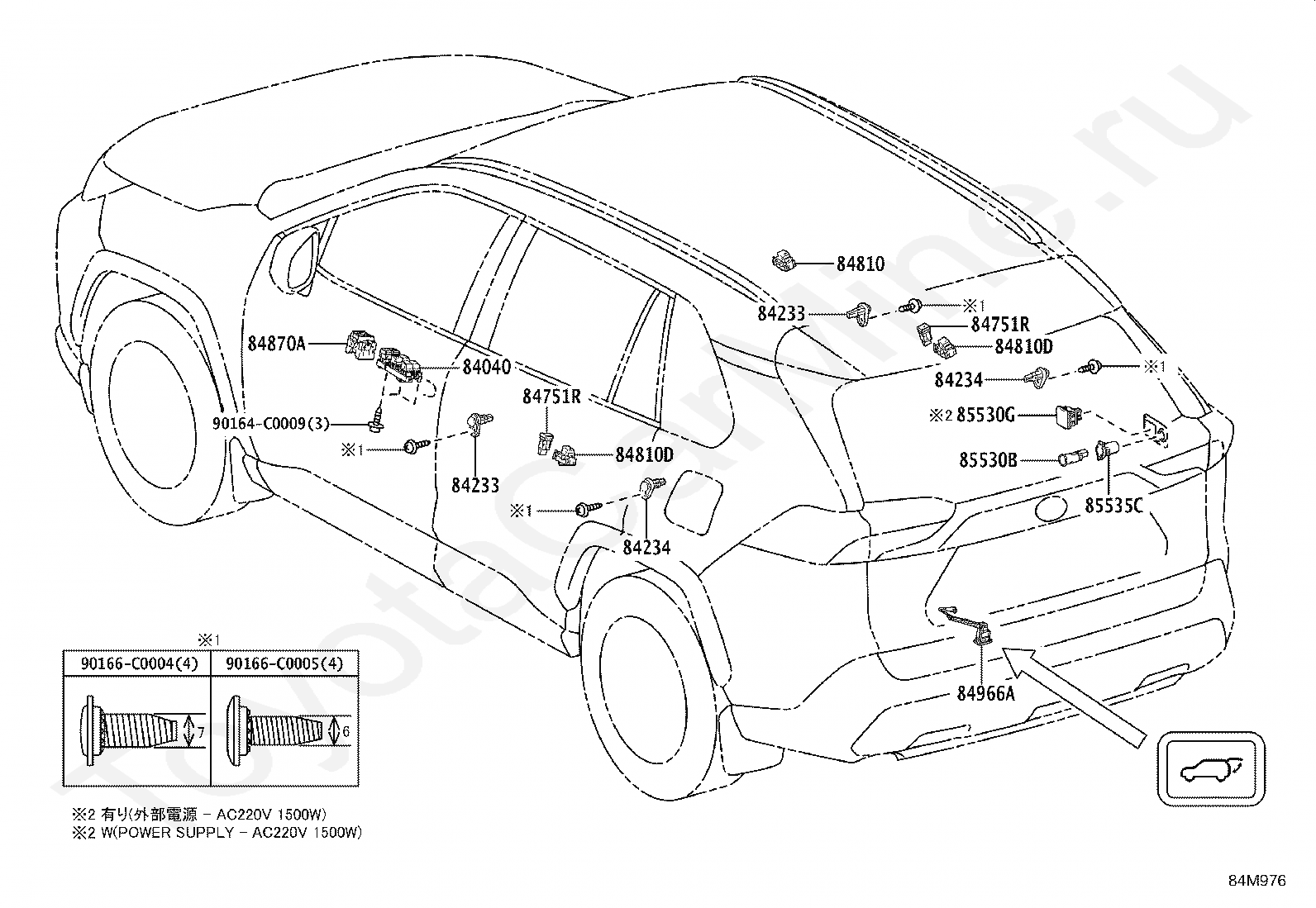

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84751R

SWITCH, SEAT HEATER(REAR)

84751R

SWITCH, SEAT HEATER(REAR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84966A

SWITCH, POWER BACK DOOR CONTROL, NO.1

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85530G

SOCKET ASSY, POWER OUTLET, NO.4

85535C

COVER, POWER OUTLET SOCKET, REAR

90164C0009

Крепеж

90166C0004

Крепеж

90166C0005

Крепеж

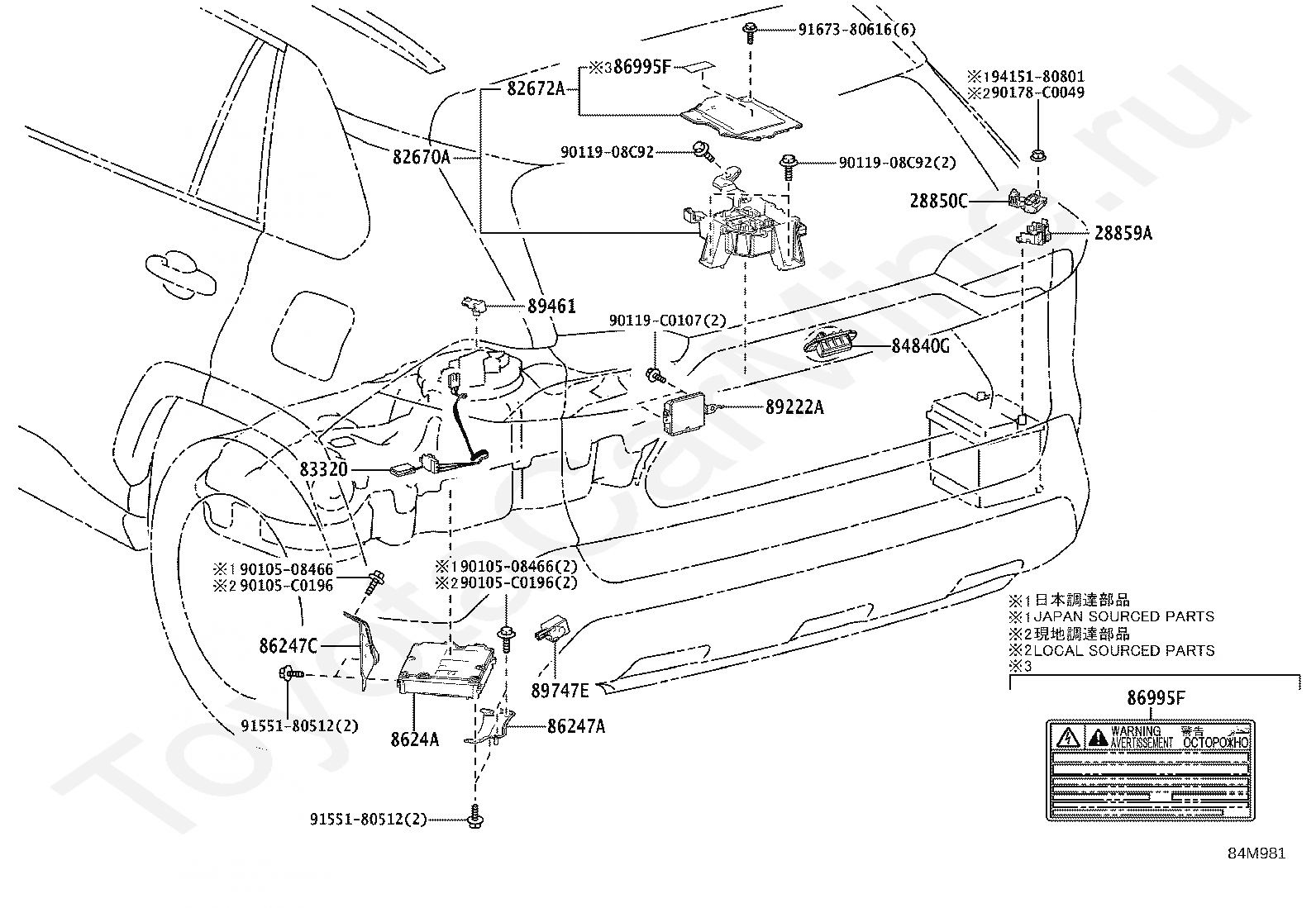

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

82670A

BLOCK ASSY, JUNCTION, NO.1

82672A

COVER, JUNCTION BLOCK

83320

GAGE ASSY, FUEL SENDER

84840G

SWITCH ASSY, BACK DOOR OPENER

86247A

BRACKET, VOLTAGE INVERTER

86247C

BRACKET, VOLTAGE INVERTER, NO.2

8624A

INVERTER, VOLTAGE

86995F

LABEL, CAUTION

86995F

LABEL, CAUTION

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

89461

SENSOR, VAPOR PRESSURE

89747E

BUZZER, POWER BACK DOOR WARNING

9010508466

Крепеж

9010508466

Крепеж

90105C0196

Крепеж

90105C0196

Крепеж

9011908C92

Крепеж

9011908C92

Крепеж

90119C0107

Крепеж

90178C0049

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9167380616

Крепеж

9415180801

Крепеж

Код

Описание

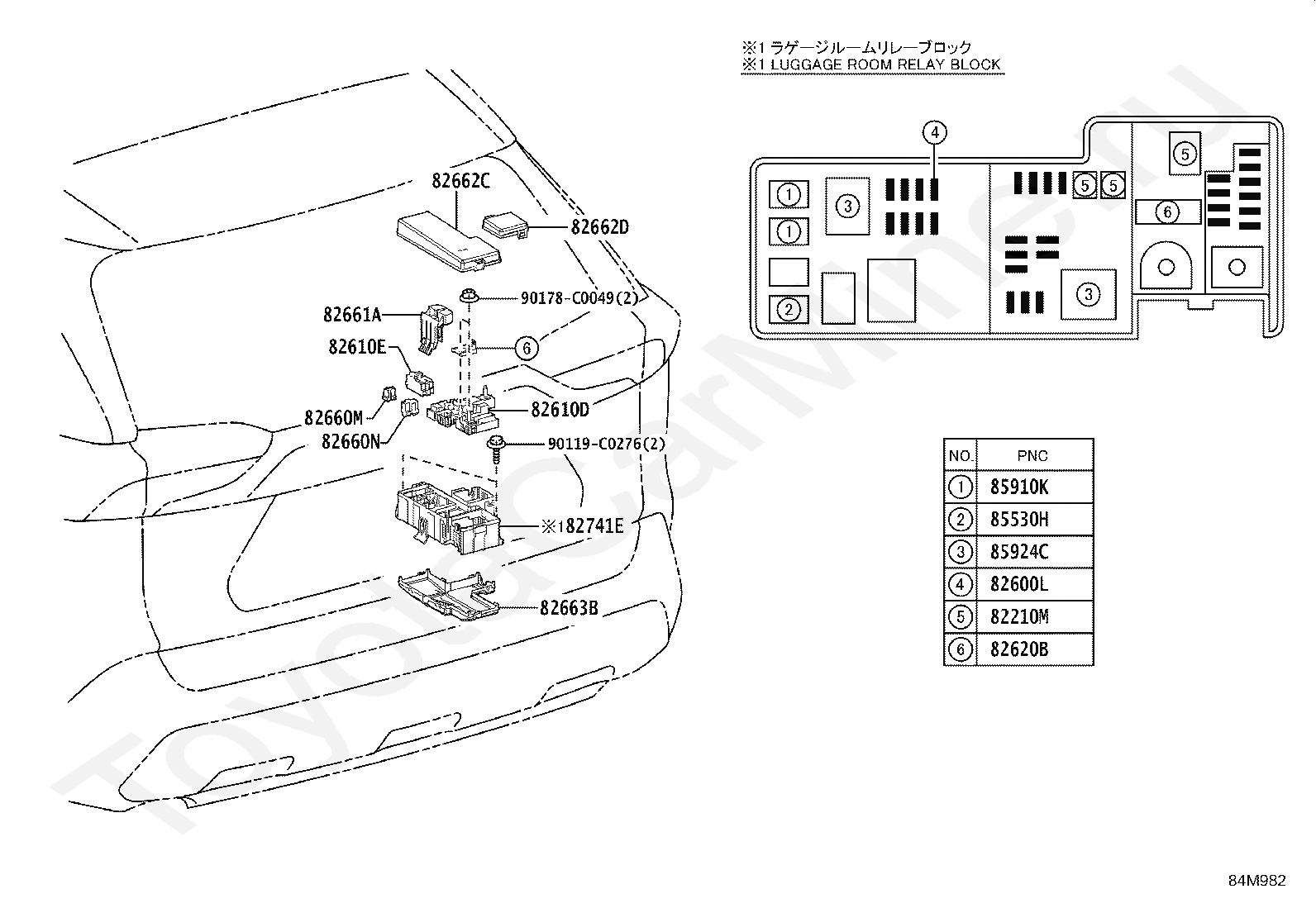

82210M

FUSIBLE LINK

82600L

LUGGAGE ROOM FUSE

82610D

BLOCK ASSY, FUSE

82610E

BLOCK ASSY, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82660M

BLOCK ASSY, RELAY

82660N

BLOCK ASSY, RELAY

82661A

COVER, RELAY BLOCK, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82662D

COVER, RELAY BLOCK, UPPER, NO.4

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82741E

BLOCK, LUGGAGE ROOM RELAY, NO.1

85530H

RELAY, POWER OUTLET SOCKET, NO.2

85910K

RELAY, REAR SEAT HEATER

85924C

RELAY, IGCT

90119C0276

Крепеж

90178C0049

Крепеж
