Америка

Модель

RAV4 (NAP)

VIN

Дата

2020/09

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

фургон

Фрейм

AXAA52

КПП

автомат АКПП, 8 скоростей

Опции

5 дверей METERS США 832W

Кресла TOYOTA RAV4 (NAP)







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

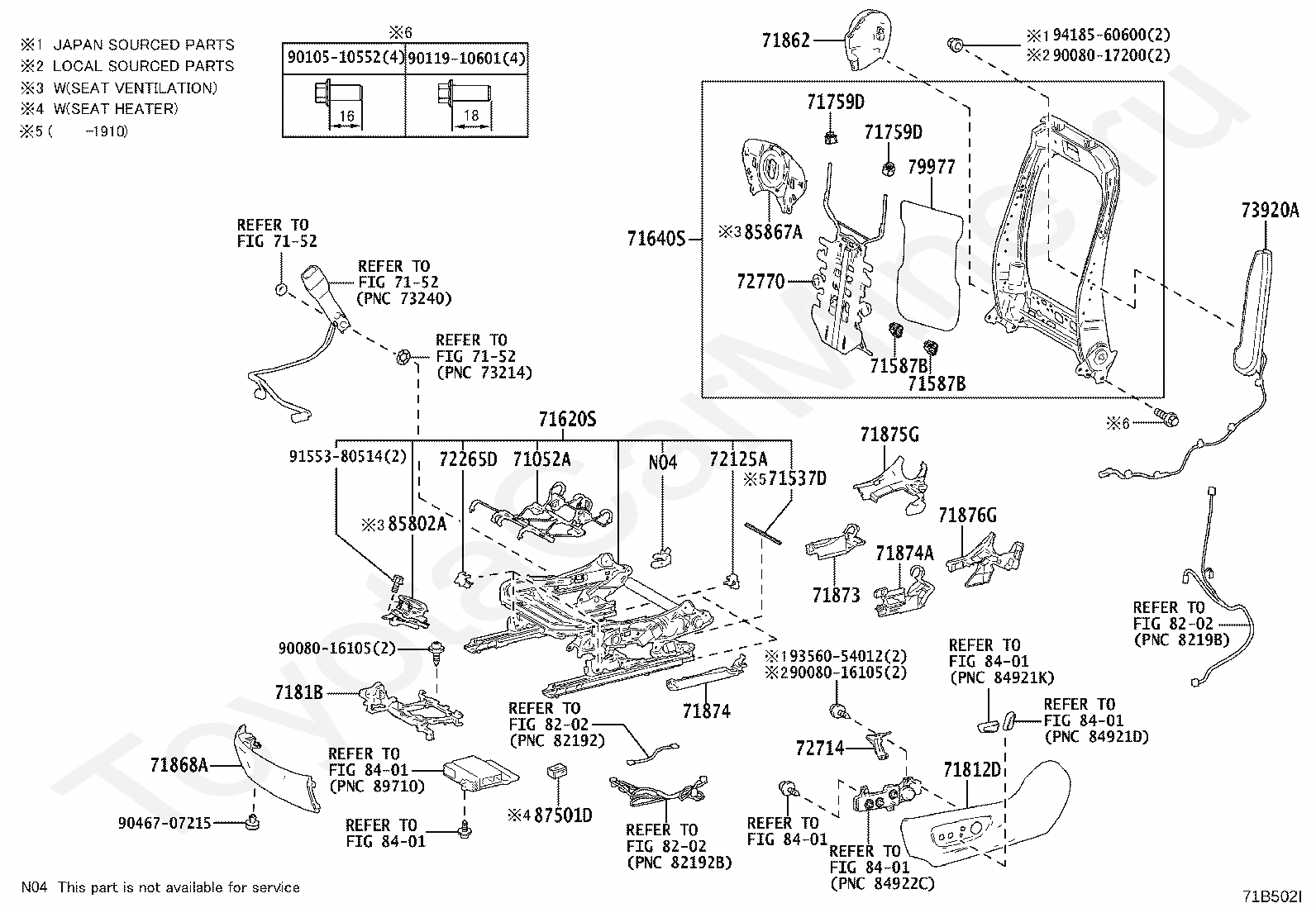

Код

Описание

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72125A

COVER, SEAT TRACK, UPPER REAR

72265D

COVER, SEAT TRACK UPPER RAIL

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

72770

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977

FELT, SEAT BACK

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85802A

BLOWER SUB-ASSY, SEAT CUSHION CLIMATE, LH

85867A

BLOWER, SEAT BACK CLIMATE CONTROL, LH

87501D

CONTROL SUB-ASSY, SEAT HEATER

9008016105

Крепеж

9008016105

Крепеж

9008017200

Крепеж

9010510552

Крепеж

9011910601

Крепеж

9046707215

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9418560600

Крепеж

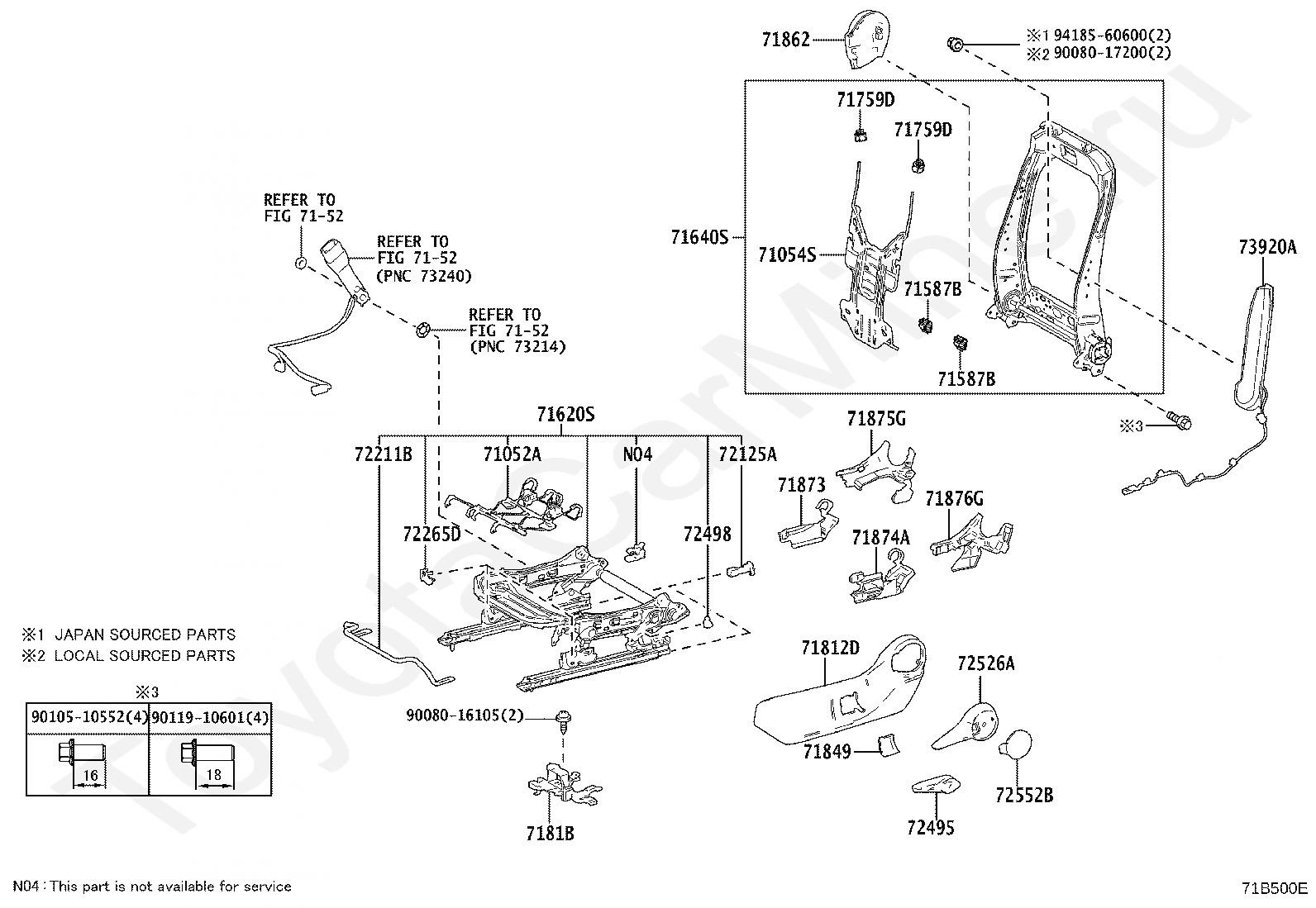

Код

Описание

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72125A

COVER, SEAT TRACK, UPPER REAR

72211B

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

72495

HANDLE, VERTICAL ADJUSTING, LH

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

9008016105

Крепеж

9008017200

Крепеж

9010510552

Крепеж

9011910601

Крепеж

9418560600

Крепеж

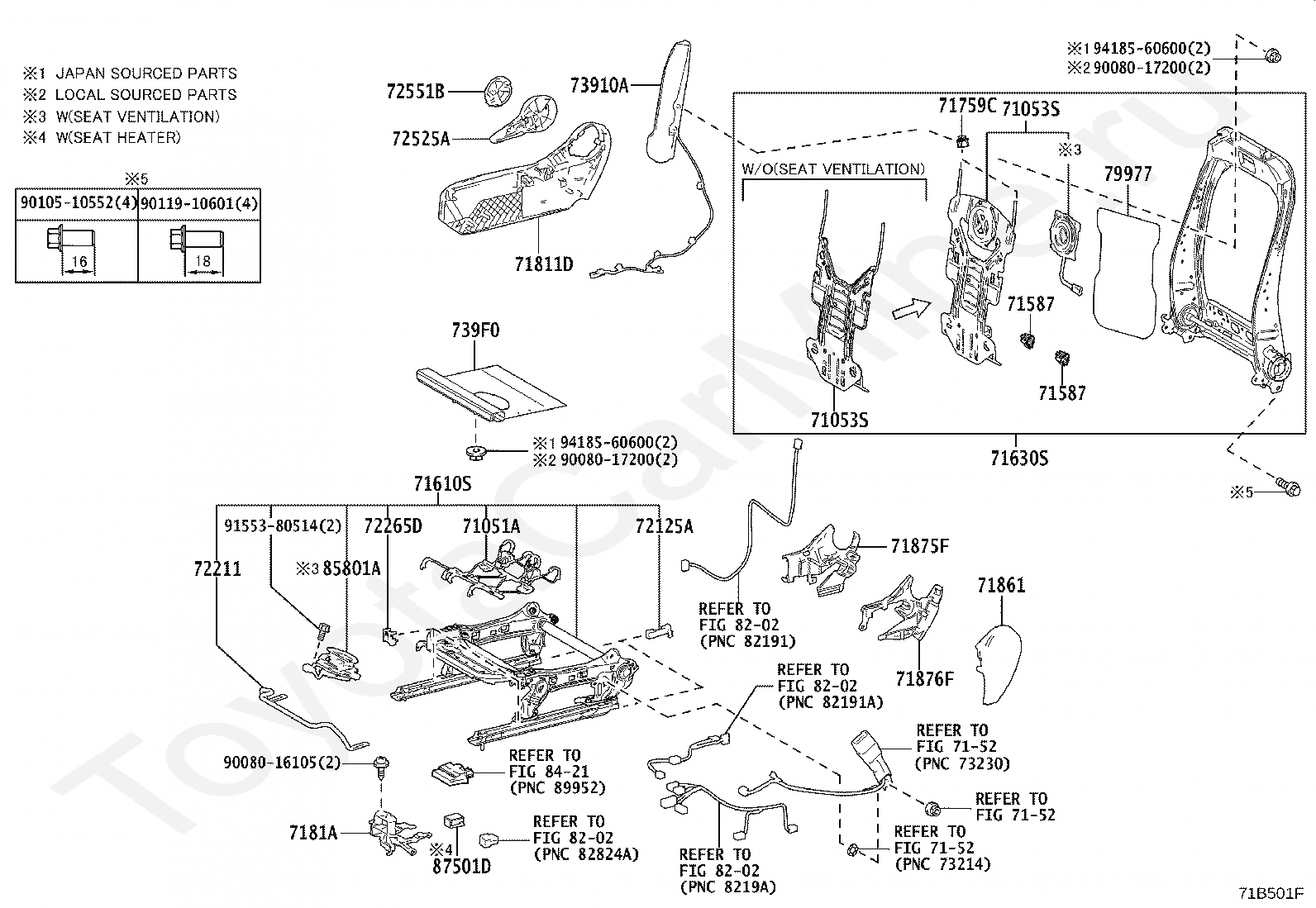

Код

Описание

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72125A

COVER, SEAT TRACK, UPPER REAR

72211

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

79977

FELT, SEAT BACK

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8421

переход к группе запчастей

85801A

BLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH

87501D

CONTROL SUB-ASSY, SEAT HEATER

9008016105

Крепеж

9008017200

Крепеж

9008017200

Крепеж

9010510552

Крепеж

9011910601

Крепеж

9155380514

Крепеж

9418560600

Крепеж

9418560600

Крепеж

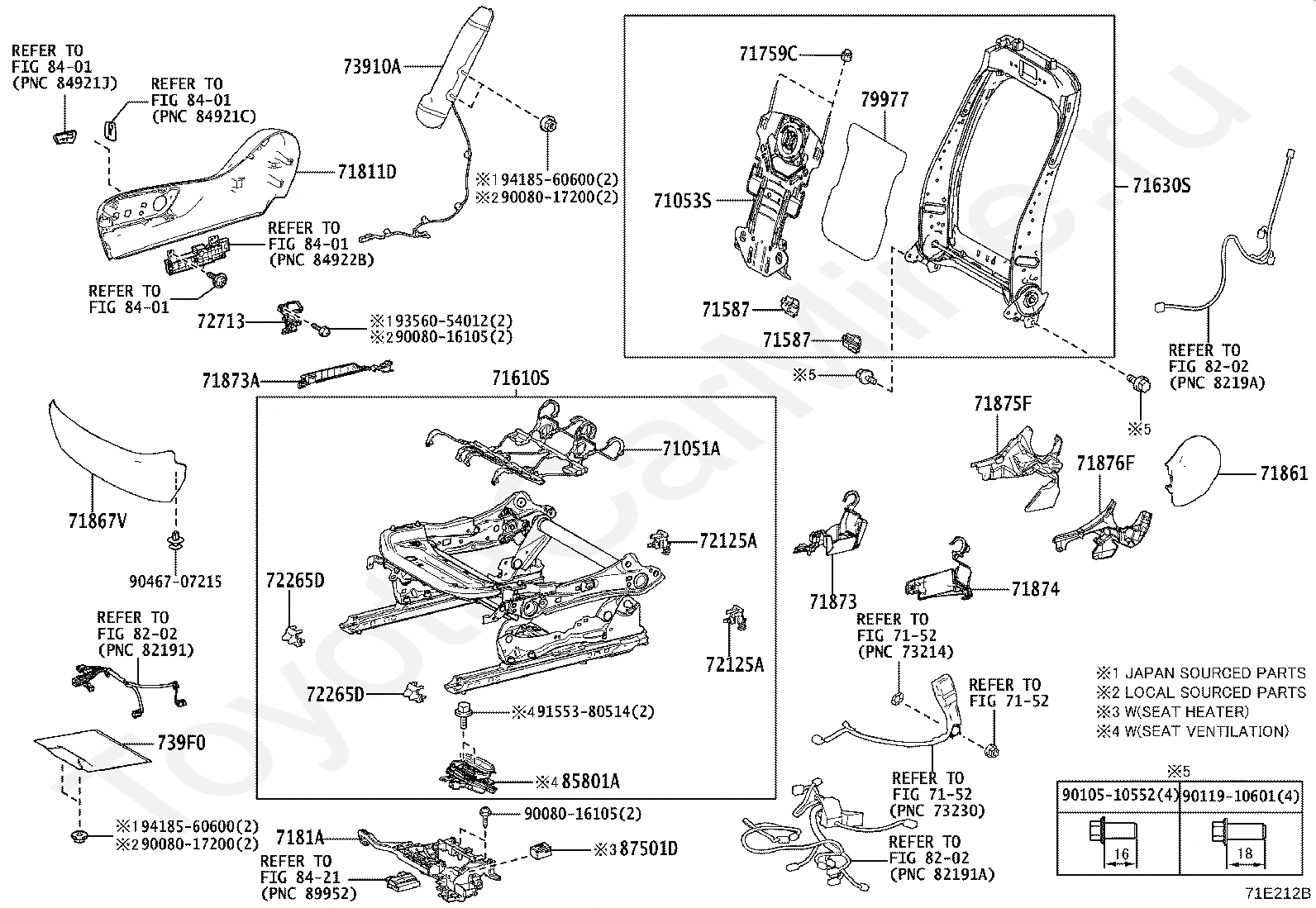

Код

Описание

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72265D

COVER, SEAT TRACK UPPER RAIL

72265D

COVER, SEAT TRACK UPPER RAIL

72713

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

79977

FELT, SEAT BACK

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

85801A

BLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH

87501D

CONTROL SUB-ASSY, SEAT HEATER

9008016105

Крепеж

9008016105

Крепеж

9008017200

Крепеж

9008017200

Крепеж

9010510552

Крепеж

9011910601

Крепеж

9046707215

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9418560600

Крепеж

9418560600

Крепеж

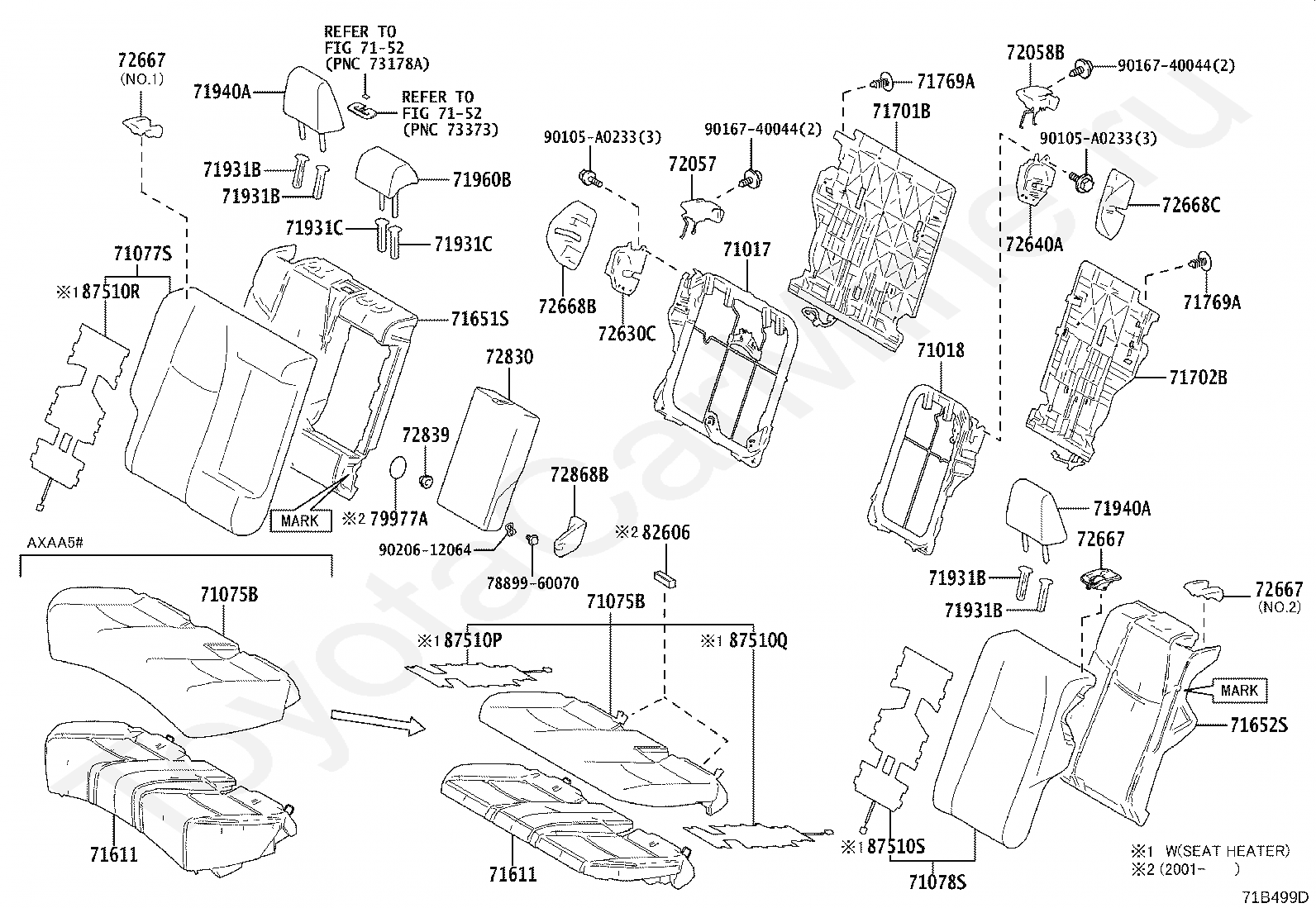

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71611

PAD, REAR SEAT CUSHION

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71769A

CLIP, REAR SEAT BACK BOARD

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058B

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72668B

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1

72668C

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

79977A

FELT, SEAT BACK

82606

FUSE SET, NO.1

87510P

HEATER ASSY, SEAT

87510Q

HEATER ASSY, SEAT

87510R

HEATER ASSY, SEAT

87510S

HEATER ASSY, SEAT

90105A0233

Крепеж

90105A0233

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020612064

Крепеж

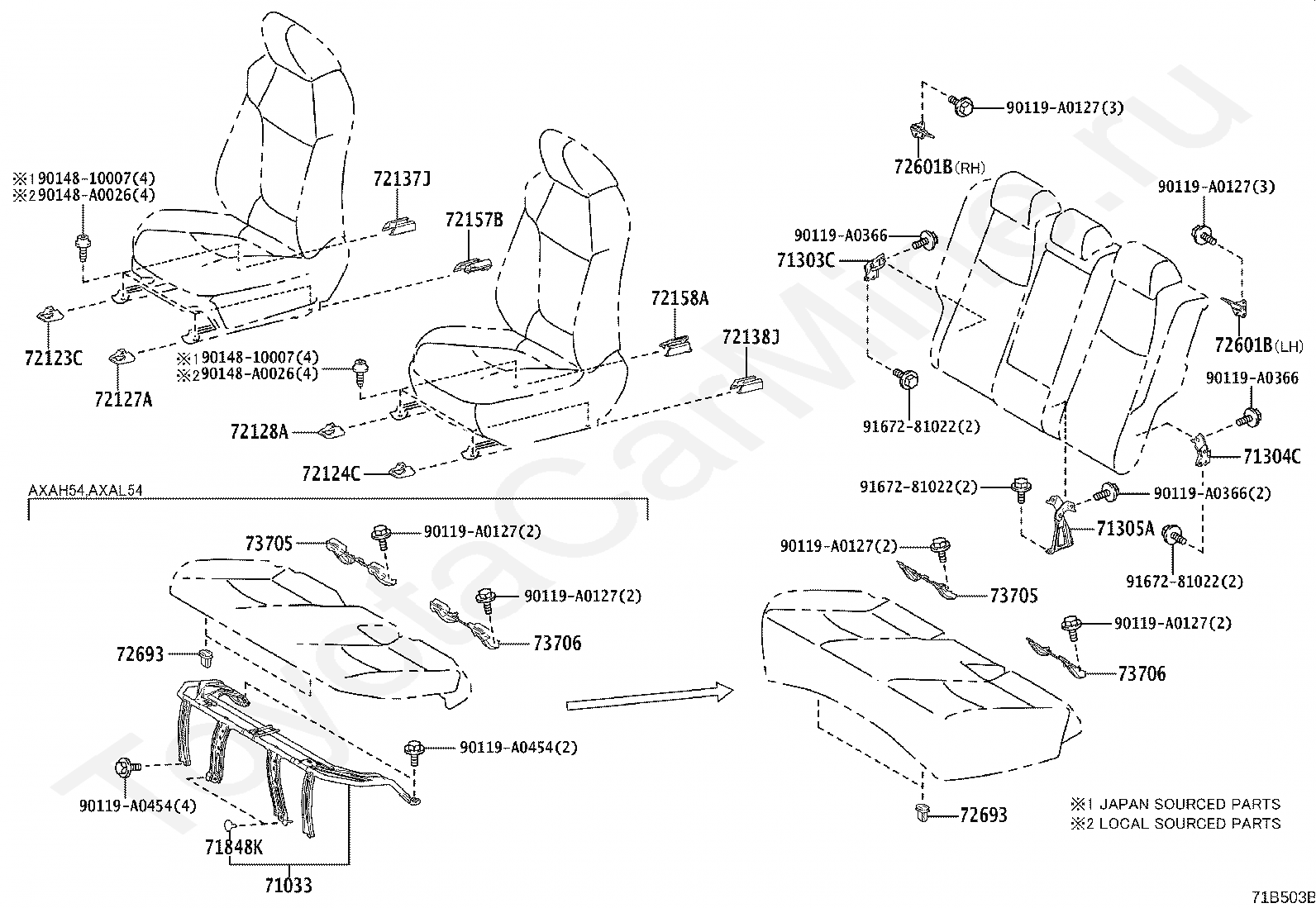

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71848K

CAP, SEAT ADJUSTER COVER

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72693

HOOK, REAR SEAT CUSHION LOCK

72693

HOOK, REAR SEAT CUSHION LOCK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

90119A0127

Крепеж

90119A0127

Крепеж

90119A0127

Крепеж

90119A0127

Крепеж

90119A0127

Крепеж

90119A0127

Крепеж

90119A0366

Крепеж

90119A0366

Крепеж

90119A0366

Крепеж

90119A0454

Крепеж

90119A0454

Крепеж

9014810007

Крепеж

9014810007

Крепеж

90148A0026

Крепеж

90148A0026

Крепеж

9167281022

Крепеж

9167281022

Крепеж

9167281022

Крепеж

> Запчасти RAV4 > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
