Ближний Восток

Модель

RAV4 (CHINA)

VIN

Дата

2019/11

Двигатель

2500CC 16-VALVE DOHC

Фрейм

MXAA54

КПП

вариатор HIGH EFFICIENCY TWIN CAM

Опции

METERS 723W

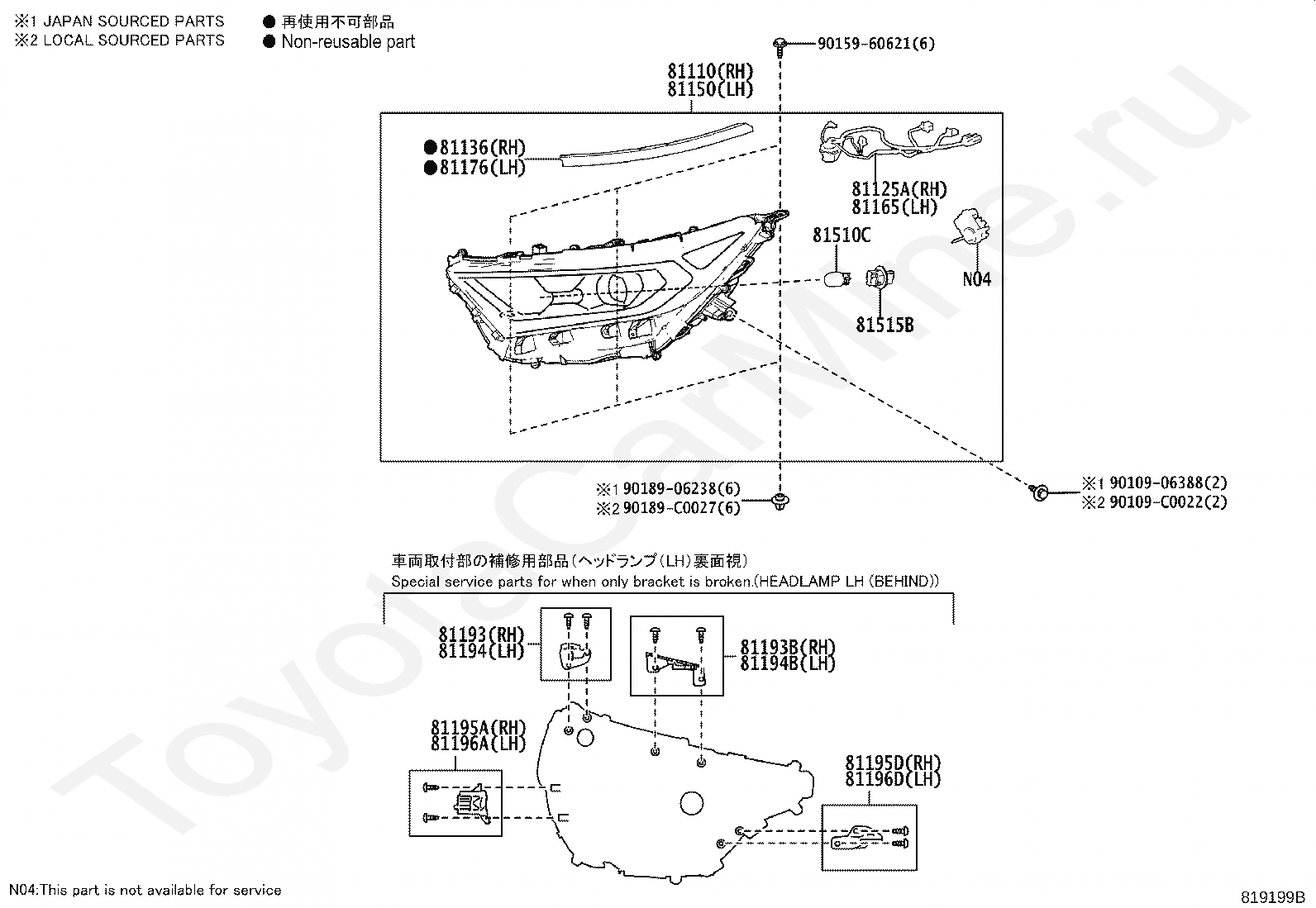

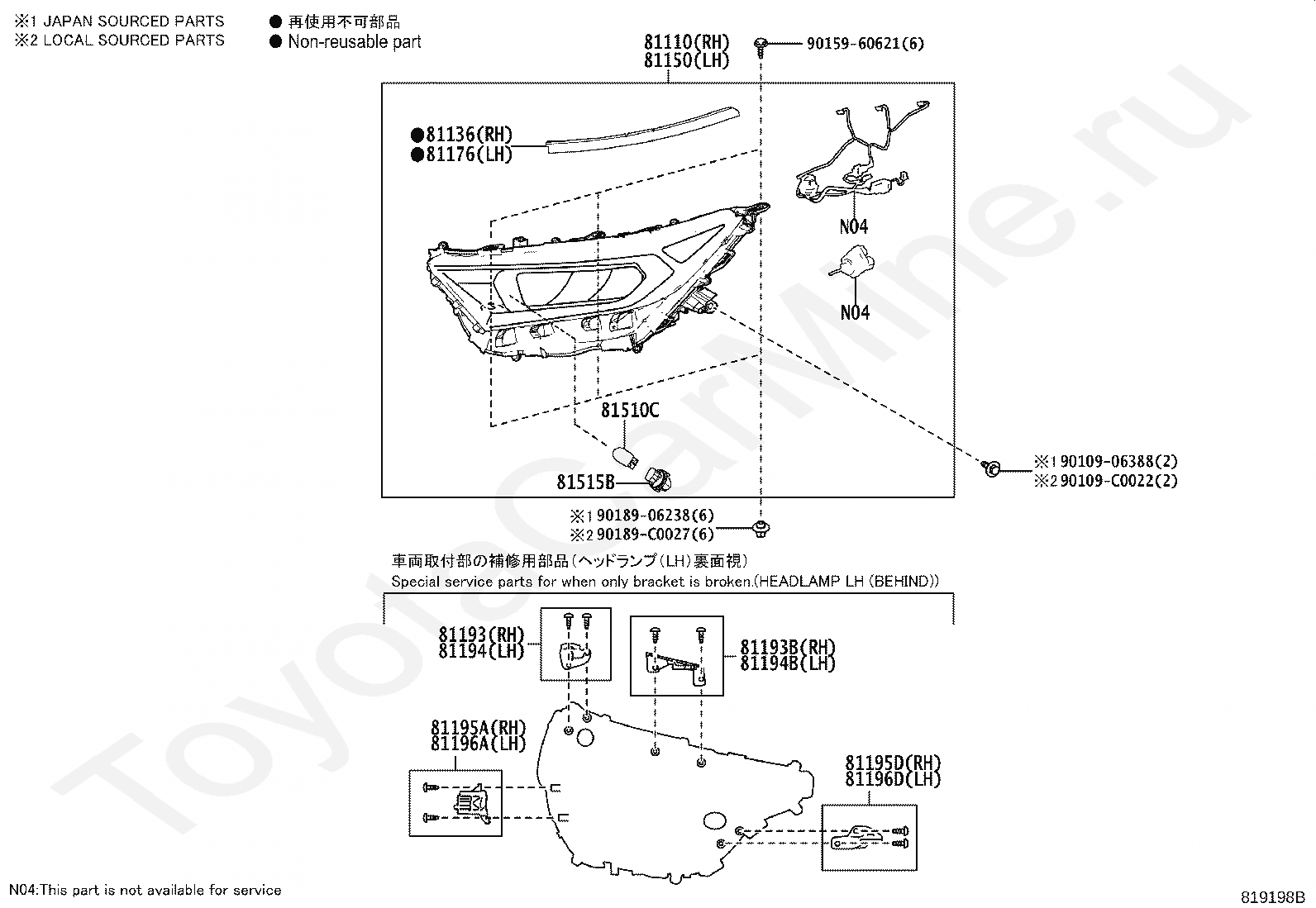

Фары TOYOTA RAV4 (CHINA)

Код

Описание

81110

HEADLAMP ASSY, RH

81136

PROTECTOR, HEADLAMP, NO.1 RH

81150

HEADLAMP ASSY, LH

81176

PROTECTOR, HEADLAMP, NO.1 LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906388

Крепеж

90109C0022

Крепеж

9015960621

Крепеж

9018906238

Крепеж

90189C0027

Крепеж

Код

Описание

81110

HEADLAMP ASSY, RH

81125A

CORD, HEADLAMP, RH

81136

PROTECTOR, HEADLAMP, NO.1 RH

81150

HEADLAMP ASSY, LH

81165

CORD, HEADLAMP, LH

81176

PROTECTOR, HEADLAMP, NO.1 LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81195D

RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81196D

RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906388

Крепеж

90109C0022

Крепеж

9015960621

Крепеж

9018906238

Крепеж

90189C0027

Крепеж
