Ближний Восток

Модель

RAV4 (CHINA)

VIN

Дата

2019/11

Двигатель

2500CC 16-VALVE DOHC

Фрейм

MXAA54

КПП

вариатор HIGH EFFICIENCY TWIN CAM

Опции

METERS 723W

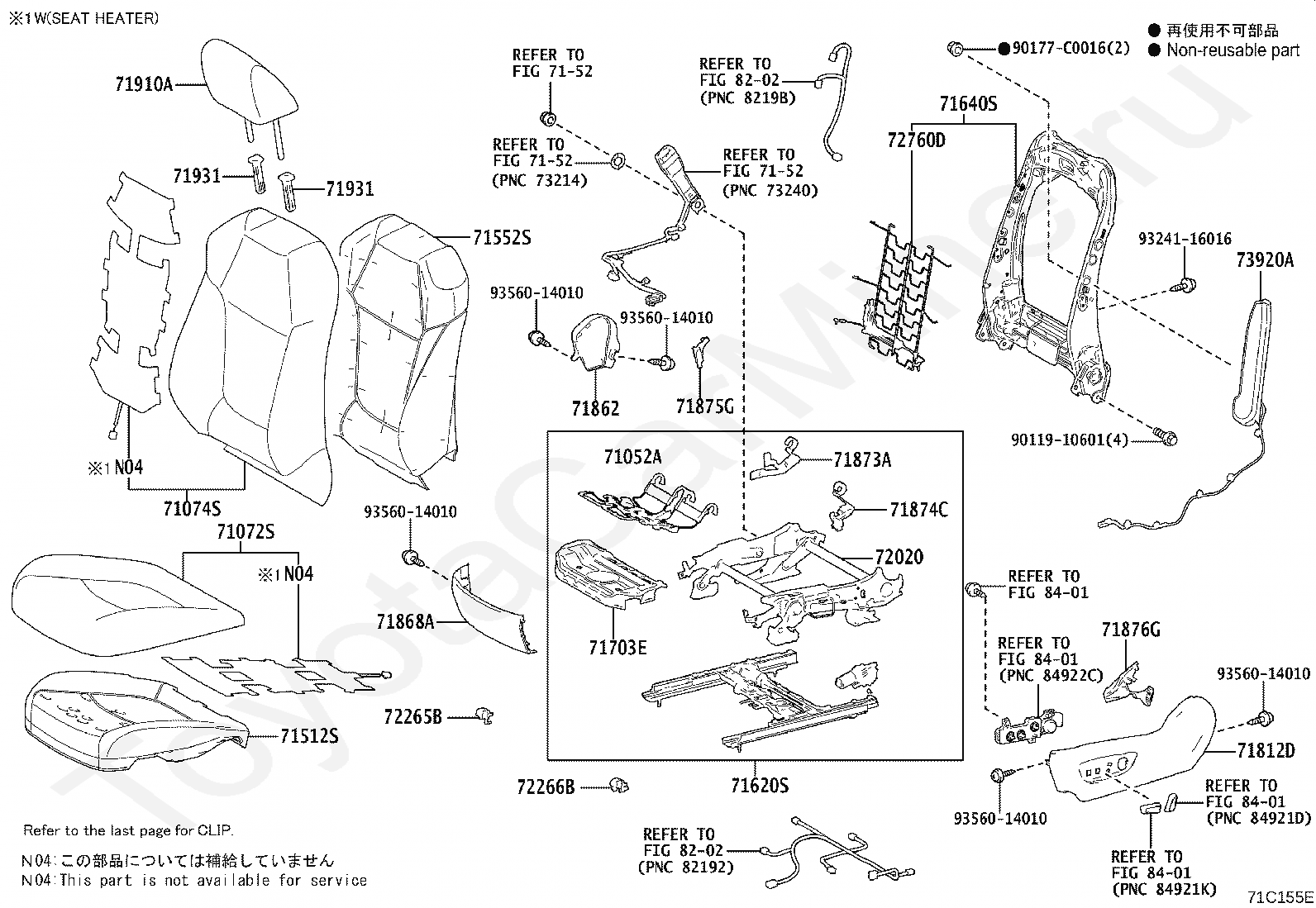

Кресла TOYOTA RAV4 (CHINA)

Код

Описание

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71703E

PANEL SUB-ASSY, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72265B

COVER, SEAT TRACK UPR RAIL, RH

72266B

COVER, SEAT TRACK UPPER RAIL, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

90177C0016

Крепеж

9324116016

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

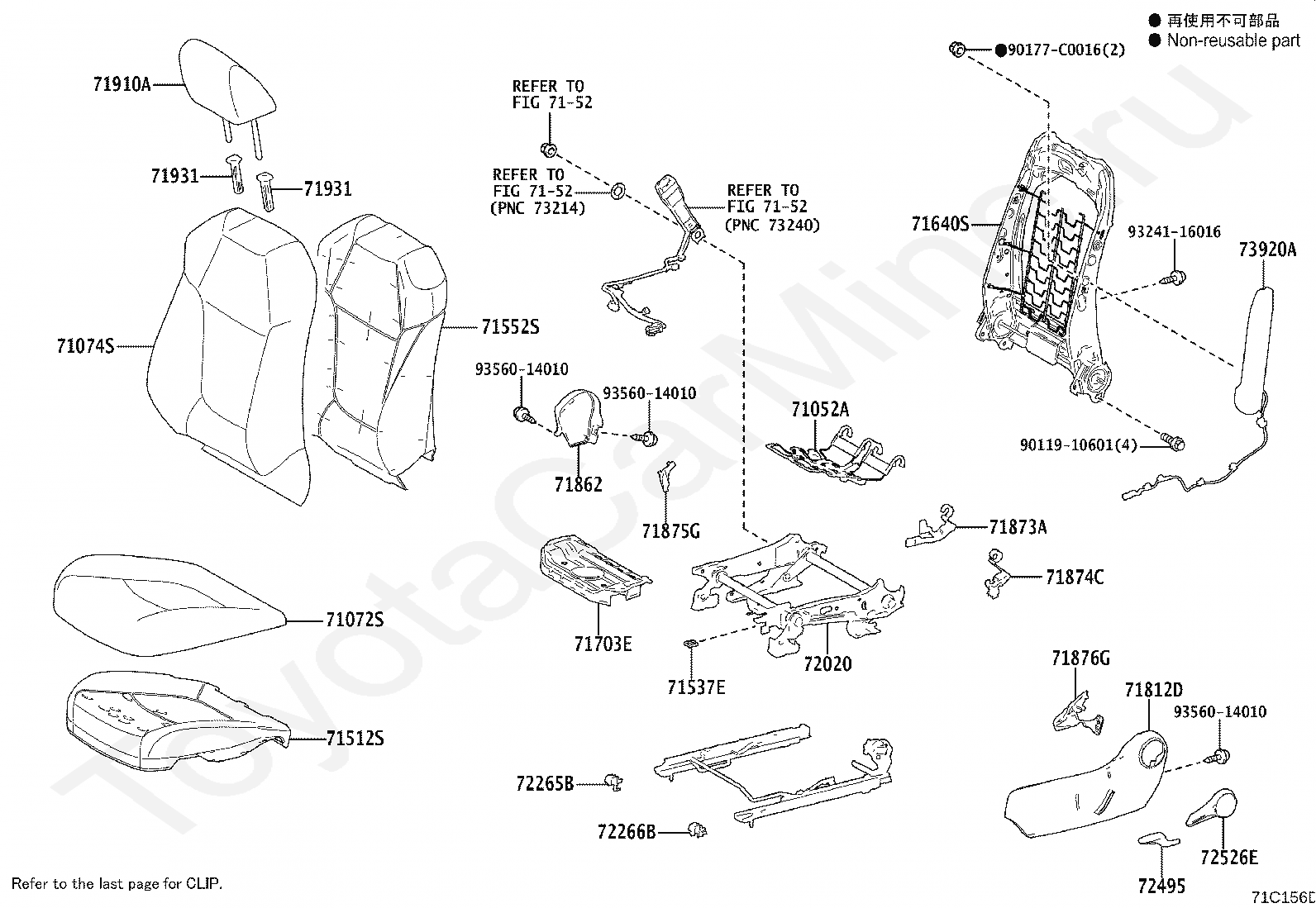

Код

Описание

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71703E

PANEL SUB-ASSY, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72265B

COVER, SEAT TRACK UPR RAIL, RH

72266B

COVER, SEAT TRACK UPPER RAIL, LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

9011910601

Крепеж

90177C0016

Крепеж

9324116016

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

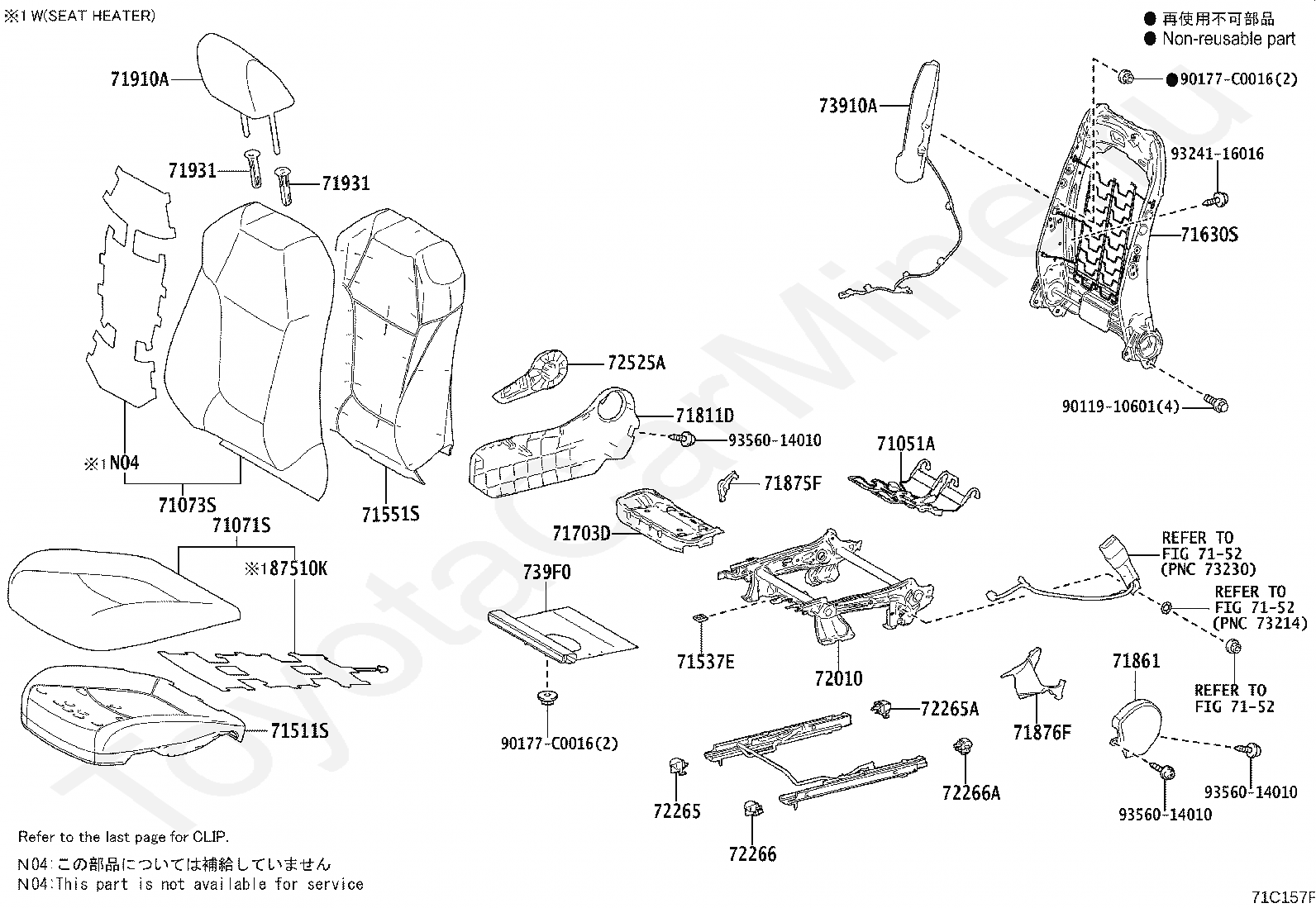

Код

Описание

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71703D

PANEL SUB-ASSY, FRONT SEAT CUSHION, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

739F0

AIR BAG ASSY, FRONT SEAT CUSHION, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

9011910601

Крепеж

90177C0016

Крепеж

90177C0016

Крепеж

9324116016

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

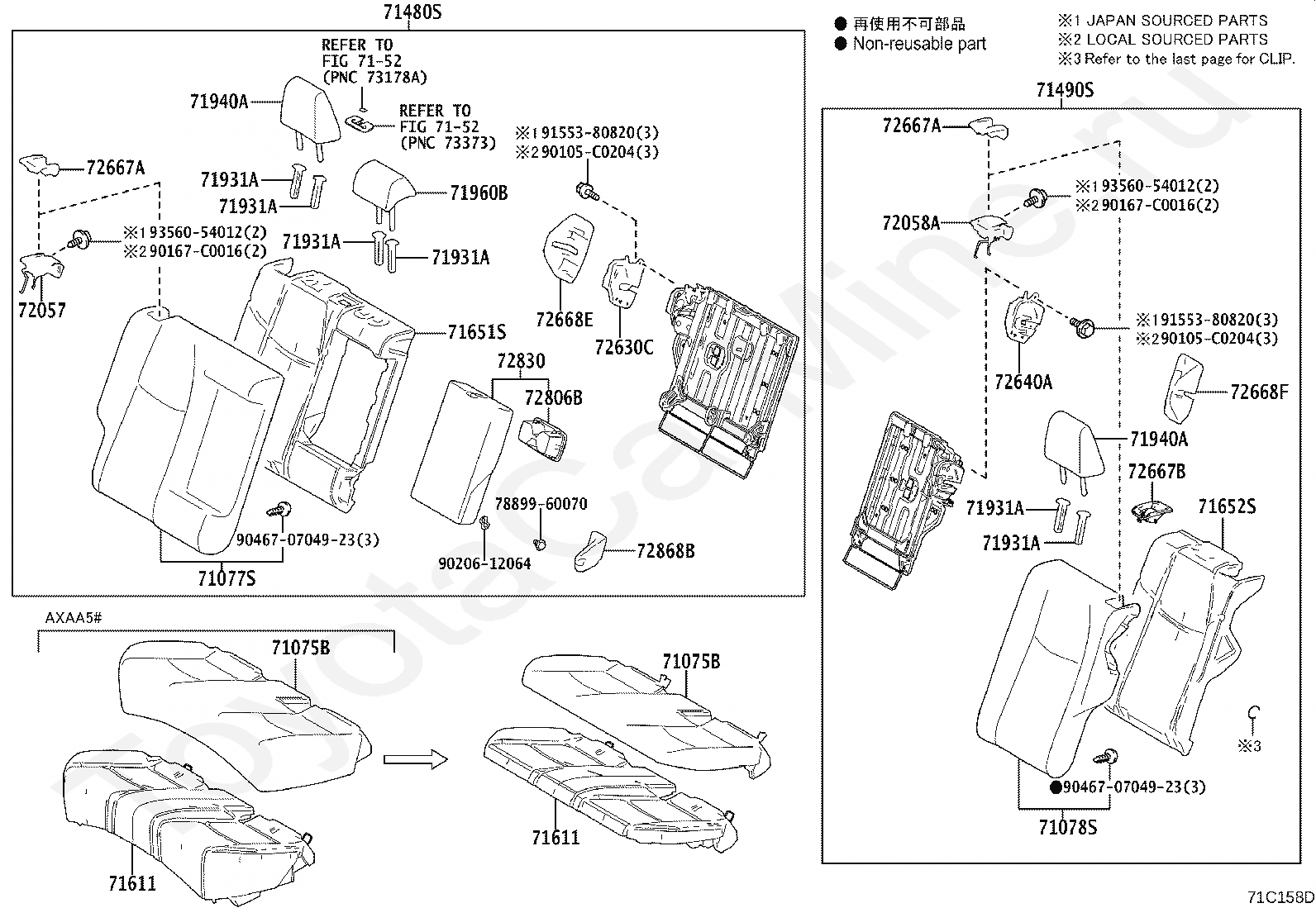

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71611

PAD, REAR SEAT CUSHION

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667A

BEZEL, REAR SEAT BACK LOCK, UPPER RH

72667A

BEZEL, REAR SEAT BACK LOCK, UPPER RH

72667B

BEZEL, REAR SEAT BACK LOCK, UPPER LH

72668E

BEZEL, REAR SEAT BACK LOCK, LOWER RH

72668F

BEZEL, REAR SEAT BACK LOCK, LOWER LH

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

90105C0204

Крепеж

90105C0204

Крепеж

90167C0016

Крепеж

90167C0016

Крепеж

9020612064

Крепеж

904670704923

Крепеж

904670704923

Крепеж

9155380820

Крепеж

9155380820

Крепеж

9356054012

Крепеж

9356054012

Крепеж

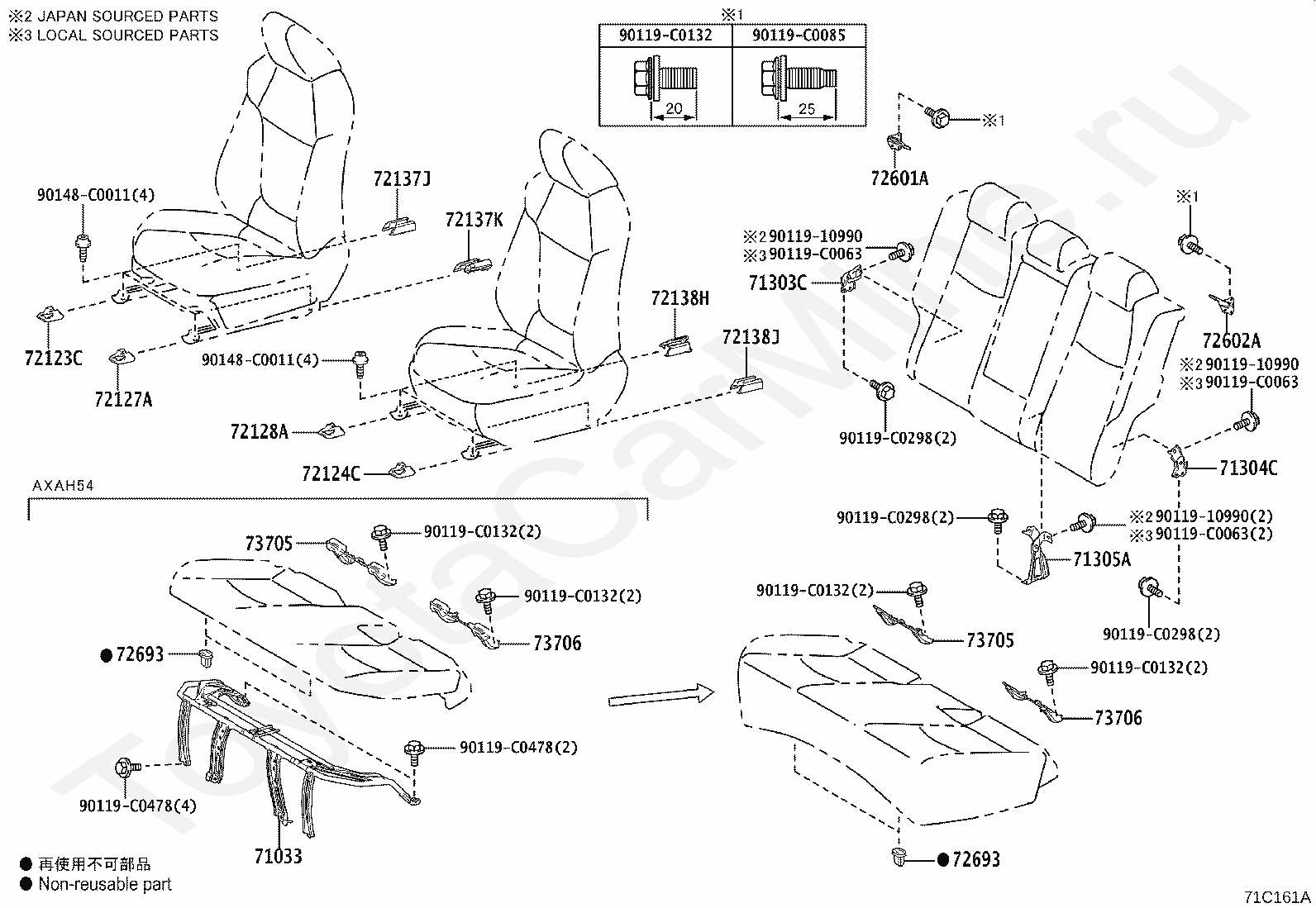

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72693

HOOK, REAR SEAT CUSHION LOCK

72693

HOOK, REAR SEAT CUSHION LOCK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9011910990

Крепеж

9011910990

Крепеж

9011910990

Крепеж

90119C0063

Крепеж

90119C0063

Крепеж

90119C0063

Крепеж

90119C0085

Крепеж

90119C0132

Крепеж

90119C0132

Крепеж

90119C0132

Крепеж

90119C0132

Крепеж

90119C0132

Крепеж

90119C0298

Крепеж

90119C0298

Крепеж

90119C0298

Крепеж

90119C0478

Крепеж

90119C0478

Крепеж

90148C0011

Крепеж

90148C0011

Крепеж

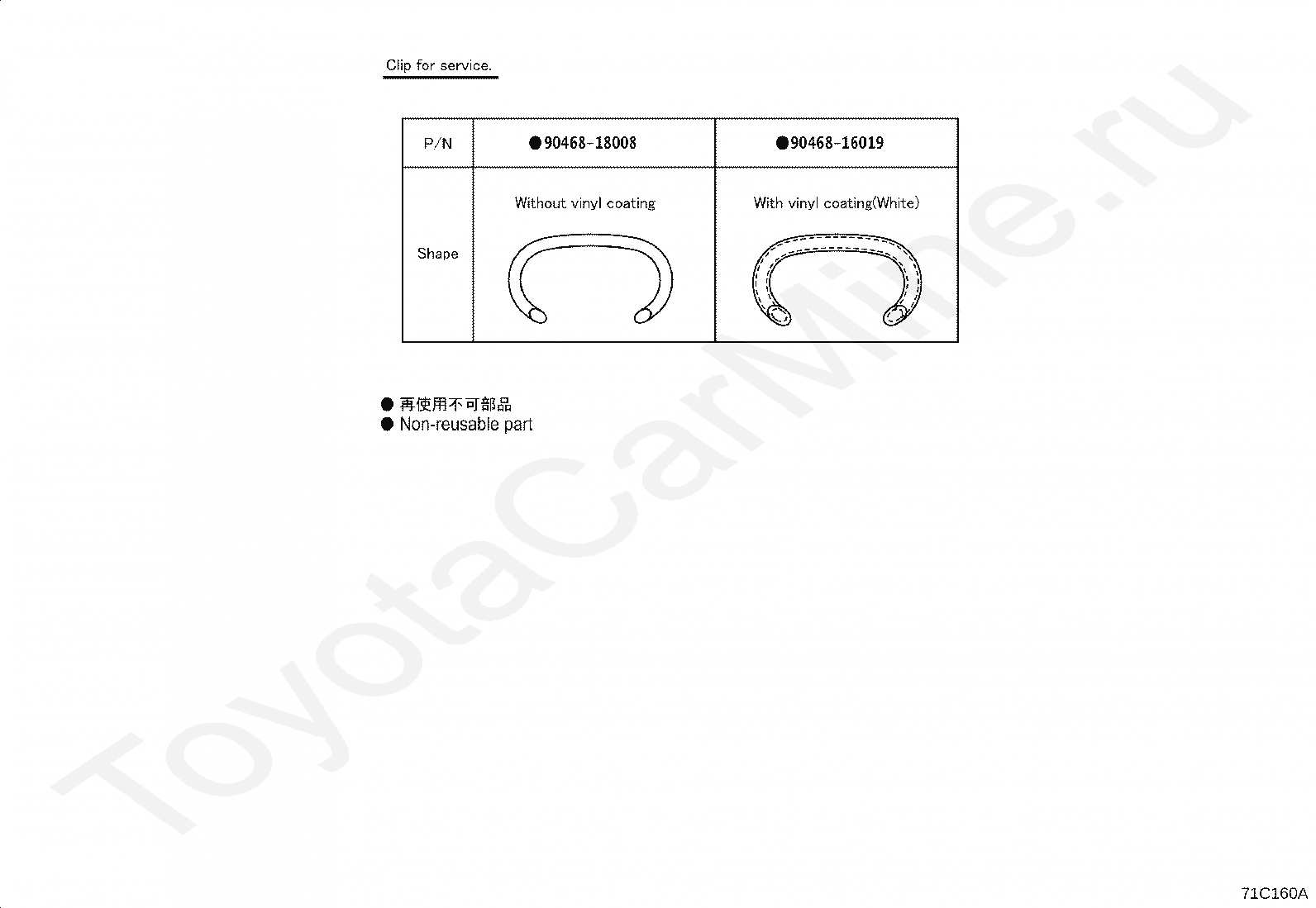

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
