Ближний Восток

Модель

RAV4 (CHINA)

VIN

Дата

2019/11

Двигатель

2500CC 16-VALVE DOHC

Фрейм

MXAA54

КПП

вариатор HIGH EFFICIENCY TWIN CAM

Опции

METERS 723W

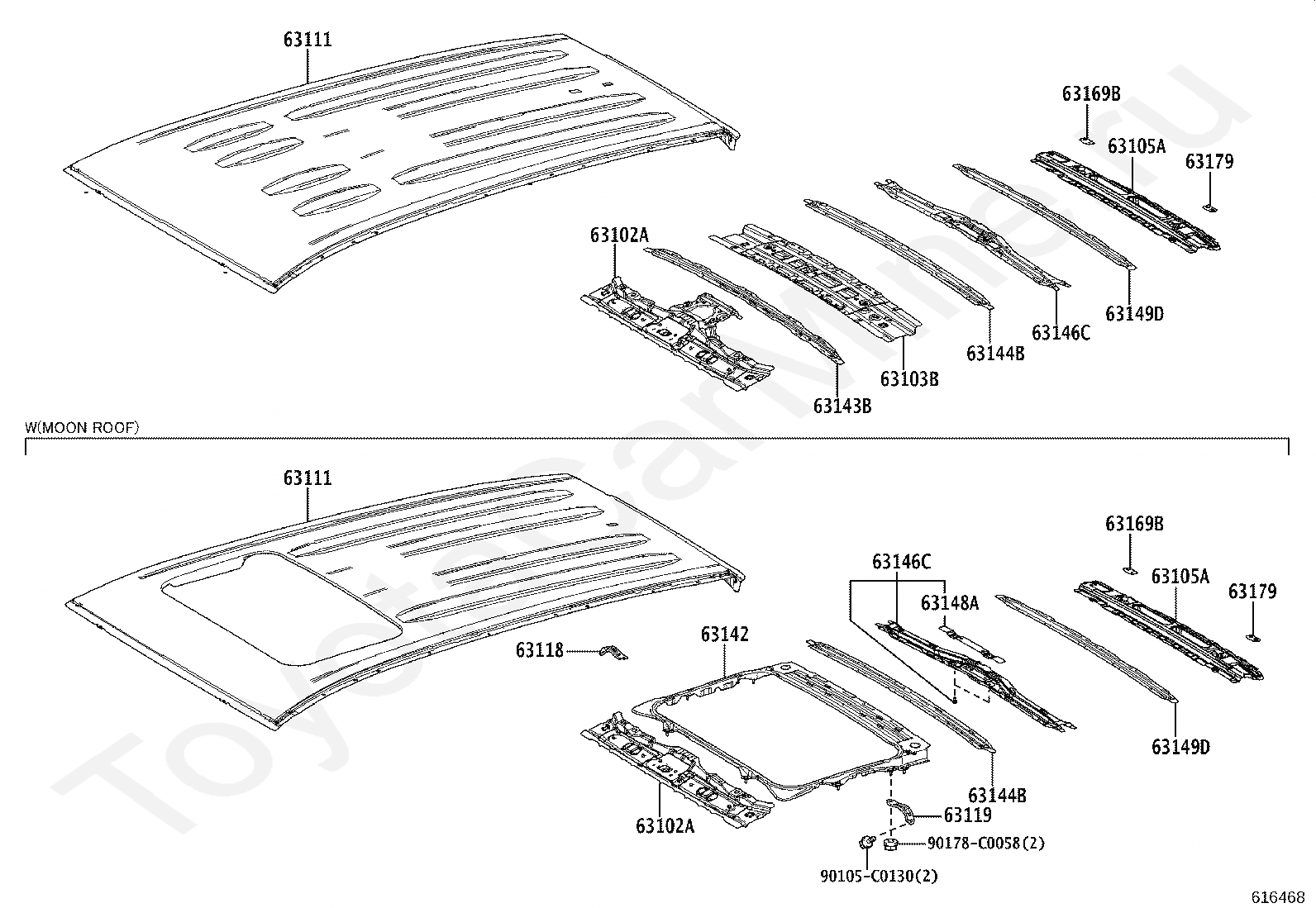

ROOF PANEL & BACK PANEL TOYOTA RAV4 (CHINA)

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63103B

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63111

PANEL, ROOF

63118

SUPPORT, ROOF PANEL, RH

63119

SUPPORT, ROOF PANEL, LH

63142

REINFORCEMENT, ROOF PANEL, NO.2

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63146C

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

63146C

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

63148A

REINFORCEMENT, ROOF PANEL, NO.7

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

90105C0130

Крепеж

90178C0058

Крепеж

Код

Описание

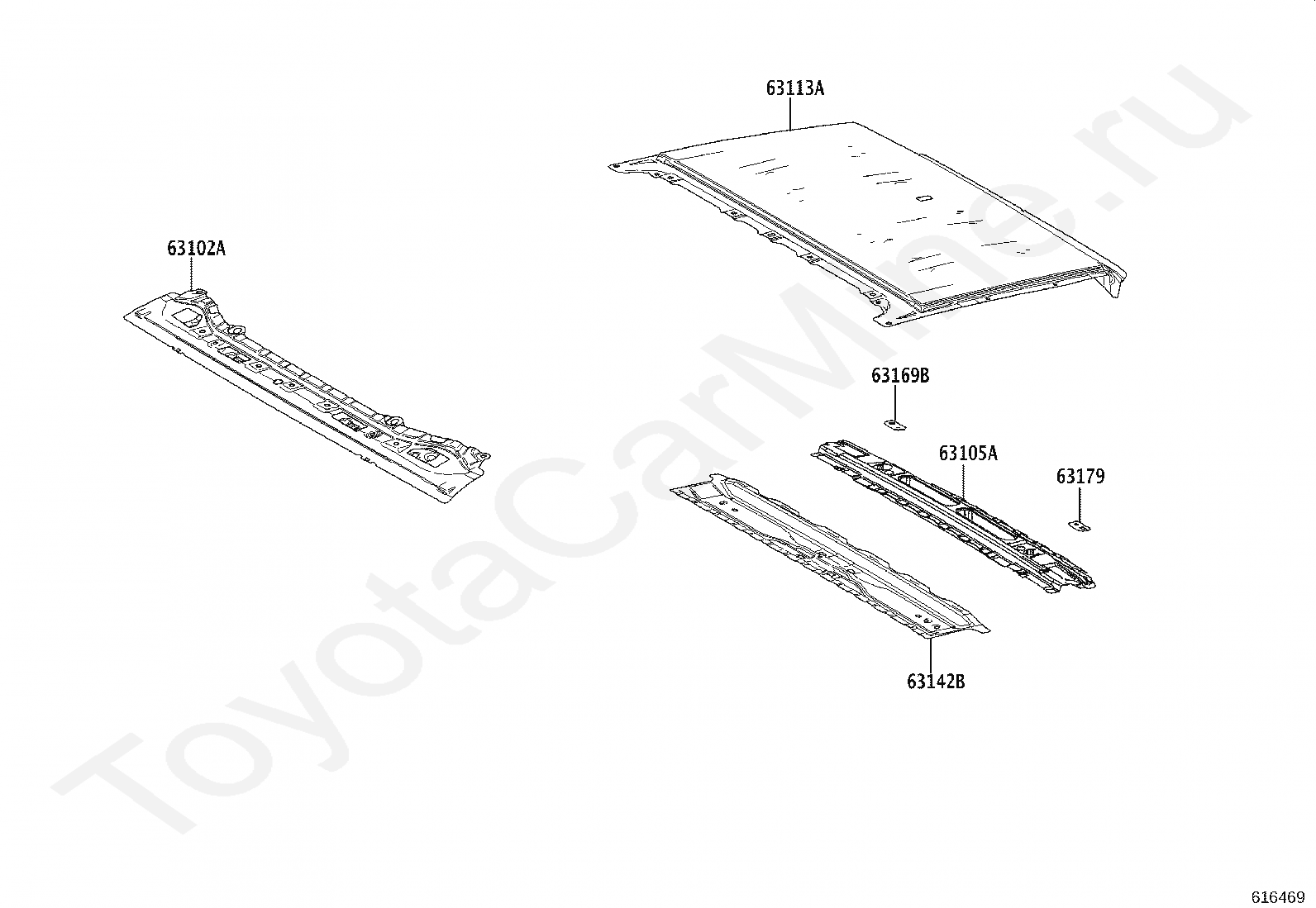

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63113A

PANEL, ROOF, NO.3

63142B

REINFORCEMENT, ROOF PANEL, REAR

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

Код

Описание

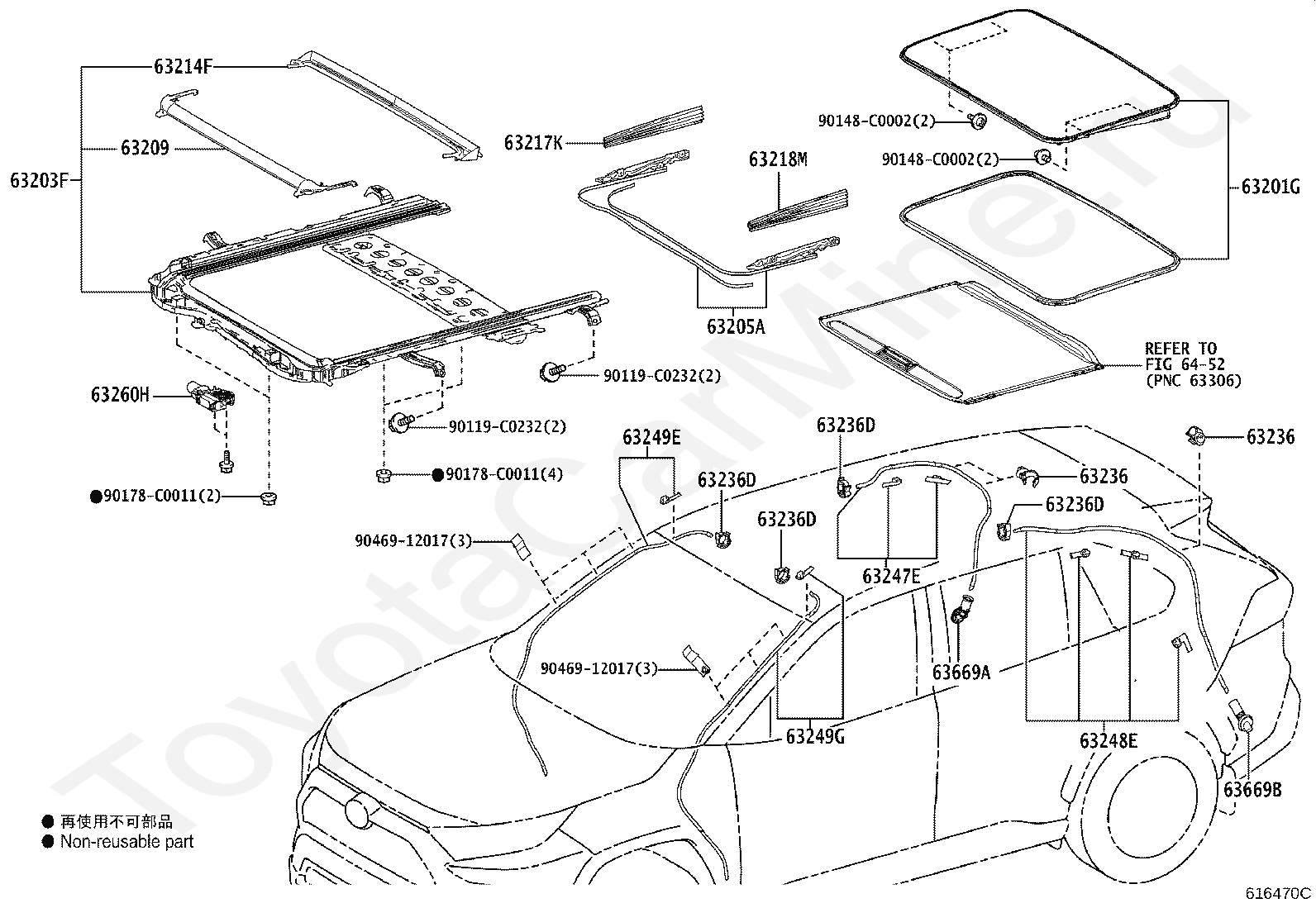

63201G

GLASS SUB-ASSY, SLIDING ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63205A

CABLE SUB-ASSY, SLIDING ROOF DRIVE

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63214F

CHANNEL, ROOF DRIP, REAR

63217K

GARNISH, SLIDING ROOF SIDE, RH

63218M

GARNISH, SLIDING ROOF SIDE, LH

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63247E

HOSE, SLIDING ROOF DRAIN, REAR RH

63248E

HOSE, SLIDING ROOF DRAIN, REAR LH

63249E

HOSE, SLIDING ROOF DRAIN

63249G

HOSE, SLIDING ROOF DRAIN

63260H

GEAR ASSY, SLIDING ROOF DRIVE

63669A

GROMMET, SLIDING ROOF DRAIN

63669B

GROMMET, SLIDING ROOF DRAIN

6452

переход к группе запчастей

90119C0232

Крепеж

90119C0232

Крепеж

90148C0002

Крепеж

90148C0002

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9046912017

Крепеж

9046912017

Крепеж

Код

Описание

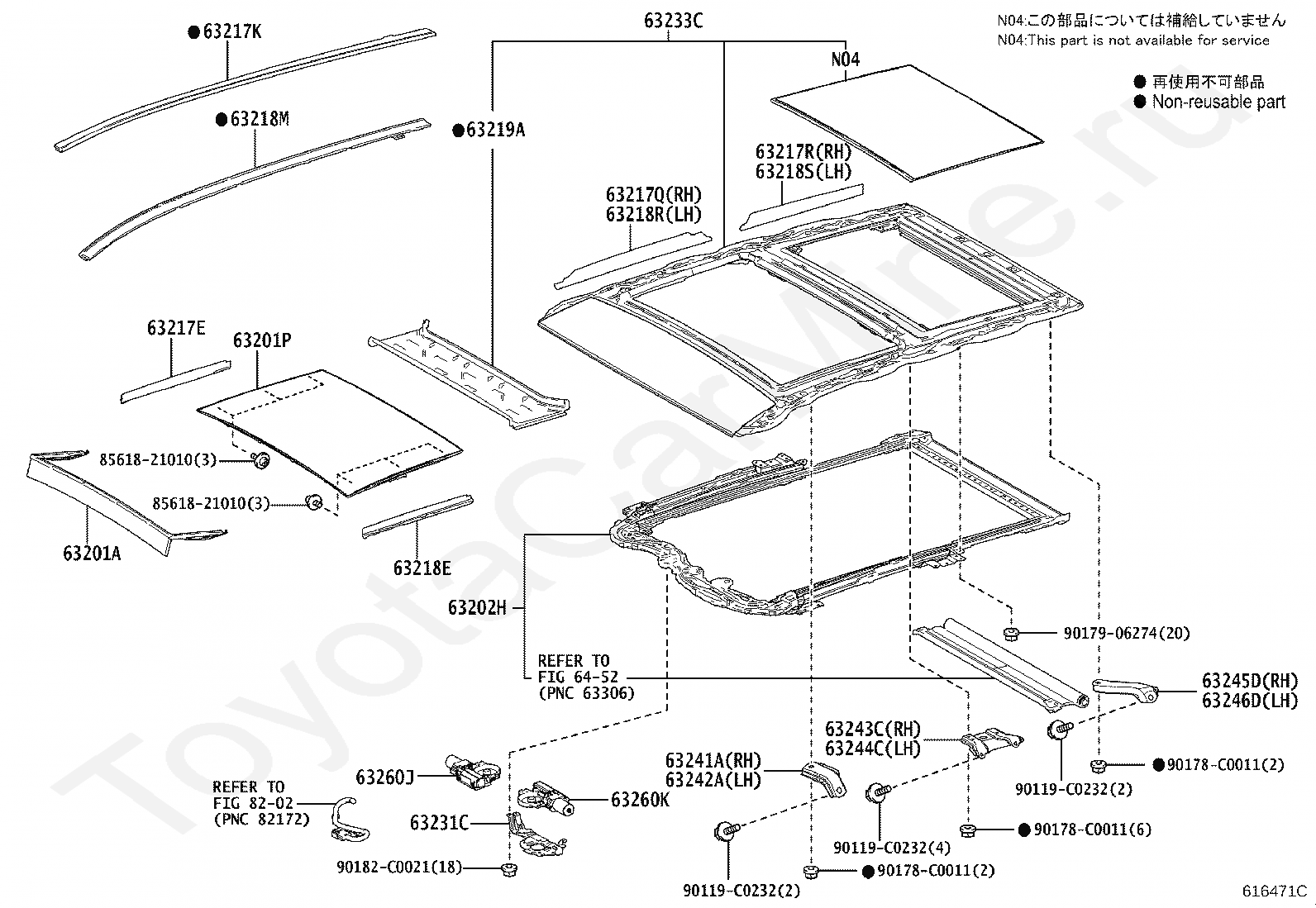

63201A

PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

63201P

GLASS SUB-ASSY, SLIDING ROOF

63202H

RAIL SUB-ASSY, SLIDE ROOF

63217E

GARNISH, SLIDING ROOF, FRONT RH

63217K

GARNISH, SLIDING ROOF SIDE, RH

63217Q

GARNISH, SLIDING ROOF SIDE, RH

63217R

GARNISH, SLIDING ROOF SIDE, RH

63218E

GARNISH, SLIDING ROOF, FRONT LH

63218M

GARNISH, SLIDING ROOF SIDE, LH

63218R

GARNISH, SLIDING ROOF SIDE, LH

63218S

GARNISH, SLIDING ROOF SIDE, LH

63219A

GARNISH, SLIDING ROOF, REAR

63231C

BRACKET, ROOM LAMP

63233C

PANEL, SLIDING ROOF HOUSING

63241A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH

63242A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH

63243C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

63244C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

63245D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH

63246D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH

63260J

GEAR ASSY, SLIDING ROOF DRIVE

63260K

GEAR ASSY, SLIDING ROOF DRIVE

6452

переход к группе запчастей

8202

переход к группе запчастей

8561821010

Крепеж

8561821010

Крепеж

90119C0232

Крепеж

90119C0232

Крепеж

90119C0232

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9017906274

Крепеж

90182C0021

Крепеж

Код

Описание

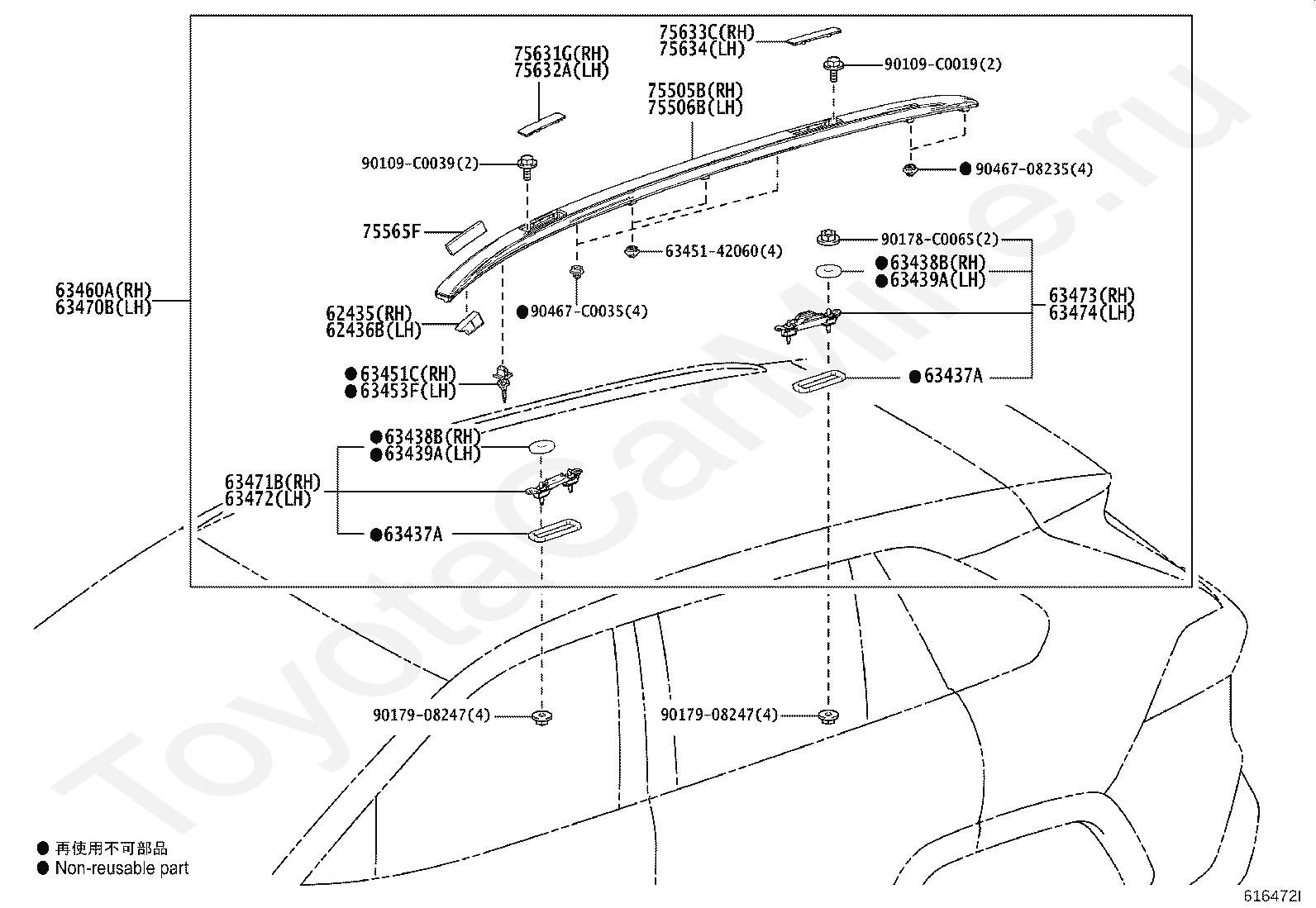

62435

PAD, ROOF SIDE RAIL GARNISH, RH

62436B

PAD, ROOF SIDE RAIL GARNISH, LH

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63438B

SEAL, ROOF CARRIER, NO.3 RH

63438B

SEAL, ROOF CARRIER, NO.3 RH

63439A

SEAL, ROOF CARRIER, NO.3 LH

63439A

SEAL, ROOF CARRIER, NO.3 LH

6345142060

Крепеж

63451C

RETAINER, ROOF RACK, FRONT RH

63453F

RETAINER, ROOF RACK, FRONT LH

63460A

RACK ASSY, ROOF, RH

63470B

RACK ASSY, ROOF, LH

63471B

LEG, ROOF RACK, FRONT RH

63472

LEG, ROOF RACK, FRONT LH

63473

LEG, ROOF RACK, REAR RH

63474

LEG, ROOF RACK, REAR LH

75505B

GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

75506B

GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

75565F

PROTECTOR, ROOF SIDE GARNISH, NO.1

75631G

LID, ROOF SIDE GARNISH, NO.1 RH

75632A

LID, ROOF SIDE GARNISH, NO.1 LH

75633C

LID, ROOF SIDE GARNISH, NO.2 RH

75634

LID, ROOF SIDE GARNISH, NO.2 LH

90109C0019

Крепеж

90109C0039

Крепеж

90178C0065

Крепеж

9017908247

Крепеж

9017908247

Крепеж

9046708235

Крепеж

90467C0035

Крепеж

ROOF PANEL & BACK PANEL TOYOTA RAV4 (CHINA)
