Европа

Модель

RAV4

VIN

Дата

2020/06

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

фургон

Фрейм

AXAP54

КПП

вариатор

Опции

левый руль 5 дверей GRAMS Европа 798W

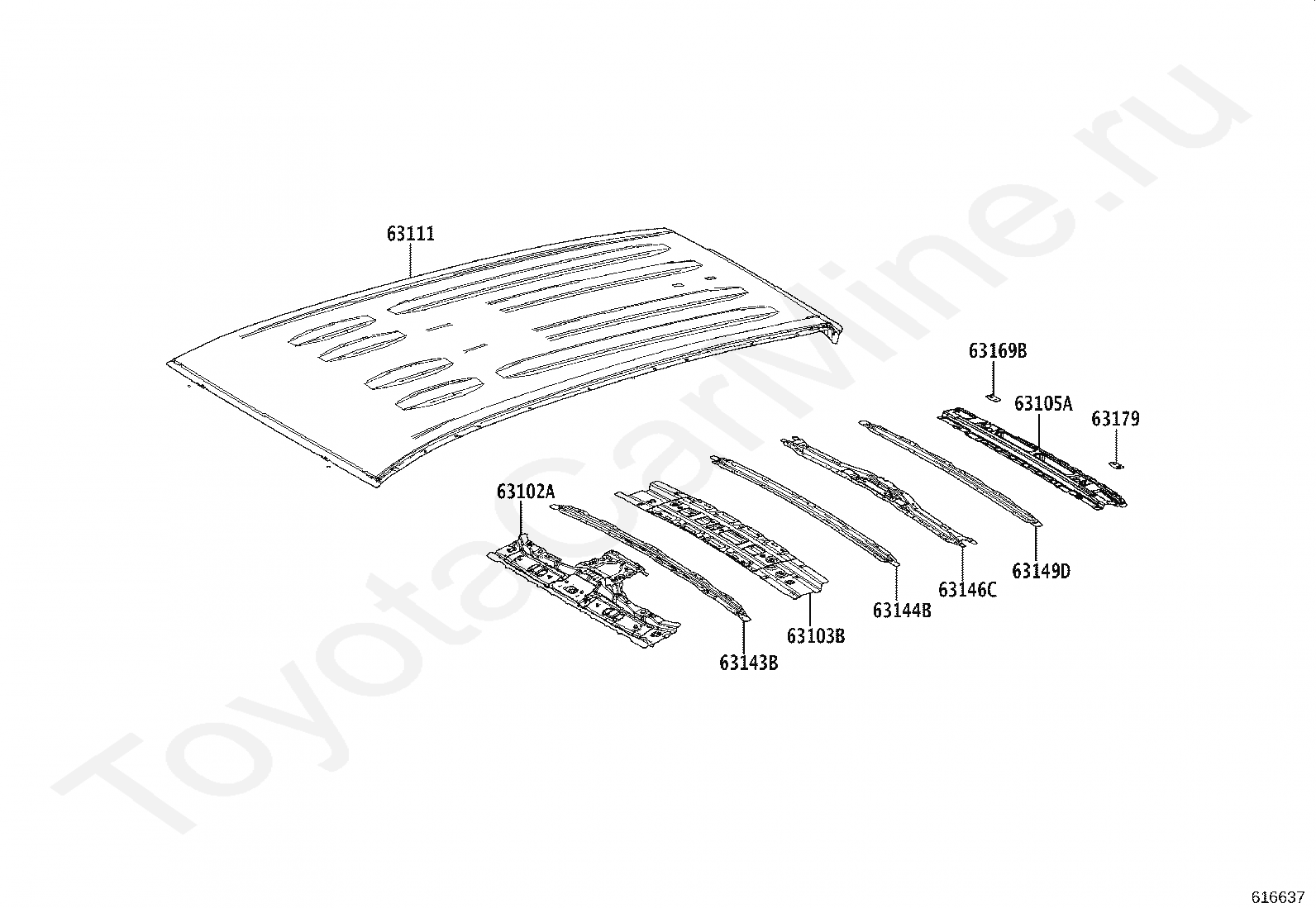

ROOF PANEL & BACK PANEL TOYOTA RAV4

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63103B

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63146C

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

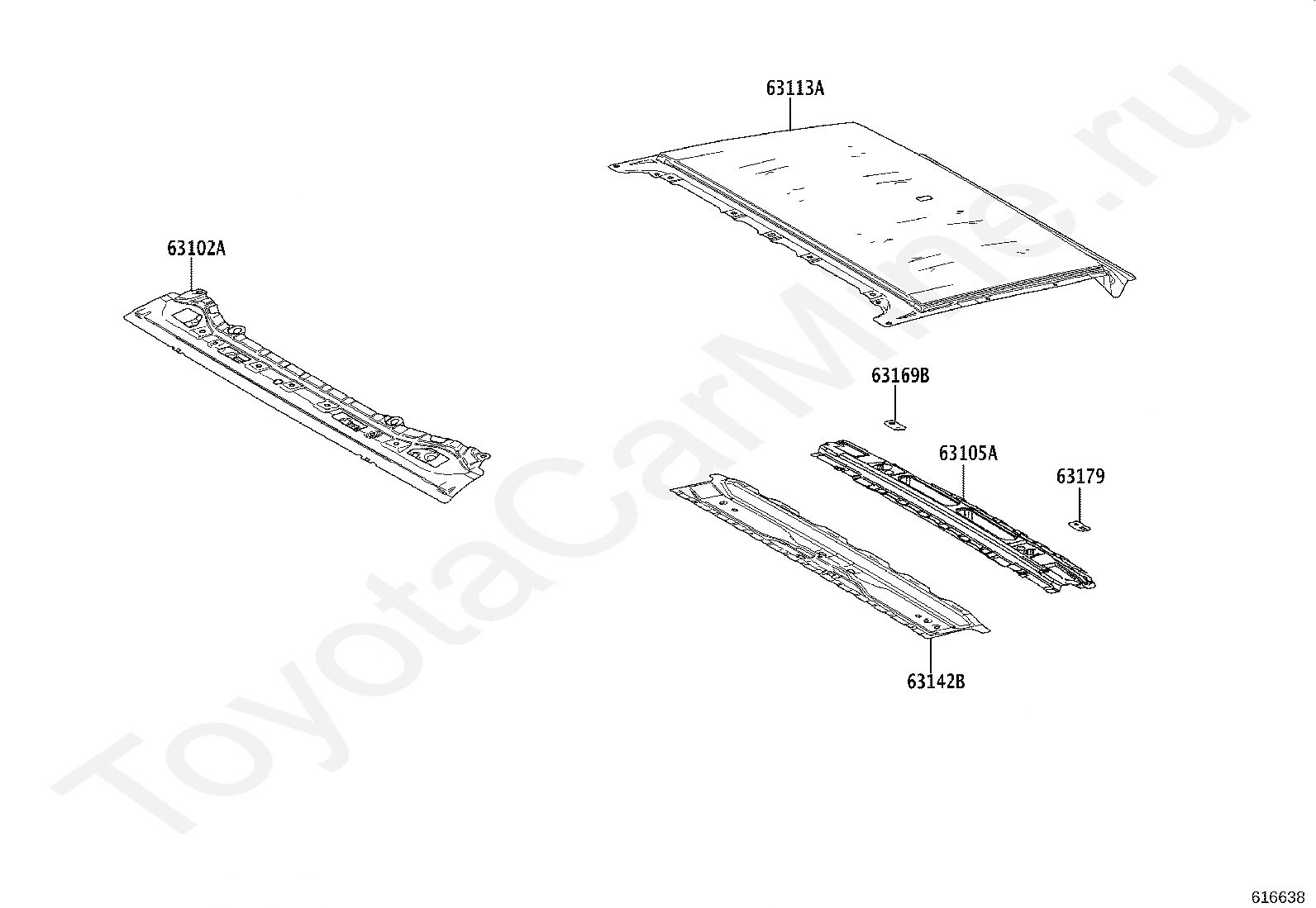

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63113A

PANEL, ROOF, NO.3

63142B

REINFORCEMENT, ROOF PANEL, REAR

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

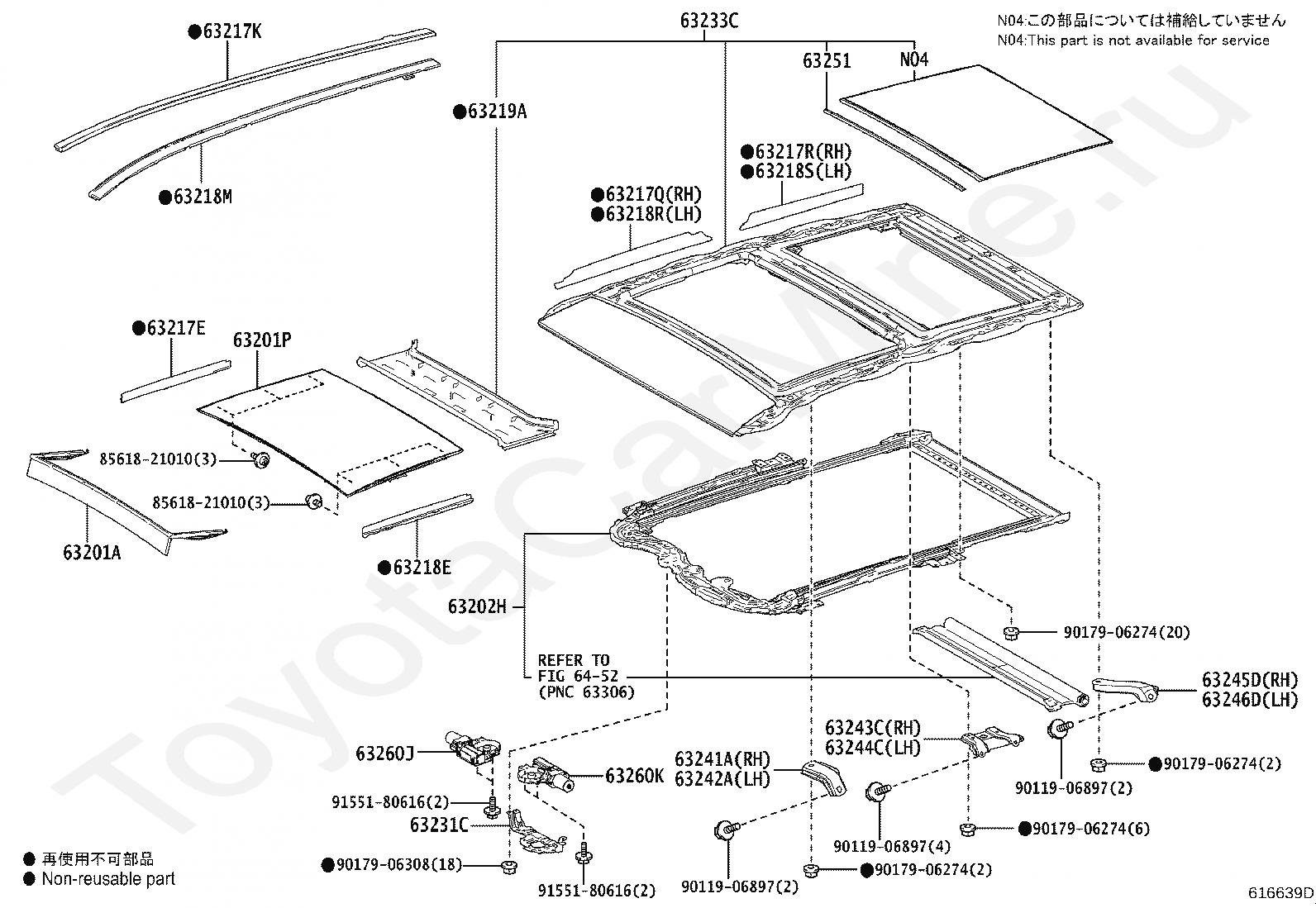

Код

Описание

63201A

PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

63201P

GLASS SUB-ASSY, SLIDING ROOF

63202H

RAIL SUB-ASSY, SLIDE ROOF

63217E

GARNISH, SLIDING ROOF, FRONT RH

63217K

GARNISH, SLIDING ROOF SIDE, RH

63217Q

GARNISH, SLIDING ROOF SIDE, RH

63217R

GARNISH, SLIDING ROOF SIDE, RH

63218E

GARNISH, SLIDING ROOF, FRONT LH

63218M

GARNISH, SLIDING ROOF SIDE, LH

63218R

GARNISH, SLIDING ROOF SIDE, LH

63218S

GARNISH, SLIDING ROOF SIDE, LH

63219A

GARNISH, SLIDING ROOF, REAR

63231C

BRACKET, ROOM LAMP

63233C

PANEL, SLIDING ROOF HOUSING

63241A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH

63242A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH

63243C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

63244C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

63245D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH

63246D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH

63251

WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF

63260J

GEAR ASSY, SLIDING ROOF DRIVE

63260K

GEAR ASSY, SLIDING ROOF DRIVE

6452

переход к группе запчастей

8561821010

Крепеж

8561821010

Крепеж

9011906897

Крепеж

9011906897

Крепеж

9011906897

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906308

Крепеж

9155180616

Крепеж

9155180616

Крепеж

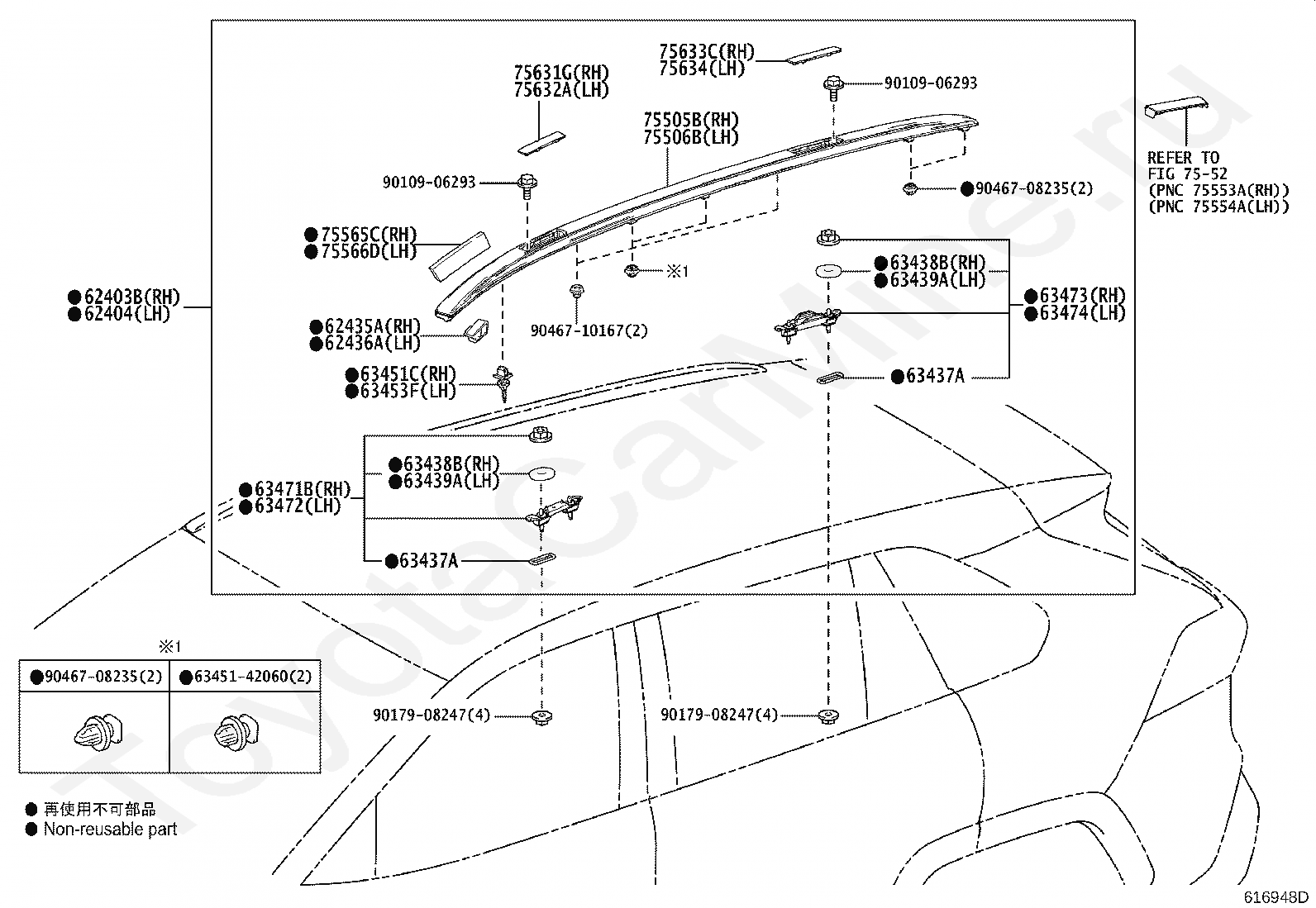

Код

Описание

62403B

GARNISH SUB-ASSY, ROOF SIDE RAIL, RH

62404

GARNISH SUB-ASSY, ROOF SIDE RAIL, LH

62435A

PAD, ROOF SIDE RAIL, FRONT RH

62436A

PAD, ROOF SIDE RAIL, FRONT LH

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63438B

SEAL, ROOF CARRIER, NO.3 RH

63438B

SEAL, ROOF CARRIER, NO.3 RH

63439A

SEAL, ROOF CARRIER, NO.3 LH

63439A

SEAL, ROOF CARRIER, NO.3 LH

6345142060

Крепеж

63451C

RETAINER, ROOF RACK, FRONT RH

63453F

RETAINER, ROOF RACK, FRONT LH

63471B

LEG, ROOF RACK, FRONT RH

63472

LEG, ROOF RACK, FRONT LH

63473

LEG, ROOF RACK, REAR RH

63474

LEG, ROOF RACK, REAR LH

75505B

GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

75506B

GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

7552

переход к группе запчастей

75565C

PROTECTOR, ROOF SIDE GARNISH, FRONT RH

75566D

PROTECTOR, ROOF SIDE GARNISH, FRONT LH

75631G

LID, ROOF SIDE GARNISH, NO.1 RH

75632A

LID, ROOF SIDE GARNISH, NO.1 LH

75633C

LID, ROOF SIDE GARNISH, NO.2 RH

75634

LID, ROOF SIDE GARNISH, NO.2 LH

9010906293

Крепеж

9010906293

Крепеж

9017908247

Крепеж

9017908247

Крепеж

9046708235

Крепеж

9046708235

Крепеж

9046710167

Крепеж

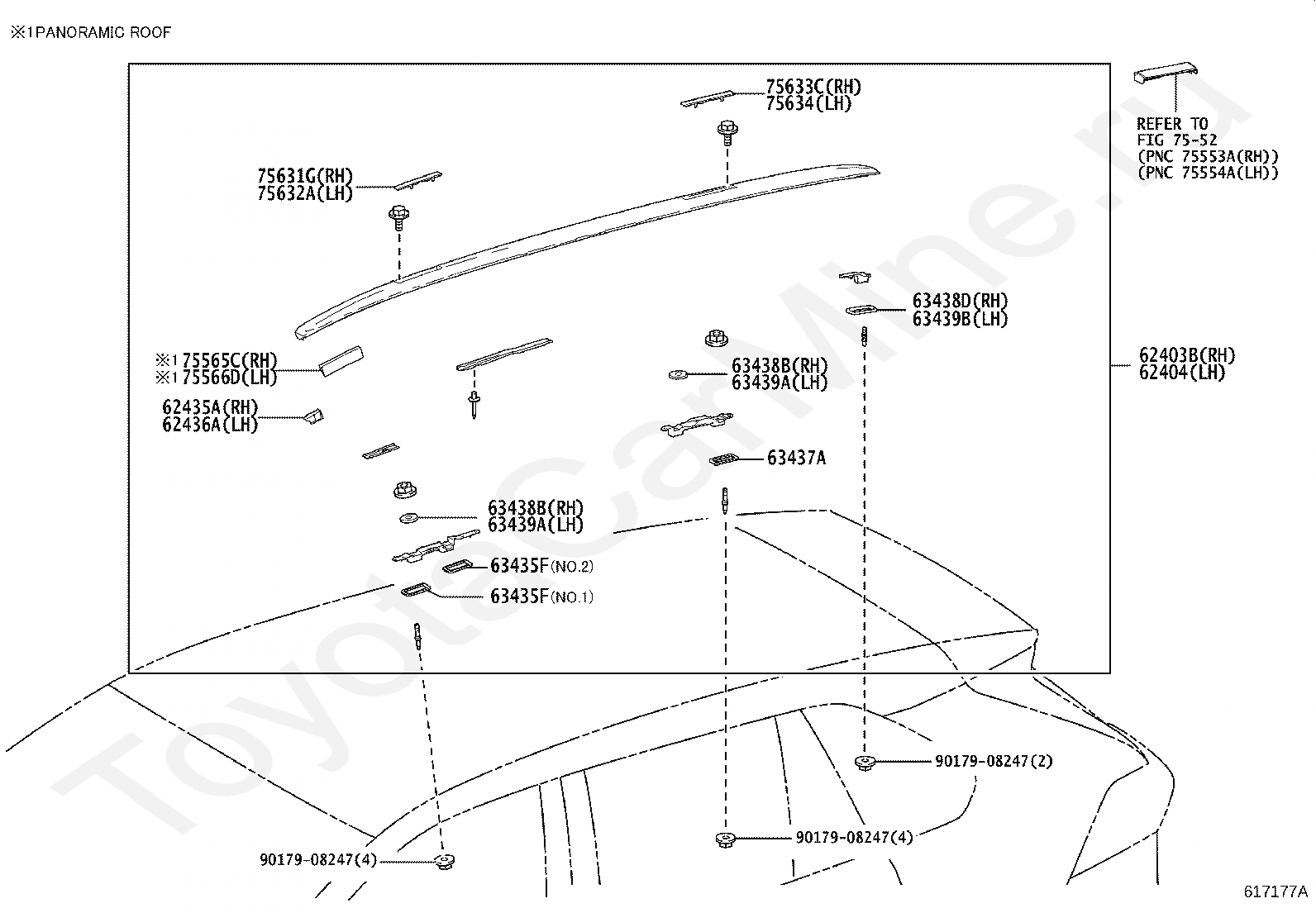

Код

Описание

62403B

GARNISH SUB-ASSY, ROOF SIDE RAIL, RH

62404

GARNISH SUB-ASSY, ROOF SIDE RAIL, LH

62435A

PAD, ROOF SIDE RAIL, FRONT RH

62436A

PAD, ROOF SIDE RAIL, FRONT LH

63435F

SEAL, ROOF CARRIER, NO.1

63435F

SEAL, ROOF CARRIER, NO.1

63437A

SEAL, ROOF CARRIER, NO.2

63438B

SEAL, ROOF CARRIER, NO.3 RH

63438B

SEAL, ROOF CARRIER, NO.3 RH

63438D

SEAL, ROOF CARRIER, NO.3 RH

63439A

SEAL, ROOF CARRIER, NO.3 LH

63439A

SEAL, ROOF CARRIER, NO.3 LH

63439B

SEAL, ROOF CARRIER, NO.3 LH

7552

переход к группе запчастей

75565C

PROTECTOR, ROOF SIDE GARNISH, FRONT RH

75566D

PROTECTOR, ROOF SIDE GARNISH, FRONT LH

75631G

LID, ROOF SIDE GARNISH, NO.1 RH

75632A

LID, ROOF SIDE GARNISH, NO.1 LH

75633C

LID, ROOF SIDE GARNISH, NO.2 RH

75634

LID, ROOF SIDE GARNISH, NO.2 LH

9017908247

Крепеж

9017908247

Крепеж

9017908247

Крепеж

ROOF PANEL & BACK PANEL TOYOTA RAV4
