Европа

Модель

RAV4

VIN

Дата

2015/10

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Класс

METERS

Фрейм

AVA44

КПП

вариатор амперы

Опции

JAPAN PRODUCT правый руль HIGH EFFICIENCY TWIN CAM Европа 650W

Кресла TOYOTA RAV4







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71920A

HEADREST ASSY, FRONT SEAT, LH

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

9011910601

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9326955010

Крепеж

9417060600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

7176947020

Крепеж

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

72010

ADJUSTER ASSY, FRONT SEAT, RH

7247674010

Крепеж

7247674010

Крепеж

7247674010

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

9011910601

Крепеж

9417060600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

9011910601

Крепеж

9011910601

Крепеж

9417060600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

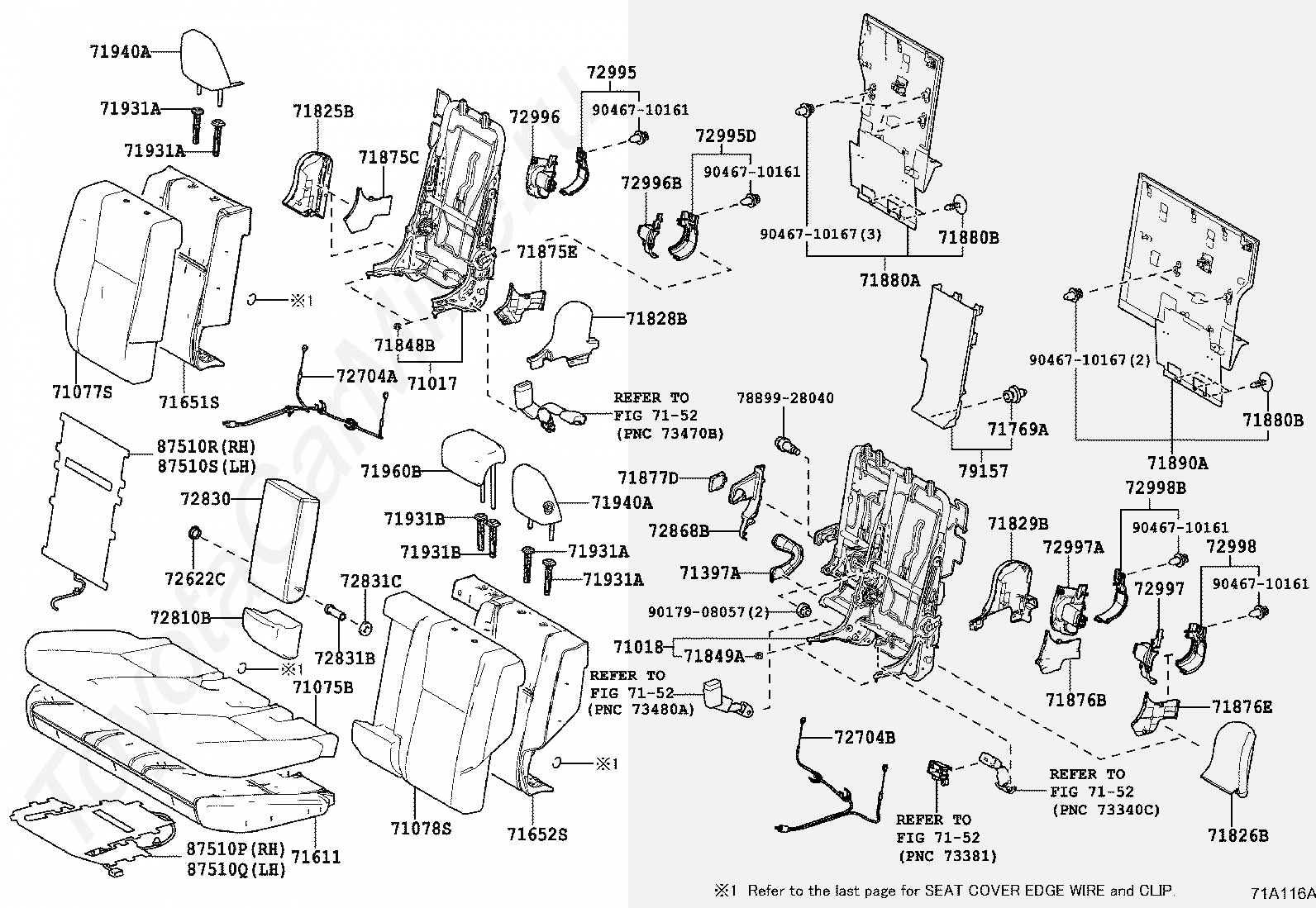

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71397A

COVER, CENTER SEAT HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71769A

CLIP, REAR SEAT BACK BOARD

71825B

MOULDING, REAR SEAT CUSHION, RH

71826B

MOULDING, REAR SEAT CUSHION, LH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71849A

CAP, SEAT ADJUSTER COVER, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71877D

COVER, REAR SEAT ARMREST HOLE

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71880B

CLIP(FOR REAR SEAT BACK CARPET)

71880B

CLIP(FOR REAR SEAT BACK CARPET)

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704B

CABLE, REAR SEAT RECLINING CONTROL, NO.2

72810B

ARMREST ASSY, NO.1 SEAT

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72868B

COVER, CENTER ARMREST HINGE

72995

COVER, REAR SEAT CUSHION, RH

72995D

COVER, REAR SEAT CUSHION, INNER RH

72996

COVER, REAR SEAT BACK, RH

72996B

COVER, REAR SEAT BACK, INNER RH

72997

COVER, REAR SEAT BACK, LH

72997A

COVER, REAR SEAT BACK, INNER LH

72998

COVER, REAR SEAT CUSHION, LH

72998B

COVER, REAR SEAT CUSHION, LH

7889928040

Крепеж

79157

COVER, NO.1 SEAT BACK

87510P

HEATER ASSY, SEAT

87510Q

HEATER ASSY, SEAT

87510R

HEATER ASSY, SEAT

87510S

HEATER ASSY, SEAT

9017908057

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710167

Крепеж

9046710167

Крепеж

Код

Описание

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157

COVER, SEAT TRACK BRACKET, INNER

72158

COVER, SEAT TRACK BRACKET, INNER LH

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

Код

Описание

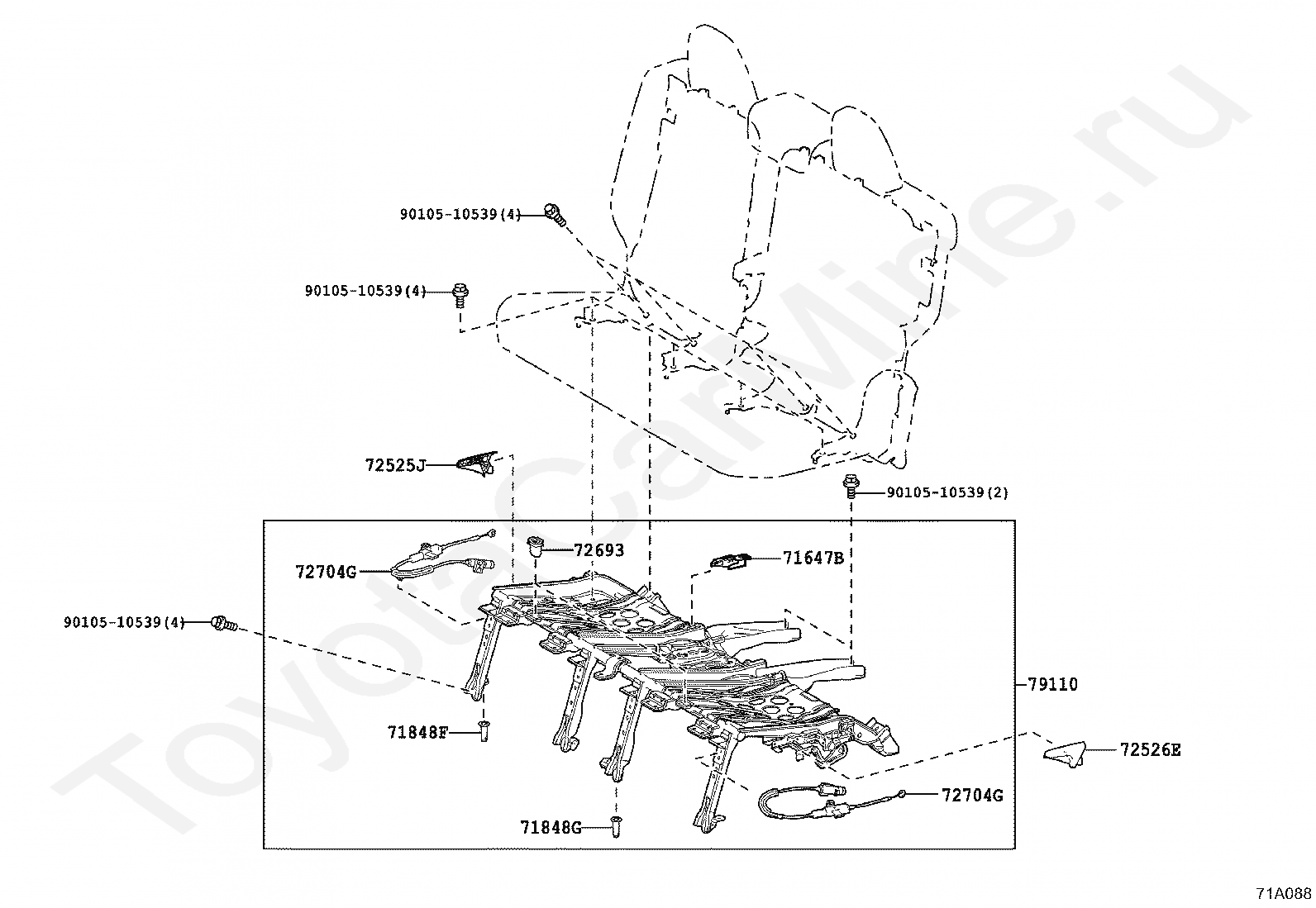

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

71848F

CAP, SEAT ADJUSTER COVER, NO.1

71848G

CAP, SEAT ADJUSTER COVER, NO.2

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

72693

HOOK, REAR SEAT CUSHION LOCK

72704G

CABLE, REAR SEAT RECLINING CONTROL, NO.4

72704G

CABLE, REAR SEAT RECLINING CONTROL, NO.4

79110

LEG ASSY, NO.1 SEAT

9010510539

Крепеж

9010510539

Крепеж

9010510539

Крепеж

9010510539

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
