Япония

Модель

RAUM

VIN

Дата

1999/07

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Фрейм

EXZ10

КПП

автомат

Опции

PRE-COLLISION BRAKE

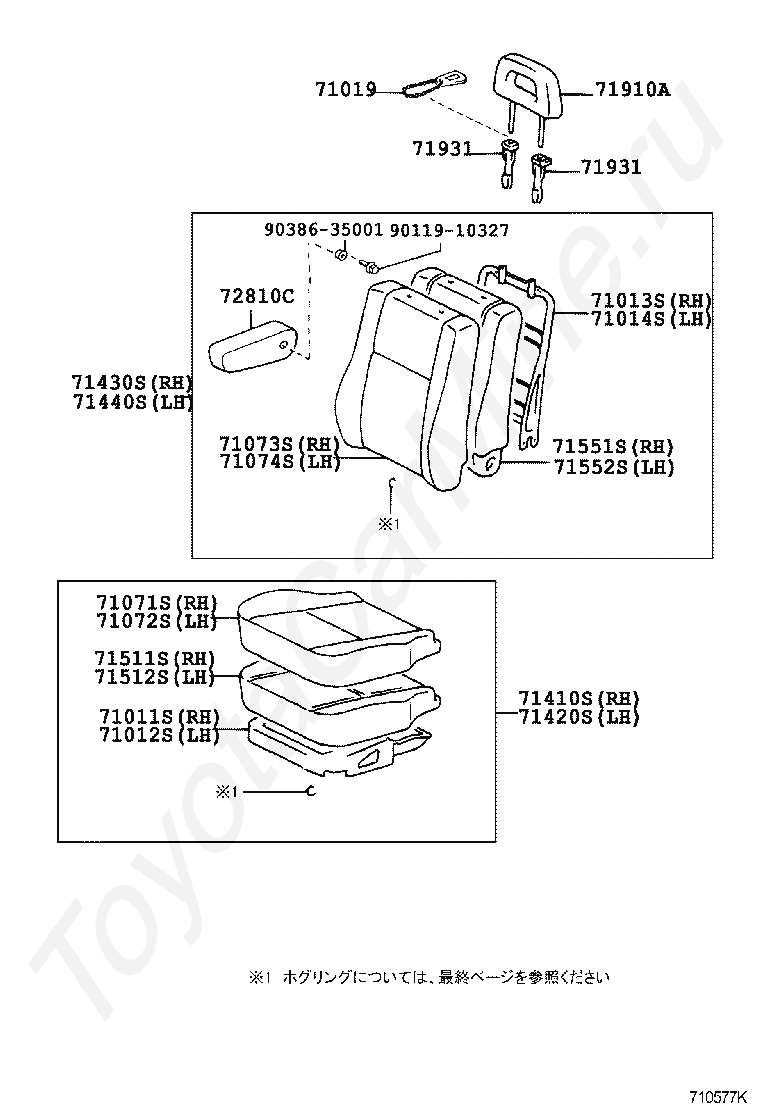

Передние кресла TOYOTA RAUM

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71019

PLATE SUB-ASSY, FRONT SEAT BACK, INSIDE

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

9011910327

Крепеж

9038635001

Крепеж

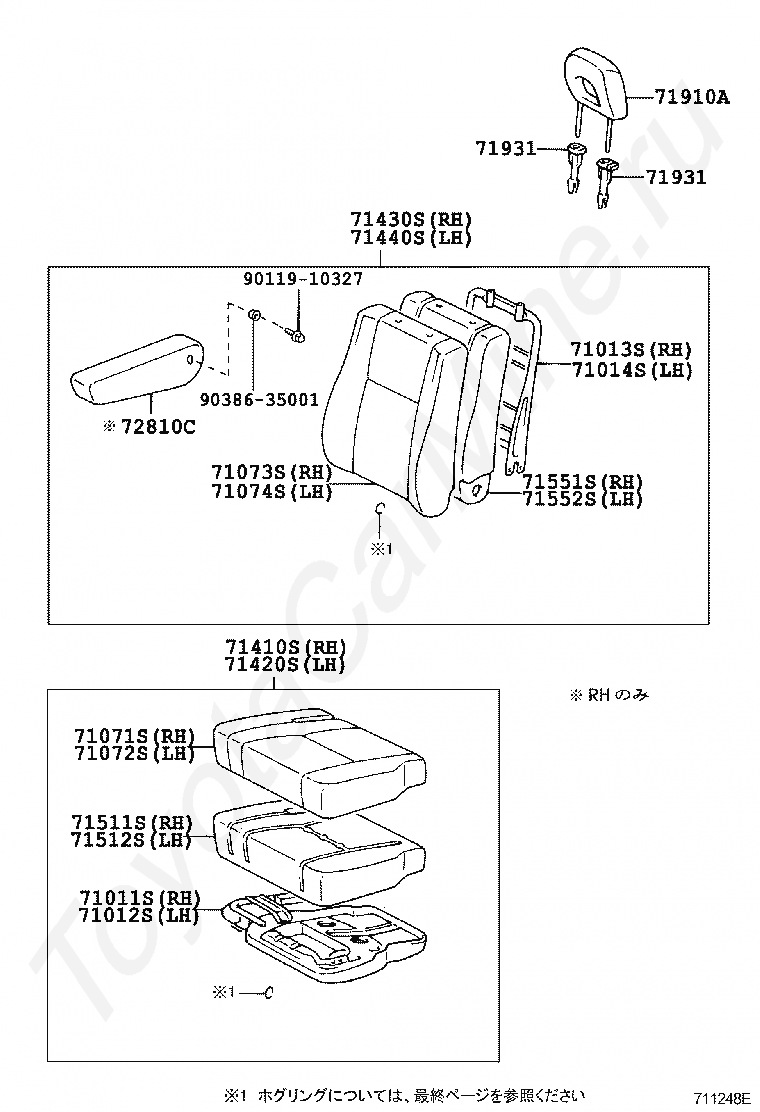

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

9011910327

Крепеж

9038635001

Крепеж

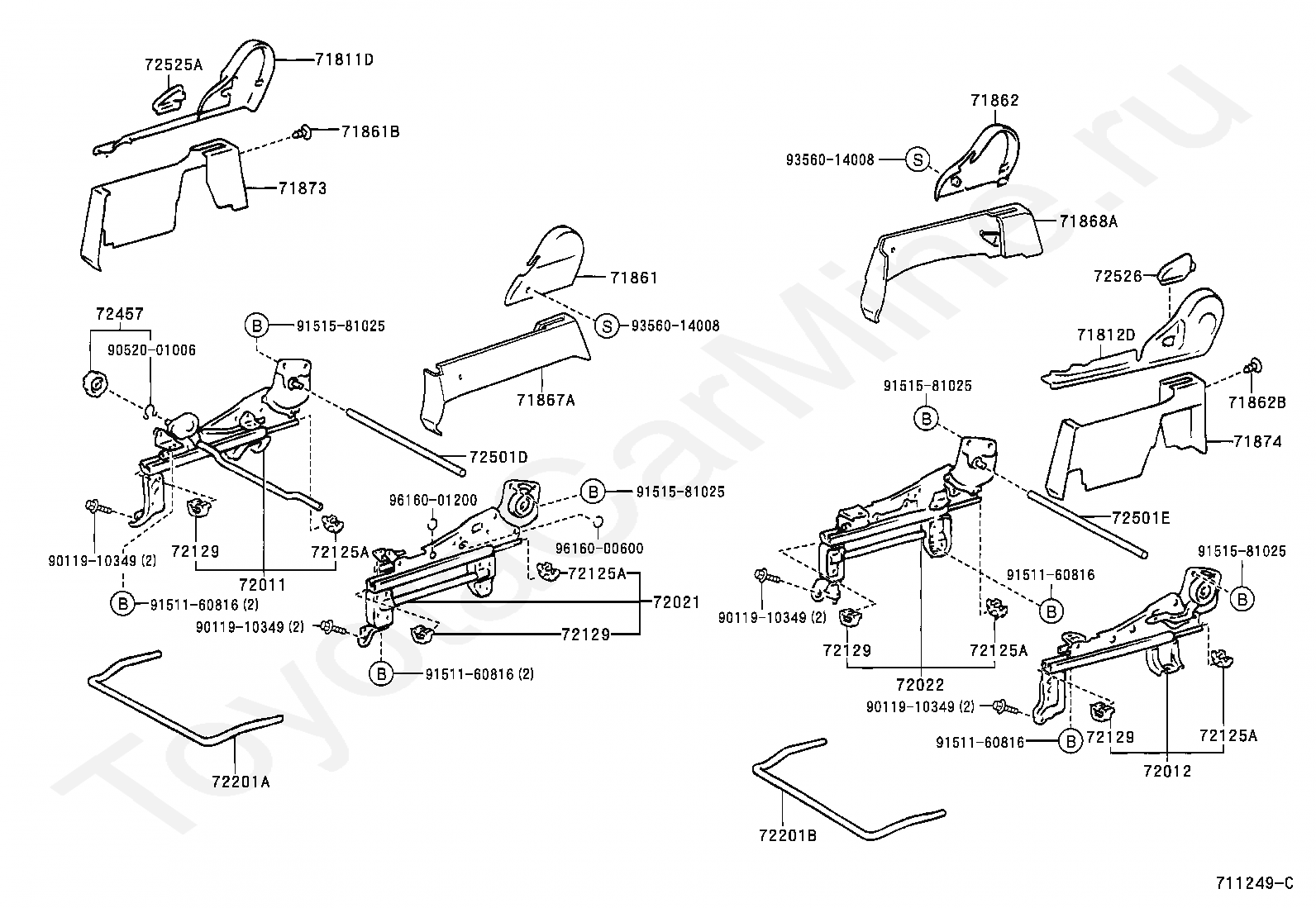

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72457

KNOB, VERTICAL SEAT ADJUSTER

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9011910349

Крепеж

9052001006

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9356014008

Крепеж

9356014008

Крепеж

9616000600

Крепеж

9616001200

Крепеж

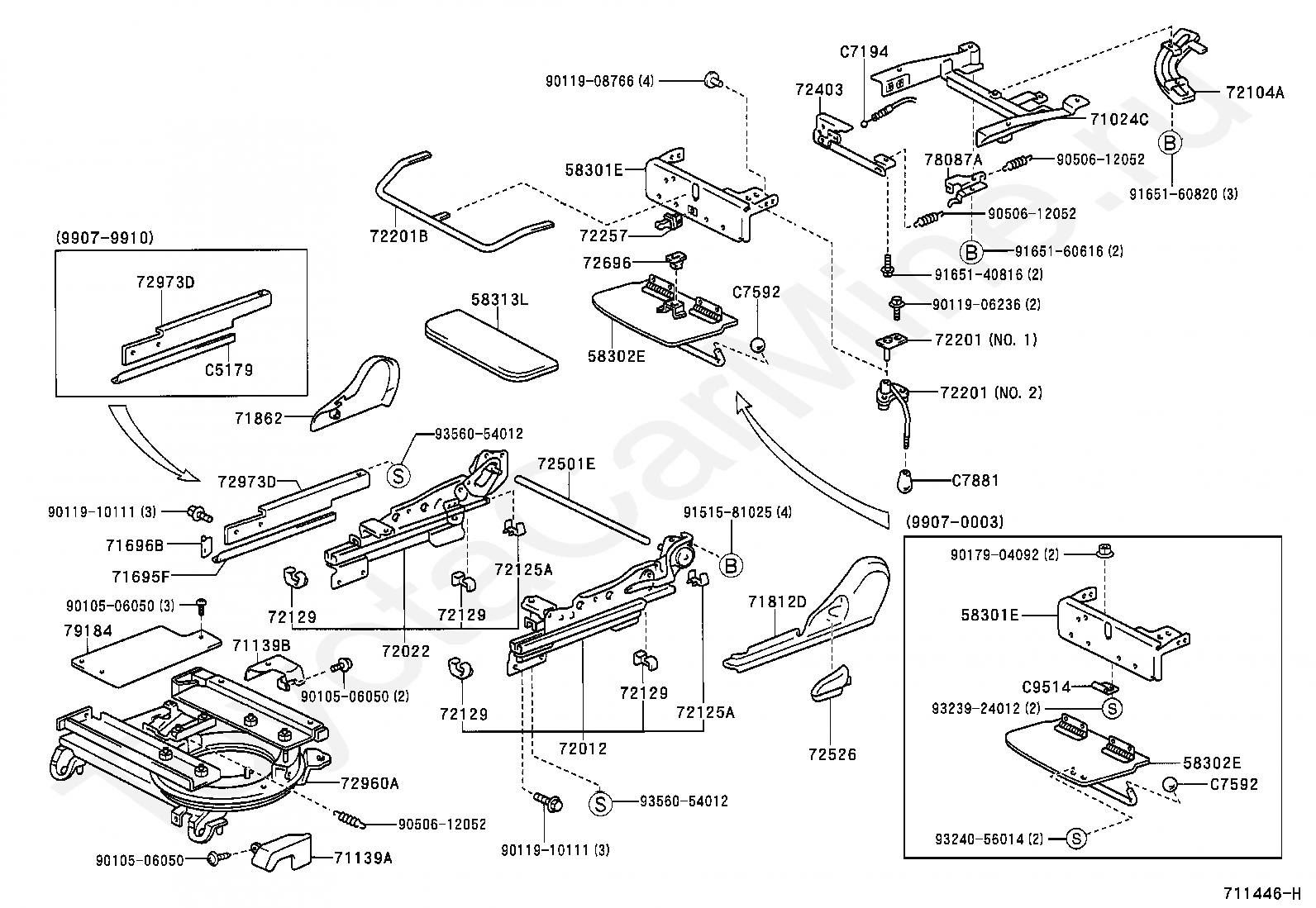

Код

Описание

58301E

FOOTREST SUB-ASSY, NO.1

58301E

FOOTREST SUB-ASSY, NO.1

58302E

FOOTREST SUB-ASSY, NO.2

58302E

FOOTREST SUB-ASSY, NO.2

58313L

MAT, FOOTREST

71024C

REINFORCE SUB-ASSY, FRONT SEAT CUSHION, LH

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71695F

PROTECTOR, REAR SEAT, NO.1

71696B

PROTECTOR, REAR SEAT, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72104A

RAIL SUB-ASSY, FRONT INNER SEAT TRACK, LOWER

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72201

HANDLE SUB-ASSY, SEAT TRACK

72201

HANDLE SUB-ASSY, SEAT TRACK

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72257

STRIKER, FRONT SEAT LOCK

72403

BRACKET SUB-ASSY, SEAT FRAME SET

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72696

LATCH, REAR SEAT LOCK

72960A

TABLE ASSY, SEAT TURN

72973D

COVER, FRONT SEAT TURN TABLE, NO.2

72973D

COVER, FRONT SEAT TURN TABLE, NO.2

78087A

SPRING, TORSION (FOR SUB SEAT LOCK LEVER)

79184

PLATE, NO.1 SEAT LEG

9010506050

Крепеж

9010506050

Крепеж

9010506050

Крепеж

9011906236

Крепеж

9011908766

Крепеж

9011910111

Крепеж

9011910111

Крепеж

9017904092

Крепеж

9050612052

Крепеж

9050612052

Крепеж

9050612052

Крепеж

9151581025

Крепеж

9165140816

Крепеж

9165160616

Крепеж

9165160820

Крепеж

9323924012

Крепеж

9324056014

Крепеж

9356054012

Крепеж

9356054012

Крепеж

C5179

PROTECTOR, SIDE PANEL, LH

C7194

CABLE, FRONT SEAT TURN

C7592

KNOB, RECLINING ADJUSTER ARM

C7592

KNOB, RECLINING ADJUSTER ARM

C7881

GRIP, CONTROL LINK

C9514

STOPPER, RETURN SPRING

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA RAUM
