Каталог

Америка

Модель

RAIZE

VIN

Дата

2021/04

Двигатель

1200CC 12-VALVE DOHC EFI

Кузов

седан

Фрейм

A251

КПП

вариатор

Опции

правый руль 5 дверей X TYPE W/O TURBO Индонезия D26H

Боковая панель кузова TOYOTA RAIZE

Код

Описание

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61131C

PILLAR, FRONT BODY, OUTER RH

61153C

RETAINER, FRONT BODY PILLAR LOWER HINGE, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61211

RAIL, ROOF SIDE, OUTER RH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61411

PANEL, ROCKER, OUTER RH

61991C

PROTECTOR, FRONT PILLAR COVER, RH

67771B2010

Крепеж

9004467603

Крепеж

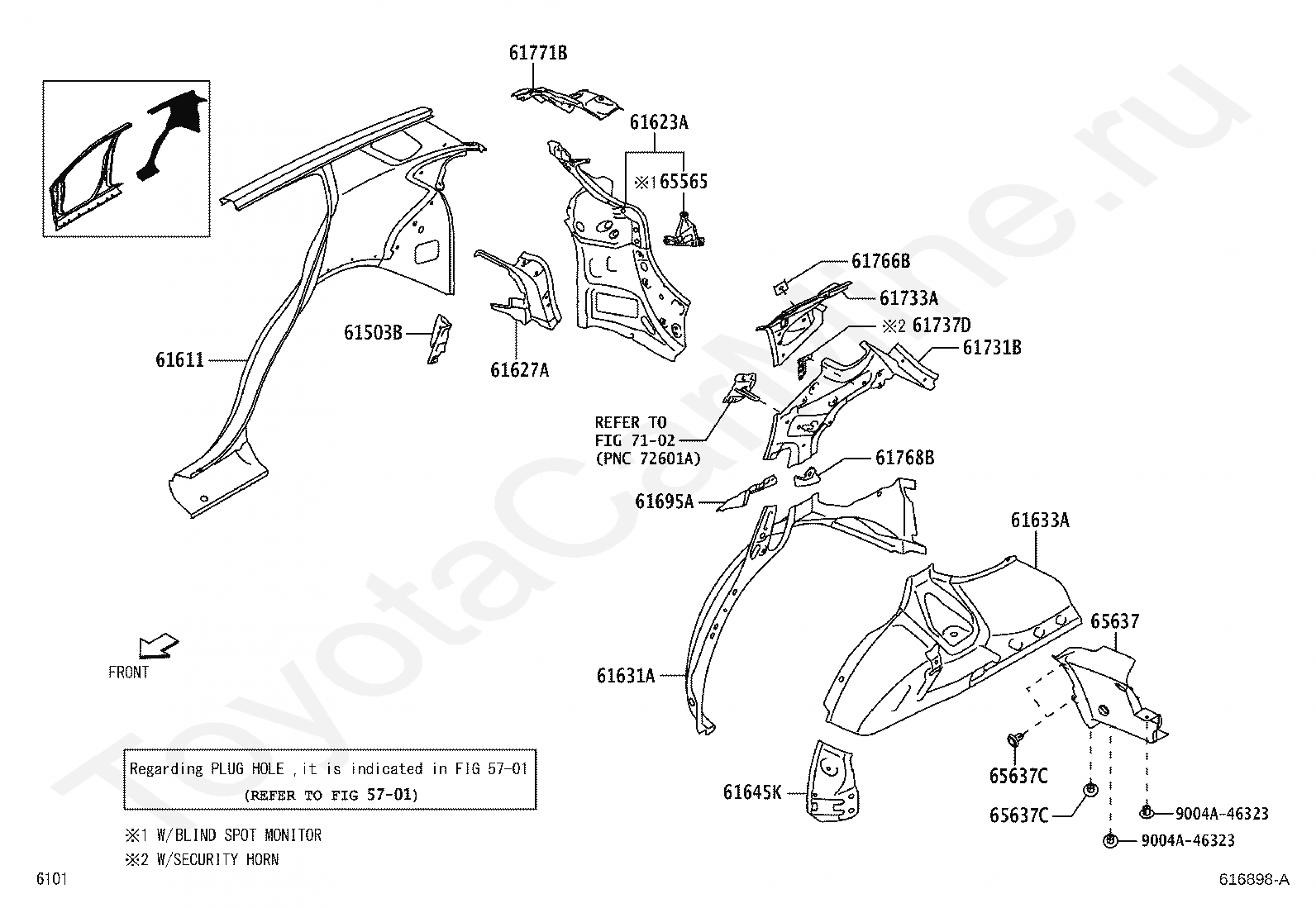

Код

Описание

5701

переход к группе запчастей

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61611

PANEL, QUARTER, RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61627A

EXTENSION, QUARTER PANEL, LOWER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61695A

BRACE, QUARTER PANEL, RH

61731B

PANEL, ROOF SIDE, INNER RH

61733A

PANEL, ROOF SIDE, INNER FRONT RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61766B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

61771B

FRAME, BACK DOOR OPENING UPPER CORNER, RH

65565

PATCH, SIDE PANEL REAR END, RH

65637

LINER, REAR WHEEL HOUSE, RH

65637C

CLIP, REAR WHEEL HOUSE LINER

65637C

CLIP, REAR WHEEL HOUSE LINER

7102

переход к группе запчастей

9004A46323

Крепеж

9004A46323

Крепеж

Код

Описание

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61132B

PILLAR, FRONT BODY, OUTER LH

61154B

RETAINER, FRONT BODY PILLAR LOWER HINGE, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61212

RAIL, ROOF SIDE, OUTER LH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61412

PANEL, ROCKER, OUTER LH

61992B

PROTECTOR, FRONT PILLAR COVER, LH

67771B2010

Крепеж

9004467603

Крепеж

Код

Описание

5701

переход к группе запчастей

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61612

PANEL, QUARTER, LH

61624A

EXTENSION, QUARTER PANEL, OUTER LH

61628A

EXTENSION, QUARTER PANEL, LOWER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61696A

BRACE, QUARTER PANEL, LH

61714B

REINFORCE, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

61767B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

61772B

FRAME, BACK DOOR OPENING UPPER CORNER, LH

65566

PATCH, SIDE PANEL REAR END, LH

65638

LINER, REAR WHEEL HOUSE, LH

65638C

CLIP, REAR WHEEL HOUSE LINER

65638C

CLIP, REAR WHEEL HOUSE LINER

7102

переход к группе запчастей

9004A46323

Крепеж

9004A46323

Крепеж
