Каталог

Япония

Модель

RAIZE

VIN

Дата

2021/11

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

X TYPE

Фрейм

A210A

КПП

вариатор

Опции

5 дверей 5-местный D40H

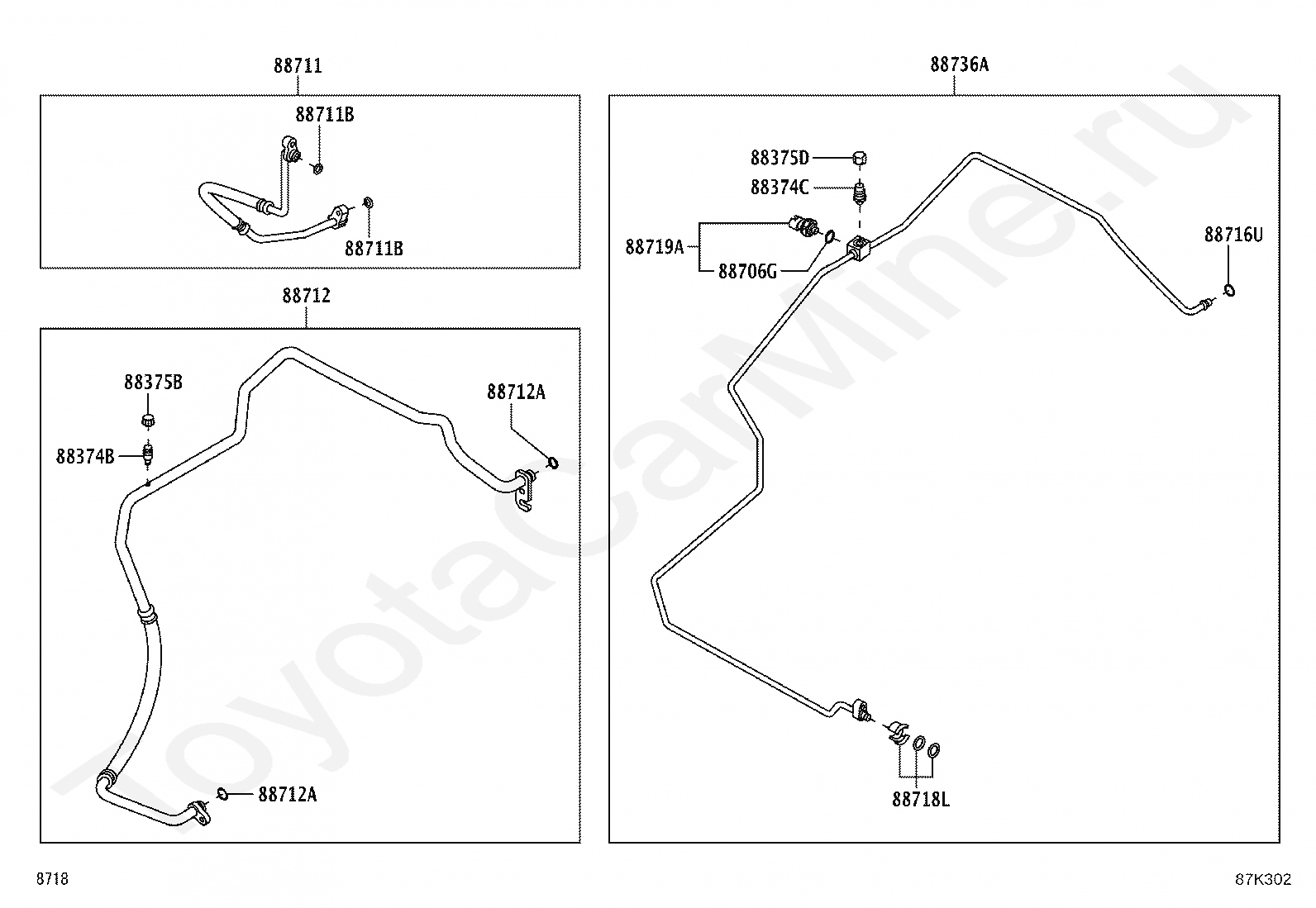

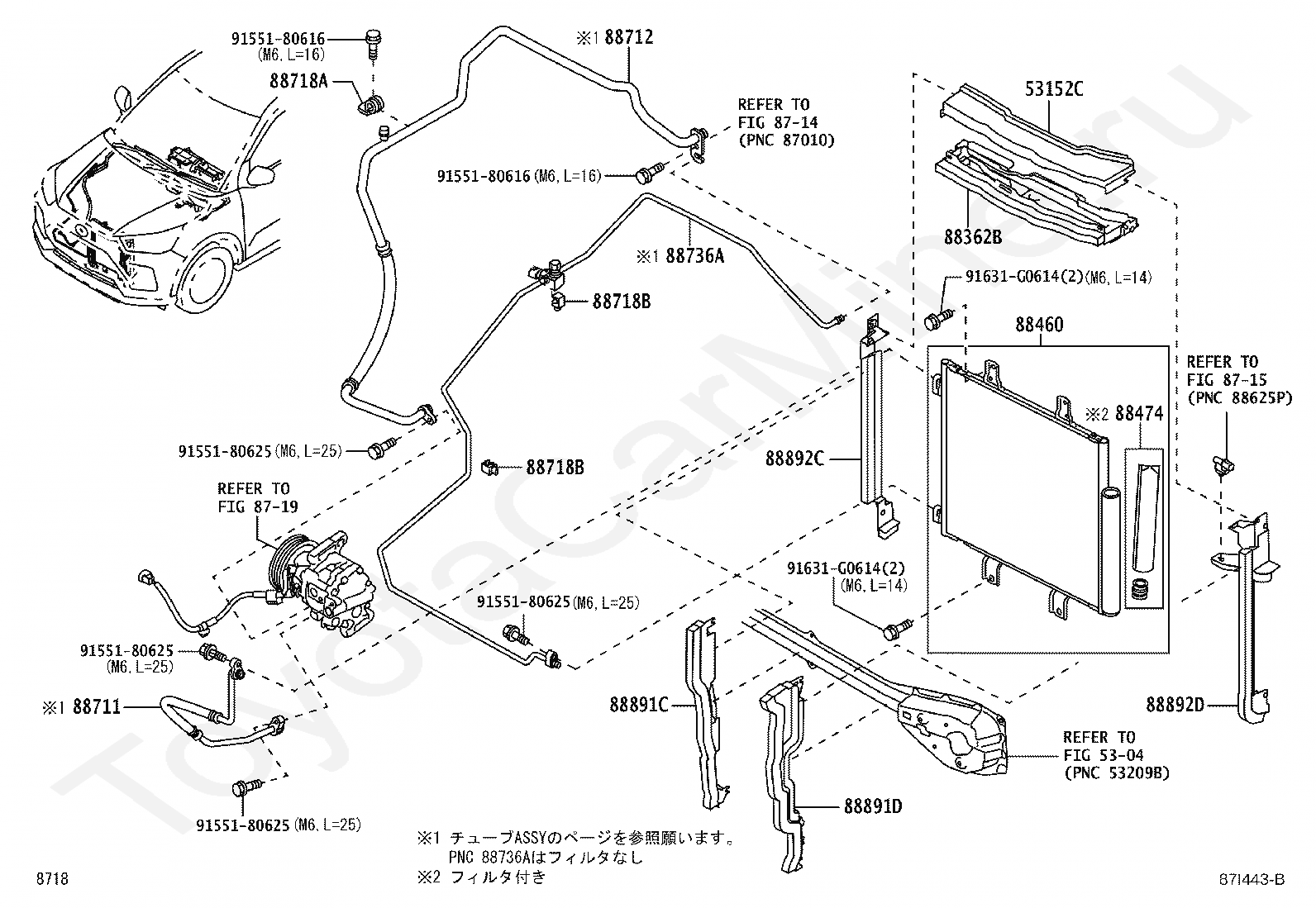

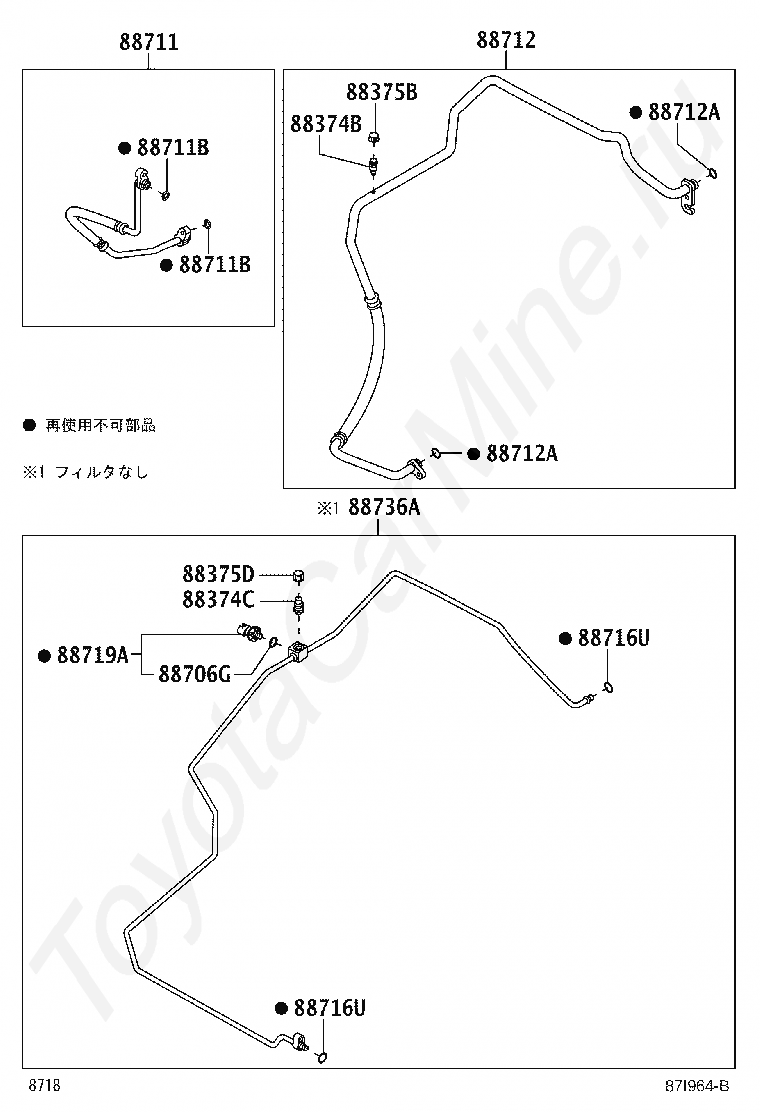

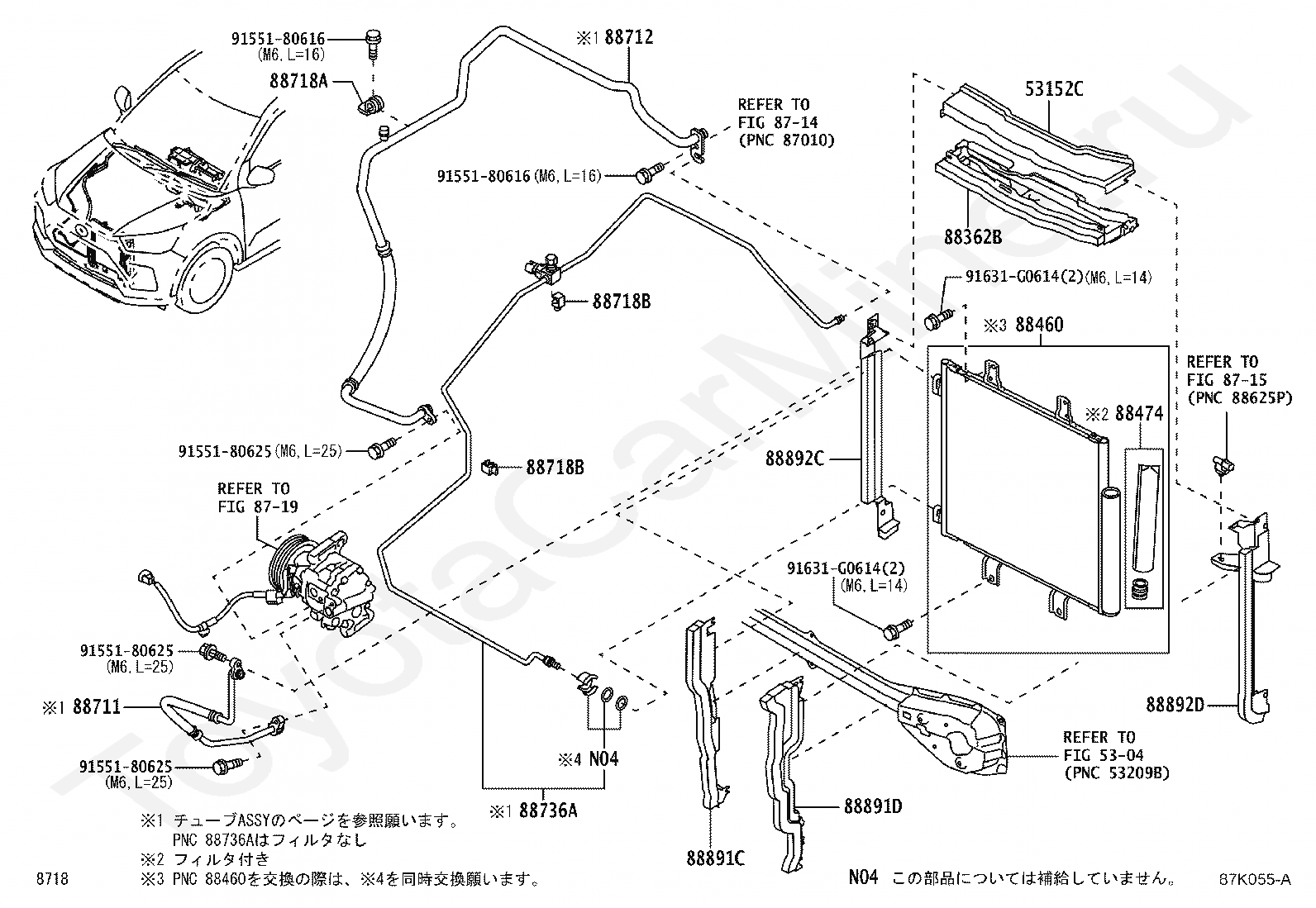

Кондиционер: охлаждающие трубки TOYOTA RAIZE

Код

Описание

5304

переход к группе запчастей

53152C

GUIDE, RADIATOR GRILLE AIR

8714

переход к группе запчастей

8715

переход к группе запчастей

8719

переход к группе запчастей

88362B

PLATE, SEAL

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88736A

TUBE, LIQUID, A(FOR COOL BOX)

88891C

PACKING C (FOR COOLER)

88891D

PACKING D (FOR COOLER)

88892C

PLATE, CONDENSER, NO.1

88892D

PLATE, CONDENSER, NO.2

9155180616

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

91631G0614

Крепеж

91631G0614

Крепеж

Код

Описание

5304

переход к группе запчастей

53152C

GUIDE, RADIATOR GRILLE AIR

8714

переход к группе запчастей

8715

переход к группе запчастей

8719

переход к группе запчастей

88362B

PLATE, SEAL

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88736A

TUBE, LIQUID, A(FOR COOL BOX)

88891C

PACKING C (FOR COOLER)

88891D

PACKING D (FOR COOLER)

88892C

PLATE, CONDENSER, NO.1

88892D

PLATE, CONDENSER, NO.2

9155180616

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

91631G0614

Крепеж

91631G0614

Крепеж

Код

Описание

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88706G

RING, O(FOR LIQUID TUBE)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88719A

SENSOR, AIR CONDITIONER PRESSURE

88736A

TUBE, LIQUID, A(FOR COOL BOX)

Код

Описание

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88706G

RING, O(FOR LIQUID TUBE)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88718L

CLAMP, PIPING

88719A

SENSOR, AIR CONDITIONER PRESSURE

88736A

TUBE, LIQUID, A(FOR COOL BOX)
