Каталог

Япония

Модель

RAIZE

VIN

Дата

2021/11

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Класс

X TYPE

Фрейм

A210A

КПП

вариатор

Опции

5 дверей 5-местный D40H

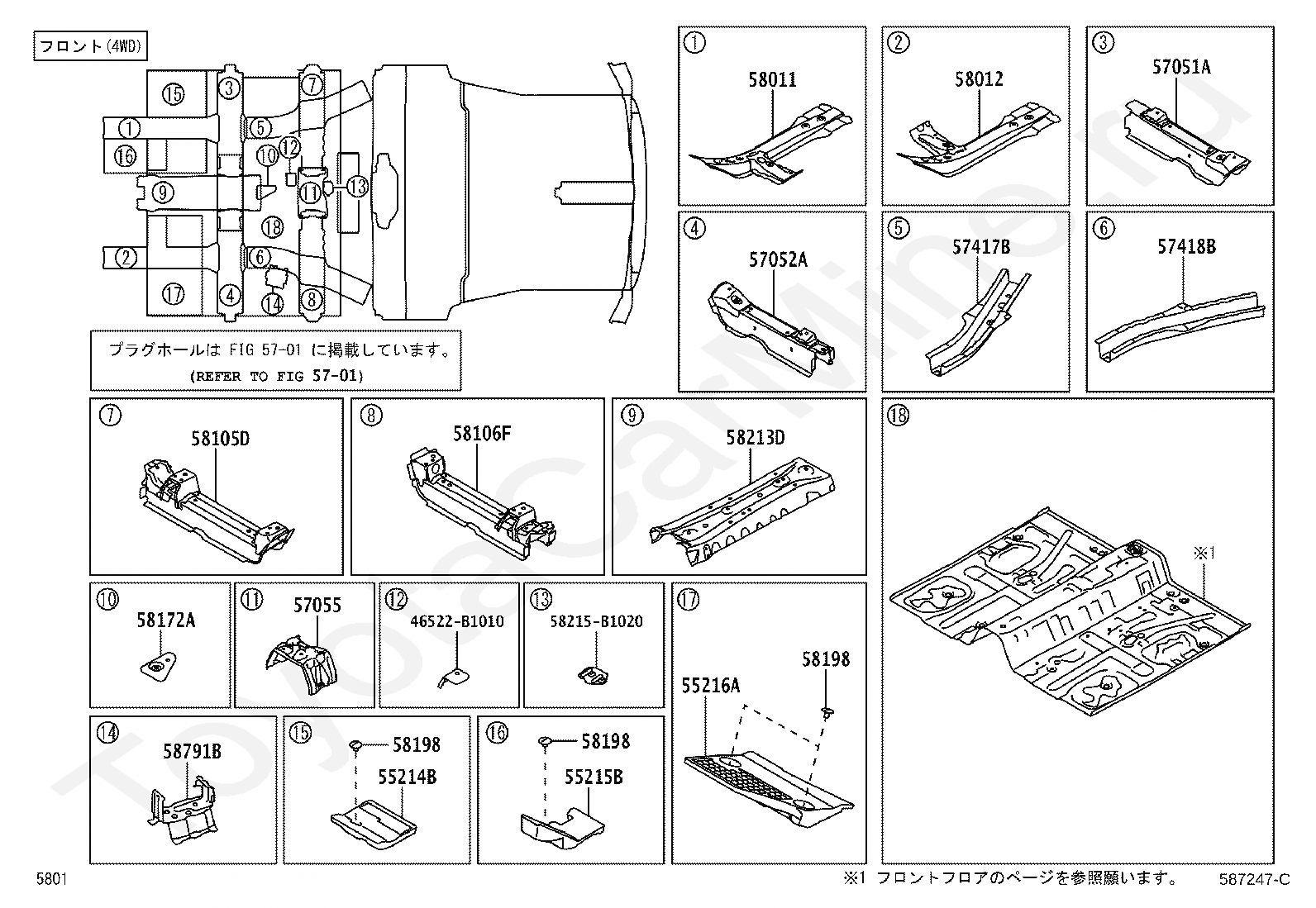

FLOOR PAN & LOWER BACK PANEL TOYOTA RAIZE

Код

Описание

46522B1010

Крепеж

55214B

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55216A

PAD, DASH PANEL INSULATOR, NO.4

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57055

REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.5

57417B

REINFORCEMENT, FRONT FLOOR UNDER

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

58011

PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

58012

PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

58105D

RETAINER SUB-ASSY, SEAT RAIL, REAR RH

58106F

BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

58172A

PLATE, PARKING BRAKE MOUNTING

58198

CLIP, FOOTREST

58198

CLIP, FOOTREST

58198

CLIP, FOOTREST

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58215B1020

Крепеж

58791B

CARRIER, JACK

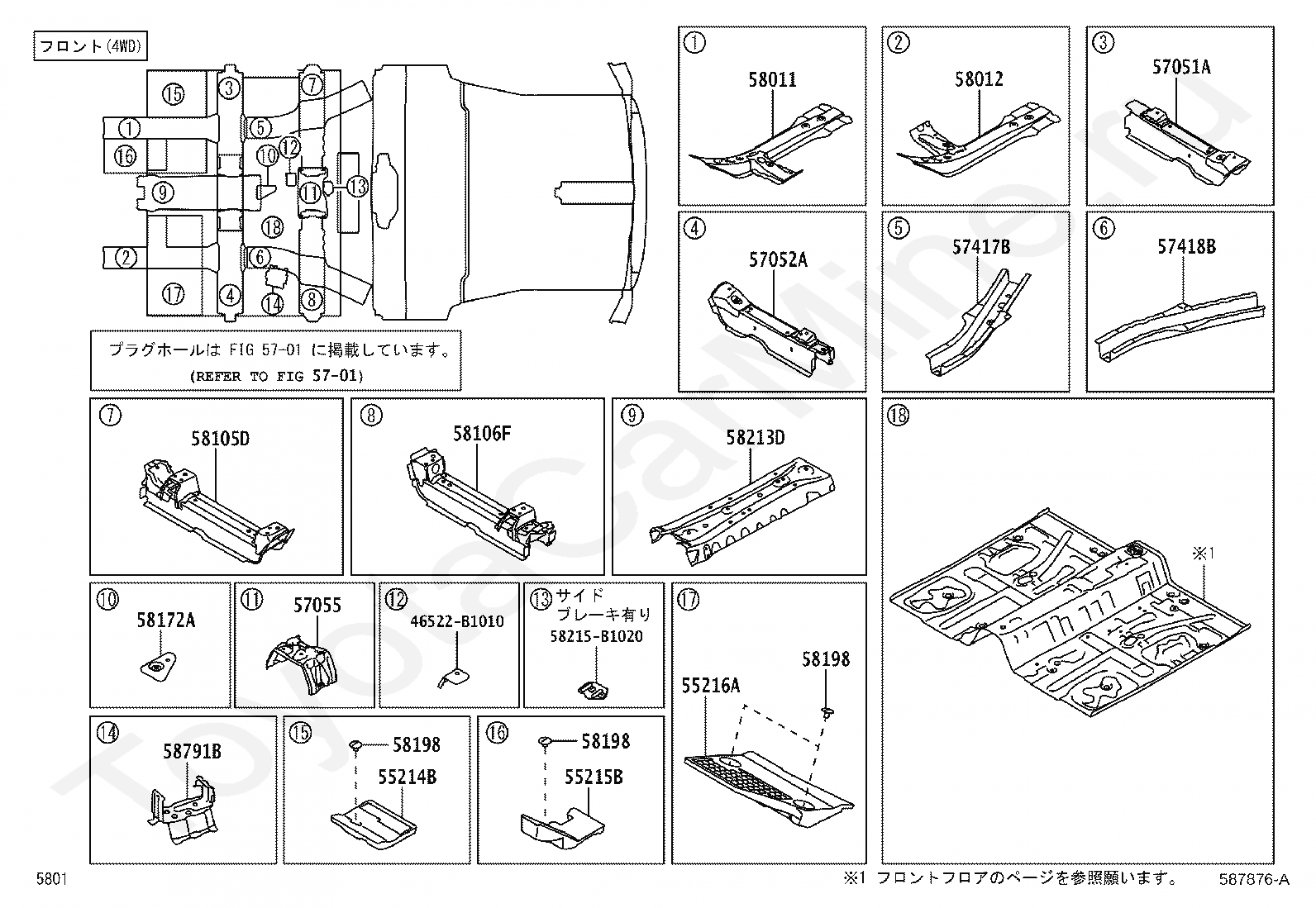

Код

Описание

46522B1010

Крепеж

55214B

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55216A

PAD, DASH PANEL INSULATOR, NO.4

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57055

REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.5

57417B

REINFORCEMENT, FRONT FLOOR UNDER

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

58011

PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

58012

PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

58105D

RETAINER SUB-ASSY, SEAT RAIL, REAR RH

58106F

BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

58172A

PLATE, PARKING BRAKE MOUNTING

58198

CLIP, FOOTREST

58198

CLIP, FOOTREST

58198

CLIP, FOOTREST

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58215B1020

Крепеж

58791B

CARRIER, JACK

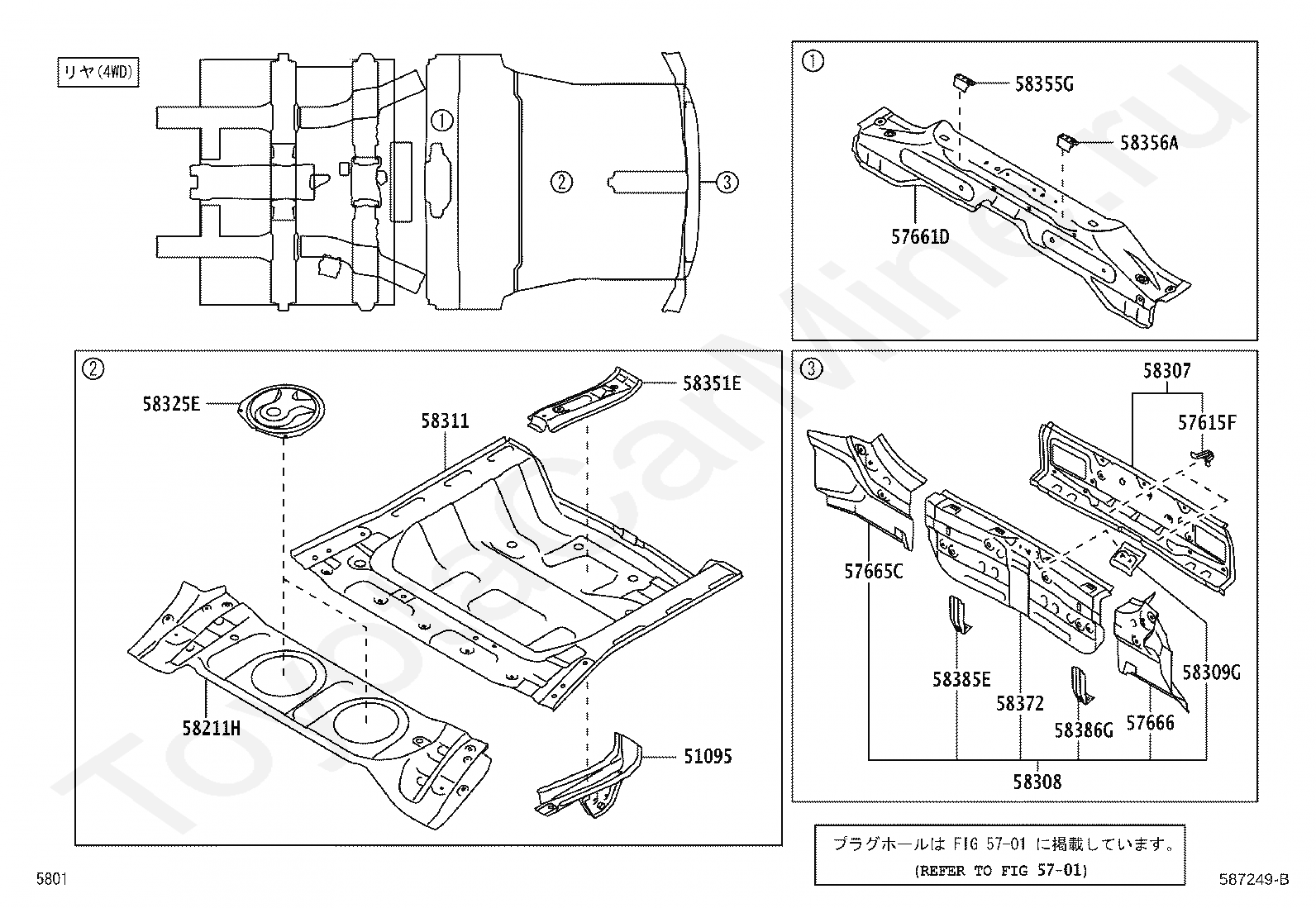

Код

Описание

51095

HOOK, TRANSPORT, REAR

5701

переход к группе запчастей

57615F

BRACKET, REAR BUMPER MOUNTING

57661D

MEMBER, REAR FLOOR CROSS, FRONT

57665C

PANEL, LOWER BACK SIDE, RH

57666

PANEL, LOWER BACK SIDE, LH

58211H

PAN, CENTER FLOOR

58307

PANEL SUB-ASSY, BODY LOWER BACK

58308

PANEL SUB-ASSY, BODY LOWER BACK, INNER

58309G

RETAINER SUB-ASSY, BACK DOOR LOCK STRIKER

58311

PAN, REAR FLOOR

58325E

COVER, REAR FLOOR SERVICE HOLE

58351E

BRACKET, SPARE WHEEL CLAMP

58355G

REINFORCEMENT, FLOOR SIDE PLATE, RH

58356A

REINFORCEMENT, FLOOR SIDE PLATE, LH

58372

PANEL, BODY LOWER BACK, INNER

58385E

BRACKET, REAR BUMPER COVER, RH

58386G

BRACKET, REAR BUMPER COVER, LH

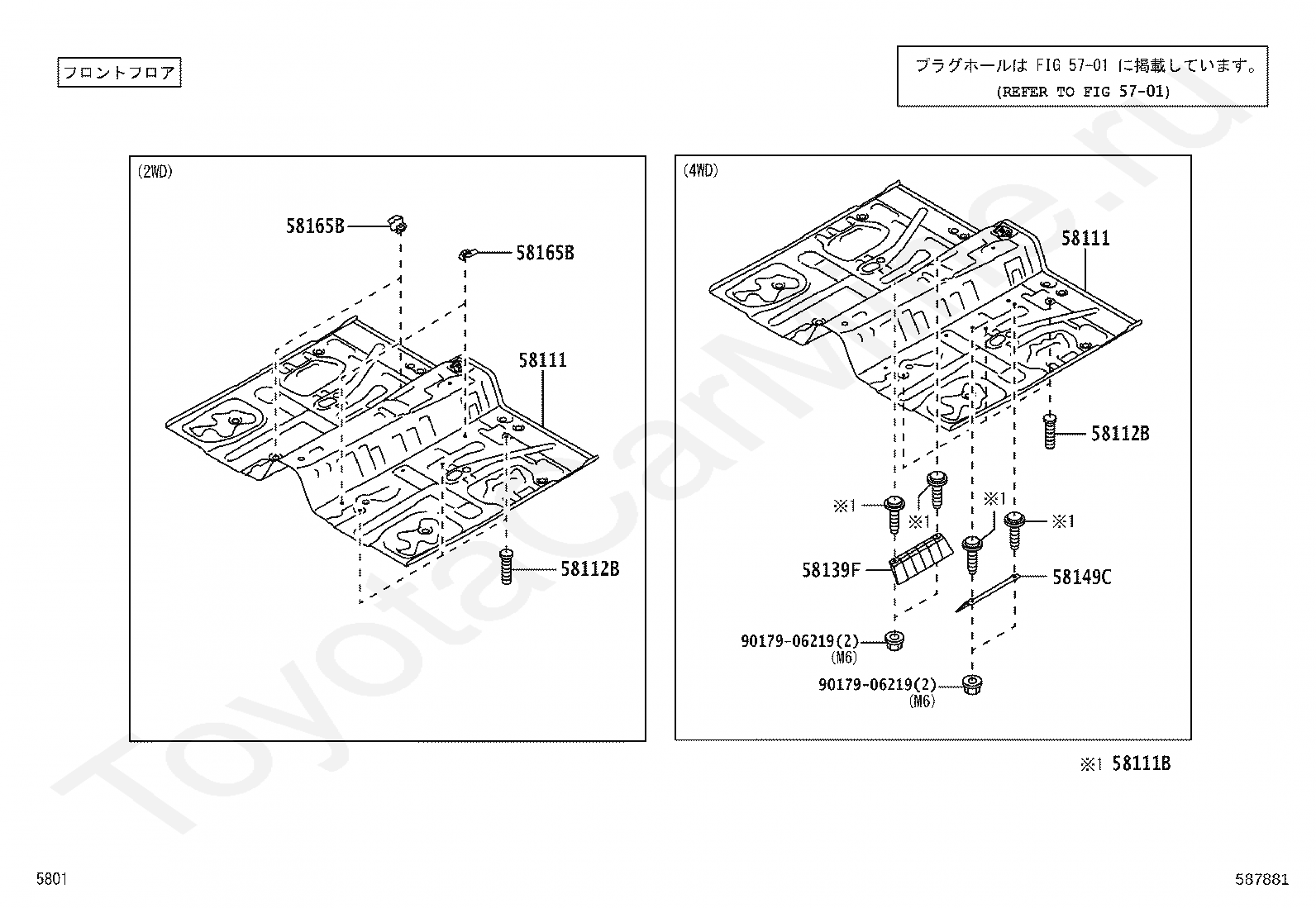

Код

Описание

5701

переход к группе запчастей

58111

PAN, FRONT FLOOR

58111

PAN, FRONT FLOOR

58111B

BOLT, WELD(FOR FRONT FLOOR PAN)

58112B

BOLT, WELD(FOR FRONT FLOOR PAN, LH)

58112B

BOLT, WELD(FOR FRONT FLOOR PAN, LH)

58139F

PLATE, FRONT FLOOR SIDE, REAR RH

58149C

PLATE, FRONT FLOOR SIDE, REAR LH

58165B

COVER, FRONT FLOOR, RH

58165B

COVER, FRONT FLOOR, RH

9017906219

Крепеж

9017906219

Крепеж
