Торпеда с бардачком Тойота RAIZE, Япония, 2021/11 - 2025/, 1 литр, 12 клапанов DOHC, EFI, двойной наддув, X TYPE, A210A, вариатор, 5 дверей, 5-местный, D40H

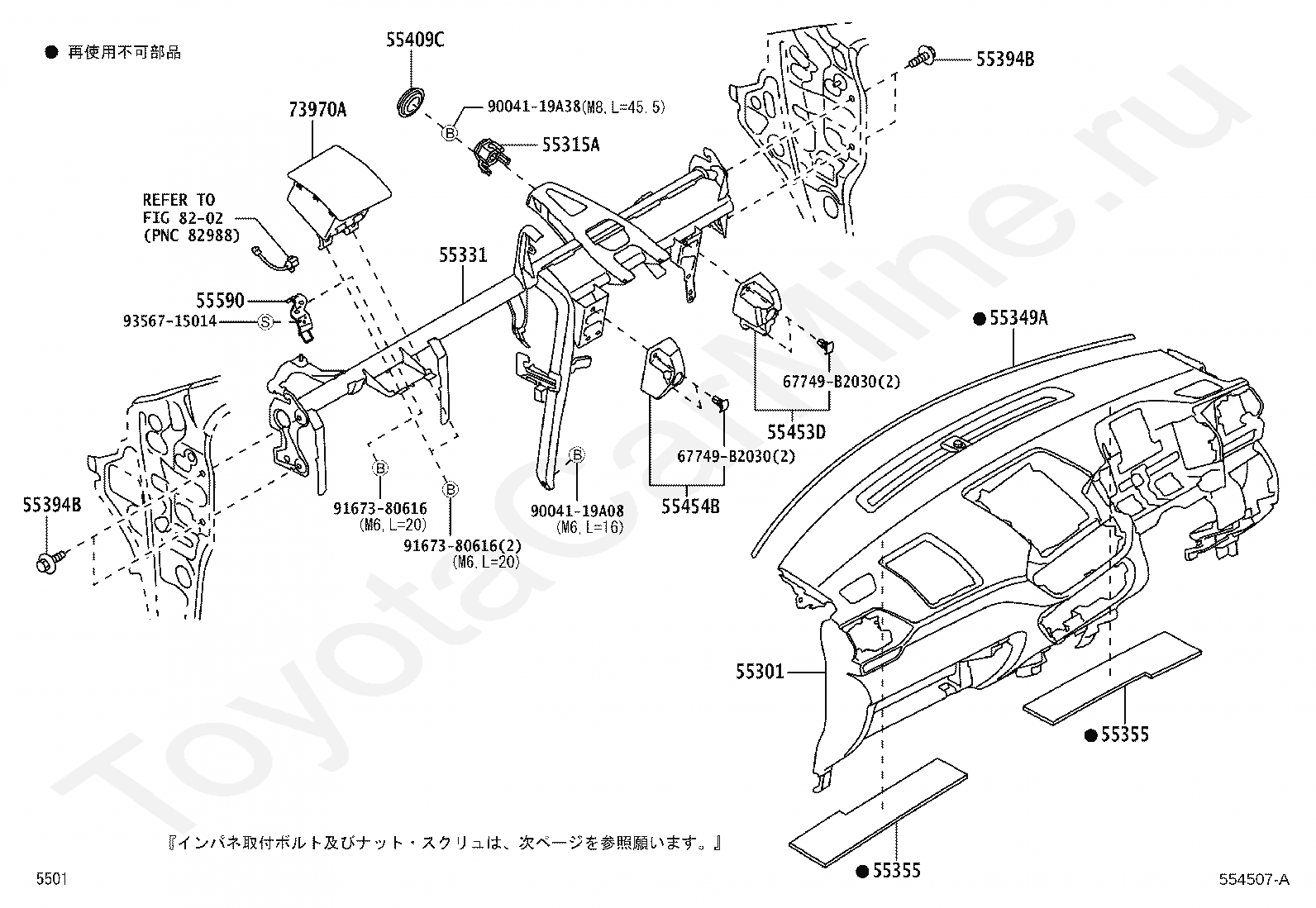

Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55315A

SPACER, INSTRUMENT PANEL, NO.1

55331

REINFORCEMENT, INSTRUMENT PANEL

55349A

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55355

CUSHION, INSTRUMENT PANEL, NO.1

55394B

BOLT, INSTRUMENT PANEL

55394B

BOLT, INSTRUMENT PANEL

55409C

PLUG, HOLE

55453D

PAD, INSTRUMENT PANEL SAFETY, NO.1

55454B

PAD, INSTRUMENT PANEL SAFETY, NO.2

55590

PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

67749B2030

Крепеж

67749B2030

Крепеж

73970A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER

8202

переход к группе запчастей

9004119A08

Крепеж

9004119A38

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9356715014

Крепеж

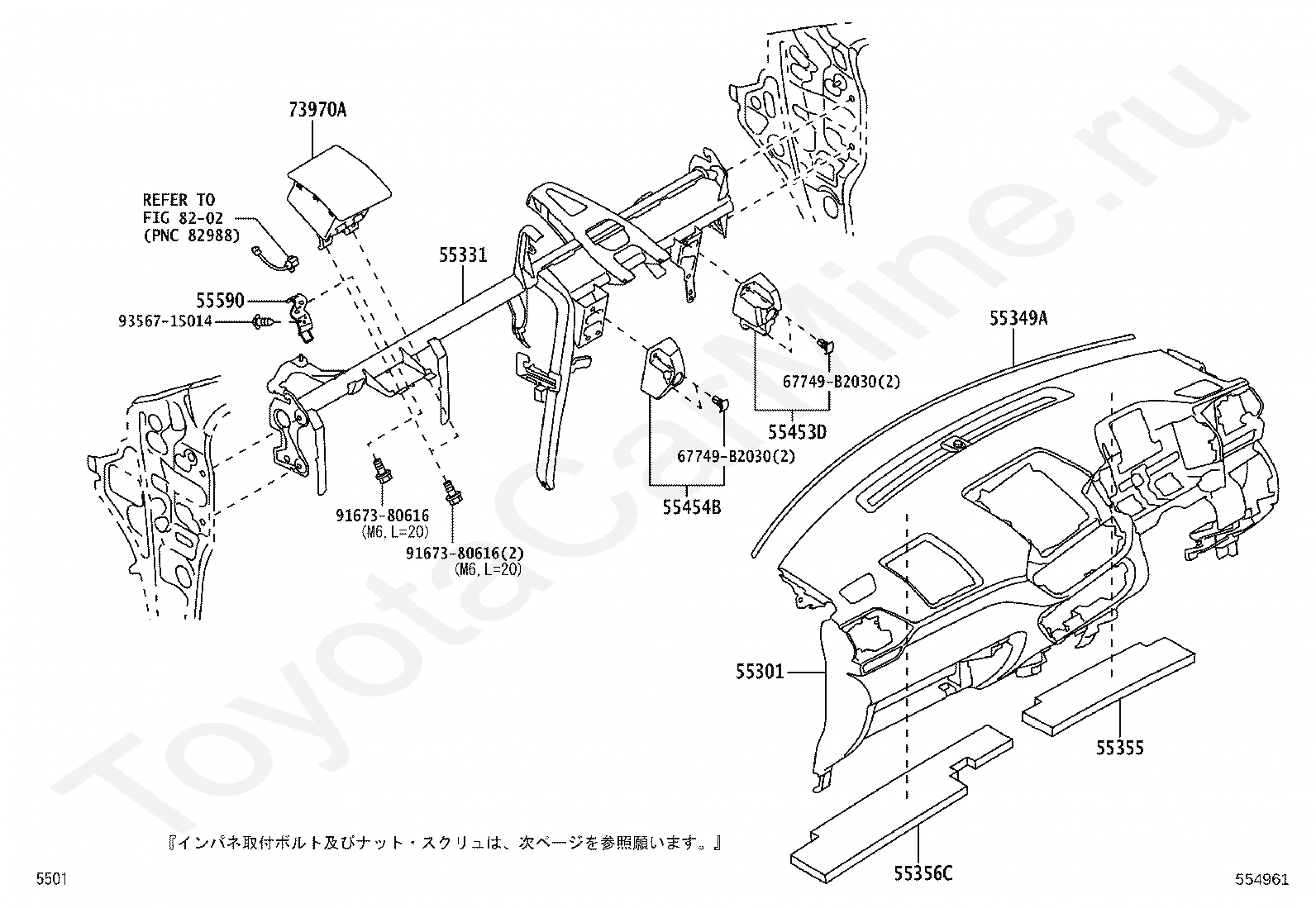

Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55331

REINFORCEMENT, INSTRUMENT PANEL

55349A

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55453D

PAD, INSTRUMENT PANEL SAFETY, NO.1

55454B

PAD, INSTRUMENT PANEL SAFETY, NO.2

55590

PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

67749B2030

Крепеж

67749B2030

Крепеж

73970A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER

8202

переход к группе запчастей

9167380616

Крепеж

9167380616

Крепеж

9356715014

Крепеж

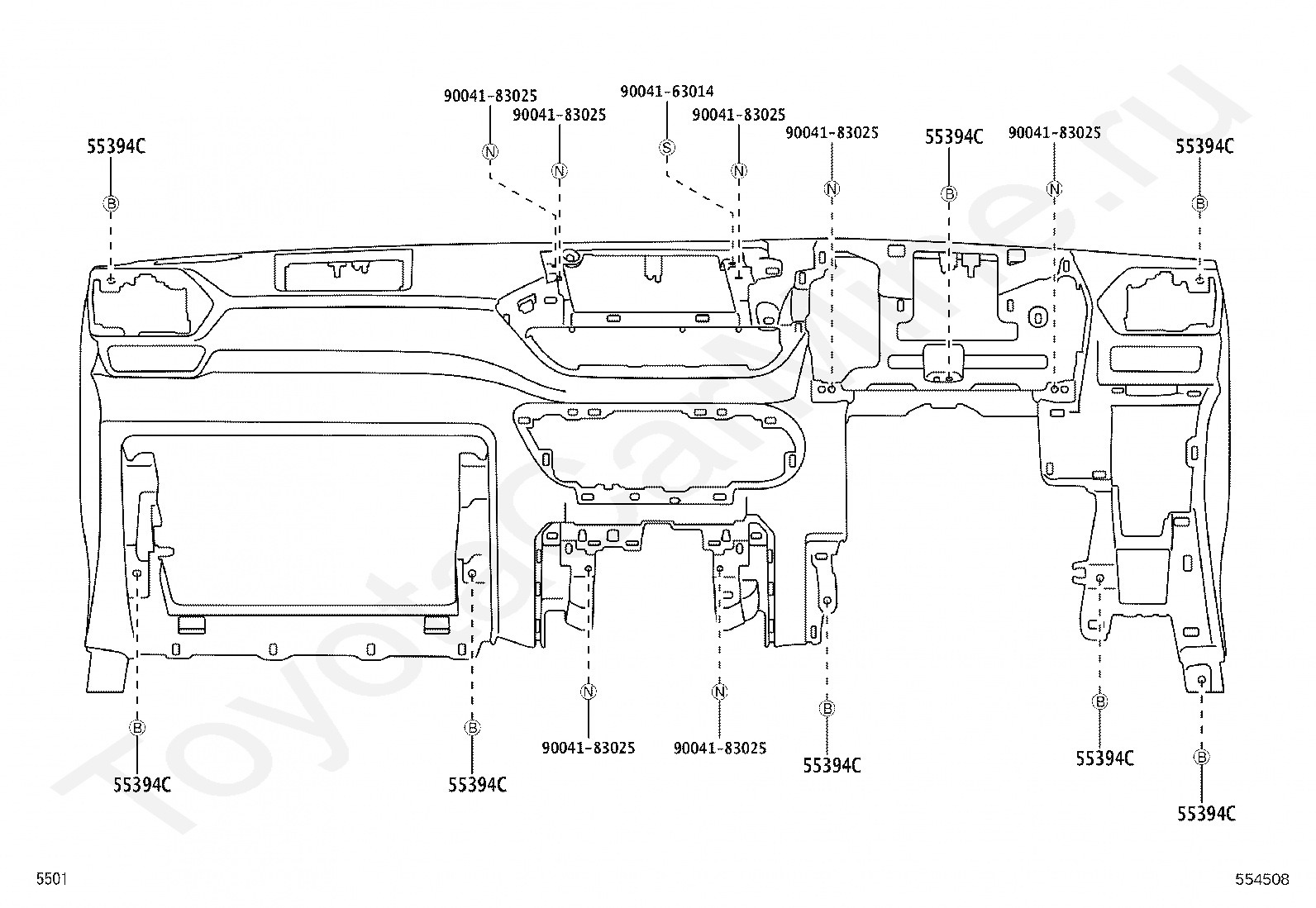

Код

Описание

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

9004163014

Крепеж

9004183025

Крепеж

9004183025

Крепеж

9004183025

Крепеж

9004183025

Крепеж

9004183025

Крепеж

9004183025

Крепеж

9004183025

Крепеж

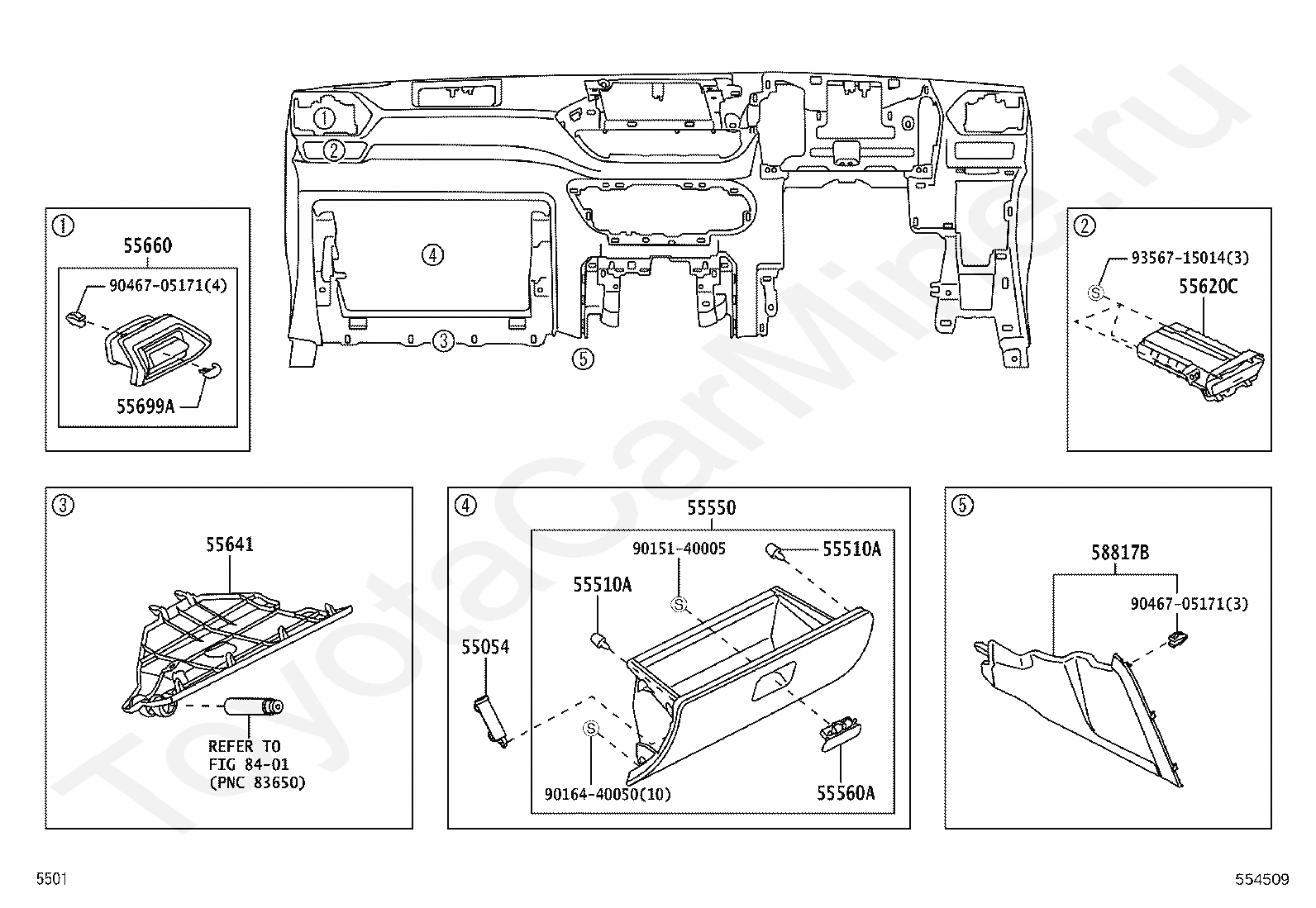

Код

Описание

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55550

DOOR ASSY, GLOVE COMPARTMENT

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55620C

HOLDER, INSTRUMENT PANEL CUP

55641

COVER, INSTRUMENT PANEL UNDER, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55699A

KNOB, INSTRUMENT PANEL REGISTER CONTROL NO.2

58817B

INSERT, CONSOLE BOX, FRONT NO.2

8401

переход к группе запчастей

9015140005

Крепеж

9016440050

Крепеж

9046705171

Крепеж

9046705171

Крепеж

9356715014

Крепеж

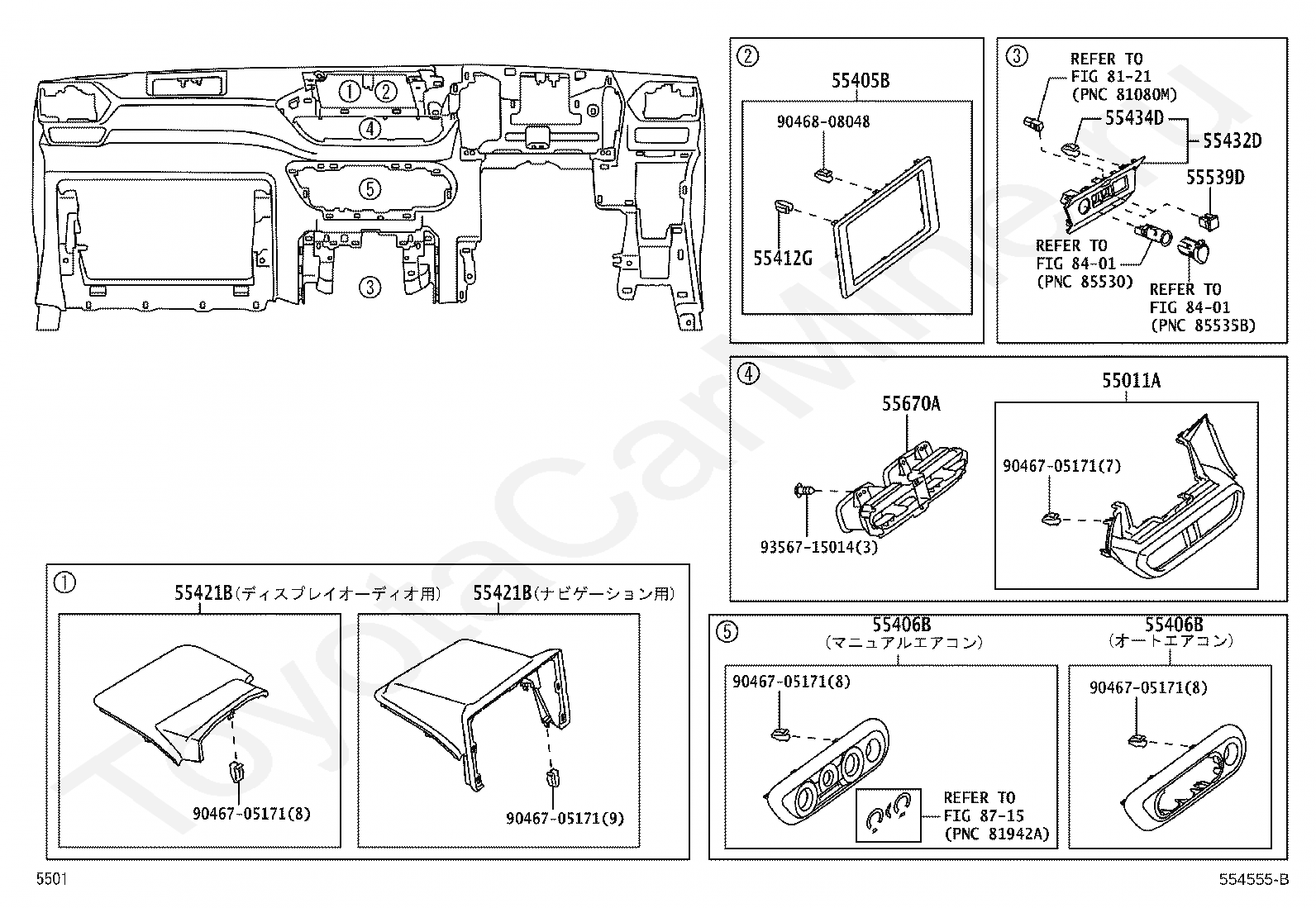

Код

Описание

55011A

GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55406B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

55406B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

55412G

CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)

55421B

PANEL, INSTRUMENT CLUSTER FINISH, UPPER

55421B

PANEL, INSTRUMENT CLUSTER FINISH, UPPER

55432D

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

55434D

CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

55539D

COVER, SPARE SWITCH HOLE

55670A

REGISTER ASSY, INSTRUMENT PANEL, CENTER

8121

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8715

переход к группе запчастей

9046705171

Крепеж

9046705171

Крепеж

9046705171

Крепеж

9046705171

Крепеж

9046705171

Крепеж

9046808048

Крепеж

9356715014

Крепеж

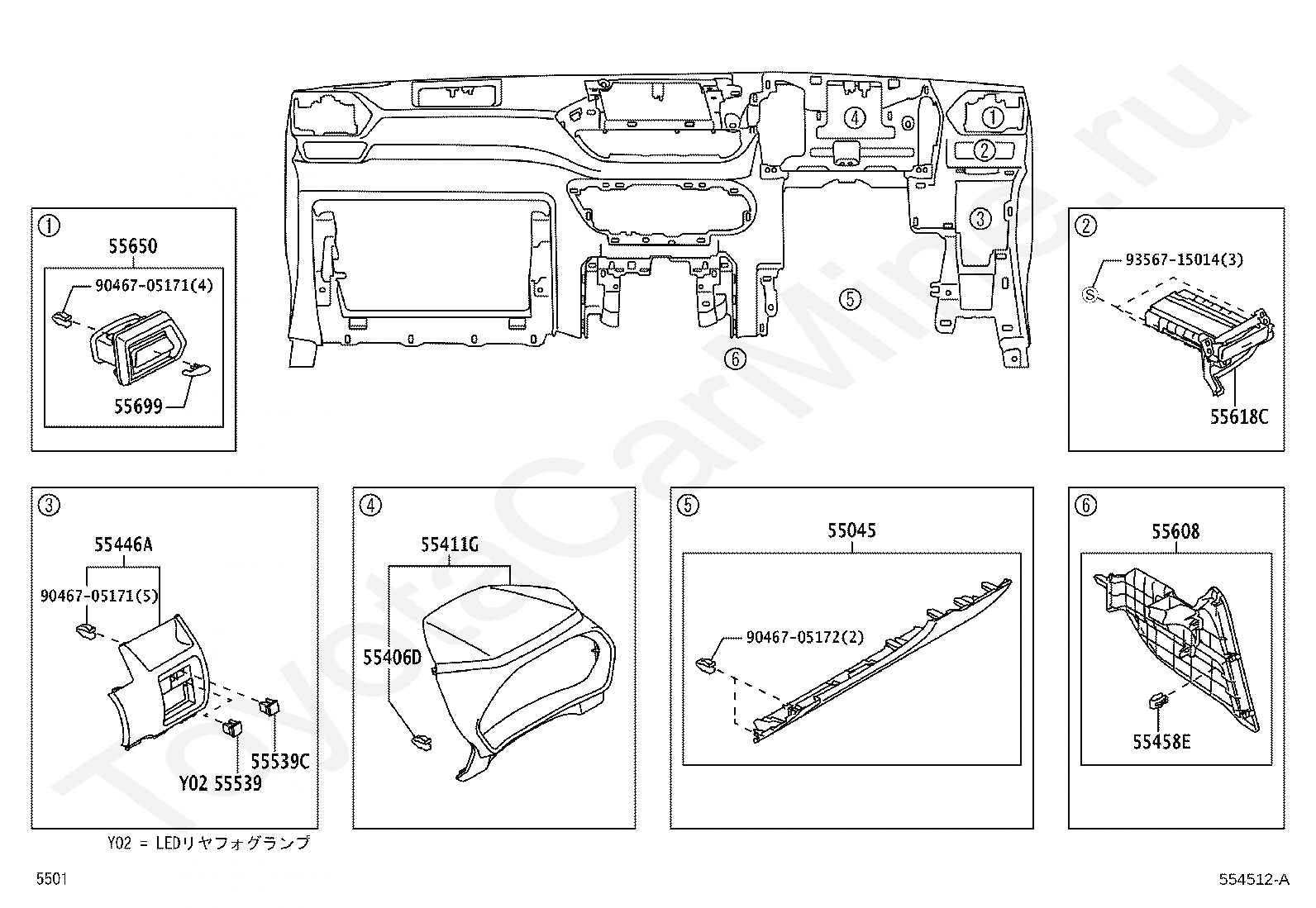

Код

Описание

55045

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

55406D

CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55446A

BASE, SWITCH HOLE, NO.1

55458E

CLIP(FOR INSTRUMENT LOWER COVER)

55539

COVER, SPARE SWITCH HOLE

55539C

COVER, SPARE SWITCH HOLE

55608

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3

55618C

HOLDER, INSTRUMENT PANEL CUP

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55699

KNOB, INSTRUMENT PANEL REGISTER CONTROL

9046705171

Крепеж

9046705171

Крепеж

9046705172

Крепеж

9356715014

Крепеж

Код

Описание

55045

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

55406D

CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55446A

BASE, SWITCH HOLE, NO.1

55458E

CLIP(FOR INSTRUMENT LOWER COVER)

55539

COVER, SPARE SWITCH HOLE

55539C

COVER, SPARE SWITCH HOLE

55608

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3

55618C

HOLDER, INSTRUMENT PANEL CUP

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55699

KNOB, INSTRUMENT PANEL REGISTER CONTROL

9046705171

Крепеж

9046705171

Крепеж

9046705172

Крепеж

9356715014

Крепеж

Торпеда с бардачком TOYOTA RAIZE
