Ходовые запчасти

Каталог

Ближний Восток

Модель

RACTIS

VIN

Дата

2014/05

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

LUNA TYPE

Фрейм

NCP120

КПП

вариатор

Опции

правый руль 598W

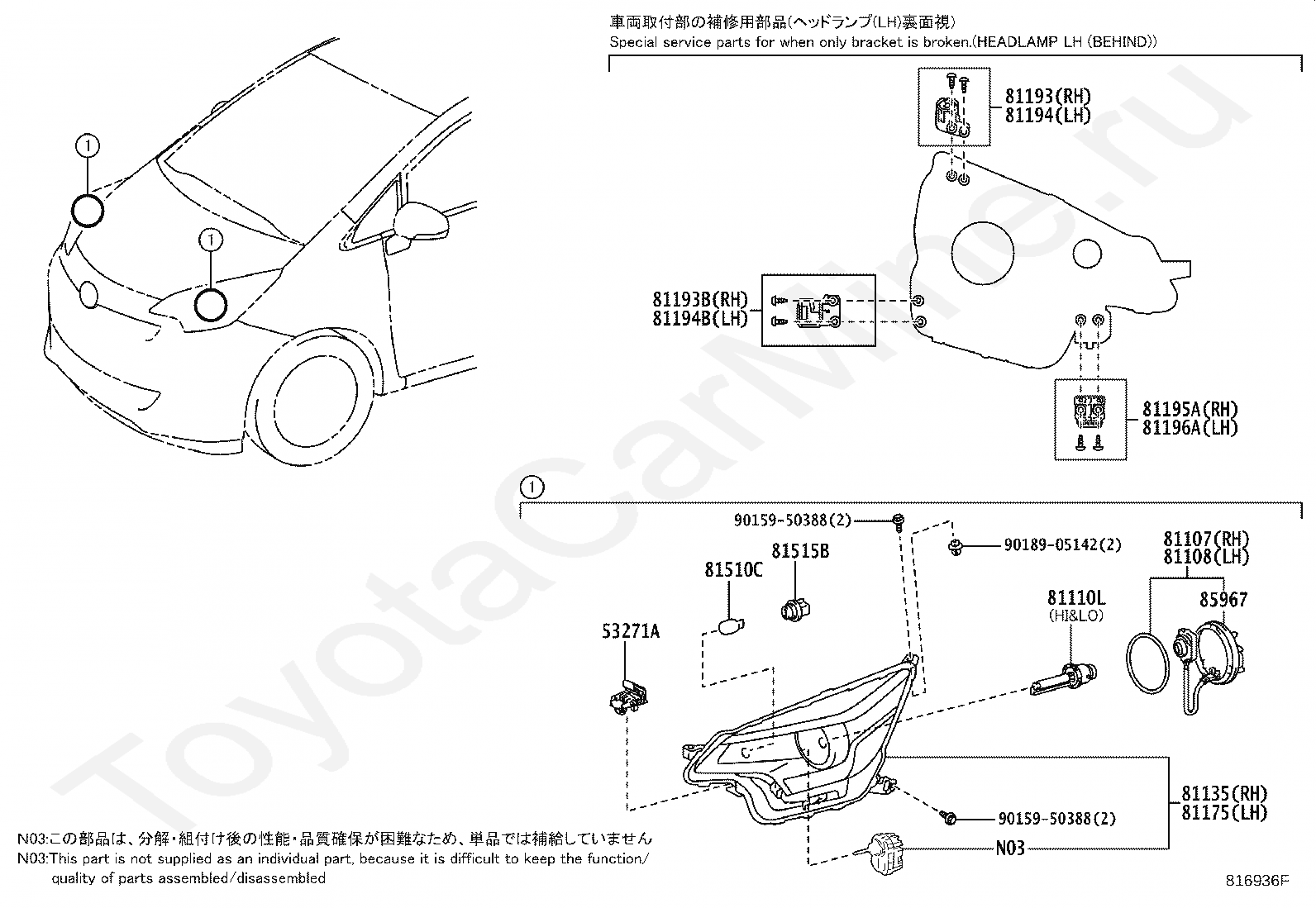

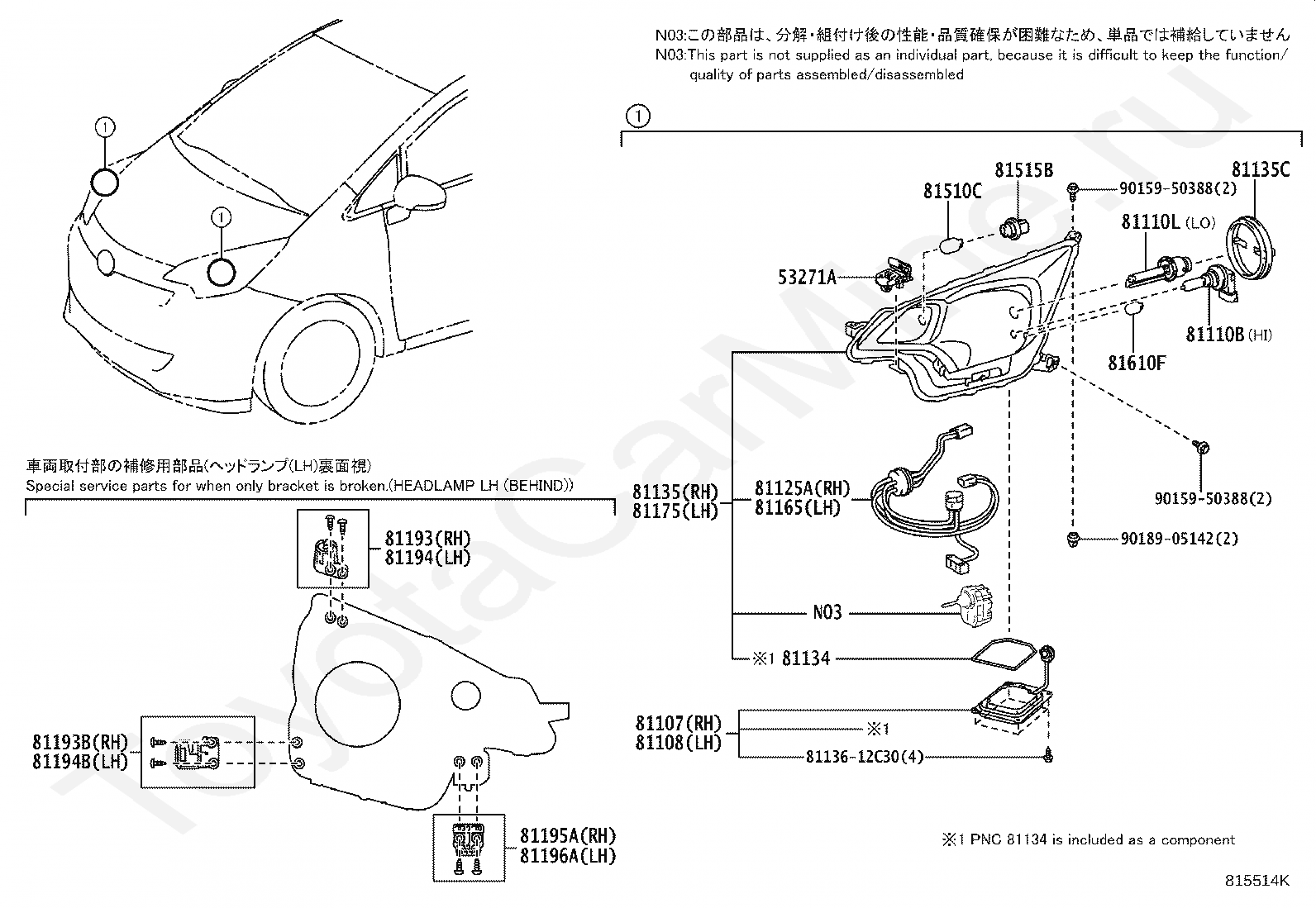

Фары TOYOTA RACTIS

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9015950388

Крепеж

9015950388

Крепеж

9018905142

Крепеж

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125A

CORD, HEADLAMP, RH

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

8113612C30

Крепеж

81165

CORD, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9015950388

Крепеж

9015950388

Крепеж

9018905142

Крепеж

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9015950388

Крепеж

9015950388

Крепеж

9018905142

Крепеж

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110L

BULB, DISCHARGE HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

85967

COMPUTER, LIGHT CONTROL

9015950388

Крепеж

9015950388

Крепеж

9018905142

Крепеж
