Япония

Модель

PUBLICA

VIN

Дата

1972/01

Двигатель

1 литр

Кузов

седан

Класс

HIGH DELUX SPECIFICATION

Фрейм

KP30

КПП

механика МКПП, 4 ступени

Опции

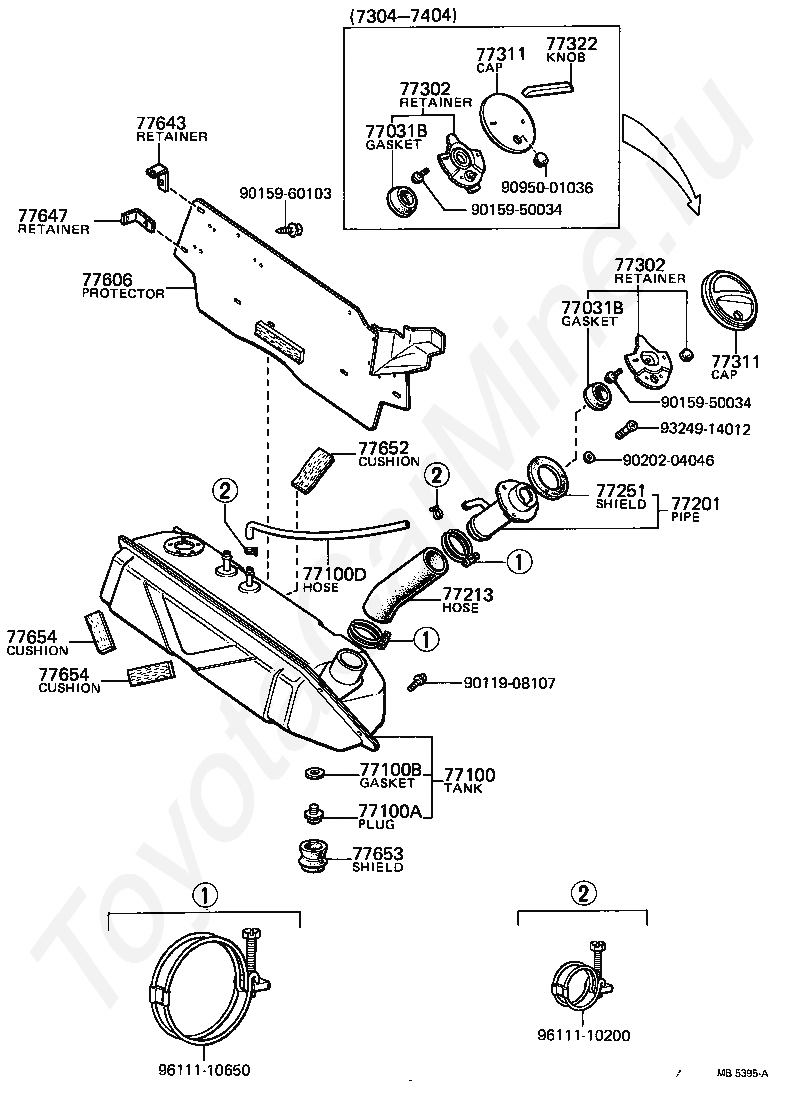

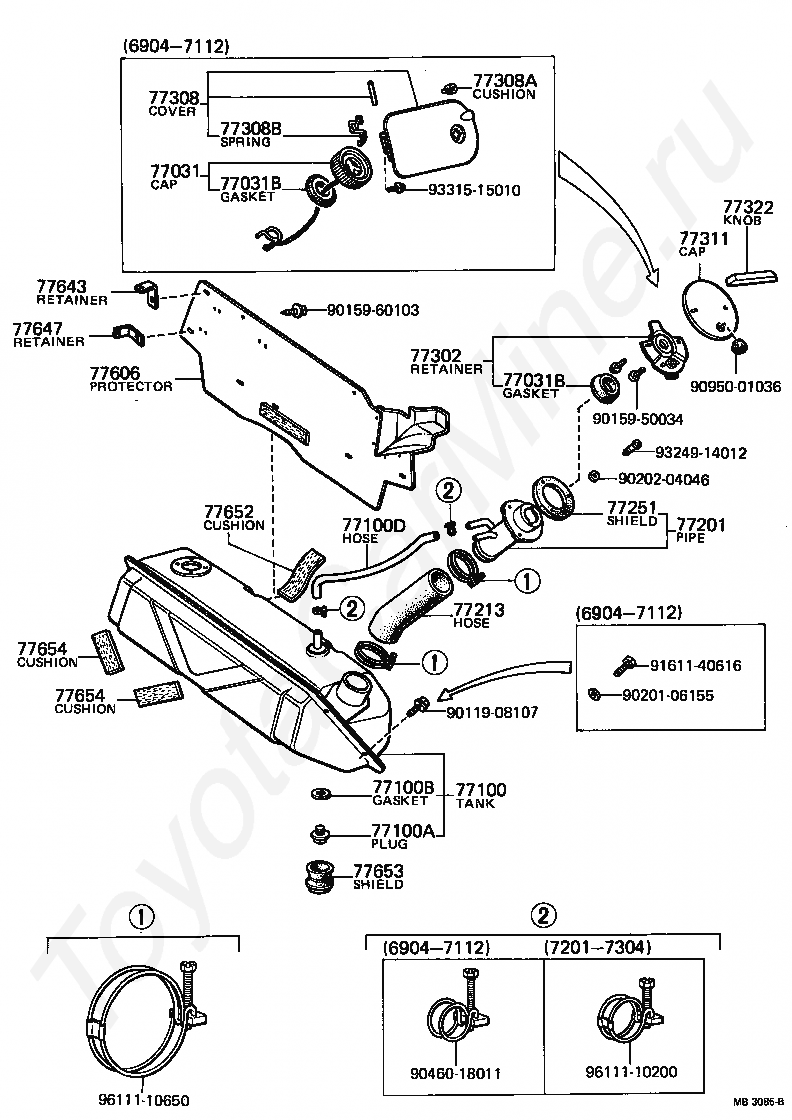

Топливный бак и горловина TOYOTA PUBLICA

Код

Описание

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77213

HOSE, FUEL TANK SUB INLET

77251

SHIELD, FUEL TANK, INLET, NO.1

77302

RETAINER, FUEL TANK CAP

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77308B

SPRING, TORSION(FOR FUEL INLET BOX COVER)

77311

CAP, FUEL TANK

77322

KNOB, FUEL TANK CAP

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77643

RETAINER, FUEL TANK PROTECTOR

77647

RETAINER, FUEL TANK PROTECTOR, SIDE

77652

CUSHION, FUEL TANK, NO.1

77653

SHIELD, FUEL TANK DRAIN PLUG

77654

CUSHION, FUEL TANK, NO.2

77654

CUSHION, FUEL TANK, NO.2

9011908107

Крепеж

9015950034

Крепеж

9015960103

Крепеж

9020106155

Крепеж

9020204046

Крепеж

9046018011

Крепеж

9095001036

Крепеж

9161140616

Крепеж

9324914012

Крепеж

9331515010

Крепеж

9611110200

Крепеж

9611110650

Крепеж

Код

Описание

77031B

GASKET (FOR FUEL TANK CAP)

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77213

HOSE, FUEL TANK SUB INLET

77251

SHIELD, FUEL TANK, INLET, NO.1

77302

RETAINER, FUEL TANK CAP

77302

RETAINER, FUEL TANK CAP

77311

CAP, FUEL TANK

77311

CAP, FUEL TANK

77322

KNOB, FUEL TANK CAP

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77643

RETAINER, FUEL TANK PROTECTOR

77647

RETAINER, FUEL TANK PROTECTOR, SIDE

77652

CUSHION, FUEL TANK, NO.1

77653

SHIELD, FUEL TANK DRAIN PLUG

77654

CUSHION, FUEL TANK, NO.2

77654

CUSHION, FUEL TANK, NO.2

9011908107

Крепеж

9015950034

Крепеж

9015950034

Крепеж

9015960103

Крепеж

9020204046

Крепеж

9095001036

Крепеж

9324914012

Крепеж

9611110200

Крепеж

9611110650

Крепеж

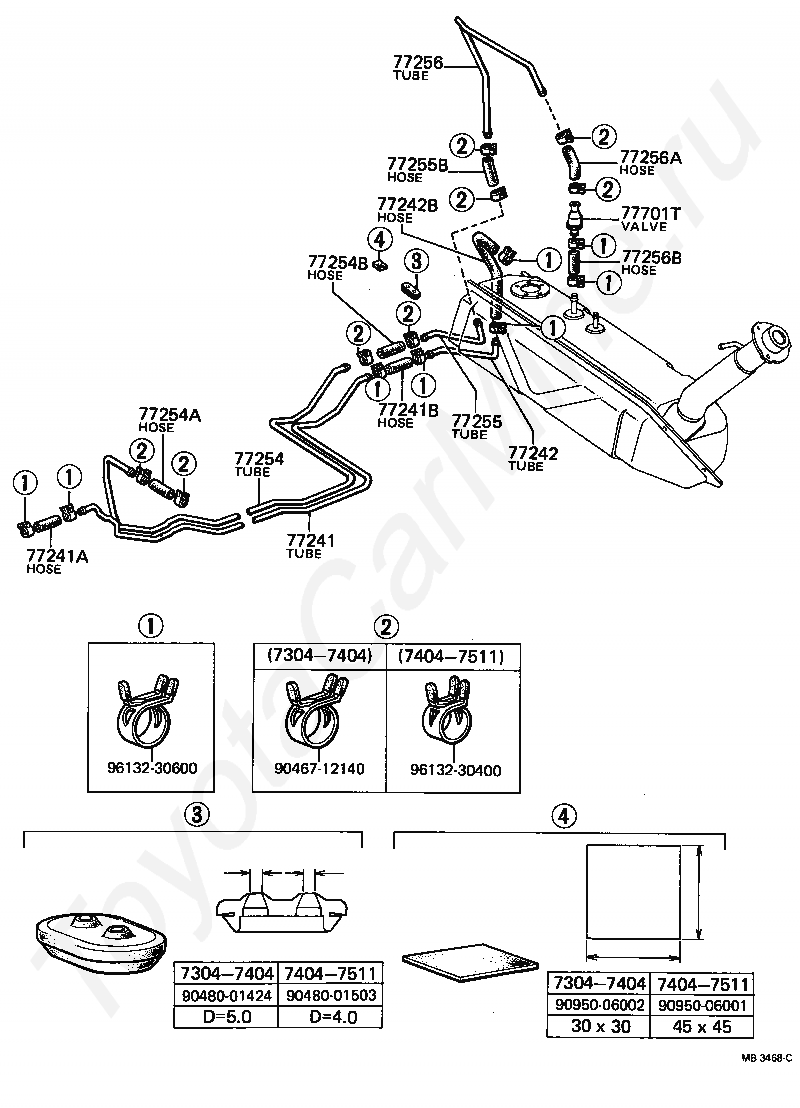

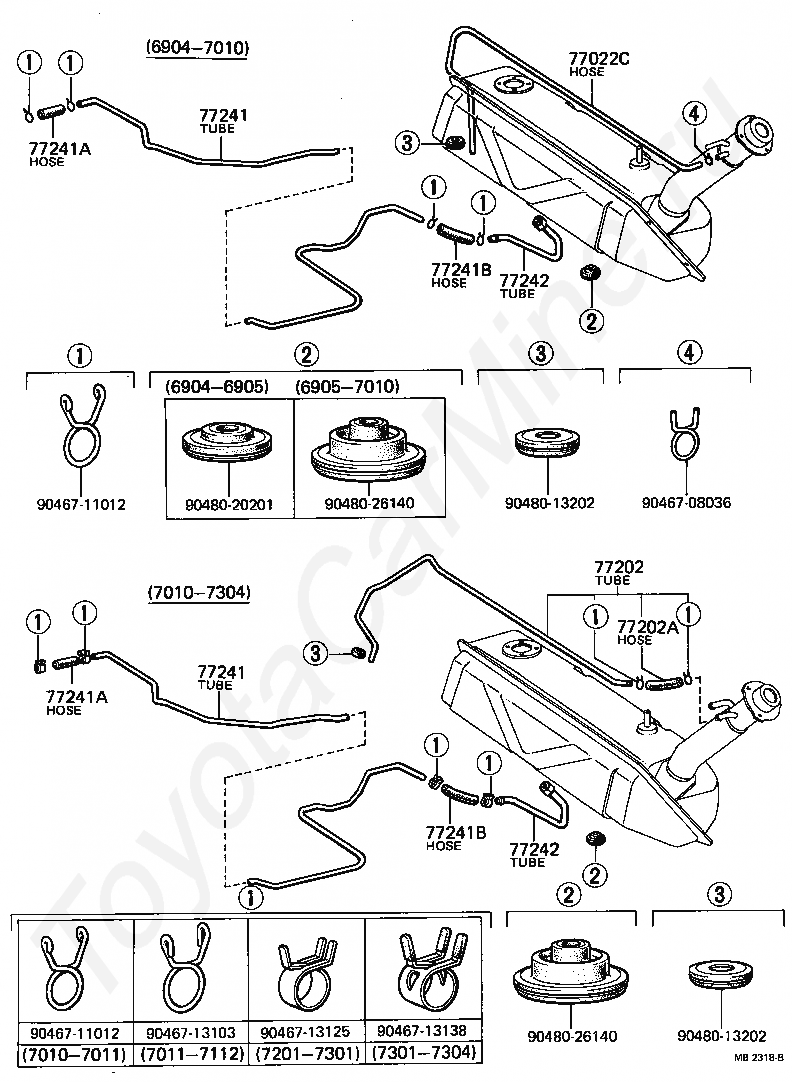

Код

Описание

77022C

HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

77202

TUBE SUB-ASSY, BREATHER

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77241

TUBE, FUEL MAIN, NO.1

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77242

TUBE, FUEL MAIN, NO.2

77242

TUBE, FUEL MAIN, NO.2

9046708036

Крепеж

9046711012

Крепеж

9046711012

Крепеж

9046713103

Крепеж

9046713125

Крепеж

9046713138

Крепеж

9048013202

Крепеж

9048013202

Крепеж

9048020201

Крепеж

9048026140

Крепеж

9048026140

Крепеж

Код

Описание

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77242

TUBE, FUEL MAIN, NO.2

77242B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)

77254

TUBE, FUEL EMISSION, NO.1

77254A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

77254B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

77255

TUBE, FUEL EMISSION, NO.2

77255B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

77256

TUBE, FUEL EMISSION, NO.3

77256A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)

77256B

HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9046712140

Крепеж

9048001424

Крепеж

9048001503

Крепеж

9095006001

Крепеж

9095006002

Крепеж

9613230400

Крепеж

9613230600

Крепеж

Топливный бак и горловина TOYOTA PUBLICA
