Ходовые запчасти

Каталог

Япония

Модель

PUBLICA

VIN

Дата

1972/01

Двигатель

1 литр

Кузов

седан

Класс

HIGH DELUX SPECIFICATION

Фрейм

KP30

КПП

механика МКПП, 4 ступени

Опции

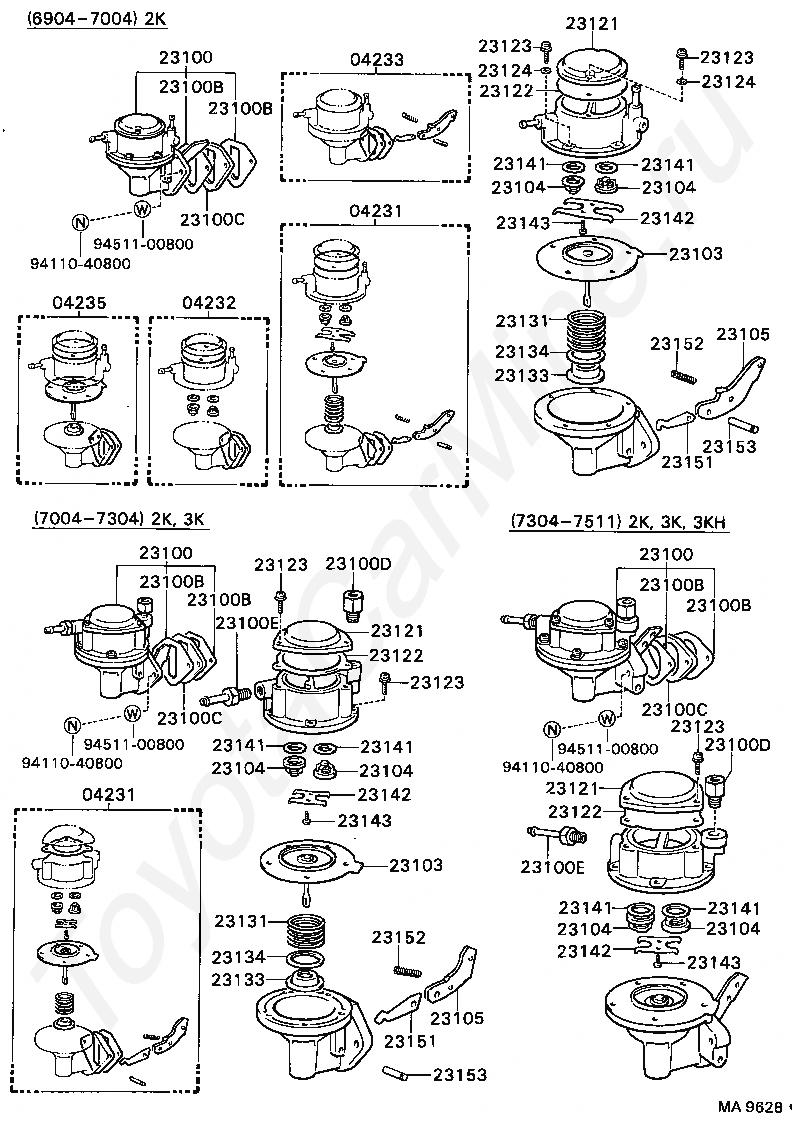

Топливная помпа TOYOTA PUBLICA

Код

Описание

19907

HOSE, VACUUM, NO.1

21975

TANK, THROTTLE CONTROL

21975A

HOSE(CARBURETOR TO CONTROL TANK)

21975B

HOSE(CONTROL TANK TO HEAT INSULATOR)

23100A

HOSE, FUEL

23100H

CLIP(FOR FUEL HOSE)

23100H

CLIP(FOR FUEL HOSE)

23801

PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

23801

PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

23801C

CLIP(FOR CARBURETOR FUEL HOSE)

23801C

CLIP(FOR CARBURETOR FUEL HOSE)

23841

CLAMP, FUEL PIPE(HOSE), NO.1

23842

CLAMP, FUEL PIPE(HOSE), NO.2

9165640616

Крепеж

Код

Описание

04231

PUMP KIT, FUEL

04231

PUMP KIT, FUEL

04232

VALVE KIT, FUEL PUMP

04233

ARM KIT, FUEL PUMP ROCKER

04235

DIAPHRAGM KIT, FUEL PUMP

23100

PUMP ASSY, FUEL

23100

PUMP ASSY, FUEL

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100B

GASKET, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100C

INSULATOR, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23103

DIAPHRAGM SUB-ASSY

23103

DIAPHRAGM SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23105

ARM SUB-ASSY, ROCKER

23105

ARM SUB-ASSY, ROCKER

23121

COVER, FUEL PUMP

23121

COVER, FUEL PUMP

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23122

GASKET, FUEL PUMP COVER

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23124

WASHER, COVER SET, NO.2

23124

WASHER, COVER SET, NO.2

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23141

PACKING, VALVE

23141

PACKING, VALVE

23141

PACKING, VALVE

23141

PACKING, VALVE

23141

PACKING, VALVE

23141

PACKING, VALVE

23142

RETAINER, VALVE

23142

RETAINER, VALVE

23142

RETAINER, VALVE

23143

SCREW, VALVE RETAINER SET

23143

SCREW, VALVE RETAINER SET

23143

SCREW, VALVE RETAINER SET

23151

LINK, ROCKER ARM

23151

LINK, ROCKER ARM

23152

SPRING, ROCKER ARM

23152

SPRING, ROCKER ARM

23153

PIN, ROCKER ARM

23153

PIN, ROCKER ARM

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж
