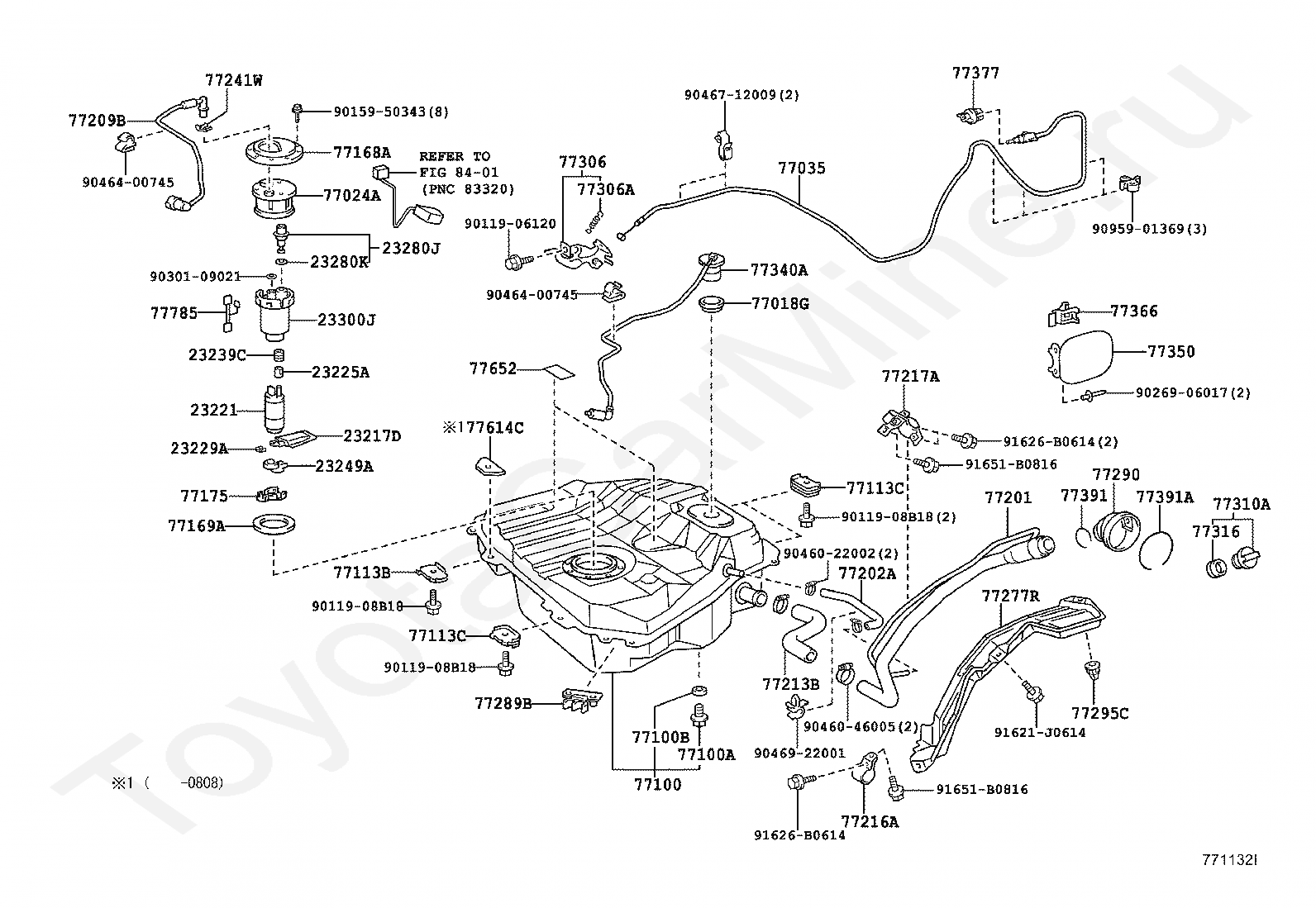

23229A
CLIP(FOR FUEL PUMP FILTER)
23239C
SEAL, FUEL PUMP FILTER
23249A
RUBBER, CUSHION(FOR FUEL PUMP)
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77018G
GASKET, FUEL TANK EVAP/VENT TUBE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77113B
PLATE, FUEL TANK SIDE
77113C
PLATE, FUEL TANK SIDE
77113C
PLATE, FUEL TANK SIDE
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77289B
CLAMP, FUEL TUBE, NO.3
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77295C
GROMMET, FUEL TUBE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306A
SPRING, FUEL LID OPEN LEVER
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77614C
SEAL, FUEL TANK COVER
77652
CUSHION, FUEL TANK, NO.1
8401
