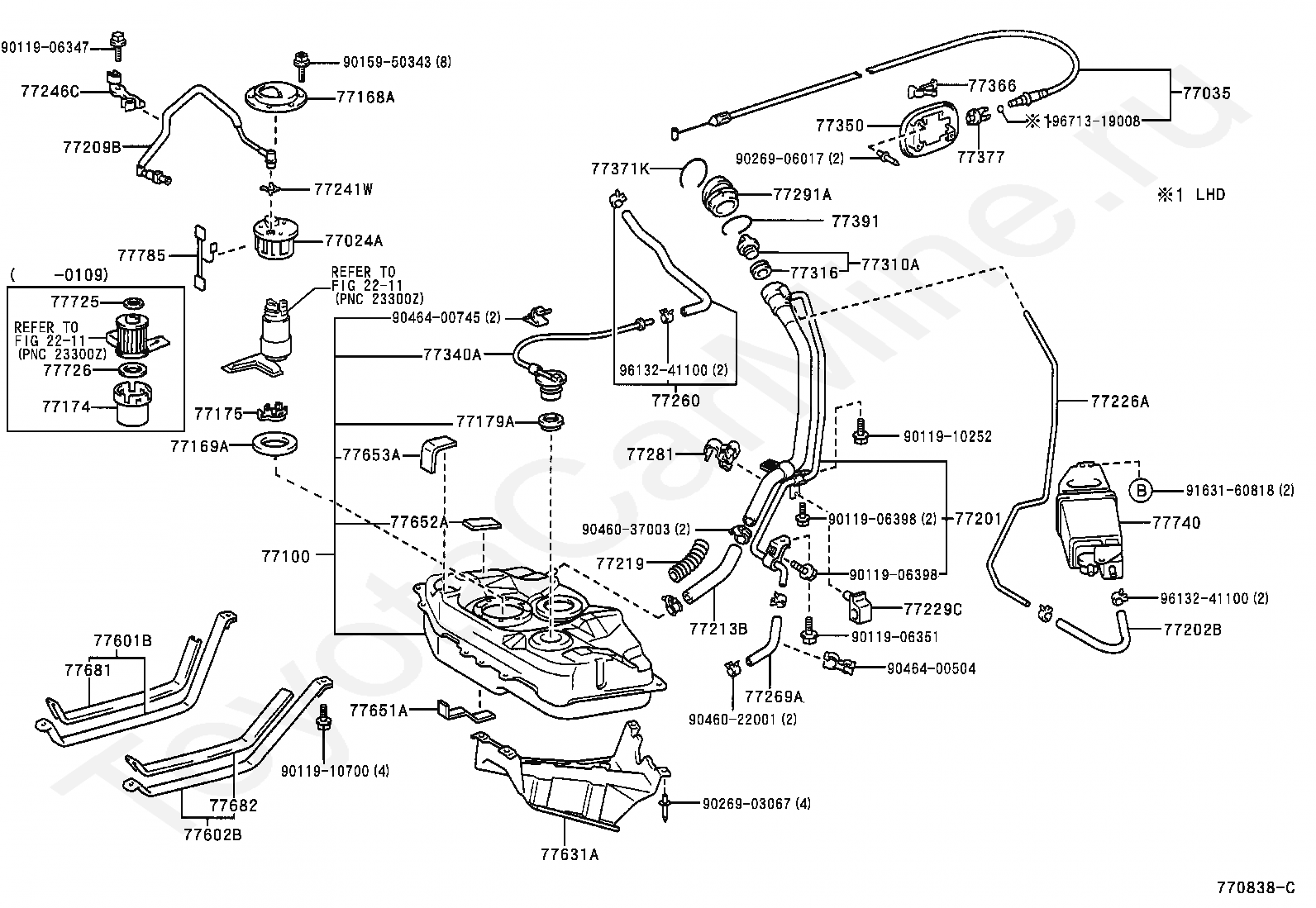

77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77175
SUPPORT, FUEL SUCTION, NO.2
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202B
HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77226A
TUBE, FUEL TANK BREATHER, NO.6
77229C
CLAMP, BREATHER TUBE
77246C
SUPPORT, FUEL MAIN TUBE
77260
HOSE ASSY, FUEL MAIN
77269A
HOSE, FUEL TANK BREATHER
77281
BRACKET, FUEL MAIN TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77371K
BRACKET, FUEL FILLER OPENING LID LOCK
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77725
CUSHION, FUEL FILTER, NO.1
77726
CUSHION, FUEL FILTER, NO.2
77740
CANISTER ASSY, CHARCOAL
