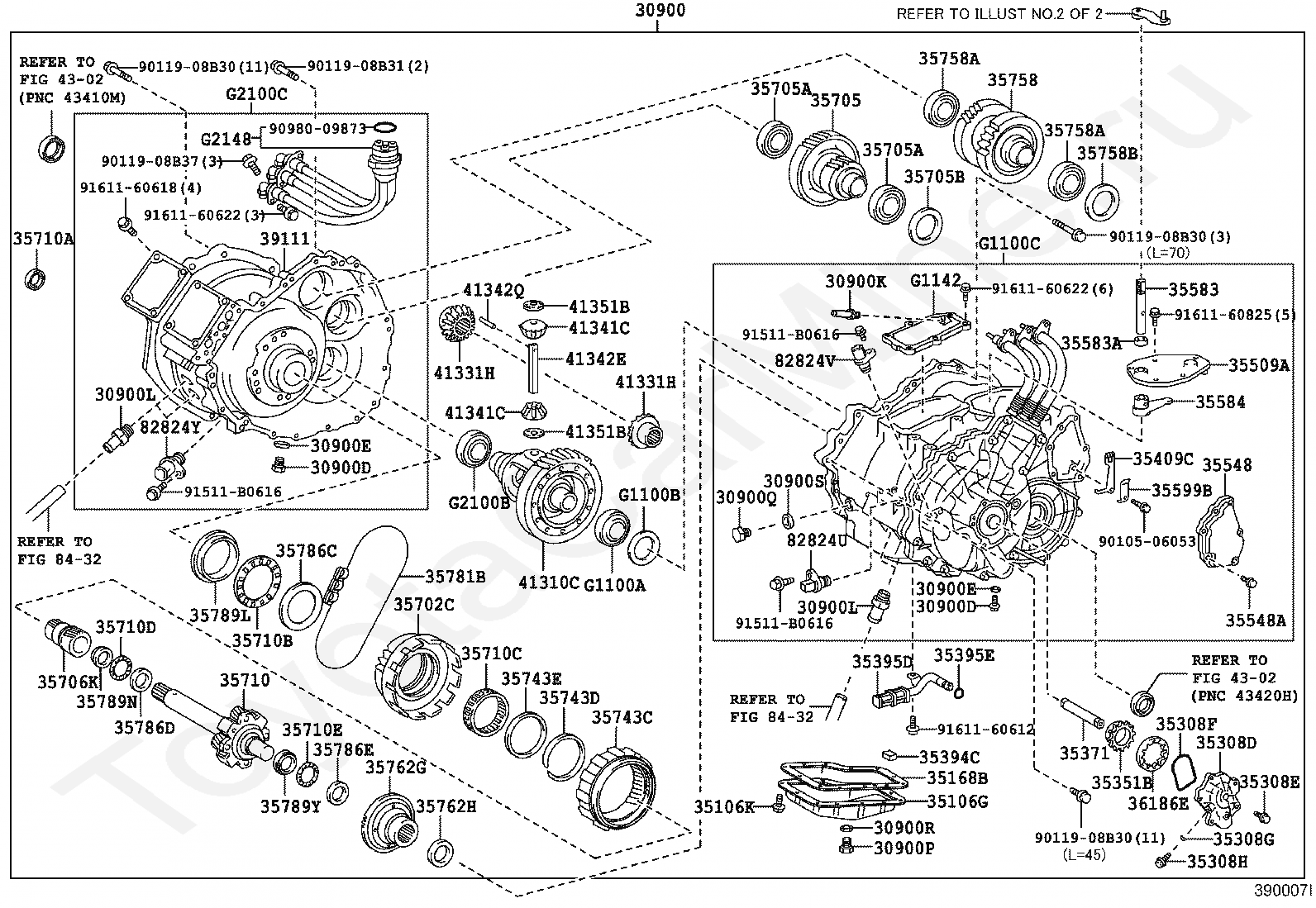

30900
TRANSAXLE ASSY, HYBRID VEHICLE
30900D
PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900D
PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900K
CONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900L
UNION(FOR TRANSAXLE HOUSING)
30900L
UNION(FOR TRANSAXLE HOUSING)
30900R
GASKET, DRAIN PLUG(HEV)
30900S
GASKET, FILLER PLUG(HEV)
35106G
PAN SUB-ASSY, TRANSAXLE OIL
35106K
BOLT, W/WASHER (FOR TRANSAXLE OIL PAN & CASE)
35168B
GASKET, TRANSAXLE OIL PAN
35308D
COVER SUB-ASSY, TRANSMISSION OIL PUMP
35308E
BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308F
RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G
RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H
PLUG (FOR TRANSMISSION OIL PUMP COVER)
35351B
ROTOR, TRANSAXLE OIL PUMP DRIVE
35371
SHAFT, OIL PUMP DRIVE
35394C
MAGNET, OIL CLEANER
35395D
STRAINER, TRANSMISSION OIL
35395E
RING, O(FOR TRANSAXLE OIL STRAINER)
35409C
SPRING SUB-ASSY, MANUAL DETENT
35509A
COVER SUB-ASSY, PARKING SHAFT
35548A
BOLT, W/WASHER (FOR PARKING COVE & CASE)
35583
SHAFT, PARKING LOCK
35583A
SEAL, OIL(FOR PARKING LOCK SHAFT)
35584
LEVER, PARKING LOCK, NO.3
35599B
COVER, MANUAL DETENT SPRING
35702C
SPROCKET SUB-ASSY, TRANSMISSION DRIVE
35705
GEAR SUB-ASSY, COUNTER DRIVEN
35705A
BEARING(FOR COUNTER DRIVEN GEAR)
35705A
BEARING(FOR COUNTER DRIVEN GEAR)
35705B
SHIM(FOR COUNTER DRIVEN GEAR)
35706K
GEAR SUB-ASSY, PLANETARY SUN
35710A
SEAL, TYPE T OIL(FOR INPUT SHAFT)
35710B
BEARING, THRUST NEEDLE ROLLER, NO.1(FOR DRIVE SPROCKET)
35710C
BEARING, NEEDLE ROLLER, NO.2(FOR DRIVE SPROCKET)
35710D
BEARING, THRUST NEEDLE ROLLER, NO.1(FOR INPUT SHAFT)
35710E
BEARING, THRUST NEEDLE ROLLER, NO.2(FOR INPUT SHAFT)
35743C
GEAR, PLANETARY RING
35743D
RING, SNAP(FOR PLANETARY RING GEAR)
35743E
SPACER(FOR PLANETARY RING GEAR)
35758
GEAR, SPROCKET DRIVEN & COUNTER DRIVE
35758A
BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR)
35758A
BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR)
35758B
SHIM(FOR COUNTER DRIVE GEAR)
35762G
FLANGE, PLANETARY RING GEAR
35762H
SHIM(FOR PLANETARY RING GEAR FLANGE)
35781B
CHAIN, TRANSMISSION DRIVE
35786C
RACE, THRUST BEARING, NO.1
35786D
RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT)
35786E
RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789L
RACE, THRUST BEARING, NO.2
35789N
RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789Y
RACE, THRUST BEARING NO.3(FOR INPUT SHAFT)
36186E
ROTOR, OIL PUMP DRIVEN
41310C
CASE ASSY, DIFFERENTIAL
41331H
GEAR, DIFFERENTIAL SIDE
41331H
GEAR, DIFFERENTIAL SIDE
41341C
PINION, DIFFERENTIAL
41341C
PINION, DIFFERENTIAL
41342E
SHAFT, DIFFERENTIAL PINION
41342Q
PIN, STRAIGHT(FOR DIFFERENTIAL PINION SHAFT)
41351B
WASHER, DIFFERENTIAL PINION THRUST
41351B
WASHER, DIFFERENTIAL PINION THRUST
4302
переход к группе запчастей
4302
переход к группе запчастей
82824U
CONNECTOR, WIRING HARNESS(FOR MOTOR STATOR)
82824V
CONNECTOR, WIRING HARNESS(FOR MOTOR REVOLUTION SENSOR)
82824Y
CONNECTOR, WIRING HARNESS(FOR GENERATOR)
8432
переход к группе запчастей
8432
переход к группе запчастей
G1100A
BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH)
G1100B
SHIM(FOR DIFFERENTIAL CASE LH)
G1100C
MOTOR ASSY, HYBRID VEHICLE
G1142
COVER, MOTOR WATERJACET
G2100B
BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH)
G2100C
GENERATOR ASSY, HYBRID VEHICLE
