1104
переход к группе запчастей

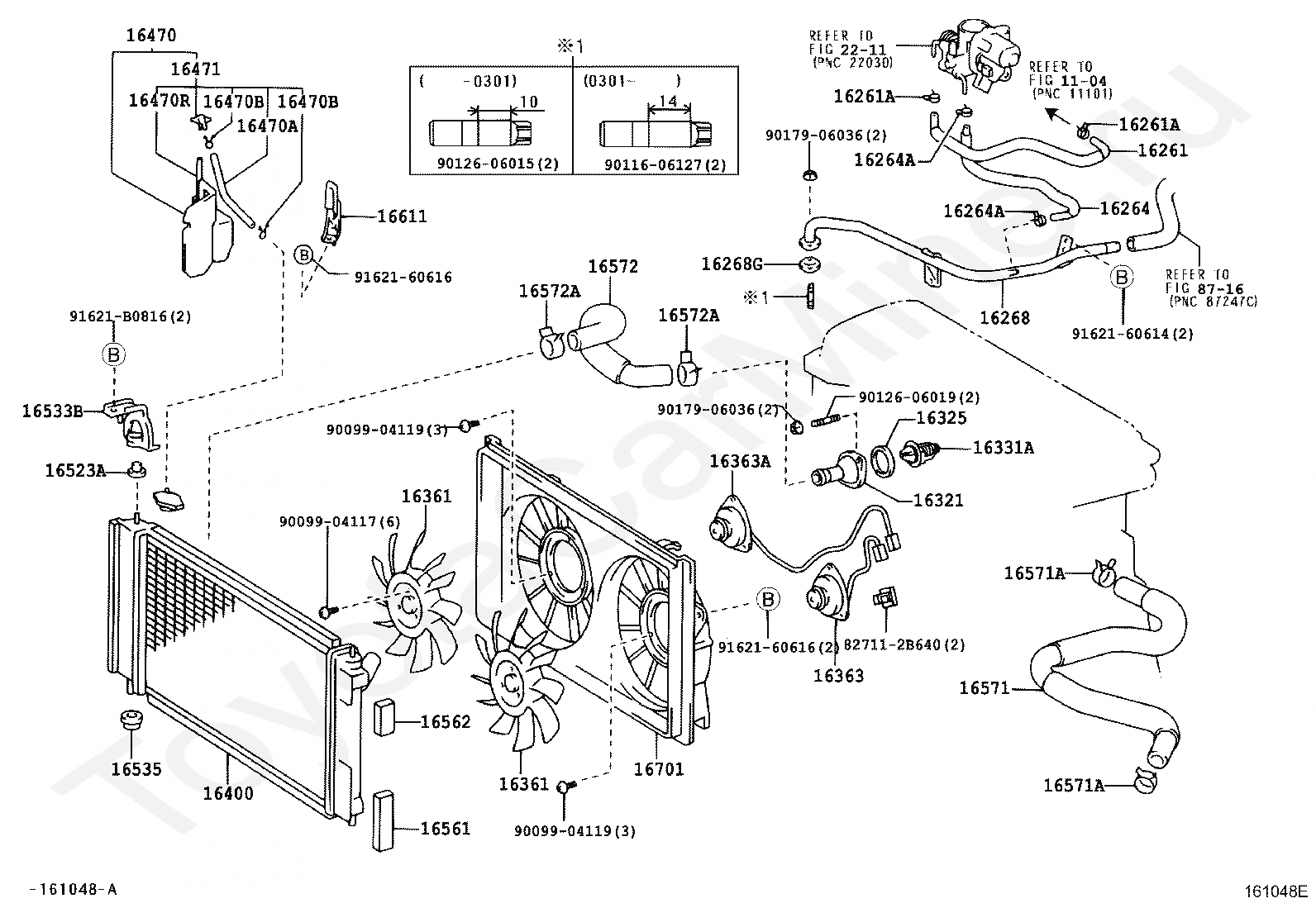

16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268
PIPE, WATER BY-PASS, NO.1
16268G
GASKET(FOR WATER BY-PASS PIPE)
16325
GASKET, WATER INLET HOUSING, NO.1
16363A
MOTOR, COOLING FAN, NO.2
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16523A
CUSHION, RADIATOR SUPPORT
16533B
SUPPORT, RADIATOR, NO.1
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611
BRACKET, RADIATOR RESERVE TANK
16701
SHROUD SUB-ASSY, FAN
2211
переход к группе запчастей
8716
переход к группе запчастей
