Япония

Модель

PRIUS PHV

VIN

Дата

2019/05

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

PREMIUM TYPE

Фрейм

ZVW52

КПП

вариатор

Опции

COMPLETED VEHICLE 767W

Реле и кнопки TOYOTA PRIUS PHV

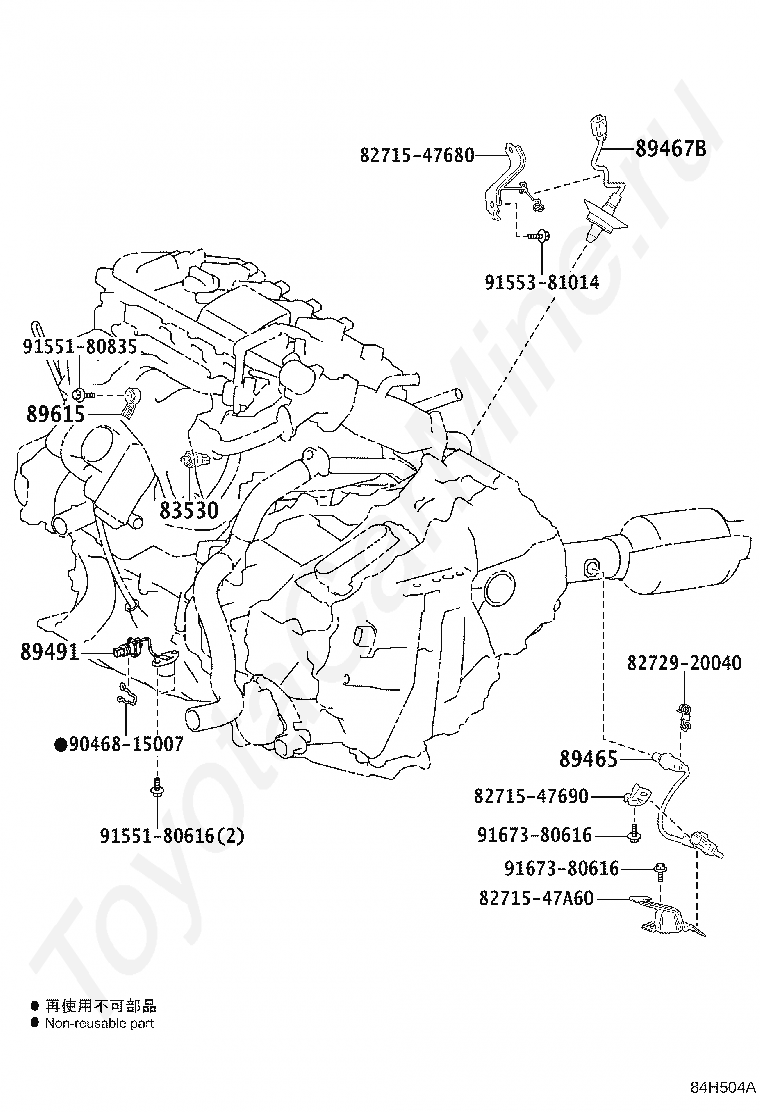

Код

Описание

8271547680

Крепеж

8271547690

Крепеж

8271547A60

Крепеж

8272920040

Крепеж

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9046815007

Крепеж

9155180616

Крепеж

9155180835

Крепеж

9155381014

Крепеж

9167380616

Крепеж

9167380616

Крепеж

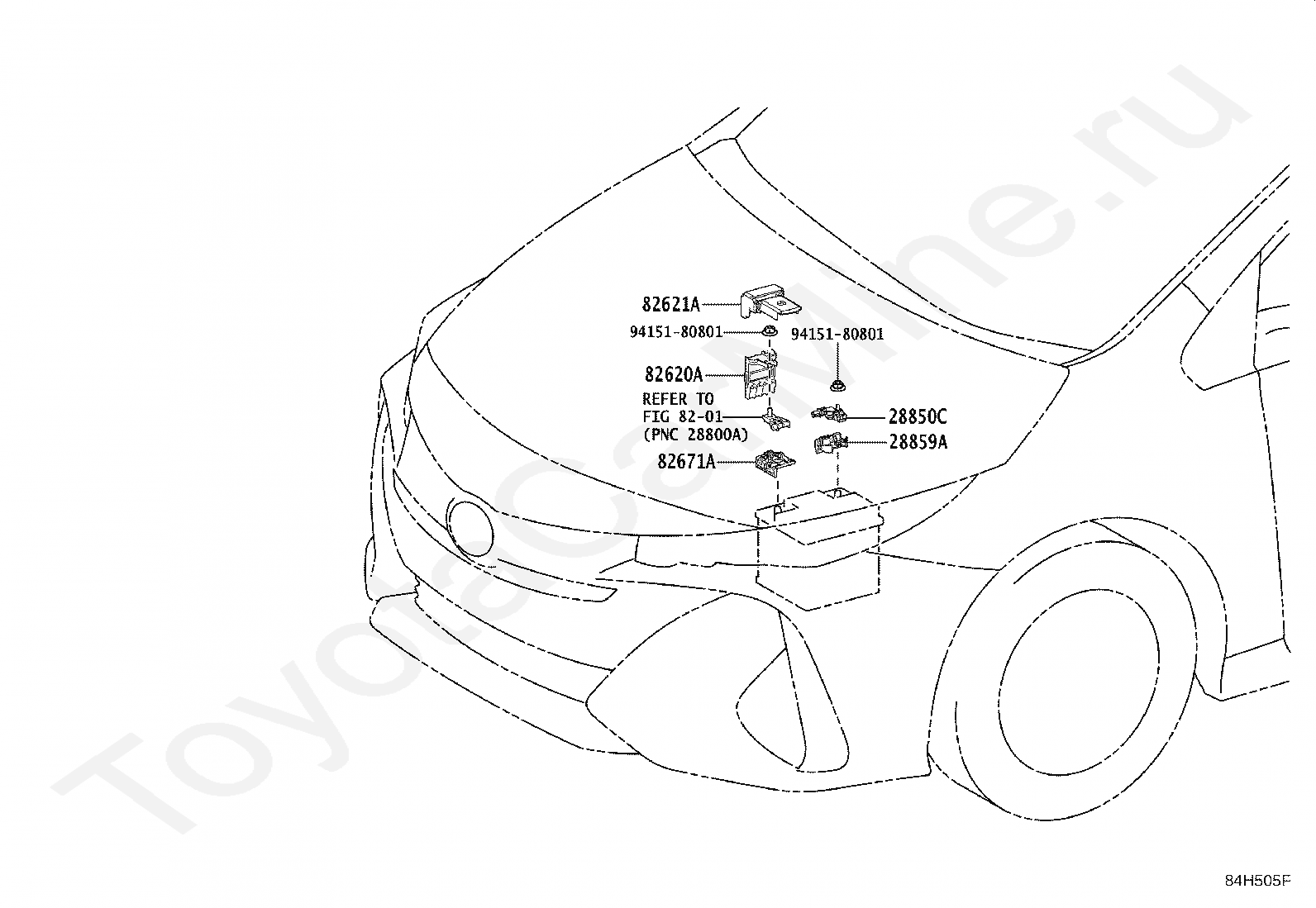

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

8201

переход к группе запчастей

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

82671A

BLOCK, JUNCTION

9415180801

Крепеж

9415180801

Крепеж

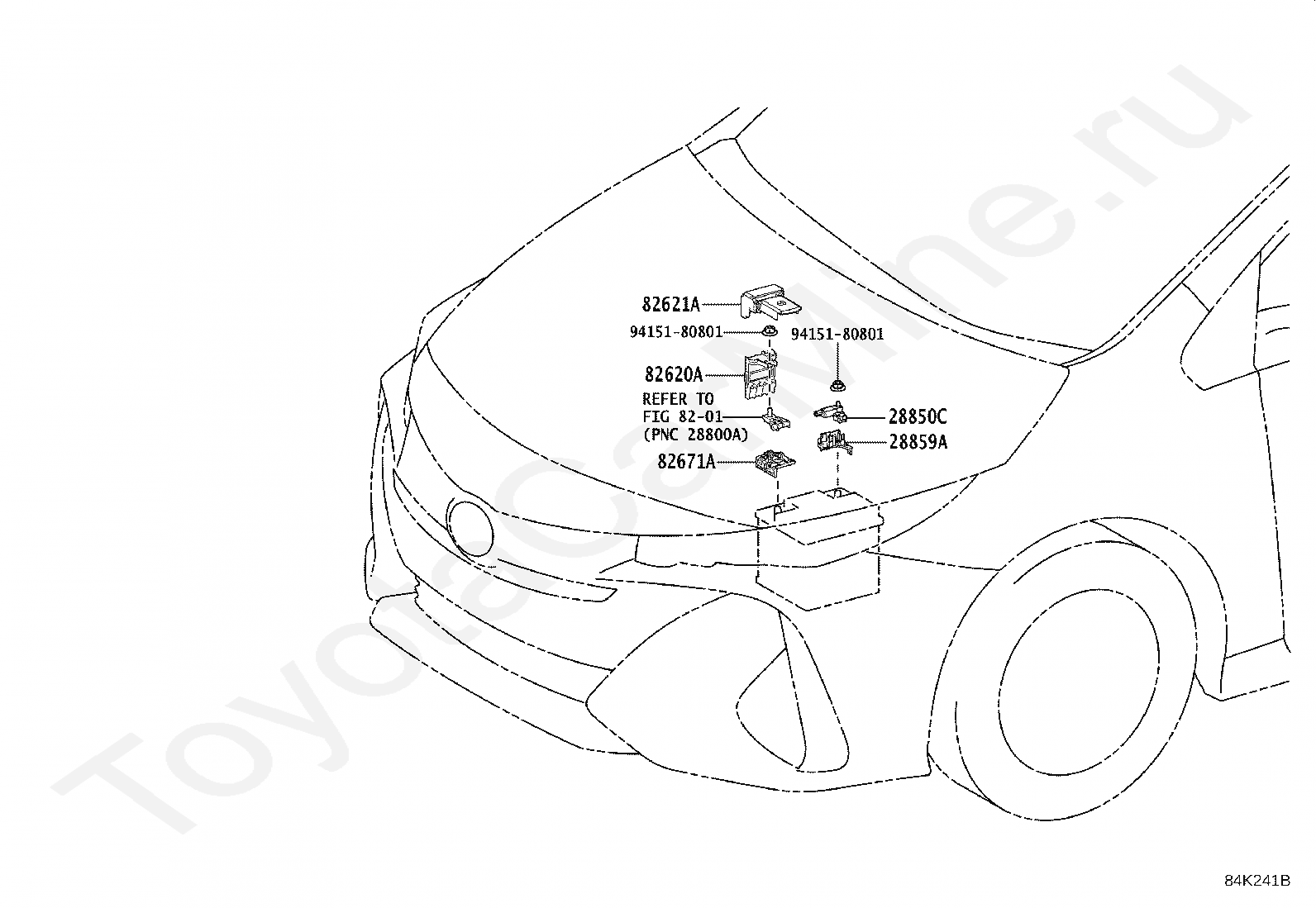

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

8201

переход к группе запчастей

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

82671A

BLOCK, JUNCTION

9415180801

Крепеж

9415180801

Крепеж

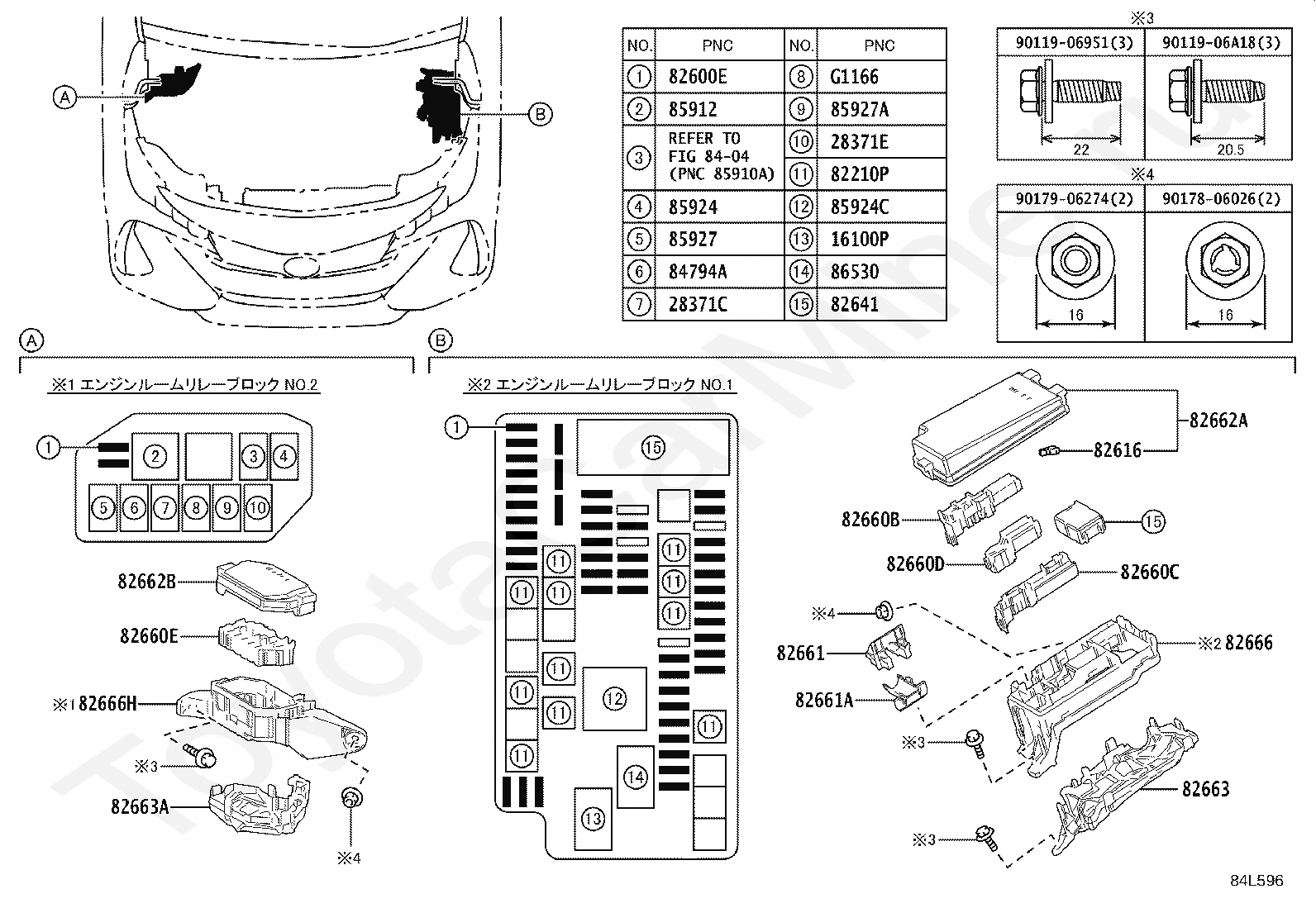

Код

Описание

16100P

RELAY, WATER PUMP

28371C

RELAY, IGNITION, NO.2

28371E

RELAY, IGNITION, NO.4

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

8404

переход к группе запчастей

84794A

RELAY, FR WIPER DEICER

85912

RELAY, DEFOGGER

85924

RELAY, IGNITION CONTROL

85924C

RELAY, IGCT

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

86530

RELAY ASSY, HORN

9011906951

Крепеж

9011906A18

Крепеж

9017806026

Крепеж

9017906274

Крепеж

G1166

RELAY, OIL PUMP MOTOR CONTROLLER

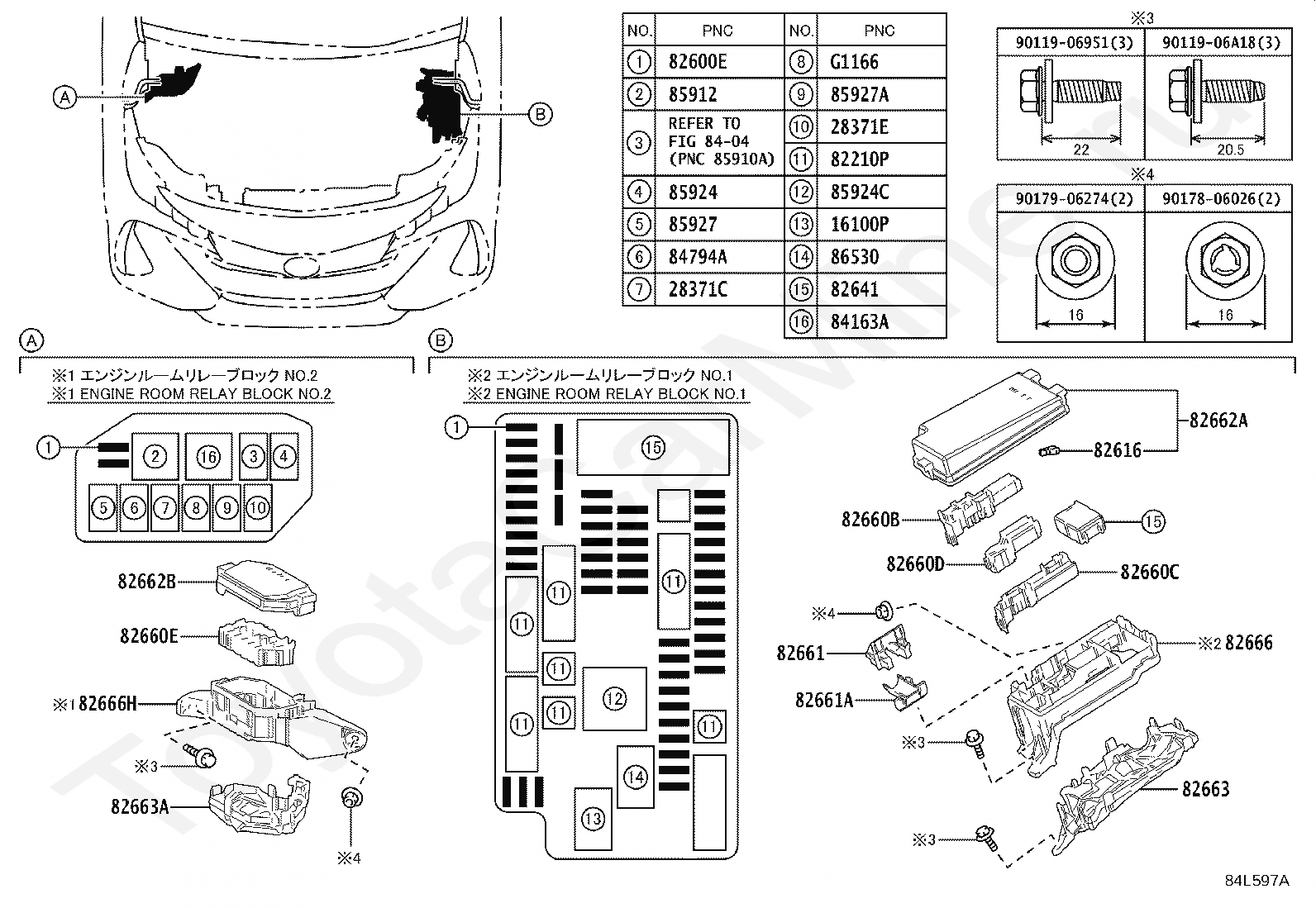

Код

Описание

16100P

RELAY, WATER PUMP

28371C

RELAY, IGNITION, NO.2

28371E

RELAY, IGNITION, NO.4

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

8404

переход к группе запчастей

84163A

RELAY, LIGHT EMITTING DIODE ILLUMINATION

84794A

RELAY, FR WIPER DEICER

85912

RELAY, DEFOGGER

85924

RELAY, IGNITION CONTROL

85924C

RELAY, IGCT

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

86530

RELAY ASSY, HORN

9011906951

Крепеж

9011906A18

Крепеж

9017806026

Крепеж

9017906274

Крепеж

G1166

RELAY, OIL PUMP MOTOR CONTROLLER

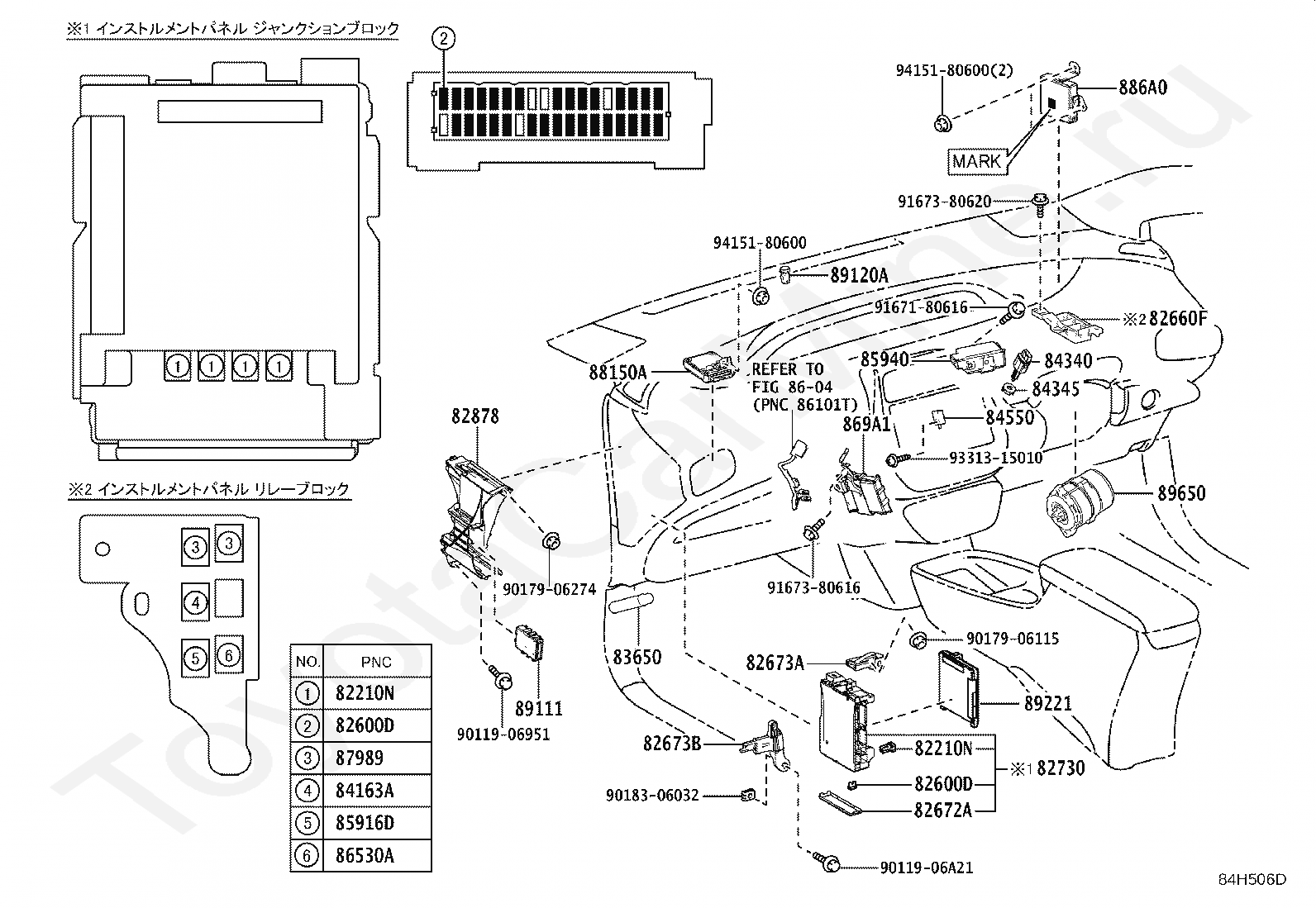

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660F

BLOCK ASSY, RELAY

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82878

BOX, COMPUTER INTEGRATION, LH

83650

FUSEE

84163A

RELAY, LIGHT EMITTING DIODE ILLUMINATION

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85916D

RELAY, FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

8604

переход к группе запчастей

86530A

RELAY, HORN

869A1

COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION

87989

RELAY, MIRROR CONTROL

88150A

COMPUTER ASSY, DRIVING SUPPORT

886A0

COMPUTER ASSY, HEAT PUMP

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89650

COMPUTER ASSY, POWER STEERING

9011906951

Крепеж

9011906A21

Крепеж

9017906115

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9167180616

Крепеж

9167380616

Крепеж

9167380620

Крепеж

9331315010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

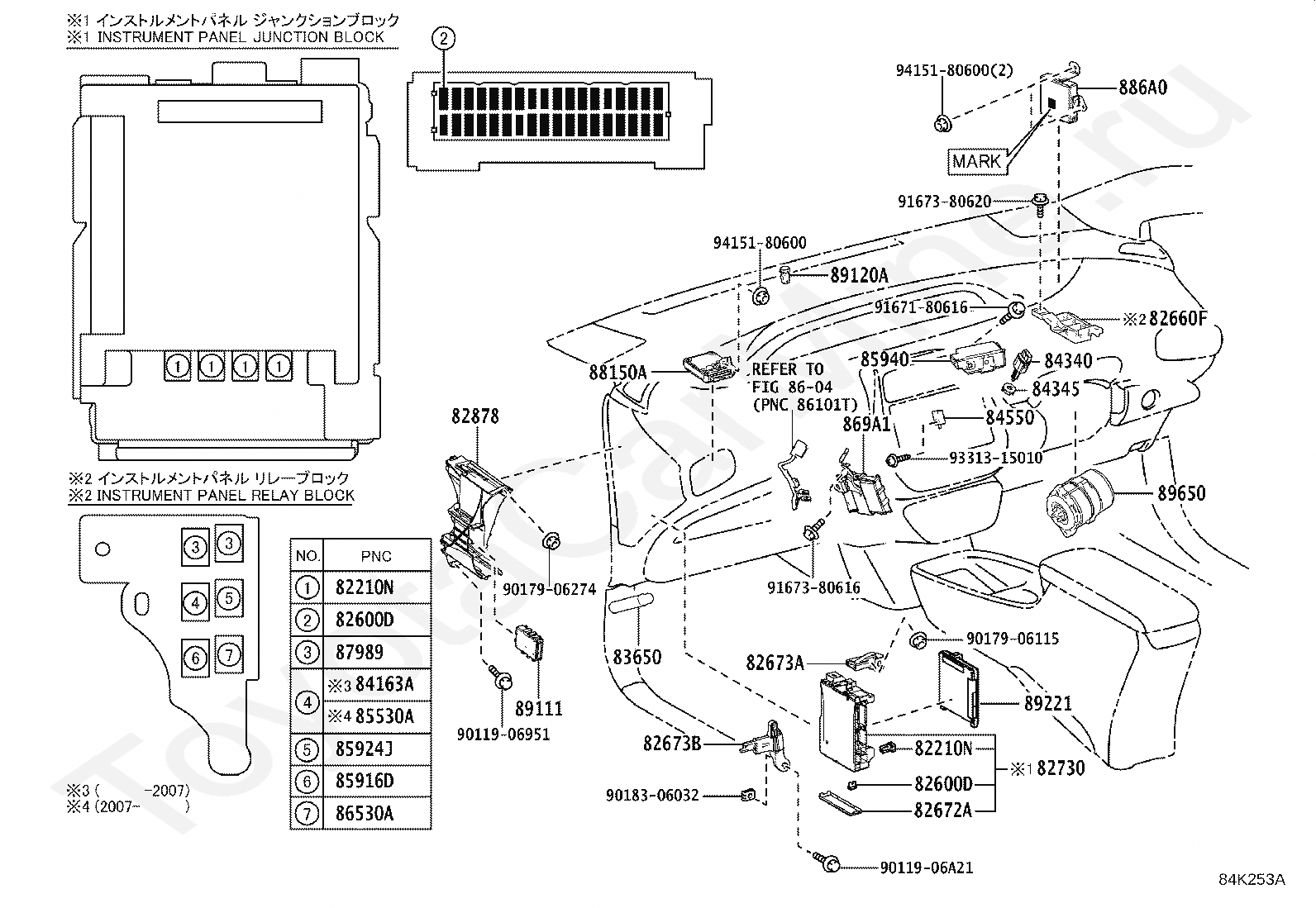

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660F

BLOCK ASSY, RELAY

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82878

BOX, COMPUTER INTEGRATION, LH

83650

FUSEE

84163A

RELAY, LIGHT EMITTING DIODE ILLUMINATION

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85530A

RELAY, POWER OUTLET SOCKET

85916D

RELAY, FOG LAMP

85924J

RELAY, DCB

85940

RELAY ASSY, WINDSHIELD WIPER

8604

переход к группе запчастей

86530A

RELAY, HORN

869A1

COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION

87989

RELAY, MIRROR CONTROL

88150A

COMPUTER ASSY, DRIVING SUPPORT

886A0

COMPUTER ASSY, HEAT PUMP

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89650

COMPUTER ASSY, POWER STEERING

9011906951

Крепеж

9011906A21

Крепеж

9017906115

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9167180616

Крепеж

9167380616

Крепеж

9167380620

Крепеж

9331315010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

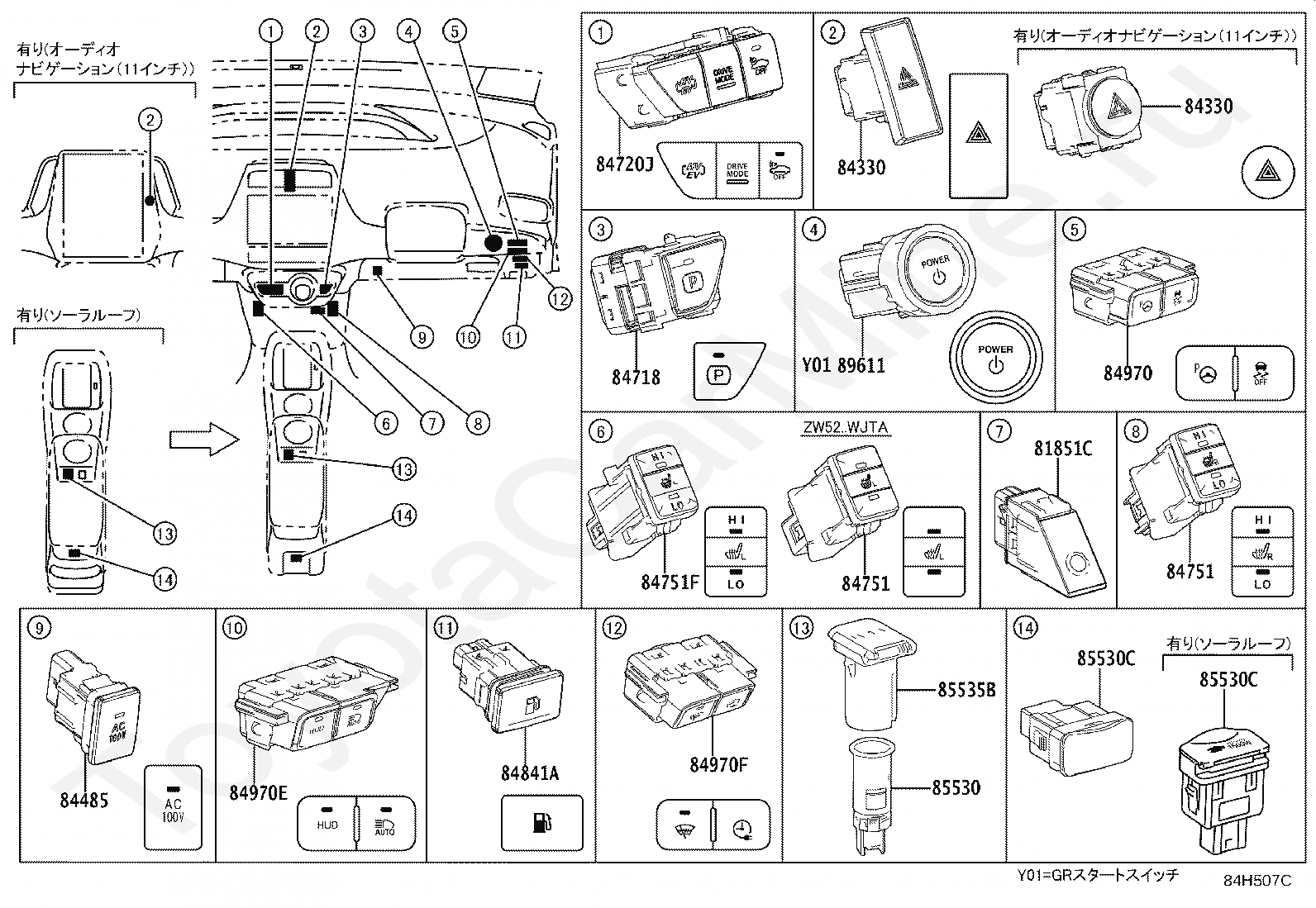

Код

Описание

81851C

LAMP ASSY, INDICATOR

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84718

SWITCH, TRANSMISSION SHIFT MAIN

84720J

SWITCH ASSY, PATTERN SELECT

84751

SWITCH, SEAT HEATER

84751

SWITCH, SEAT HEATER

84751F

SWITCH, SEAT HEATER

84841A

SWITCH, FUEL LID OPENER

84970

SWITCH ASSY, COMBINATION

84970E

SWITCH ASSY, COMBINATION NO.2

84970F

SWITCH ASSY, COMBINATION, NO.3

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

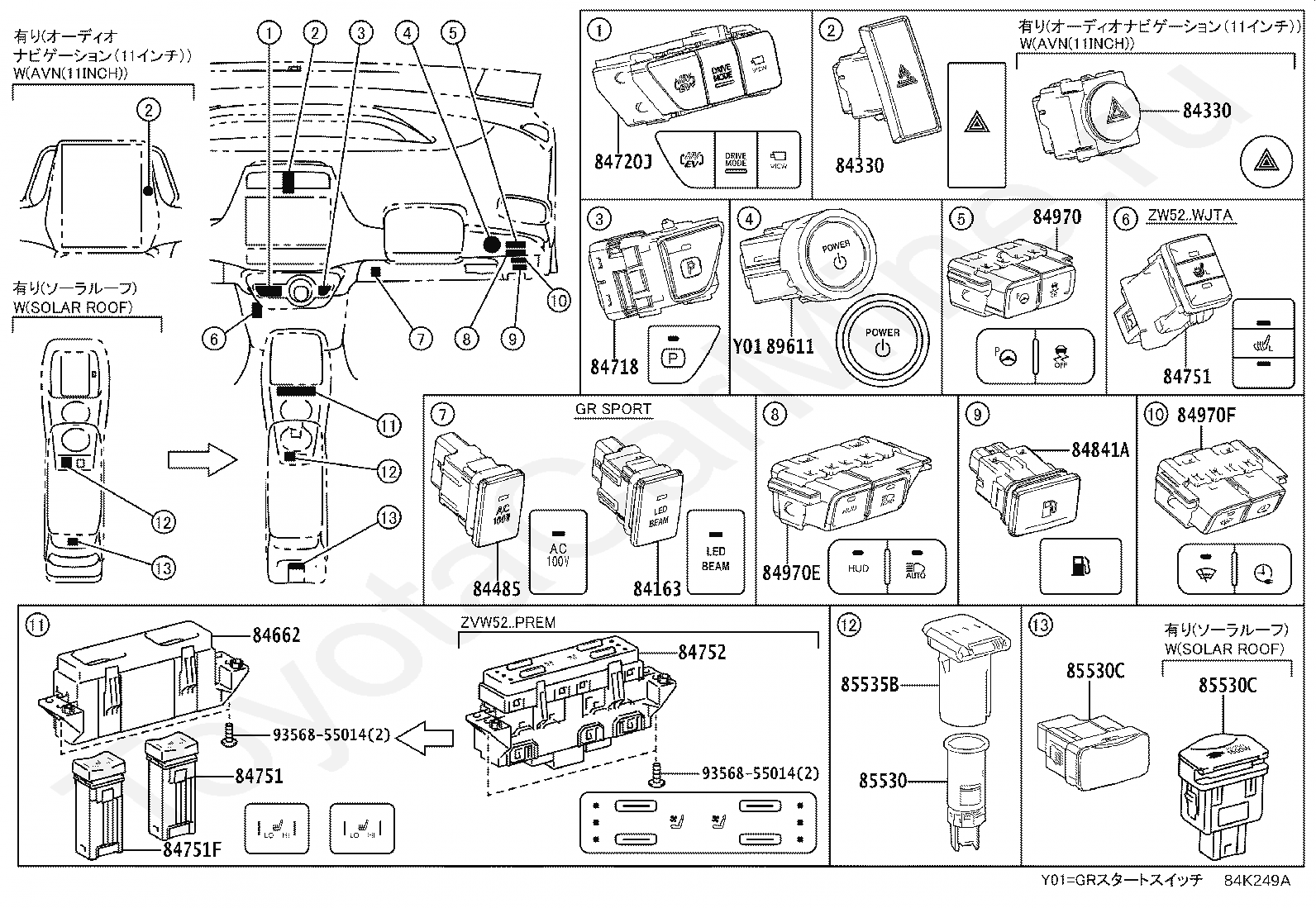

Код

Описание

84163

SWITCH, LIGHT EMITTING DIODE ILLUMINATION

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84662

PANEL, COOLER CONTROL SWITCH

84718

SWITCH, TRANSMISSION SHIFT MAIN

84720J

SWITCH ASSY, PATTERN SELECT

84751

SWITCH, SEAT HEATER

84751

SWITCH, SEAT HEATER

84751F

SWITCH, SEAT HEATER

84752

SWITCH, REFRESHING SEAT

84841A

SWITCH, FUEL LID OPENER

84970

SWITCH ASSY, COMBINATION

84970E

SWITCH ASSY, COMBINATION NO.2

84970F

SWITCH ASSY, COMBINATION, NO.3

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

9356855014

Крепеж

9356855014

Крепеж

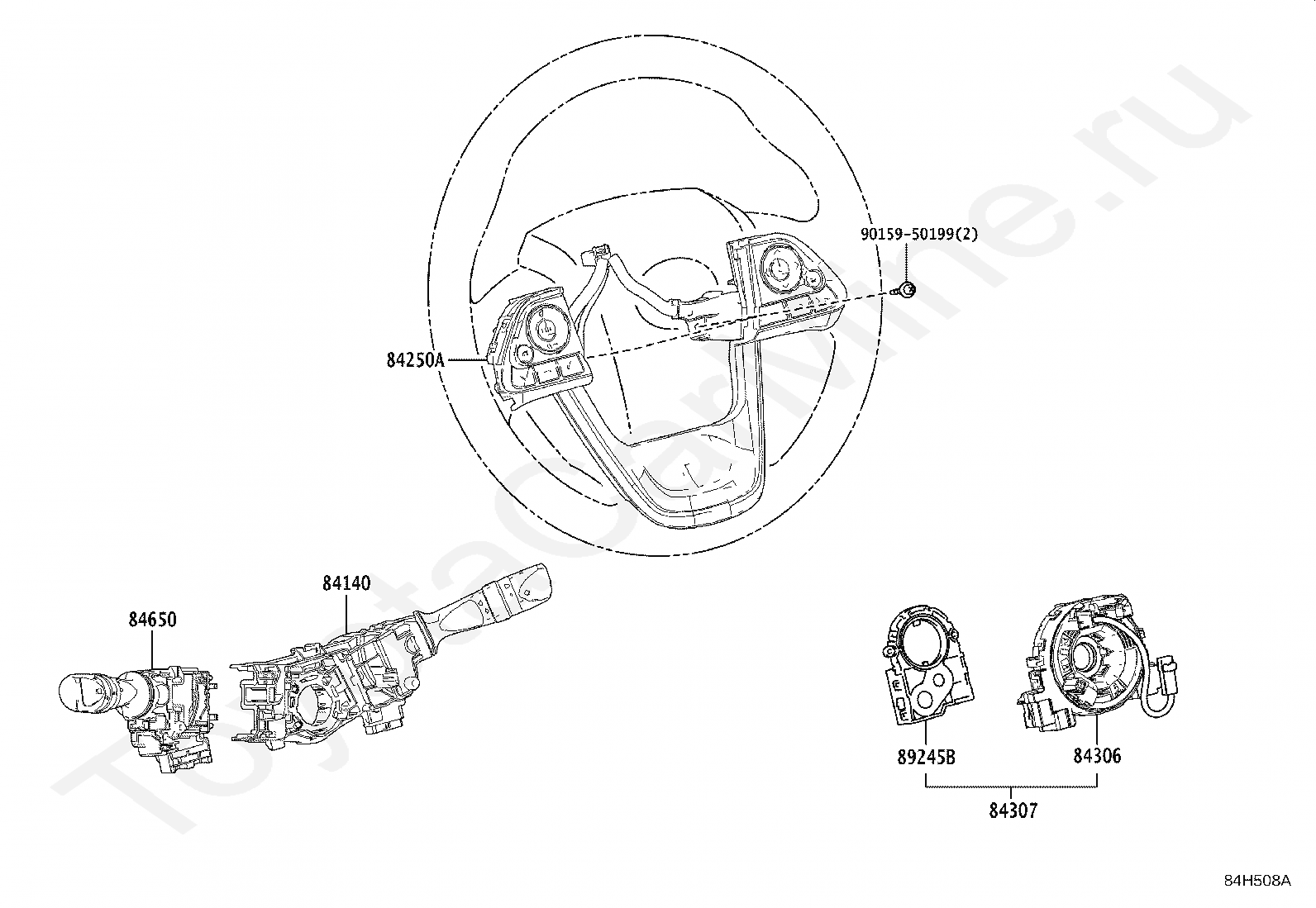

Код

Описание

84140

SWITCH ASSY, HEADLAMP DIMMER

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950199

Крепеж

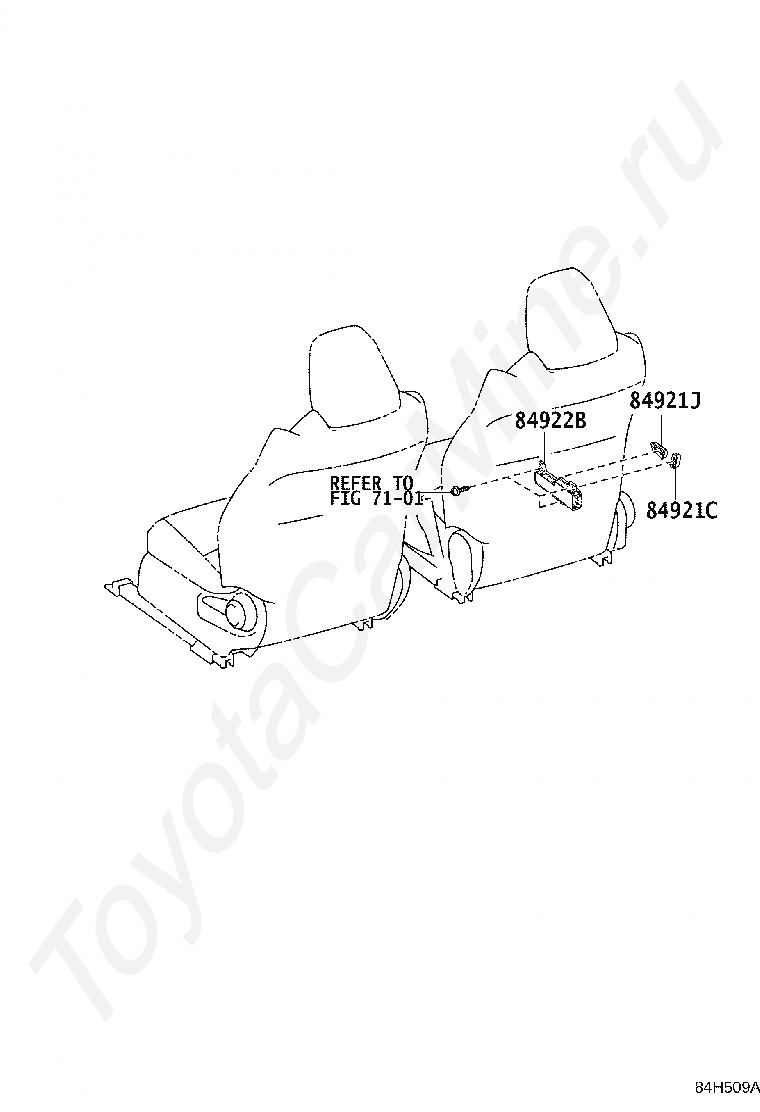

Код

Описание

7101

переход к группе запчастей

84921C

KNOB, POWER SEAT SWITCH, RH

84921J

KNOB, POWER SEAT SWITCH, RH

84922B

SWITCH, FRONT POWER SEAT, RH

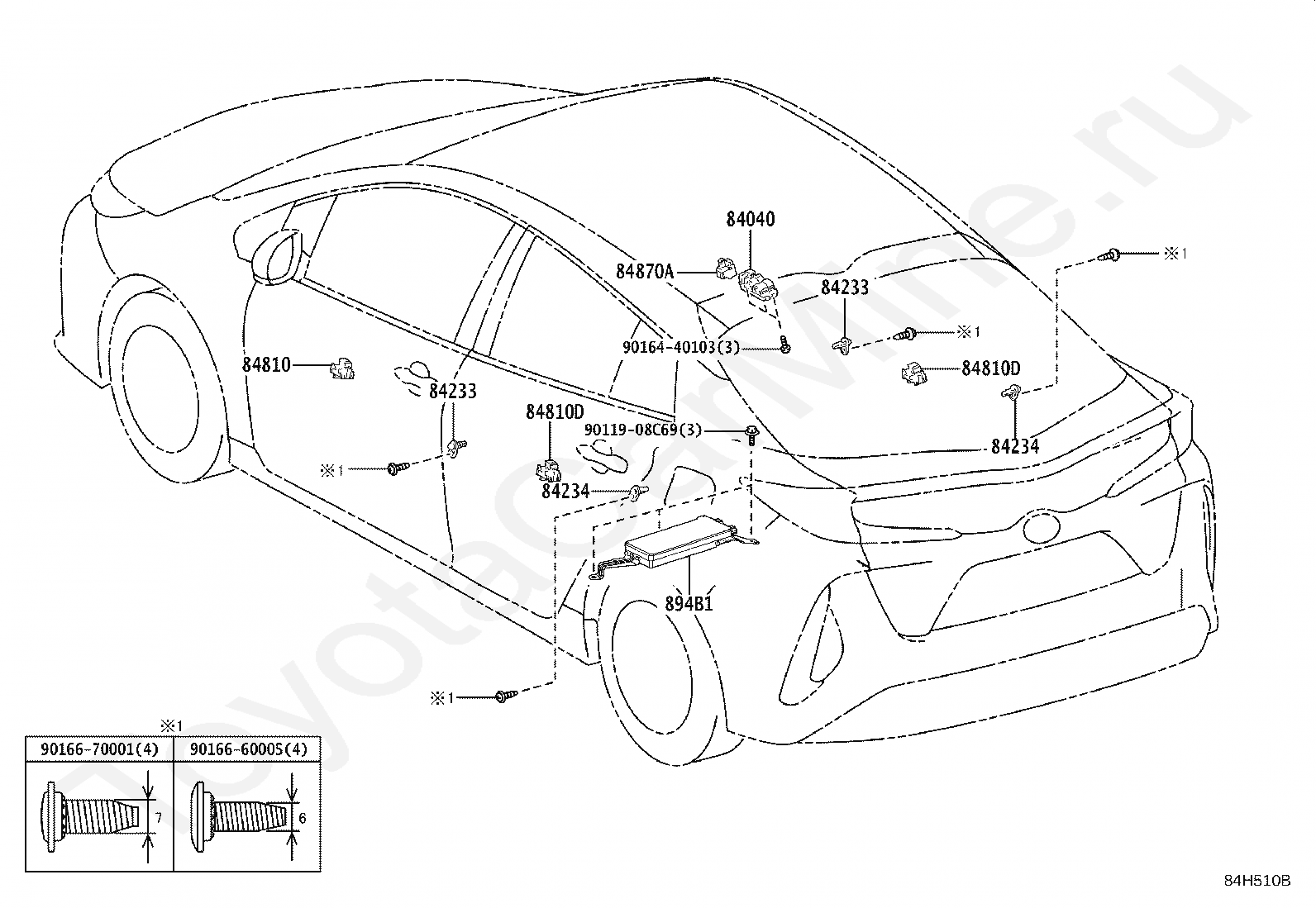

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

894B1

SOLAR ENERGY CONTROL UNIT

9011908C69

Крепеж

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

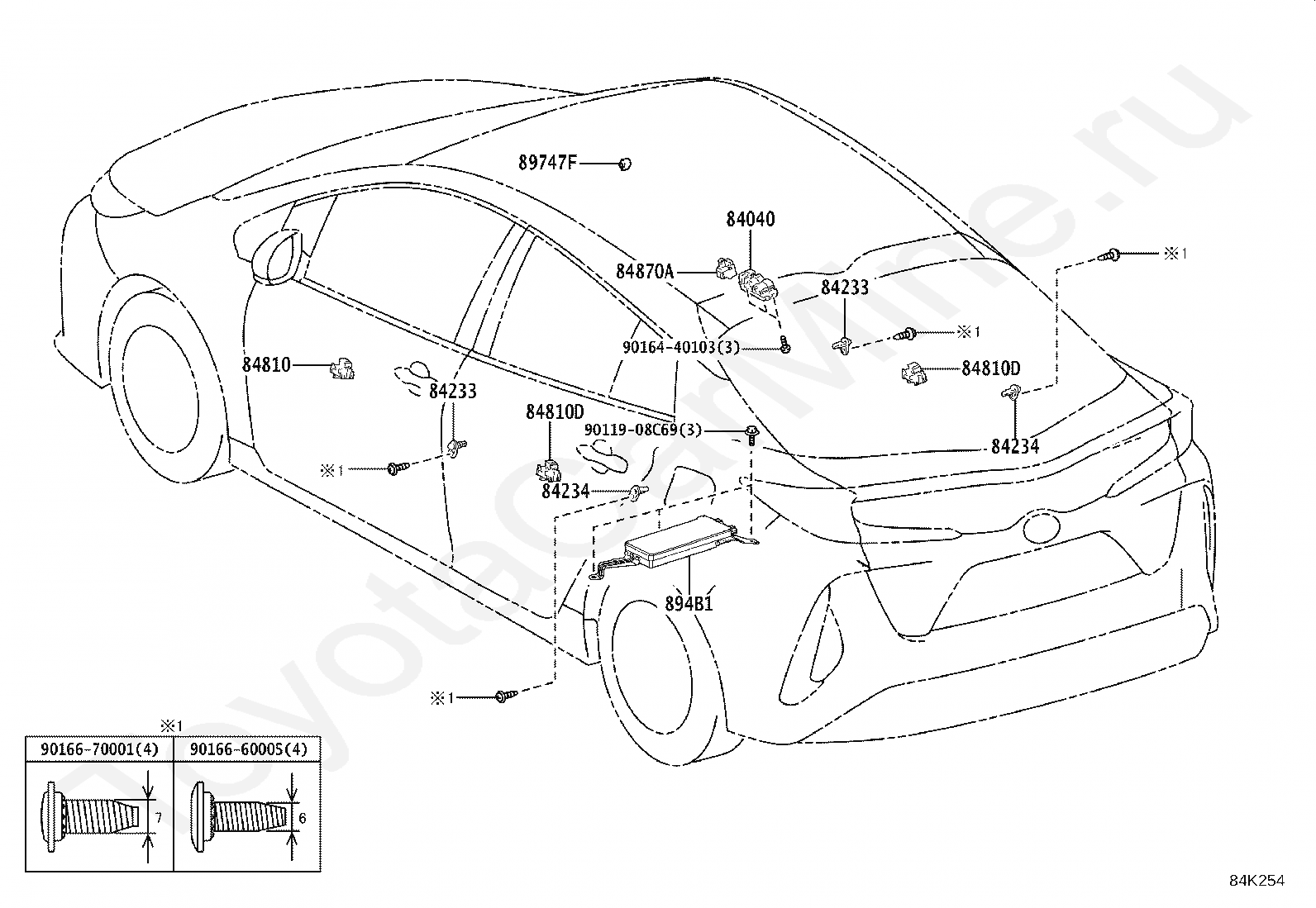

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

894B1

SOLAR ENERGY CONTROL UNIT

89747F

BUZZER, BLIND SPOT MONITOR

9011908C69

Крепеж

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

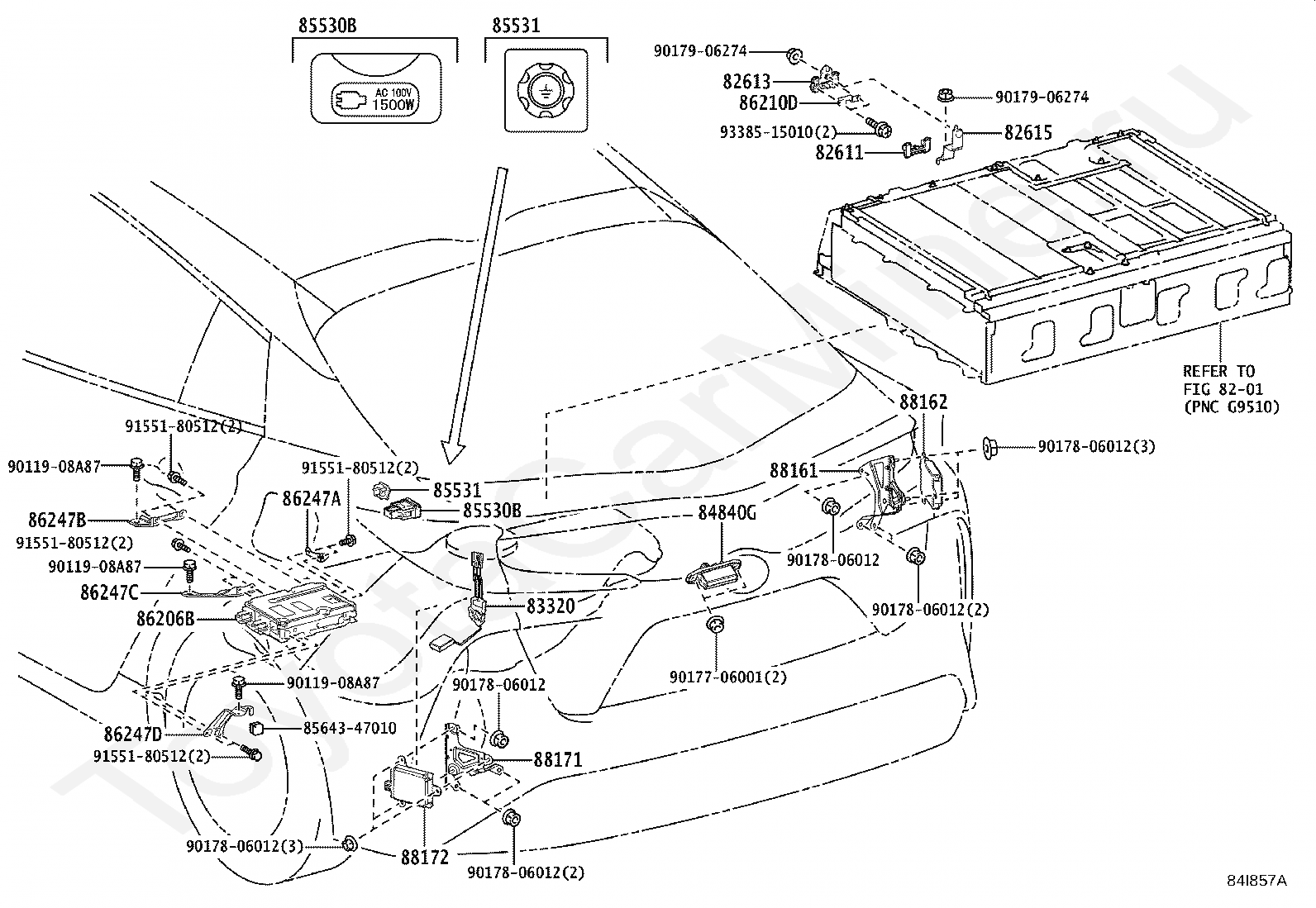

Код

Описание

8201

переход к группе запчастей

82611

COVER, FUSE BLOCK

82613

COVER, FUSE BLOCK

82615

BRACKET, FUSE

83320

GAGE ASSY, FUEL SENDER

84840G

SWITCH ASSY, BACK DOOR OPENER

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85531

SOCKET, POWER OUTLET

85531

SOCKET, POWER OUTLET

8564347010

Крепеж

86206B

INVERTER SUB-ASSY, VOLTAGE

86210D

FUSE, HIGH VOLTAGE

86247A

BRACKET, VOLTAGE INVERTER

86247B

BRACKET, VOLTAGE INVERTER

86247C

BRACKET, VOLTAGE INVERTER, NO.2

86247D

BRACKET, VOLTAGE INVERTER, NO.3

88161

BRACKET, BLIND SPOT MONITOR, RH

88162

SENSOR, BLIND SPOT MONITOR, RH

88171

BRACKET, BLIND SPOT MONITOR, LH

88172

SENSOR, BLIND SPOT MONITOR, LH

9011908A87

Крепеж

9011908A87

Крепеж

9011908A87

Крепеж

9017706001

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9338515010

Крепеж

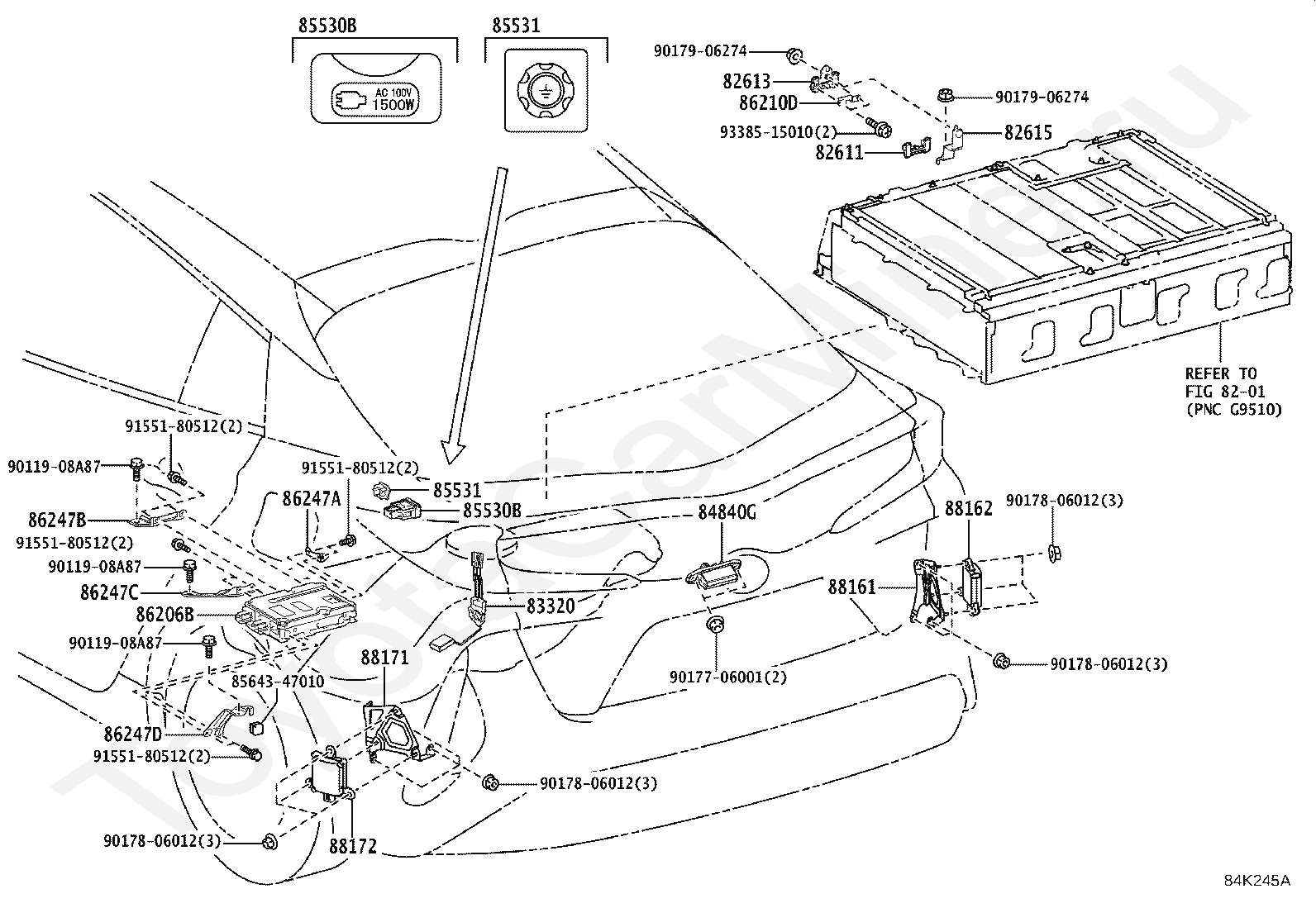

Код

Описание

8201

переход к группе запчастей

82611

COVER, FUSE BLOCK

82613

COVER, FUSE BLOCK

82615

BRACKET, FUSE

83320

GAGE ASSY, FUEL SENDER

84840G

SWITCH ASSY, BACK DOOR OPENER

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85531

SOCKET, POWER OUTLET

85531

SOCKET, POWER OUTLET

8564347010

Крепеж

86206B

INVERTER SUB-ASSY, VOLTAGE

86210D

FUSE, HIGH VOLTAGE

86247A

BRACKET, VOLTAGE INVERTER

86247B

BRACKET, VOLTAGE INVERTER

86247C

BRACKET, VOLTAGE INVERTER, NO.2

86247D

BRACKET, VOLTAGE INVERTER, NO.3

88161

BRACKET, BLIND SPOT MONITOR, RH

88162

SENSOR, BLIND SPOT MONITOR, RH

88171

BRACKET, BLIND SPOT MONITOR, LH

88172

SENSOR, BLIND SPOT MONITOR, LH

9011908A87

Крепеж

9011908A87

Крепеж

9011908A87

Крепеж

9017706001

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9155180512

Крепеж

9338515010

Крепеж

> Запчасти PRIUS > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
