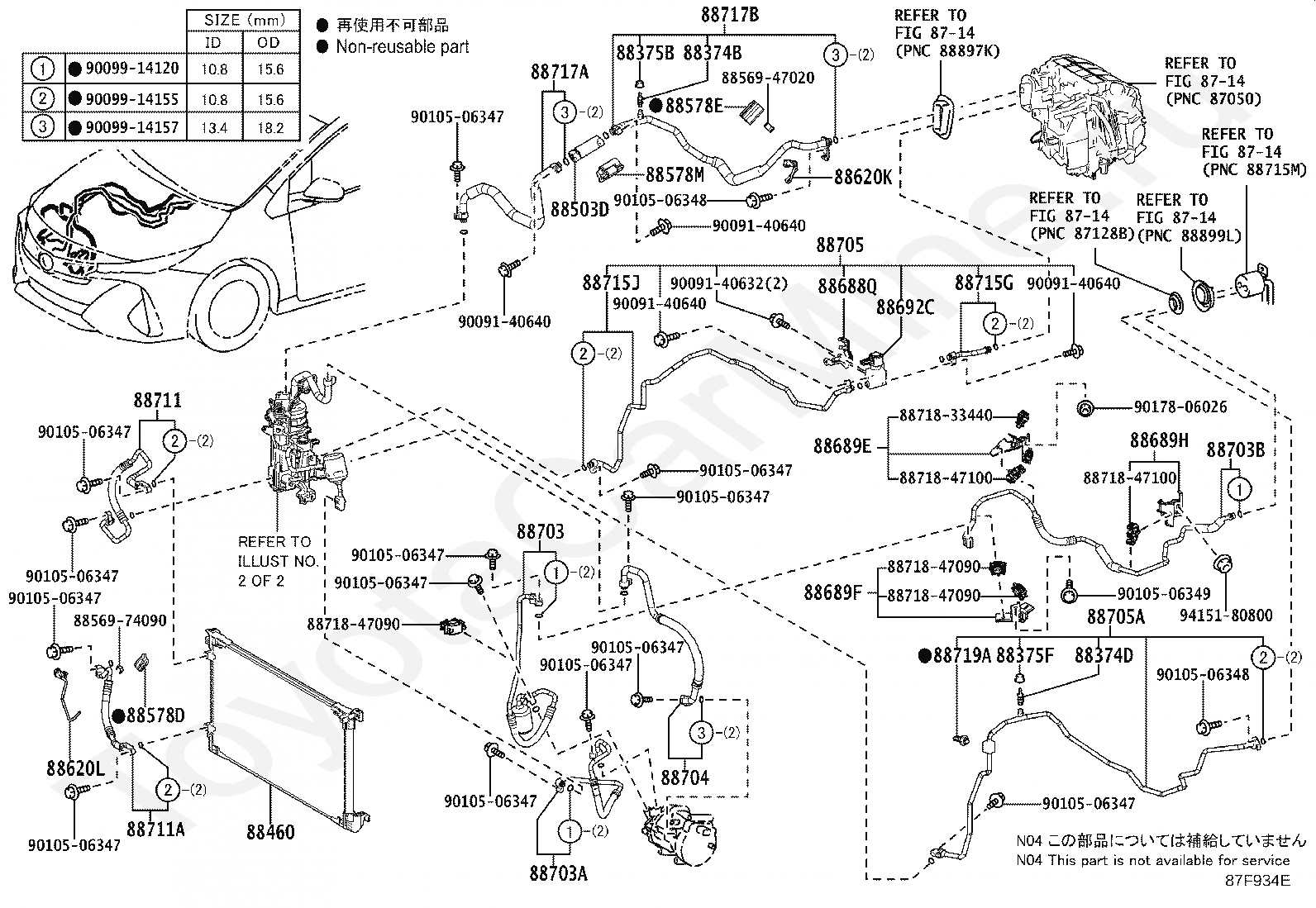

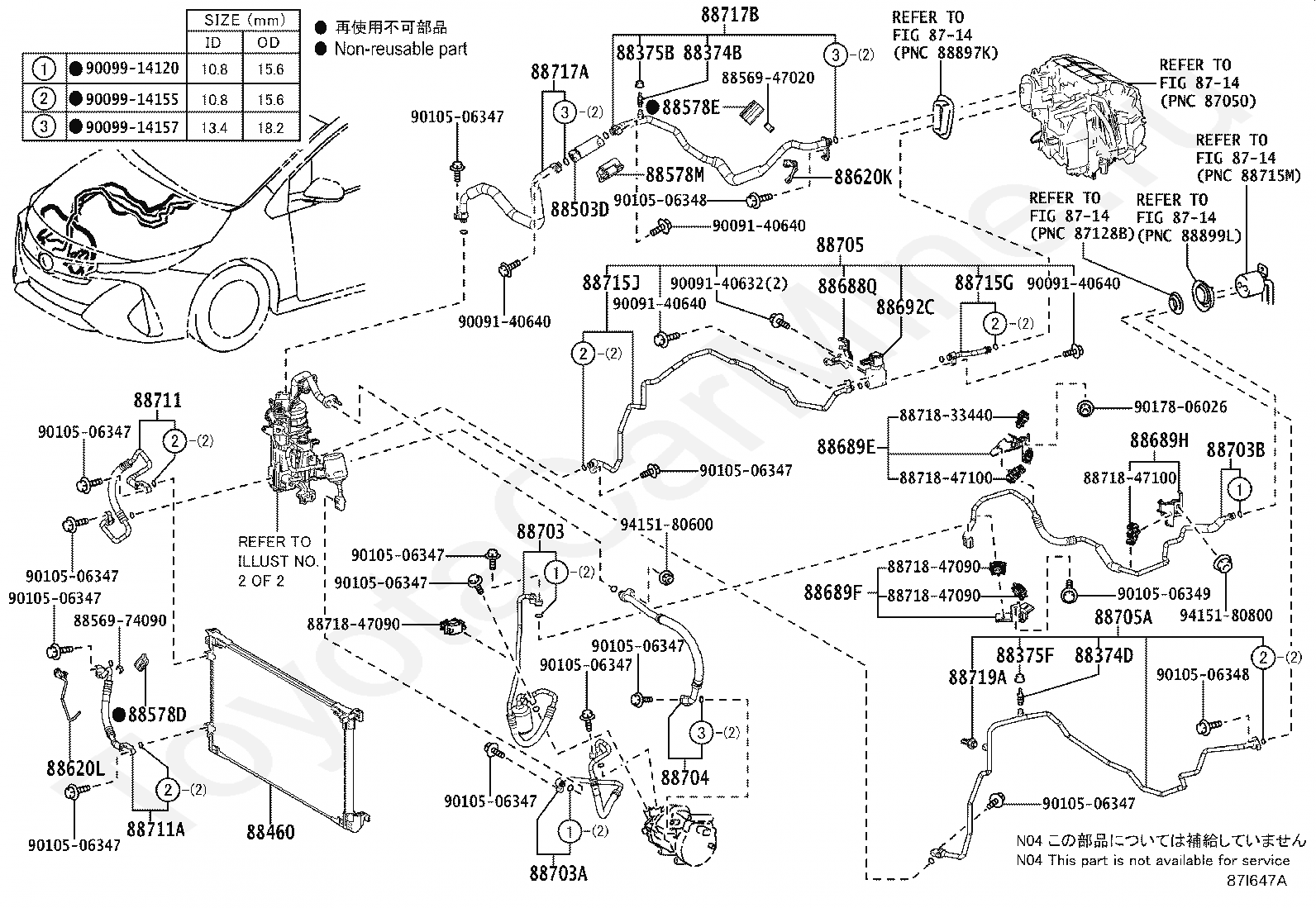

88374B
VALVE, SERVICE, NO.1
88374D
VALVE, SERVICE NO.3
88375B
CAP, SERVICE VALVE, NO.1
88375F
CAP, SERVICE VALVE, NO.3
88460
CONDENSER ASSY, COOLER
88503D
REGULATOR, EVAPORATOR PRESSURE
88578D
PACKING, COOLER PIPE, NO.1
88578E
PACKING, COOLER PIPE, NO.2
88578M
PACKING, COOLING PIPE, NO.3
88620K
SENSOR, EVAPORATOR PIPE TEMPERATURE
88620L
SENSOR, HEAT EXCHANGER TEMPERATURE
88688Q
BRACKET (FOR MAGNET VALVE)
88689E
BRACKET, COOLER, NO.1
88689F
BRACKET, COOLER, NO.2
88689H
BRACKET, COOLER, NO.4
88692C
VALVE, ELECTRIC EXPANSION(COOLING)
88703
HOSE SUB-ASSY, DISCHARGE
88703A
HOSE SUB-ASSY, DISCHARGE, NO.1
88703B
HOSE SUB-ASSY, DISCHARGE, NO.2
88704
HOSE SUB-ASSY, SUCTION
88705
PIPE SUB-ASSY, DISCHARGE
88705A
TUBE SUB-ASSY, DISCHARGE
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711A
HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88715G
TUBE, DISCHARGE, G
88715J
TUBE, DISCHARGE, J
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88719A
SENSOR, AIR CONDITIONER PRESSURE
