Каталог

Япония

Модель

PRIUS A(ALPHA)

VIN

Дата

2014/11

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

ZVW40

КПП

вариатор

Опции

7-местный COMPLETED VEHICLE 628W

Реле и кнопки TOYOTA PRIUS A(ALPHA)







Код

Описание

8271512D70

Крепеж

8271542710

Крепеж

8271547380

Крепеж

8271547390

Крепеж

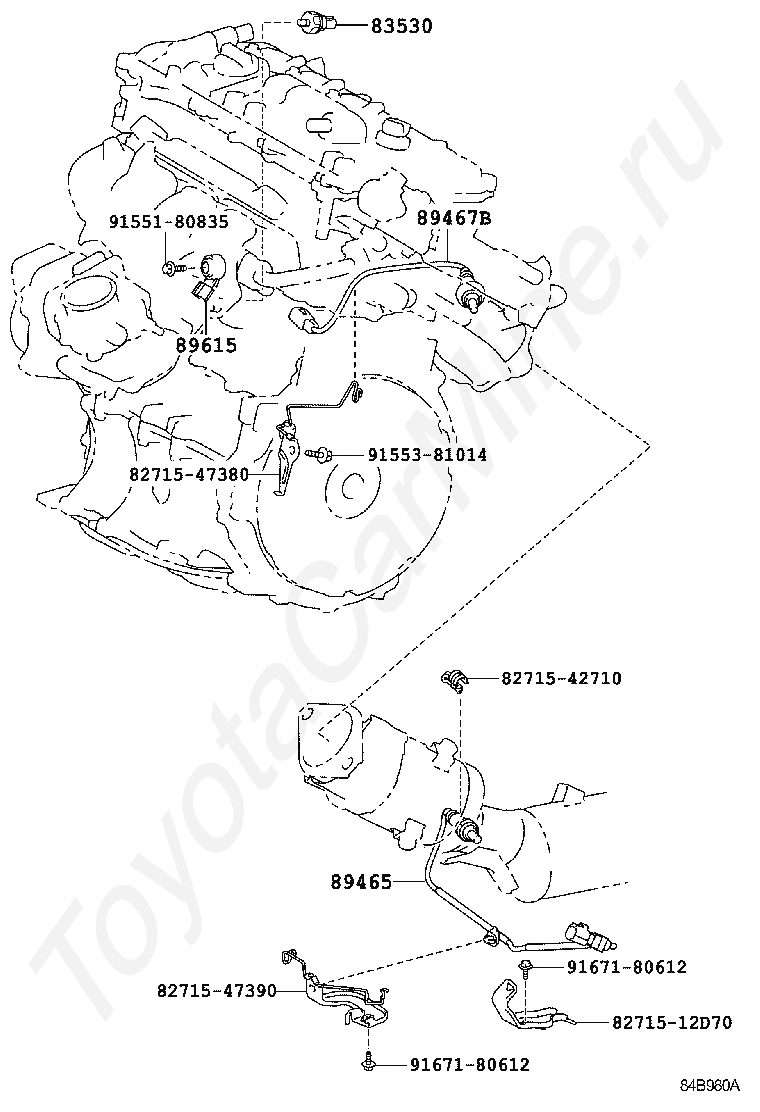

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9155180835

Крепеж

9155381014

Крепеж

9167180612

Крепеж

9167180612

Крепеж

Код

Описание

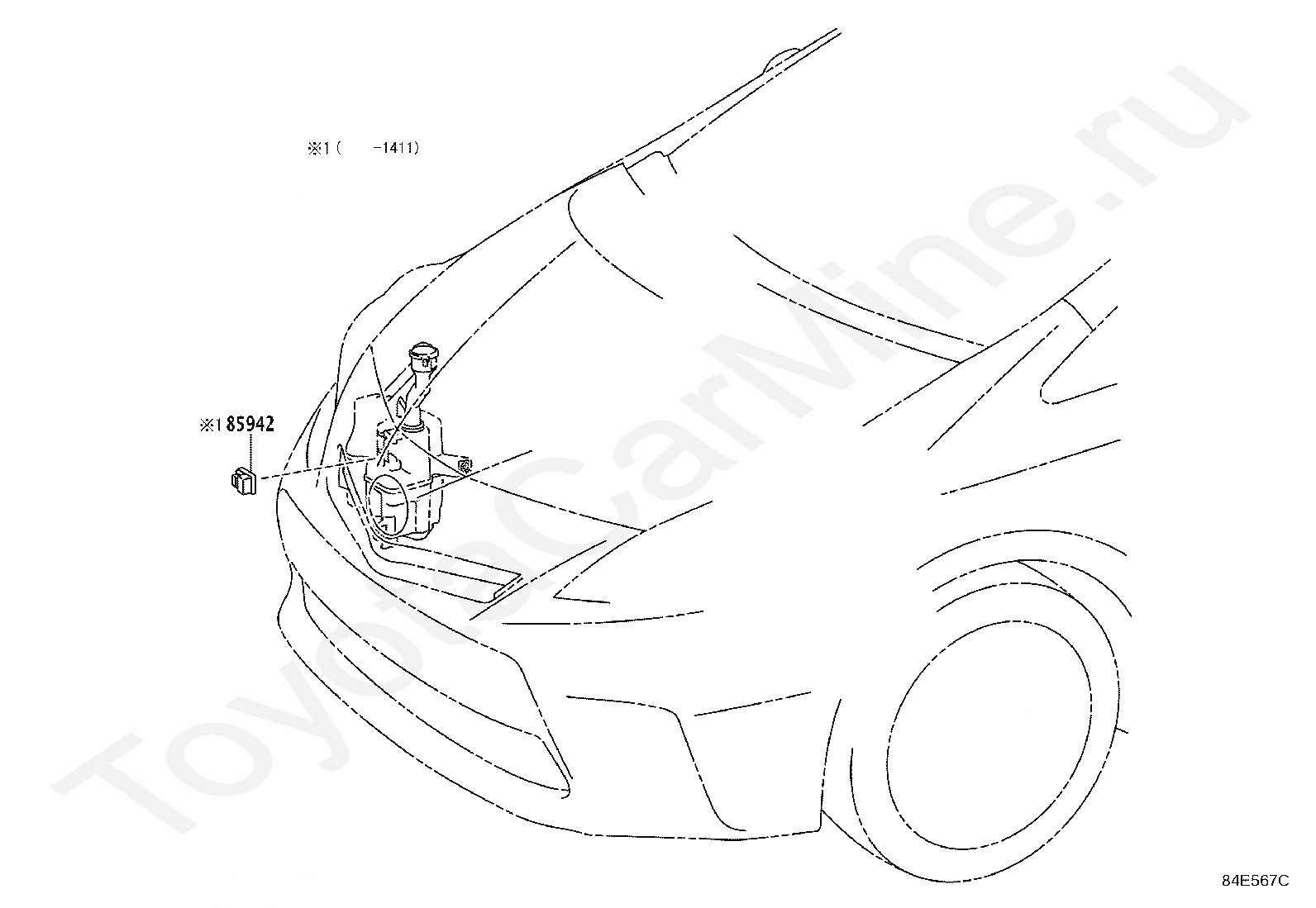

85942

RELAY, HEADLAMP CLEANER CONTROL

Код

Описание

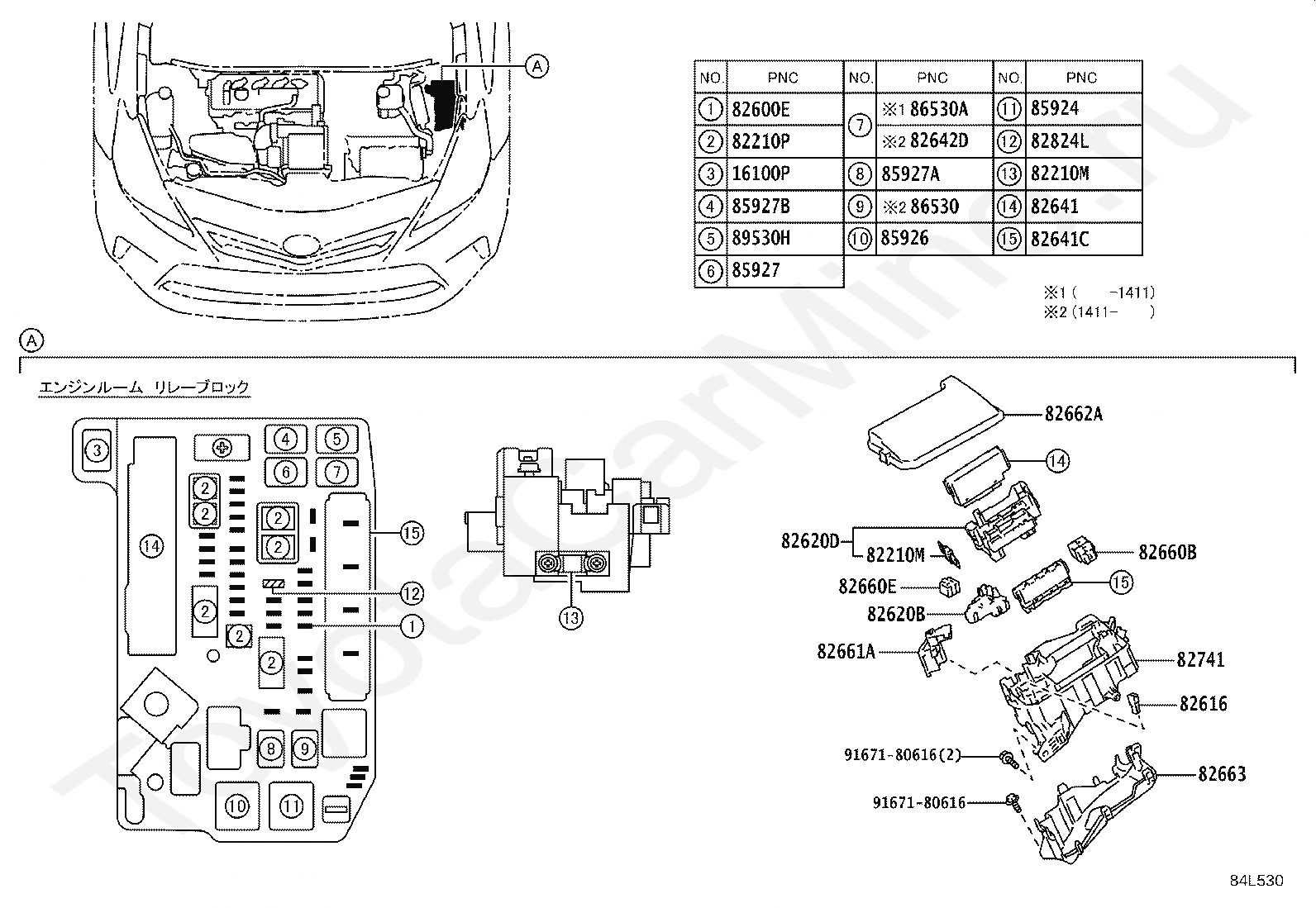

16100P

RELAY, WATER PUMP

82210M

FUSIBLE LINK

82210M

FUSIBLE LINK

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82620D

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82641C

RELAY, INTEGRATION NO.2

82642D

RELAY, RUNNING LIGHT NO.2

82660B

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82741

BLOCK, ENGINE ROOM RELAY

82824L

PIN, SHORT

85924

RELAY, IGNITION CONTROL

85926

RELAY, HEADLAMP DIMMER

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

86530

RELAY ASSY, HORN

86530A

RELAY, HORN

89530H

RELAY, TRANSAXLE PARKING LOOK CONTROL

9167180616

Крепеж

9167180616

Крепеж

Код

Описание

8202

переход к группе запчастей

8202

переход к группе запчастей

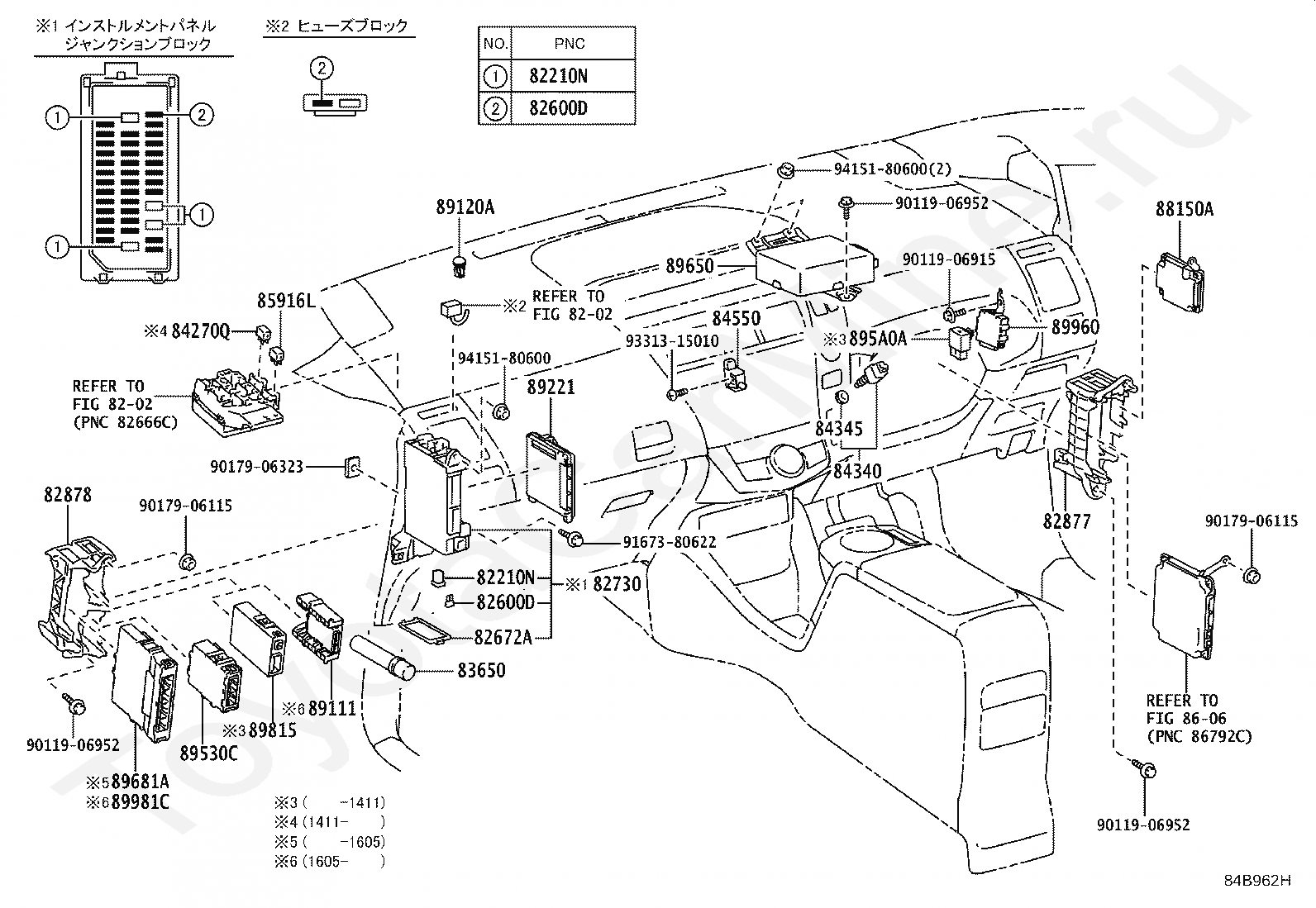

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672A

COVER, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

82878

BOX, COMPUTER INTEGRATION, LH

83650

FUSEE

84270Q

RELAY, LAMP CUT

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85916L

RELAY, REAR FOG LAMP

8606

переход к группе запчастей

88150A

COMPUTER ASSY, DRIVING SUPPORT

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89530C

COMPUTER ASSY, TRANSMISSION CONTROL

895A0A

COMPUTER ASSY, STOP LAMP CONTROL

89650

COMPUTER ASSY, POWER STEERING

89681A

COMPUTER, POWER MANAGEMENT CONTROL

89815

COMPUTER, SEAT BELT CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

89981C

COMPUTER, HYBRID VEHICLE CONTROL

9011906915

Крепеж

9011906952

Крепеж

9011906952

Крепеж

9011906952

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906323

Крепеж

9167380622

Крепеж

9331315010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

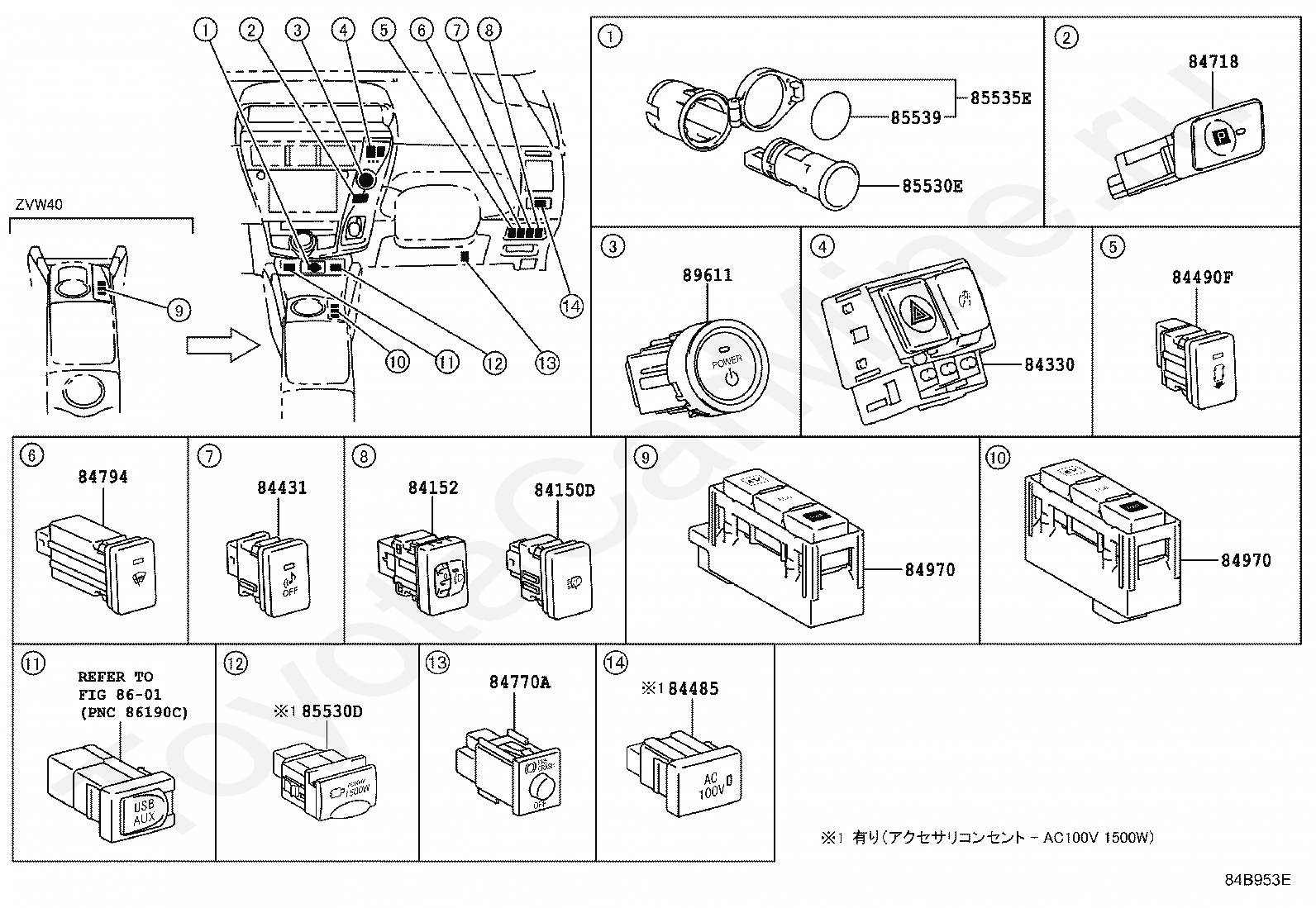

84150D

SWITCH ASSY, HEADLAMP CLEANER

84152

SWITCH, HEADLAMP LEVELING

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84431

SWITCH, VEHICLE APPROACHING SPEAKER

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84490F

SWITCH ASSY, PARKING ASSIST PRE SUPPORT

84718

SWITCH, TRANSMISSION SHIFT MAIN

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84794

SWITCH, FR WIPER DEICER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535E

COVER, POWER OUTLET SOCKET, NO.2

85539

LABEL, POWER OUTLET NOTICE

8601

переход к группе запчастей

89611

SWITCH, PUSH START

Код

Описание

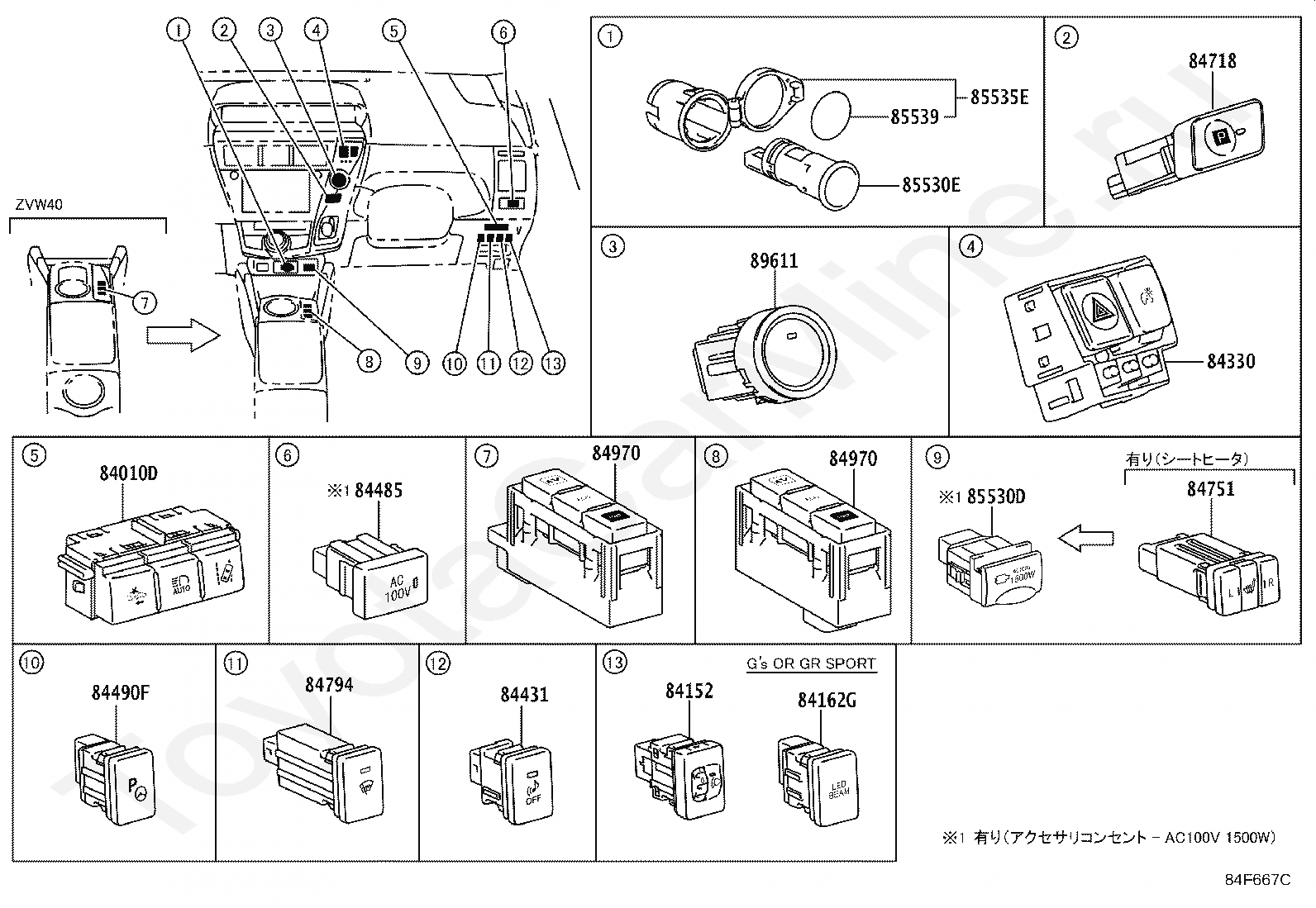

84010D

CONTROL & PANEL ASSY, INTEGRATION

84152

SWITCH, HEADLAMP LEVELING

84162G

SWITCH, LED ILLUMINATION BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84431

SWITCH, VEHICLE APPROACHING SPEAKER

84485

SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET)

84490F

SWITCH ASSY, PARKING ASSIST PRE SUPPORT

84718

SWITCH, TRANSMISSION SHIFT MAIN

84751

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535E

COVER, POWER OUTLET SOCKET, NO.2

85539

LABEL, POWER OUTLET NOTICE

89611

SWITCH, PUSH START

Код

Описание

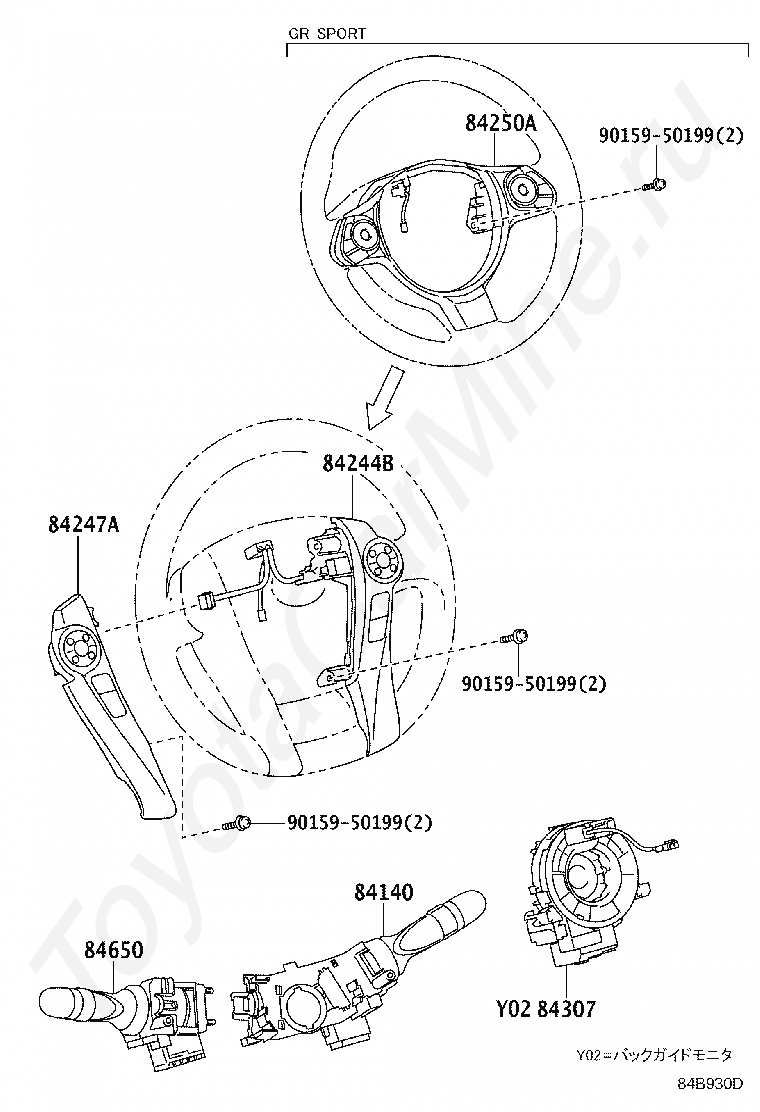

84140

SWITCH ASSY, HEADLAMP DIMMER

84244B

SWITCH, STEERING PAD, RH

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84650

SWITCH ASSY, WINDSHIELD WIPER

9015950199

Крепеж

9015950199

Крепеж

9015950199

Крепеж

Код

Описание

7504

переход к группе запчастей

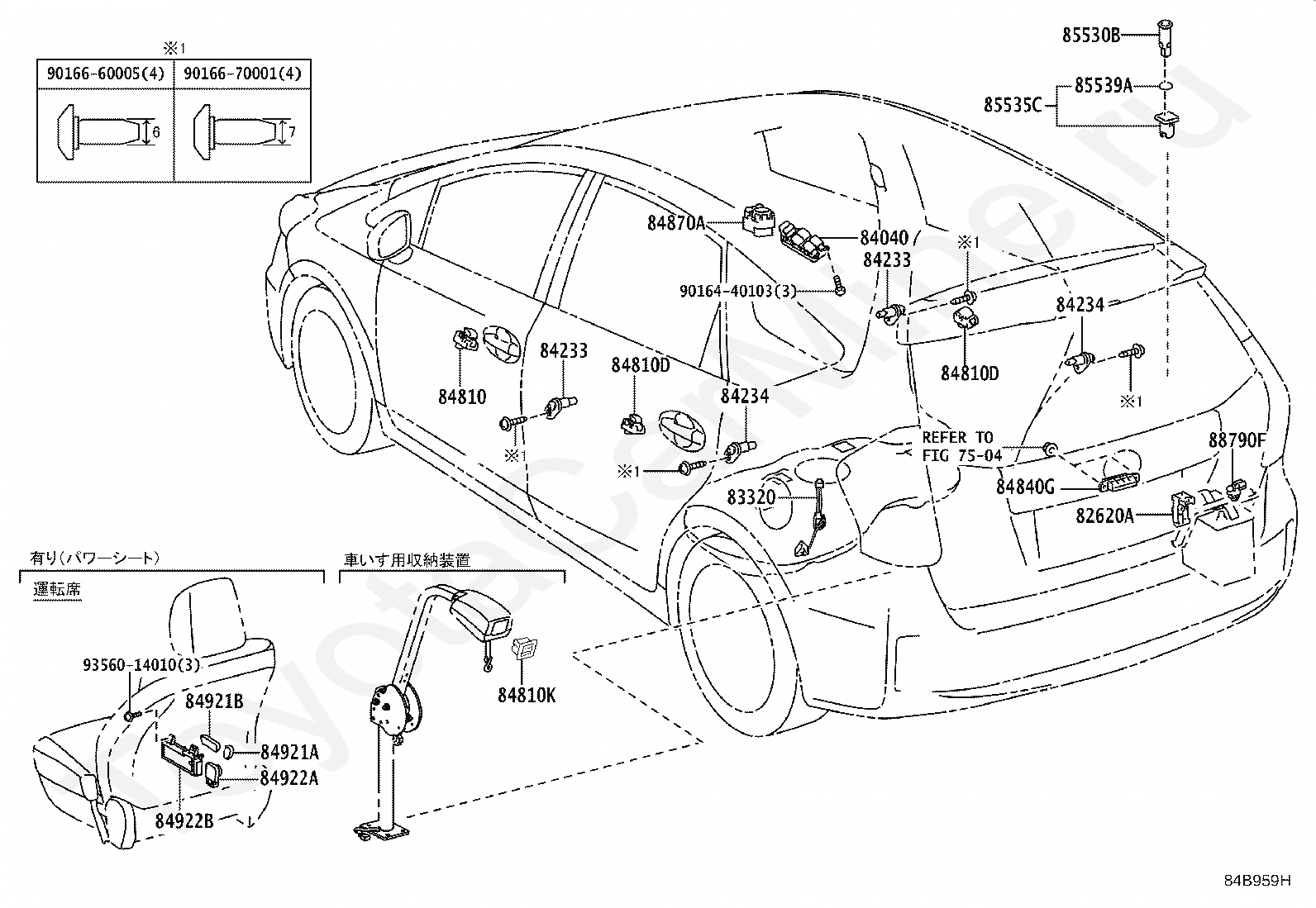

82620A

BLOCK ASSY, FUSIBLE LINK

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810K

SWITCH, CHAIR LIFT ARM

84840G

SWITCH ASSY, BACK DOOR OPENER

84870A

SWITCH ASSY, OUTER MIRROR

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922B

SWITCH, FRONT POWER SEAT, RH

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

88790F

THERMISTOR ASSY

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

9356014010

Крепеж
