82685E
PLATE, SERVICE PLUG CAUTION
82685E
PLATE, SERVICE PLUG CAUTION
89892A
SENSOR, BATTERY VOLTAGE
G3829A
FUSE, ELECTRIC VEHICLE
G3829A
FUSE, ELECTRIC VEHICLE
G3830A
PLUG ASSY, ELECTRIC VEHICLE BATTERY
G920N
COVER SUB-ASSY, HV BATTERY, UPPER NO.2
G9285G
LABEL, HV BATTERY INFORMATION, NO.1
G9289A
LABEL, BATTERY CAUTION
G9289E
LABEL, BATTERY CAUTION, NO.2
G9289F
LABEL, BATTERY CAUTION, NO.3
G9295C
STRIKER, BATTERY COVER LOCK, NO.2
G929A
HOSE, HV BATTERY, NO.1
G929B
HOSE, HV BATTERY, NO.2
G92D3
DUCT, HYBRID BATTERY INTAKE, NO.3
G92D4
DUCT, HYBRID BATTERY INTAKE, NO.4
G92D5
DUCT, HYBRID BATTERY INTAKE, NO.5
G92D5
DUCT, HYBRID BATTERY INTAKE, NO.5
G92D6
DUCT, HYBRID BATTERY INTAKE, NO.6
G92D6
DUCT, HYBRID BATTERY INTAKE, NO.6
G92F1
DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1
DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F2
DUCT, HYBRID BATTERY EXHAUST, NO.2
G92F2
DUCT, HYBRID BATTERY EXHAUST, NO.2
G92F3
DUCT, HYBRID BATTERY EXHAUST, NO.3
G92F3
DUCT, HYBRID BATTERY EXHAUST, NO.3
G92N1A
PANEL, HV BATTERY LH COVER, NO.1
G92N4A
PANEL, HV BATTERY RH COVER, NO.1
G92Q1
PANEL, HV BATTERY SHIELD, NO.1
G92Q2
PANEL, HV BATTERY SHIELD, NO.2
G92Q5
REINFORCEMENT, HV BATTERY SHIELD, NO.2
G92Q5
REINFORCEMENT, HV BATTERY SHIELD, NO.2
G92Q5
REINFORCEMENT, HV BATTERY SHIELD, NO.2
G92R1
SHIELD, HYBRID BATTERY, REAR NO.1
G92R3
BRACKET, HV BATTERY REAR SHIELD, NO.1
G92S9
TERMINAL, HV BATTERY, NO.6
G92V7
COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A
G92X4
WIRE, HV BATTERY PACK, NO.4
G92Y1
CABLE, HV BATTERY PACK, NO.1
G92Y2
CABLE, HV BATTERY PACK, NO.2
G92Y3
CABLE, HV BATTERY PACK, NO.3
G92Y3
CABLE, HV BATTERY PACK, NO.3
G92Z0
BLOCK ASSY, HV BATTERY JUNCTION
G92Z2
BLOCK, HYBRID BATTERY TERMINAL

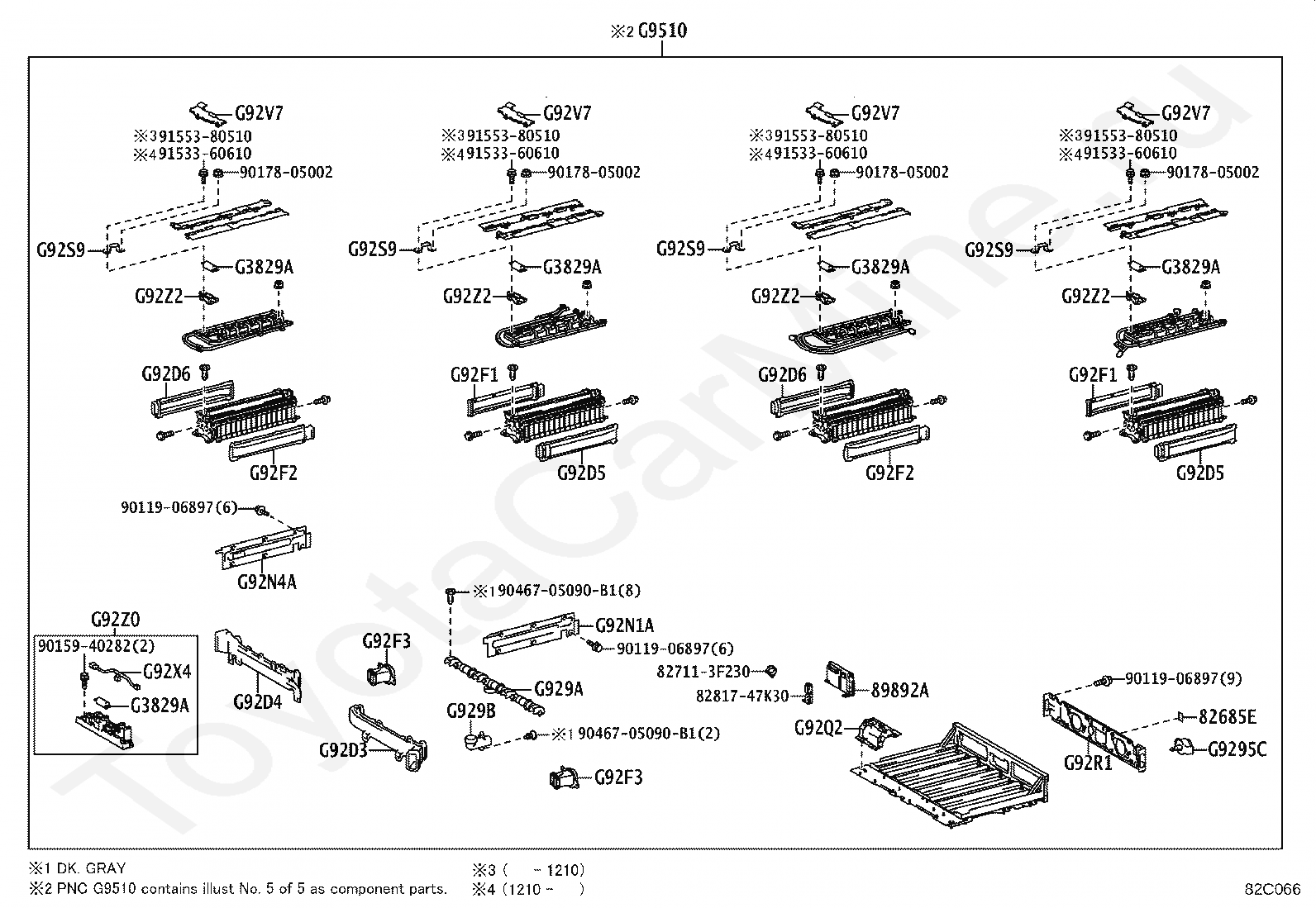

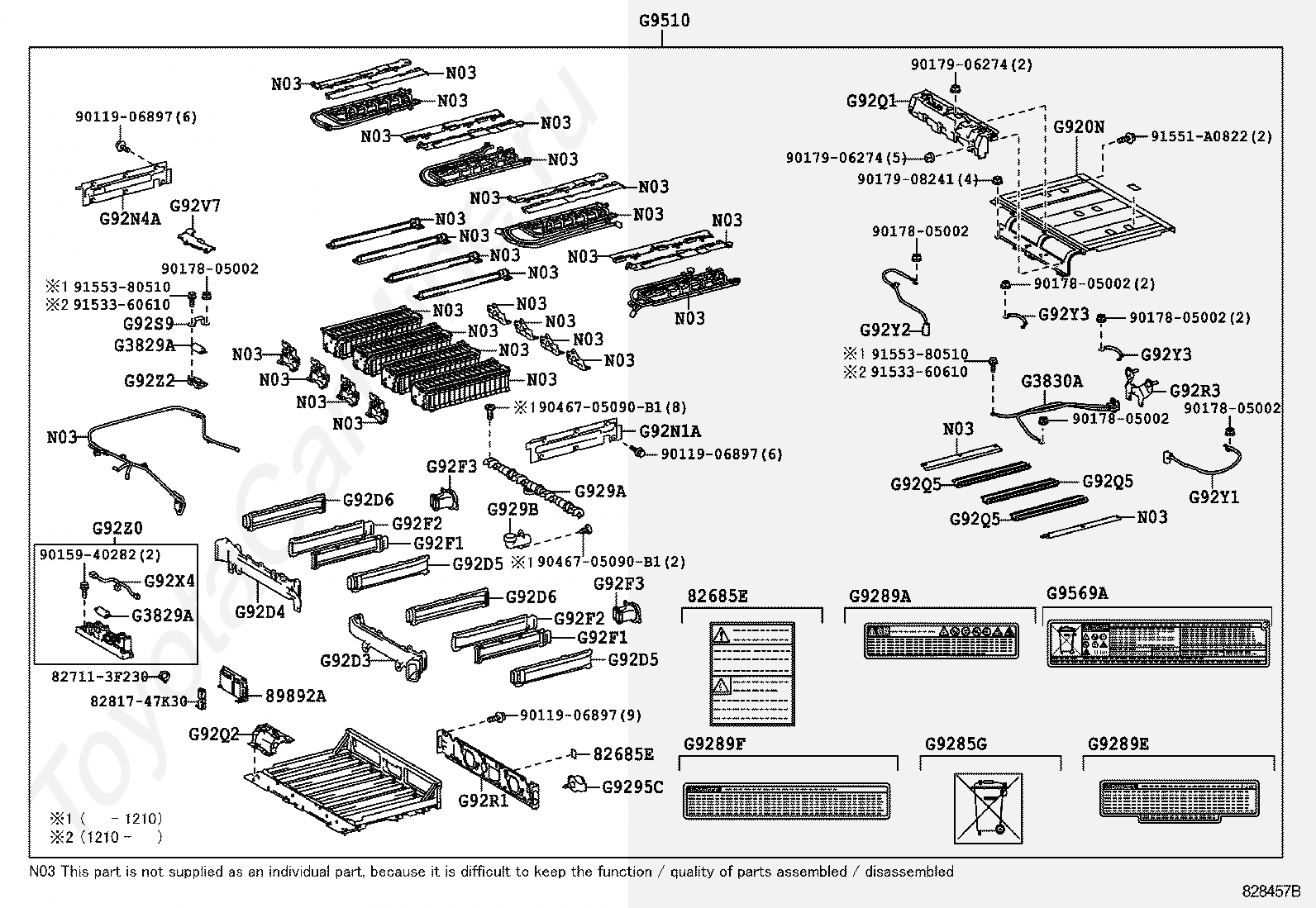

G9510
BATTERY ASSY, HV SUPPLY
G9569A
LABEL, LITHIUM ION BATTERY CAUTION
