Ближний Восток

Модель

PRIUS (CHINA)

VIN

Дата

2011/12

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Фрейм

ZVW30

КПП

автомат

Опции

бесступенчатая АКПП

Реле и кнопки TOYOTA PRIUS (CHINA)

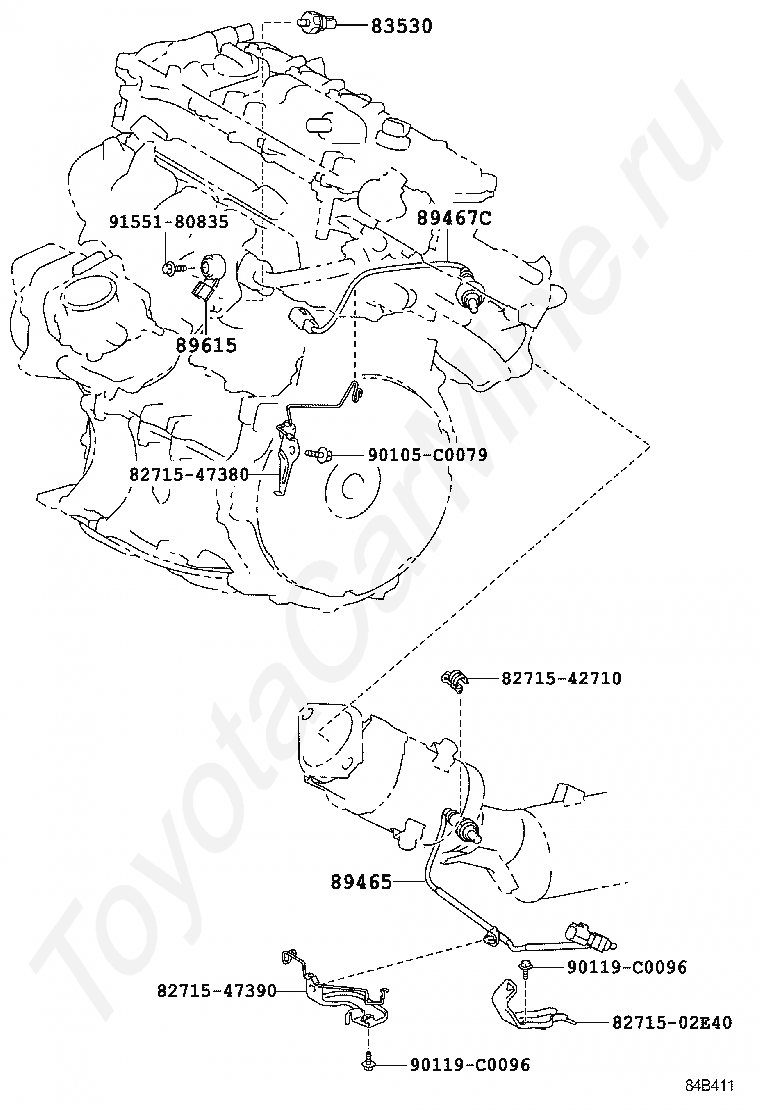

Код

Описание

8271502E40

Крепеж

8271542710

Крепеж

8271547380

Крепеж

8271547390

Крепеж

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89465

SENSOR, OXYGEN

89467C

SENSOR, AIR FUEL RATIO, NO.2

89615

SENSOR, KNOCK CONTROL

90105C0079

Крепеж

90119C0096

Крепеж

90119C0096

Крепеж

9155180835

Крепеж

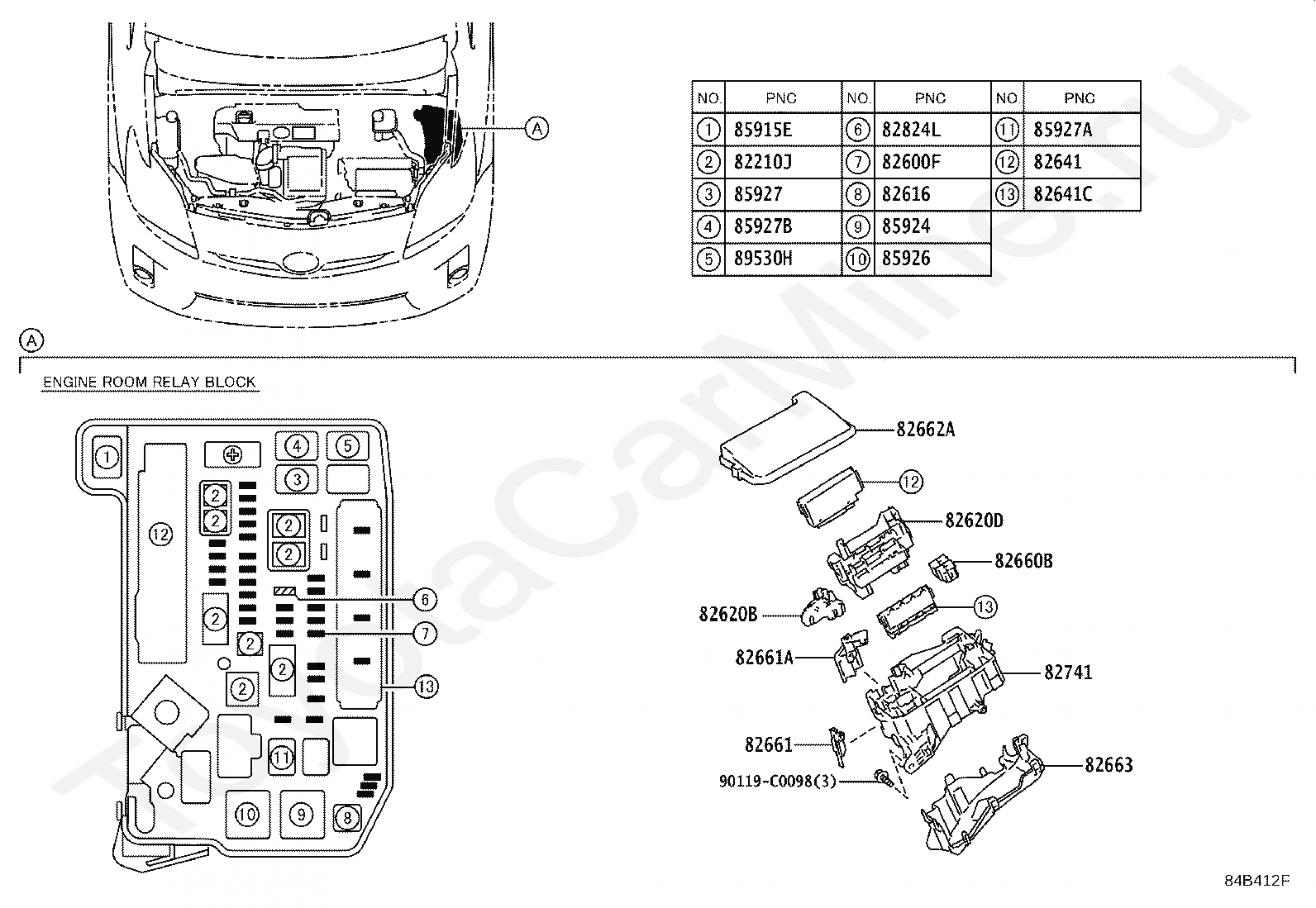

Код

Описание

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82620D

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82641C

RELAY, INTEGRATION NO.2

82660B

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82741

BLOCK, ENGINE ROOM RELAY

82824L

PIN, SHORT

85915E

RELAY

85924

RELAY, IGNITION CONTROL

85926

RELAY, HEADLAMP DIMMER

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

89530H

RELAY, TRANSAXLE PARKING LOOK CONTROL

90119C0098

Крепеж

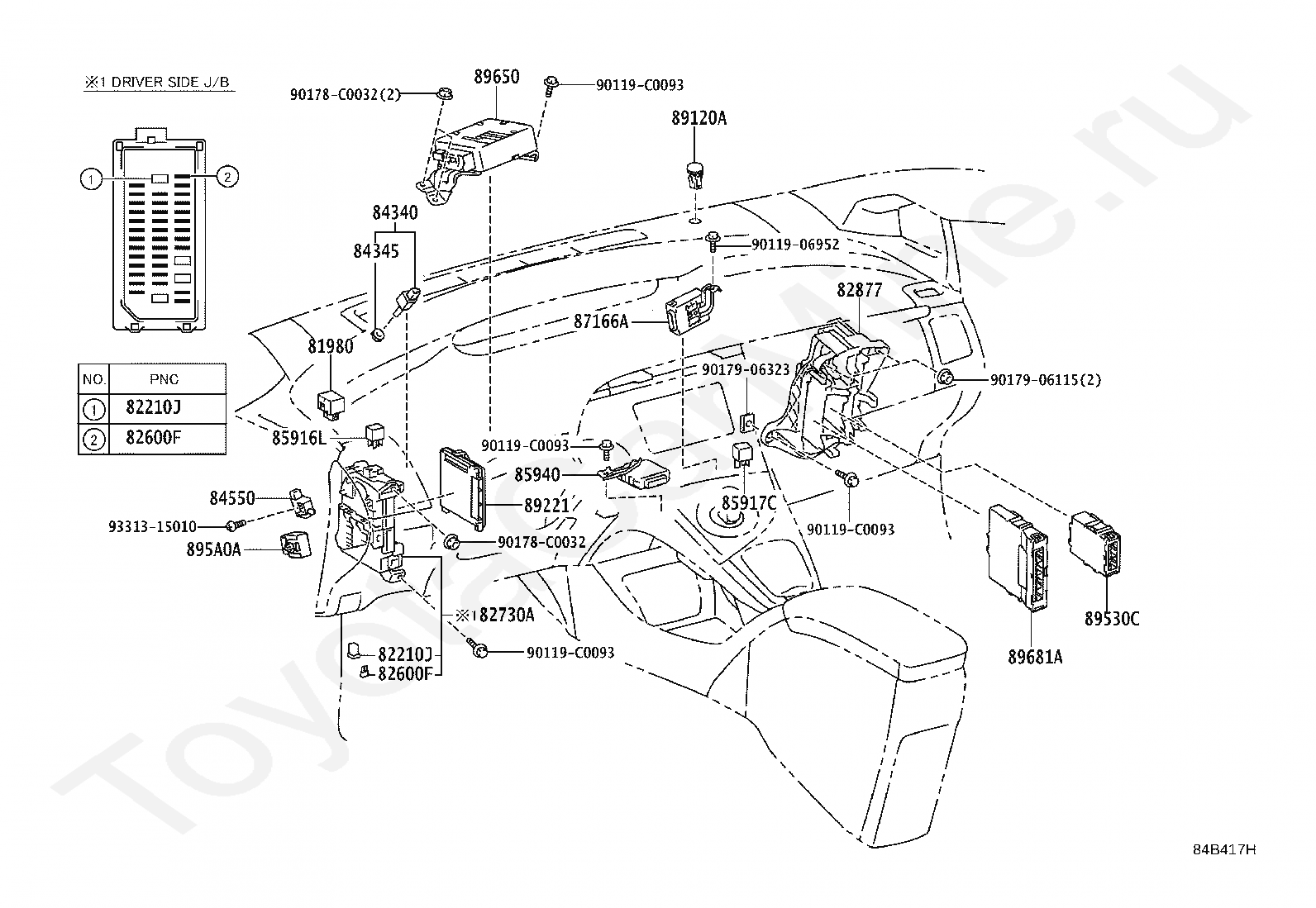

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85916L

RELAY, REAR FOG LAMP

85917C

RELAY, SOLAR

85940

RELAY ASSY, WINDSHIELD WIPER

87166A

COMPUTER, SOLAR BATTERY AIRCONDITIONER BLOWER VENT

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89530C

COMPUTER ASSY, TRANSMISSION CONTROL

895A0A

COMPUTER ASSY, STOP LAMP CONTROL

89650

COMPUTER ASSY, POWER STEERING

89681A

COMPUTER, POWER MANAGEMENT CONTROL

9011906952

Крепеж

90119C0093

Крепеж

90119C0093

Крепеж

90119C0093

Крепеж

90119C0093

Крепеж

90178C0032

Крепеж

90178C0032

Крепеж

9017906115

Крепеж

9017906323

Крепеж

9331315010

Крепеж

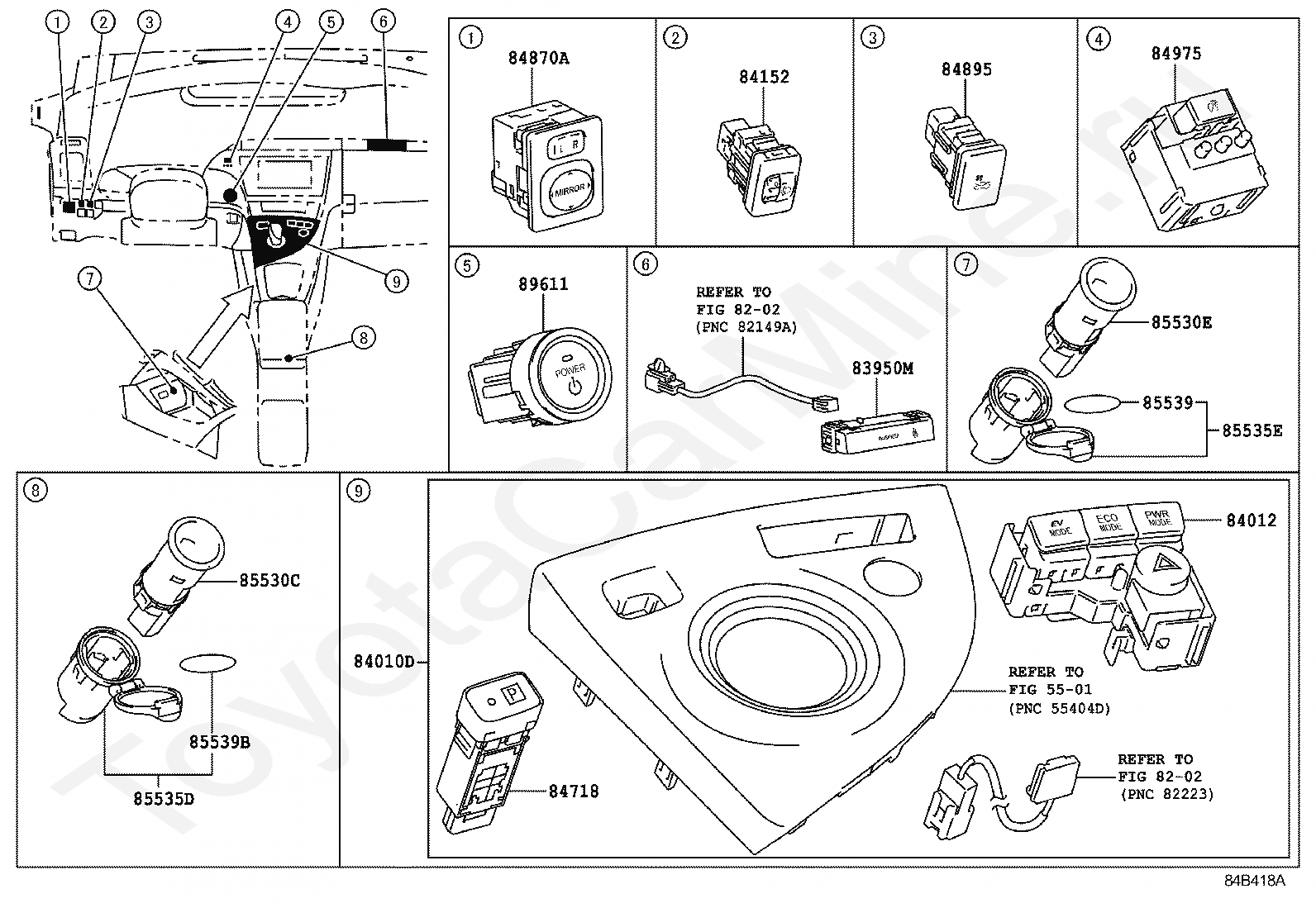

Код

Описание

5501

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

83950M

LAMP ASSY, TELLTALE

84010D

CONTROL & PANEL ASSY, INTEGRATION

84012

CONTROL & PANEL SUB-ASSY, INTEGRATION

84152

SWITCH, HEADLAMP LEVELING

84718

SWITCH, TRANSMISSION SHIFT MAIN

84870A

SWITCH ASSY, OUTER MIRROR

84895

SWITCH, VENTILATOR

84975

SWITCH, TRIP

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535D

COVER, POWER OUTLET SOCKET, CENTER

85535E

COVER, POWER OUTLET SOCKET, NO.2

85539

LABEL, POWER OUTLET NOTICE

85539B

LABEL, POWER OUTLET NOTICE, CENTER

89611

SWITCH, PUSH START

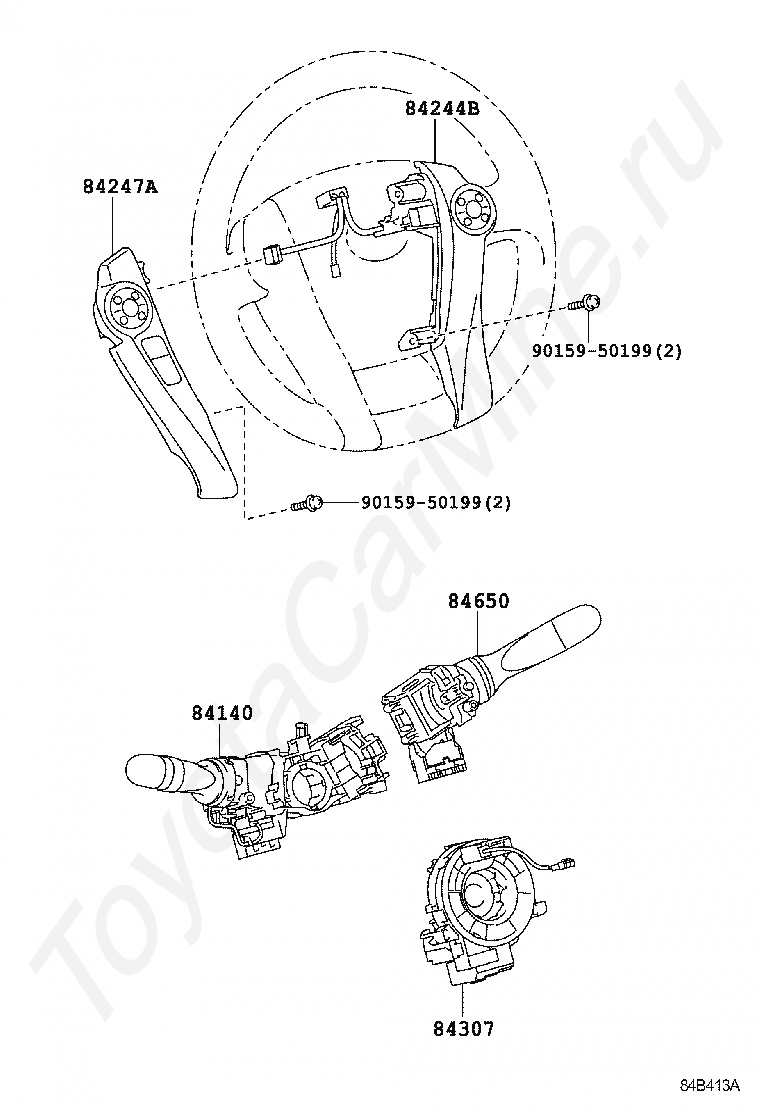

Код

Описание

84140

SWITCH ASSY, HEADLAMP DIMMER

84244B

SWITCH, STEERING PAD, RH

84247A

SWITCH, STEERING PAD, LH

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84650

SWITCH ASSY, WINDSHIELD WIPER

9015950199

Крепеж

9015950199

Крепеж

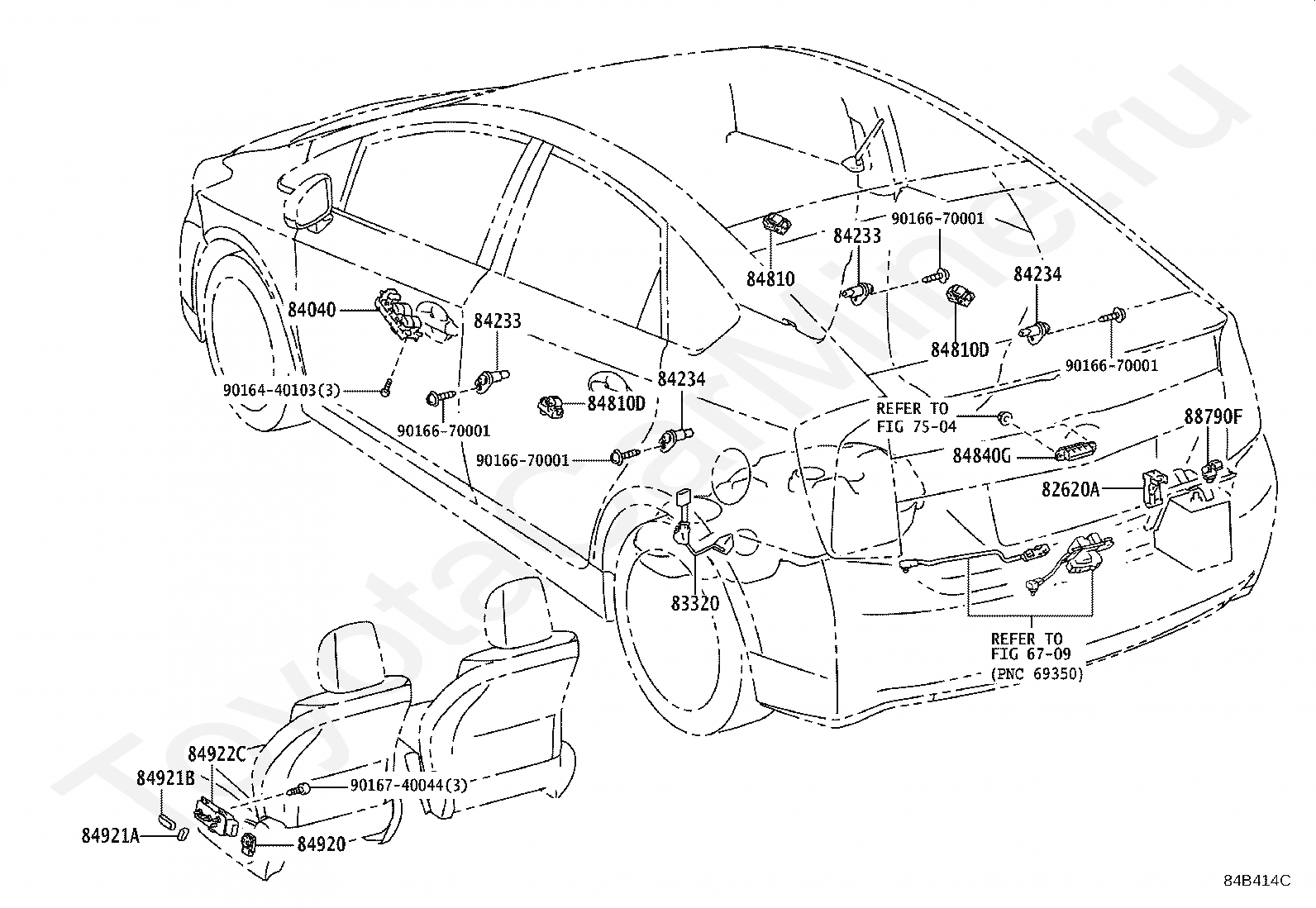

Код

Описание

6709

переход к группе запчастей

7504

переход к группе запчастей

82620A

BLOCK ASSY, FUSIBLE LINK

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84840G

SWITCH ASSY, BACK DOOR OPENER

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922C

SWITCH, FRONT POWER SEAT, LH

88790F

THERMISTOR ASSY

9016440103

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016740044

Крепеж

Реле и кнопки TOYOTA PRIUS (CHINA)
