Европа

Модель

PRIUS(PLUG-IN HBD)

VIN

Дата

2009/12

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

E(MODEL MARK)

Фрейм

ZVW35

КПП

автомат бесступенчатая АКПП

Опции

левый руль 473W

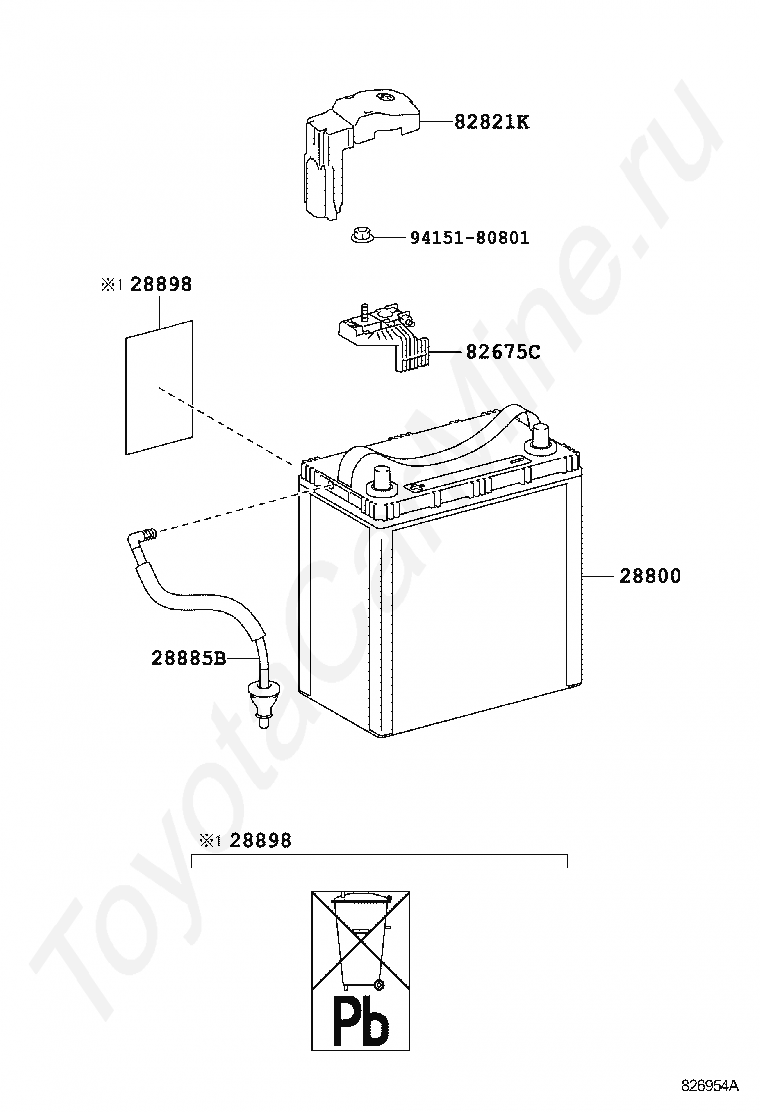

Аккумулятор и кабель TOYOTA PRIUS(PLUG-IN HBD)

Код

Описание

28800

BATTERY

28885B

HOSE, BATTERY

28898

PLATE, BATTERY

28898

PLATE, BATTERY

82675C

TERMINAL, JUNCTION

82821K

COVER, CONNECTOR

9415180801

Крепеж

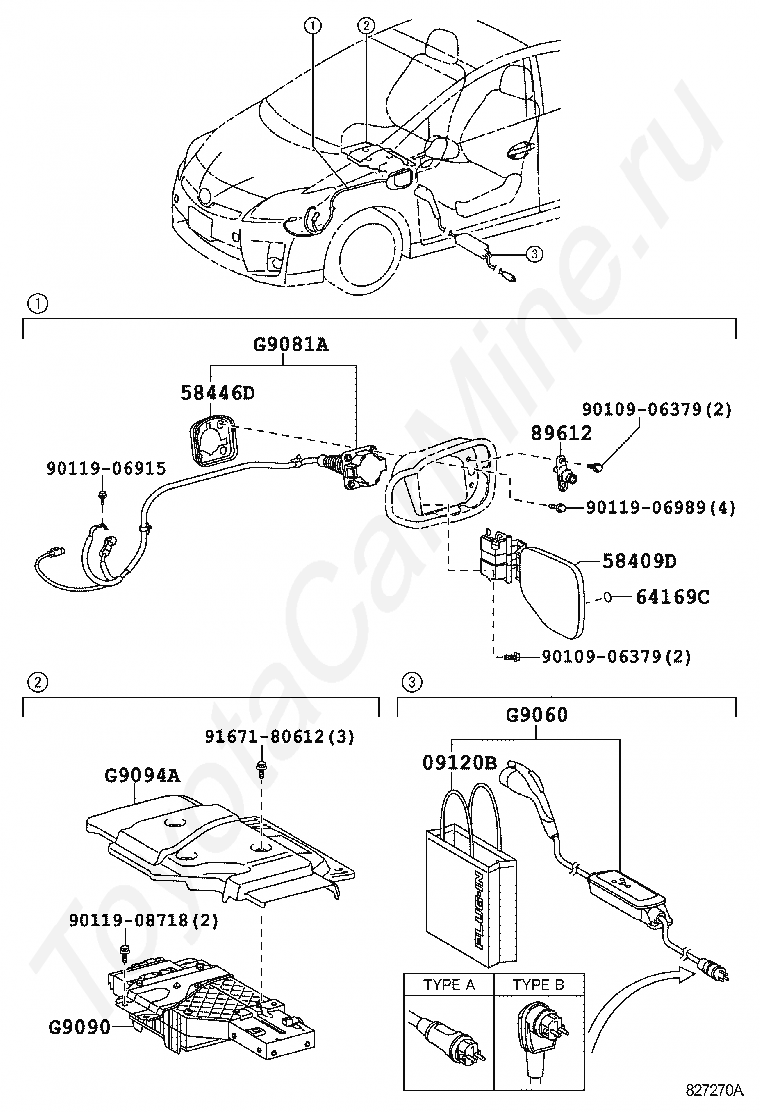

Код

Описание

09120B

BAG, TOOL

58409D

LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

58446D

PROTECTOR, BATTERY SERVICE OPENING LID

64169C

PROTECTOR, FUEL INLET, NO.1

89612

BRACKET, PUSH SWITCH

9010906379

Крепеж

9010906379

Крепеж

9011906915

Крепеж

9011906989

Крепеж

9011908718

Крепеж

9167180612

Крепеж

G9060

CABLE ASSY, ELECTRIC VEHICLE CHARGER

G9081A

CABLE, ELECTRIC VEHICLE CHARGER

G9090

CHARGER ASSY, ELECTRIC VEHICLE

G9094A

COVER, ELECTRIC VEHICLE CHARGER

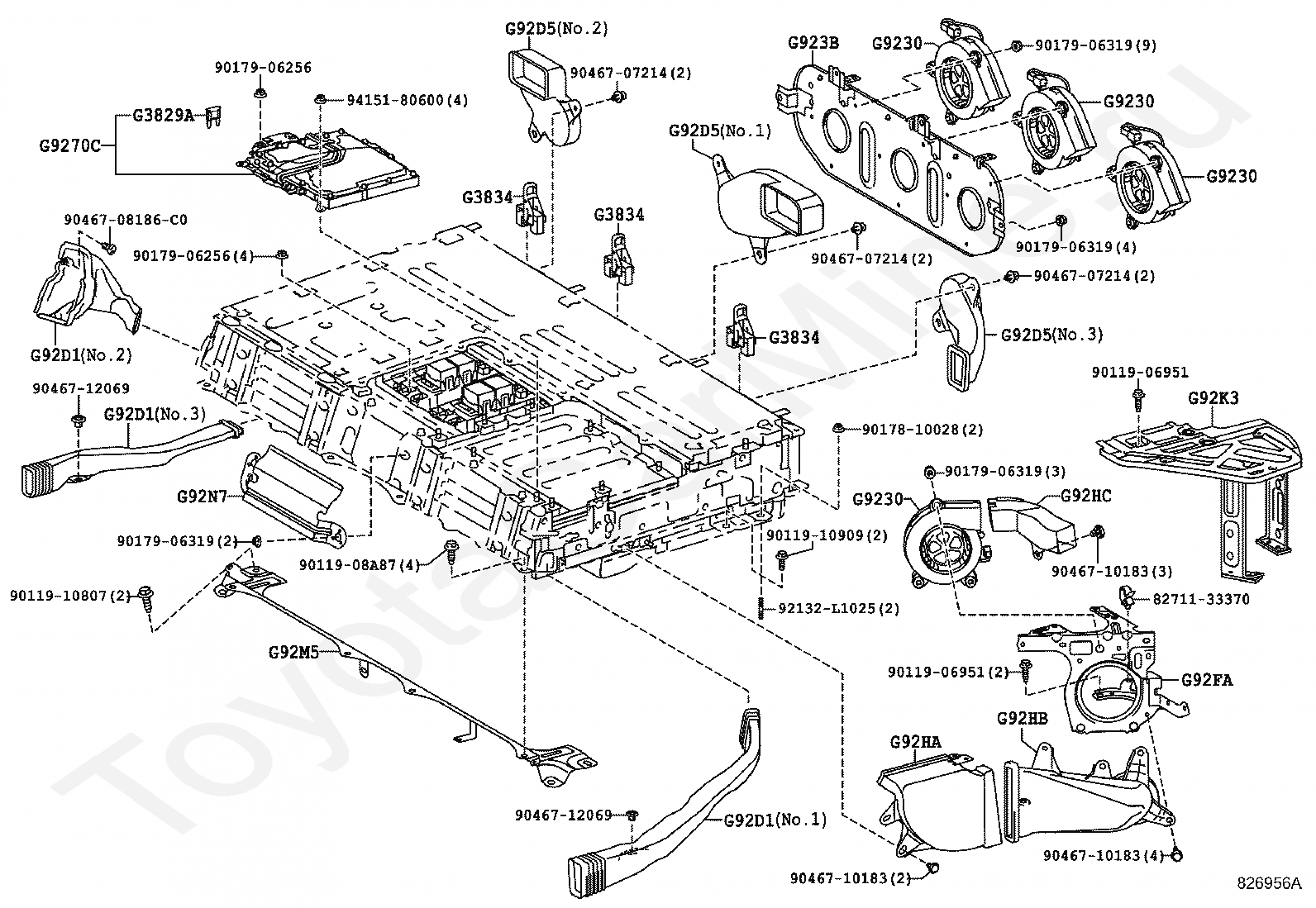

Код

Описание

8271133370

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9011908A87

Крепеж

9011910807

Крепеж

9011910909

Крепеж

9017810028

Крепеж

9017906256

Крепеж

9017906256

Крепеж

9017906319

Крепеж

9017906319

Крепеж

9017906319

Крепеж

9017906319

Крепеж

9046707214

Крепеж

9046707214

Крепеж

9046707214

Крепеж

9046708186C0

Крепеж

9046710183

Крепеж

9046710183

Крепеж

9046710183

Крепеж

9046712069

Крепеж

9046712069

Крепеж

92132L1025

Крепеж

9415180600

Крепеж

G3829A

FUSE, ELECTRIC VEHICLE

G3834

GRIP, SERVICE PLUG

G3834

GRIP, SERVICE PLUG

G3834

GRIP, SERVICE PLUG

G9230

BLOWER ASSY, BATTERY COOLING

G9230

BLOWER ASSY, BATTERY COOLING

G9230

BLOWER ASSY, BATTERY COOLING

G9230

BLOWER ASSY, BATTERY COOLING

G923B

BRACKET, BATTERY COOLING BLOWER

G9270C

CONVERTER, HV

G92D1

DUCT, HYBRID BATTERY INTAKE, NO.1

G92D1

DUCT, HYBRID BATTERY INTAKE, NO.1

G92D1

DUCT, HYBRID BATTERY INTAKE, NO.1

G92D5

DUCT, HYBRID BATTERY INTAKE, NO.5

G92D5

DUCT, HYBRID BATTERY INTAKE, NO.5

G92D5

DUCT, HYBRID BATTERY INTAKE, NO.5

G92FA

BRACKET, CONVERTER COOLING BLOWER

G92HA

DUCT, CONVERTER COOLING EXHAUST

G92HB

DUCT, CONVERTER COOLING EXHAUST, NO.2

G92HC

DUCT, CONVERTER COOLING EXHAUST, NO.3

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92M5

REINFORCEMENT, HV BATTERY CARRIER

G92N7

PANEL, HYBRID BATTERY FRONT COVER

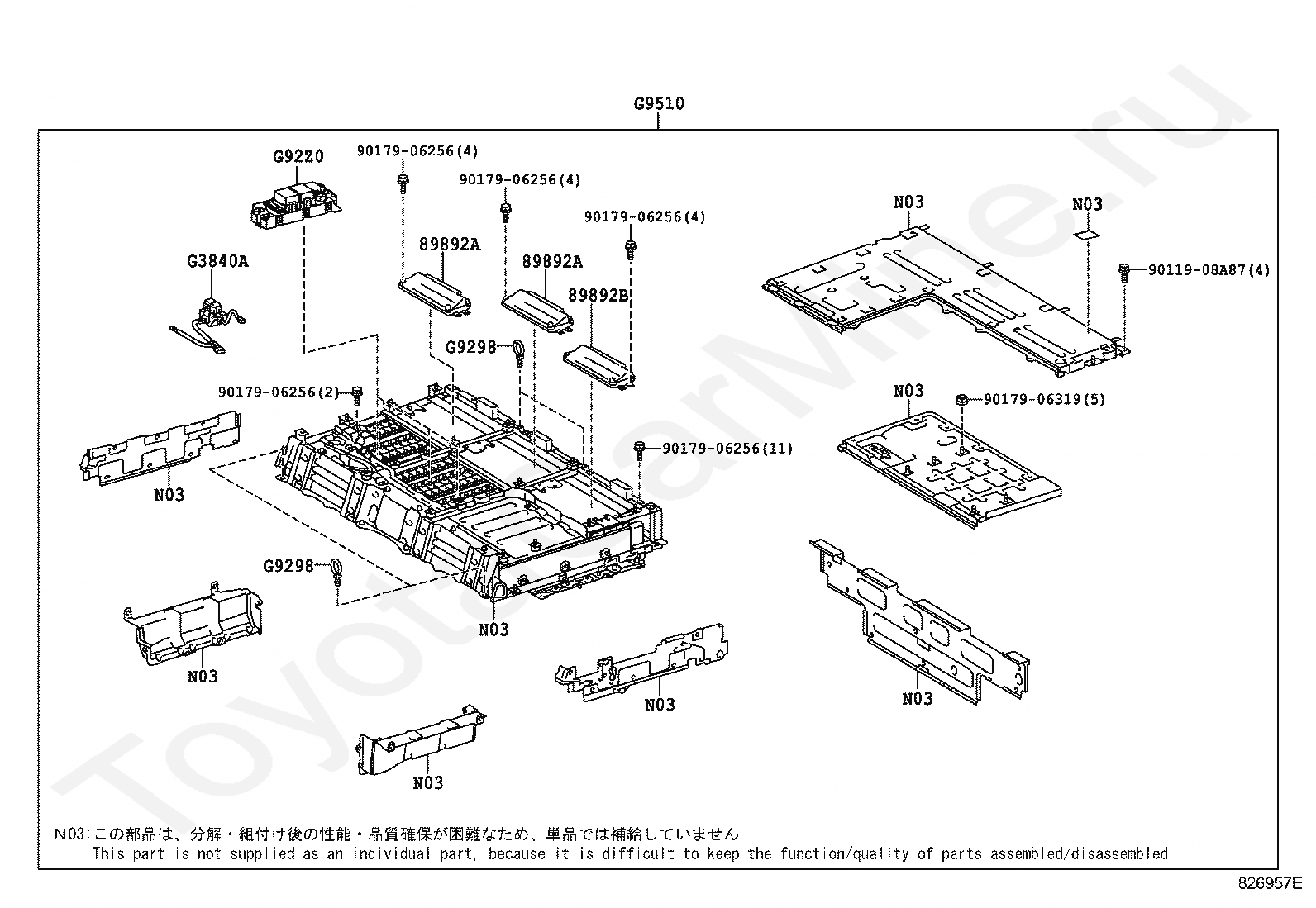

Код

Описание

89892A

SENSOR, BATTERY VOLTAGE

89892A

SENSOR, BATTERY VOLTAGE

89892B

SENSOR, BATTERY VOLTAGE, NO.2

9011908A87

Крепеж

9017906256

Крепеж

9017906256

Крепеж

9017906256

Крепеж

9017906256

Крепеж

9017906256

Крепеж

9017906319

Крепеж

G3840A

RELAY ASSY, HYBRID VEHICLE

G9298

CLAMP, HV BATTERY

G9298

CLAMP, HV BATTERY

G92Z0

BLOCK ASSY, HV BATTERY JUNCTION

G9510

BATTERY ASSY, HV SUPPLY
