Ближний Восток

Модель

PREVIA/TARAGO

VIN

Дата

2016/05

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

GL SPECIFICATION

Фрейм

ACR50

КПП

автомат АКПП, 4 ступени

Опции

левый руль 7-местный страны Персидского залива 682W

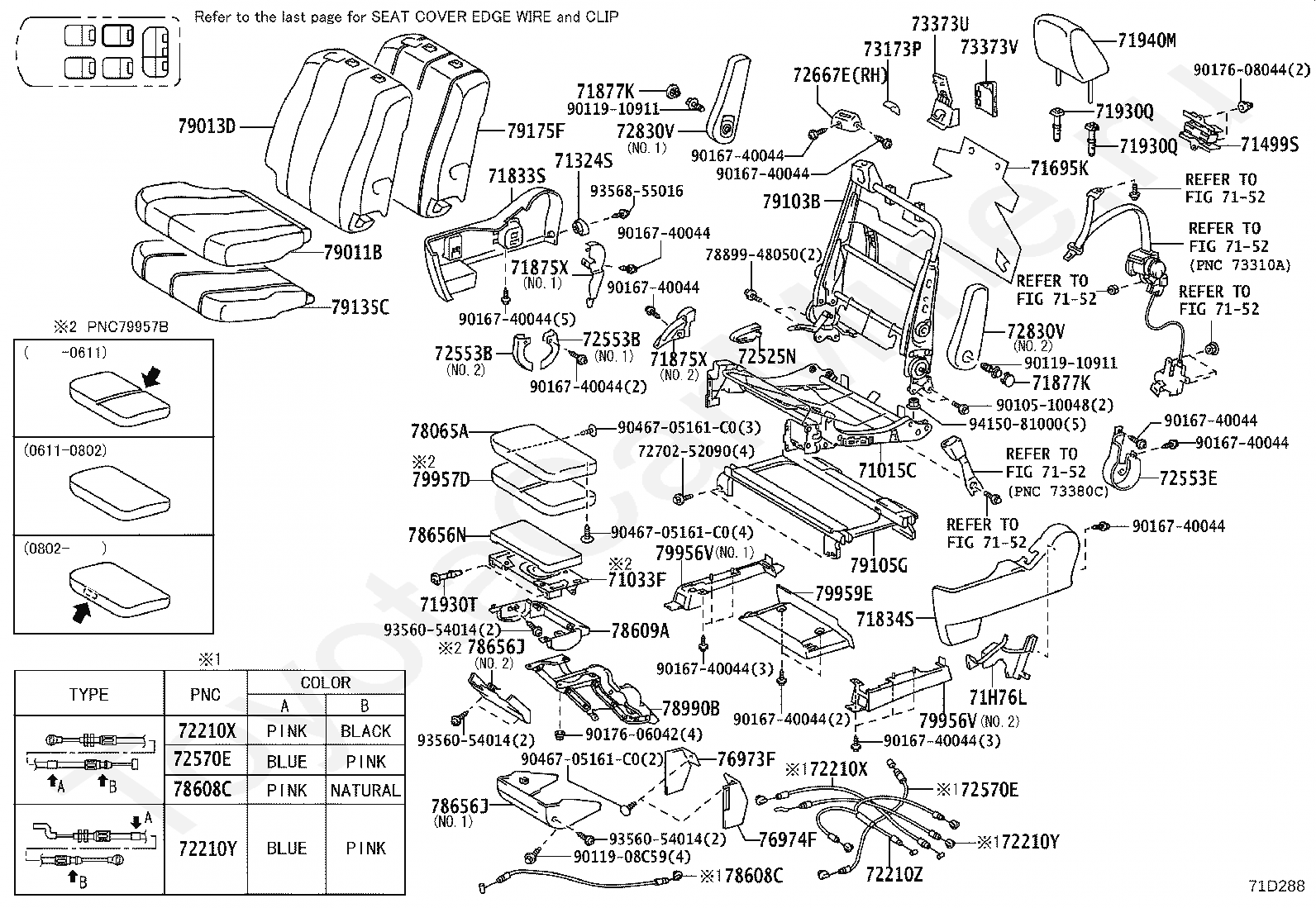

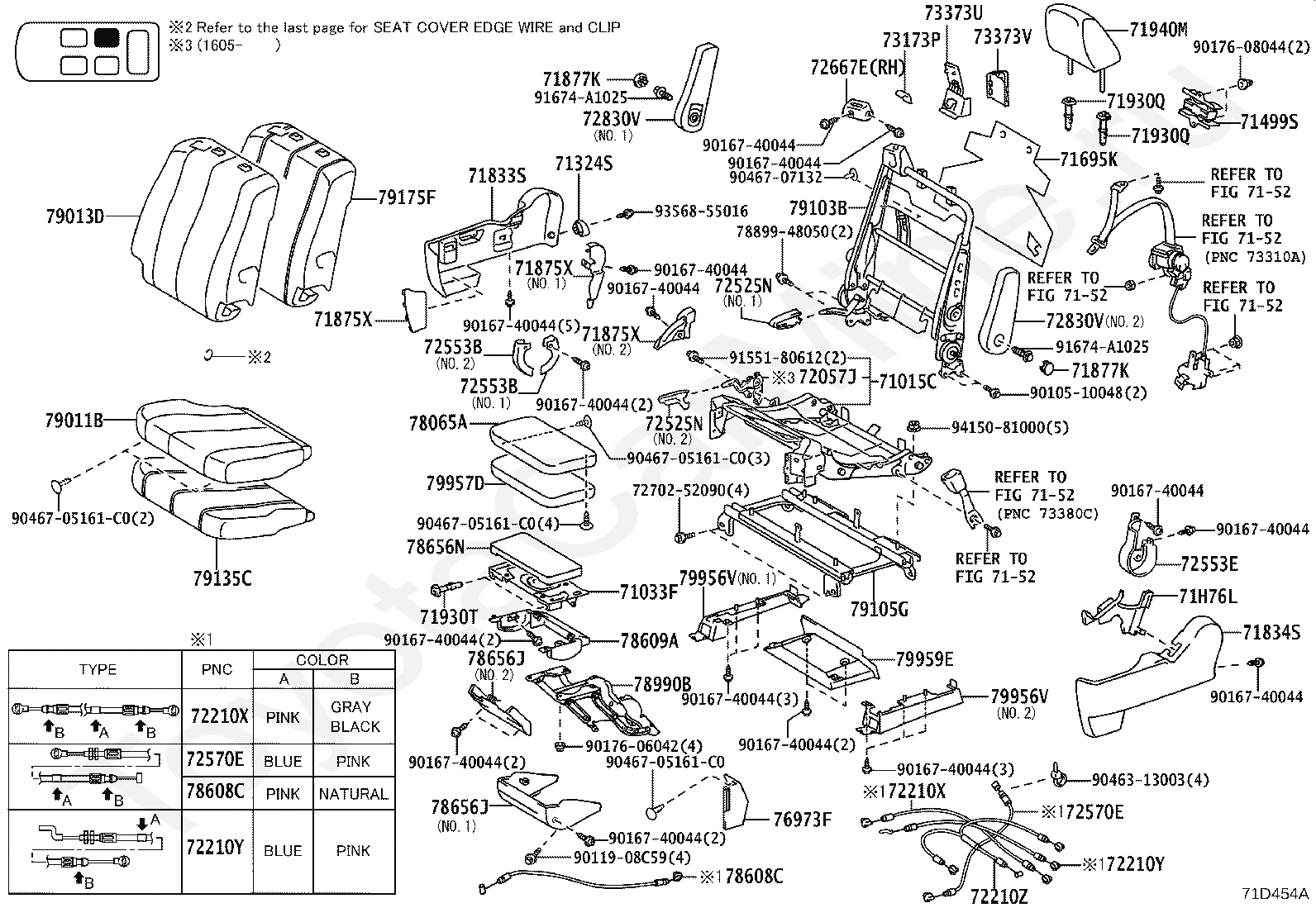

REAR SEAT & SEAT TRACK TOYOTA PREVIA/TARAGO







Код

Описание

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71033F

LEG SUB-ASSY, REAR SEAT CUSHION, RH

71324S

CUSHION, REAR NO.1 SEAT, RH

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930T

SUPPORT ASSY, REAR SEAT LEGREST

71940M

HEADREST ASSY, REAR SEAT

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72553B

PROTECTOR, RECLINING COVER, RH

72553B

PROTECTOR, RECLINING COVER, RH

72553E

PROTECTOR, RECLINING COVER, RH NO.1

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

7270252090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

73173P

COVER, REAR SEAT BELT HOLE, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

76973F

COVER, REAR UNDER SIDE, RH

76974F

COVER, REAR UNDER SIDE, LH

78065A

COVER SUB-ASSY, REAR SEAT LEGREST, RH

78608C

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)

78608C

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)

78609A

COVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR RH SEAT)

78656J

COVER, REAR SEAT LEGREST, RH

78656J

COVER, REAR SEAT LEGREST, RH

78656N

COVER, REAR SEAT LEGREST, RH NO.2

7889948050

Крепеж

78990B

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79956V

COVER, REAR SEAT LEG SIDE, RH

79956V

COVER, REAR SEAT LEG SIDE, RH

79957D

PAD, REAR SEAT LEG SIDE

79959E

COVER, NO.1 SEAT LEG, RH

9010510048

Крепеж

9011908C59

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017608044

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356855016

Крепеж

9415081000

Крепеж

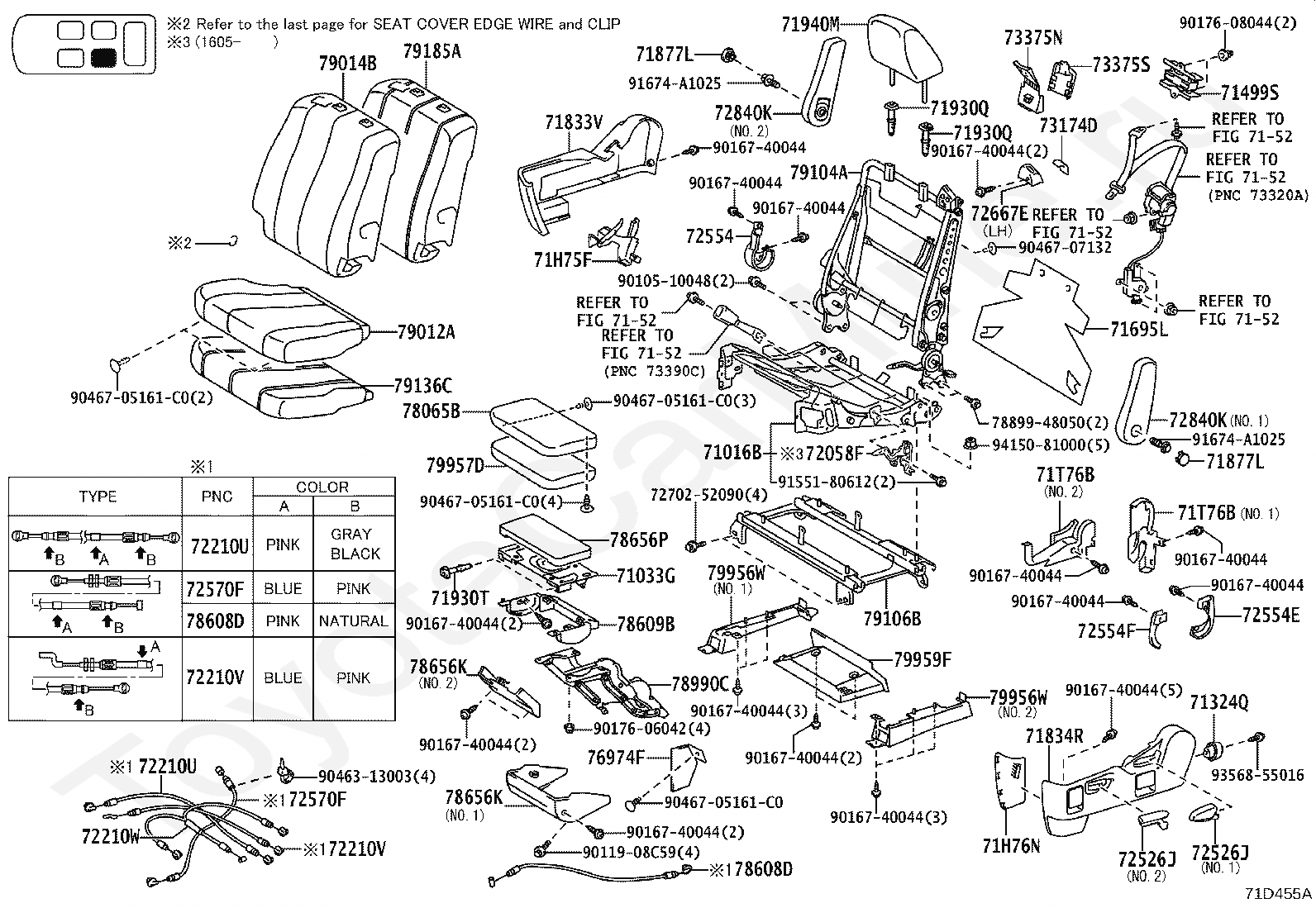

Код

Описание

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71033G

LEG SUB-ASSY, REAR SEAT CUSHION, LH

71324Q

CUSHION, NO.1 SEAT, LH

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930T

SUPPORT ASSY, REAR SEAT LEGREST

71940M

HEADREST ASSY, REAR SEAT

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210W

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72554

PROTECTOR, RECLINING COVER, LH

72554E

PROTECTOR, RECLINING COVER, LH NO.1

72554F

PROTECTOR, RECLINING COVER, LH NO.2

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

7270252090

Крепеж

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

73174D

COVER, REAR SEAT BELT HOLE, LH

73375N

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.1

73375S

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.2

76973F

COVER, REAR UNDER SIDE, RH

76974F

COVER, REAR UNDER SIDE, LH

78065B

COVER SUB-ASSY, REAR SEAT LEGREST, LH

78608D

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR LH SEAT)

78608D

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR LH SEAT)

78609B

COVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR LH SEAT)

78656K

COVER, REAR SEAT LEGREST, LH

78656K

COVER, REAR SEAT LEGREST, LH

78656P

COVER, REAR SEAT LEGREST, LH NO.2

7889948050

Крепеж

78990C

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT)

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79956W

COVER, REAR SEAT LEG SIDE, LH

79956W

COVER, REAR SEAT LEG SIDE, LH

79957D

PAD, REAR SEAT LEG SIDE

79959F

COVER, NO.1 SEAT LEG, LH

9010510048

Крепеж

9011908C59

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017608044

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356855016

Крепеж

9415081000

Крепеж

Код

Описание

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71033F

LEG SUB-ASSY, REAR SEAT CUSHION, RH

71324S

CUSHION, REAR NO.1 SEAT, RH

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930T

SUPPORT ASSY, REAR SEAT LEGREST

71940M

HEADREST ASSY, REAR SEAT

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72057J

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR RH SEAT)

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72553B

PROTECTOR, RECLINING COVER, RH

72553B

PROTECTOR, RECLINING COVER, RH

72553E

PROTECTOR, RECLINING COVER, RH NO.1

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

7270252090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

73173P

COVER, REAR SEAT BELT HOLE, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

76973F

COVER, REAR UNDER SIDE, RH

78065A

COVER SUB-ASSY, REAR SEAT LEGREST, RH

78608C

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)

78608C

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)

78609A

COVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR RH SEAT)

78656J

COVER, REAR SEAT LEGREST, RH

78656J

COVER, REAR SEAT LEGREST, RH

78656N

COVER, REAR SEAT LEGREST, RH NO.2

7889948050

Крепеж

78990B

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79956V

COVER, REAR SEAT LEG SIDE, RH

79956V

COVER, REAR SEAT LEG SIDE, RH

79957D

PAD, REAR SEAT LEG SIDE

79959E

COVER, NO.1 SEAT LEG, RH

9010510048

Крепеж

9011908C59

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017608044

Крепеж

9046313003

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046707132

Крепеж

9155180612

Крепеж

91674A1025

Крепеж

91674A1025

Крепеж

9356855016

Крепеж

9415081000

Крепеж

Код

Описание

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71033G

LEG SUB-ASSY, REAR SEAT CUSHION, LH

71324Q

CUSHION, NO.1 SEAT, LH

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930T

SUPPORT ASSY, REAR SEAT LEGREST

71940M

HEADREST ASSY, REAR SEAT

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72058F

LEVER SUB-ASSY, NO.1 SEAT LOCK CONTROL, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210W

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72554

PROTECTOR, RECLINING COVER, LH

72554E

PROTECTOR, RECLINING COVER, LH NO.1

72554F

PROTECTOR, RECLINING COVER, LH NO.2

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

7270252090

Крепеж

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

73174D

COVER, REAR SEAT BELT HOLE, LH

73375N

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.1

73375S

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.2

76974F

COVER, REAR UNDER SIDE, LH

78065B

COVER SUB-ASSY, REAR SEAT LEGREST, LH

78608D

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR LH SEAT)

78608D

CABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR LH SEAT)

78609B

COVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR LH SEAT)

78656K

COVER, REAR SEAT LEGREST, LH

78656K

COVER, REAR SEAT LEGREST, LH

78656P

COVER, REAR SEAT LEGREST, LH NO.2

7889948050

Крепеж

78990C

ADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT)

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79956W

COVER, REAR SEAT LEG SIDE, LH

79956W

COVER, REAR SEAT LEG SIDE, LH

79957D

PAD, REAR SEAT LEG SIDE

79959F

COVER, NO.1 SEAT LEG, LH

9010510048

Крепеж

9011908C59

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017606042

Крепеж

9017608044

Крепеж

9046313003

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046705161C0

Крепеж

9046707132

Крепеж

9155180612

Крепеж

91674A1025

Крепеж

91674A1025

Крепеж

9356855016

Крепеж

9415081000

Крепеж

Код

Описание

71465A

SPRING, REAR SEAT CUSHION, NO.5

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71695T

PROTECTOR, REAR SEAT, NO.2

71695T

PROTECTOR, REAR SEAT, NO.2

71695T

PROTECTOR, REAR SEAT, NO.2

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

72137Q

COVER, REAR SEAT TRACK, NO.2

72137Q

COVER, REAR SEAT TRACK, NO.2

72137R

COVER, REAR SEAT TRACK, NO.3

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551F

COVER, RECLINING LINK, RH NO.1

72552F

COVER, RECLINING LINK, LH NO.1

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

7270228110

Крепеж

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

72996G

COVER, REAR SEAT, NO.2 RH

72997F

COVER, REAR SEAT, NO.2 LH

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

79337A

CARPET, NO.2 SEAT CUSHION UNDER, RH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9356054010

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

71465A

SPRING, REAR SEAT CUSHION, NO.5

7152

переход к группе запчастей

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

72137Q

COVER, REAR SEAT TRACK, NO.2

72137Q

COVER, REAR SEAT TRACK, NO.2

72137R

COVER, REAR SEAT TRACK, NO.3

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551G

COVER, RECLINING LINK, RH NO.2

72552G

COVER, RECLINING LINK, LH NO.2

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

7270228110

Крепеж

72996G

COVER, REAR SEAT, NO.2 RH

72997F

COVER, REAR SEAT, NO.2 LH

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79285C

PAD, NO.2 SEAT BACK, LH

79347A

CARPET, NO.2 SEAT CUSHION UNDER, LH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9356054010

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

6777126230B0

Крепеж

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71321A

CUSHION, REAR SEAT

71485E

COVER, REAR SEAT HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71695T

PROTECTOR, REAR SEAT, NO.2

71695T

PROTECTOR, REAR SEAT, NO.2

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940M

HEADREST ASSY, REAR SEAT

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551F

COVER, RECLINING LINK, RH NO.1

72552F

COVER, RECLINING LINK, LH NO.1

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

72691D

STRIKER, REAR SEAT CUSHION LOCK

7270228120

Крепеж

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

72905A

LINK SUB-ASSY, 3RD SEAT, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79236G

COVER, NO.2 SEAT LEG, RH

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79275F

PAD, NO.2 SEAT BACK, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959L

CLIP, NO.2 SEAT LEG COVER, RH

79959L

CLIP, NO.2 SEAT LEG COVER, RH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017908046

Крепеж

9017908241

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054010

Крепеж

9415080800

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71321A

CUSHION, REAR SEAT

71485E

COVER, REAR SEAT HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551G

COVER, RECLINING LINK, RH NO.2

72552G

COVER, RECLINING LINK, LH NO.2

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

72691D

STRIKER, REAR SEAT CUSHION LOCK

7270228120

Крепеж

72906A

LINK SUB-ASSY, 3RD SEAT, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79246H

COVER, NO.2 SEAT LEG, LH

79273E

COVER, NO.2 SEAT HINGE, REAR LH

79285C

PAD, NO.2 SEAT BACK, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79959M

CLIP, NO.2 SEAT LEG COVER, LH

79959M

CLIP, NO.2 SEAT LEG COVER, LH

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908046

Крепеж

9017908241

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054010

Крепеж

9415080800

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

72670E

LOCK ASSY, REAR SEAT CUSHION, NO.2 RH

72670E

LOCK ASSY, REAR SEAT CUSHION, NO.2 RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

72680F

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

72680F

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

Код

Описание

6777126230B0

Крепеж

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71695T

PROTECTOR, REAR SEAT, NO.2

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940M

HEADREST ASSY, REAR SEAT

72551F

COVER, RECLINING LINK, RH NO.1

72552F

COVER, RECLINING LINK, LH NO.1

72597D

BEZEL, RECLINING REMOTE CONTROL, RH

7270228120

Крепеж

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79275F

PAD, NO.2 SEAT BACK, RH

79621B

STOPPER, NO.2 SEAT CUSHION

79621B

STOPPER, NO.2 SEAT CUSHION

79621B

STOPPER, NO.2 SEAT CUSHION

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959G

COVER, NO.2 SEAT LEG, RH NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

6777126230B0

Крепеж

7152

переход к группе запчастей

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

72551G

COVER, RECLINING LINK, RH NO.2

72552G

COVER, RECLINING LINK, LH NO.2

72598C

BEZEL, RECLINING REMOTE CONTROL, LH

7270228120

Крепеж

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79273E

COVER, NO.2 SEAT HINGE, REAR LH

79285C

PAD, NO.2 SEAT BACK, LH

79621B

STOPPER, NO.2 SEAT CUSHION

79621B

STOPPER, NO.2 SEAT CUSHION

79959J

COVER, NO.2 SEAT LEG, LH NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

6974932020

Крепеж

6974932020

Крепеж

6974932020

Крепеж

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71309H

LEG SUB-ASSY, REAR SEAT, REAR RH

71309J

LEG SUB-ASSY, REAR SEAT, REAR LH

71337C

PLATE, REAR SEAT LEG

71337C

PLATE, REAR SEAT LEG

71611F

PAD, REAR SEAT CUSHION, A

71611F

PAD, REAR SEAT CUSHION, A

72650H

CABLE ASSY, REAR NO.2 SEAT LOCK, RH

72650H

CABLE ASSY, REAR NO.2 SEAT LOCK, RH

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

8271428020

Крепеж

84920Q

SWITCH ASSY, POWER SEAT

84920R

SWITCH ASSY, POWER SEAT

85H20

MOTOR ASSY, POWER SEAT

85H20

MOTOR ASSY, POWER SEAT

9011006040

Крепеж

9011006040

Крепеж

9016740044

Крепеж

9017908087

Крепеж

9017908087

Крепеж

9017908087

Крепеж

9017908087

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

9616000400

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти PREVIA/TARAGO > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
