Каталог

Япония

Модель

PREMIO/ALLION

VIN

Дата

2010/04

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Фрейм

ZRT265

Опции

ALLION HIGH EFFICIENCY TWIN CAM (VALVEMATIC) COMPLETED VEHICLE 504W

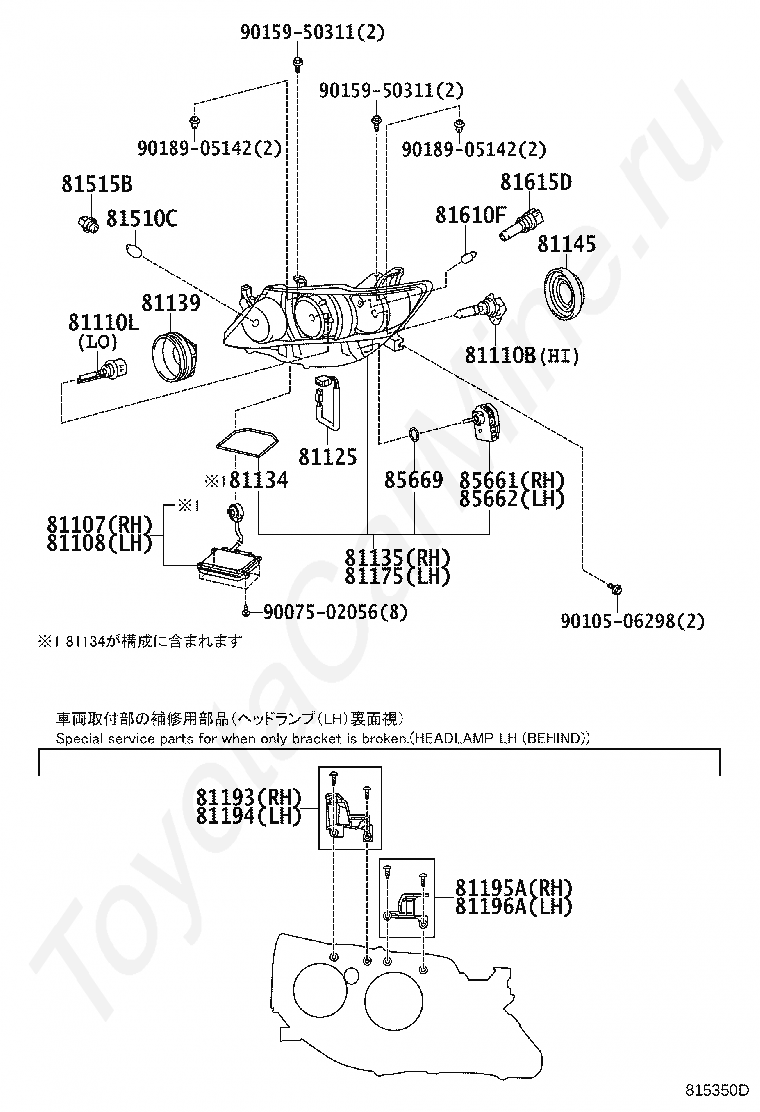

Фары TOYOTA PREMIO/ALLION

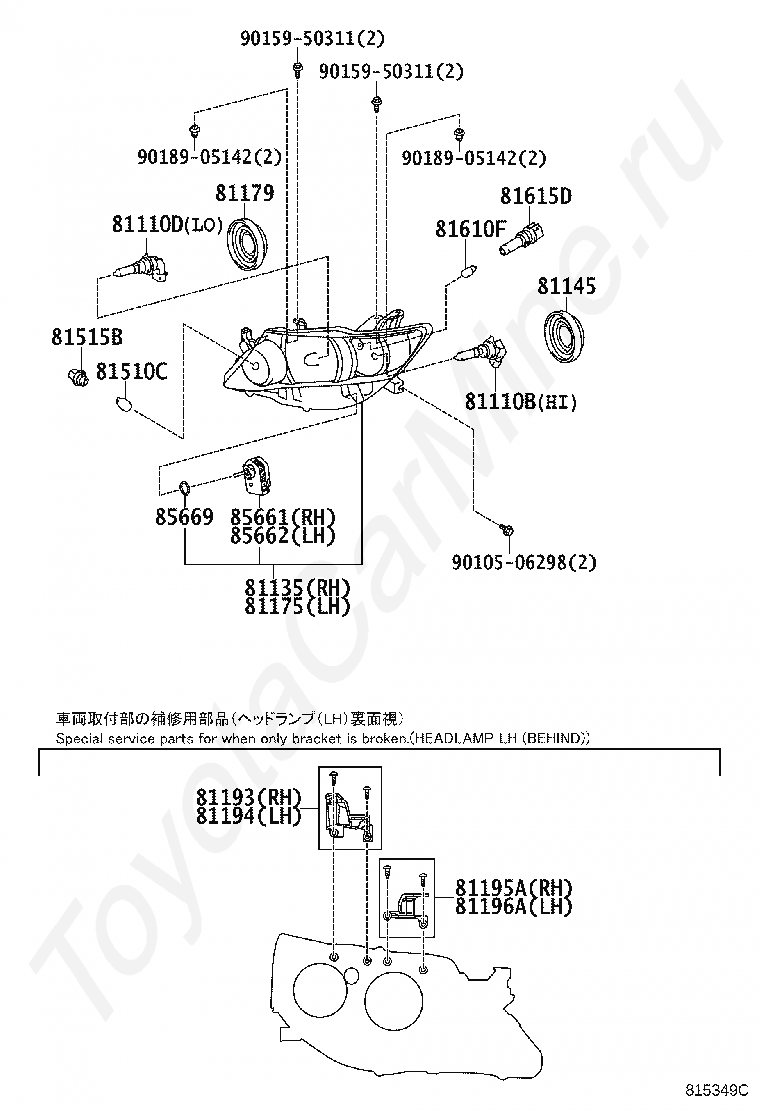

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81135

UNIT ASSY, HEADLAMP, RH

81145

COVER, HEADLAMP, NO.2

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9010506298

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81145

COVER, HEADLAMP, NO.2

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9010506298

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

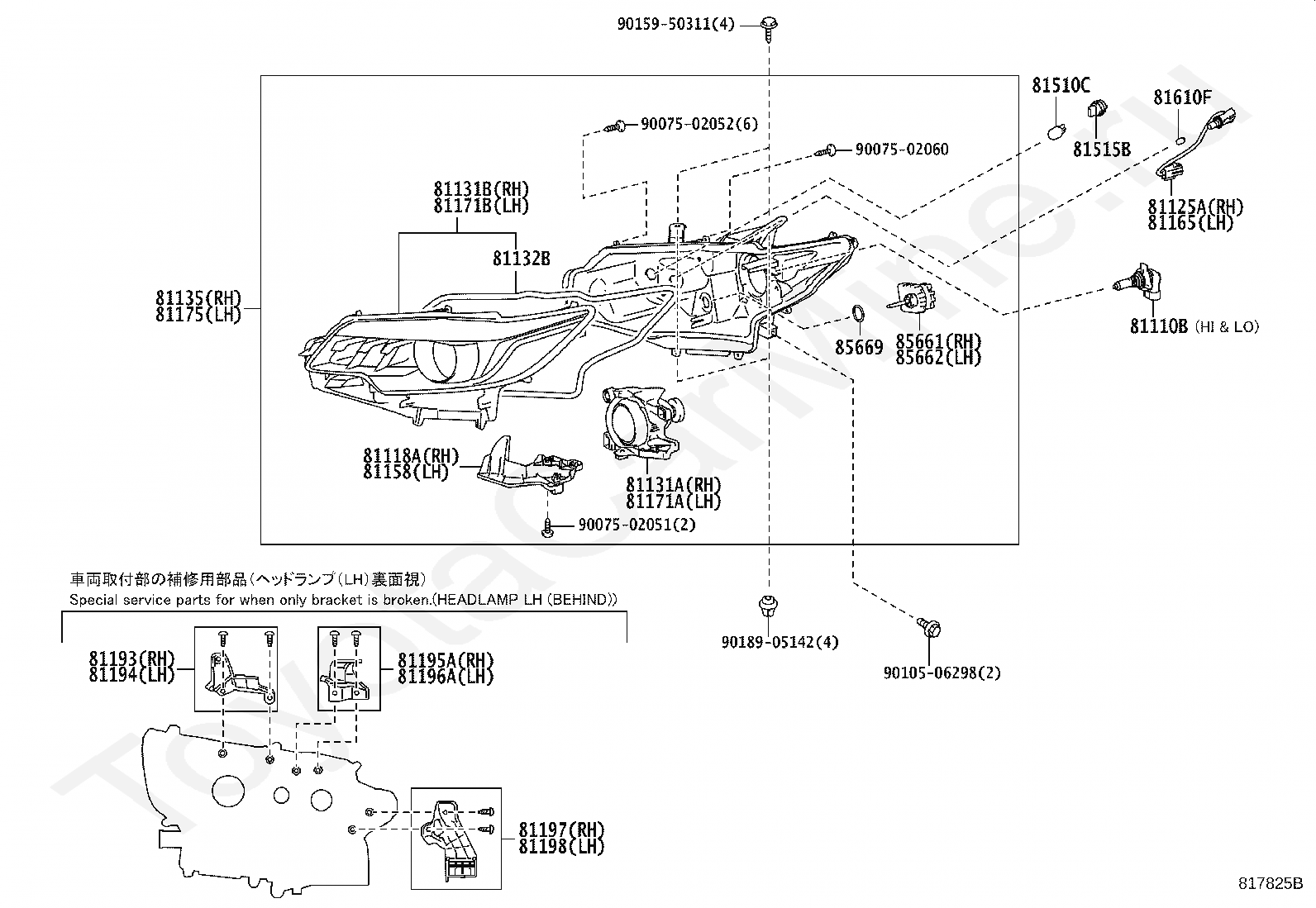

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81118A

BRACKET, HEADLAMP, RH

81125A

CORD, HEADLAMP, RH

81131A

UNIT, HEADLAMP, RH

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81158

BRACKET, HEADLAMP, LH

81165

CORD, HEADLAMP, LH

81171A

UNIT, HEADLAMP, LH

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502051

Крепеж

9007502052

Крепеж

9007502060

Крепеж

9010506298

Крепеж

9015950311

Крепеж

9018905142

Крепеж

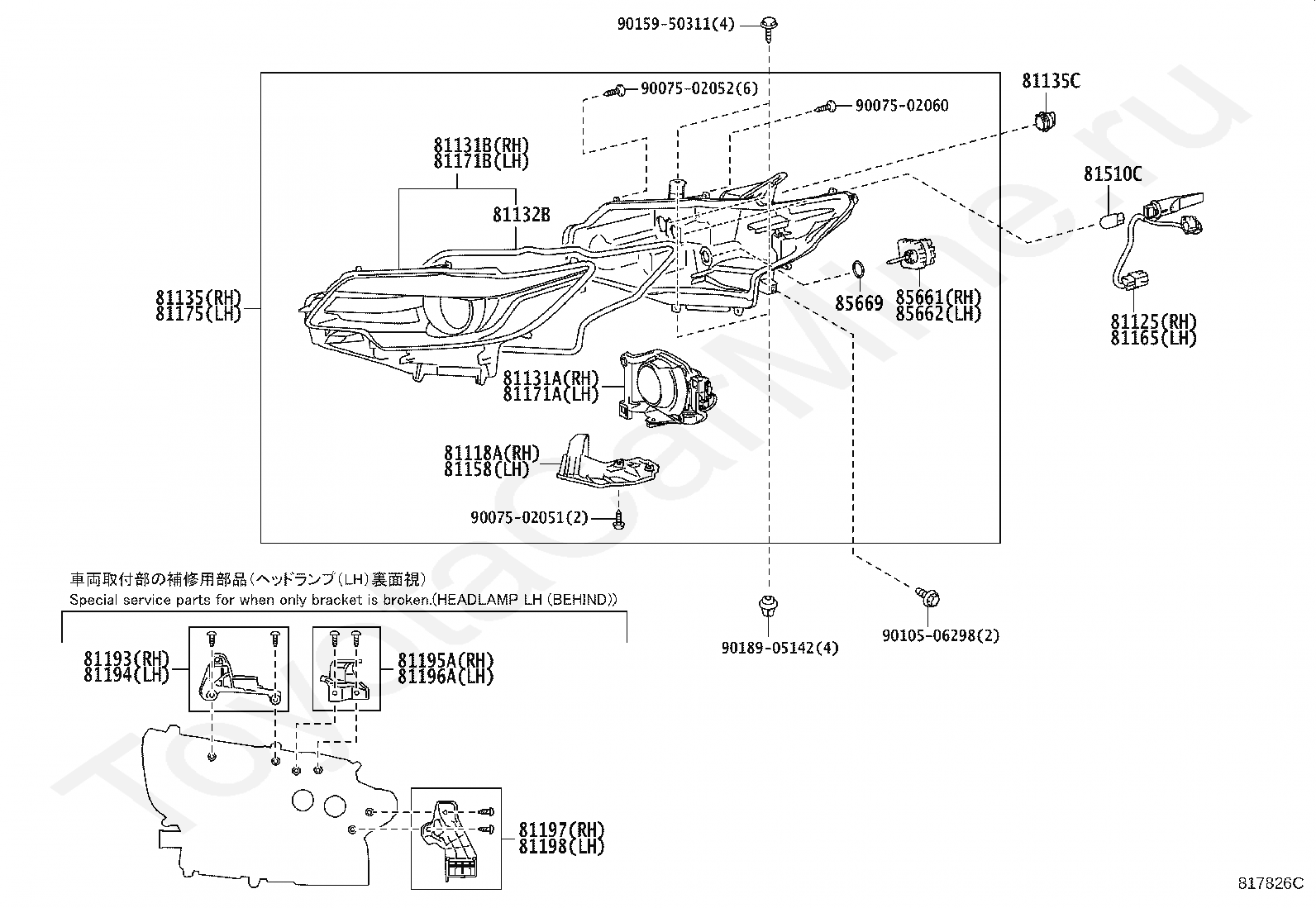

Код

Описание

81118A

BRACKET, HEADLAMP, RH

81125

CORD, HEADLAMP

81131A

UNIT, HEADLAMP, RH

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81158

BRACKET, HEADLAMP, LH

81165

CORD, HEADLAMP, LH

81171A

UNIT, HEADLAMP, LH

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502051

Крепеж

9007502052

Крепеж

9007502060

Крепеж

9010506298

Крепеж

9015950311

Крепеж

9018905142

Крепеж
