2211
переход к группе запчастей
2211
переход к группе запчастей
2211
переход к группе запчастей
2211
переход к группе запчастей
6105
переход к группе запчастей
6105
переход к группе запчастей
6105
переход к группе запчастей

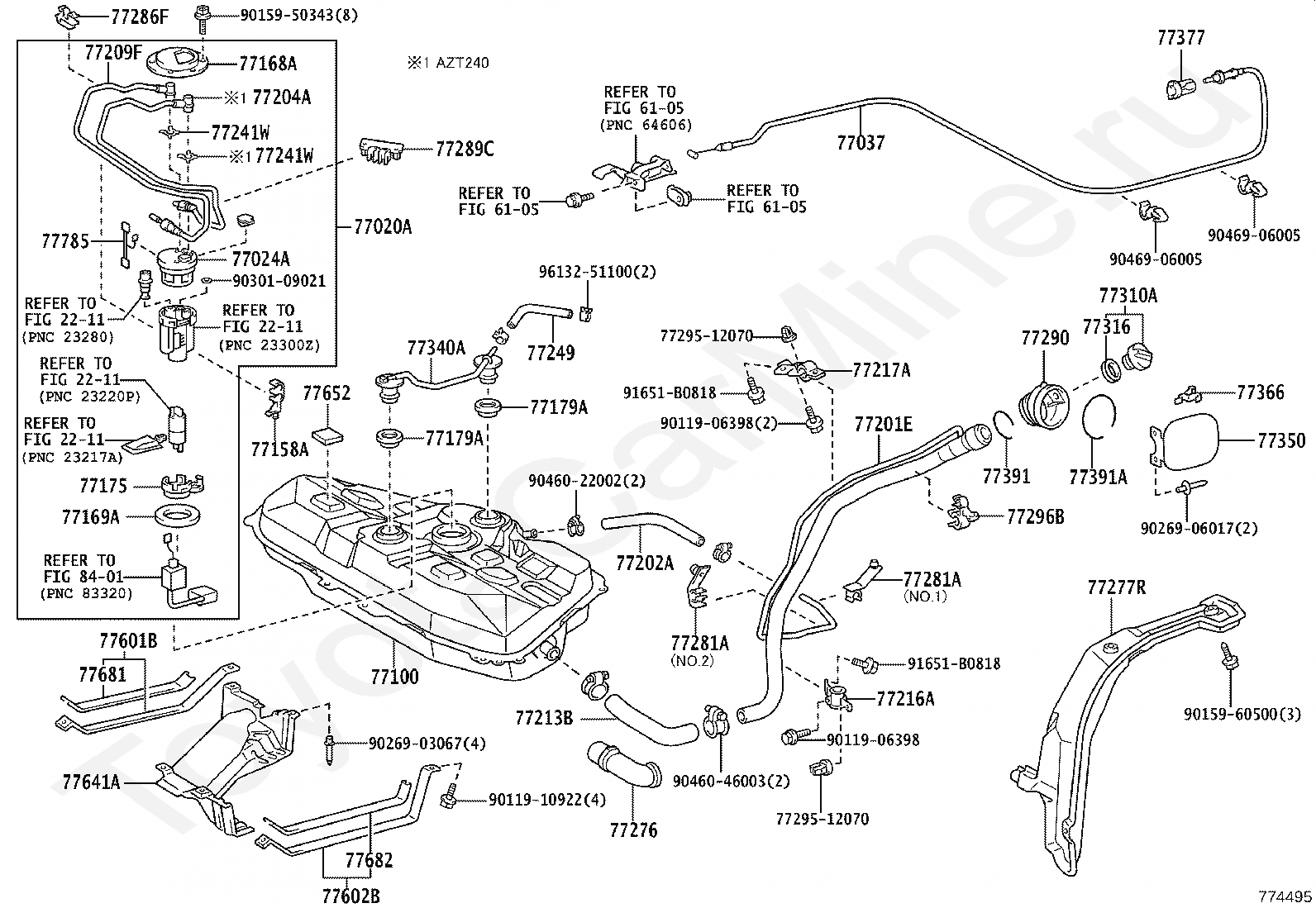

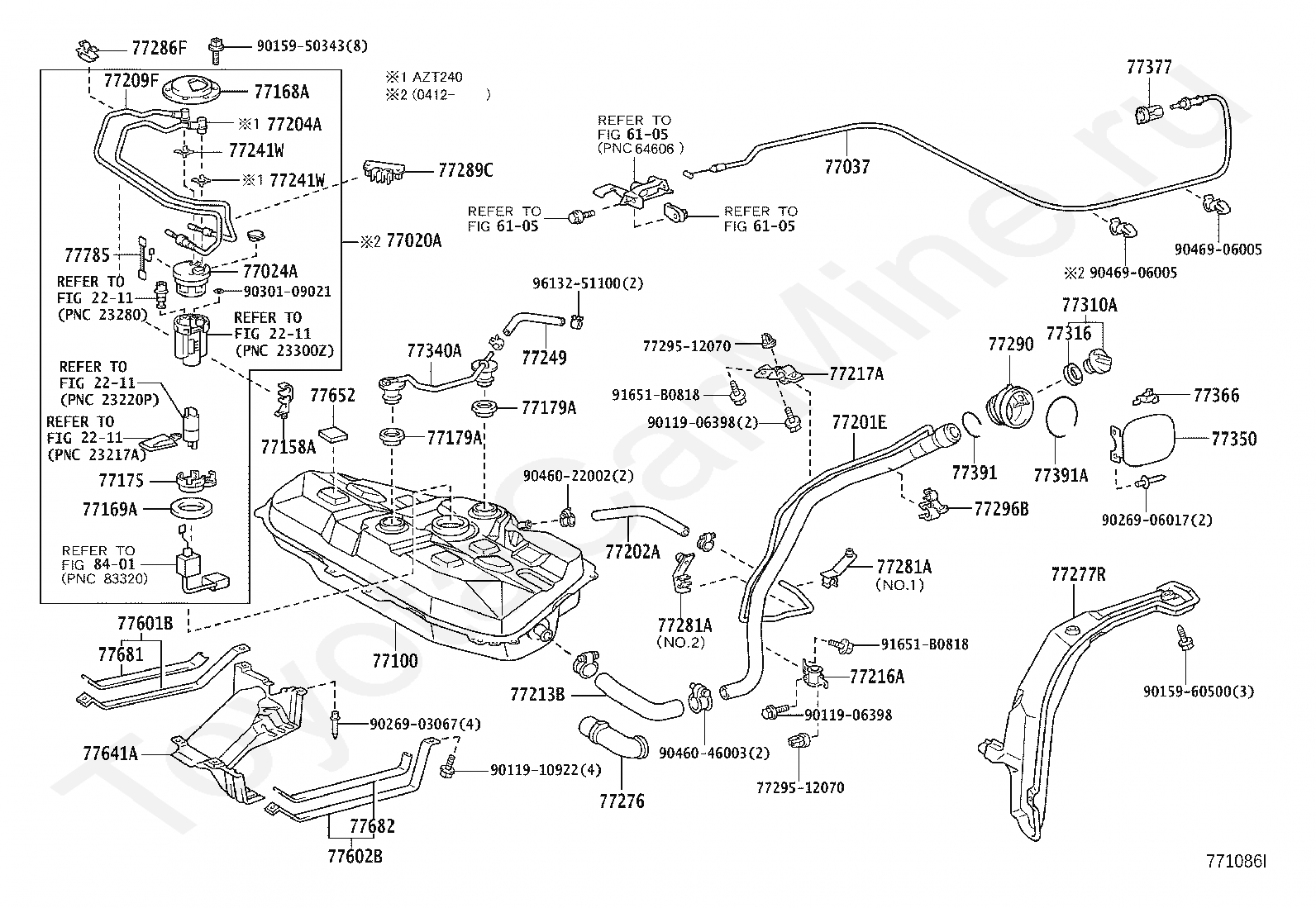

77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77158A
SUPPORT, TANK SUCTION TUBE
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77179A
GASKET, FUEL TANK BREATHER TUBE
77179A
GASKET, FUEL TANK BREATHER TUBE
77201E
PIPE SUB-ASSY, FUEL TANK FILLER
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77204A
TUBE, FUEL TANK RETURN
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77249
HOSE, FUEL EMISSION
77276
PROTECTOR, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77286F
CLAMP, FUEL TUBE, NO.2
77289C
CLAMP, FUEL TUBE, NO.4
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77296B
SUPPORT, FUEL TUBE PROTECTOR, NO.1
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77641A
PROTECTOR, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8401
переход к группе запчастей
