Япония

Модель

LAND CRUISER PRADO

VIN

Дата

2005/08

Двигатель

4 литра, 24 клапана DOHC, EFI

Класс

TX TYPE

Фрейм

GRJ120

КПП

автомат АКПП, 5 скоростей

Опции

5 дверей 8-местный 244W

Кресла TOYOTA LAND CRUISER PRADO

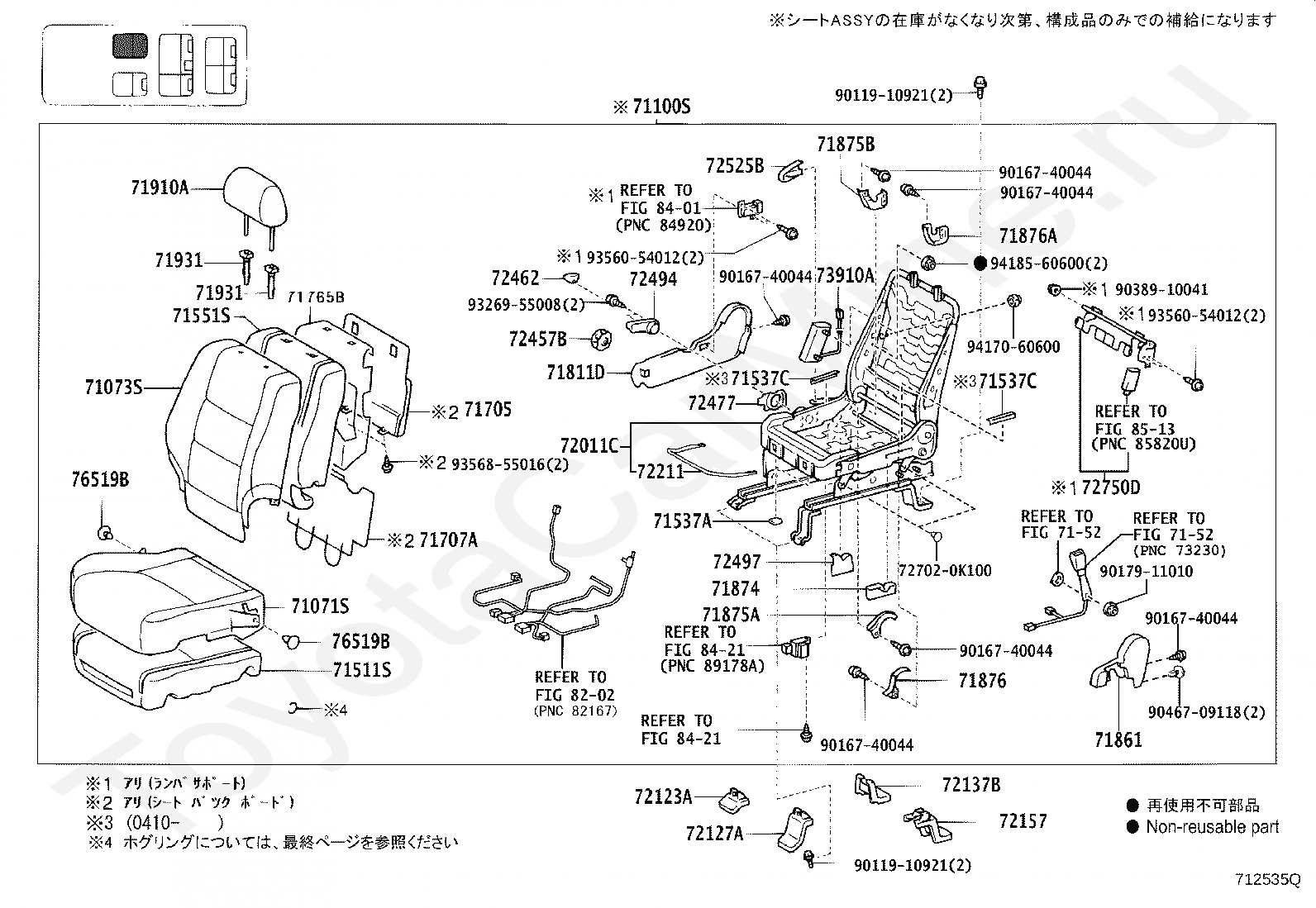

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72497

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

76519B

CLIP, FRONT SEAT CUSHION COVER

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

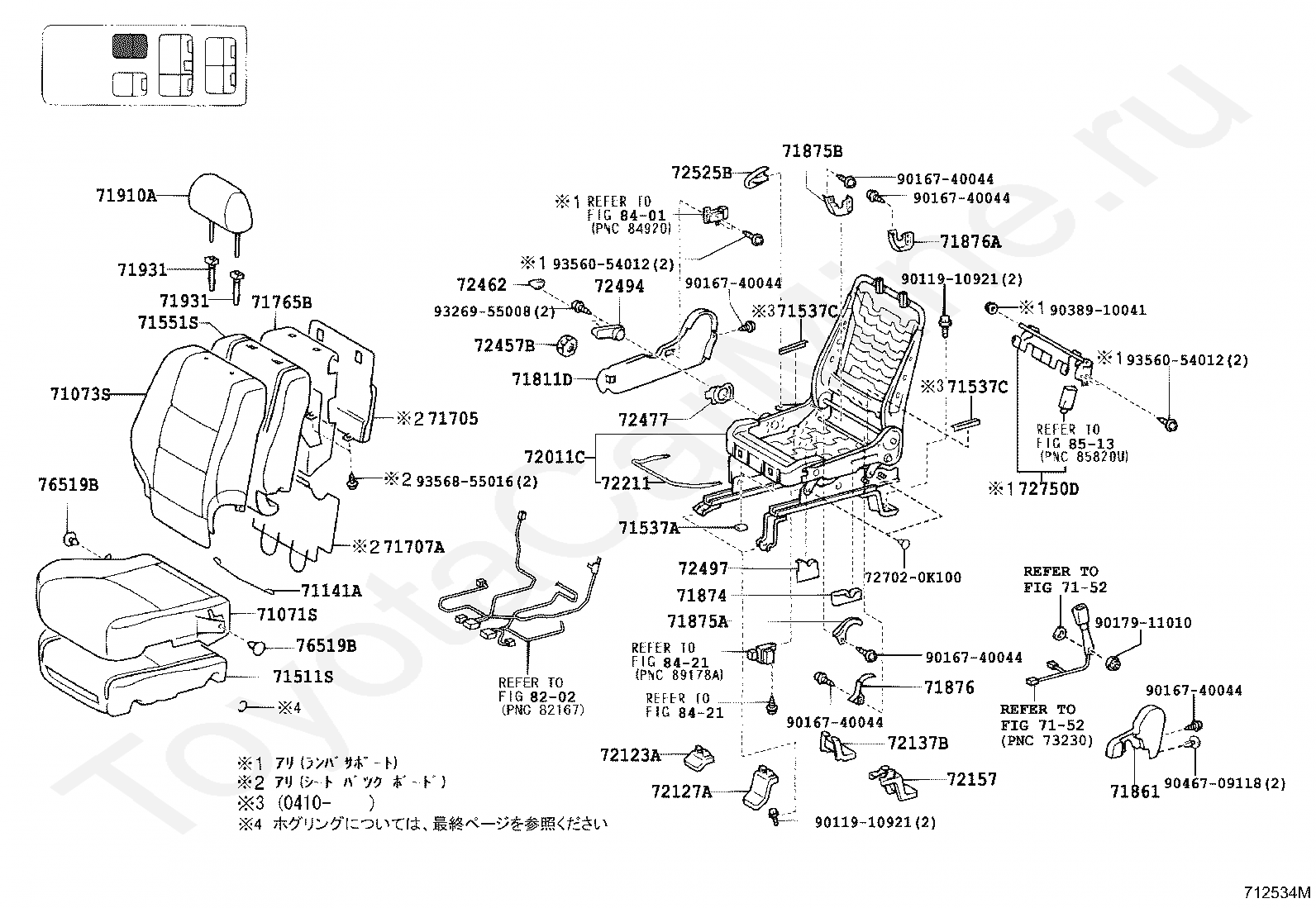

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71141A

WIRE, FRONT SEAT CUSHION COVER,

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72497

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

76519B

CLIP, FRONT SEAT CUSHION COVER

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356855016

Крепеж

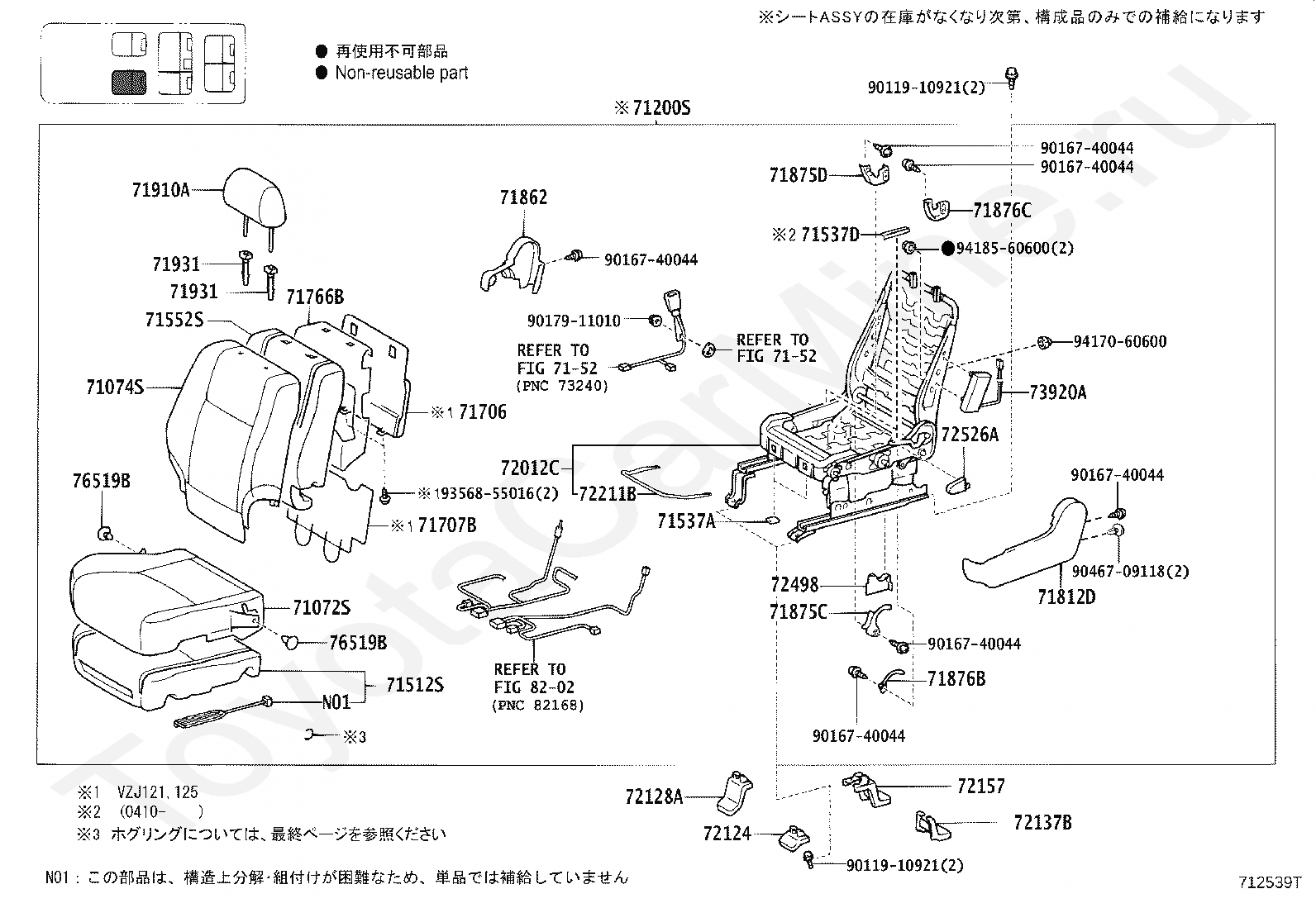

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71707B

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211B

HANDLE, SEAT TRACK ADJUSTING

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

76519B

CLIP, FRONT SEAT CUSHION COVER

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9046709118

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

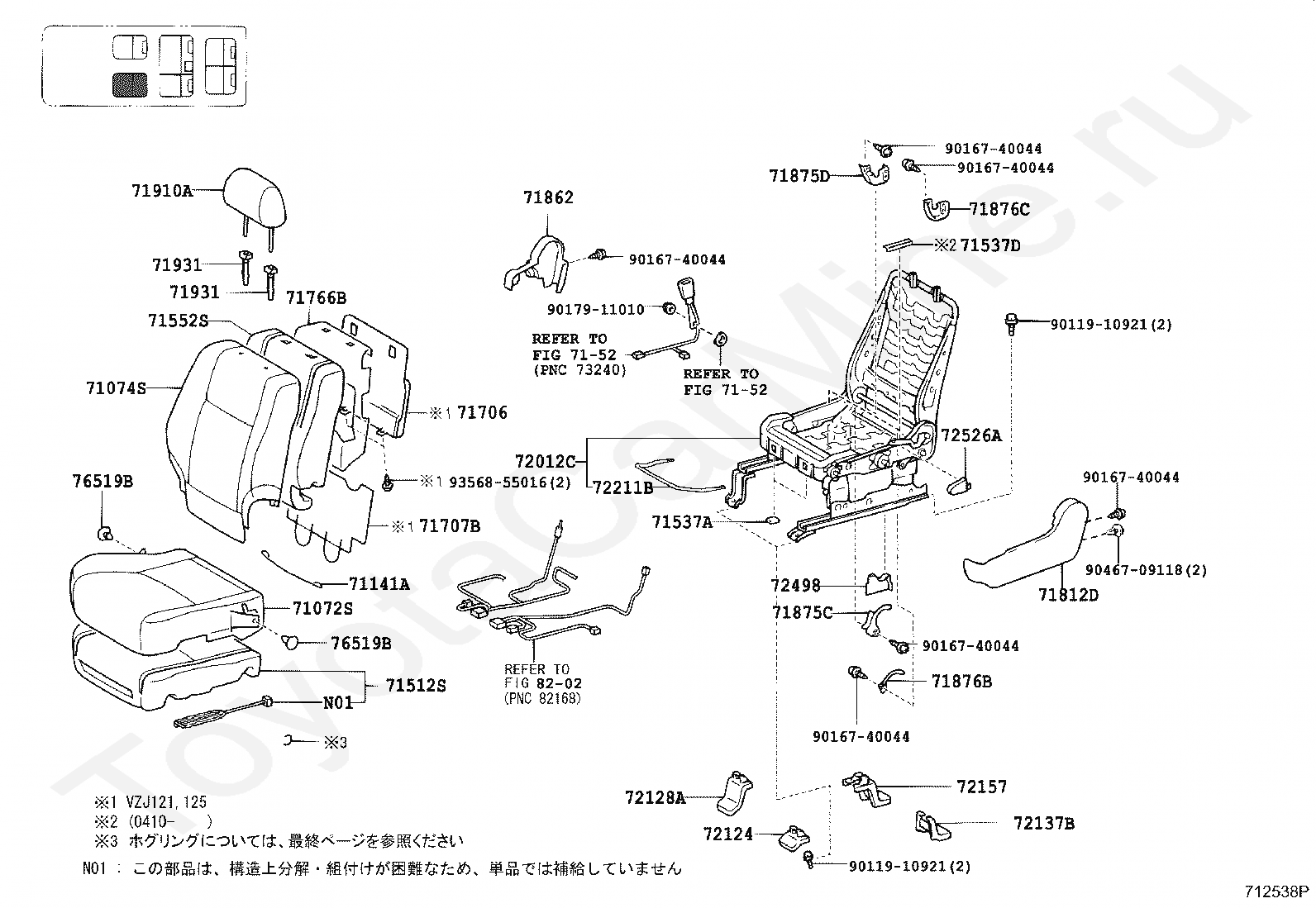

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71141A

WIRE, FRONT SEAT CUSHION COVER,

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71707B

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211B

HANDLE, SEAT TRACK ADJUSTING

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

76519B

CLIP, FRONT SEAT CUSHION COVER

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9046709118

Крепеж

9356855016

Крепеж

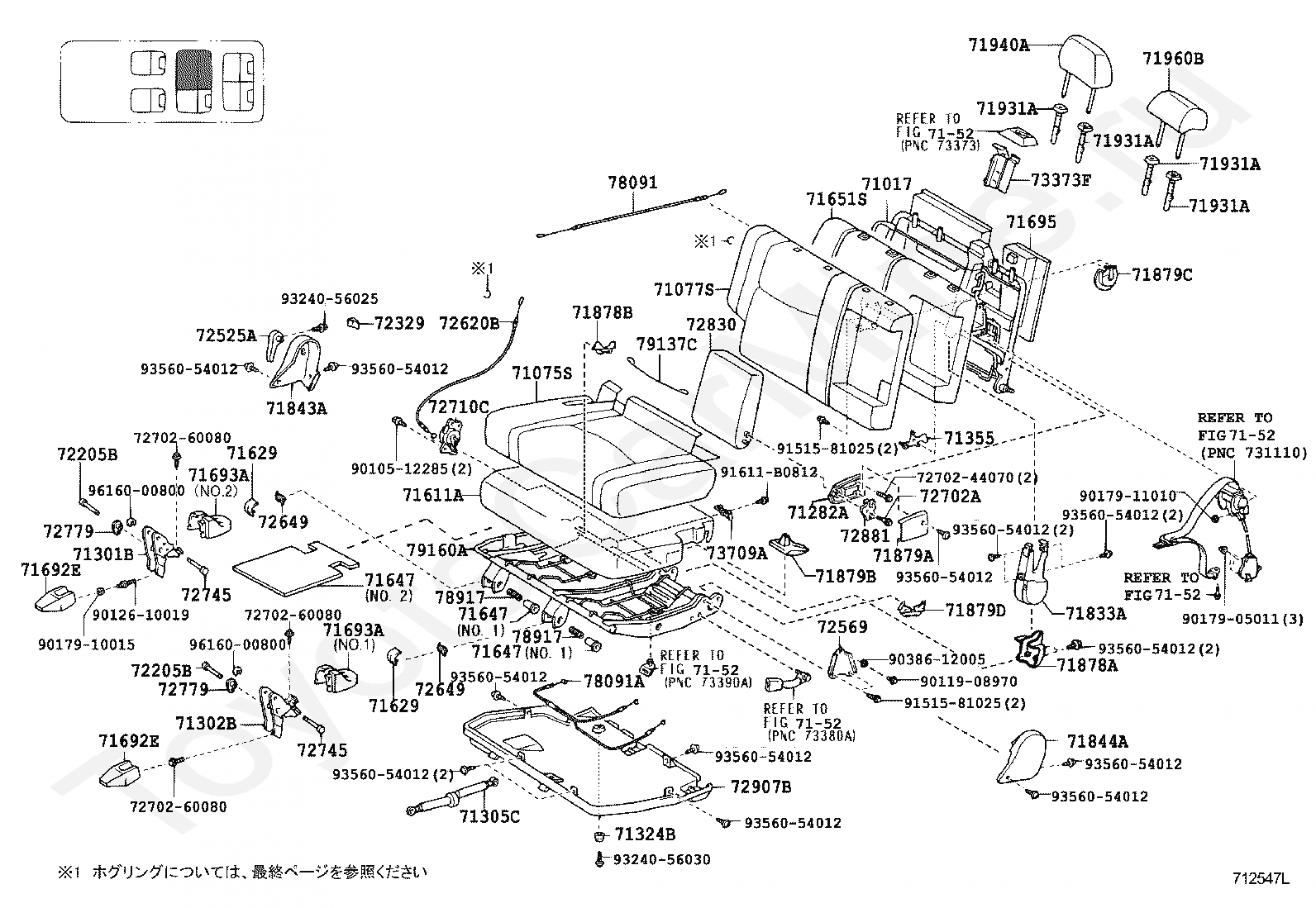

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71282A

HINGE, REAR SEAT CENTER ARMREST, LH

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71305C

STAY SUB-ASSY, REAR SEAT

71324B

CUSHION, REAR SEAT

71355

PLATE, REAR SEAT BACK HINGE, OUTER RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71629

COVER, REAR SEAT CUSHION HINGE

71629

COVER, REAR SEAT CUSHION HINGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71695

PROTECTOR, REAR SEAT BACK

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71879D

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72205B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER

72205B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER

72329

COVER, SEAT ADJUSTER BOLT

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72569

PLATE, SEAT BACK STOPPER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72649

SPRING, REAR SEAT CUSHION SUPPORT

72649

SPRING, REAR SEAT CUSHION SUPPORT

7270244070

Крепеж

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

72702A

CABLE SUB-ASSY, REVERSIBLE REAR SEAT LOCKING LEVER CONTROL

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72745

PIN, REAR SEAT RECLINING HINGE

72745

PIN, REAR SEAT RECLINING HINGE

72779

GUIDE, REAR SEAT HINGE PAWL

72779

GUIDE, REAR SEAT HINGE PAWL

72830

ARMREST ASSY, REAR SEAT, CENTER

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

72907B

COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH

73373F

COVER, REAR SEAT SHOULDER BELT HOLE

73709A

BRACKET SUB-ASSY, TETHER ANCHOR

78091

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

78091A

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

78917

CUSHION, FOLD SEAT LEG LOCK

78917

CUSHION, FOLD SEAT LEG LOCK

79137C

WIRE, NO.1 SEAT CUSHION

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

9010512285

Крепеж

9011908970

Крепеж

9012610019

Крепеж

9017905011

Крепеж

9017910015

Крепеж

9017911010

Крепеж

9038612005

Крепеж

9151581025

Крепеж

9151581025

Крепеж

91611B0812

Крепеж

9324056025

Крепеж

9324056030

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

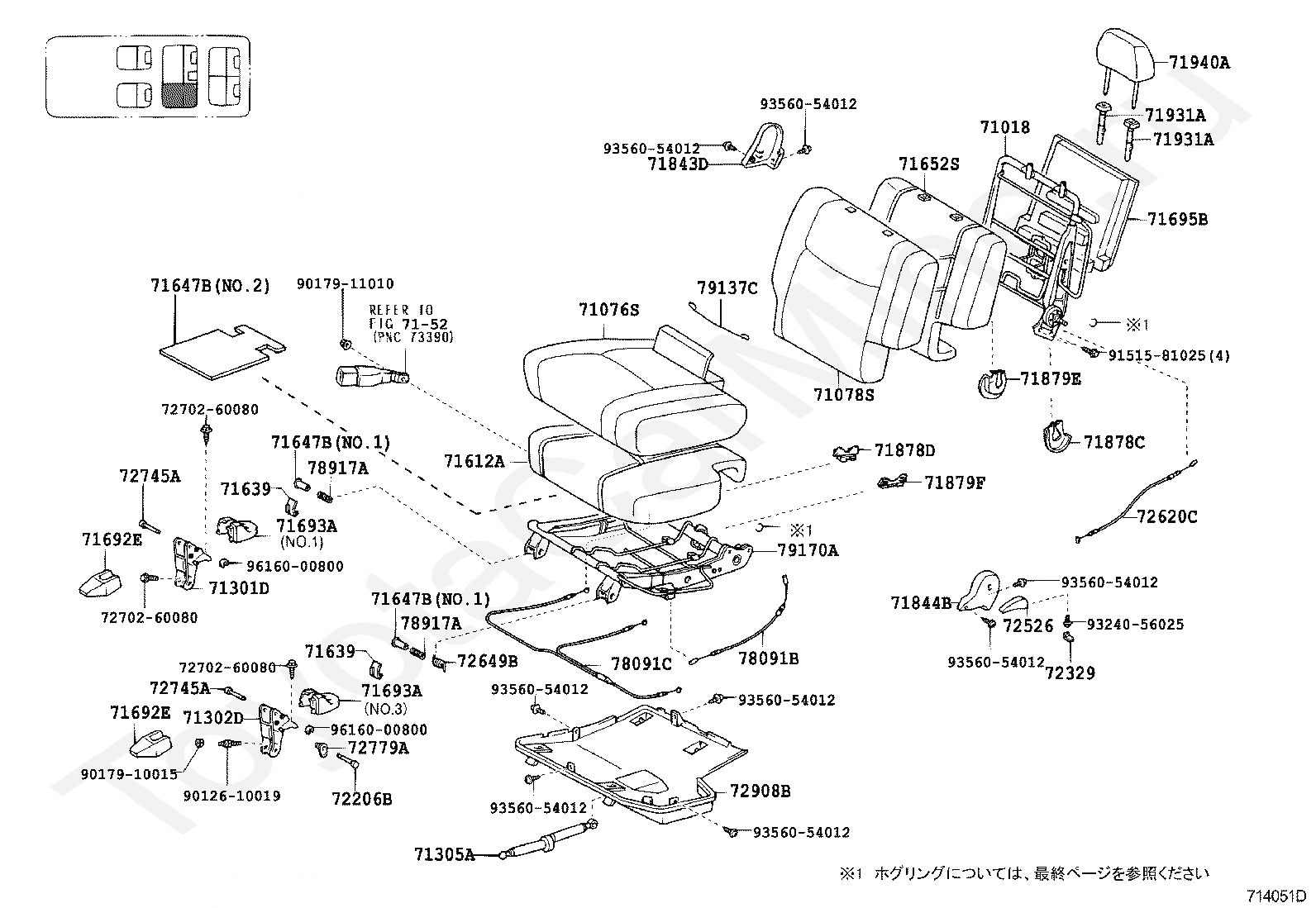

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844B

COVER, RECLINING ADJUSTER, LH

71878C

COVER, REAR SEAT RECLINING, INNER RH

71878D

COVER, REAR SEAT RECLINING, INNER RH

71879E

COVER, REAR SEAT RECLINING, INNER LH

71879F

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72206B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH

72329

COVER, SEAT ADJUSTER BOLT

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72620C

CABLE ASSY, REAR NO.1 SEAT LOCK

72649B

SPRING, REAR SEAT CUSHION SUPPORT

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

72745A

PIN, REAR SEAT RECLINING HINGE

72745A

PIN, REAR SEAT RECLINING HINGE

72779A

GUIDE, REAR SEAT HINGE PAWL

72908B

COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH

78091B

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

78091C

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

78917A

CUSHION, FOLD SEAT LEG LOCK

78917A

CUSHION, FOLD SEAT LEG LOCK

79137C

WIRE, NO.1 SEAT CUSHION

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

9012610019

Крепеж

9017910015

Крепеж

9017911010

Крепеж

9151581025

Крепеж

9324056025

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

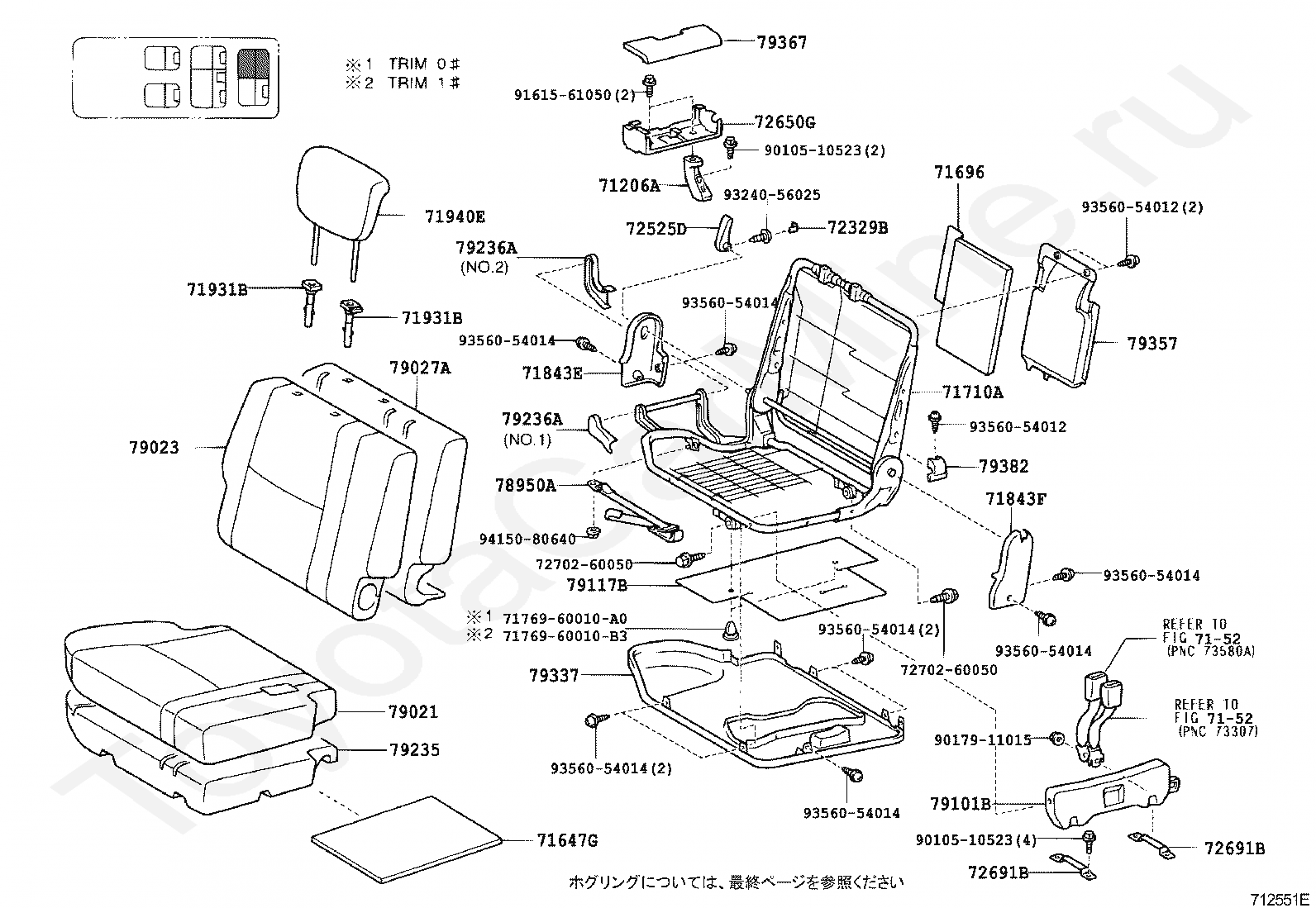

71206A

BRACKET SUB-ASSY, REAR SEAT STOPPER, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71647G

PROTECTOR, REAR SEAT CUSHION EDGE

71696

PROTECTOR, REAR SEAT, NO.2

71710A

FRAME ASSY, REAR SIDE SEAT, RH

7176960010A0

Крепеж

7176960010B3

Крепеж

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71843F

COVER, REAR SEAT RECLINING, LH (FOR RH SEAT)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72329B

COVER, SEAT ADJUSTER BOLT, NO.1

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72650G

LOCK ASSY, REAR NO.2 SEAT, RH

72691B

STRIKER, REAR SEAT CUSHION LOCK

72691B

STRIKER, REAR SEAT CUSHION LOCK

7270260050

Крепеж

7270260050

Крепеж

78950A

BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.1

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79117B

COVER, NO.1 SEAT CUSHION, RH

79235

PAD, NO.2 SEAT CUSHION

79236A

COVER, NO.2 SEAT LEG

79236A

COVER, NO.2 SEAT LEG

79337

CARPET, NO.2 SEAT CUSHION UNDER, RH

79357

COVER, NO.3 SEAT BACK BOARD

79367

COVER, NO.3 SEAT LEG, NO.2

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

9010510523

Крепеж

9010510523

Крепеж

9017911015

Крепеж

9161561050

Крепеж

9324056025

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9415080640

Крепеж

Код

Описание

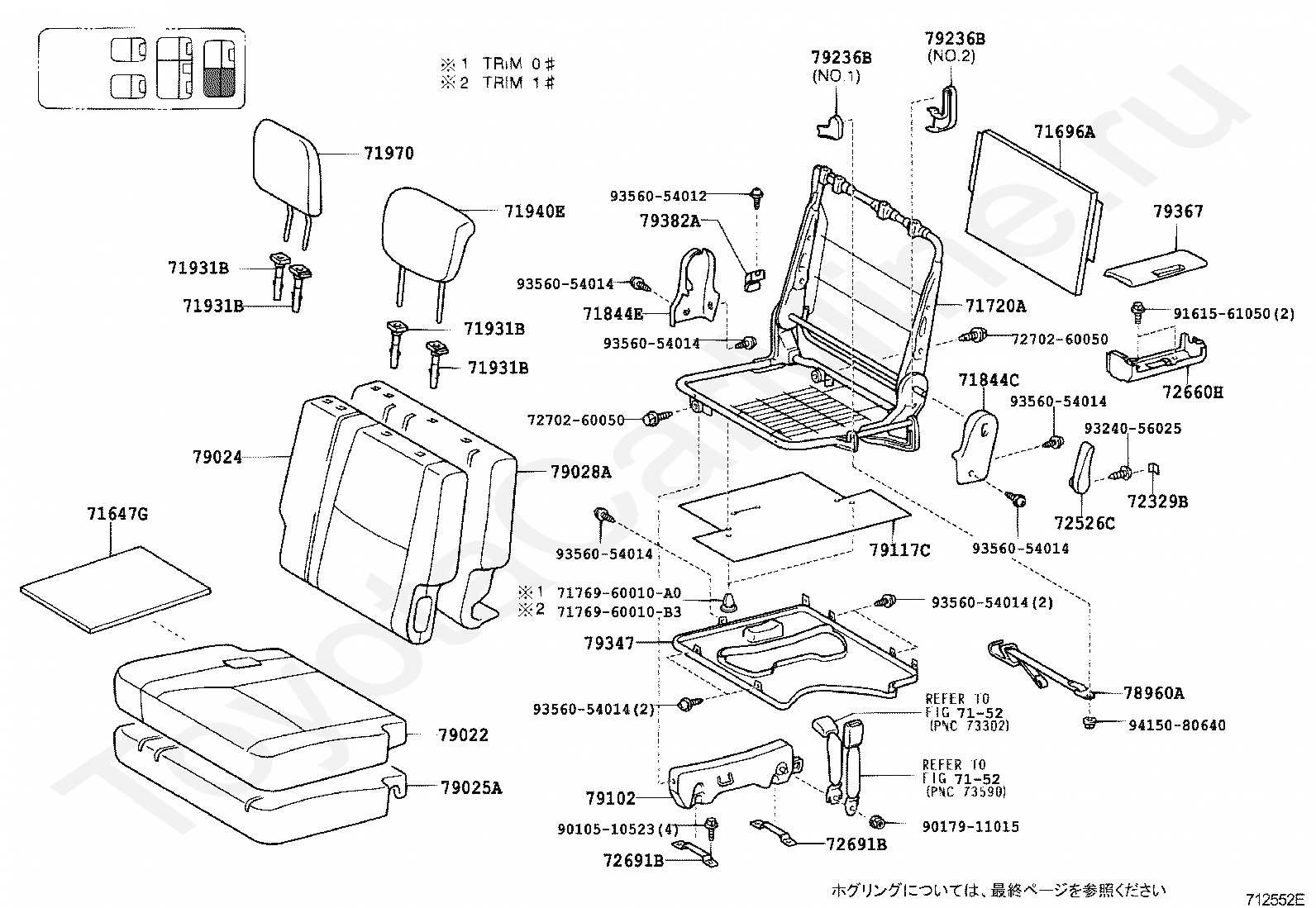

7152

переход к группе запчастей

7152

переход к группе запчастей

71647G

PROTECTOR, REAR SEAT CUSHION EDGE

71696A

PROTECTOR, REAR SEAT, NO.2 LH

71720A

FRAME ASSY, REAR SIDE SEAT, LH

7176960010A0

Крепеж

7176960010B3

Крепеж

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71844E

COVER, REAR SEAT RECLINING, RH (FOR LH SEAT)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

71970

HEADREST ASSY, REAR SEAT

72329B

COVER, SEAT ADJUSTER BOLT, NO.1

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72660H

LOCK ASSY, REAR NO.2 SEAT, LH

72691B

STRIKER, REAR SEAT CUSHION LOCK

72691B

STRIKER, REAR SEAT CUSHION LOCK

7270260050

Крепеж

7270260050

Крепеж

78960A

BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79117C

COVER, NO.1 SEAT CUSHION, LH

79236B

COVER, NO.2 SEAT LEG, LH

79236B

COVER, NO.2 SEAT LEG, LH

79347

CARPET, NO.2 SEAT CUSHION UNDER, LH

79367

COVER, NO.3 SEAT LEG, NO.2

79382A

COVER, NO.3 SEAT FRONT BRACKET, LH

9010510523

Крепеж

9017911015

Крепеж

9161561050

Крепеж

9324056025

Крепеж

9356054012

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9415080640

Крепеж

Код

Описание

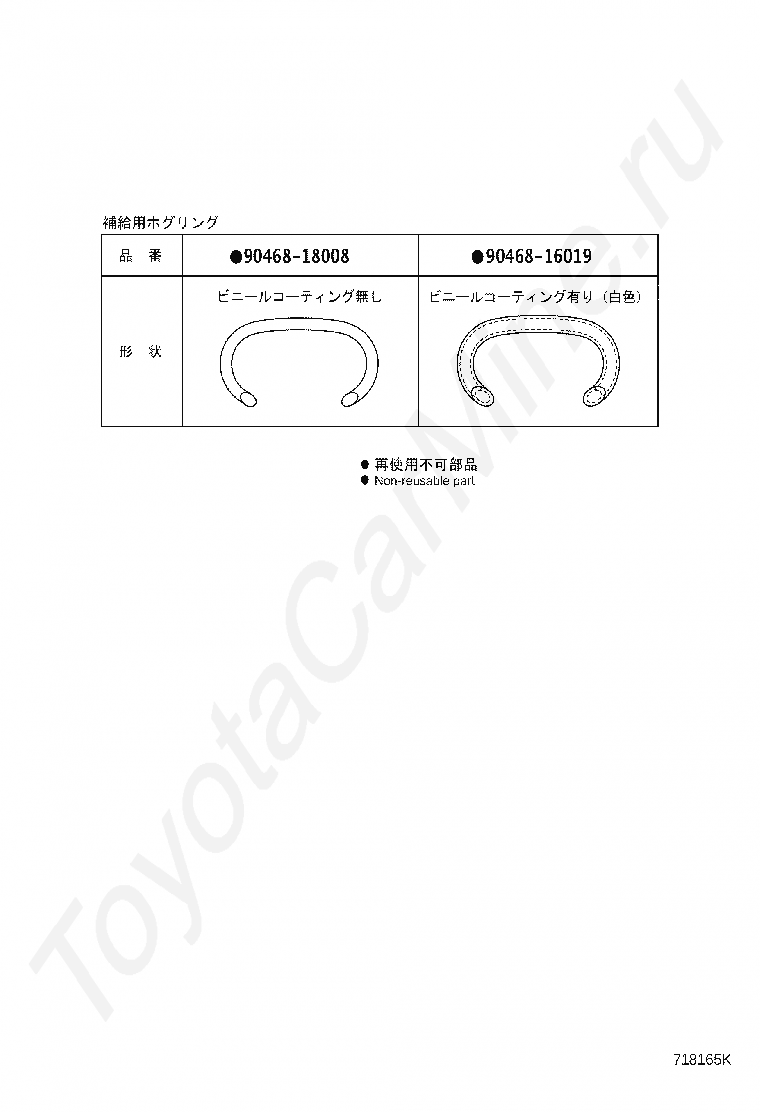

9046816019

Крепеж

9046818008

Крепеж

> Запчасти PRADO > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
