Япония

Модель

LAND CRUISER PRADO

VIN

Дата

2017/08

Двигатель

2,8 литра, турбо-дизель

Класс

TX TYPE

Фрейм

GDJ150

КПП

автомат АКПП, 6 скоростей

Опции

5 дверей 5-местный 702W

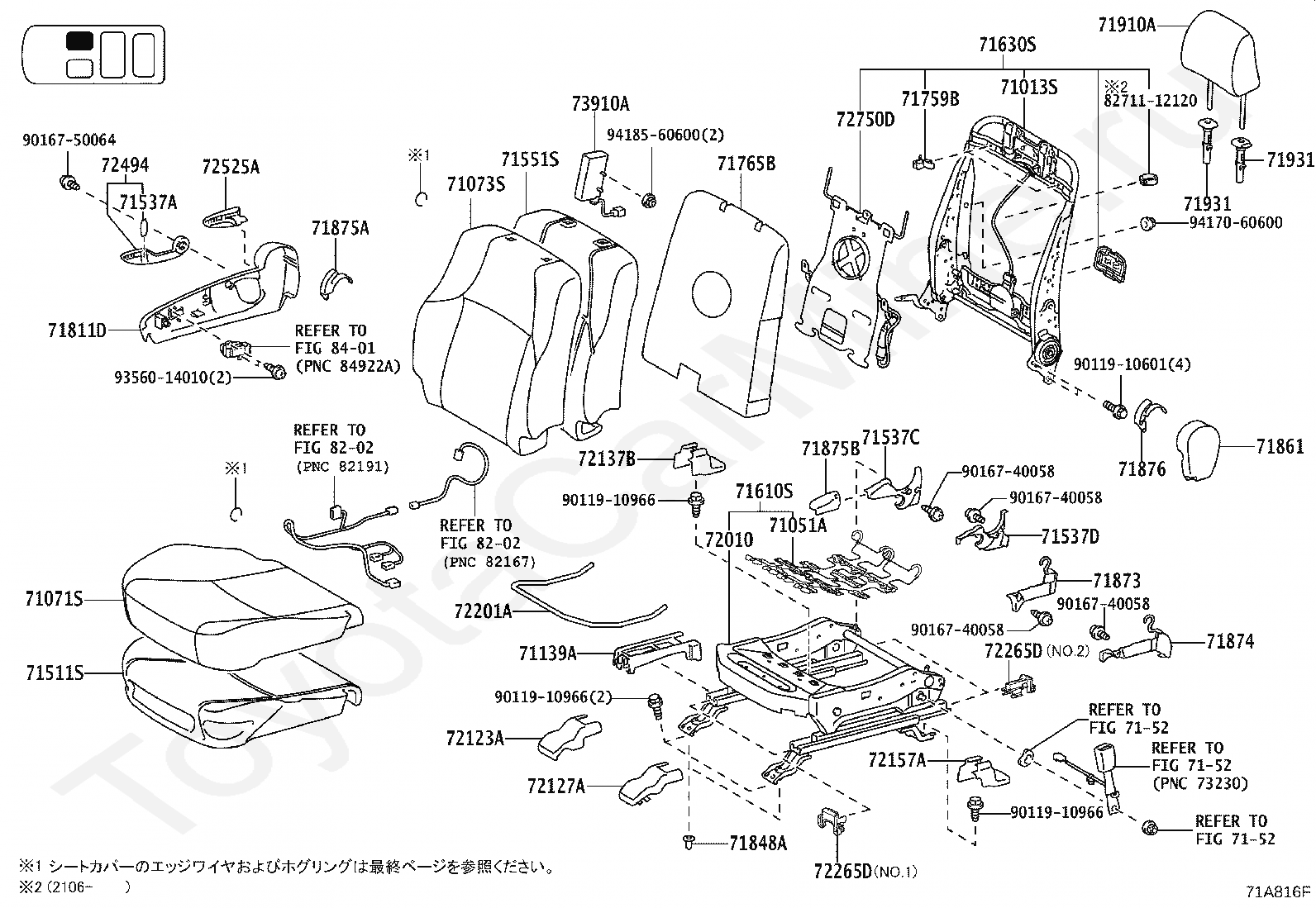

Кресла TOYOTA LAND CRUISER PRADO







Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71139A

COVER, FRONT SEAT LEG, NO.1

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72265D

COVER, SEAT TRACK UPPER RAIL

72265D

COVER, SEAT TRACK UPPER RAIL

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8202

переход к группе запчастей

8271112120

Крепеж

8401

переход к группе запчастей

9011910601

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016750064

Крепеж

9356014010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71139A

COVER, FRONT SEAT LEG, NO.1

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705A

CLIP(FOR FRONT SEAT BACK BOARD)

71759B

HOOK, FRONT SEAT BACK

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85860A

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

85866

DUCT, SEAT CUSHION CLIMATE CONTROL, RH

85866B

DUCT, SEAT BACK CLIMATE CONTROL, RH

85867

BLOWER, SEAT BACK CLIMATE CONTROL, RH

85868

BRACKET, SEAT CUSHION CLIMATE CONTROL, RH

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9011910966

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9354014006

Крепеж

9356014010

Крепеж

9356054010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71149A

COVER, FRONT SEAT LEG, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138B

COVER, SEAT TRACK, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265D

COVER, SEAT TRACK UPPER RAIL

72265D

COVER, SEAT TRACK UPPER RAIL

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8271112120

Крепеж

9011910601

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71149A

COVER, FRONT SEAT LEG, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71706B

CLIP, FRONT SEAT BACK BOARD

71759B

HOOK, FRONT SEAT BACK

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138B

COVER, SEAT TRACK, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85860B

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

85866A

DUCT, SEAT CUSHION CLIMATE CONTROL, LH

85866C

DUCT, SEAT BACK CLIMATE CONTROL, LH

85867A

BLOWER, SEAT BACK CLIMATE CONTROL, LH

85868A

BRACKET, SEAT CUSHION CLIMATE CONTROL, LH

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9011910966

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9354014006

Крепеж

9356014010

Крепеж

9356054010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990B

HOLDER ASSY, CUP, NO.2 RH

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71087

BOARD SUB-ASSY, REAR SEAT BACK

71095S

COVER SUB-ASSY, CENTER SEAT BACK

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71324B

CUSHION, REAR SEAT

71324K

CUSHION, REAR SEAT

71349B

COVER, REAR SEAT BACK STAY, RH

71369B

COVER, REAR SEAT BACK STAY, LH

71393

BAND, REAR SEAT CUSHION

71397A

COVER, CENTER SEAT HINGE

71413

PLATE, NO.1 REAR SEAT SIDE, NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71587A

PROTECTOR, REAR SEAT BACK EDGE

71611A

PAD, REAR SEAT CUSHION, RH

71629

COVER, REAR SEAT CUSHION HINGE

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71695

PROTECTOR, REAR SEAT BACK

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695C

PROTECTOR, REAR SEAT, NO.1

71879A

COVER, REAR SEAT RECLINING, INNER LH

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72455A

BRACKET, SEAT FRAME SET, NO.1

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72613B

STRIKER, REAR SEAT LOCK

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72650A

LOCK ASSY, REAR SEAT, RH

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72677A

BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH

72691B

STRIKER, REAR SEAT CUSHION LOCK

7270258050

Крепеж

7270258050

Крепеж

72749

SPACER, REAR SEAT RECLINING

72749

SPACER, REAR SEAT RECLINING

72749A

SPACER, REAR SEAT RECLINING

72749B

SPACER, REAR SEAT RECLINING, NO.1

72749C

SPACER, REAR SEAT RECLINING, NO.2

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72849

CAP, SEAT ARMREST, NO.2

72927

COVER, REAR SEAT CUSHION UNDER, RH

72987

COVER, REAR SEAT CENTER ARMREST

72996A

COVER, REAR SEAT BACK

72997B

COVER, REAR SEAT BACK

7889960080

Крепеж

7889960080

Крепеж

7889960090

Крепеж

7889960090

Крепеж

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79117B

COVER, NO.1 SEAT CUSHION, RH

79909A

WIRE SUB-ASSY, SEAT CUSHION

79956

COVER, REAR SEAT LEG BRACKET

79956

COVER, REAR SEAT LEG BRACKET

79959

COVER, RR SEAT LEG

79959

COVER, RR SEAT LEG

9010508298

Крепеж

9010510523

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9046710161

Крепеж

9046710188

Крепеж

9046710188

Крепеж

9155380614

Крепеж

9324056025

Крепеж

9352054012

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356054008

Крепеж

9356054008

Крепеж

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71324B

CUSHION, REAR SEAT

71393

BAND, REAR SEAT CUSHION

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71639

COVER, REAR SEAT CUSHION HINGE, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71695

PROTECTOR, REAR SEAT BACK

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71695C

PROTECTOR, REAR SEAT, NO.1

71695D

PROTECTOR, SEAT

71697

PROTECTOR, REAR SEAT BACK EDGE

71878A

COVER, REAR SEAT RECLINING, INNER RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72602B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, NO.2 LH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72666

COVER, REAR SEAT BACK LOCK, LH

72678

BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH

72691B

STRIKER, REAR SEAT CUSHION LOCK

72928

COVER, REAR SEAT CUSHION UNDER, LH

72996A

COVER, REAR SEAT BACK

79117C

COVER, NO.1 SEAT CUSHION, LH

79909A

WIRE SUB-ASSY, SEAT CUSHION

79956

COVER, REAR SEAT LEG BRACKET

79956

COVER, REAR SEAT LEG BRACKET

79959

COVER, RR SEAT LEG

79959

COVER, RR SEAT LEG

9010508298

Крепеж

9010510523

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9046710188

Крепеж

9155380614

Крепеж

9324056025

Крепеж

Код

Описание

5895960060

Крепеж

5895960060

Крепеж

62476E

CAP, REAR SEAT

66310F

HOOK ASSY, ROPE

71468

PROTECTOR, REAR SEAT, NO.1 (FOR SEAT CUSHION)

7152

переход к группе запчастей

7152

переход к группе запчастей

71587C

PROTECTOR, REAR SEAT BACK EDGE NO.2

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71827B

MOULDING, REAR SEAT CUSHION, FRONT

71828

MOULDING,REAR SEAT BACK, CENTER

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72058

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL

72241A

LEVER, SEAT TRACK LOCK

72615G

COVER, FRONT SEAT BACK LOCK STRIKER,NO.2

72615H

COVER, REAR SEAT BACK LOCK STRIKER, NO.1

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

7270258050

Крепеж

7270258050

Крепеж

72905

LINK SUB-ASSY, 3RD SEAT, RH

78091

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

7889960100

Крепеж

7889960100

Крепеж

79030

LEG ASSY, NO.3 SEAT, RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79226

CABLE, NO.2 SEAT LOCK

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79337

CARPET, NO.2 SEAT CUSHION UNDER, RH

79374

COVER, NO.3 SEAT LEG, REAR RH

79374A

COVER, NO.3 SEAT LEG, REAR RH

79375A

PAD, NO.3 SEAT BACK, RH

79962

COVER, NO.2 SEAT BACK

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

8271135060

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9010906293

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9046710188

Крепеж

9054103006

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

Код

Описание

5895960060

Крепеж

5895960060

Крепеж

62476E

CAP, REAR SEAT

66310F

HOOK ASSY, ROPE

7152

переход к группе запчастей

7152

переход к группе запчастей

71537B

PROTECTOR, REAR SEAT CUSHION

71587C

PROTECTOR, REAR SEAT BACK EDGE NO.2

71691C

COVER, REAR SEAT LOCK, INNER RH

71692G

COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71827B

MOULDING, REAR SEAT CUSHION, FRONT

71828

MOULDING,REAR SEAT BACK, CENTER

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72058B

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72241B

LEVER, SEAT TRACK LOCK

72615G

COVER, FRONT SEAT BACK LOCK STRIKER,NO.2

72615H

COVER, REAR SEAT BACK LOCK STRIKER, NO.1

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

7270258050

Крепеж

7270258050

Крепеж

72906

LINK SUB-ASSY, 3RD SEAT, LH

78091

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

7889960100

Крепеж

7889960100

Крепеж

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79040

LEG ASSY, NO.3 SEAT, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79226

CABLE, NO.2 SEAT LOCK

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79347

CARPET, NO.2 SEAT CUSHION UNDER, LH

79384

COVER, NO.3 SEAT LEG, REAR LH

79384A

COVER, NO.3 SEAT LEG, REAR LH

79385A

PAD, NO.3 SEAT BACK, LH

79962

COVER, NO.2 SEAT BACK

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

79968B

CLIP

8271135060

Крепеж

9010510572

Крепеж

9010510572

Крепеж

9010906293

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9016740058

Крепеж

9046710188

Крепеж

9054103006

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356014010

Крепеж

Код

Описание

7114930050

Крепеж

9046814018

Крепеж

9046818008

Крепеж

> Запчасти PRADO > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
