Каталог

Япония

Модель

PIXIS VAN

VIN

Дата

2021/12

Двигатель

0,66 литра

Кузов

VAN

Класс

DELUX SPECIFICATION

Фрейм

S710M

КПП

механика МКПП, 5 скоростей

Опции

полный привод высокая крыша STANDARD TYPE W/O TURBO PS1 D36H

Кресла TOYOTA PIXIS VAN

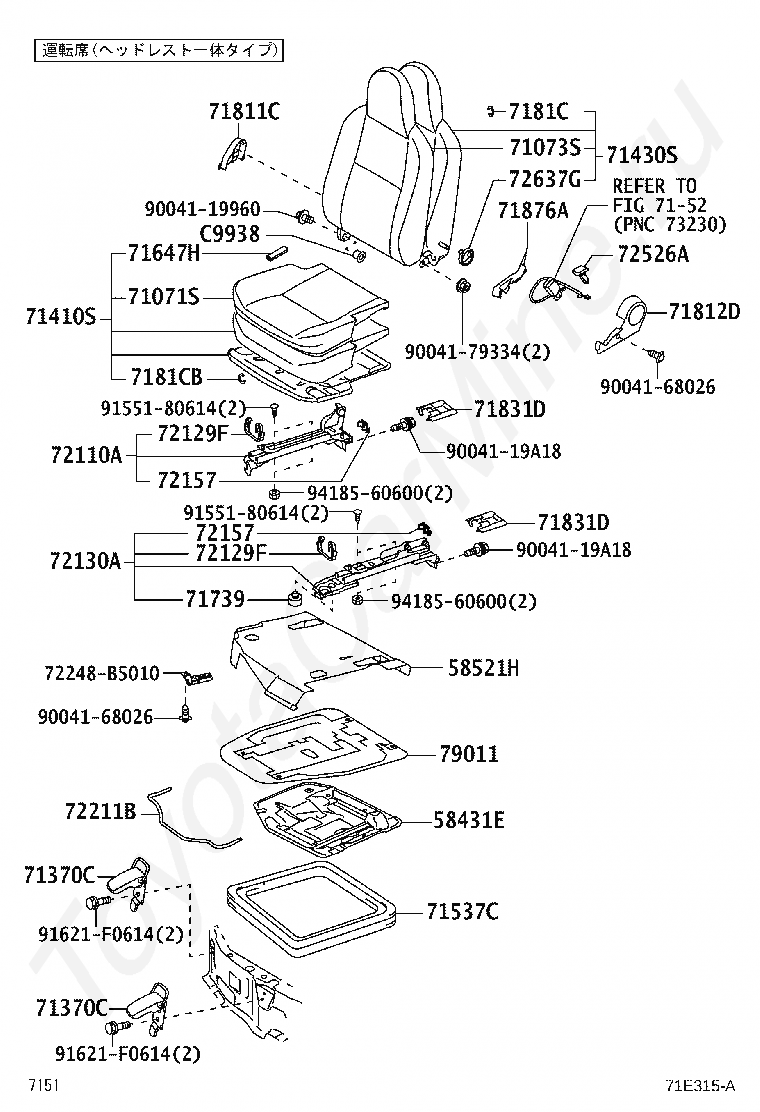

Код

Описание

58431E

SILENCER, ENGINE ROOM SIDE, FRONT RH

58521H

CARPET, ENGINE SERVICE HOLE COVER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71370C

CATCH ASSY, FR SEAT CUSHION

71370C

CATCH ASSY, FR SEAT CUSHION

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71647H

PROTECTOR, FRONT SEAT CUSHION EDGE

71739

CUSHION, SEAT SUPPORT

71811C

COVER, RECLINING ADJUSTER, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831D

COVER, FRONT SEAT HINGE, RH

71831D

COVER, FRONT SEAT HINGE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129F

PROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72129F

PROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72211B

HANDLE, SEAT TRACK ADJUSTING

72248B5010

Крепеж

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

9004119960

Крепеж

9004119A18

Крепеж

9004119A18

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004179334

Крепеж

9155180614

Крепеж

9155180614

Крепеж

91621F0614

Крепеж

91621F0614

Крепеж

9418560600

Крепеж

9418560600

Крепеж

C9938

BUSH

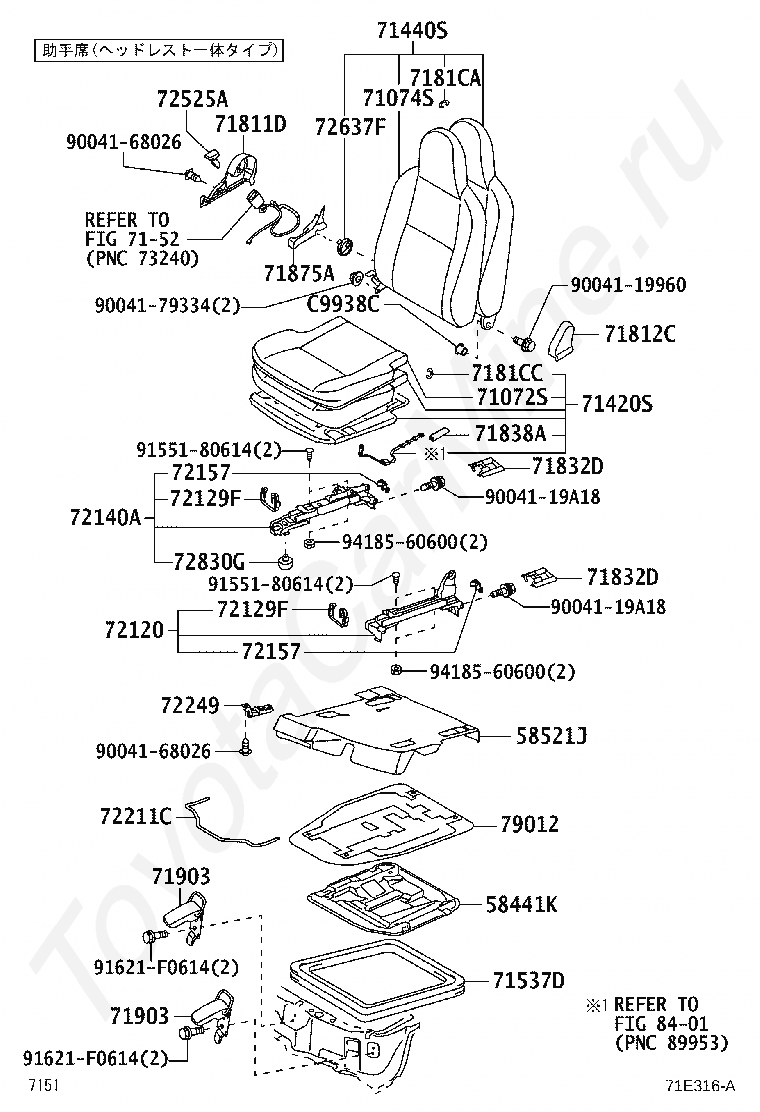

Код

Описание

58441K

SILENCER, ENGINE ROOM SIDE, FRONT LH

58521J

CARPET, ENGINE SERVICE HOLE COVER LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812C

COVER, RECLINING ADJUSTER, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71832D

COVER, FRONT SEAT HINGE, LH

71832D

COVER, FRONT SEAT HINGE, LH

71838A

PROTECTOR, FRONT SEAT CUSHION EDGE

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71903

CATCH SUB-ASSY, SEAT CUSHION, FRONT

71903

CATCH SUB-ASSY, SEAT CUSHION, FRONT

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72129F

PROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72129F

PROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72211C

HANDLE, SEAT TRACK ADJUSTING

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72637F

SPRING, SEAT BACK, RH

72830G

CUSHION

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

8401

переход к группе запчастей

9004119960

Крепеж

9004119A18

Крепеж

9004119A18

Крепеж

9004168026

Крепеж

9004168026

Крепеж

9004179334

Крепеж

9155180614

Крепеж

9155180614

Крепеж

91621F0614

Крепеж

91621F0614

Крепеж

9418560600

Крепеж

9418560600

Крепеж

C9938C

BUSH

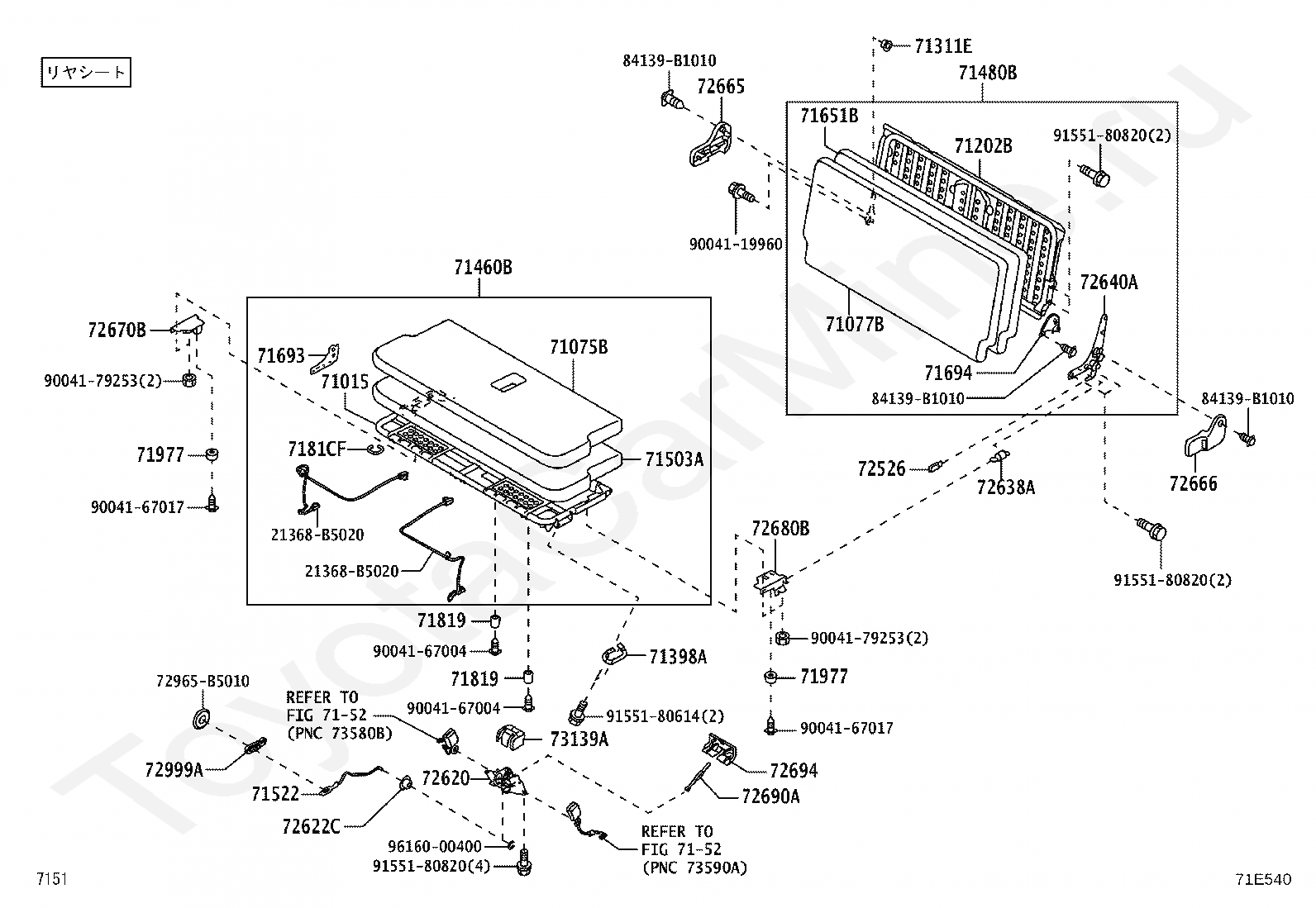

Код

Описание

21368B5020

Крепеж

21368B5020

Крепеж

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71202B

PANEL, REAR SEAT BACK

71311E

BUSH(FOR REAR SEAT HINGE PIN)

71398A

HOLDER, REAR SEAT BACK

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

7152

переход к группе запчастей

7152

переход к группе запчастей

71522

LINK, REAR SEAT

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71819

CUSHION (FOR REAR SEAT CUSHION)

71819

CUSHION (FOR REAR SEAT CUSHION)

7181CF

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71977

CUSHION

71977

CUSHION

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72620

LOCK ASSY, REAR SEAT BACK

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72638A

SPRING, REAR SEAT BACK LOCK, LH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

72694

COVER, REAR SEAT CUSHION LOCK

72965B5010

Крепеж

72999A

COVER, REAR SEAT CUSHION SIDE, RH

73139A

COVER, SEAT BELT ANCHOR

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

9004119960

Крепеж

9004167004

Крепеж

9004167004

Крепеж

9004167017

Крепеж

9004167017

Крепеж

9004179253

Крепеж

9004179253

Крепеж

9155180614

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9616000400

Крепеж

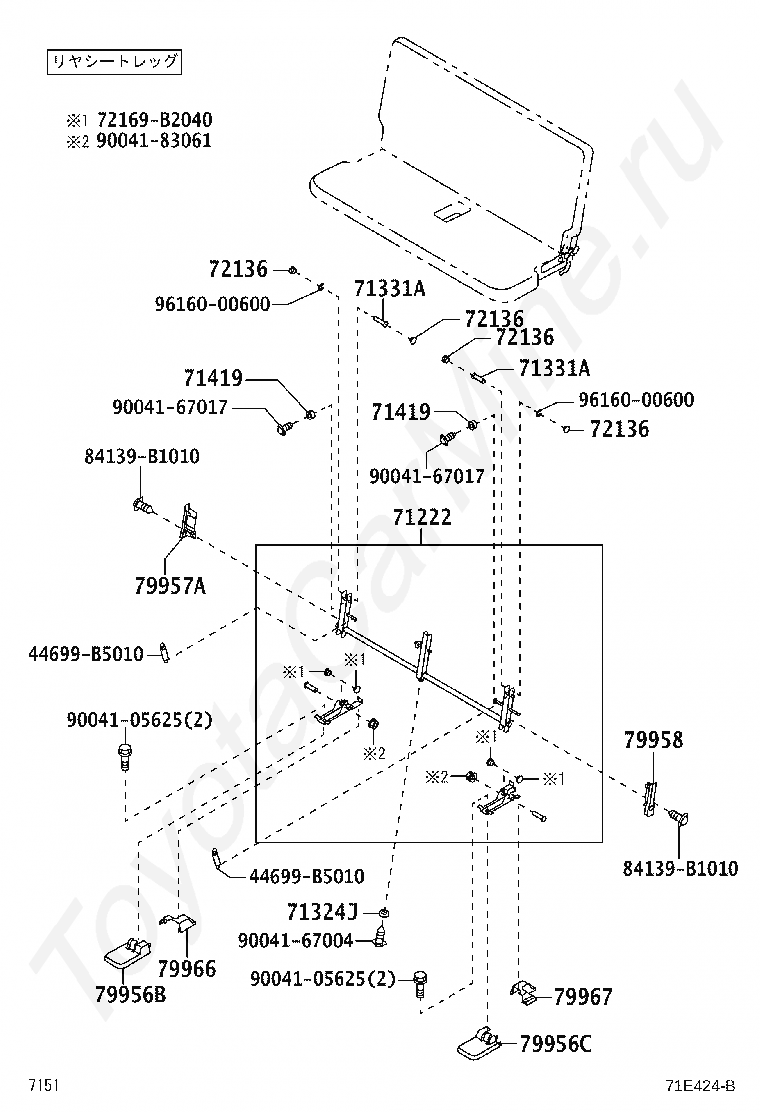

Код

Описание

44699B5010

Крепеж

44699B5010

Крепеж

71222

LEG, REAR SEAT

71324J

CUSHION, REAR SEAT

71331A

PIN, REAR SEAT HINGE

71331A

PIN, REAR SEAT HINGE

71419

CUSHION (FOR REAR SEAT LEG)

71419

CUSHION (FOR REAR SEAT LEG)

72136

SPACER, SEAT TRACK, LOWER NO.1

72136

SPACER, SEAT TRACK, LOWER NO.1

72136

SPACER, SEAT TRACK, LOWER NO.1

72136

SPACER, SEAT TRACK, LOWER NO.1

72169B2040

Крепеж

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958

COVER, REAR SEAT REAR BRACKET, LH

79966

COVER, REAR SEAT LEG SIDE, NO.3

79967

COVER, REAR SEAT LEG SIDE, NO.4

84139B1010

Крепеж

84139B1010

Крепеж

9004105625

Крепеж

9004105625

Крепеж

9004167004

Крепеж

9004167017

Крепеж

9004167017

Крепеж

9004183061

Крепеж

9616000600

Крепеж

9616000600

Крепеж

Кресла TOYOTA PIXIS VAN
