Каталог

Япония

Модель

PIXIS VAN

VIN

Дата

2021/12

Двигатель

0,66 литра

Кузов

VAN

Класс

DELUX SPECIFICATION

Фрейм

S710M

КПП

механика МКПП, 5 скоростей

Опции

полный привод высокая крыша STANDARD TYPE W/O TURBO PS1 D36H

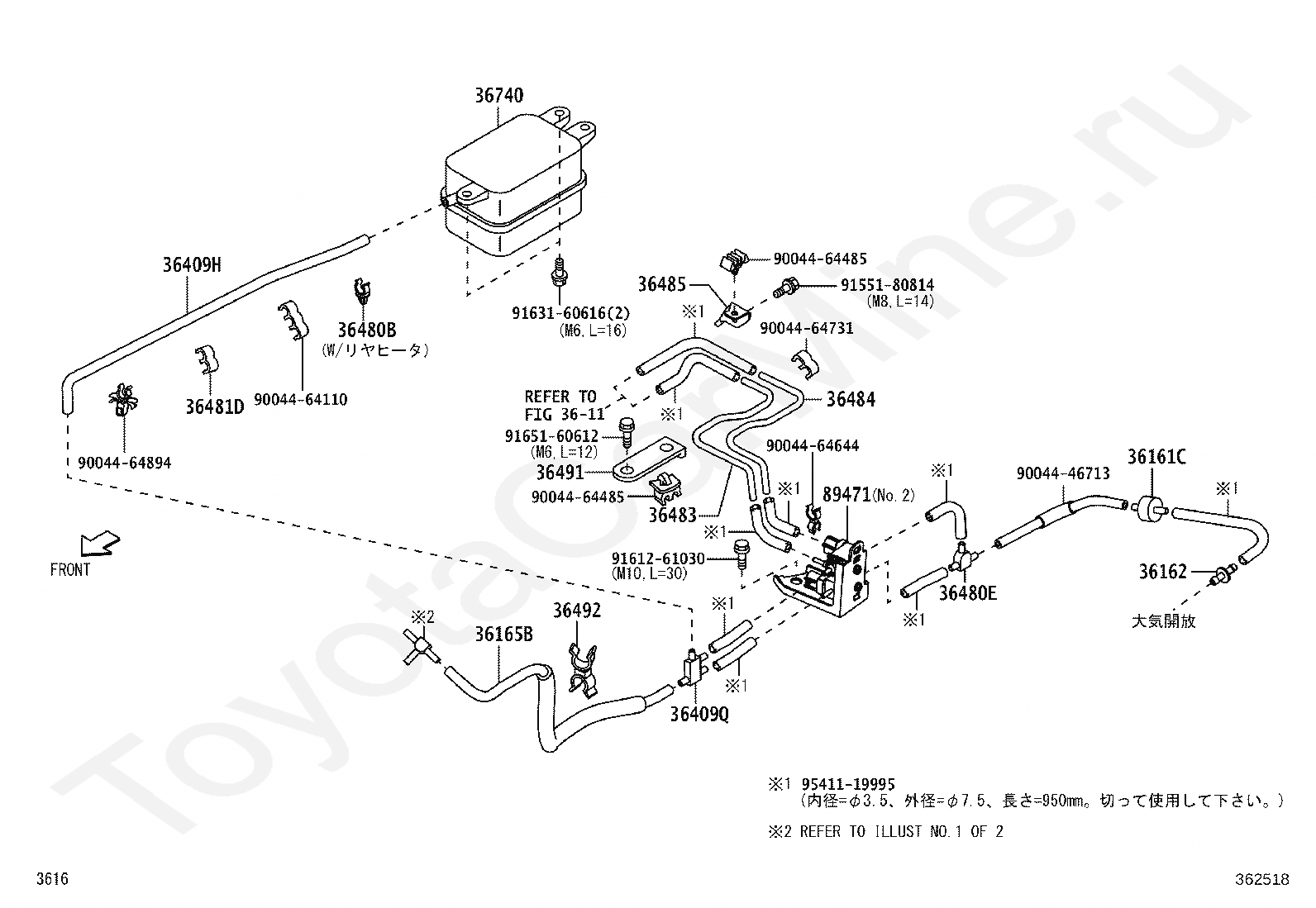

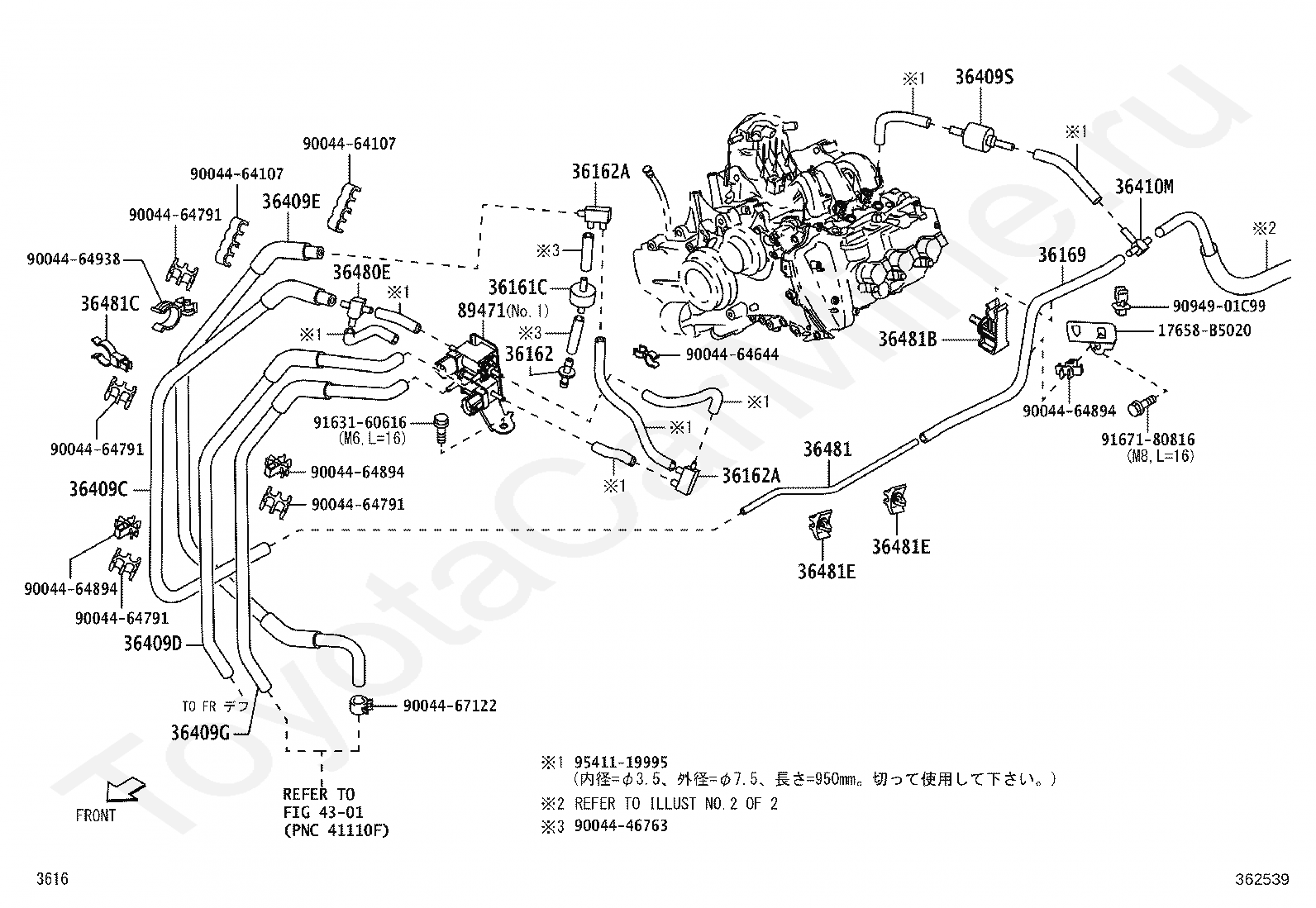

TRANSFER VACUUM PIPING TOYOTA PIXIS VAN

Код

Описание

17658B5020

Крепеж

36161C

FILTER ASSY, AIR(FOR 2WAY)

36162

WAY, 2(FOR FRONT CHECK VALVE)

36162A

WAY,3(FOR VACUUM HOSE)

36162A

WAY,3(FOR VACUUM HOSE)

36169

HOSE

36409C

HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

36409D

HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

36409E

HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

36409G

HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

36409S

VALVE, CHECK (FOR FRONT DRIVE SHIFT)

36410M

WAY, 3 (FOR TRANSFER VACUUM)

36480E

WAY, 3 (FOR TRANSFER VACUUM TUBE)

36481

TUBE, FRONT DRIVE VACUUM, NO.1

36481B

CLAMP, FRONT DRIVE VACUUM TUBE, NO.1

36481C

CLAMP, FRONT DRIVE VACUUM TUBE, NO.2

36481E

CLAMP, NO.2 (FOR TRANSFER VACUUM)

36481E

CLAMP, NO.2 (FOR TRANSFER VACUUM)

4301

переход к группе запчастей

89471

VALVE ASSY, VACUUM SWITCHING

9004446763

Крепеж

9004464107

Крепеж

9004464107

Крепеж

9004464644

Крепеж

9004464791

Крепеж

9004464791

Крепеж

9004464791

Крепеж

9004464791

Крепеж

9004464894

Крепеж

9004464894

Крепеж

9004464894

Крепеж

9004464938

Крепеж

9004467122

Крепеж

9094901C99

Крепеж

9163160616

Крепеж

9167180816

Крепеж

9541119995

Крепеж

Код

Описание

3611

переход к группе запчастей

36161C

FILTER ASSY, AIR(FOR 2WAY)

36162

WAY, 2(FOR FRONT CHECK VALVE)

36165B

HOSE(CHECK VALVE, NO.2)

36409H

HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

36409Q

WAY, 4 (FOR FRONT DRIVE SHIFT)

36480B

CLAMP (FOR VACUUM CHECK VALVE)

36480E

WAY, 3 (FOR TRANSFER VACUUM TUBE)

36481D

CLAMP, NO.1 (FOR TRANSFER VACUUM)

36483

TUBE, FRONT DRIVE VACUUM, NO.3

36484

TUBE, FRONT DRIVE VACUUM, NO.4

36485

BRACKET, FRONT DRIVE VACUUM TUBE, NO.1

36491

CLAMP, TRANSFER VACUUM TUBE, N0.1

36492

CLAMP, TRANSFER VACUM TUBE, NO.2

36740

TANK ASSY, TRANSFER VACUUM

89471

VALVE ASSY, VACUUM SWITCHING

9004446713

Крепеж

9004464110

Крепеж

9004464485

Крепеж

9004464485

Крепеж

9004464644

Крепеж

9004464731

Крепеж

9004464894

Крепеж

9155180814

Крепеж

9161261030

Крепеж

9163160616

Крепеж

9165160612

Крепеж

9541119995

Крепеж
