Каталог

Япония

Модель

PIXIS TRUCK

VIN

Дата

2020/09

Двигатель

0,66 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Класс

EXTRA INTERIOR

Фрейм

S500U

КПП

автомат АКПП, 4 ступени

Опции

STANDARD ROOF двухколесный привод PS3 D94G

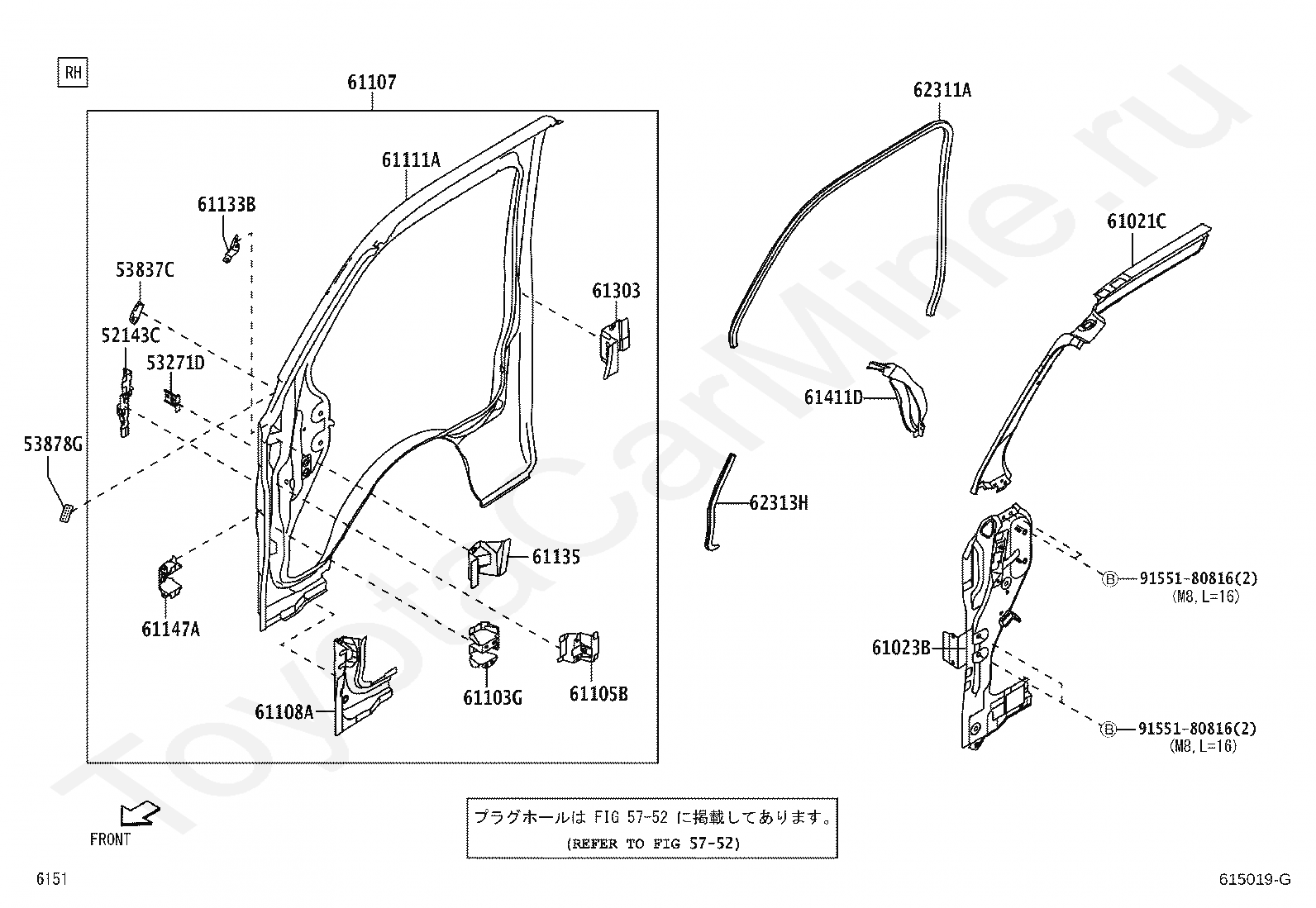

Боковая панель кузова TOYOTA PIXIS TRUCK

Код

Описание

52143C

BRACKET, FRONT BUMPER SIDE, RH

53271D

BRACKET, HEADLAMP MOUNTING, RH

53837C

BRACKET, FRONT SIDE PANEL, NO.2 RH

53878G

SPACER, FRONT FENDER

5752

переход к группе запчастей

61021C

PILLAR SUB-ASSY, FRONT BODY, RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61103G

GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61105B

REINFORCE SUB-ASSY, FRONT DOOR CHECK, RH

61107

PILLAR SUB-ASSY, FRONT BODY OUTER, RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61111A

PANEL, FRONT SIDE, OUTER RH

61133B

BRACKET, FRONT BODY PILLAR ,OUTER RH

61135

REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

61147A

EXTENSION, FRONT BODY PILLAR, UPPER OUTER

61303

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

61411D

PANEL, FENDER, OUTER RH

62311A

WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

62313H

TRIM, FRONT DOOR OPENING, RH

9155180816

Крепеж

9155180816

Крепеж

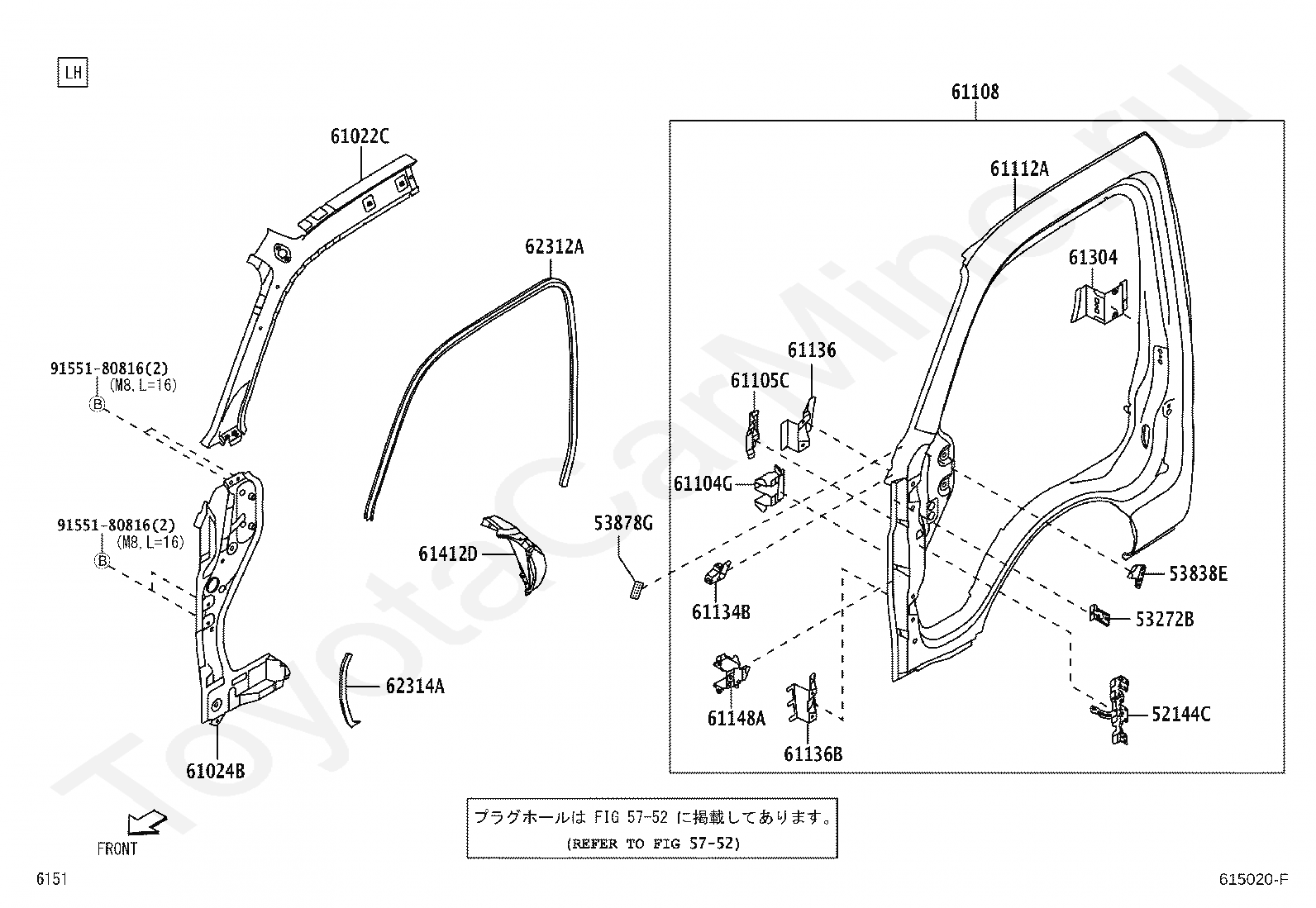

Код

Описание

52144C

BRACKET, FRONT BUMPER SIDE, LH

53272B

BRACKET, HEADLAMP MOUNTING, LH

53838E

BRACKET, FRONT SIDE PANEL, NO.2 LH

53878G

SPACER, FRONT FENDER

5752

переход к группе запчастей

61022C

PILLAR SUB-ASSY, FRONT BODY, LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61104G

GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61105C

REINFORCE SUB-ASSY, FRONT DOOR CHECK, LH

61108

PILLAR SUB-ASSY, FRONT BODY OUTER, LH

61112A

PANEL, FRONT SIDE, OUTER LH

61134B

BRACKET, FRONT BODY PILLAR OUTER, LH

61136

REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

61136B

REINFORCEMENT, FRONT BODY PILLAR, OUTER

61148A

EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH

61304

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

61412D

PANEL, FENDER, OUTER LH

62312A

WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

62314A

TRIM, FRONT DOOR OPENING, LH

9155180816

Крепеж

9155180816

Крепеж
