Каталог

Япония

Модель

PIXIS JOY

VIN

Дата

2017/10

Двигатель

0,66 литра

Класс

FX

Фрейм

LA250A

КПП

вариатор

Опции

двухколесный привод PS2 D01H

Передние кресла TOYOTA PIXIS JOY







Код

Описание

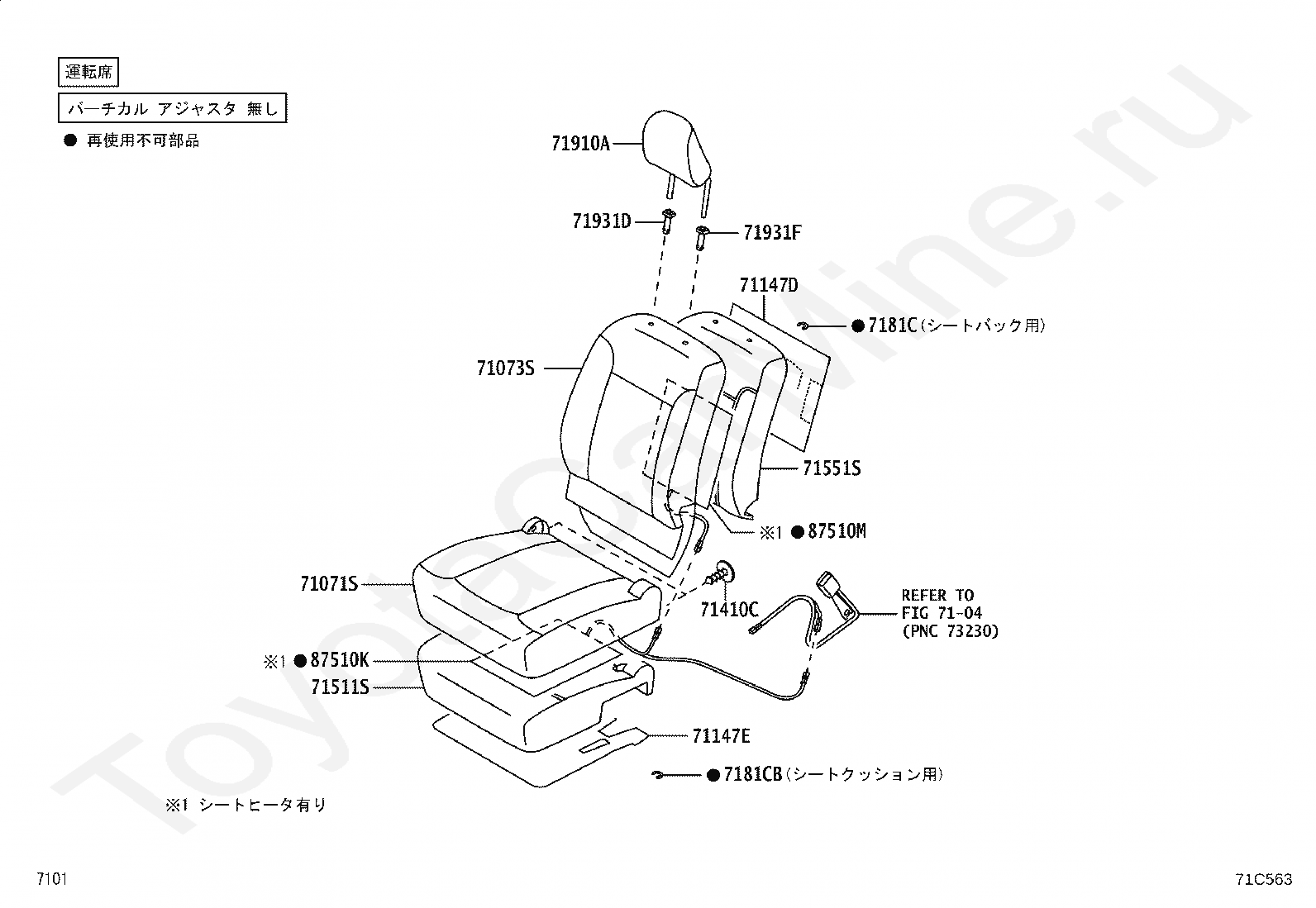

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71910A

HEADREST ASSY, FRONT SEAT

71931D

SUPPORT, FRONT SEAT HEADREST, RH

71931F

SUPPORT, FRONT SEAT HEADREST, LH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

Код

Описание

15549B4010

Крепеж

21899

BOLT, FRONT SEAT SET

7104

переход к группе запчастей

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71149B

COVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71825C

PLATE

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72637F

SPRING, SEAT BACK, RH

72637F

SPRING, SEAT BACK, RH

72809A

LOCK SUB-ASSY, CENTER ARMREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72868A

COVER, CENTER ARMREST HINGE

74808A

BOX SUB-ASSY, SEAT TRASH

9004105424

Крепеж

9004148008

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9454201400

Крепеж

Код

Описание

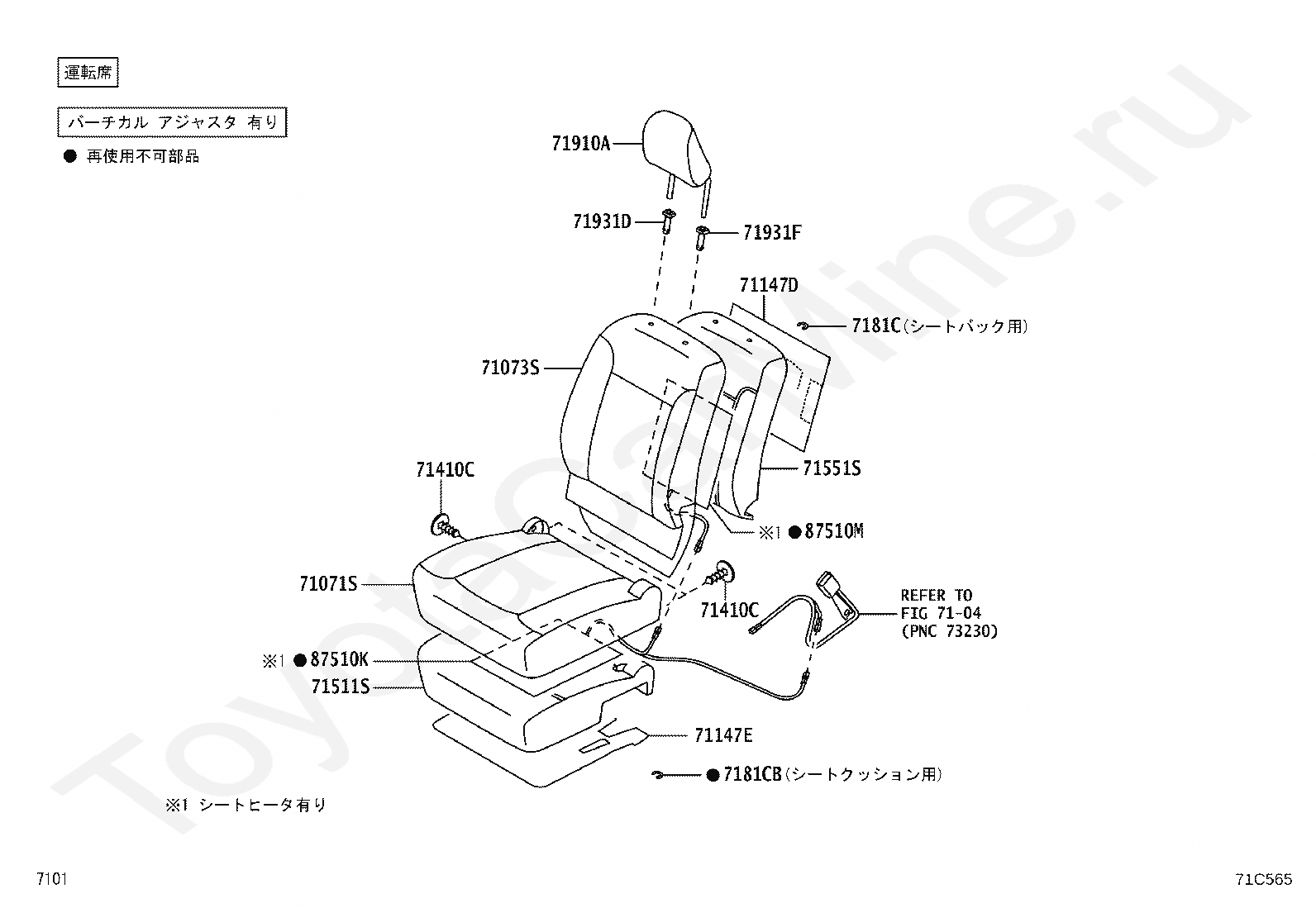

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71910A

HEADREST ASSY, FRONT SEAT

71931D

SUPPORT, FRONT SEAT HEADREST, RH

71931F

SUPPORT, FRONT SEAT HEADREST, LH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

Код

Описание

15549B4010

Крепеж

21899

BOLT, FRONT SEAT SET

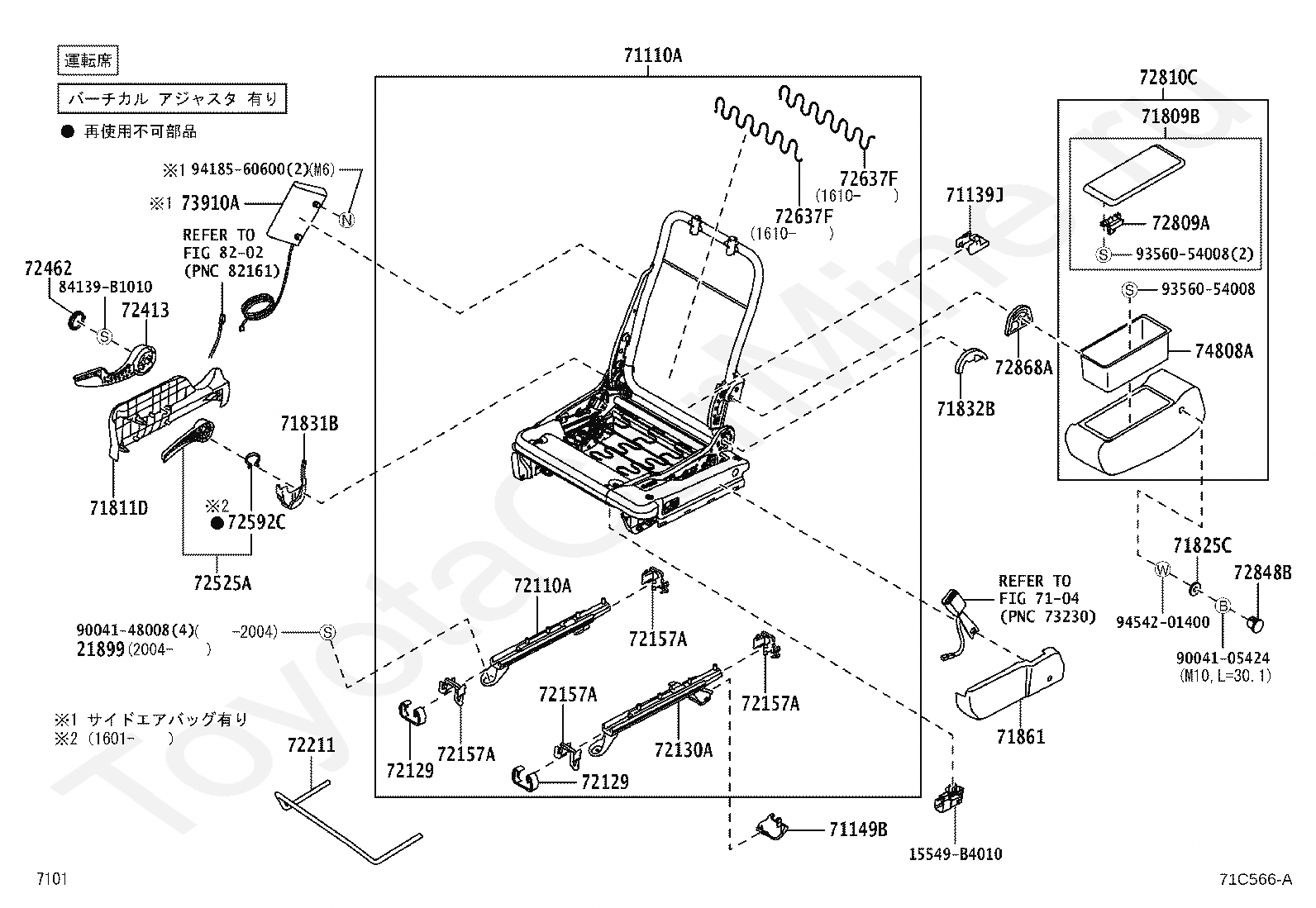

7104

переход к группе запчастей

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71149B

COVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71825C

PLATE

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

72637F

SPRING, SEAT BACK, RH

72637F

SPRING, SEAT BACK, RH

72809A

LOCK SUB-ASSY, CENTER ARMREST

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72848B

CAP, SEAT ARMREST, NO.1

72868A

COVER, CENTER ARMREST HINGE

73910A

AIR BAG ASSY, FRONT SEAT, RH

74808A

BOX SUB-ASSY, SEAT TRASH

8202

переход к группе запчастей

84139B1010

Крепеж

9004105424

Крепеж

9004148008

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9418560600

Крепеж

9454201400

Крепеж

Код

Описание

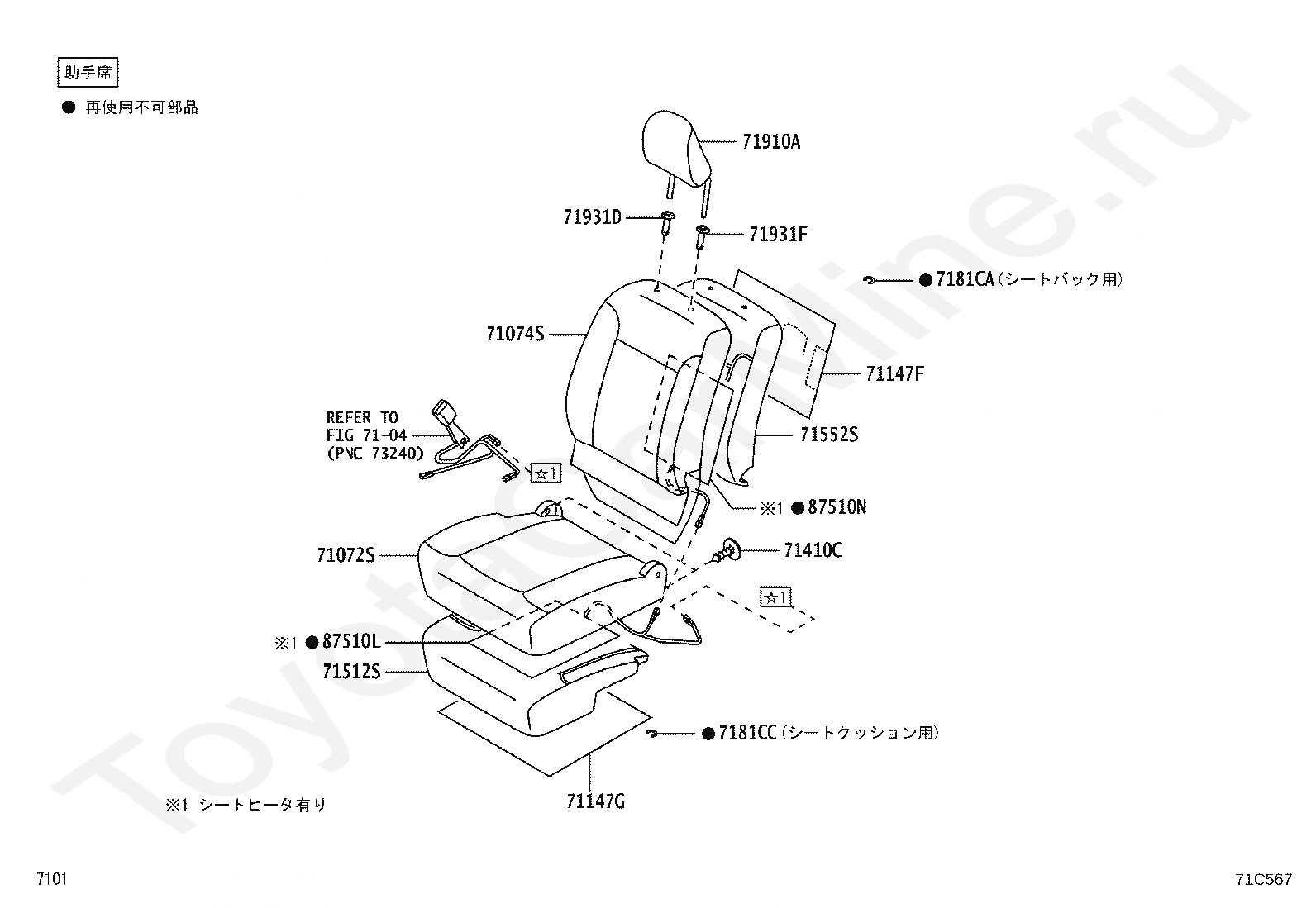

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71910A

HEADREST ASSY, FRONT SEAT

71931D

SUPPORT, FRONT SEAT HEADREST, RH

71931F

SUPPORT, FRONT SEAT HEADREST, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

Код

Описание

15549B4010

Крепеж

21899

BOLT, FRONT SEAT SET

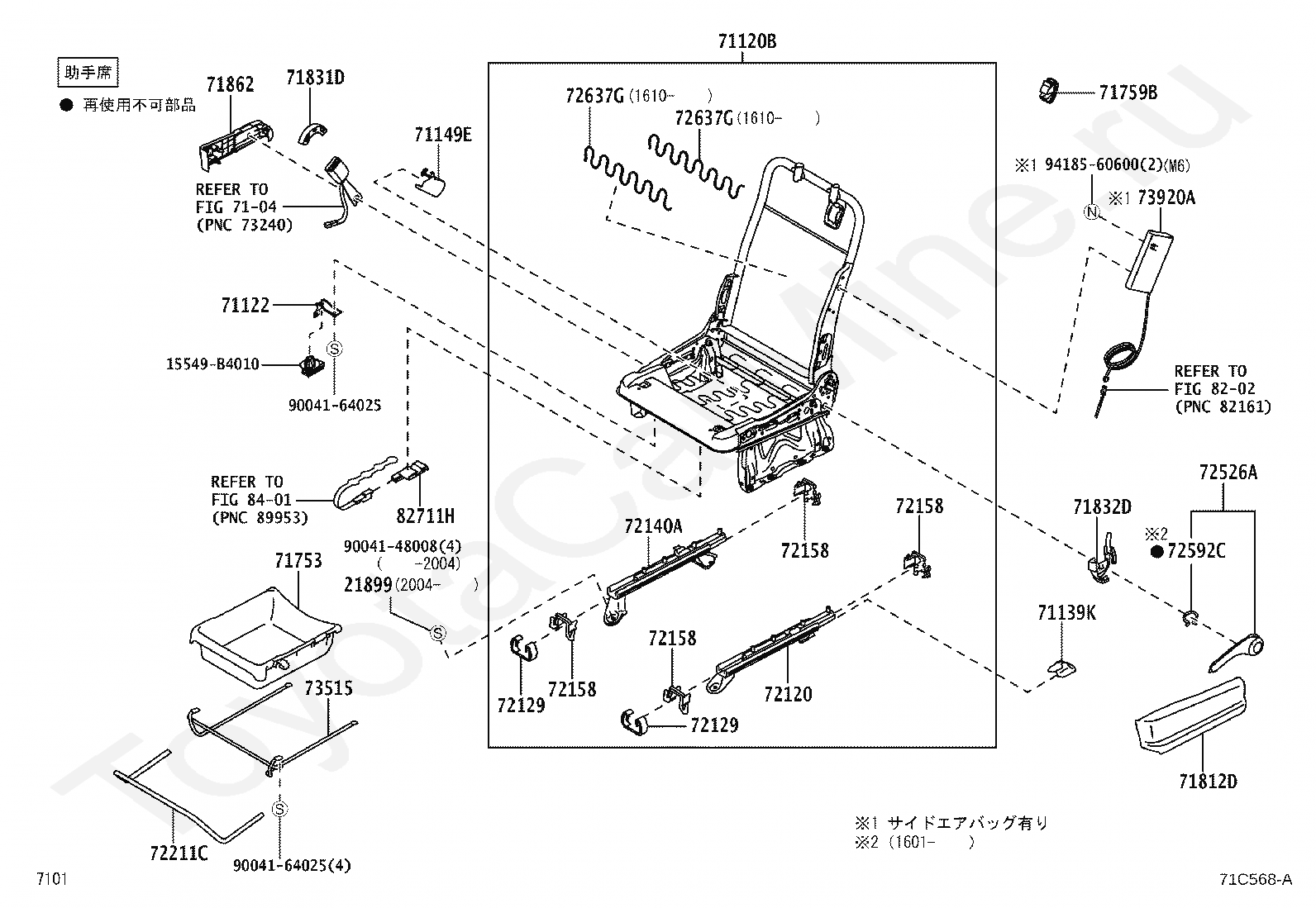

7104

переход к группе запчастей

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71139K

COVER, FRONT SEAT LEG, LH(FOR LH SEAT)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72592C

RING, SHAFT SNAP

72637G

SPRING, SEAT BACK, LH

72637G

SPRING, SEAT BACK, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

9004148008

Крепеж

9004164025

Крепеж

9004164025

Крепеж

9418560600

Крепеж
