Каталог

Япония

Модель

PIXIS JOY

VIN

Дата

2017/10

Двигатель

0,66 литра

Класс

FX

Фрейм

LA250A

КПП

вариатор

Опции

двухколесный привод PS2 D01H

Боковая панель кузова TOYOTA PIXIS JOY

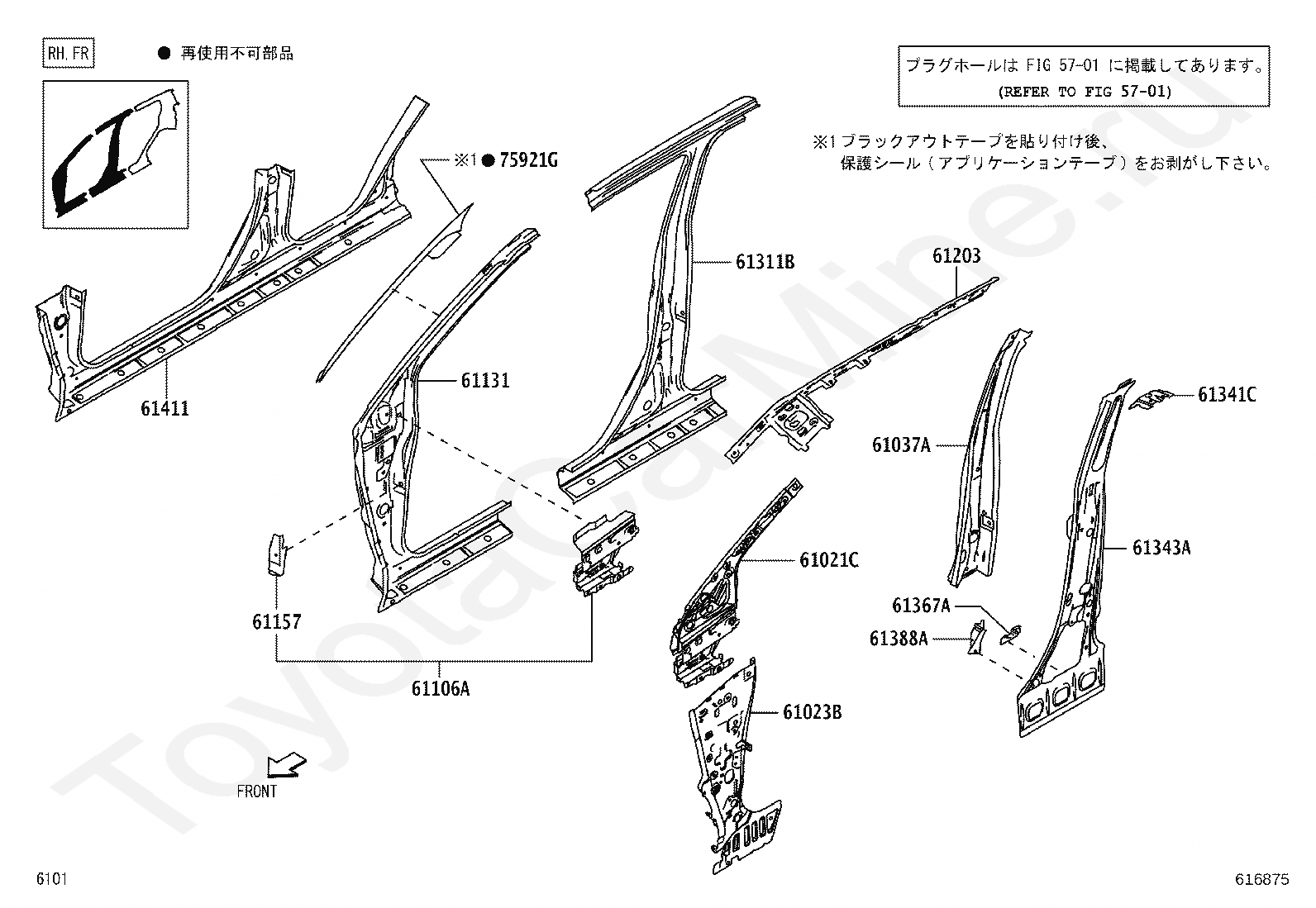

Код

Описание

5701

переход к группе запчастей

61021C

PILLAR SUB-ASSY, FRONT BODY, RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61106A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61157

BRACKET, NO.2 SIDE PANEL

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61341C

PILLAR, CENTER BODY, INNER UPPER RH

61343A

PILLAR, CENTER BODY, INNER RH

61367A

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

61388A

PLATE, CENTER BODY PILLAR END, RH

61411

PANEL, ROCKER, OUTER RH

75921G

TAPE, BLACK OUT, NO.1 RH

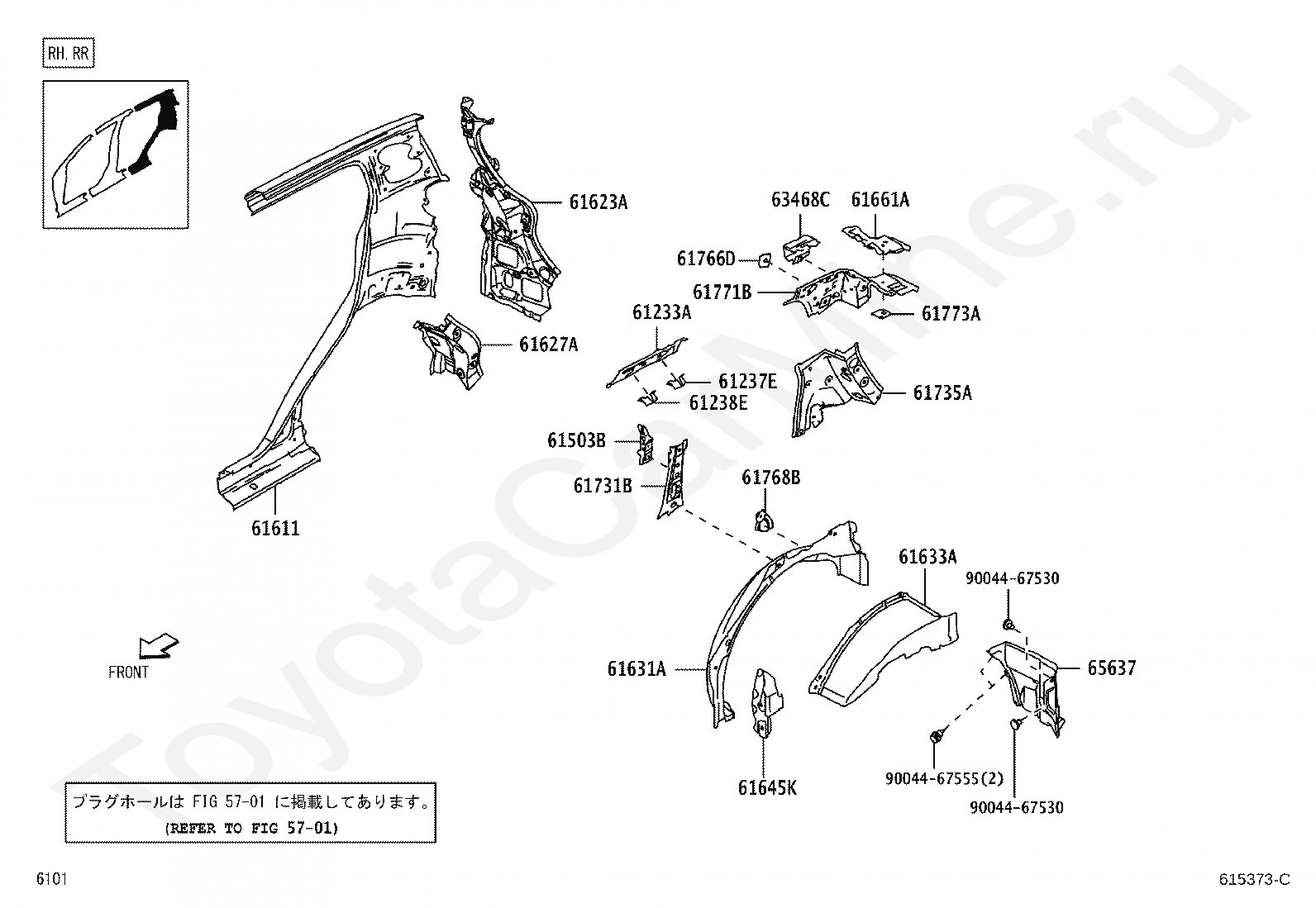

Код

Описание

5701

переход к группе запчастей

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61237E

BRACKET, ASSIST GRIP, NO.1

61238E

BRACKET, ASSIST GRIP, NO.2

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61611

PANEL, QUARTER, RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61627A

EXTENSION, QUARTER PANEL, LOWER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61661A

EXTENSION, QUARTER PANEL TO UPPER BACK, RH

61731B

PANEL, ROOF SIDE, INNER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61766D

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

61771B

FRAME, BACK DOOR OPENING UPPER CORNER, RH

61773A

PATCH, BACK DOOR OPENING, LOWER RH

63468C

BRACKET, ROOF RACK, REAR RH

65637

LINER, REAR WHEEL HOUSE, RH

9004467530

Крепеж

9004467530

Крепеж

9004467555

Крепеж

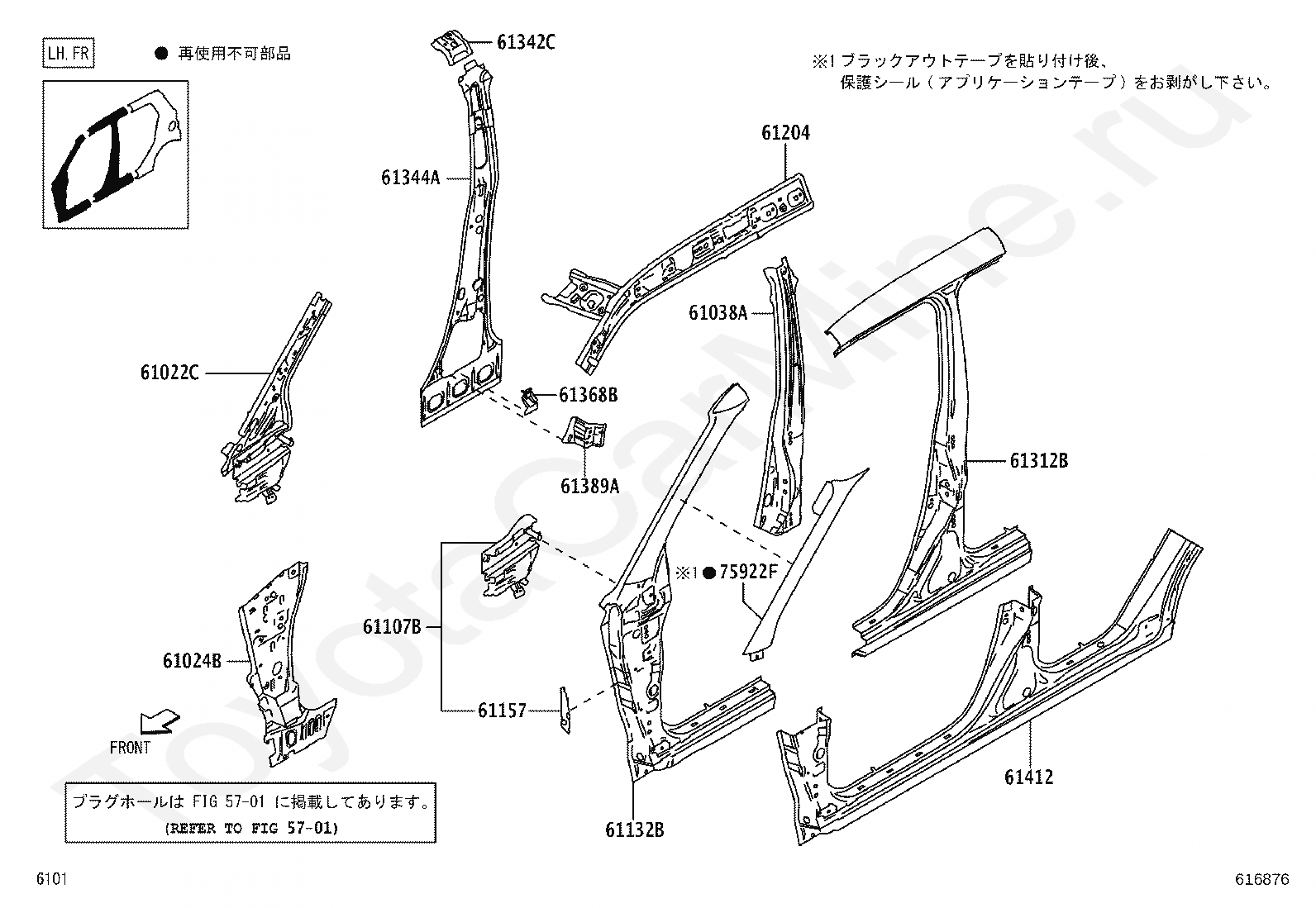

Код

Описание

5701

переход к группе запчастей

61022C

PILLAR SUB-ASSY, FRONT BODY, LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61107B

REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61157

BRACKET, NO.2 SIDE PANEL

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61312B

PILLAR, CENTER BODY, OUTER LH

61342C

PILLAR, CENTER BODY, INNER UPPER LH

61344A

PILLAR, CENTER BODY, INNER LH

61368B

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

61389A

PLATE, CENTER BODY PILLAR END, LH

61412

PANEL, ROCKER, OUTER LH

75922F

TAPE, BLACK OUT, NO.1 LH

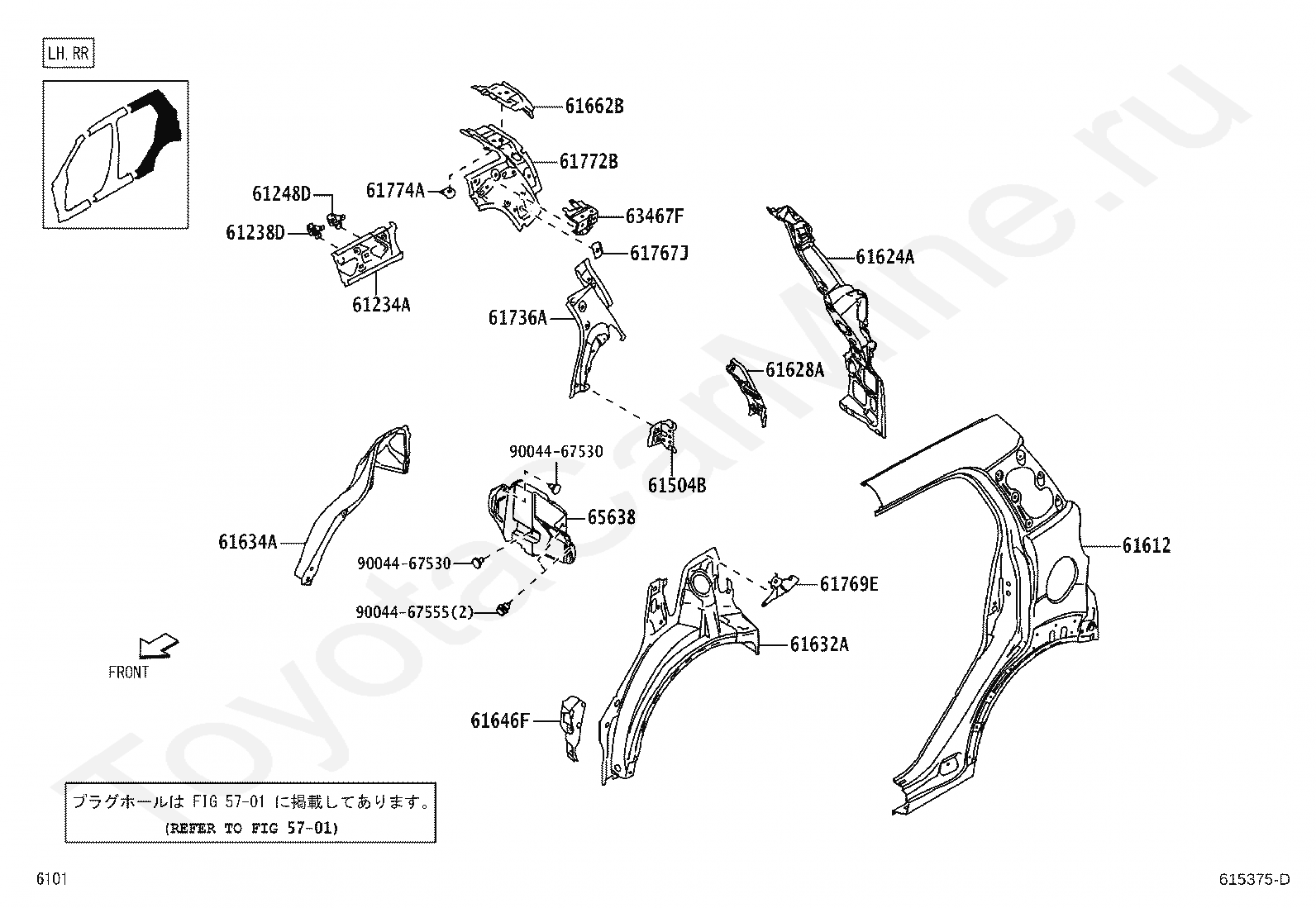

Код

Описание

5701

переход к группе запчастей

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61238D

BRACKET, ASSIST GRIP, NO.2 LH

61248D

BRACKET, ASSIST GRIP, LH

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61612

PANEL, QUARTER, LH

61624A

EXTENSION, QUARTER PANEL, OUTER LH

61628A

EXTENSION, QUARTER PANEL, LOWER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61662B

EXTENSION, QUARTER PANEL TO UPPER BACK, LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61767J

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH

61769E

REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH

61772B

FRAME, BACK DOOR OPENING UPPER CORNER, LH

61774A

PATCH, BACK DOOR OPENING, LOWER LH

63467F

BRACKET, ROOF RACK, REAR RH

65638

LINER, REAR WHEEL HOUSE, LH

9004467530

Крепеж

9004467530

Крепеж

9004467555

Крепеж
