Каталог

Япония

Модель

PIXIS JOY

VIN

Дата

2017/10

Двигатель

0,66 литра

Класс

FX

Фрейм

LA250A

КПП

вариатор

Опции

двухколесный привод PS2 D01H

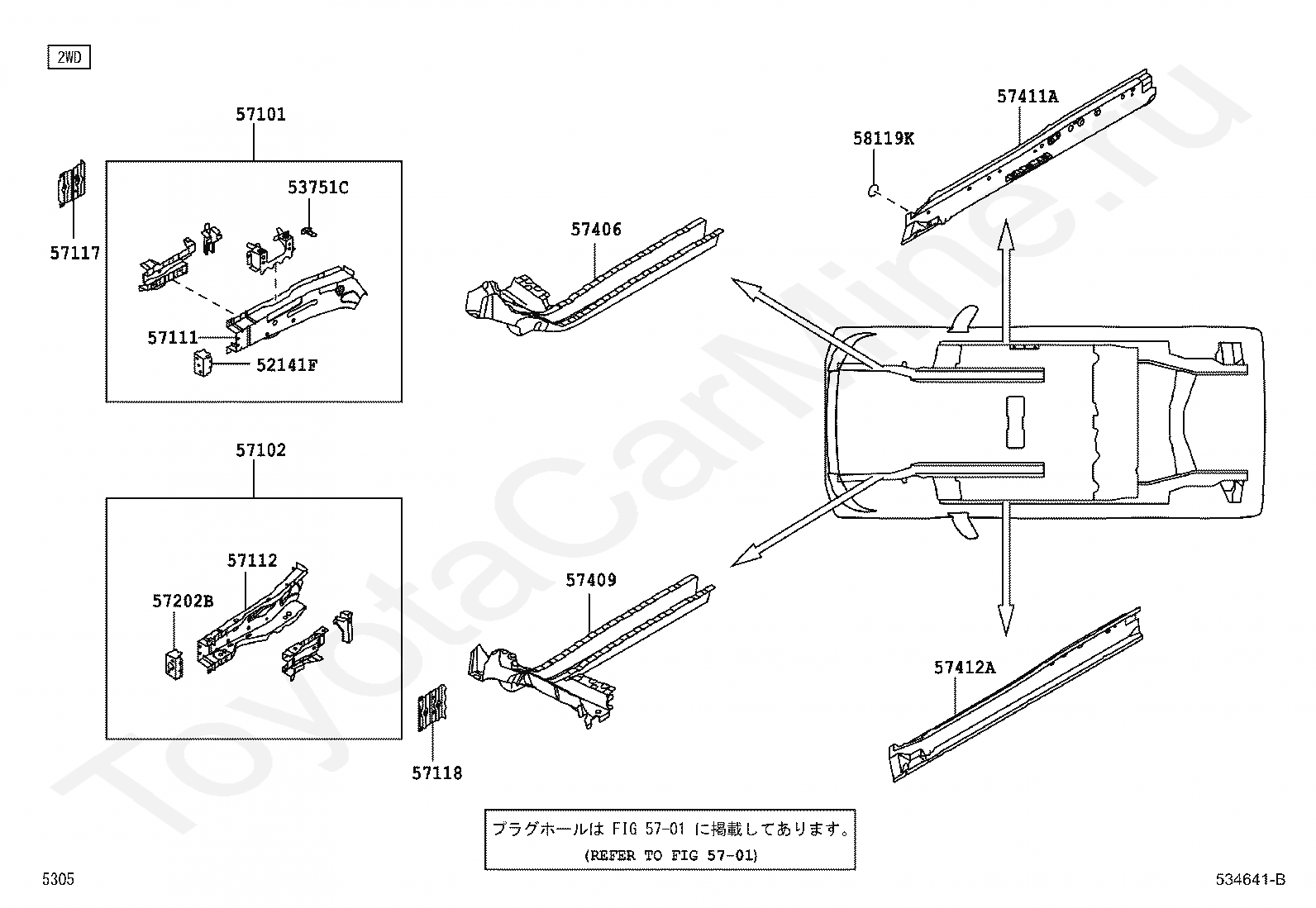

FLOOR SIDE MEMBER TOYOTA PIXIS JOY

Код

Описание

52141F

ARM, FRONT BUMPER, RH

53751C

BRACKET, CHARCOAL CANISTER MOUNTING

5701

переход к группе запчастей

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57117

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

57118

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

57202B

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57406

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57409

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

58119K

COVER, FRONT FLOOR SIDE, FRONT

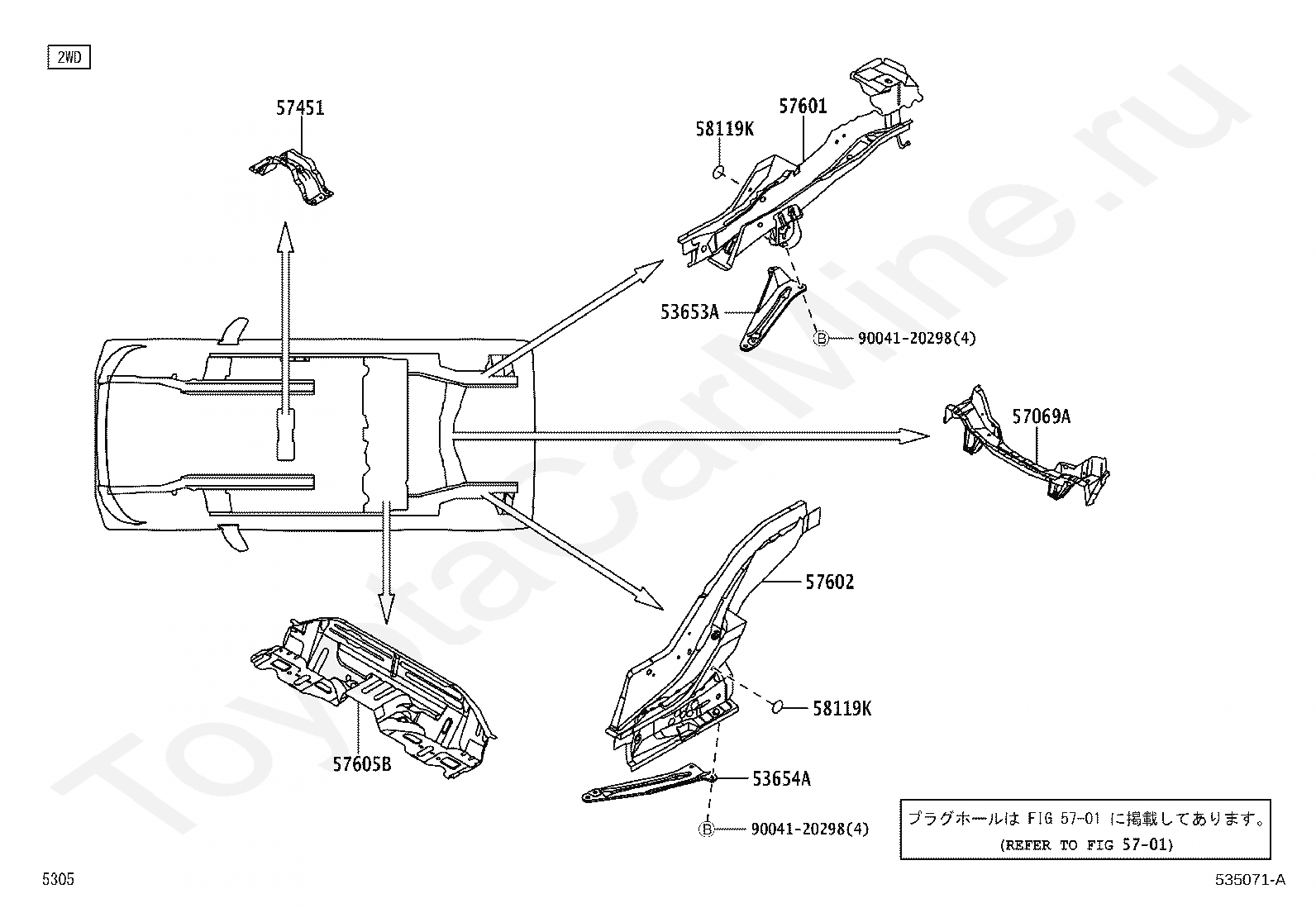

Код

Описание

53653A

BRACE, REAR SUSPENSION, LOWER RH

53654A

BRACE, REAR SUSPENSION, LOWER LH

5701

переход к группе запчастей

57069A

MEMBER, REAR FLOOR, CENTER

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57605B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

58119K

COVER, FRONT FLOOR SIDE, FRONT

58119K

COVER, FRONT FLOOR SIDE, FRONT

9004120298

Крепеж

9004120298

Крепеж
