Япония

Модель

PIXIS EPOCH

VIN

Дата

2017/05

Двигатель

0,66 литра

Класс

L TYPE

Фрейм

LA350A

КПП

вариатор

Опции

двухколесный привод 5 дверей D08H

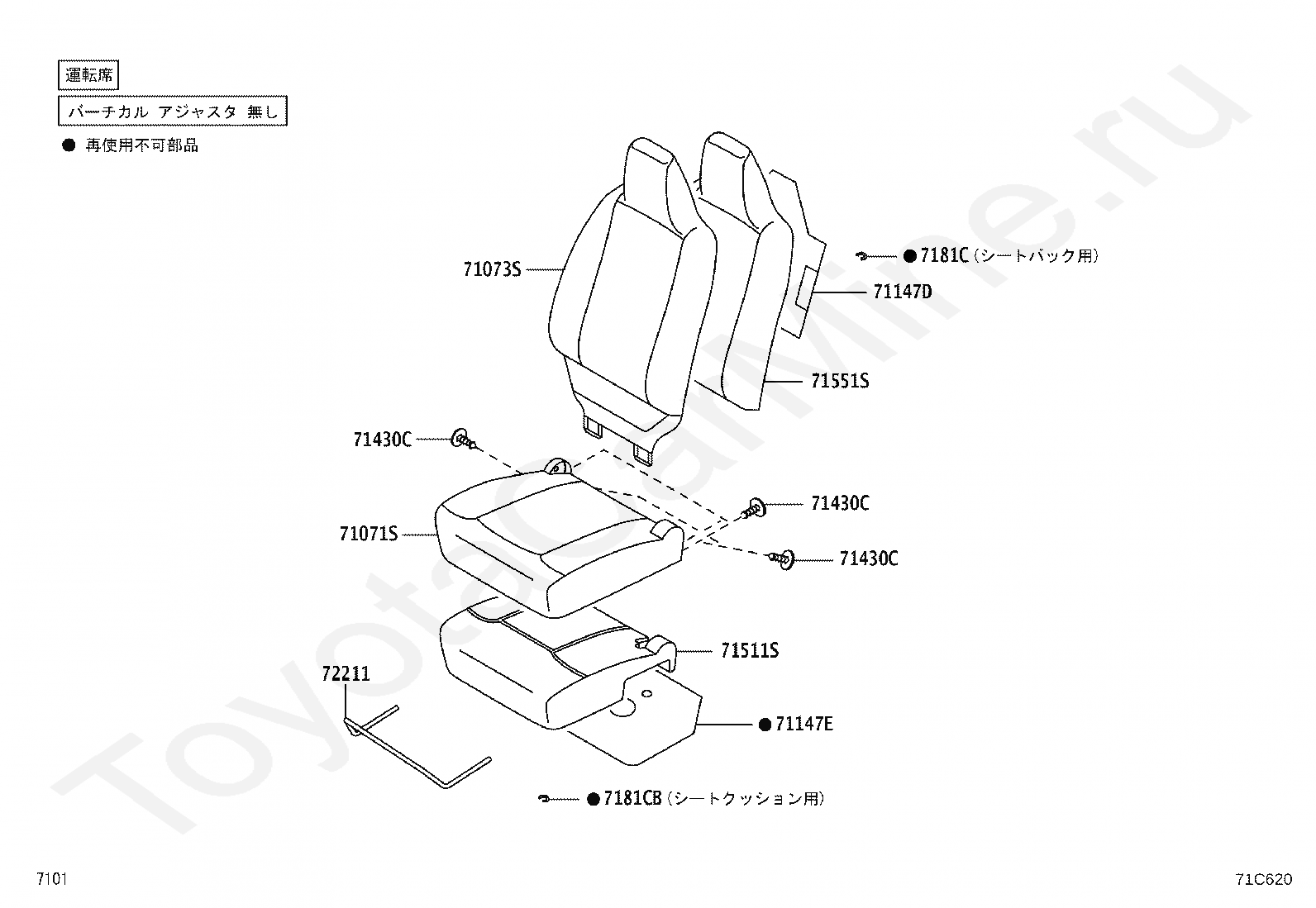

Передние кресла TOYOTA PIXIS EPOCH

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71430C

CLIP

71430C

CLIP

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

72211

HANDLE, SEAT TRACK ADJUSTING

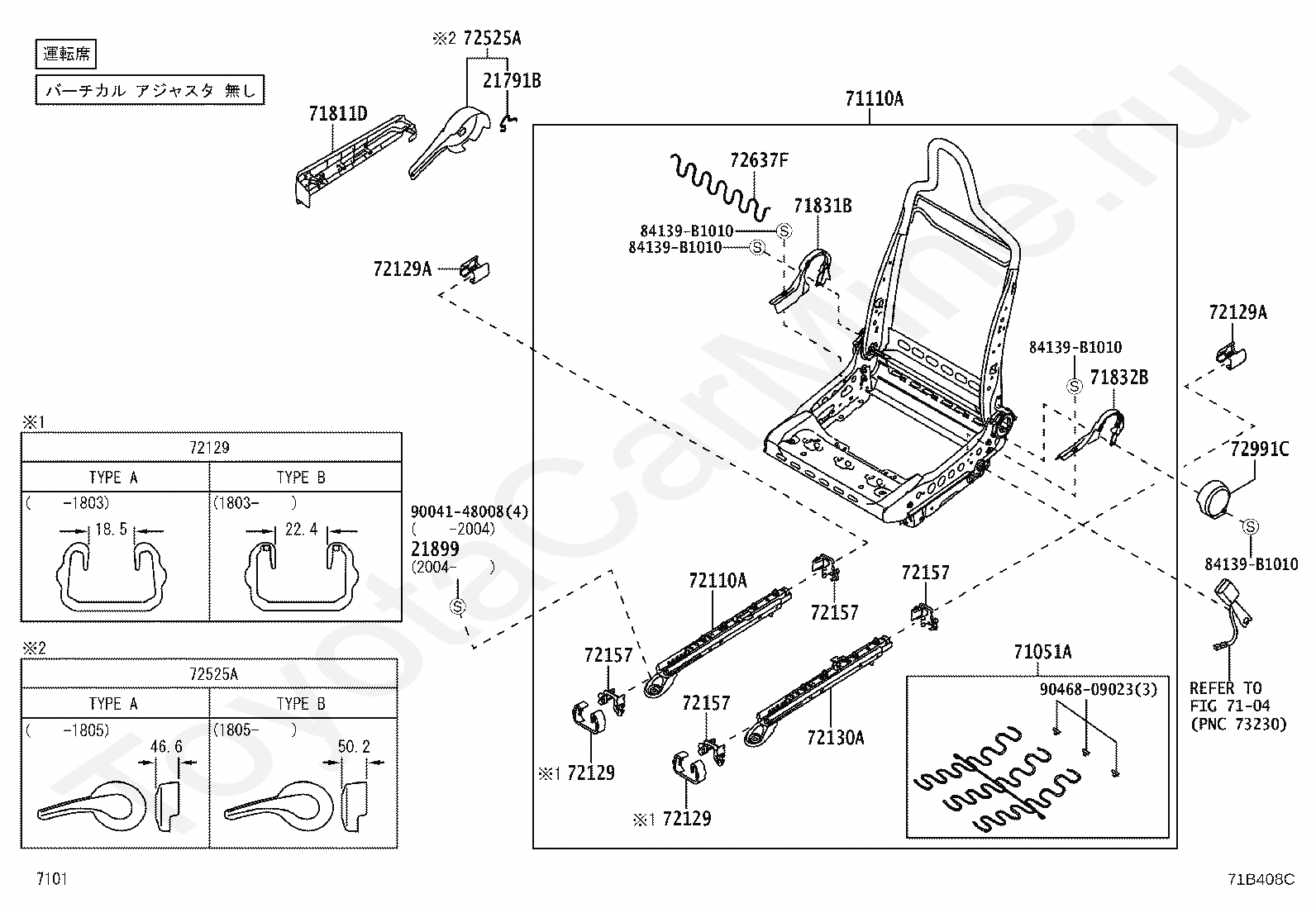

Код

Описание

21791B

RING, SNAP

21899

BOLT, FRONT SEAT SET

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72637F

SPRING, SEAT BACK, RH

72991C

COVER, FRONT SEAT

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

9004148008

Крепеж

9046809023

Крепеж

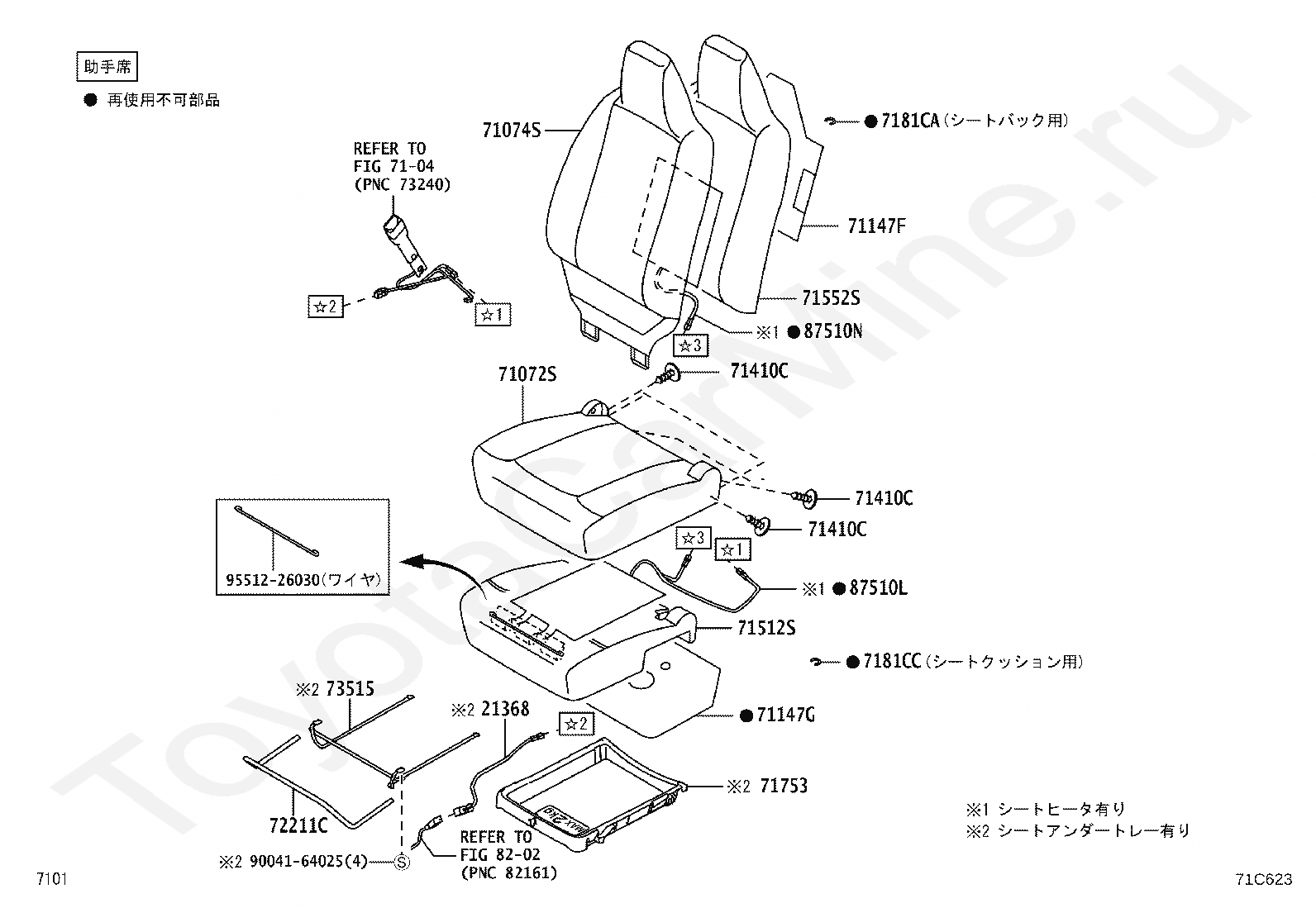

Код

Описание

21368

HARNESS

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

72211C

HANDLE, SEAT TRACK ADJUSTING

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

8202

переход к группе запчастей

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9004164025

Крепеж

9551226030

Крепеж

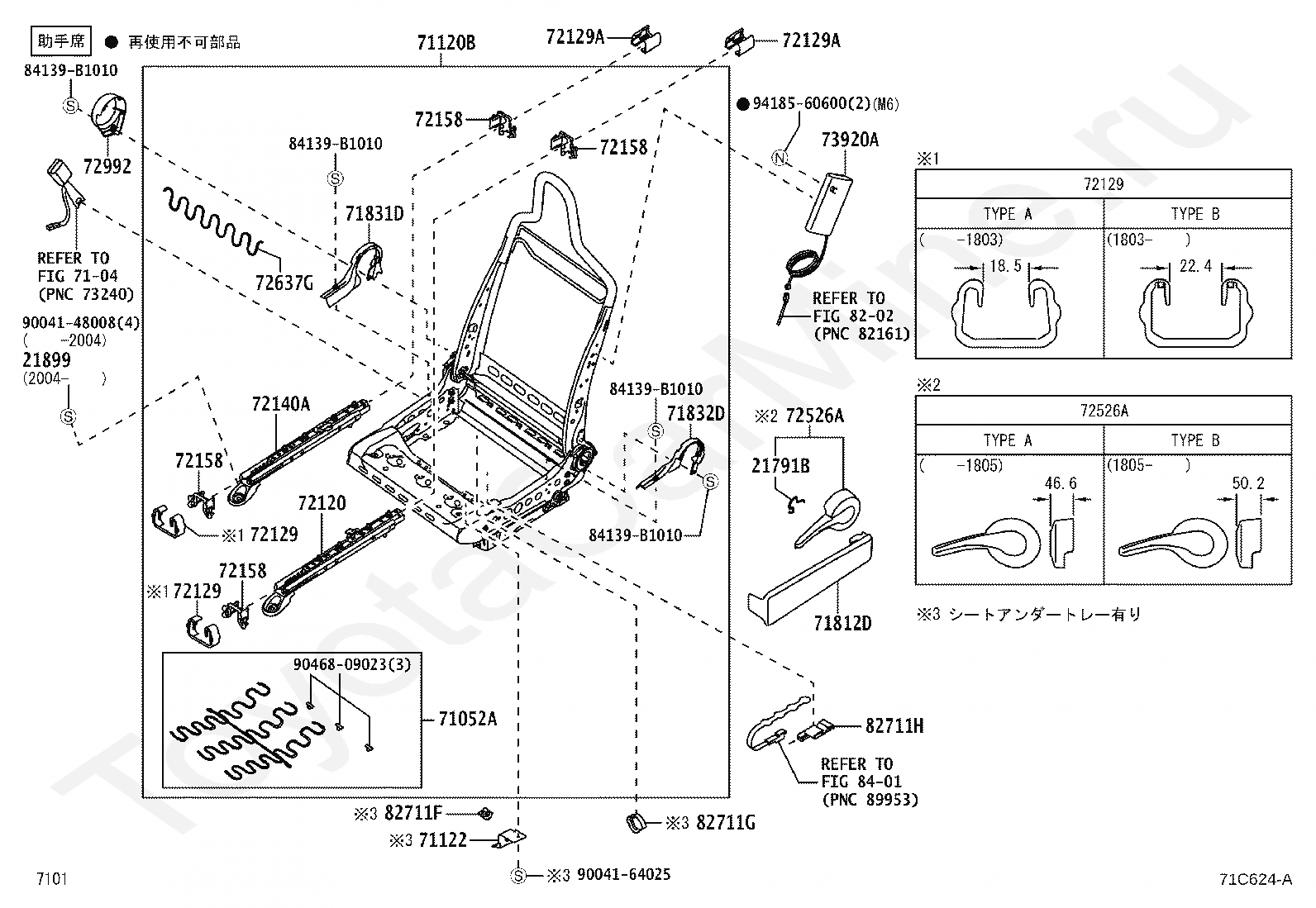

Код

Описание

21791B

RING, SNAP

21899

BOLT, FRONT SEAT SET

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

72992

COVER, FRONT SEAT CUSHION, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82711F

CLAMP, WIRING HARNESS

82711G

CLAMP, WIRING HARNESS

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

84139B1010

Крепеж

9004148008

Крепеж

9004164025

Крепеж

9046809023

Крепеж

9418560600

Крепеж

Передние кресла TOYOTA PIXIS EPOCH
