Ходовые запчасти

Каталог

Япония

Модель

PIXIS EPOCH

VIN

Дата

2017/05

Двигатель

0,66 литра

Класс

L TYPE

Фрейм

LA350A

КПП

вариатор

Опции

двухколесный привод 5 дверей D08H

Боковая панель кузова TOYOTA PIXIS EPOCH

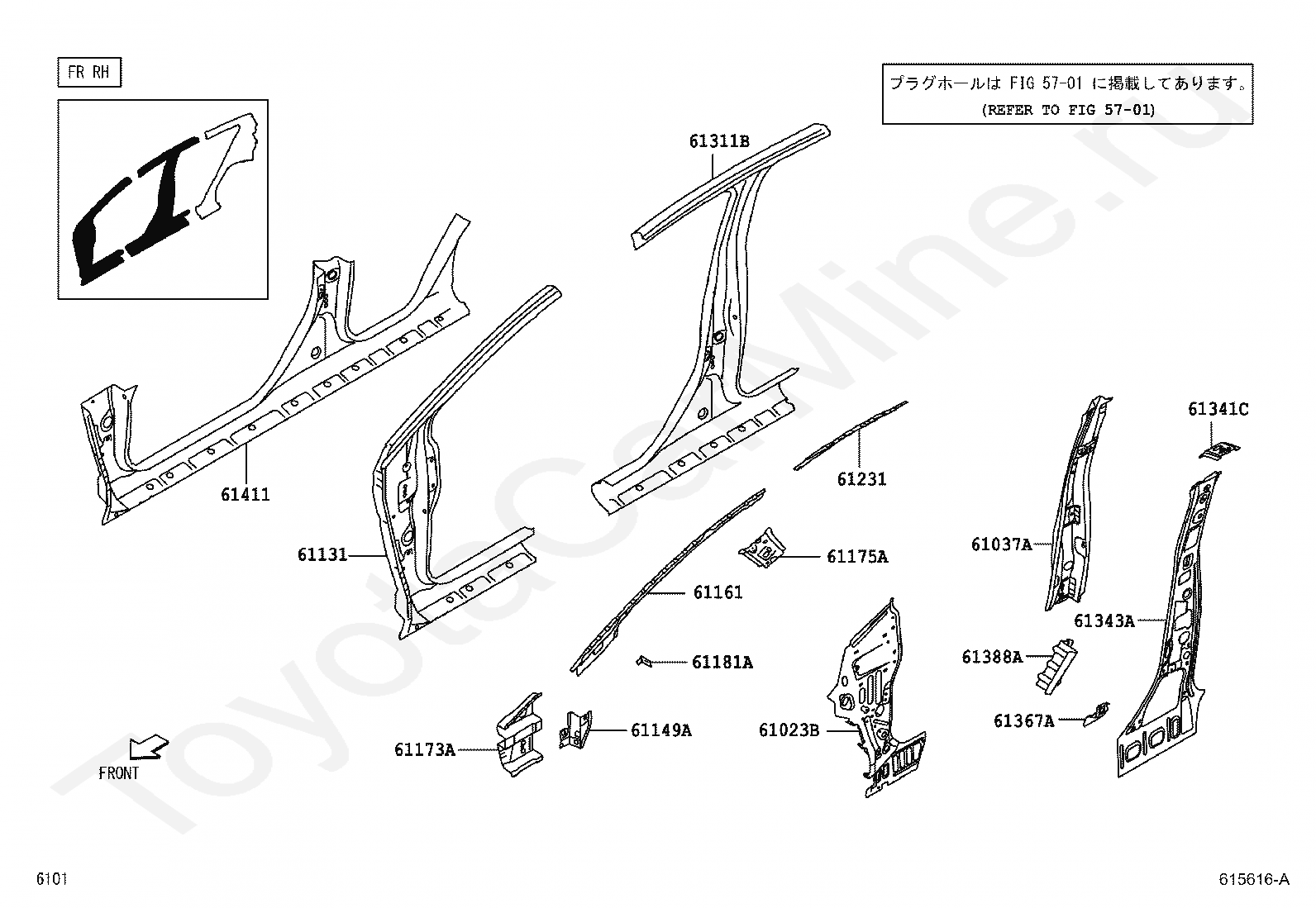

Код

Описание

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61149A

REINFORCEMENT, FRONT DOOR CHECK, RH

61161

PILLAR, FRONT BODY, UPPER INNER RH

61173A

REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH

61175A

REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

61181A

BRACKET, INSTRUMENT SIDE, RH

61231

RAIL, ROOF SIDE, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61341C

PILLAR, CENTER BODY, INNER UPPER RH

61343A

PILLAR, CENTER BODY, INNER RH

61367A

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

61388A

PLATE, CENTER BODY PILLAR END, RH

61411

PANEL, ROCKER, OUTER RH

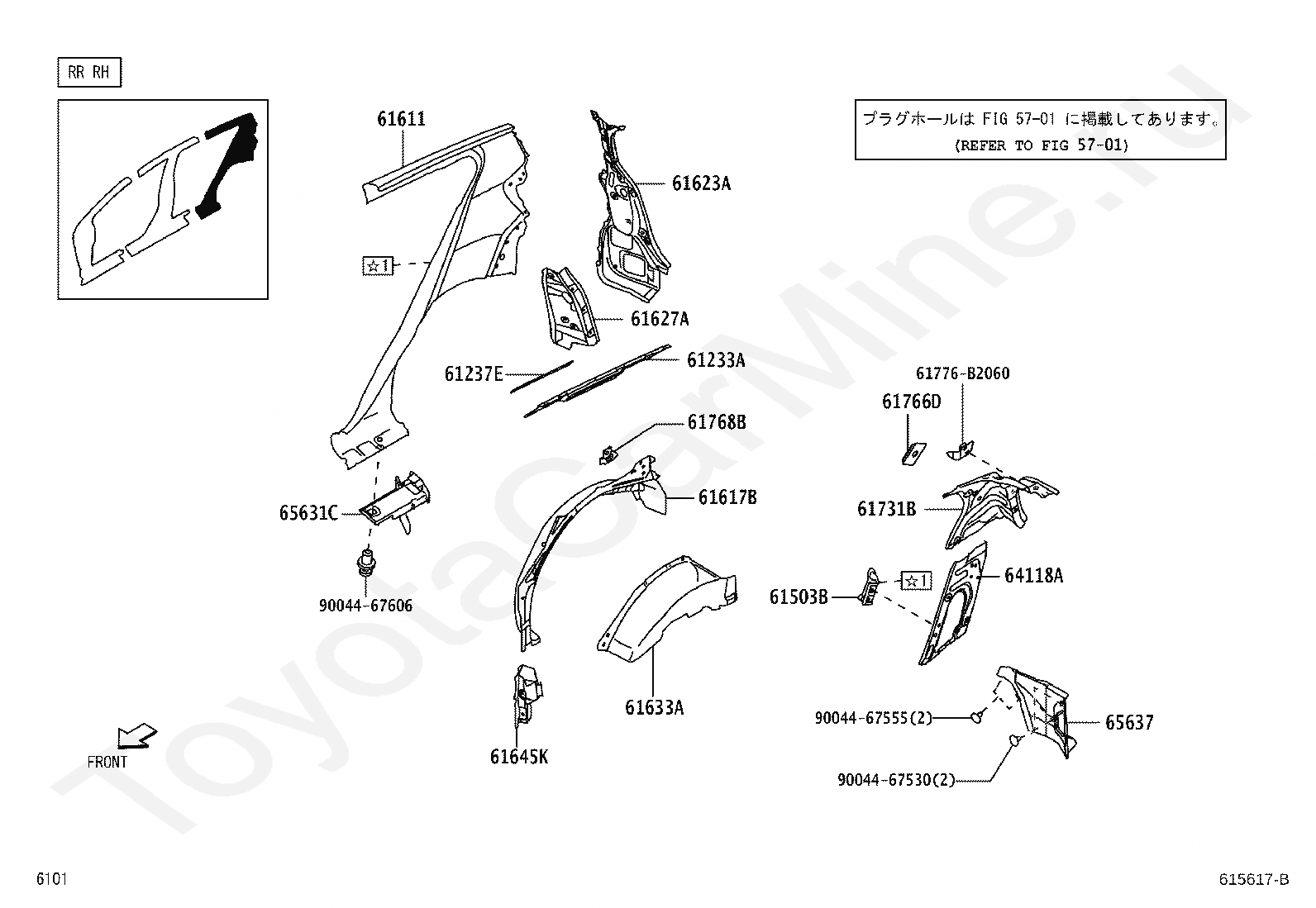

Код

Описание

5701

переход к группе запчастей

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61237E

BRACKET, ASSIST GRIP, NO.1

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61611

PANEL, QUARTER, RH

61617B

PANEL, QUARTER INNER, LOWER RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61627A

EXTENSION, QUARTER PANEL, LOWER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61731B

PANEL, ROOF SIDE, INNER RH

61766D

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

61776B2060

Крепеж

64118A

REINFORCEMENT, UPPER BACK, NO.4 RH

65631C

PLATE, REAR WHEEL HOUSE, FRONT RH

65637

LINER, REAR WHEEL HOUSE, RH

9004467530

Крепеж

9004467555

Крепеж

9004467606

Крепеж

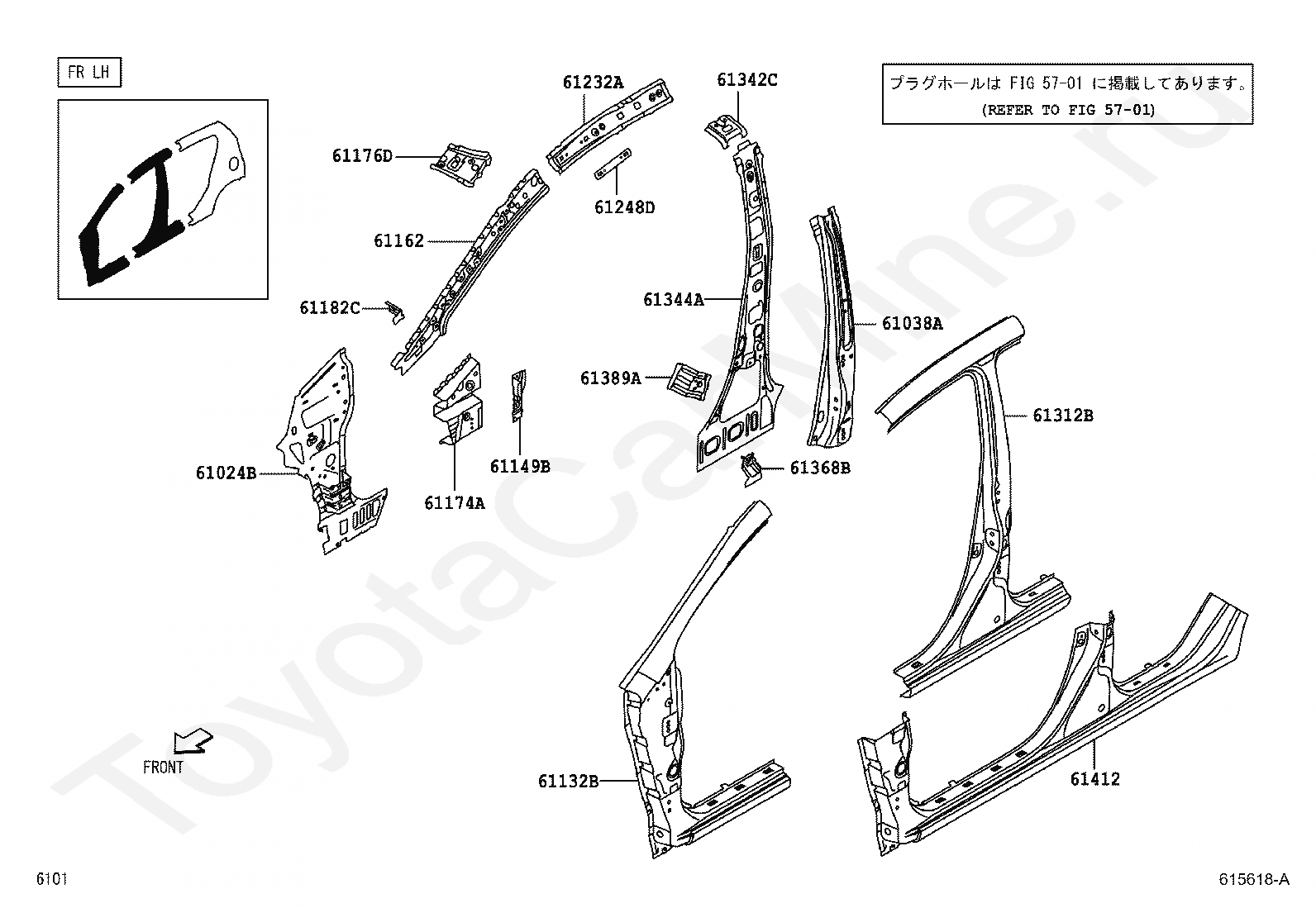

Код

Описание

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61132B

PILLAR, FRONT BODY, OUTER LH

61149B

REINFORCEMENT, FRONT DOOR CHECK, LH

61162

PILLAR, FRONT BODY, UPPER INNER LH

61174A

REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

61176D

REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

61182C

BRACKET, INSTRUMENT SIDE, LH

61232A

RAIL, ROOF SIDE, INNER LH

61248D

BRACKET, ASSIST GRIP, LH

61312B

PILLAR, CENTER BODY, OUTER LH

61342C

PILLAR, CENTER BODY, INNER UPPER LH

61344A

PILLAR, CENTER BODY, INNER LH

61368B

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

61389A

PLATE, CENTER BODY PILLAR END, LH

61412

PANEL, ROCKER, OUTER LH

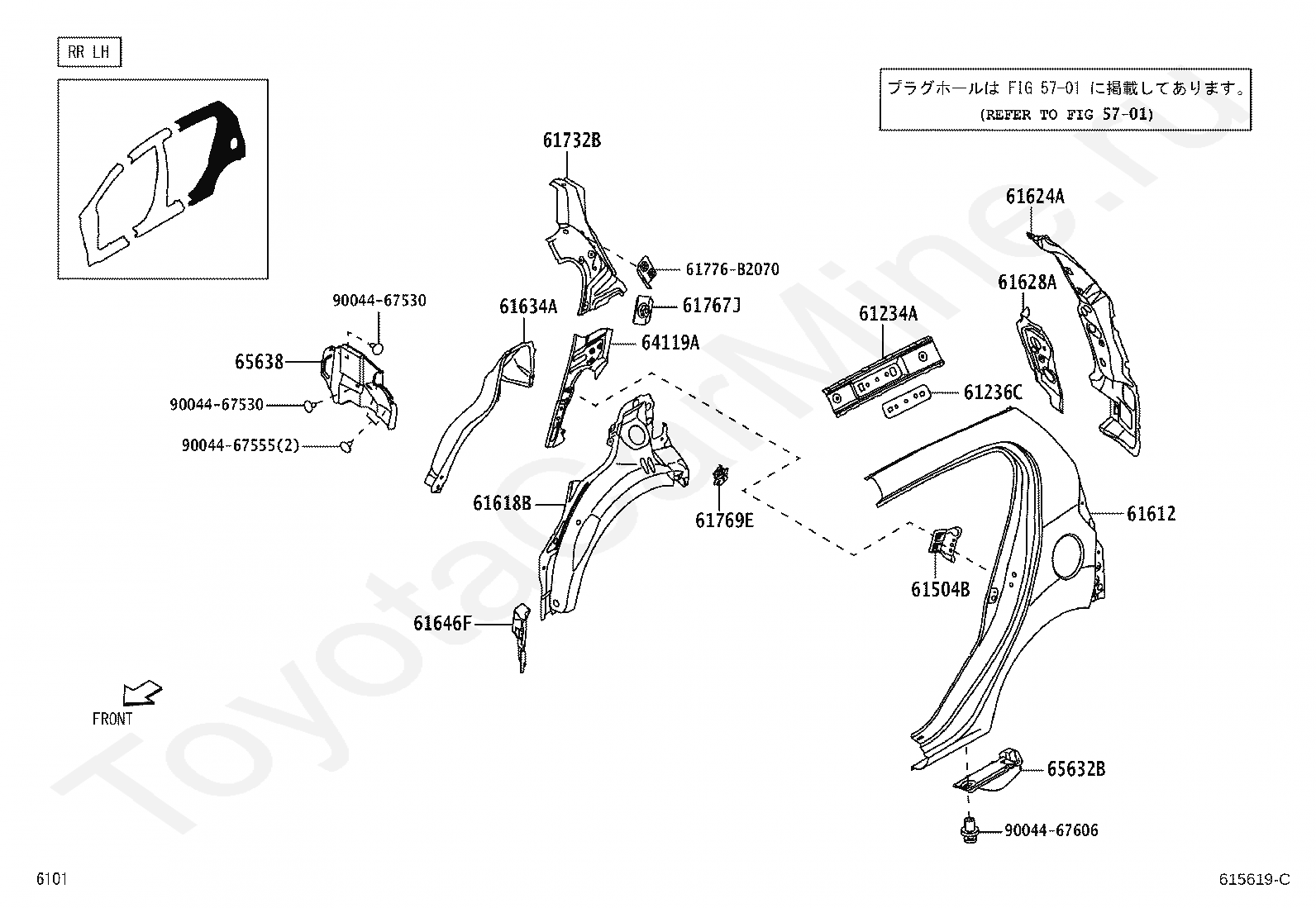

Код

Описание

5701

переход к группе запчастей

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61236C

BRACKET, ASSIST GRIP

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61612

PANEL, QUARTER, LH

61618B

PANEL, QUARTER, INNER LOWER LH

61624A

EXTENSION, QUARTER PANEL, OUTER LH

61628A

EXTENSION, QUARTER PANEL, LOWER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61732B

PANEL, ROOF SIDE, INNER LH

61767J

REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH

61769E

REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH

61776B2070

Крепеж

64119A

REINFORCEMENT, UPPER BACK, NO.4 LH

65632B

PLATE, REAR WHELL HOUSE, FRONT LH

65638

LINER, REAR WHEEL HOUSE, LH

9004467530

Крепеж

9004467530

Крепеж

9004467555

Крепеж

9004467606

Крепеж
