Япония

Модель

PIXIS EPOCH

VIN

Дата

2017/05

Двигатель

0,66 литра

Класс

L TYPE

Фрейм

LA350A

КПП

вариатор

Опции

двухколесный привод 5 дверей D08H

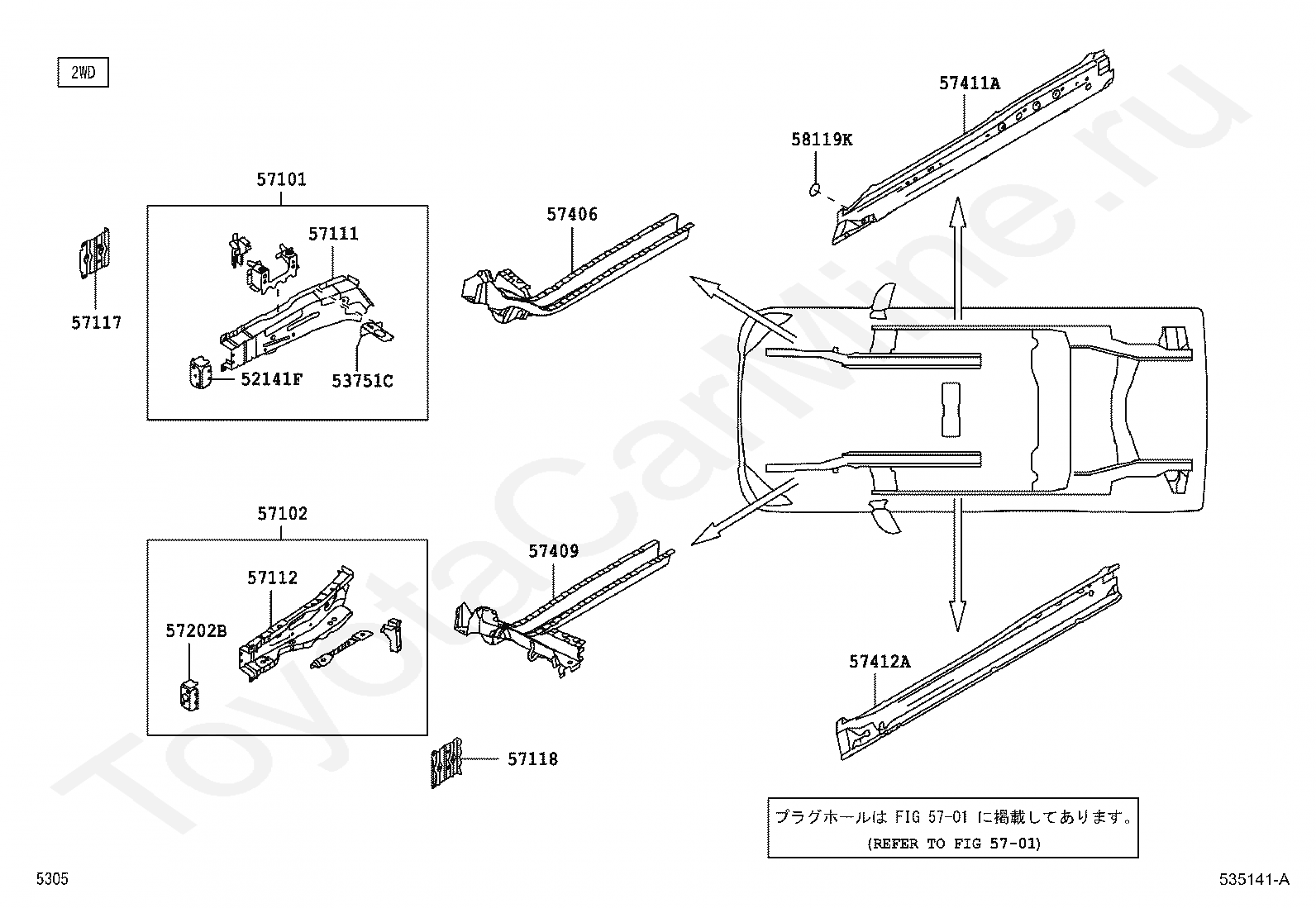

FLOOR SIDE MEMBER TOYOTA PIXIS EPOCH

Код

Описание

52141F

ARM, FRONT BUMPER, RH

53751C

BRACKET, CHARCOAL CANISTER MOUNTING

5701

переход к группе запчастей

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57117

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

57118

PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

57202B

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57406

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57409

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57411A

MEMBER, FLOOR SIDE, INNER RH

57412A

MEMBER, FLOOR SIDE, INNER LH

58119K

COVER, FRONT FLOOR SIDE, FRONT

Код

Описание

5701

переход к группе запчастей

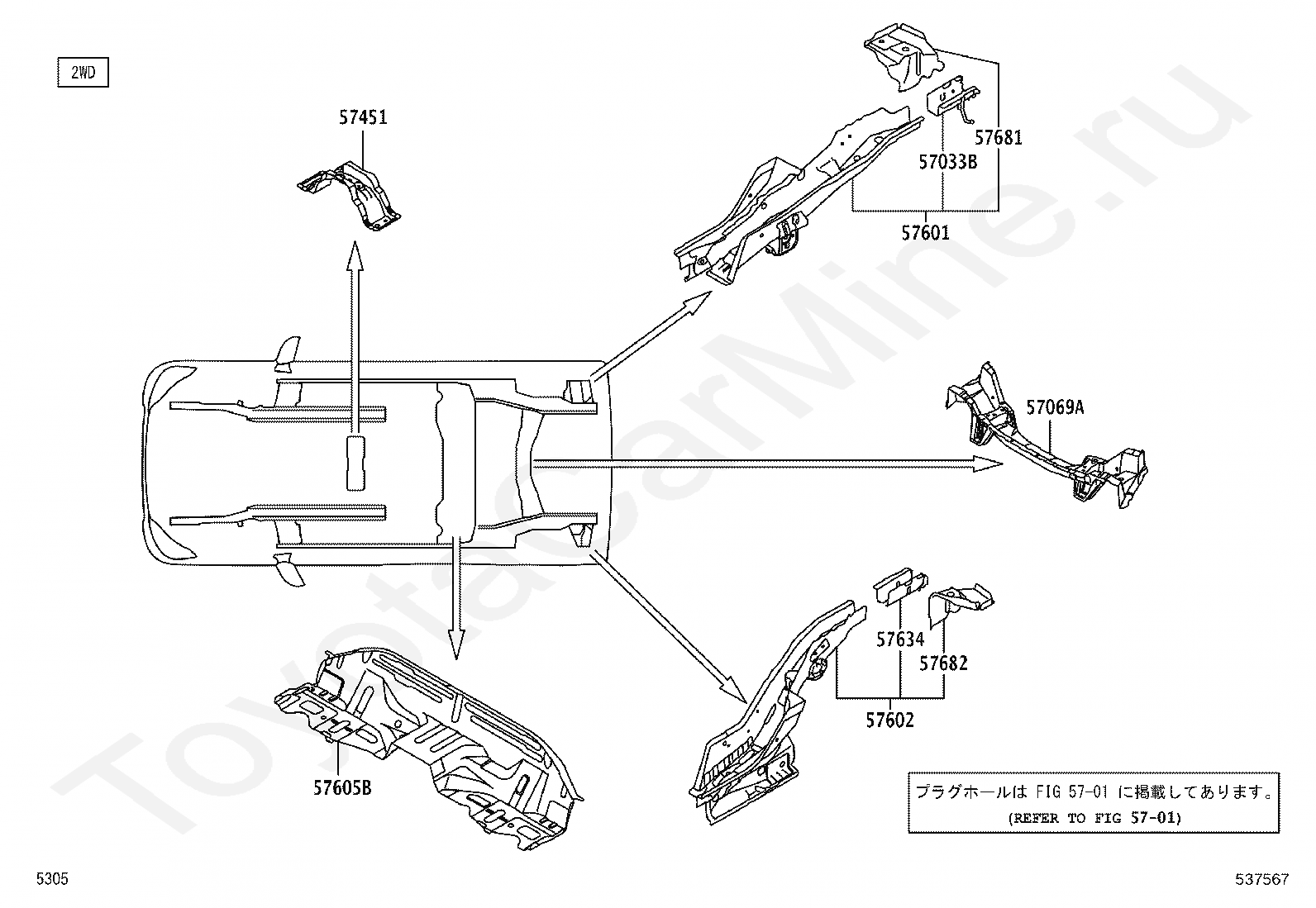

57033B

BRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 RH

57069A

MEMBER, REAR FLOOR, CENTER

57451

MEMBER, FRONT FLOOR CROSS

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57605B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57634

EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

57681

BRACKET, REAR SHOCK ABSORBER, RH

57682

BRACKET, REAR SHOCK ABSORBER, LH
