Ходовые запчасти

Каталог

Япония

Модель

PIXIS EPOCH

VIN

Дата

2012/04

Двигатель

0,66 литра

Класс

X TYPE

Фрейм

LA300A

КПП

вариатор

Опции

двухколесный привод 5 дверей D65G

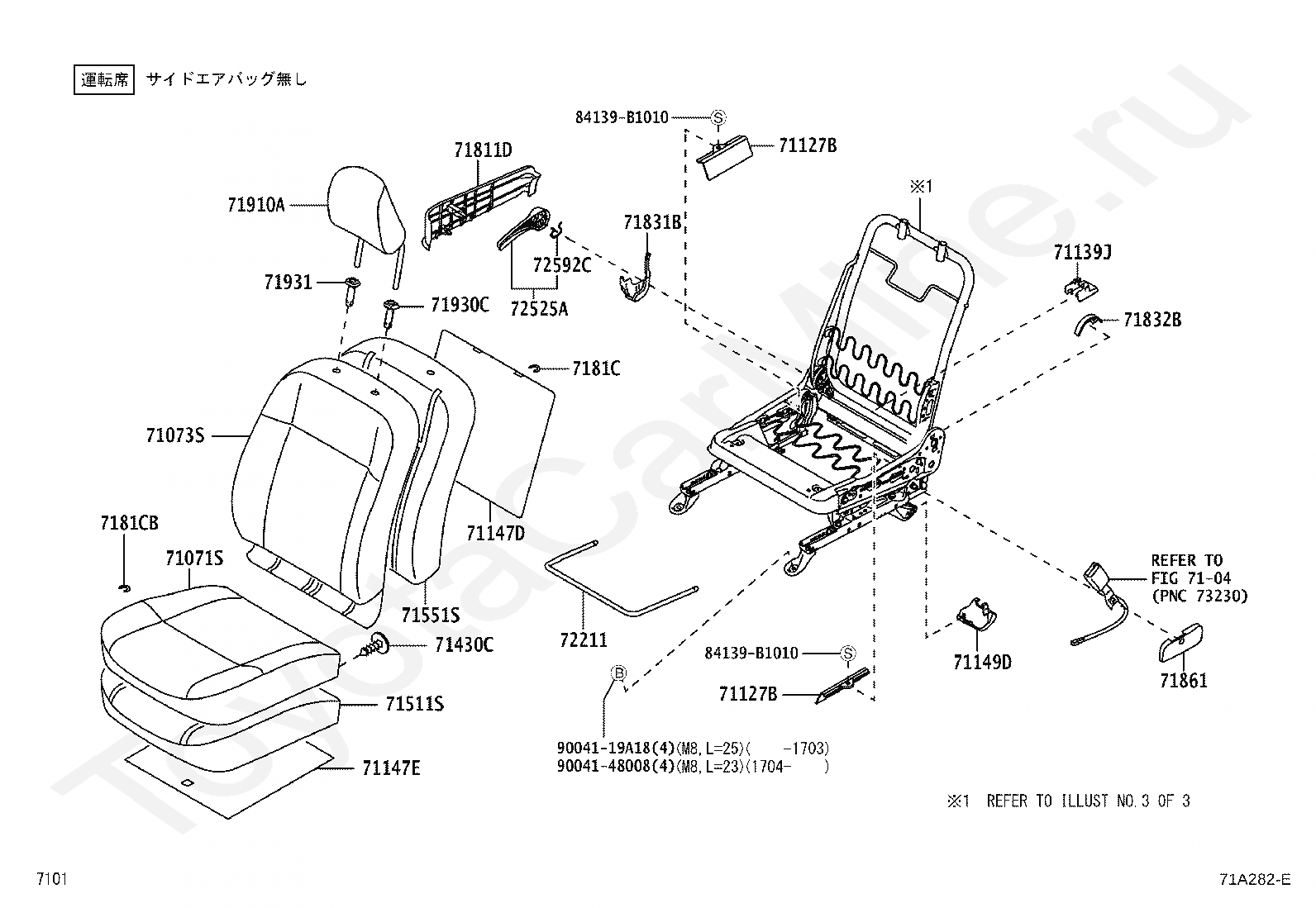

Передние кресла TOYOTA PIXIS EPOCH

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71127B

PLATE, FR SEAT CUSHION PROTECTOR SET

71127B

PLATE, FR SEAT CUSHION PROTECTOR SET

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931

SUPPORT, FRONT SEAT HEADREST

72211

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72592C

RING, SHAFT SNAP

84139B1010

Крепеж

84139B1010

Крепеж

9004119A18

Крепеж

9004148008

Крепеж

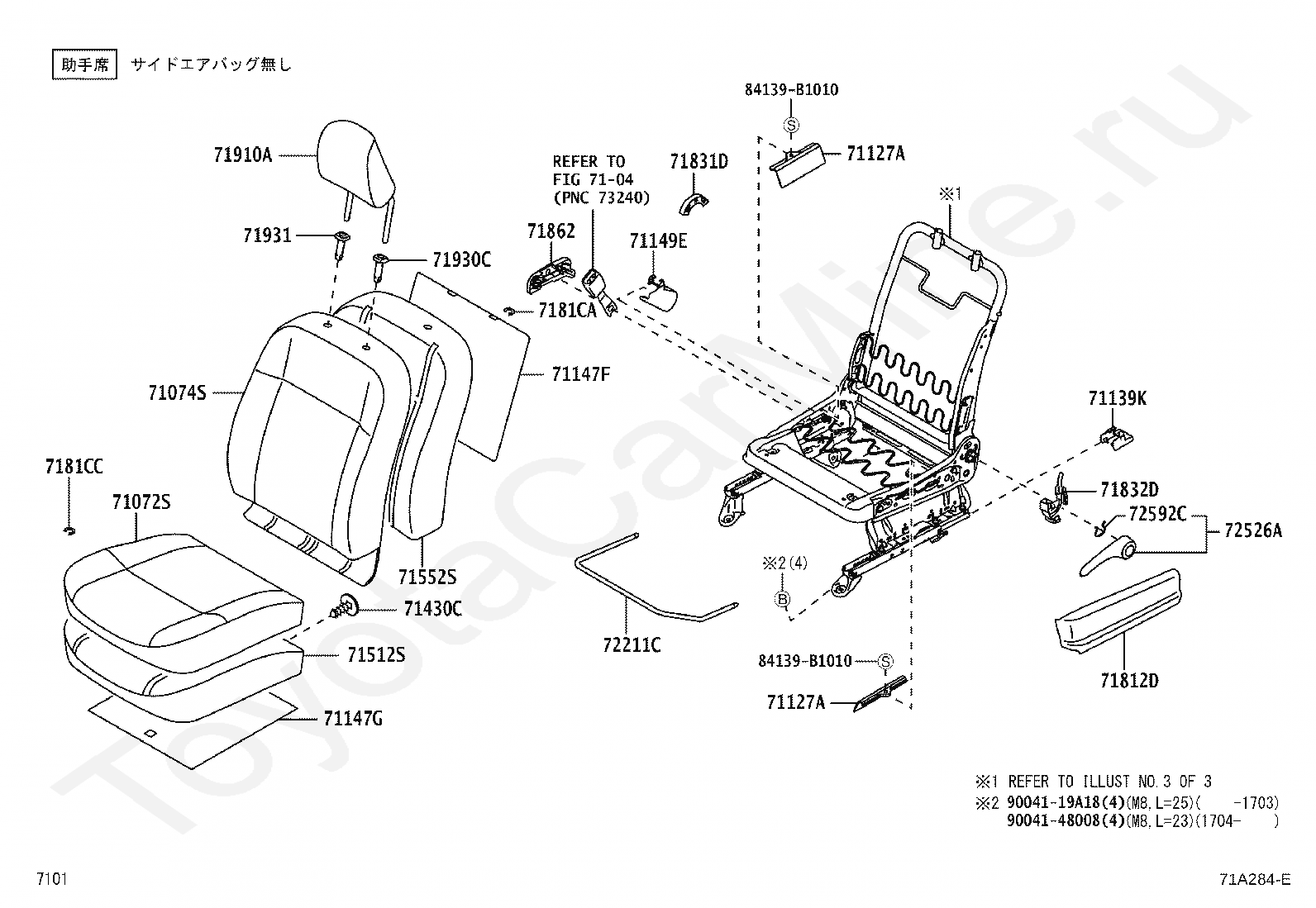

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71139K

COVER, FRONT SEAT LEG, LH(FOR LH SEAT)

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71430C

CLIP

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930C

SUPPORT, FRONT SEAT HEADREST, LH

71931

SUPPORT, FRONT SEAT HEADREST

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72592C

RING, SHAFT SNAP

84139B1010

Крепеж

84139B1010

Крепеж

9004119A18

Крепеж

9004148008

Крепеж

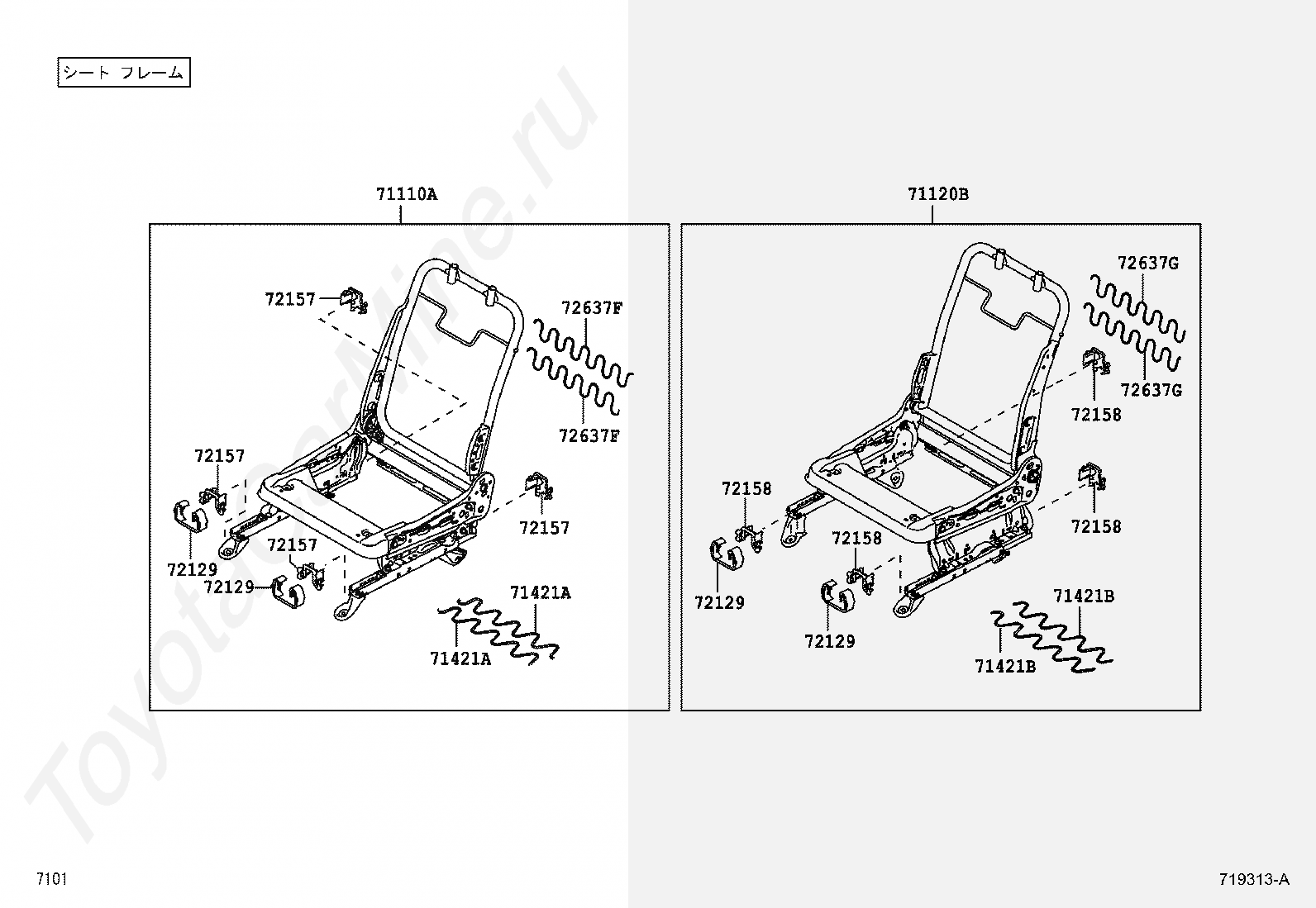

Код

Описание

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71421A

SPRING, FRONT SEAT CUSHION

71421A

SPRING, FRONT SEAT CUSHION

71421B

SPRING, FRONT SEAT CUSHION

71421B

SPRING, FRONT SEAT CUSHION

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72157

COVER, SEAT TRACK BRACKET, INNER

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72637F

SPRING, SEAT BACK, RH

72637F

SPRING, SEAT BACK, RH

72637G

SPRING, SEAT BACK, LH

72637G

SPRING, SEAT BACK, LH
