Ходовые запчасти

Каталог

Европа

Модель

PICNIC

VIN

Дата

1998/04

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Фрейм

SXM10

КПП

автомат

Опции

левый руль 7-местный

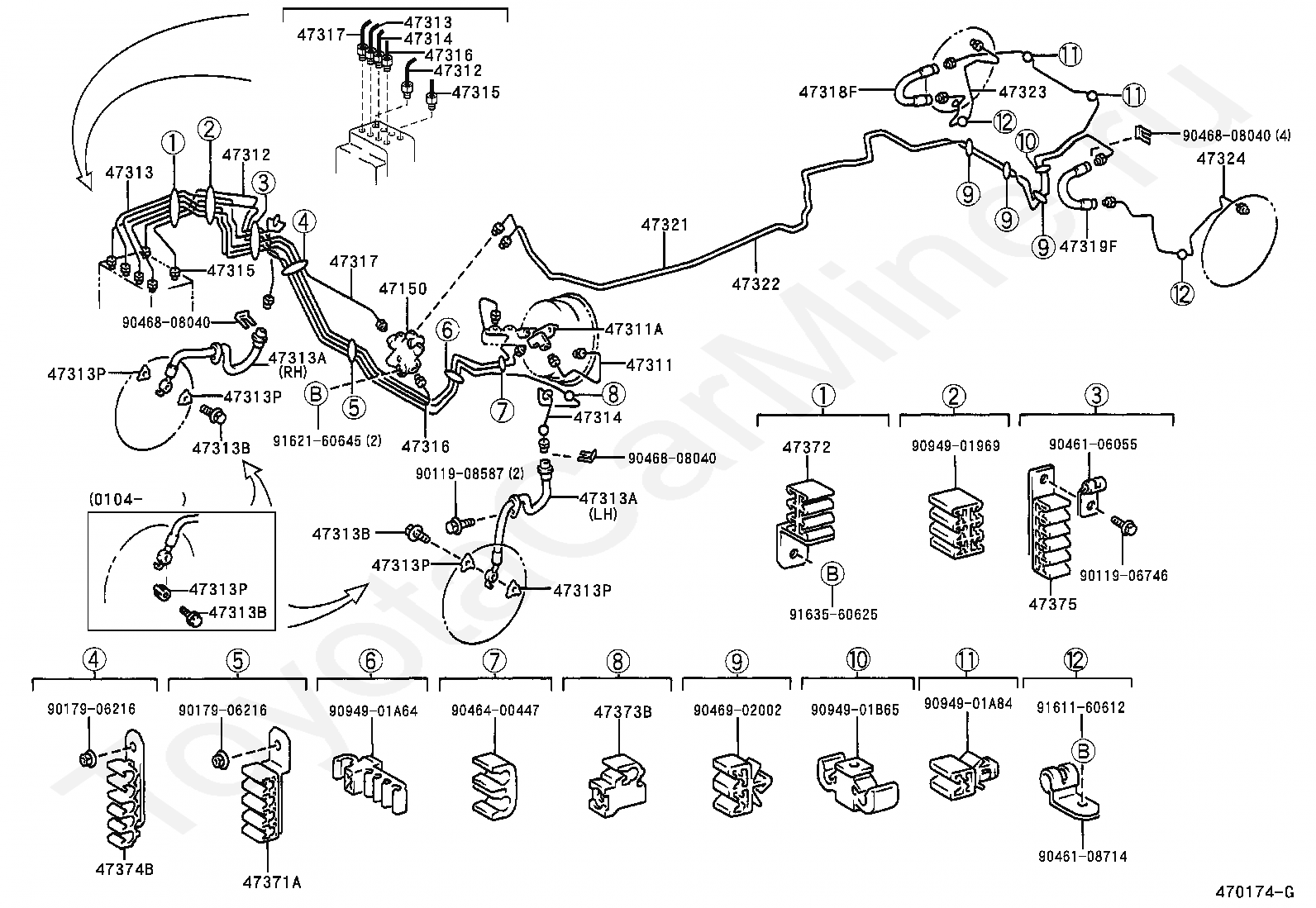

Тормозная магистраль TOYOTA PICNIC

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321A

WAY(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47373B

CLAMP, BRAKE TUBE, NO.3

47900

VALVE ASSY, LOAD SENSING W/SPRING

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

9011908587

Крепеж

9017906216

Крепеж

9017908025

Крепеж

9046106055

Крепеж

9046108714

Крепеж

9046400447

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046902002

Крепеж

9094901A64

Крепеж

9094901A84

Крепеж

9094901B65

Крепеж

9161160612

Крепеж

9162160645

Крепеж

9165160820

Крепеж

9165160820

Крепеж

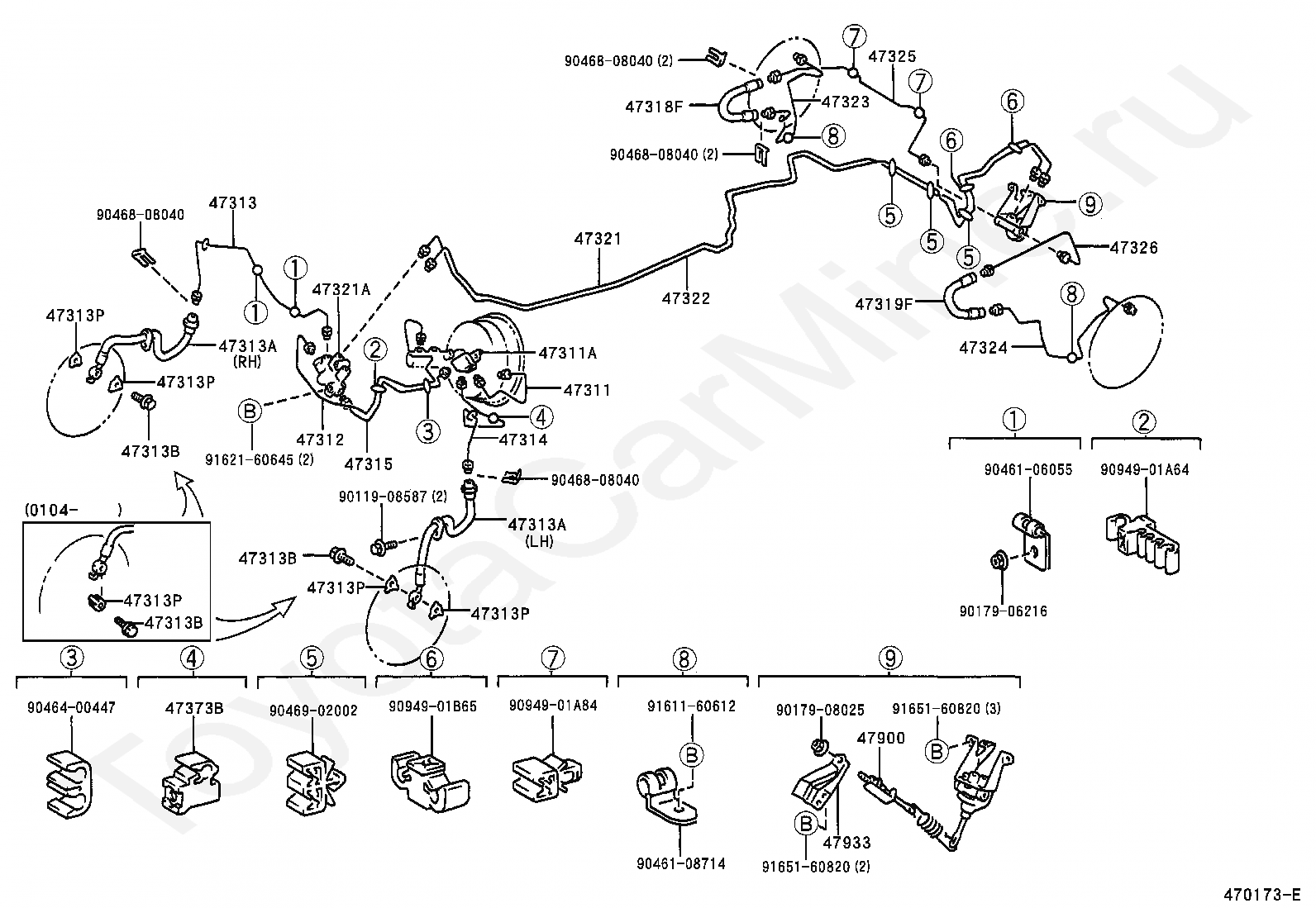

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9011906746

Крепеж

9011908587

Крепеж

9017906216

Крепеж

9017906216

Крепеж

9046106055

Крепеж

9046108714

Крепеж

9046400447

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046902002

Крепеж

9094901969

Крепеж

9094901A64

Крепеж

9094901A84

Крепеж

9094901B65

Крепеж

9161160612

Крепеж

9162160645

Крепеж

9163560625

Крепеж

Код

Описание

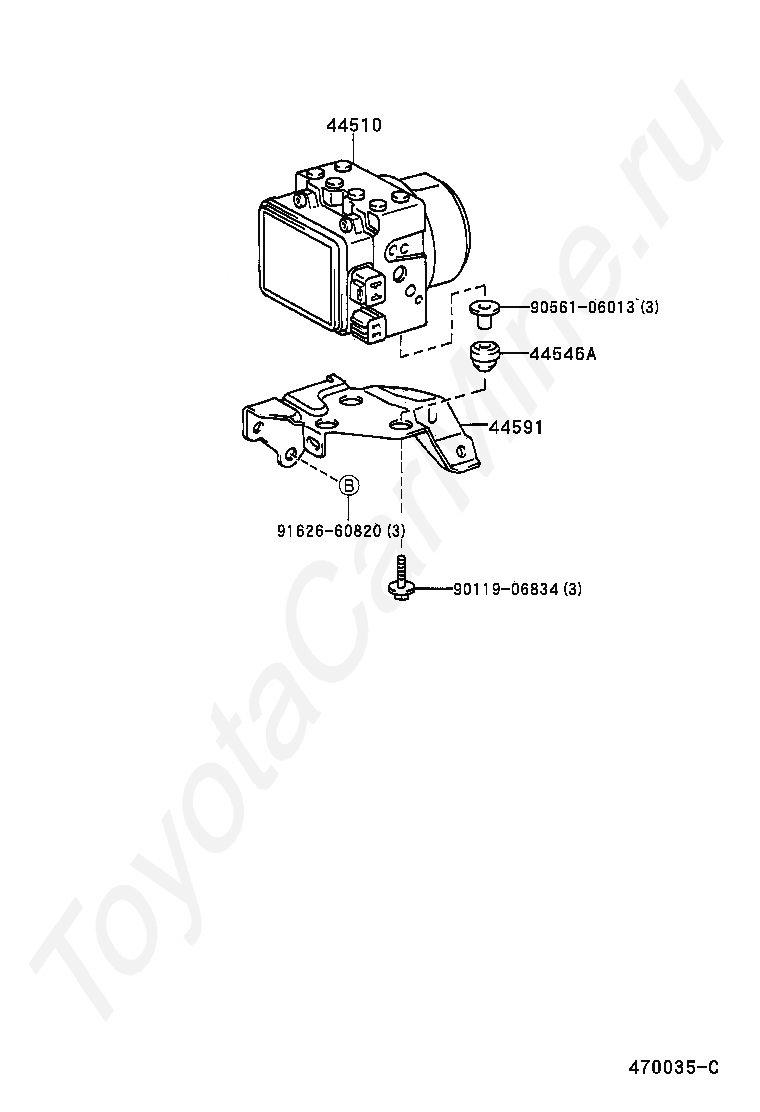

44510

ACTUATOR ASSY, BRAKE

44546A

CUSHION, BRAKE ACTUATOR BOLT

44591

BRACKET, BRAKE ACTUATOR, NO.1

9011906834

Крепеж

9056106013

Крепеж

9162660820

Крепеж
