Ходовые запчасти Каталог Масла

Каталог

Япония

Модель

PASSO

VIN

Дата

2014/04

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

+HANA

Фрейм

KGC30

Опции

D83G

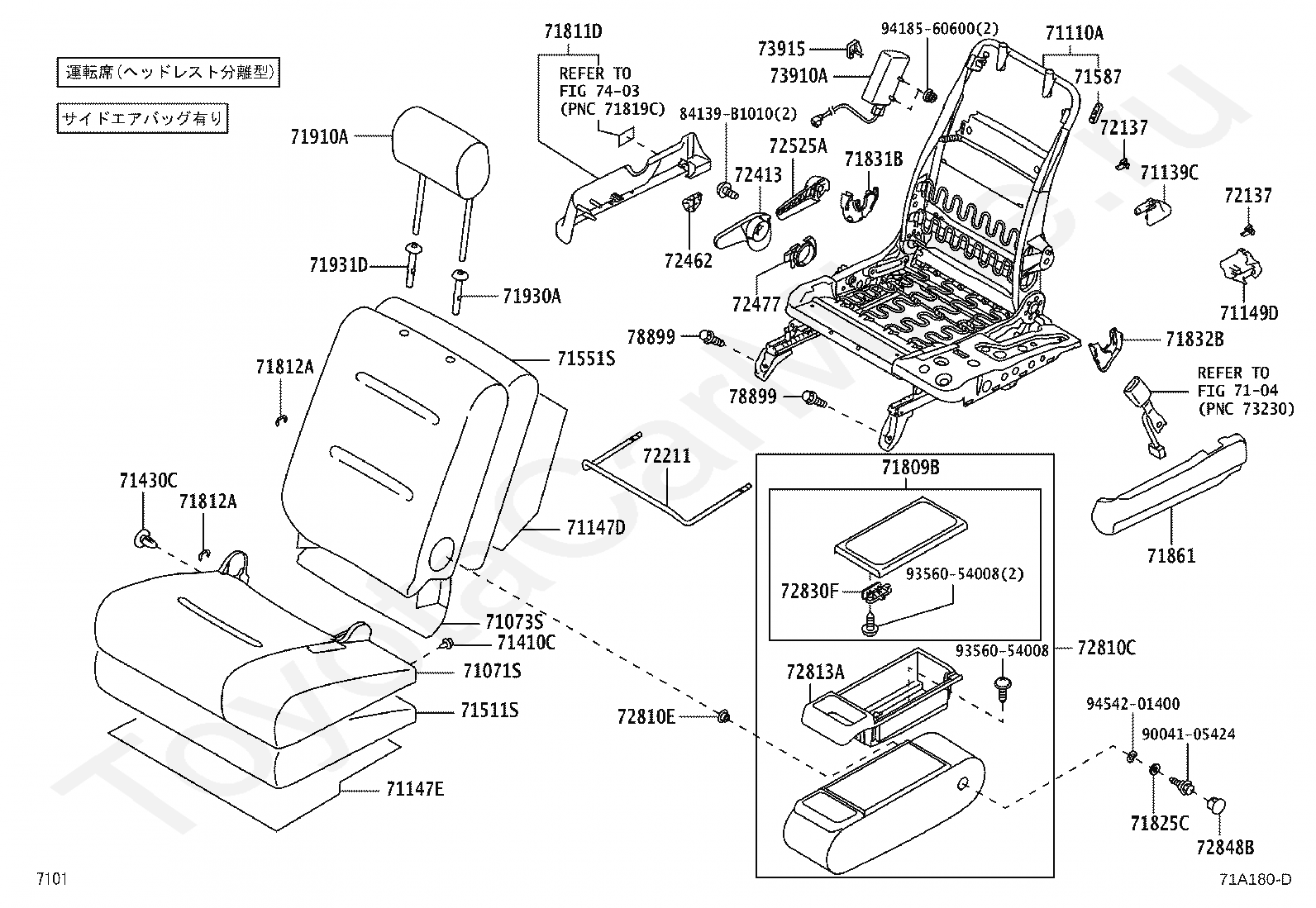

Передние кресла TOYOTA PASSO







Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139C

COVER, FRONT SEAT LEG, RH

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71825C

PLATE

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72810E

BUSH, FRONT SEAT ARMREST, NO.1

72813A

BOX, FRONT SEAT CENTER ARMREST

72830F

LOCK SUB-ASSY, FRONT SEAT ARMREST

72848B

CAP, SEAT ARMREST, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

73915

COVER, SEAT AIR BAG NO.1, RH

7403

переход к группе запчастей

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

84139B1010

Крепеж

9004105424

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9418560600

Крепеж

9454201400

Крепеж

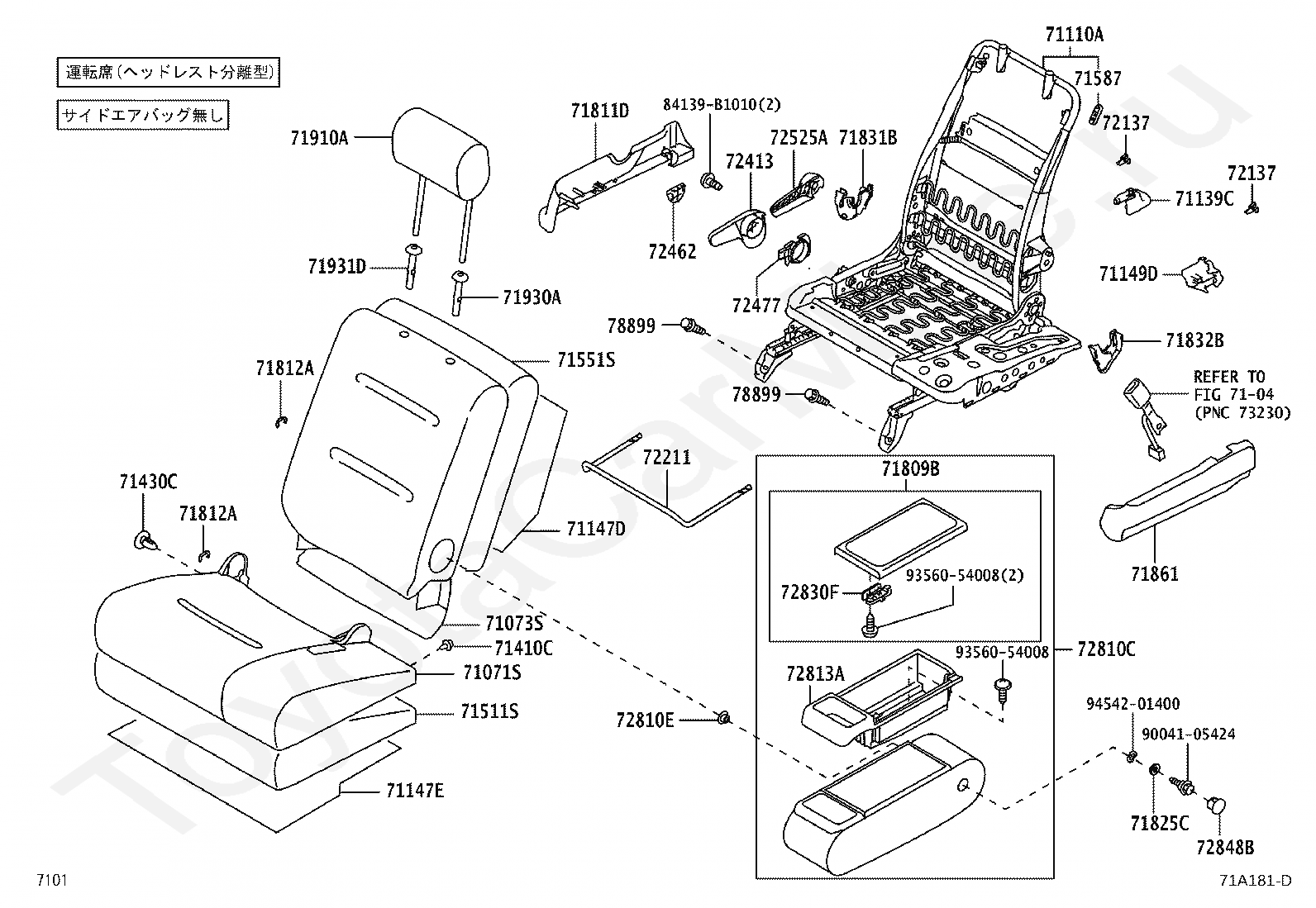

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139C

COVER, FRONT SEAT LEG, RH

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71809B

COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71825C

PLATE

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72137

COVER, SEAT TRACK, OUTER RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72810E

BUSH, FRONT SEAT ARMREST, NO.1

72813A

BOX, FRONT SEAT CENTER ARMREST

72830F

LOCK SUB-ASSY, FRONT SEAT ARMREST

72848B

CAP, SEAT ARMREST, NO.1

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

84139B1010

Крепеж

9004105424

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9454201400

Крепеж

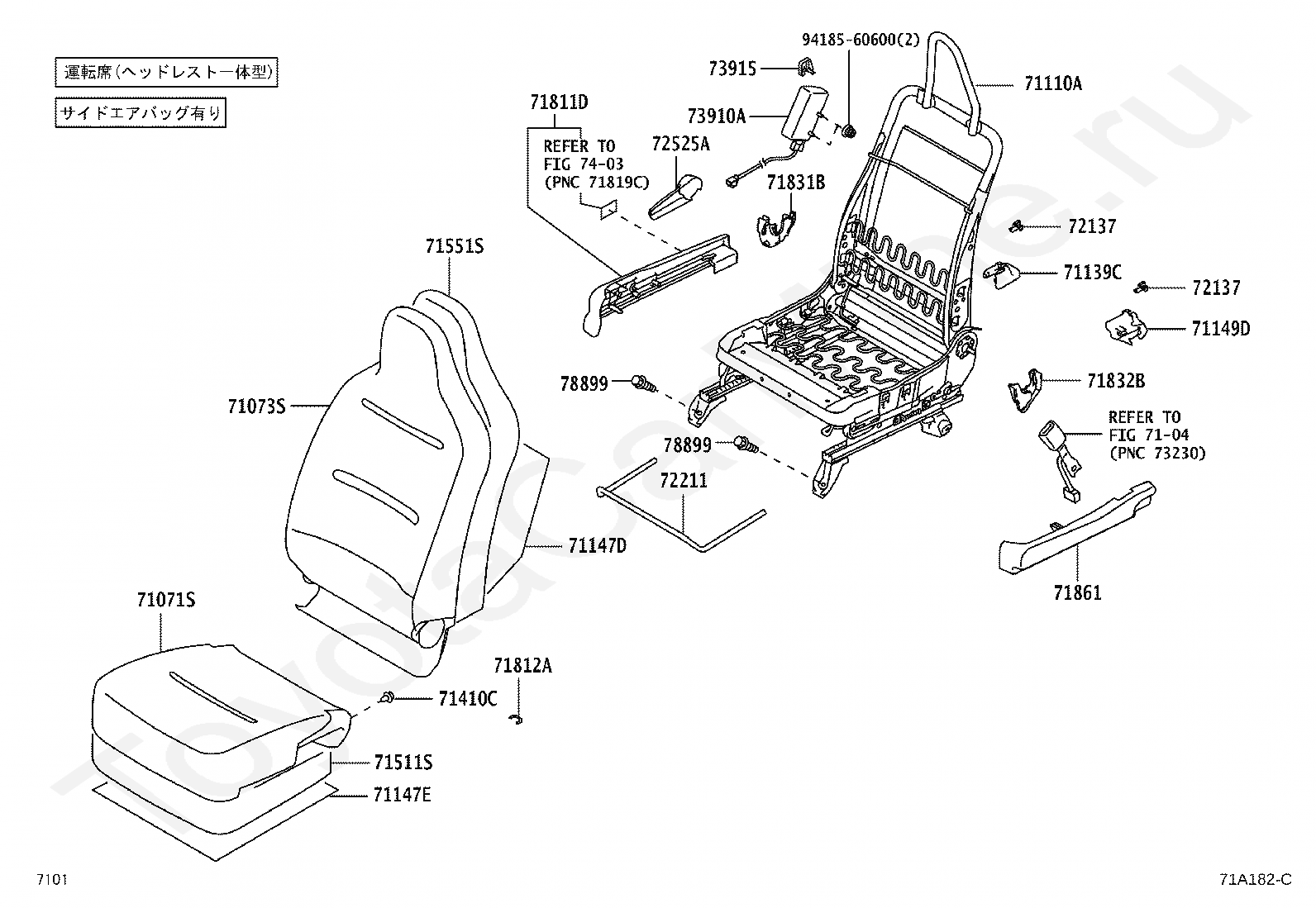

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139C

COVER, FRONT SEAT LEG, RH

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72137

COVER, SEAT TRACK, OUTER RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

73915

COVER, SEAT AIR BAG NO.1, RH

7403

переход к группе запчастей

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71139C

COVER, FRONT SEAT LEG, RH

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71149D

COVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72137

COVER, SEAT TRACK, OUTER RH

72137

COVER, SEAT TRACK, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

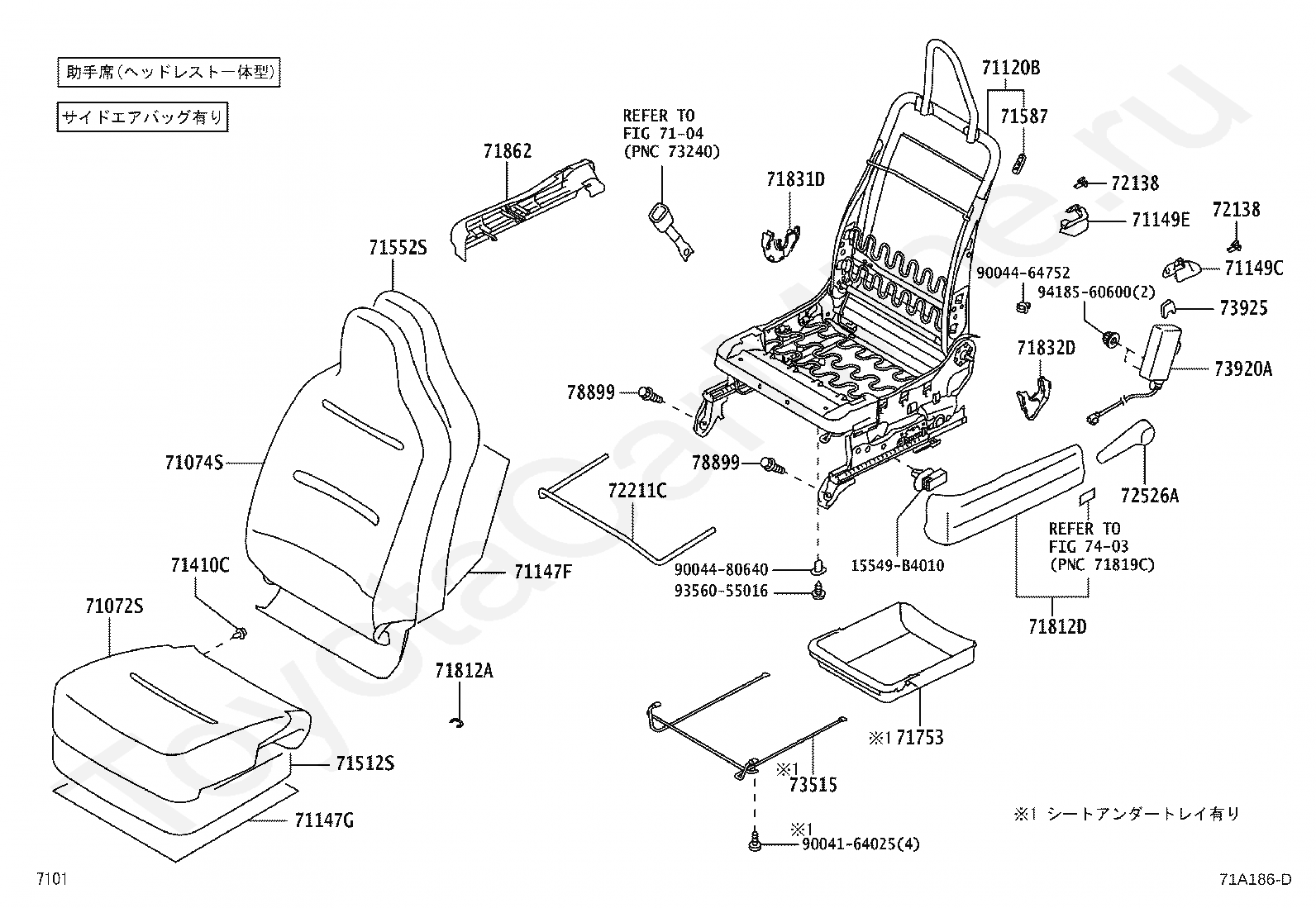

Код

Описание

15549B4010

Крепеж

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71753

TRAY, FRONT SEAT UNDER

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931F

SUPPORT, FRONT SEAT HEADREST, LH

72138

COVER, SEAT TRACK, OUTER LH

72138

COVER, SEAT TRACK, OUTER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

73925

COVER, SEAT AIR BAG NO.1, LH

7403

переход к группе запчастей

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

9004164025

Крепеж

9004464752

Крепеж

9004480640

Крепеж

9356055016

Крепеж

9418560600

Крепеж

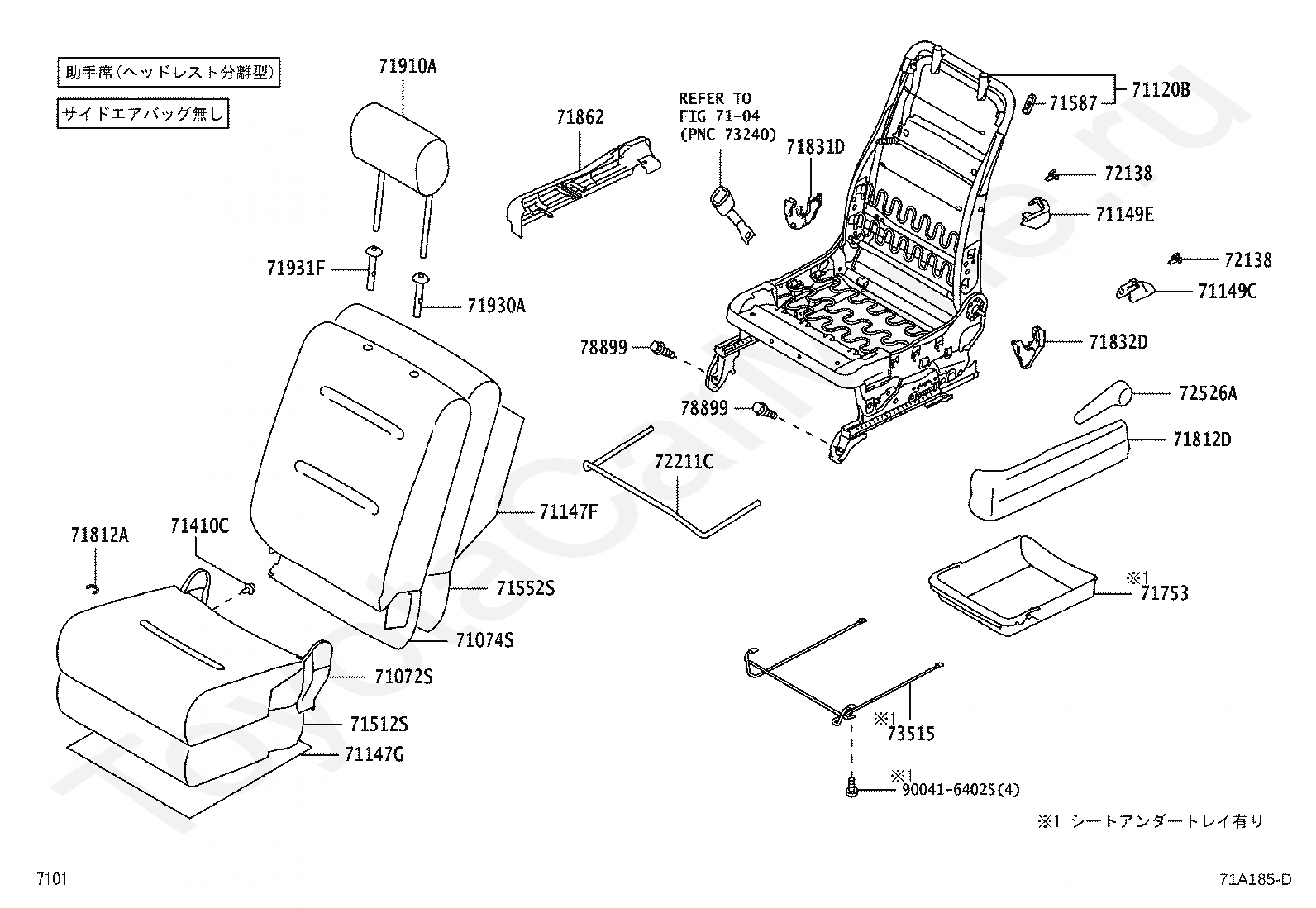

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71753

TRAY, FRONT SEAT UNDER

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931F

SUPPORT, FRONT SEAT HEADREST, LH

72138

COVER, SEAT TRACK, OUTER LH

72138

COVER, SEAT TRACK, OUTER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

9004164025

Крепеж

Код

Описание

15549B4010

Крепеж

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71753

TRAY, FRONT SEAT UNDER

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72138

COVER, SEAT TRACK, OUTER LH

72138

COVER, SEAT TRACK, OUTER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

73925

COVER, SEAT AIR BAG NO.1, LH

7403

переход к группе запчастей

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

9004164025

Крепеж

9004464752

Крепеж

9004480640

Крепеж

9356055016

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72138

COVER, SEAT TRACK, OUTER LH

72138

COVER, SEAT TRACK, OUTER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

78899

BOLT, FRONT SEAT

78899

BOLT, FRONT SEAT

9004164025

Крепеж

> Запчасти PASSO > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
