Ходовые запчасти

Каталог

Япония

Модель

PASSO

VIN

Дата

2006/12

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

RACY TYPE

Фрейм

KGC15

КПП

автомат АКПП, 4 ступени, на руле

Опции

D36G

Фары TOYOTA PASSO

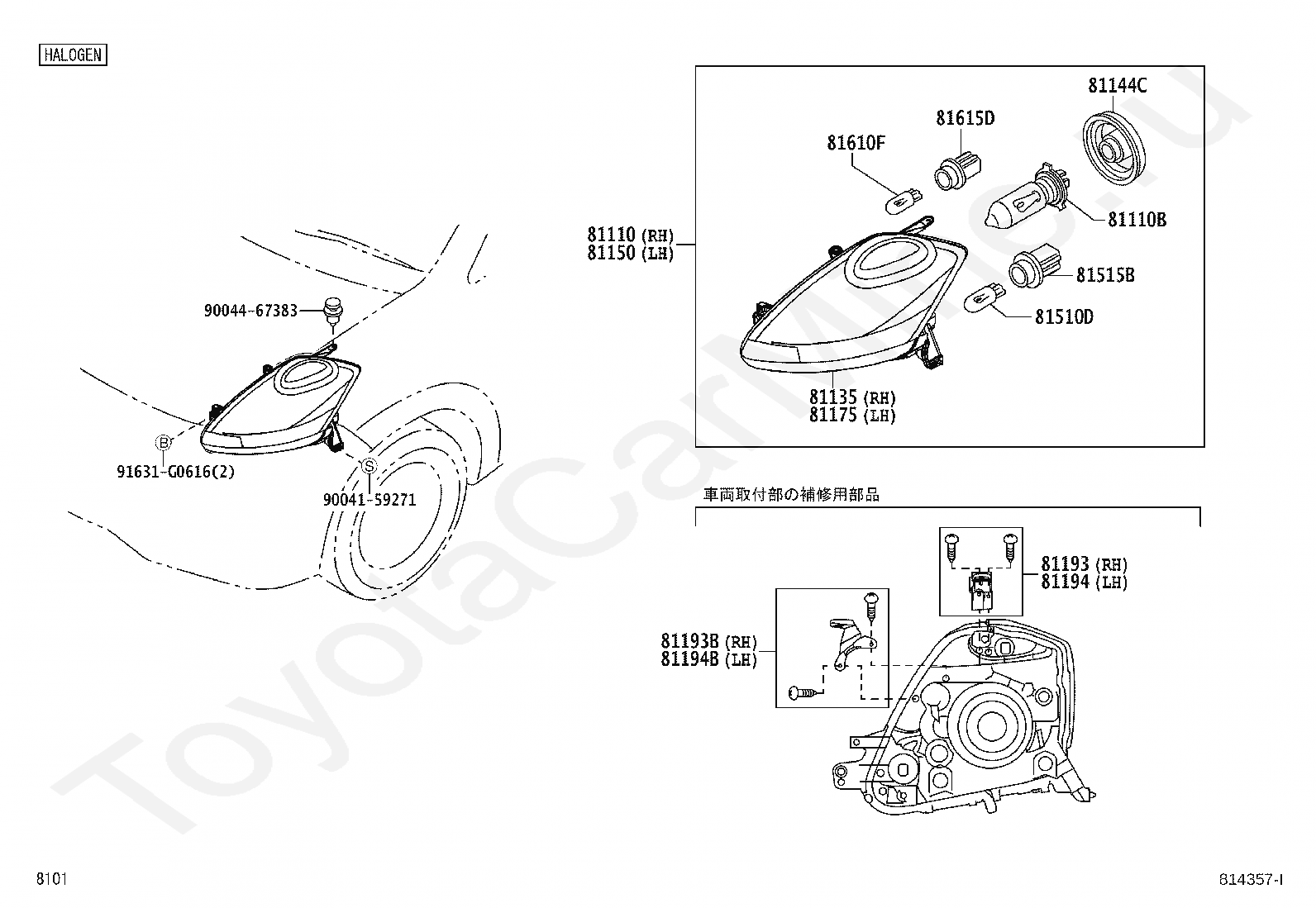

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81144C

COVER, HEADLAMP SOCKET

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9004159271

Крепеж

9004467383

Крепеж

91631G0616

Крепеж

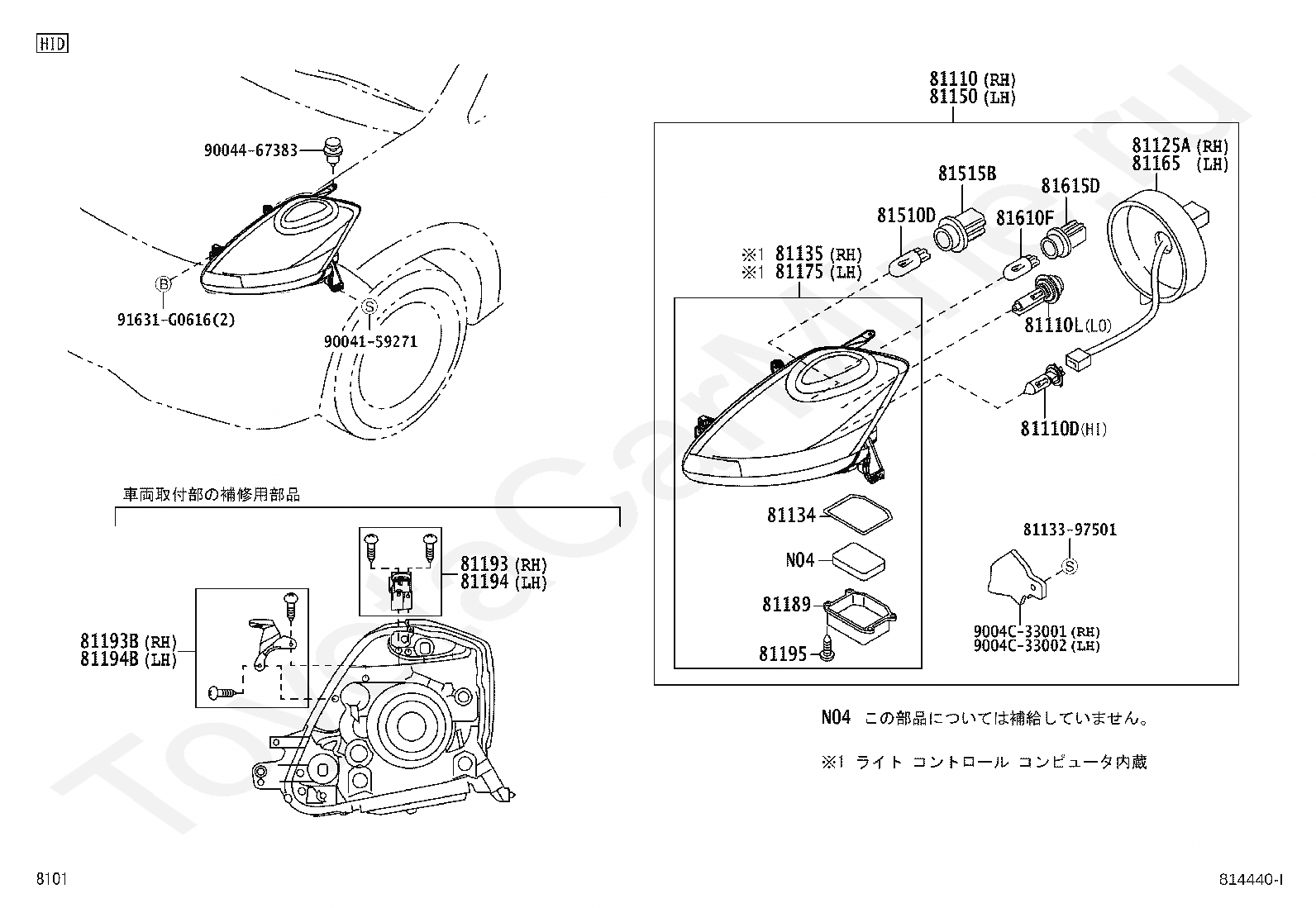

Код

Описание

81110

HEADLAMP ASSY, RH

81110D

BULB(FOR HEADLAMP, NO.2)

81110L

BULB, DISCHARGE HEADLAMP

81125A

CORD, HEADLAMP, RH

8113397501

Крепеж

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81165

CORD, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81189

COVER, HEADLAMP

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81193B

RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81194B

RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

81195

SCREW, HEADLAMP

81510D

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9004159271

Крепеж

9004467383

Крепеж

9004C33001

Крепеж

9004C33002

Крепеж

91631G0616

Крепеж
