Япония

Модель

NOAH/VOXY/ESQUIRE

VIN

Дата

2017/06

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

XI SPECIFICATION

Фрейм

ZRR85

КПП

вариатор

Опции

ESQUIRE 7-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) COMPLETED VEHICLE 706W

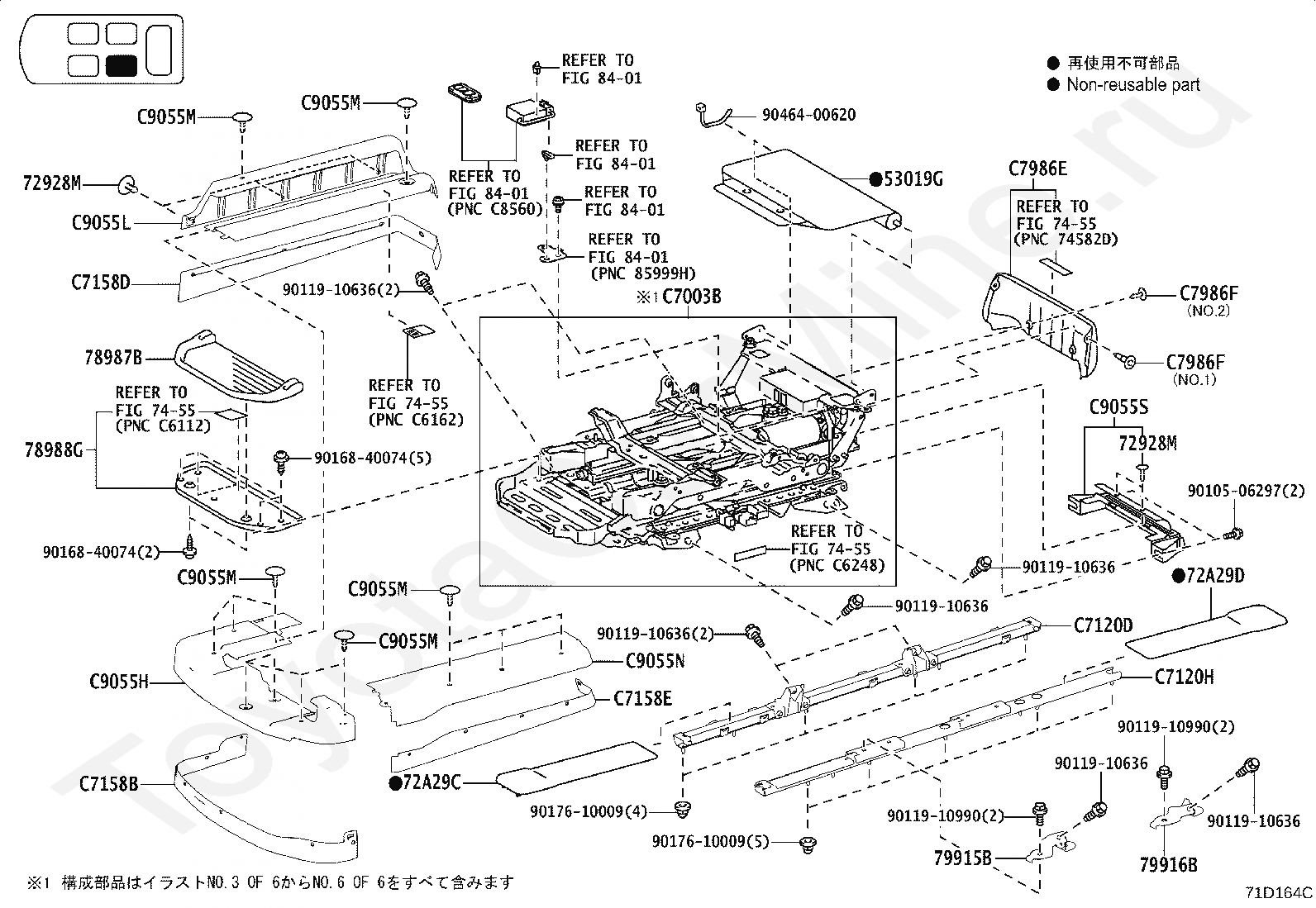

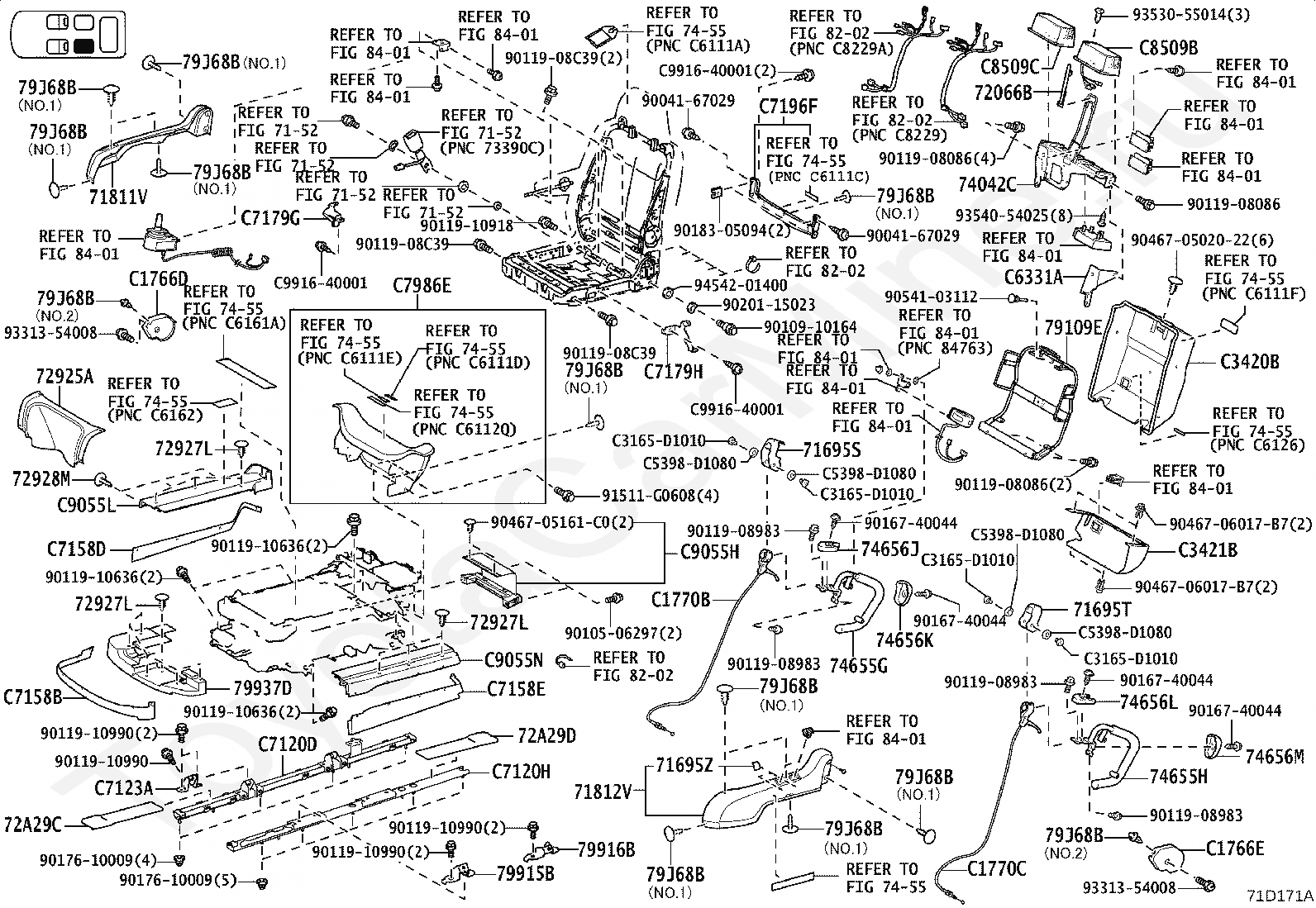

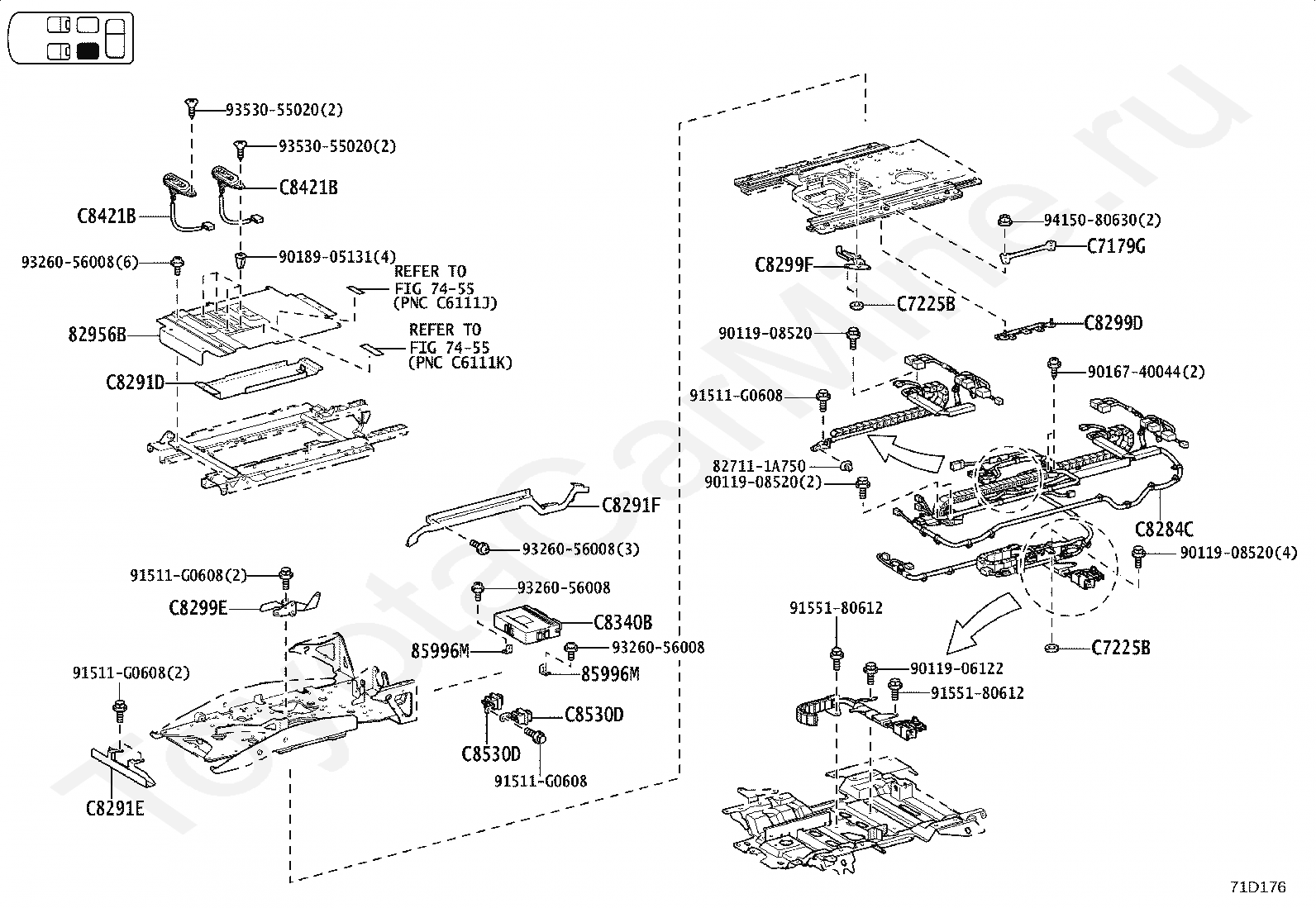

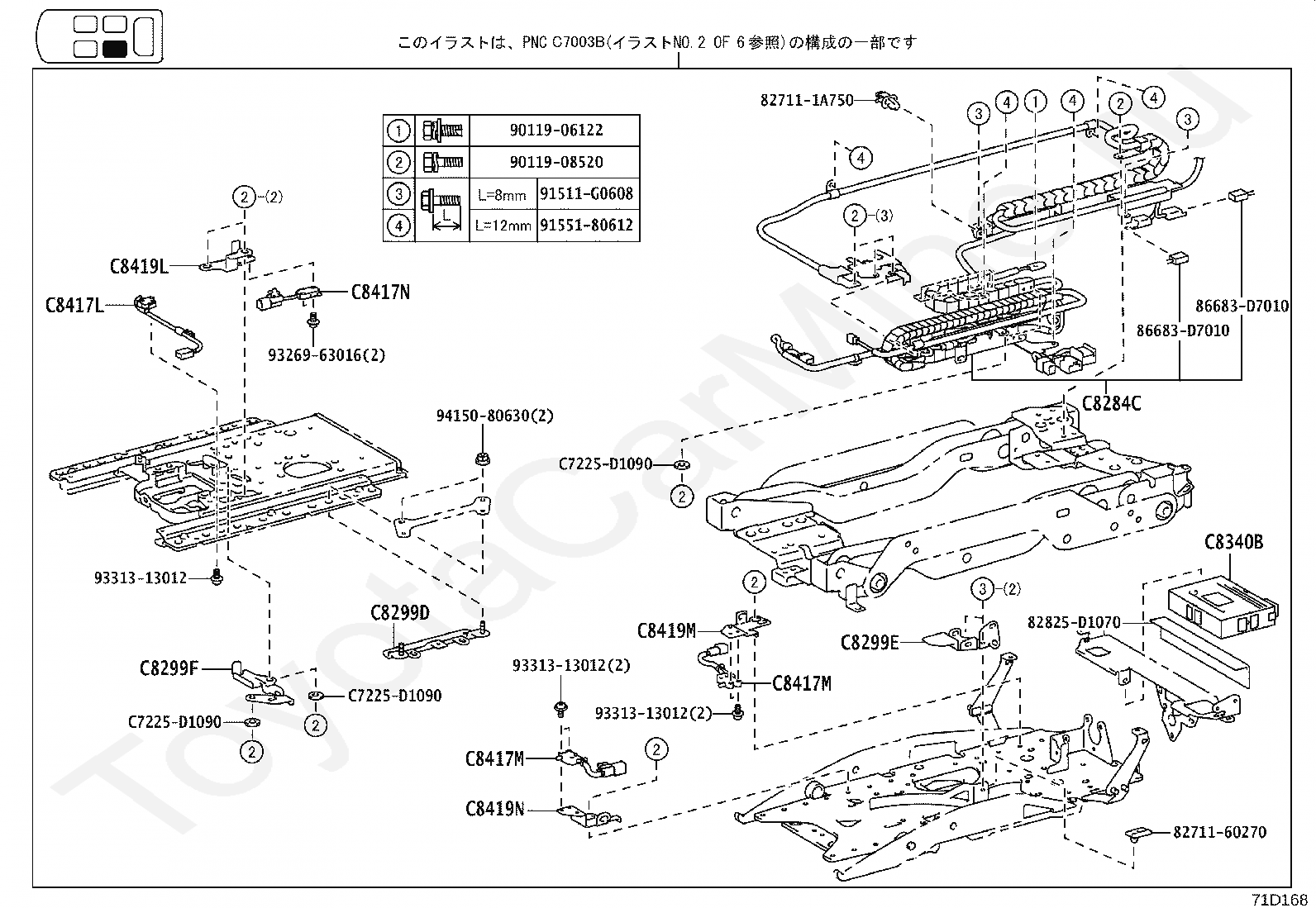

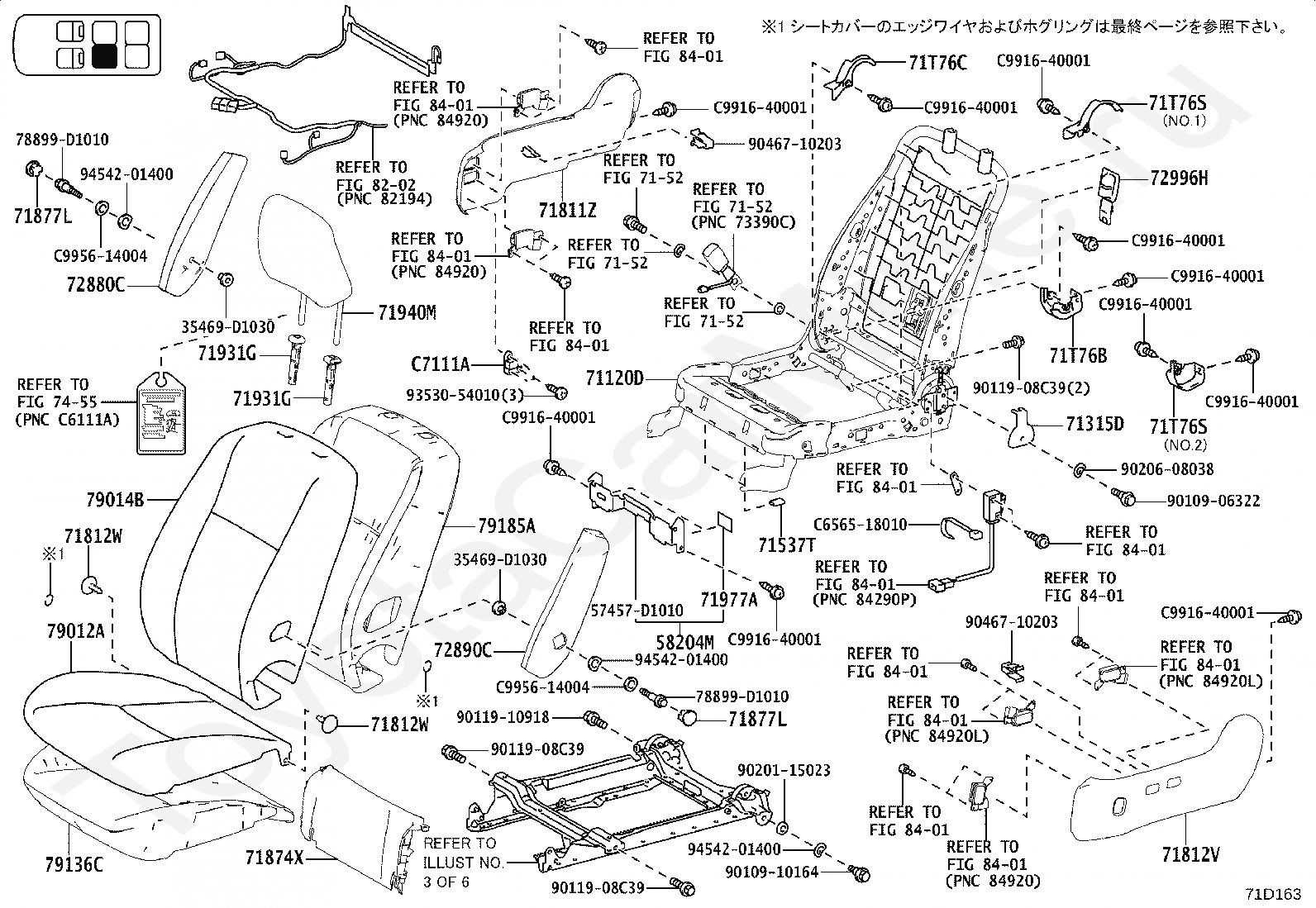

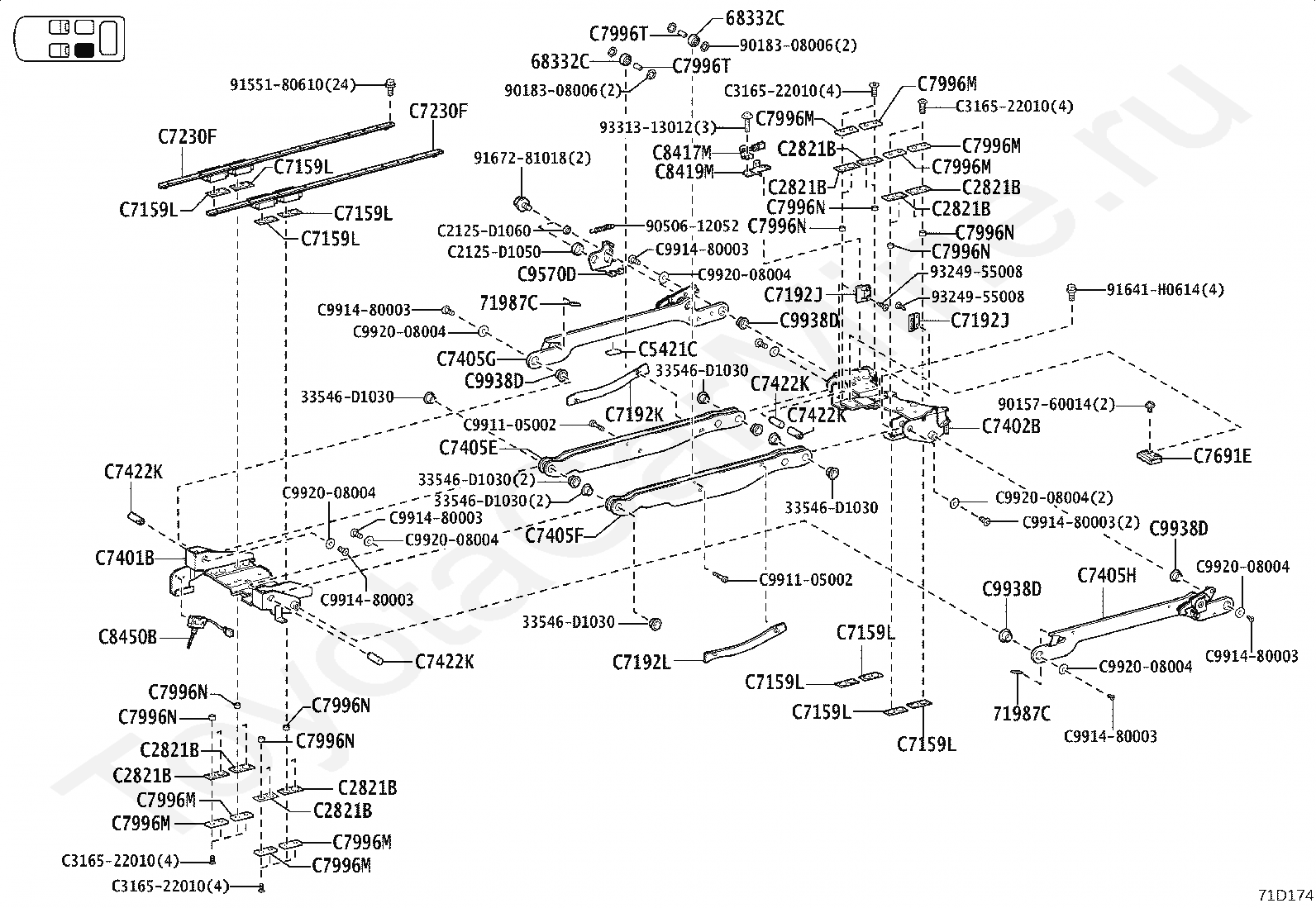

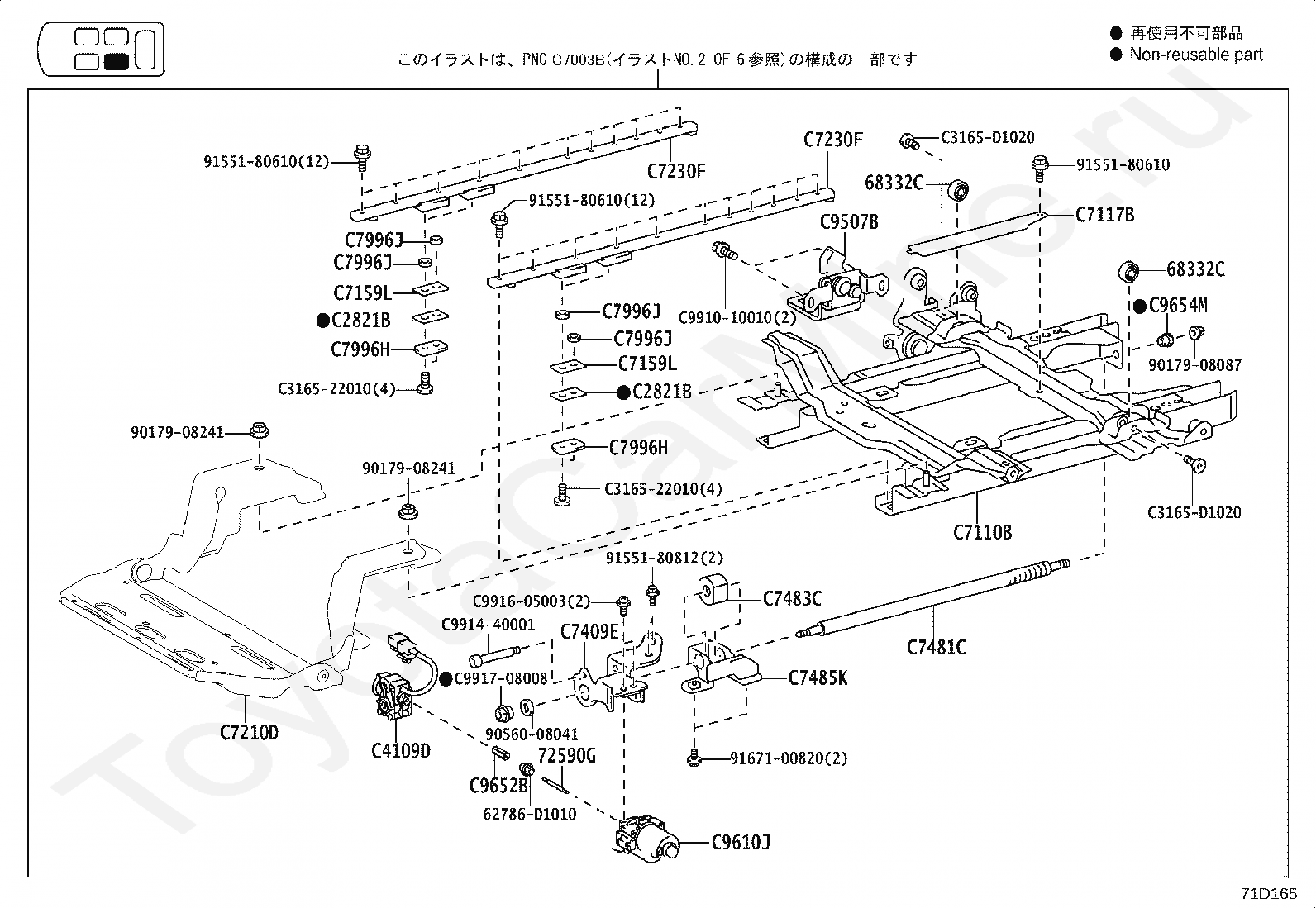

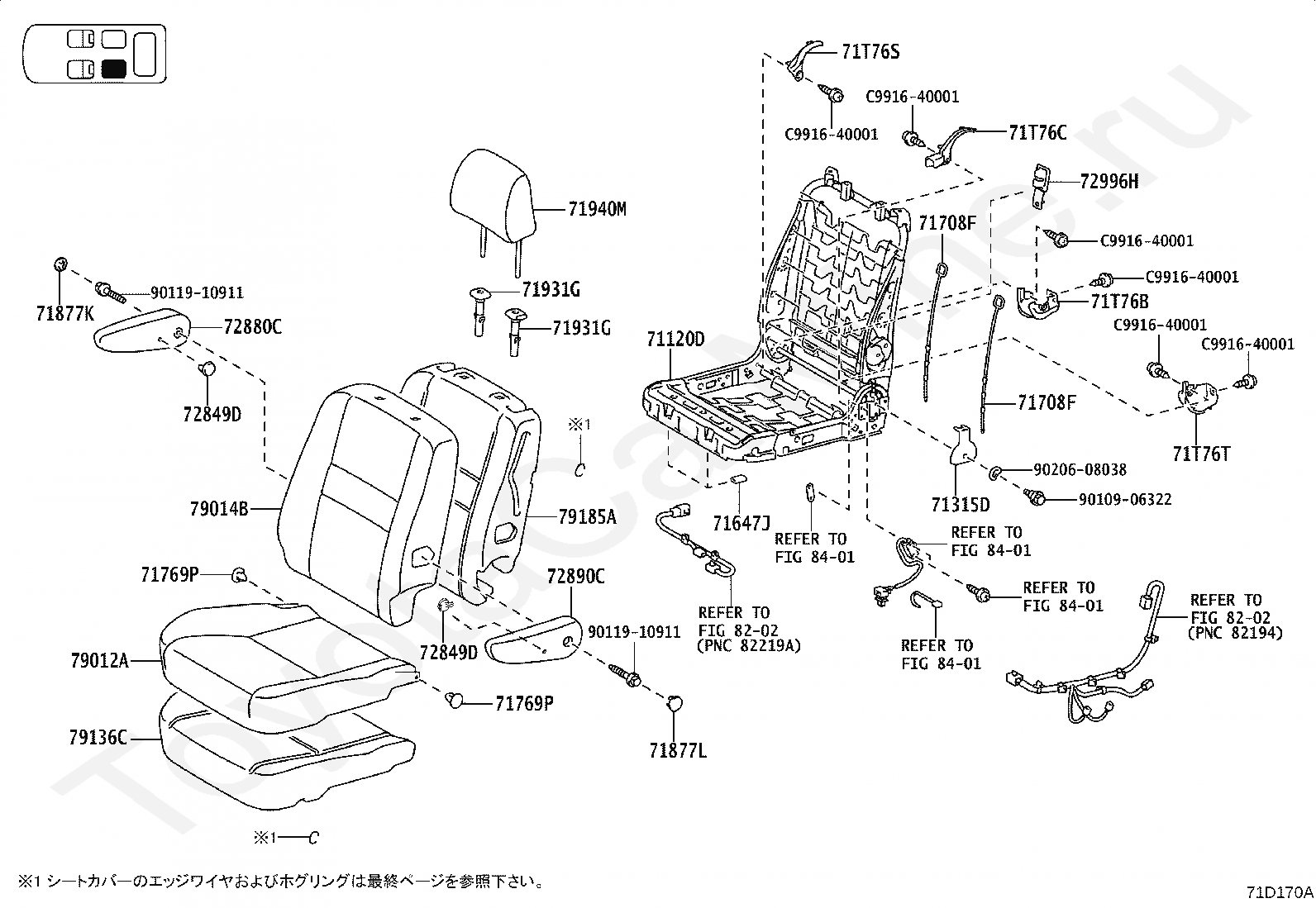

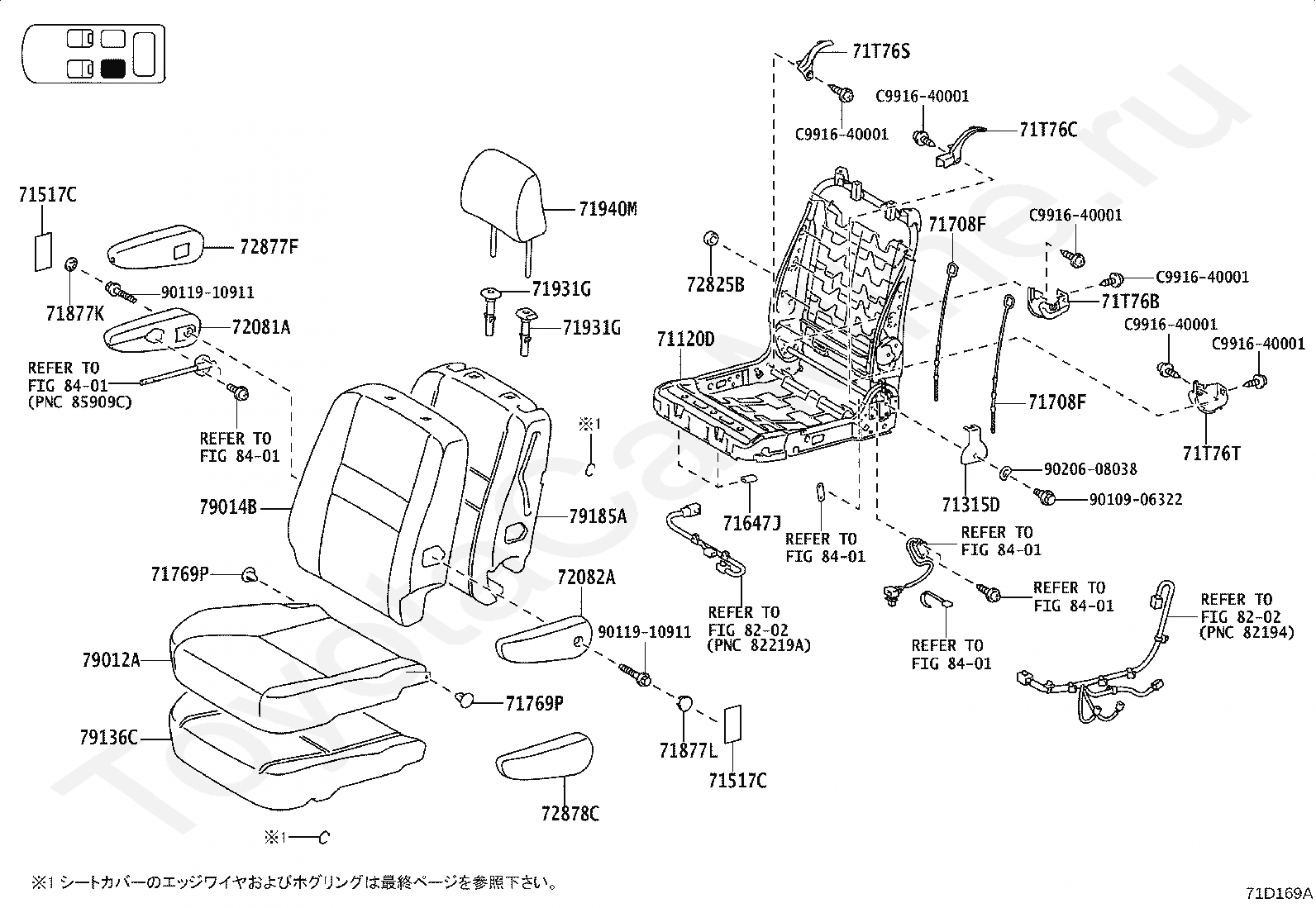

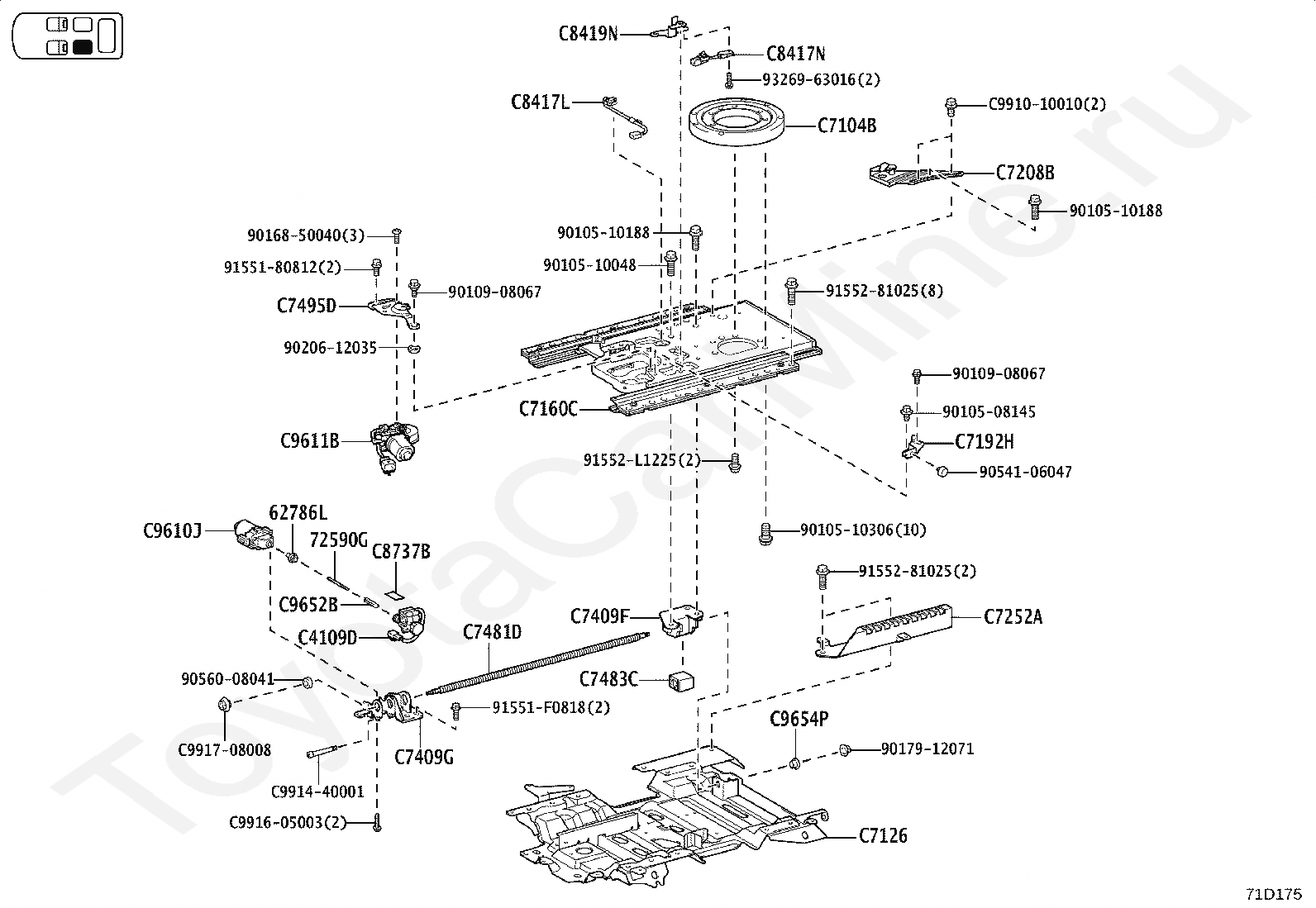

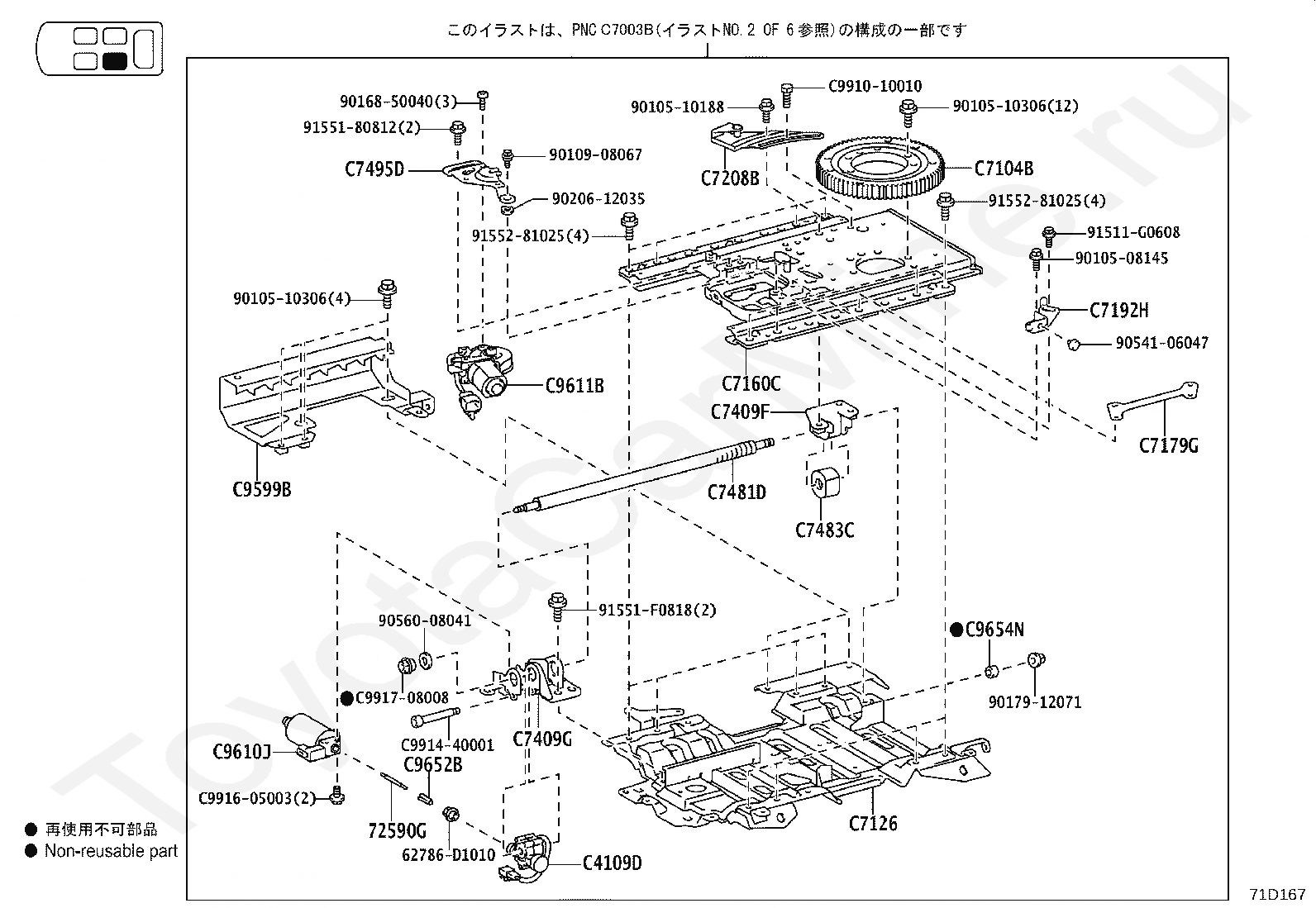

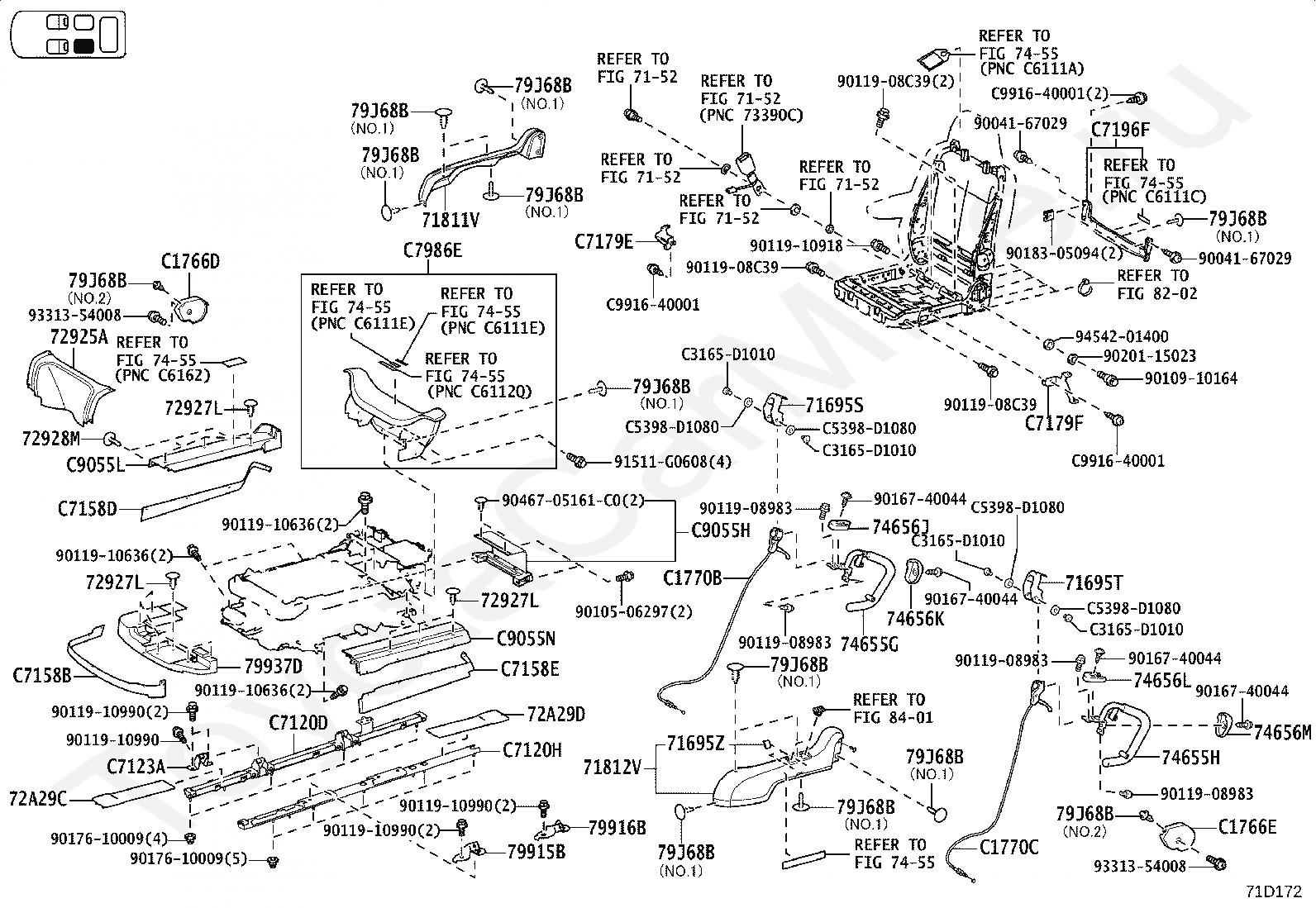

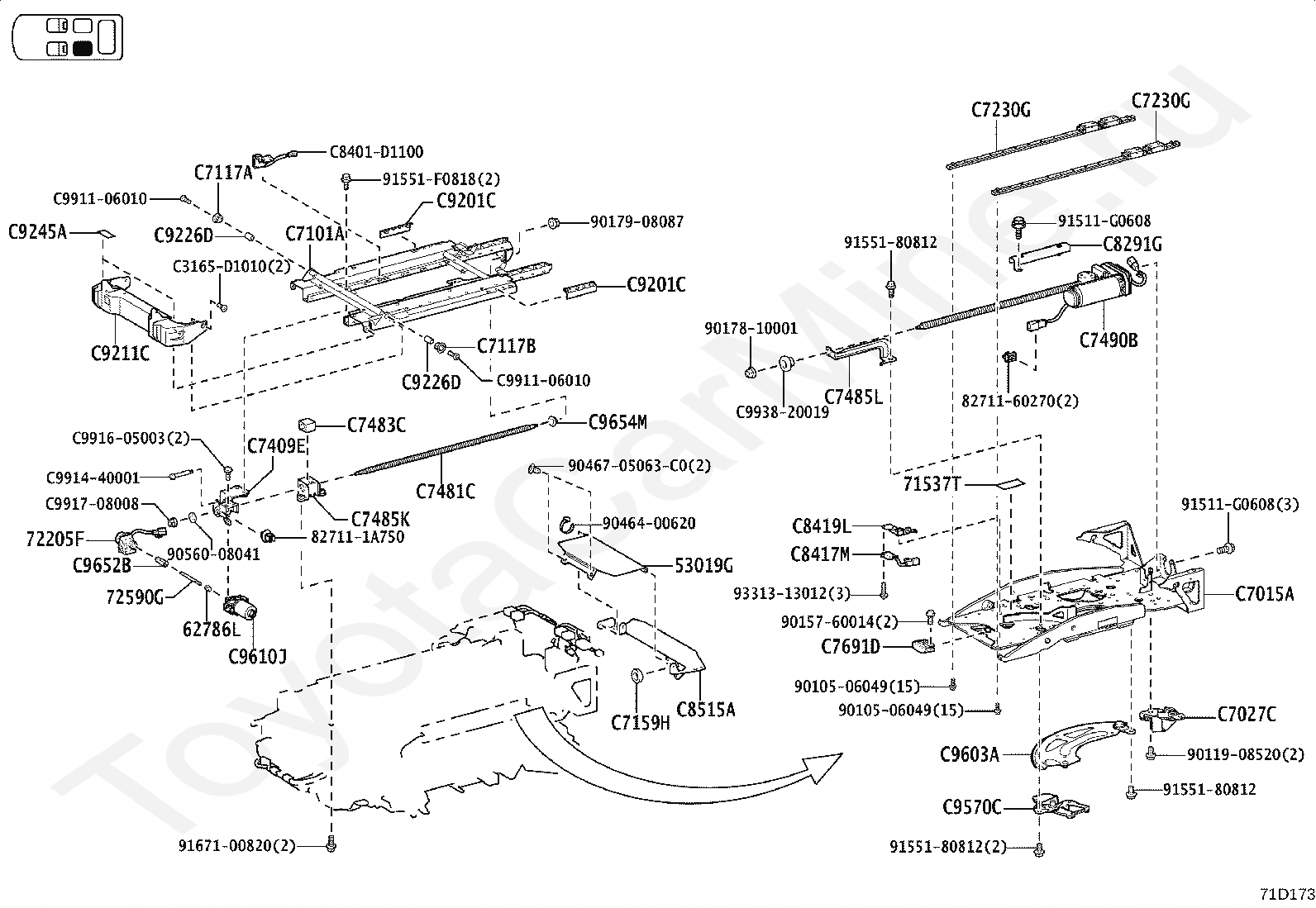

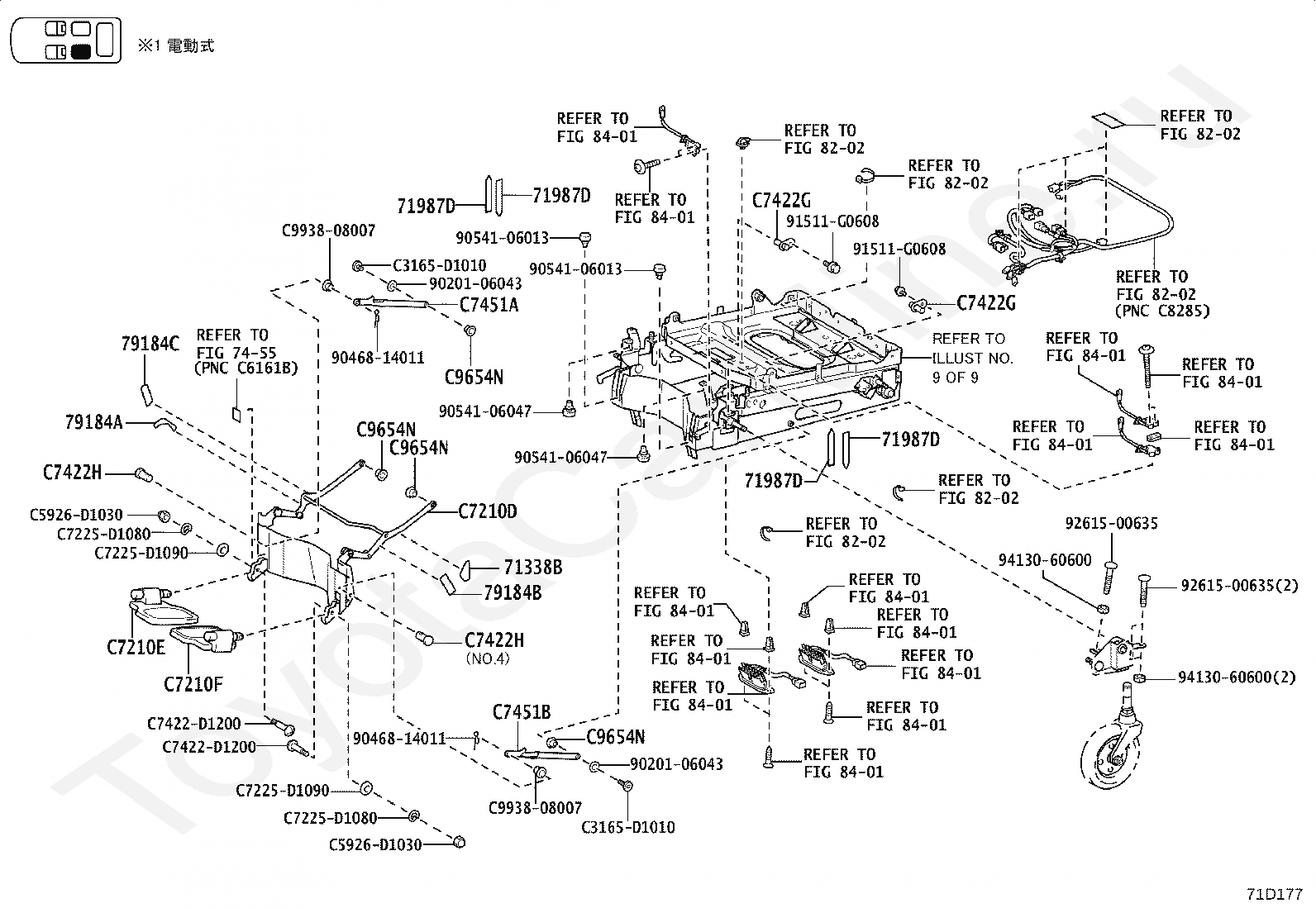

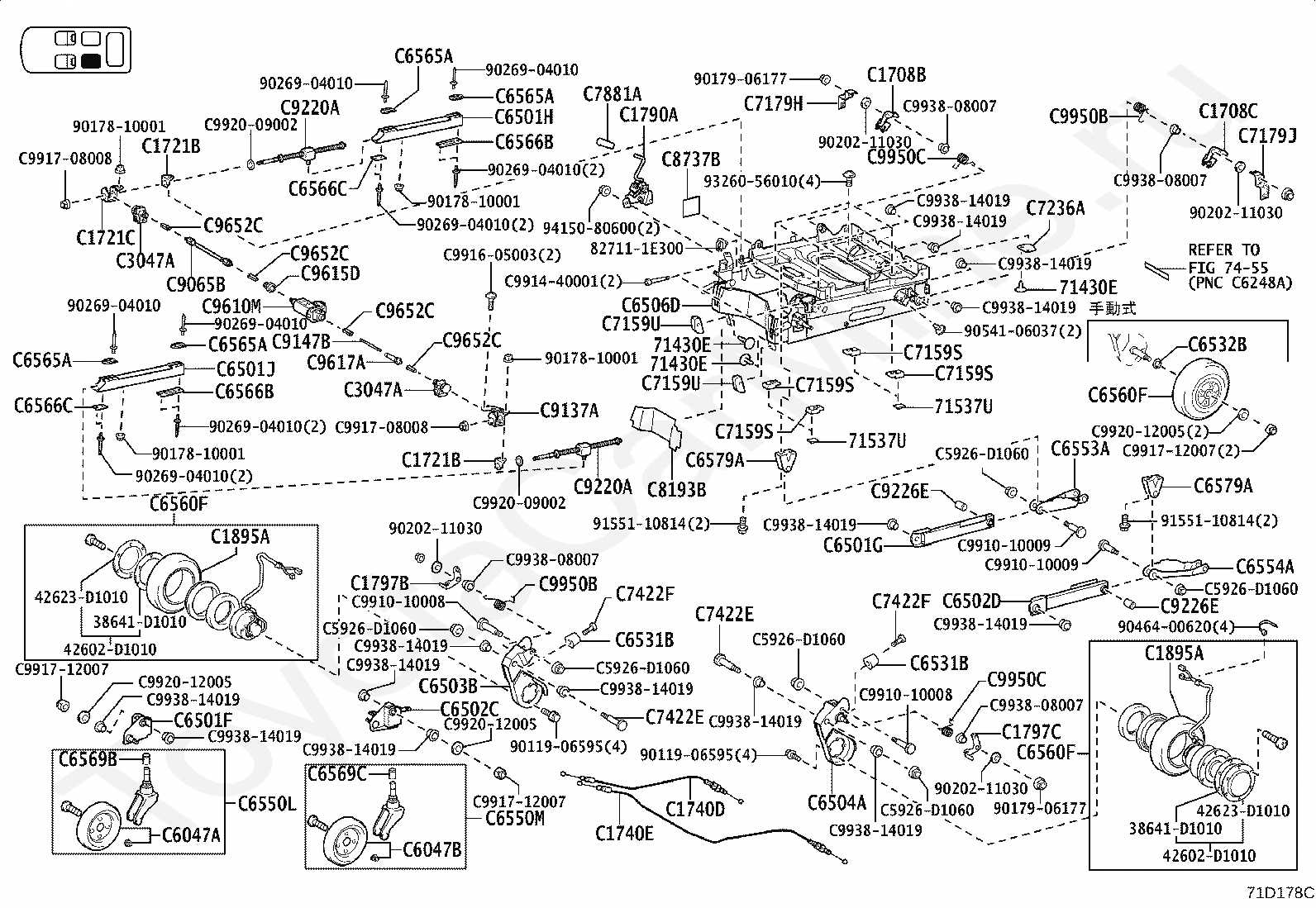

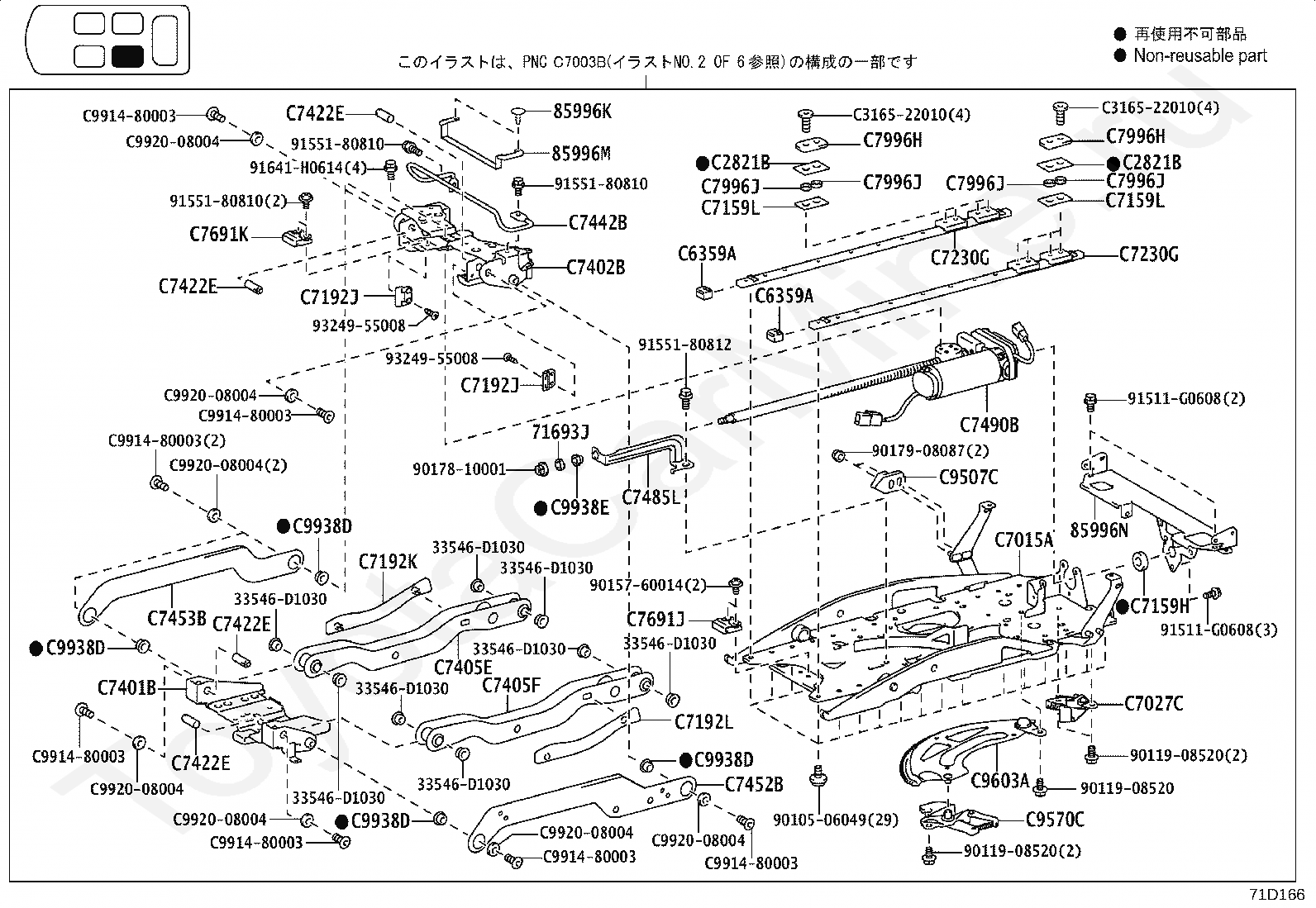

REAR SEAT & SEAT TRACK TOYOTA NOAH/VOXY/ESQUIRE







Код

Описание

71075H

CLIP(FOR REAR SEAT)

71324P

CUSHION, NO.1 SEAT, RH

71370G

CUP HOLDER ASSY, REAR SEAT SIDE TABLE

71461D

SPRING, NO.1 SEAT CUSHION, NO.1(FOR RH SEAT)

71461E

SPRING, NO.1 SEAT CUSHION, NO.2(FOR RH SEAT)

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537V

PROTECTOR, REAR SEAT CUSHION EDGE

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71696M

CLIP, REAR SEAT PROTECTOR

7176928030

Крепеж

71833L

COVER, REAR SEAT RECLINING, RH

71833Y

CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)

71833Y

CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71848Y

CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT)

71849N

CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)

71849N

CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71T75

COVER, RECLINING ADJUSTER INSIDE, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72556

CLIP(FOR REAR SEAT)

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72880B

ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)

72890B

ARMREST ASSY, NO.1 SEAT, C LH(FOR RH SEAT)

73173P

COVER, REAR SEAT BELT HOLE, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

78060C

TABLE ASSY, NO.1 SEAT SIDE

78631B

TABLE, REAR SEAT SIDE

78632D

COVER, REAR SEAT SIDE TABLE, NO.1

78639B

CLIP, REAR SEAT SIDE TABLE

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79959E

COVER, NO.1 SEAT LEG, RH

79959H

COVER, NO.2 SEAT LEG, RH NO.2

79959S

COVER, REAR SEAT LEG, RH

79959T

COVER, REAR SEAT LEG, LH

79965H

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)

79965H

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)

79966F

COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)

79966F

COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)

9004167029

Крепеж

9010914016

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017908254

Крепеж

9020111013

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9046313003

Крепеж

9046710161

Крепеж

9155211025

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9167281045

Крепеж

9167281045

Крепеж

9324056020

Крепеж

9415181000

Крепеж

9415181000

Крепеж

9415181000

Крепеж

9417060620

Крепеж

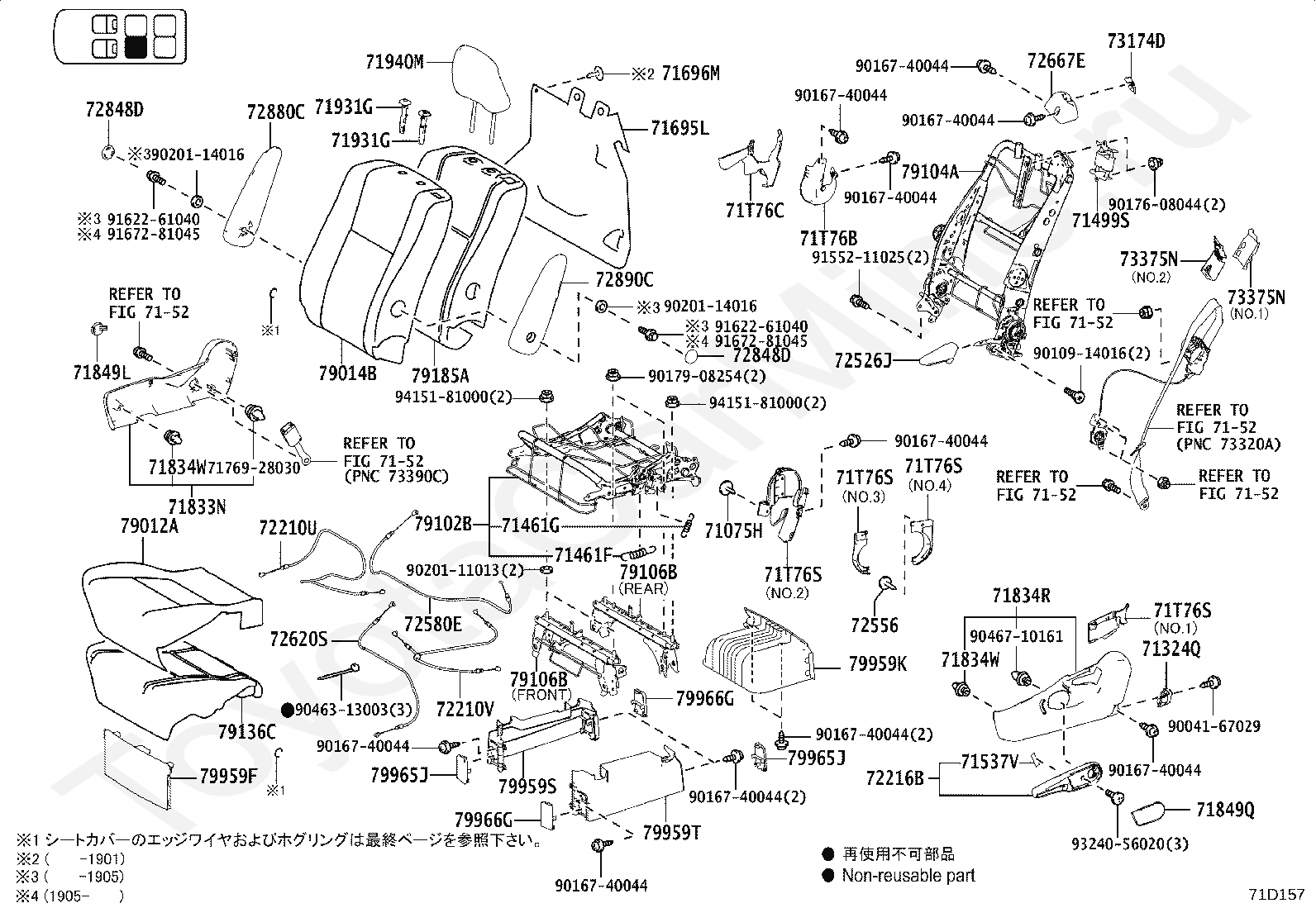

Код

Описание

71075H

CLIP(FOR REAR SEAT)

71324Q

CUSHION, NO.1 SEAT, LH

71461F

SPRING, NO.1 SEAT CUSHION, NO.1(FOR LH SEAT)

71461G

SPRING, NO.1 SEAT CUSHION, NO.2(FOR LH SEAT)

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537V

PROTECTOR, REAR SEAT CUSHION EDGE

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71696M

CLIP, REAR SEAT PROTECTOR

7176928030

Крепеж

71833N

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)

71834R

COVER, REAR SEAT RECLINING, LH

71834W

CLIP, NO.1 SEAT RECLINING COVER(FOR LH SEAT)

71834W

CLIP, NO.1 SEAT RECLINING COVER(FOR LH SEAT)

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71849Q

CAP, SEAT ADJUSTER COVER, LH NO.1

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76C

COVER, RECLINING ADJUSTER INSIDE, LH NO.2

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72556

CLIP(FOR REAR SEAT)

72580E

CABLE ASSY, RECLINING ADJUSTING, LH

72620S

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)

72667E

BEZEL, REAR SEAT BACK LOCK, UPPER

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72880C

ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

73174D

COVER, REAR SEAT BELT HOLE, LH

73375N

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.1

73375N

COVER, REAR NO.1 SEAT SHOULDER BELT, LH NO.1

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79959F

COVER, NO.1 SEAT LEG, LH

79959K

COVER, NO.2 SEAT LEG, LH NO.2

79959S

COVER, REAR SEAT LEG, RH

79959T

COVER, REAR SEAT LEG, LH

79965J

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT)

79965J

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT)

79966G

COVER, NO.1 SEAT LEG SIDE, NO.3(FOR LH SEAT)

79966G

COVER, NO.1 SEAT LEG SIDE, NO.3(FOR LH SEAT)

9004167029

Крепеж

9010914016

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017908254

Крепеж

9020111013

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9046313003

Крепеж

9046710161

Крепеж

9155211025

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9167281045

Крепеж

9167281045

Крепеж

9324056020

Крепеж

9415181000

Крепеж

9415181000

Крепеж

Код

Описание

45619L

COVER, KNUCKLE STOPPER

71393G

BAND, NO.1 SEAT CUSHION(FOR RH SEAT)

71393G

BAND, NO.1 SEAT CUSHION(FOR RH SEAT)

71396T

CUSHION, NO.1 SEAT SUPPORT, REAR

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71616A

PAD, REAR SEAT CUSHION

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71695M

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH

71695S

PROTECTOR, REAR SEAT, NO.1

71697D

PROTECTOR, NO.3 SEAT BACK, RH

71697D

PROTECTOR, NO.3 SEAT BACK, RH

71811Y

COVER, RECLINING ADJUSTER, RH

71833L

COVER, REAR SEAT RECLINING, RH

71833R

COVER, REAR SEAT RECLINING, RH

71833Y

CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)

71833Y

CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)

71848Y

CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT)

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71873Y

SHIELD, REAR SEAT CUSHION, LOWER

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H76E

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

71T75

COVER, RECLINING ADJUSTER INSIDE, RH

71T75

COVER, RECLINING ADJUSTER INSIDE, RH

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72569B

PLATE, SEAT BACK STOPPER

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72573D

LEVER, NO.1 SEAT RECLINING CONTROL, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72668G

BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT)

7270252070

Крепеж

72907F

COVER SUB-ASSY, REAR NO.1 SEAT CUSHION UNDER, RH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

73237C

COVER, SHOULDER BELT ANCHOR

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

74690A

GRIP ASSY, SEAT ASSIST, REAR

74807H

PIPE SUB-ASSY, CENTER PROTECTOR

7889928040

Крепеж

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79959S

COVER, REAR SEAT LEG, RH

79977J

FELT, SEAT BACK

9010914016

Крепеж

9010914016

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9155211025

Крепеж

9155211025

Крепеж

9155301225

Крепеж

9155380830

Крепеж

C9472B

PLATE, HANDRAIL BRACKET, NO.1

C9472C

PLATE, HANDRAIL BRACKET, NO.2

Код

Описание

35469D1030

Крепеж

35469D1030

Крепеж

57457D1010

Крепеж

58204M

BRACKET SUB-ASSY, REAR SEAT

71120D

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71811Z

SHIELD, REAR SEAT CUSHION, RH

71812V

SHIELD, REAR SEAT CUSHION, LH

71812W

CLIP, REAR SEAT CUSHION SHIELD, LH

71812W

CLIP, REAR SEAT CUSHION SHIELD, LH

71874X

SHIELD, REAR SEAT CUSHION, LOWER LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71977A

CUSHION

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76C

COVER, RECLINING ADJUSTER INSIDE, LH NO.2

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

72880C

ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

72996H

COVER, REAR SEAT BACK

7455

переход к группе запчастей

78899D1010

Крепеж

78899D1010

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

C656518010

Крепеж

C7111A

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

C995614004

Крепеж

Код

Описание

53019G

SHUTTER SUB-ASSY, RADIATOR

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72A29C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72A29D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

78988G

COVER, REAR SEAT FOOTREST, NO.2

79915B

BRACKET, SEAT LEG

79916B

BRACKET, SEAT LEG, NO.2

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010506297

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9016840074

Крепеж

9016840074

Крепеж

9017610009

Крепеж

9017610009

Крепеж

9046400620

Крепеж

C7003B

LIFT UNIT, REAR SEAT

C7120D

LEG ASSY, WELCAB SEAT

C7120H

LEG ASSY, WELCAB SEAT, NO.2

C7158B

COVER, WELCAB SEAT LEG, FRONT

C7158D

COVER, WELCAB SEAT LEG, RH

C7158E

COVER, WELCAB SEAT LEG, LH

C7986E

COVER, REAR SEAT TURN GUARD

C7986F

CLIP, REAR SEAT TURN GUARD COVER

C7986F

CLIP, REAR SEAT TURN GUARD COVER

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9055L

COVER SUB-ASSY, POWER LIFT, NO.2

C9055M

CLIP, POWER LIFT COVER, NO.2

C9055M

CLIP, POWER LIFT COVER, NO.2

C9055M

CLIP, POWER LIFT COVER, NO.2

C9055M

CLIP, POWER LIFT COVER, NO.2

C9055M

CLIP, POWER LIFT COVER, NO.2

C9055N

COVER SUB-ASSY, POWER LIFT, NO.3

C9055S

COVER SUB-ASSY, POWER LIFT, NO.4

Код

Описание

62786D1010

Крепеж

68332C

ROLLER, SLIDE DOOR, LOWER

68332C

ROLLER, SLIDE DOOR, LOWER

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

9017908087

Крепеж

9017908241

Крепеж

9017908241

Крепеж

9056008041

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180812

Крепеж

9167100820

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C3165D1020

Крепеж

C3165D1020

Крепеж

C4109D

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7110B

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7117B

PLATE, SEAT HOLDER, LH

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7210D

FOOTREST ASSY, WELCAB SEAT

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7409E

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481C

ROD, WELCAB SEAT, NO.1

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7485K

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7996H

SPACER, TURN SEAT, FRONT NO.1

C7996H

SPACER, TURN SEAT, FRONT NO.1

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C9507B

LOCK SUB-ASSY, PLATFORM, NO.1

C9610J

MOTOR ASSY, POWER LIFT

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

71693J

COVER, REAR SEAT CUSHION HINGE, NO.3

85996K

CLIP(FOR RELAY BRACKET)

85996M

BRACKET, RELAY, NO.1

85996N

BRACKET, RELAY, NO.2

9010506049

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9015760014

Крепеж

9017810001

Крепеж

9017908087

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180810

Крепеж

9155180810

Крепеж

9155180810

Крепеж

9155180812

Крепеж

91641H0614

Крепеж

9324955008

Крепеж

9324955008

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C6359A

CAP, PROTECTOR BAR

C6359A

CAP, PROTECTOR BAR

C7015A

PANEL SUB-ASSY, TURN TABLE

C7027C

LOCK SUB-ASSY, WELCAB SEAT TURN

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192K

PLATE, SEAT HOLDER STOPPER, NO.3

C7192L

PLATE, SEAT HOLDER STOPPER, NO.4

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7401B

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402B

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405E

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405F

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7442B

GUARD, WELCAB SEAT CABLE

C7452B

ARM, WELCAB SEAT LINK, NO.2

C7453B

ARM, WELCAB SEAT LINK, NO.3

C7485L

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7490B

CYLINDER ASSY, WELCAB SEAT

C7691J

CUSHION, SEAT FLAT, NO.1 RH

C7691K

CUSHION, SEAT FLAT, NO.1 RH

C7996H

SPACER, TURN SEAT, FRONT NO.1

C7996H

SPACER, TURN SEAT, FRONT NO.1

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C7996J

SPACER, TURN SEAT, FRONT NO.2

C9507C

LOCK SUB-ASSY, PLATFORM, NO.2

C9570C

LOCK ASSY, PLATFORM

C9603A

GEAR SUB-ASSY, POWER LIFT

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938E

BUSH, NO.2

Код

Описание

62786D1010

Крепеж

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

9010508145

Крепеж

9010510188

Крепеж

9010510306

Крепеж

9010510306

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9056008041

Крепеж

91511G0608

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9155281025

Крепеж

9155281025

Крепеж

C4109D

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7104B

PLATE SUB-ASSY, SEAT TURN

C7126

BRACKET, WELCAB SEAT LEG, LH NO.1

C7160C

PANEL ASSY, SLIDE TABLE

C7179G

BRACKET, WELCAB SEAT COVER NO.1

C7192H

PLATE, SEAT HOLDER STOPPER, NO.1

C7208B

PLATE SUB-ASSY, SEAT TURN LOCK

C7409F

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7409G

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.3

C7481D

ROD, WELCAB SEAT, NO.2

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7495D

BRACKET, WELCAB SEAT MOTOR, NO.1

C9599B

HOOK, PLATFORM SAFETY LOCK

C9610J

MOTOR ASSY, POWER LIFT

C9611B

MOTOR, POWER LIFT, NO.1

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

827111A750

Крепеж

8271160270

Крепеж

82825D1070

Крепеж

86683D7010

Крепеж

86683D7010

Крепеж

9011906122

Крепеж

9011908520

Крепеж

91511G0608

Крепеж

9155180612

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9331313012

Крепеж

9331313012

Крепеж

9415080630

Крепеж

C7225D1090

Крепеж

C7225D1090

Крепеж

C7225D1090

Крепеж

C8284C

WIRE, POWER LIFT MAIN

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299E

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2

C8299F

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.3

C8340B

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417L

SWITCH, LIMIT, NO.1

C8417M

SWITCH, LIMIT, NO.2

C8417M

SWITCH, LIMIT, NO.2

C8417N

SWITCH, LIMIT, NO.3

C8419L

BRACKET, LIMIT SWITCH, NO.1

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8419N

BRACKET, LIMIT SWITCH, NO.3

Код

Описание

71120D

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

71517C

PAD, NO.1 SEAT CUSHION COVER

71517C

PAD, NO.1 SEAT CUSHION COVER

71647J

PROTECTOR, REAR SEAT CUSHION EDGE, LH

71708F

STRAP SUB-ASSY, SEAT COVER

71708F

STRAP SUB-ASSY, SEAT COVER

71769P

CLIP, REAR SEAT COVER, LH

71769P

CLIP, REAR SEAT COVER, LH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76C

COVER, RECLINING ADJUSTER INSIDE, LH NO.2

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76T

COVER, RECLINING ADJUSTER OUTSIDE, NO.2 LH

72081A

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, RH

72082A

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, LH

72825B

SPACER, NO.1 SEAT ARMREST

72877F

COVER, SEAT ARMREST

72878C

COVER, NO.1 SEAT ARMREST, LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9020608038

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

71120D

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

71647J

PROTECTOR, REAR SEAT CUSHION EDGE, LH

71708F

STRAP SUB-ASSY, SEAT COVER

71708F

STRAP SUB-ASSY, SEAT COVER

71769P

CLIP, REAR SEAT COVER, LH

71769P

CLIP, REAR SEAT COVER, LH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76C

COVER, RECLINING ADJUSTER INSIDE, LH NO.2

71T76S

COVER, RECLINING ADJUSTER OUTSIDE, NO.1 LH

71T76T

COVER, RECLINING ADJUSTER OUTSIDE, NO.2 LH

72849D

CAP, SEAT ARMREST, NO.2

72849D

CAP, SEAT ARMREST, NO.2

72880C

ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

72996H

COVER, REAR SEAT BACK

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9011910911

Крепеж

9011910911

Крепеж

9020608038

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71811V

COVER, NO.1 SEAT RECLINING ADJUSTER, INNER(FOR LH SEAT)

71812V

SHIELD, REAR SEAT CUSHION, LH

72066B

BELT SUB-ASSY, REAR SEAT HOOK, LH

72925A

COVER, REAR SEAT CUSHION

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72A29C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72A29D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

74042C

BRACKET SUB-ASSY, BATTERY

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

74655G

BAR, HAND RAIL, RH

74655H

BAR, HAND RAIL, LH

74656J

COVER, HAND RAIL BAR, NO.1

74656K

COVER, HAND RAIL BAR, NO.2

74656L

COVER, HAND RAIL BAR, NO.3

74656M

COVER, HAND RAIL BAR, NO.4

79109E

FRAME SUB-ASSY, REAR NO.1 SEAT BACK, CENTER

79915B

BRACKET, SEAT LEG

79916B

BRACKET, SEAT LEG, NO.2

79937D

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9004167029

Крепеж

9004167029

Крепеж

9010506297

Крепеж

9010910164

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908086

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910918

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017610009

Крепеж

9017610009

Крепеж

9018305094

Крепеж

9020115023

Крепеж

904670502022

Крепеж

9046705161C0

Крепеж

9046706017B7

Крепеж

9046706017B7

Крепеж

9054103112

Крепеж

91511G0608

Крепеж

9331354008

Крепеж

9331354008

Крепеж

9353055014

Крепеж

9354054025

Крепеж

9454201400

Крепеж

C1766D

COVER, BRAKE CONTROL CABLE, RH

C1766E

COVER, BRAKE CONTROL CABLE, LH

C1770B

LEVER ASSY, BRAKE LOCK, RH

C1770C

LEVER ASSY, BRAKE LOCK, LH

C3165D1010

Крепеж

C3165D1010

Крепеж

C3165D1010

Крепеж

C3165D1010

Крепеж

C3420B

COVER ASSY, BATTERY SERVICE

C3421B

COVER, BATTERY SERVICE

C5398D1080

Крепеж

C5398D1080

Крепеж

C5398D1080

Крепеж

C5398D1080

Крепеж

C6331A

BRACKET, TECS BATTERY CARRIER

C7120D

LEG ASSY, WELCAB SEAT

C7120H

LEG ASSY, WELCAB SEAT, NO.2

C7123A

BRACKET, WELCAB SEAT LEG, FRONT RH

C7158B

COVER, WELCAB SEAT LEG, FRONT

C7158D

COVER, WELCAB SEAT LEG, RH

C7158E

COVER, WELCAB SEAT LEG, LH

C7179G

BRACKET, WELCAB SEAT COVER NO.1

C7179H

BRACKET, WELCAB SEAT COVER NO.2

C7196F

COVER, TURN TABLE, NO.1

C7986E

COVER, REAR SEAT TURN GUARD

C8509B

BASE SUB-ASSY, POWER SUPPLY, NO.1

C8509C

BASE SUB-ASSY, POWER SUPPLY, NO.2

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9055L

COVER SUB-ASSY, POWER LIFT, NO.2

C9055N

COVER SUB-ASSY, POWER LIFT, NO.3

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71811V

COVER, NO.1 SEAT RECLINING ADJUSTER, INNER(FOR LH SEAT)

71812V

SHIELD, REAR SEAT CUSHION, LH

72925A

COVER, REAR SEAT CUSHION

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72927L

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72A29C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72A29D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

74655G

BAR, HAND RAIL, RH

74655H

BAR, HAND RAIL, LH

74656J

COVER, HAND RAIL BAR, NO.1

74656K

COVER, HAND RAIL BAR, NO.2

74656L

COVER, HAND RAIL BAR, NO.3

74656M

COVER, HAND RAIL BAR, NO.4

79915B

BRACKET, SEAT LEG

79916B

BRACKET, SEAT LEG, NO.2

79937D

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

79J68B

CLIP

8202

переход к группе запчастей

8401

переход к группе запчастей

9004167029

Крепеж

9004167029

Крепеж

9010506297

Крепеж

9010910164

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908983

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910918

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9011910990

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017610009

Крепеж

9017610009

Крепеж

9018305094

Крепеж

9020115023

Крепеж

9046705161C0

Крепеж

91511G0608

Крепеж

9331354008

Крепеж

9331354008

Крепеж

9454201400

Крепеж

C1766D

COVER, BRAKE CONTROL CABLE, RH

C1766E

COVER, BRAKE CONTROL CABLE, LH

C1770B

LEVER ASSY, BRAKE LOCK, RH

C1770C

LEVER ASSY, BRAKE LOCK, LH

C3165D1010

Крепеж

C3165D1010

Крепеж

C3165D1010

Крепеж

C3165D1010

Крепеж

C5398D1080

Крепеж

C5398D1080

Крепеж

C5398D1080

Крепеж

C5398D1080

Крепеж

C7120D

LEG ASSY, WELCAB SEAT

C7120H

LEG ASSY, WELCAB SEAT, NO.2

C7123A

BRACKET, WELCAB SEAT LEG, FRONT RH

C7158B

COVER, WELCAB SEAT LEG, FRONT

C7158D

COVER, WELCAB SEAT LEG, RH

C7158E

COVER, WELCAB SEAT LEG, LH

C7179E

BRACKET, WELCAB SEAT COVER, RH

C7179F

BRACKET, WELCAB SEAT COVER, LH

C7196F

COVER, TURN TABLE, NO.1

C7986E

COVER, REAR SEAT TURN GUARD

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9055L

COVER SUB-ASSY, POWER LIFT, NO.2

C9055N

COVER SUB-ASSY, POWER LIFT, NO.3

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

53019G

SHUTTER SUB-ASSY, RADIATOR

62786L

CASE, SIDE WINDOW LOCK, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

72205F

HOUSING SUB-ASSY, POWER SEAT, NO.1

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

827111A750

Крепеж

8271160270

Крепеж

9010506049

Крепеж

9010506049

Крепеж

9011908520

Крепеж

9015760014

Крепеж

9017810001

Крепеж

9017908087

Крепеж

9046400620

Крепеж

9046705063C0

Крепеж

9056008041

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9167100820

Крепеж

9331313012

Крепеж

C3165D1010

Крепеж

C7015A

PANEL SUB-ASSY, TURN TABLE

C7027C

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101A

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7117A

PLATE, SEAT HOLDER, RH

C7117B

PLATE, SEAT HOLDER, LH

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7409E

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481C

ROD, WELCAB SEAT, NO.1

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7485K

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7485L

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7490B

CYLINDER ASSY, WELCAB SEAT

C7691D

CUSHION, SEAT FLAT, NO.1

C8291G

PROTECTOR, TECS WIRING HARNESS, NO.4

C8401D1100

Крепеж

C8417M

SWITCH, LIMIT, NO.2

C8419L

BRACKET, LIMIT SWITCH, NO.1

C8515A

STAY, RELAY BRACKET

C9201C

GUIDE SUB-ASSY, POWER LIFT

C9201C

GUIDE SUB-ASSY, POWER LIFT

C9211C

GUIDE, POWER LIFT PLATFORM

C9226D

COLLAR, PLATFORM SUPPORT SHAFT, NO.1

C9226D

COLLAR, PLATFORM SUPPORT SHAFT, NO.1

C9245A

CUSHION, POWER LIFT PLATFORM

C9570C

LOCK ASSY, PLATFORM

C9603A

GEAR SUB-ASSY, POWER LIFT

C9610J

MOTOR ASSY, POWER LIFT

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C991106010

Крепеж

C991106010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C993820019

Крепеж

Код

Описание

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

68332C

ROLLER, SLIDE DOOR, LOWER

68332C

ROLLER, SLIDE DOOR, LOWER

71987C

PLATE, REAR SEAT LEG, NO.1

71987C

PLATE, REAR SEAT LEG, NO.1

9015760014

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9050612052

Крепеж

9155180610

Крепеж

91641H0614

Крепеж

9167281018

Крепеж

9324955008

Крепеж

9324955008

Крепеж

9331313012

Крепеж

C2125D1050

Крепеж

C2125D1060

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C316522010

Крепеж

C316522010

Крепеж

C5421C

PROTECTOR, SIDE BOARD

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192K

PLATE, SEAT HOLDER STOPPER, NO.3

C7192L

PLATE, SEAT HOLDER STOPPER, NO.4

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7401B

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402B

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405E

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405F

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7405G

ARM SUB-ASSY, WELCAB SEAT LINK, NO.3

C7405H

ARM SUB-ASSY, WELCAB SEAT LINK, NO.4

C7422K

PIN, WELCAB SEAT ARM GUIDE, NO.6

C7422K

PIN, WELCAB SEAT ARM GUIDE, NO.6

C7422K

PIN, WELCAB SEAT ARM GUIDE, NO.6

C7422K

PIN, WELCAB SEAT ARM GUIDE, NO.6

C7691E

CUSHION, SEAT FLAT, NO.2

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996T

SPACER, TURN SEAT, NO.3

C7996T

SPACER, TURN SEAT, NO.3

C8417M

SWITCH, LIMIT, NO.2

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8450B

SWITCH ASSY, LIMIT, NO.2

C9570D

LOCK ASSY, PLATFORM, NO.2

C991105002

Крепеж

C991105002

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

Код

Описание

62786L

CASE, SIDE WINDOW LOCK, NO.1

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

9010508145

Крепеж

9010510048

Крепеж

9010510188

Крепеж

9010510188

Крепеж

9010510306

Крепеж

9010908067

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9056008041

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9155281025

Крепеж

9155281025

Крепеж

91552L1225

Крепеж

9326963016

Крепеж

C4109D

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7104B

PLATE SUB-ASSY, SEAT TURN

C7126

BRACKET, WELCAB SEAT LEG, LH NO.1

C7160C

PANEL ASSY, SLIDE TABLE

C7192H

PLATE, SEAT HOLDER STOPPER, NO.1

C7208B

PLATE SUB-ASSY, SEAT TURN LOCK

C7252A

BRACKET, WELCAB SEAT TRACK STOPPER, NO.2

C7409F

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7409G

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.3

C7481D

ROD, WELCAB SEAT, NO.2

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7495D

BRACKET, WELCAB SEAT MOTOR, NO.1

C8417L

SWITCH, LIMIT, NO.1

C8417N

SWITCH, LIMIT, NO.3

C8419N

BRACKET, LIMIT SWITCH, NO.3

C8737B

PROTECTOR, DUCT EDGE, NO.1

C9610J

MOTOR ASSY, POWER LIFT

C9611B

MOTOR, POWER LIFT, NO.1

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654P

COLLAR, POWER LIFT CYLINDER, NO.3

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

7455

переход к группе запчастей

7455

переход к группе запчастей

827111A750

Крепеж

82956B

COVER, ELECTRICAL PARTS JUNCTION

85996M

BRACKET, RELAY, NO.1

85996M

BRACKET, RELAY, NO.1

9011906122

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9016740044

Крепеж

9018905131

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9353055020

Крепеж

9353055020

Крепеж

9415080630

Крепеж

C7179G

BRACKET, WELCAB SEAT COVER NO.1

C7225B

PLATE, WELCAB SEAT FOOTREST STEP, NO.1

C7225B

PLATE, WELCAB SEAT FOOTREST STEP, NO.1

C8284C

WIRE, POWER LIFT MAIN

C8291D

PROTECTOR, TECS WIRING HARNESS, NO.1

C8291E

PROTECTOR, TECS WIRING HARNESS, NO.2

C8291F

PROTECTOR, TECS WIRING HARNESS, NO.3

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299E

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2

C8299F

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.3

C8340B

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8421B

JUNCTION, POWER LIFT SEAT CONTROL FEMALE

C8421B

JUNCTION, POWER LIFT SEAT CONTROL FEMALE

C8530D

RELAY ASSY, POWER LIFT MOTOR

C8530D

RELAY ASSY, POWER LIFT MOTOR

Код

Описание

71338B

PLATE, REAR SEAT LEG, NO.2

71987D

PLATE, REAR SEAT LEG, NO.2

71987D

PLATE, REAR SEAT LEG, NO.2

71987D

PLATE, REAR SEAT LEG, NO.2

71987D

PLATE, REAR SEAT LEG, NO.2

7455

переход к группе запчастей

79184A

PLATE, NO.1 SEAT LEG

79184B

PLATE, NO.1 SEAT LEG, NO.2

79184C

PLATE, NO.1 SEAT LEG, NO.3

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9020106043

Крепеж

9020106043

Крепеж

9046814011

Крепеж

9046814011

Крепеж

9054106013

Крепеж

9054106013

Крепеж

9054106047

Крепеж

9054106047

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9261500635

Крепеж

9261500635

Крепеж

9413060600

Крепеж

9413060600

Крепеж

C3165D1010

Крепеж

C3165D1010

Крепеж

C5926D1030

Крепеж

C5926D1030

Крепеж

C7210D

FOOTREST ASSY, WELCAB SEAT

C7210E

FOOTREST ASSY, WELCAB WHEEL CHAIR, RH

C7210F

FOOTREST ASSY, WELCAB WHEEL CHAIR, LH

C7225D1080

Крепеж

C7225D1080

Крепеж

C7225D1090

Крепеж

C7225D1090

Крепеж

C7422D1200

Крепеж

C7422D1200

Крепеж

C7422G

PIN, WELCAB SEAT ARM GUIDE, NO.3

C7422G

PIN, WELCAB SEAT ARM GUIDE, NO.3

C7422H

PIN, WELCAB SEAT ARM GUIDE, NO.4

C7422H

PIN, WELCAB SEAT ARM GUIDE, NO.4

C7451A

ARM, WELCAB SEAT LINK, NO.1

C7451B

ARM, WELCAB SEAT LINK, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C993808007

Крепеж

C993808007

Крепеж

Код

Описание

38641D1010

Крепеж

38641D1010

Крепеж

42602D1010

Крепеж

42602D1010

Крепеж

42623D1010

Крепеж

42623D1010

Крепеж

71430E

CLIP

71430E

CLIP

71430E

CLIP

71537U

PROTECTOR, REAR SEAT CUSHION, NO.2

71537U

PROTECTOR, REAR SEAT CUSHION, NO.2

7455

переход к группе запчастей

827111E300

Крепеж

9011906595

Крепеж

9011906595

Крепеж

9017810001

Крепеж

9017810001

Крепеж

9017810001

Крепеж

9017810001

Крепеж

9017906177

Крепеж

9017906177

Крепеж

9020211030

Крепеж

9020211030

Крепеж

9020211030

Крепеж

9020211030

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9026904010

Крепеж

9046400620

Крепеж

9054106037

Крепеж

9155110814

Крепеж

9155110814

Крепеж

9326056010

Крепеж

9415080600

Крепеж

C1708B

PLATE SUB-ASSY, BRAKE CONTROL ARM, NO.1

C1708C

PLATE SUB-ASSY, BRAKE CONTROL ARM, NO.2

C1721B

BRACKET, CONTROL, NO.1

C1721B

BRACKET, CONTROL, NO.1

C1721C

BRACKET, CONTROL, NO.2

C1740D

CABLE ASSY, BRAKE CONTROL, NO.1

C1740E

CABLE ASSY, BRAKE CONTROL, NO.2

C1790A

HANDLE ASSY, PARKING BRAKE LOCK

C1797B

LINK, BRAKE CONTROL TO ARM, NO.1

C1797C

LINK, BRAKE CONTROL TO ARM, NO.2

C1895A

TIRE, TUBELESS

C1895A

TIRE, TUBELESS

C3047A

HOUSING SUB-ASSY, REAR WHEEL HOUSE

C3047A

HOUSING SUB-ASSY, REAR WHEEL HOUSE

C5926D1060

Крепеж

C5926D1060

Крепеж

C5926D1060

Крепеж

C5926D1060

Крепеж

C5926D1060

Крепеж

C5926D1060

Крепеж

C6047A

LOCK SET, WHEEL, RH

C6047B

LOCK SET, WHEEL, LH

C6501F

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT RH NO.1

C6501G

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT RH NO.2

C6501H

FRAME SUB-ASSY, WHEEL CHAIR HOLDER, NO.1

C6501J

FRAME SUB-ASSY, WHEEL CHAIR HOLDER, NO.2

C6502C

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT LH NO.1

C6502D

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, FRONT LH NO.2

C6503B

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, REAR RH

C6504A

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, REAR LH

C6506D

FRAME SUB-ASSY, WELCAB WHEEL CHAIR MAIN

C6531B

CUSHION, WHEEL CHAIR HOLDER STAY, NO.1

C6531B

CUSHION, WHEEL CHAIR HOLDER STAY, NO.1

C6532B

CUSHION, WHEEL CHAIR HOLDER STAY, NO.2

C6550L

WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT RH

C6550M

WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT LH

C6553A

SUPPORT, WHEEL CHAIR WHEEL, REAR NO.2 RH

C6554A

SUPPORT, WHEEL CHAIR WHEEL, REAR NO.2 LH

C6560F

WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

C6560F

WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

C6560F

WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

C6565A

PAD, WELCAB WHEEL CHAIR, NO.1

C6565A

PAD, WELCAB WHEEL CHAIR, NO.1

C6565A

PAD, WELCAB WHEEL CHAIR, NO.1

C6565A

PAD, WELCAB WHEEL CHAIR, NO.1

C6566B

PAD, WELCAB WHEEL CHAIR, NO.2

C6566B

PAD, WELCAB WHEEL CHAIR, NO.2

C6566C

PAD, WELCAB WHEEL CHAIR, NO.3

C6566C

PAD, WELCAB WHEEL CHAIR, NO.3

C6569B

BRACKET, WELCAB WHEEL CHAIR, RH

C6569C

BRACKET, WELCAB WHEEL CHAIR, LH

C6579A

HINGE, WELCAB WHEEL CHAIR, NO.2

C6579A

HINGE, WELCAB WHEEL CHAIR, NO.2

C7159S

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159S

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159S

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159S

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159U

CUSHION, WELCAB SEAT LEG STOPPER, NO.5

C7159U

CUSHION, WELCAB SEAT LEG STOPPER, NO.5

C7179H

BRACKET, WELCAB SEAT COVER NO.2

C7179J

BRACKET, WELCAB SEAT COVER NO.3

C7236A

PROTECTOR, WELCAB SEAT TRACK LOWER RAIL

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7881A

GRIP, CONTROL LINK

C8193B

REFLECTOR, REFLEX

C8737B

PROTECTOR, DUCT EDGE, NO.1

C9065B

CABLE SUB-ASSY, POWER LIFT, NO.1

C9137A

BRACKET, CHAIR LIFT BASE

C9147B

SHAFT, CHAIR LIFT BASE

C9220A

SHAFT ASSY, PLATFORM SUPPORT

C9220A

SHAFT ASSY, PLATFORM SUPPORT

C9226E

COLLAR, PLATFORM SUPPORT SHAFT, NO.2

C9226E

COLLAR, PLATFORM SUPPORT SHAFT, NO.2

C9610M

MOTOR ASSY, WHEEL CHAIR

C9615D

COVER, POWER LIFT MOTOR, NO.1

C9617A

CASE, POWER LIFT MOTOR, LOWER

C9652C

CAP, POWER LIFT CYLINDER, NO.2

C9652C

CAP, POWER LIFT CYLINDER, NO.2

C9652C

CAP, POWER LIFT CYLINDER, NO.2

C9652C

CAP, POWER LIFT CYLINDER, NO.2

C991010008

Крепеж

C991010008

Крепеж

C991010009

Крепеж

C991010009

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C991708008

Крепеж

C991712007

Крепеж

C991712007

Крепеж

C991712007

Крепеж

C992009002

Крепеж

C992009002

Крепеж

C992012005

Крепеж

C992012005

Крепеж

C992012005

Крепеж

C993808007

Крепеж

C993808007

Крепеж

C993808007

Крепеж

C993808007

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C993814019

Крепеж

C9950B

SPRING, TENSION, NO.1

C9950B

SPRING, TENSION, NO.1

C9950C

SPRING, TENSION, NO.2

C9950C

SPRING, TENSION, NO.2

Код

Описание

71076F

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

71078A

COVER SUB-ASSY, REAR NO.1 SEAT BACK, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

71587M

PROTECTOR, REAR SEAT BACK EDGE, LH

71587M

PROTECTOR, REAR SEAT BACK EDGE, LH

71612G

PAD, REAR NO.1 SEAT CUSHION, LH

71652A

PAD, REAR NO.1 SEAT BACK, LH

71660C

SPRING ASSY, REAR NO.1 SEAT CUSHION, LH

71680

SPRING ASSY, REAR NO.1 SEAT BACK, LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

72681E

HOOK, REAR SEAT

72681E

HOOK, REAR SEAT

72749H

SPACER, REAR SEAT RECLINING, LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72880C

ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

8202

переход к группе запчастей

8271528Q10

Крепеж

8401

переход к группе запчастей

9011910601

Крепеж

9020114016

Крепеж

9020114016

Крепеж

9020114035

Крепеж

9052020065

Крепеж

9155180820

Крепеж

91552G1245

Крепеж

9162261040

Крепеж

9162261040

Крепеж

9167281040

Крепеж

9167281040

Крепеж

9331513008

Крепеж

C7996M

SPACER, TURN SEAT

C8417L

SWITCH, LIMIT, NO.1

C8419L

BRACKET, LIMIT SWITCH, NO.1

C965528010

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

37601B

SHAFT SUB-ASSY, DRIVE, NO.1

58331N

SHEET, REAR STEP. NO.1

58331P

SHEET, REAR STEP. NO.2

71347D

BRACKET, REAR SEAT LINK

71389E

PLATE, REAR SEAT CUSHION BRACKET

71977A

CUSHION

72610B

STRIKER ASSY, REAR SEAT BACK LOCK

72620T

LOCK ASSY, REAR SEAT BACK

82702L

BRACKET SUB-ASSY, WIRING HARNESS

827111E040

Крепеж

827111E360

Крепеж

8271152090

Крепеж

8271176010

Крепеж

8271528P50

Крепеж

8271528P70

Крепеж

8271528Q00

Крепеж

85996M

BRACKET, RELAY, NO.1

9010510436

Крепеж

9010510436

Крепеж

9010510436

Крепеж

9010510436

Крепеж

9010510436

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9321913005

Крепеж

9321913005

Крепеж

9415080630

Крепеж

C316528030

Крепеж

C316528030

Крепеж

C316528030

Крепеж

C316528030

Крепеж

C316528030

Крепеж

C7015A

PANEL SUB-ASSY, TURN TABLE

C7021A

LIFT KIT, REAR SEAT

C7027C

LOCK SUB-ASSY, WELCAB SEAT TURN

C7110B

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7210D

FOOTREST ASSY, WELCAB SEAT

C7405E

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405F

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7405G

ARM SUB-ASSY, WELCAB SEAT LINK, NO.3

C7405H

ARM SUB-ASSY, WELCAB SEAT LINK, NO.4

C7451A

ARM, WELCAB SEAT LINK, NO.1

C8284C

WIRE, POWER LIFT MAIN

C8298F

BRACKET, WELCAB SEAT HARNESS CLAMP, NO.2

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299E

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2

C8340B

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417N

SWITCH, LIMIT, NO.3

C8417P

SWITCH, LIMIT, NO.4

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8459A

SPRING, LIMIT SWITCH

C9603A

GEAR SUB-ASSY, POWER LIFT

C9610J

MOTOR ASSY, POWER LIFT

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654Y

COLLAR, POWER LIFT CYLINDER, NO.8

C965528010

Крепеж

C965528010

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

G2499A

RESISTOR, ELECTRIC CIRCUIT

Код

Описание

62786L

CASE, SIDE WINDOW LOCK, NO.1

71163E

STOPPER, TURN TABLE, NO.1

71163F

STOPPER, TURN TABLE, NO.2

72205F

HOUSING SUB-ASSY, POWER SEAT, NO.1

72589E

CABLE ASSY, RECLINING REMOTE CONTROL, NO.1

73131D

BRACKET, SEAT BELT

79105H

LEG SUB-ASSY, WELCAB SEAT, RH

79106C

LEG SUB-ASSY, WELCAB SEAT, LH

827111E360

Крепеж

85801C

MOTOR ASSY, POWER SEAT(FOR LH SEAT)

85H20

MOTOR ASSY, POWER SEAT

9010906322

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020114016

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9155180818

Крепеж

9155180818

Крепеж

9155180818

Крепеж

9155180818

Крепеж

9155281030

Крепеж

9155281030

Крепеж

9418801201

Крепеж

C3165D1220

Крепеж

C3165D1220

Крепеж

C7021A

LIFT KIT, REAR SEAT

C7103D

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104B

PLATE SUB-ASSY, SEAT TURN

C7105A

PANEL SUB-ASSY, SLIDE TABLE

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7161A

PANEL, SLIDE TABLE

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7409E

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7409F

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7481C

ROD, WELCAB SEAT, NO.1

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7495D

BRACKET, WELCAB SEAT MOTOR, NO.1

C8298E

BRACKET, WELCAB SEAT HARNESS CLAMP

C8417M

SWITCH, LIMIT, NO.2

C8419U

BRACKET, LIMIT SWITCH, NO.5

C8449A

DOG, LIMIT SWITCH

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C965528010

Крепеж

C9658C

PLATE, POWER LIFT CYLINDER ROD

C9658C

PLATE, POWER LIFT CYLINDER ROD

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

51079G

PANEL SUB-ASSY, REAR STEP

53019G

SHUTTER SUB-ASSY, RADIATOR

55358N

PROTECTOR, EDGE

58659D

SHEET, STEP SILENCER

71260E

BRACKET ASSY, SEAT, OUTER LH

71280C

BRACKET ASSY, SEAT, INNER LH

71430E

CLIP

71430E

CLIP

7152

переход к группе запчастей

71812V

SHIELD, REAR SEAT CUSHION, LH

71846G

CAP, REAR SEAT COVER, LH

71846G

CAP, REAR SEAT COVER, LH

71862P

SHIELD, REAR SEAT CUSHION, INNER LH

71935C

CLIP

71935C

CLIP

71936C

CLIP

72945C

COVER, REAR SEAT TURN

72973K

COVER, REAR SEAT TURN TABLE, RH

72974B

COVER, REAR SEAT TURN TABLE, LH

73705C

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

73705C

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

7455

переход к группе запчастей

7455

переход к группе запчастей

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

79246L

COVER, NO.1 SEAT LEG, NO.2

79246M

COVER, REAR SEAT LEG, LH

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9020108082

Крепеж

9046400620

Крепеж

9046705172

Крепеж

9056008041

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9326056012

Крепеж

9356053008

Крепеж

9356053008

Крепеж

9356053008

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9356054008

Крепеж

C2261A

STOPPER, REAR STEP

C6625G

BRACKET, NO.1(FOR REAR SEAT SIDE TABLE COVER)

C6625H

BRACKET, NO.2(FOR REAR SEAT SIDE TABLE COVER)

C7962B

COVER, REAR SEAT FOOTREST, RH

C7962C

COVER, REAR SEAT FOOTREST, LH

C991480003

Крепеж

Код

Описание

72908A

COVER SUB-ASSY, REAR NO.1 SEAT CUSHION UNDER, LH

7455

переход к группе запчастей

79937D

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

9046709232

Крепеж

9046709232

Крепеж

9046710167

Крепеж

91673A0820

Крепеж

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

Код

Описание

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71307F

BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR RH SEAT)

71330D

HINGE ASSY, REAR NO.2 SEAT, RH

71393C

BAND, NO.2 SEAT CUSHION, RH NO.1

71397G

STOPPER, REAR SEAT, RH

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71462A

SPRING, REAR SEAT CUSHION, NO.2(FOR RH SEAT)

71485E

COVER, REAR SEAT HINGE

71485F

COVER, REAR SEAT HINGE, NO.1 RH

71485G

COVER, REAR SEAT HINGE, NO.2 RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693G

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2

71696N

PROTECTOR, REAR SEAT, NO.2

71778D

COVER, REAR SEAT SIDE HINGE MALE, RH

71811Y

COVER, RECLINING ADJUSTER, RH

71825D

MOULDING, REAR NO.1 SEAT CUSHION, RH

71825E

MOULDING, REAR NO.2 SEAT CUSHION, RH

71842B

CLIP(FOR REAR SEAT)

71843G

COVER, NO.2 SEAT RECLINING, NO.2 RH OUTER

71843M

COVER, REAR SEAT RECLINING, NO.2 RH

71843N

CLIP, REAR SEAT RECLINING COVER

71843N

CLIP, REAR SEAT RECLINING COVER

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

71H11

COVER, RECLINING ADJUSTER, RH

72063B

HOOK SUB-ASSY, REAR SEAT, RH

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72507H

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72601G

STRIKER SUB-ASSY, REAR SEAT LOCK

72695R

CABLE, REAR NO.2 SEAT LOCK CONTROL, RH

7455

переход к группе запчастей

76971G

COVER, REAR UNDER

76973F

COVER, REAR UNDER SIDE, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79273B

COVER, NO.2 SEAT HINGE, NO.3

79275F

PAD, NO.2 SEAT BACK, RH

79378E

COVER, NO.3 SEAT CUSHION HINGE, RH

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79957C

COVER, REAR SEAT REAR BRACKET, RH

79977K

FELT, SEAT BACK, NO.2

9010906247

Крепеж

9010908330

Крепеж

9010908330

Крепеж

9011906904

Крепеж

9011906904

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020107008

Крепеж

9046707214

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9155380612

Крепеж

9167381022

Крепеж

91674L1028

Крепеж

91674L1028

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9418560600

Крепеж

C6185D1170

Крепеж

Код

Описание

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71307G

BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR LH SEAT)

71340C

HINGE ASSY, REAR NO.2 SEAT, LH

71393E

BAND, NO.2 SEAT CUSHION, LH NO.1

71397H

STOPPER, REAR SEAT, LH

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71462B

SPRING, REAR SEAT CUSHION, NO.2(FOR LH SEAT)

71486F

COVER, REAR SEAT HINGE, LH

71486G

COVER, REAR SEAT HINGE, NO.2 LH

71486H

COVER, REAR SEAT HINGE, NO.1 LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694B

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2

71696N

PROTECTOR, REAR SEAT, NO.2

71779F

COVER, REAR SEAT SIDE HINGE MALE, LH

71826C

MOULDING, REAR SEAT CUSHION, LH

71826D

MOULDING, REAR NO.2 SEAT CUSHION, LH

71842B

CLIP(FOR REAR SEAT)

71843N

CLIP, REAR SEAT RECLINING COVER

71843N

CLIP, REAR SEAT RECLINING COVER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71844K

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71H12

COVER, RECLINING ADJUSTER, LH

71H12A

COVER, RECLINING ADJUSTER, LH

72064B

HOOK SUB-ASSY, REAR SEAT, LH

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72601G

STRIKER SUB-ASSY, REAR SEAT LOCK

72695S

CABLE, REAR NO.2 SEAT LOCK CONTROL, LH

7455

переход к группе запчастей

7455

переход к группе запчастей

76971G

COVER, REAR UNDER

76974F

COVER, REAR UNDER SIDE, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79273B

COVER, NO.2 SEAT HINGE, NO.3

79285C

PAD, NO.2 SEAT BACK, LH

79378F

COVER, NO.2 SEAT CUSHION HINGE, LH

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79958B

COVER, REAR SEAT REAR BRACKET, LH

79977K

FELT, SEAT BACK, NO.2

9010906247

Крепеж

9010908330

Крепеж

9010908330

Крепеж

9011906904

Крепеж

9011906904

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020107008

Крепеж

9046707214

Крепеж

9046707214

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9155380612

Крепеж

9167381022

Крепеж

9167381022

Крепеж

91674L1028

Крепеж

91674L1028

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9418560600

Крепеж

C6185D1170

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти NOAH/VOXY/ESQUIRE > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
