Каталог

Япония

Модель

NOAH/VOXY

VIN

Дата

2010/04

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

ZS TYPE

Фрейм

ZRR75

Опции

VOXY 7-местный COMPLETED VEHICLE HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 499W

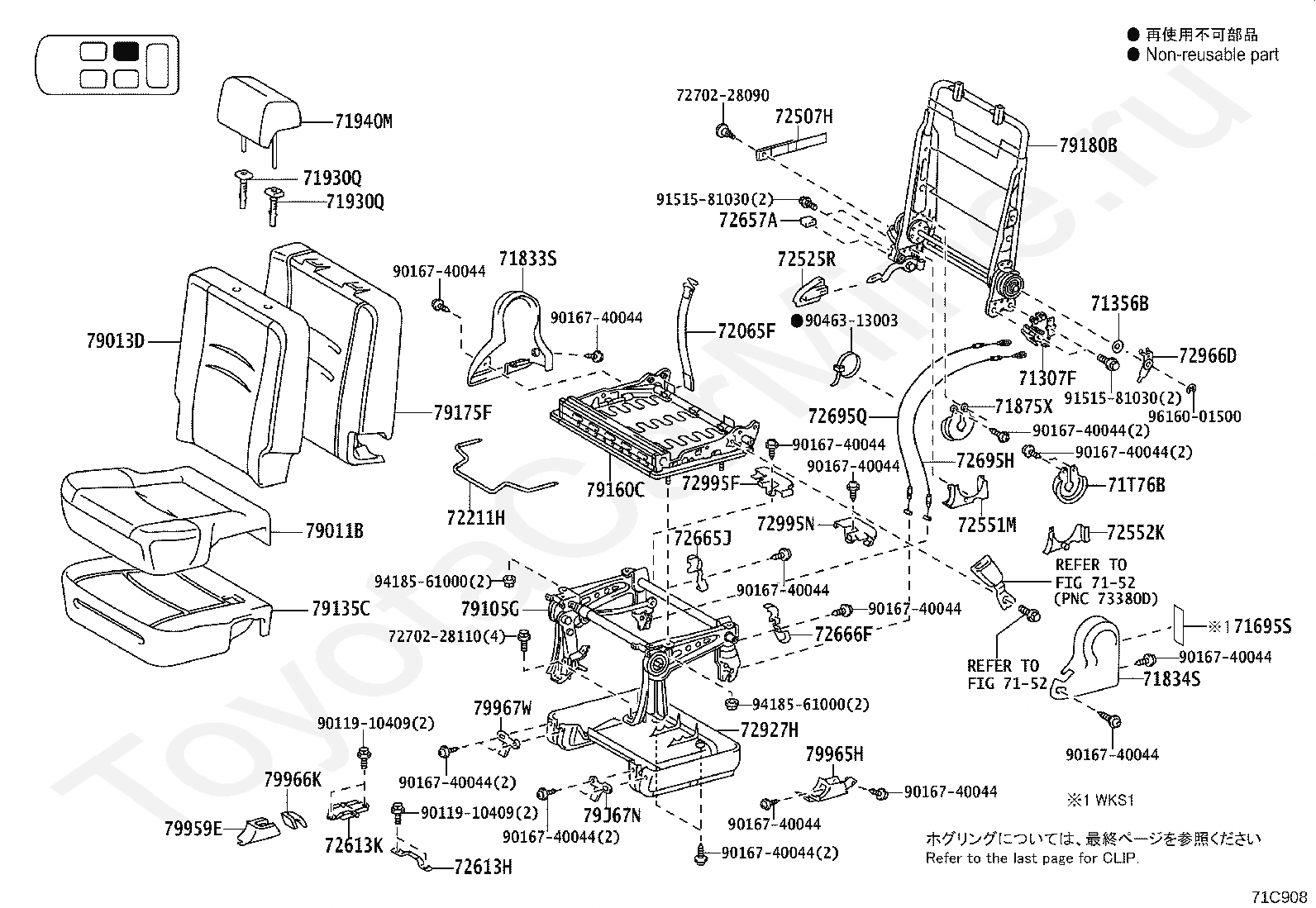

REAR SEAT & SEAT TRACK TOYOTA NOAH/VOXY

Код

Описание

71307F

BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR RH SEAT)

71356B

PLATE, REAR SEAT BACK HINGE, INNER RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72065F

BELT SUB-ASSY, REAR SEAT HOOK, RH

72211H

HANDLE, SEAT TRACK ADJUSTING, RH

72507H

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551M

COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

72552K

COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

72613H

STRIKER, REAR SEAT LOCK

72613K

STRIKER, REAR SEAT LOCK, NO.2

72657A

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72665J

COVER, REAR SEAT LOCK, RH

72666F

COVER, REAR SEAT LOCK, LH

72695H

CABLE, REAR NO.1 SEAT LOCK CONTROL, RH

72695Q

CABLE, REAR SEAT LOCK CONTROL

7270228090

Крепеж

7270228110

Крепеж

72927H

COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1

72966D

PLATE, REAR SEAT TURN LOCK, NO.1 RH

72995F

COVER, REAR SEAT CUSHION, RH

72995N

COVER, REAR SEAT CUSHION, LH

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79160C

SPRING ASSY, NO.1 SEAT CUSHION

79175F

PAD, NO.1 SEAT BACK, RH

79180B

SPRING ASSY, NO.1 SEAT BACK, RH

79959E

COVER, NO.1 SEAT LEG, RH

79965H

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)

79966K

COVER, REAR SEAT LEG, RH(FOR RH SEAT)

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

79J67N

COVER, REAR SEAT LEG SIDE, NO.7

9011910409

Крепеж

9011910409

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9151581030

Крепеж

9151581030

Крепеж

9418561000

Крепеж

9418561000

Крепеж

9616001500

Крепеж

Код

Описание

35469D1030

Крепеж

35469D1030

Крепеж

5301928020

Крепеж

71120D

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

71410

CLIP(FOR REAR SEAT CUSHION)

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537Q

PROTECTOR, REAR NO.1 SEAT CUSHION, LH

71812V

SHIELD, REAR SEAT CUSHION, LH

71812W

CLIP, REAR SEAT CUSHION SHIELD, LH

71862P

SHIELD, REAR SEAT CUSHION, INNER LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940J

HEADREST ASSY, NO.2 SEAT, LH

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

72830U

ARMREST ASSY, REAR SEAT, RH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72907G

COVER SUB-ASSY, REAR SEAT TURN

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

72928M

CLIP, REAR NO.1 SEAT CUSHION UNDER COVER

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

78899D1010

Крепеж

78899D1010

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79246H

COVER, NO.2 SEAT LEG, LH

79246H

COVER, NO.2 SEAT LEG, LH

79959F

COVER, NO.1 SEAT LEG, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910709

Крепеж

9011910709

Крепеж

9011910843

Крепеж

9011910918

Крепеж

9016850023

Крепеж

9018304057

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9331354008

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

C2815D1020

Крепеж

C3381C

COVER, SLIDE STEP, NO.1

C3382C

COVER, SLIDE STEP, NO.2

C7003B

LIFT UNIT, REAR SEAT

C7120D

LEG ASSY, WELCAB SEAT

C7196F

COVER, TURN TABLE, NO.1

C7227C

CARPET, WELCAB SEAT FOOTREST STEP

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9691C

COVER, POWER LIFT MOTOR

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

C995614004

Крепеж

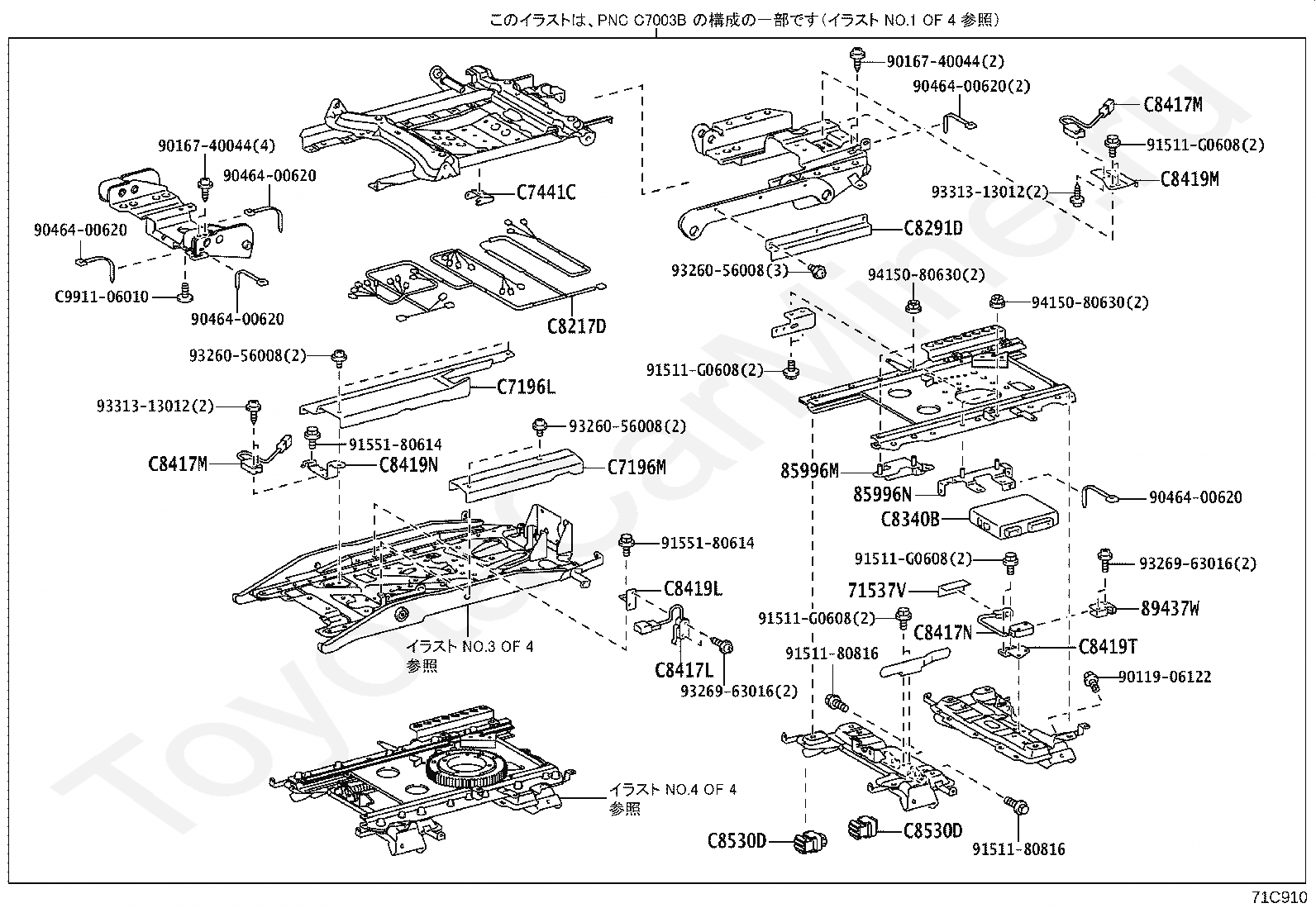

Код

Описание

71537V

PROTECTOR, REAR SEAT CUSHION EDGE

85996M

BRACKET, RELAY, NO.1

85996N

BRACKET, RELAY, NO.2

89437W

COVER, SENSOR

9011906122

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9046400620

Крепеж

9151180816

Крепеж

9151180816

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326056008

Крепеж

9326963016

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9331313012

Крепеж

9415080630

Крепеж

9415080630

Крепеж

C7196L

COVER, TURN TABLE, NO.2

C7196M

COVER, TURN TABLE, NO.3

C7441C

GUIDE, WELCAB SEAT CABLE

C8217D

WIRE, WELCAB SEAT MAIN

C8291D

PROTECTOR, TECS WIRING HARNESS, NO.1

C8340B

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417L

SWITCH, LIMIT, NO.1

C8417M

SWITCH, LIMIT, NO.2

C8417M

SWITCH, LIMIT, NO.2

C8417N

SWITCH, LIMIT, NO.3

C8419L

BRACKET, LIMIT SWITCH, NO.1

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8419N

BRACKET, LIMIT SWITCH, NO.3

C8419T

BRACKET, LIMIT SWITCH, NO.4

C8530D

RELAY ASSY, POWER LIFT MOTOR

C8530D

RELAY ASSY, POWER LIFT MOTOR

C991106010

Крепеж

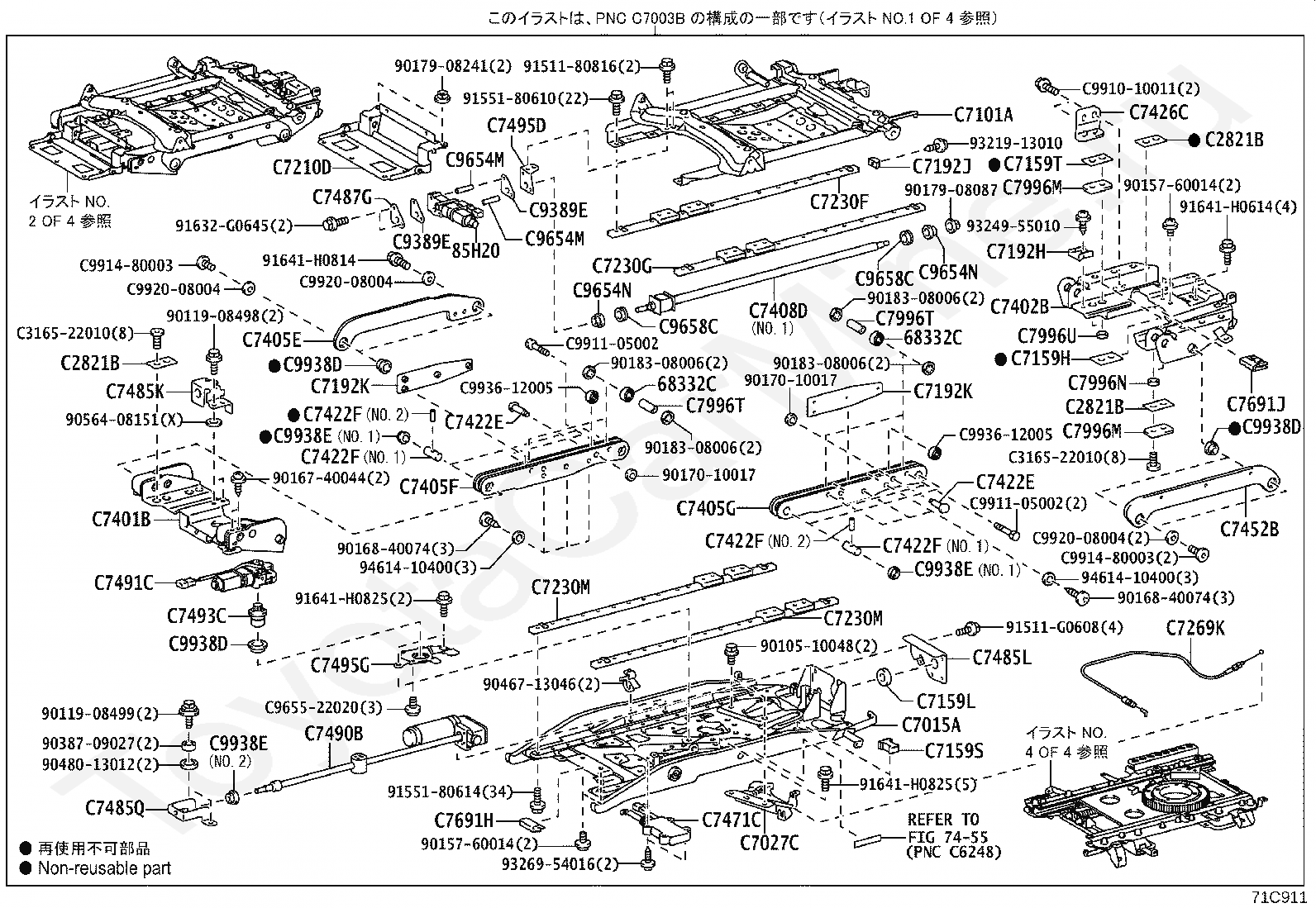

Код

Описание

68332C

ROLLER, SLIDE DOOR, LOWER

68332C

ROLLER, SLIDE DOOR, LOWER

7455

переход к группе запчастей

85H20

MOTOR ASSY, POWER SEAT

9010510048

Крепеж

9011908498

Крепеж

9011908499

Крепеж

9015760014

Крепеж

9015760014

Крепеж

9016740044

Крепеж

9016840074

Крепеж

9016840074

Крепеж

9017010017

Крепеж

9017010017

Крепеж

9017908087

Крепеж

9017908241

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9018308006

Крепеж

9038709027

Крепеж

9046713046

Крепеж

9048013012

Крепеж

9056408151

Крепеж

9151180816

Крепеж

91511G0608

Крепеж

9155180610

Крепеж

9155180614

Крепеж

91632G0645

Крепеж

91641H0614

Крепеж

91641H0814

Крепеж

91641H0825

Крепеж

91641H0825

Крепеж

9321913010

Крепеж

9324955010

Крепеж

9326954016

Крепеж

9461410400

Крепеж

9461410400

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C7015A

PANEL SUB-ASSY, TURN TABLE

C7027C

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101A

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159S

CUSHION, WELCAB SEAT LEG STOPPER, NO.3

C7159T

CUSHION, WELCAB SEAT LEG STOPPER, NO.4

C7192H

PLATE, SEAT HOLDER STOPPER, NO.1

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192K

PLATE, SEAT HOLDER STOPPER, NO.3

C7192K

PLATE, SEAT HOLDER STOPPER, NO.3

C7210D

FOOTREST ASSY, WELCAB SEAT

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7230M

TRACK ASSY, WELCAB SEAT, NO.3

C7230M

TRACK ASSY, WELCAB SEAT, NO.3

C7269K

CABLE, SEAT TURN LOCK RELEASE

C7401B

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402B

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405E

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405F

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7405G

ARM SUB-ASSY, WELCAB SEAT LINK, NO.3

C7408D

ROD SUB-ASSY, WELCAB SEAT, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7426C

BRACKET, WELCAB SEAT GUIDE, NO.2

C7452B

ARM, WELCAB SEAT LINK, NO.2

C7471C

CONTROL, WELCAB SEAT LOCK

C7485K

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7485L

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7485Q

BRACKET, WELCAB SEAT ROD SUPPORT, NO.5

C7487G

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7490B

CYLINDER ASSY, WELCAB SEAT

C7491C

MOTER, WELCAB SEAT

C7493C

GEAR, WELCAB SEAT MOTOR

C7495D

BRACKET, WELCAB SEAT MOTOR, NO.1

C7495G

BRACKET, WELCAB SEAT MOTOR, NO.2

C7691H

CUSHION, SEAT FLAT, NO.2 RH

C7691J

CUSHION, SEAT FLAT, NO.1 RH

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996N

SPACER, TURN SEAT, NO.2

C7996T

SPACER, TURN SEAT, NO.3

C7996T

SPACER, TURN SEAT, NO.3

C7996U

SPACER, TURN SEAT, NO.4

C9389E

CUSHION, PLATFORM STOPPER

C9389E

CUSHION, PLATFORM STOPPER

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C965522020

Крепеж

C9658C

PLATE, POWER LIFT CYLINDER ROD

C9658C

PLATE, POWER LIFT CYLINDER ROD

C991010011

Крепеж

C991105002

Крепеж

C991105002

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C993612005

Крепеж

C993612005

Крепеж

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938E

BUSH, NO.2

C9938E

BUSH, NO.2

C9938E

BUSH, NO.2

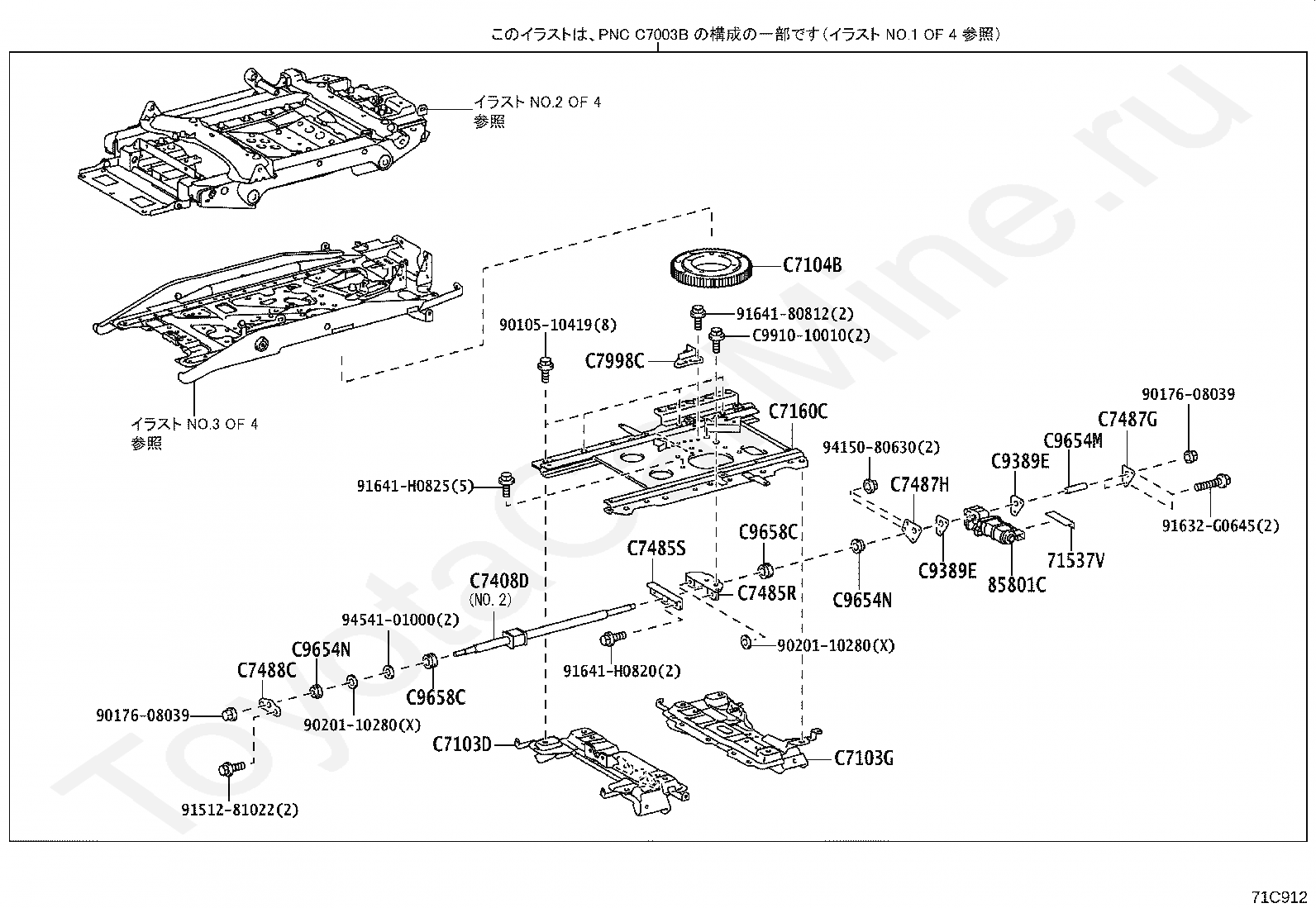

Код

Описание

71537V

PROTECTOR, REAR SEAT CUSHION EDGE

85801C

MOTOR ASSY, POWER SEAT(FOR LH SEAT)

9010510419

Крепеж

9017608039

Крепеж

9017608039

Крепеж

9020110280

Крепеж

9020110280

Крепеж

9151281022

Крепеж

91632G0645

Крепеж

9164180812

Крепеж

91641H0820

Крепеж

91641H0825

Крепеж

9415080630

Крепеж

9454101000

Крепеж

C7103D

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7103G

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.2

C7104B

PLATE SUB-ASSY, SEAT TURN

C7160C

PANEL ASSY, SLIDE TABLE

C7408D

ROD SUB-ASSY, WELCAB SEAT, NO.1

C7485R

BRACKET, WELCAB SEAT ROD SUPPORT, NO.3

C7485S

BRACKET, WELCAB SEAT ROD SUPPORT, NO.4

C7487G

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7487H

PLATE, WELCAB SEAT ROD SUPPORT, NO.1

C7488C

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C7998C

PLATE, TURN SEAT LEG, LOWER

C9389E

CUSHION, PLATFORM STOPPER

C9389E

CUSHION, PLATFORM STOPPER

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9658C

PLATE, POWER LIFT CYLINDER ROD

C9658C

PLATE, POWER LIFT CYLINDER ROD

C991010010

Крепеж

Код

Описание

35469D1030

Крепеж

35469D1030

Крепеж

58204M

BRACKET SUB-ASSY, REAR SEAT

71120D

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

71315D

PLATE, REAR SEAT HINGE, LOWER

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537Q

PROTECTOR, REAR NO.1 SEAT CUSHION, LH

71812V

SHIELD, REAR SEAT CUSHION, LH

71862P

SHIELD, REAR SEAT CUSHION, INNER LH

71874X

SHIELD, REAR SEAT CUSHION, LOWER LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940J

HEADREST ASSY, NO.2 SEAT, LH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

72830U

ARMREST ASSY, REAR SEAT, RH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72996H

COVER, REAR SEAT BACK

7455

переход к группе запчастей

7455

переход к группе запчастей

78899D1010

Крепеж

78899D1010

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

9454201400

Крепеж

9454201400

Крепеж

C2815D1020

Крепеж

C7111A

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C995614004

Крепеж

C995614004

Крепеж

Код

Описание

53019G

SHUTTER SUB-ASSY, RADIATOR

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

71430E

CLIP

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

7455

переход к группе запчастей

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

78988G

COVER, REAR SEAT FOOTREST, NO.2

79246Q

COVER, REAR SEAT LEG, RH (FOR LH SEAT)

79959F

COVER, NO.1 SEAT LEG, LH

79J68B

CLIP

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9010506297

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9011910636

Крепеж

9016840074

Крепеж

9016840074

Крепеж

9046400620

Крепеж

91672L1030

Крепеж

91672L1030

Крепеж

91672L1030

Крепеж

91672L1030

Крепеж

91672L1030

Крепеж

C7003B

LIFT UNIT, REAR SEAT

C7120D

LEG ASSY, WELCAB SEAT

C7422F

PIN, WELCAB SEAT ARM GUIDE, NO.2

C7986E

COVER, REAR SEAT TURN GUARD

C7986F

CLIP, REAR SEAT TURN GUARD COVER

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9055N

COVER SUB-ASSY, POWER LIFT, NO.3

C9055S

COVER SUB-ASSY, POWER LIFT, NO.4

Код

Описание

62786D1010

Крепеж

68332C

ROLLER, SLIDE DOOR, LOWER

68332C

ROLLER, SLIDE DOOR, LOWER

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

9017908087

Крепеж

9017908241

Крепеж

9017908241

Крепеж

9056008041

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180812

Крепеж

9167100820

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C3165D1020

Крепеж

C3165D1020

Крепеж

C4109D

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7110B

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7117B

PLATE, SEAT HOLDER, LH

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7210D

FOOTREST ASSY, WELCAB SEAT

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7230F

TRACK ASSY, WELCAB SEAT, NO.1

C7409E

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481C

ROD, WELCAB SEAT, NO.1

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7485K

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C9507B

LOCK SUB-ASSY, PLATFORM, NO.1

C9610J

MOTOR ASSY, POWER LIFT

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654P

COLLAR, POWER LIFT CYLINDER, NO.3

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

33546D1030

Крепеж

71693J

COVER, REAR SEAT CUSHION HINGE, NO.3

85996K

CLIP(FOR RELAY BRACKET)

85996M

BRACKET, RELAY, NO.1

85996N

BRACKET, RELAY, NO.2

9010506049

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9011908520

Крепеж

9015760014

Крепеж

9017810001

Крепеж

9017908087

Крепеж

91511G0608

Крепеж

91511G0608

Крепеж

9155180810

Крепеж

9155180810

Крепеж

9155180810

Крепеж

9155180812

Крепеж

91641H0614

Крепеж

9324955008

Крепеж

9324955008

Крепеж

C2821B

SEAL, FRONT PANEL, NO.1

C2821B

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C316522010

Крепеж

C6359A

CAP, PROTECTOR BAR

C6359A

CAP, PROTECTOR BAR

C7015A

PANEL SUB-ASSY, TURN TABLE

C7027C

LOCK SUB-ASSY, WELCAB SEAT TURN

C7159H

CUSHION, WELCAB SEAT LEG STOPPER

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7159L

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192J

PLATE, SEAT HOLDER STOPPER, NO.2

C7192K

PLATE, SEAT HOLDER STOPPER, NO.3

C7192L

PLATE, SEAT HOLDER STOPPER, NO.4

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7230G

TRACK ASSY, WELCAB SEAT, NO.2

C7401B

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402B

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405E

ARM SUB-ASSY, WELCAB SEAT LINK, NO.1

C7405F

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7422E

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7442B

GUARD, WELCAB SEAT CABLE

C7452B

ARM, WELCAB SEAT LINK, NO.2

C7453B

ARM, WELCAB SEAT LINK, NO.3

C7485L

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7490B

CYLINDER ASSY, WELCAB SEAT

C7691J

CUSHION, SEAT FLAT, NO.1 RH

C7691J

CUSHION, SEAT FLAT, NO.1 RH

C7996M

SPACER, TURN SEAT

C7996M

SPACER, TURN SEAT

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C7996N

SPACER, TURN SEAT, NO.2

C9507B

LOCK SUB-ASSY, PLATFORM, NO.1

C9570C

LOCK ASSY, PLATFORM

C9603A

GEAR SUB-ASSY, POWER LIFT

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C991480003

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C992008004

Крепеж

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938D

BUSH, NO.1

C9938E

BUSH, NO.2

Код

Описание

62786D1010

Крепеж

72589D1030

Крепеж

9010508145

Крепеж

9010510188

Крепеж

9010510306

Крепеж

9010510306

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9056008041

Крепеж

91511G0608

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9155281025

Крепеж

9155281025

Крепеж

C4109D

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7104B

PLATE SUB-ASSY, SEAT TURN

C7120H

LEG ASSY, WELCAB SEAT, NO.2

C7160C

PANEL ASSY, SLIDE TABLE

C7179G

BRACKET, WELCAB SEAT COVER NO.1

C7192H

PLATE, SEAT HOLDER STOPPER, NO.1

C7208B

PLATE SUB-ASSY, SEAT TURN LOCK

C7409F

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7409G

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.3

C7481D

ROD, WELCAB SEAT, NO.2

C7483C

GEAR WELCAB SEAT LEG, NO.1

C7495D

BRACKET, WELCAB SEAT MOTOR, NO.1

C9599B

HOOK, PLATFORM SAFETY LOCK

C9611B

MOTOR, POWER LIFT, NO.1

C9611C

MOTOR, POWER LIFT, NO.2

C9652B

CAP, POWER LIFT CYLINDER, NO.1

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

827111A750

Крепеж

8271160270

Крепеж

82825D1070

Крепеж

86683D7010

Крепеж

86683D7010

Крепеж

9011906122

Крепеж

9011908520

Крепеж

91511G0608

Крепеж

9155180612

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9331313012

Крепеж

9331313012

Крепеж

9415080630

Крепеж

C7225D1090

Крепеж

C7225D1090

Крепеж

C7225D1090

Крепеж

C8284C

WIRE, POWER LIFT MAIN

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299D

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8340B

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417L

SWITCH, LIMIT, NO.1

C8417M

SWITCH, LIMIT, NO.2

C8417M

SWITCH, LIMIT, NO.2

C8417N

SWITCH, LIMIT, NO.3

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8419T

BRACKET, LIMIT SWITCH, NO.4

C8419U

BRACKET, LIMIT SWITCH, NO.5

Код

Описание

71397G

STOPPER, REAR SEAT, RH

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72267A

PLATE, SEAT TRACK STOP

72380D

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72380D

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72650J

LOCK ASSY, REAR SEAT, RH

7270228080

Крепеж

7270228080

Крепеж

7270252090

Крепеж

7270252090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72895D

CASE, REAR SEAT BELT

72960C

TABLE ASSY, NO.1 SEAT TURN, RH

72A37

CLIP (FOR SEAT TRACK COVER)

73949A

CAP

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79160C

SPRING ASSY, NO.1 SEAT CUSHION

79175F

PAD, NO.1 SEAT BACK, RH

79180B

SPRING ASSY, NO.1 SEAT BACK, RH

79910A

CABLE ASSY, REAR SEAT TURN, NO.1

79910A

CABLE ASSY, REAR SEAT TURN, NO.1

79959E

COVER, NO.1 SEAT LEG, RH

79965H

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)

9010511058

Крепеж

9010511058

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017910041

Крепеж

9017910041

Крепеж

9017910041

Крепеж

9020115024

Крепеж

9020115024

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9151180816

Крепеж

9155180816

Крепеж

9324955006

Крепеж

9454201400

Крепеж

9454201400

Крепеж

Код

Описание

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834X

COVER, REAR SEAT RECLINING, NO.2 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72058F

LEVER SUB-ASSY, NO.1 SEAT LOCK CONTROL, LH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72380D

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72380D

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72620S

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)

72660P

LOCK ASSY, REAR SEAT, LH

7270228080

Крепеж

7270228080

Крепеж

7270252090

Крепеж

7270252090

Крепеж

72830U

ARMREST ASSY, REAR SEAT, RH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72970A

TABLE ASSY, NO.1 SEAT TURN, LH

72A37

CLIP (FOR SEAT TRACK COVER)

73949A

CAP

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79170B

SPRING ASSY, NO.1 SEAT CUSUION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79190

SPRING ASSY, NO.1 SEAT BACK, LH

79920B

CABLE ASSY, REAR SEAT TURN, NO.2

79920B

CABLE ASSY, REAR SEAT TURN, NO.2

79959T

COVER, REAR SEAT LEG, LH

79965J

COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT)

9010511058

Крепеж

9010511058

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017910041

Крепеж

9017910041

Крепеж

9017910041

Крепеж

9020115024

Крепеж

9020115024

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9324955006

Крепеж

9454201400

Крепеж

9454201400

Крепеж

Код

Описание

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71330D

HINGE ASSY, REAR NO.2 SEAT, RH

71393C

BAND, NO.2 SEAT CUSHION, RH NO.1

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71485E

COVER, REAR SEAT HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71694F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.4

71696F

PROTECTOR, NO.2 SEAT BACK, RH

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844K

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71H75G

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

72063B

HOOK SUB-ASSY, REAR SEAT, RH

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72613H

STRIKER, REAR SEAT LOCK

72613L

STRIKER, REAR SEAT LOCK, REAR OUTER

72650H

CABLE ASSY, REAR NO.2 SEAT LOCK, RH

72779B

GUIDE, REAR SEAT HINGE PAWL

72781H

SPRING, REAR NO.2 SEAT PLATE, RH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7455

переход к группе запчастей

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79275F

PAD, NO.2 SEAT BACK, RH

79378E

COVER, NO.3 SEAT CUSHION HINGE, RH

79937G

COVER, REAR SEAT LEG, NO.2

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

9010906247

Крепеж

9010906247

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9155180820

Крепеж

9155380612

Крепеж

9155480818

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

Код

Описание

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71340C

HINGE ASSY, REAR NO.2 SEAT, LH

71393E

BAND, NO.2 SEAT CUSHION, LH NO.1

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71486F

COVER, REAR SEAT HINGE, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696N

PROTECTOR, REAR SEAT, NO.2

71843M

COVER, REAR SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

71964A

CASE, REAR SEAT HEADREST

71970C

HEADREST ASSY, REAR SEAT

71H75G

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

72064B

HOOK SUB-ASSY, REAR SEAT, LH

72066C

HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72613L

STRIKER, REAR SEAT LOCK, REAR OUTER

72613L

STRIKER, REAR SEAT LOCK, REAR OUTER

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72779B

GUIDE, REAR SEAT HINGE PAWL

72781G

SPRING, REAR NO.2 SEAT PLATE, LH

72928F

COVER, REAR NO.2 SEAT CUSHION UNDER, LH

7455

переход к группе запчастей

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79273F

COVER, NO.2 SEAT HINGE, NO.2

79285C

PAD, NO.2 SEAT BACK, LH

79378F

COVER, NO.2 SEAT CUSHION HINGE, LH

79937H

COVER, REAR SEAT LEG, NO.2

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79956Y

CLIP (FOR REAR SEAT LEG BRACKET COVER)

9010906247

Крепеж

9010906247

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9011910409

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9155180820

Крепеж

9155380612

Крепеж

9155480818

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

REAR SEAT & SEAT TRACK TOYOTA NOAH/VOXY

Купить

Поиск
