Каталог

Япония

Модель

NEW MODEL

VIN

Дата

2021/12

Двигатель

3500CC 24-VALVE DOHC

Фрейм

VJA310

КПП

автомат ATM, 10-SPEED FLOOR SHIFT

Опции

811W

Кондиционер: управление и воздуховод TOYOTA NEW MODEL

Код

Описание

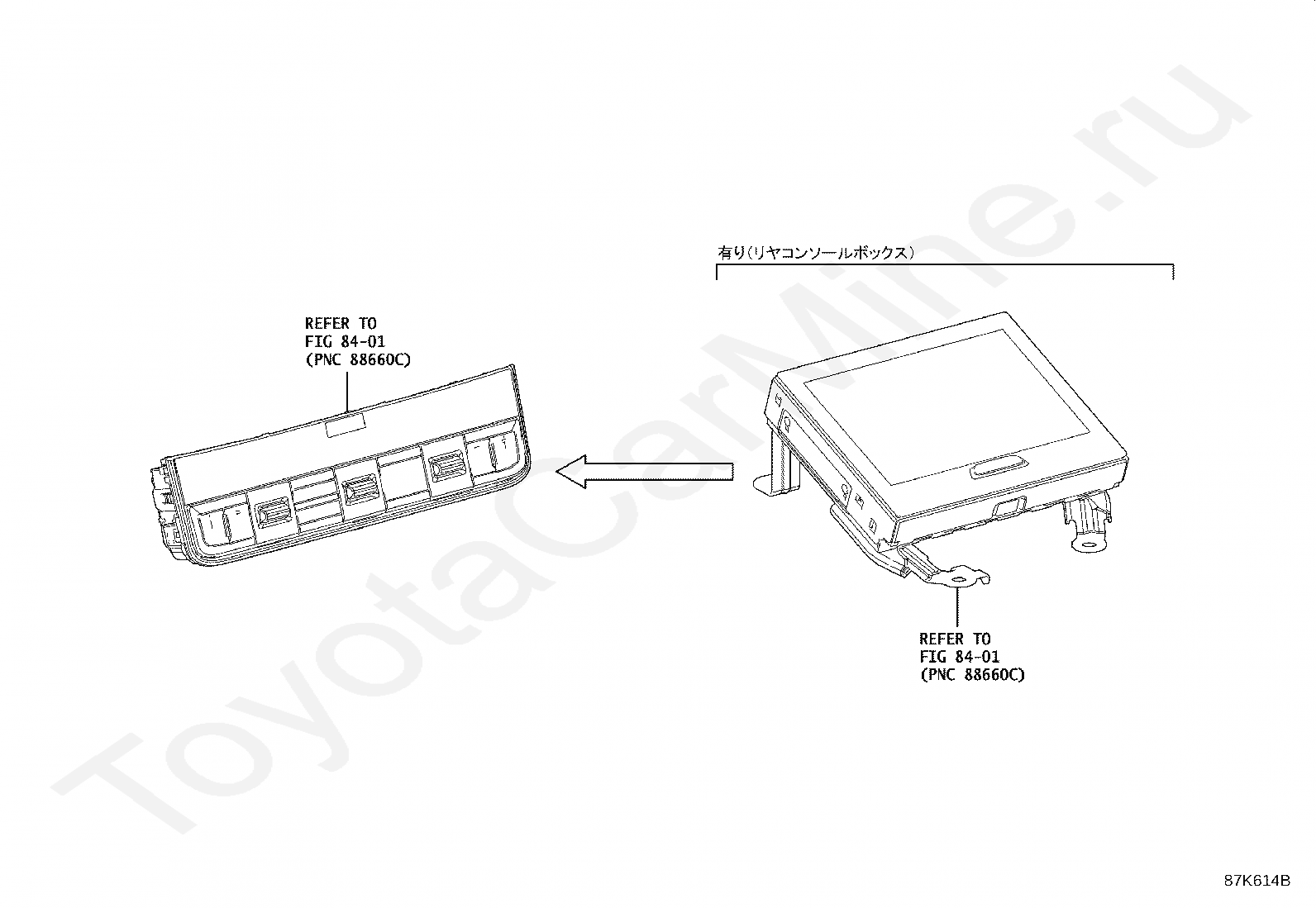

84010A

CONTROL & PANEL ASSY, INTEGRATION

84113K

BRACKET, SWITCH, RH

84113L

BRACKET, SWITCH, LH

9015350015

Крепеж

9015350015

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

8401

переход к группе запчастей

8401

переход к группе запчастей

Код

Описание

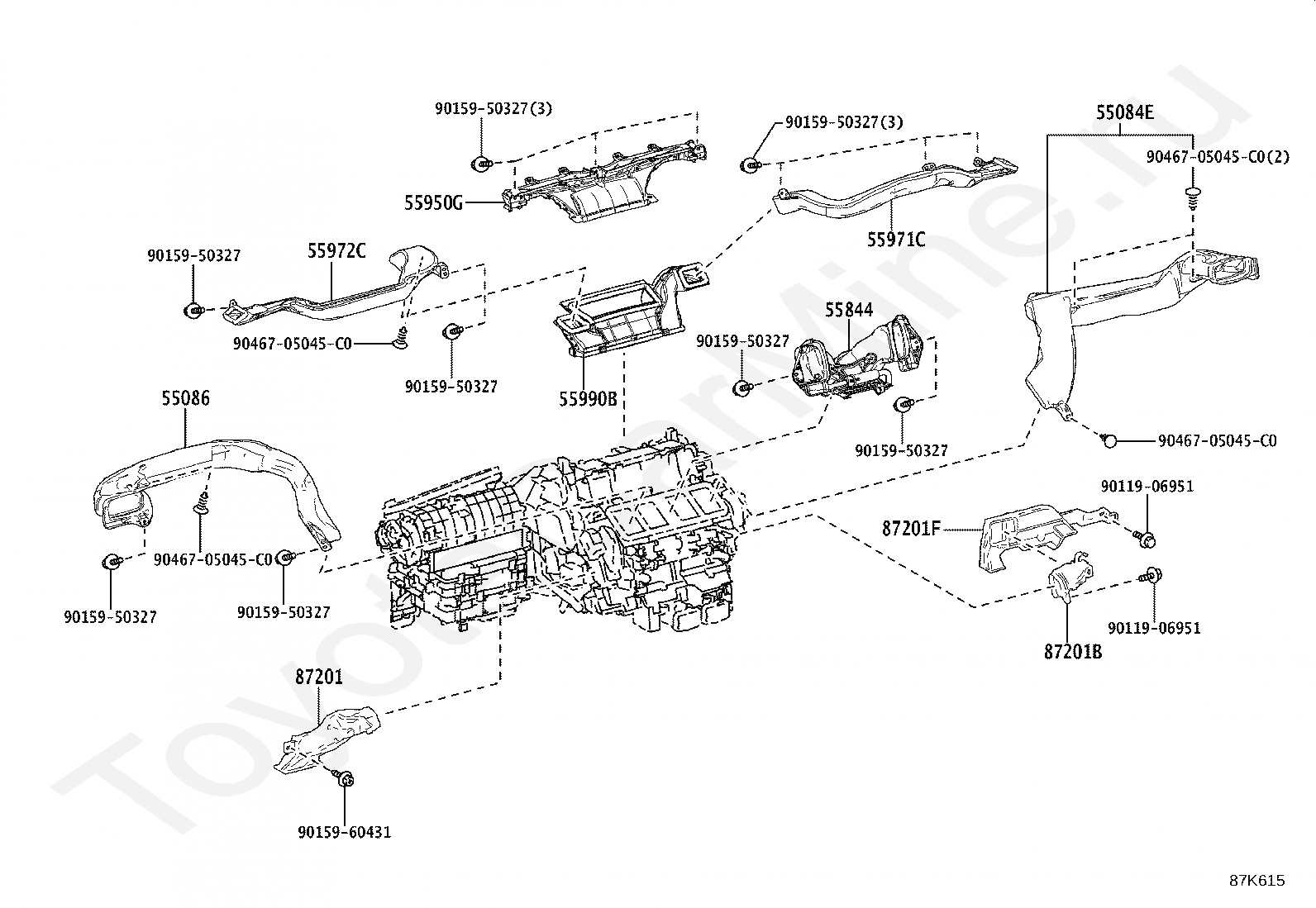

55084E

DUCT SUB-ASSY, HEATER TO REGISTER, NO.1

55086

DUCT SUB-ASSY, HEATER TO REGISTER, NO.3

55844

DUCT, HEATER TO REGISTER, NO.2

55950G

NOZZLE ASSY, DEFROSTER

55971C

DUCT, SIDE DEFROSTER NOZZLE, NO.1

55972C

DUCT, SIDE DEFROSTER NOZZLE, NO.2

55990B

NOZZLE ASSY, DEFROSTER, LOWER

87201

DUCT SUB-ASSY, AIR, NO.1

87201B

DUCT SUB-ASSY, AIR, NO.2

87201F

DUCT SUB-ASSY, AIR, NO.3

9011906951

Крепеж

9011906951

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015960431

Крепеж

9046705045C0

Крепеж

9046705045C0

Крепеж

9046705045C0

Крепеж

9046705045C0

Крепеж

Код

Описание

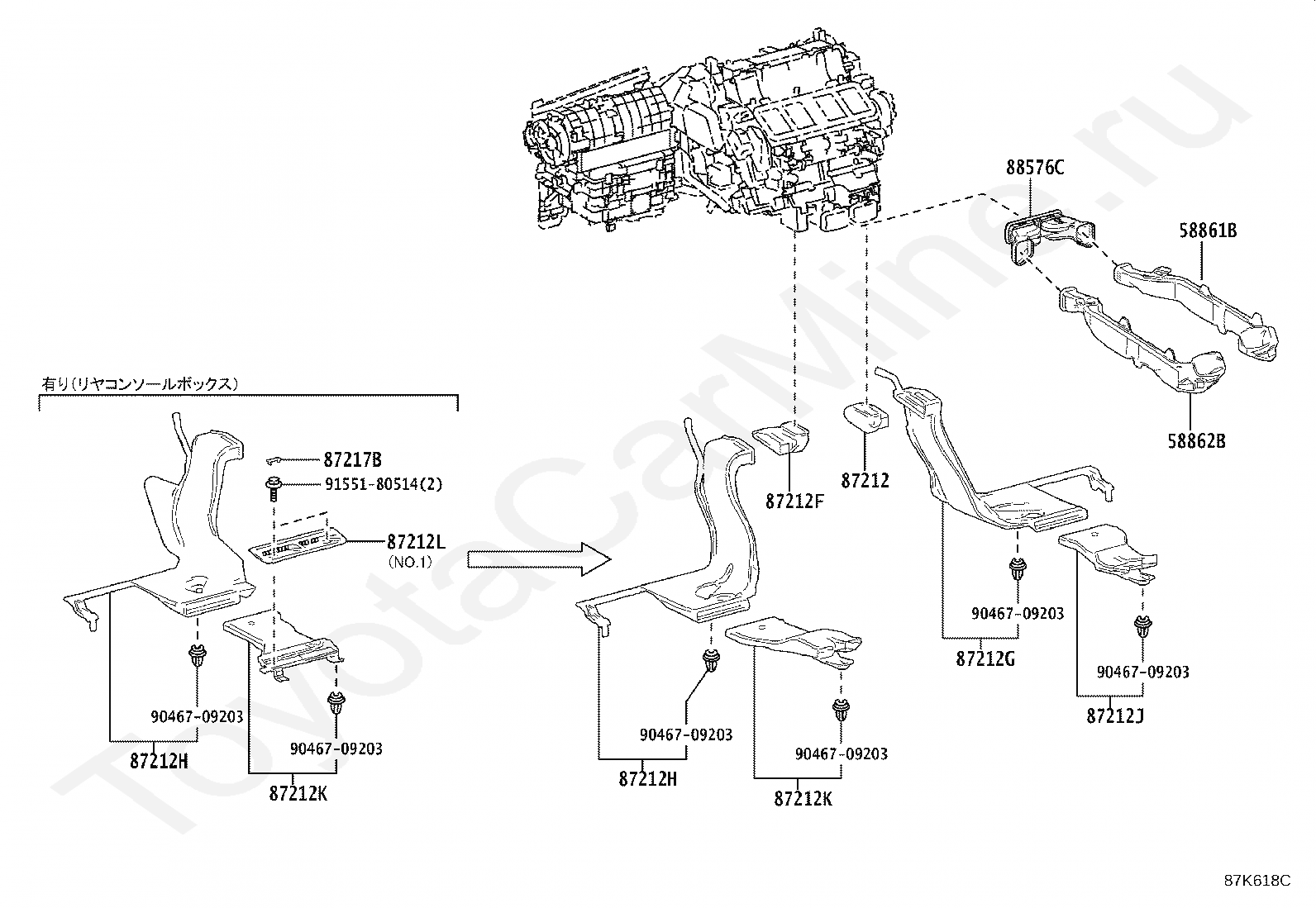

58861B

DUCT, CONSOLE BOX, NO.1

58862B

DUCT, CONSOLE BOX, NO.2

87212

DUCT, AIR, REAR NO.1

87212F

DUCT, AIR, REAR NO.2

87212G

DUCT, AIR, REAR NO.3

87212H

DUCT, AIR, REAR NO.4

87212H

DUCT, AIR, REAR NO.4

87212J

DUCT, AIR, REAR NO.5

87212K

DUCT, AIR, REAR NO.6

87212K

DUCT, AIR, REAR NO.6

87212L

DUCT, AIR, REAR NO.7

87217B

PLUG, AIR DUCT

88576C

DUCT, COOLER AIR, NO.1

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9155180514

Крепеж

Код

Описание

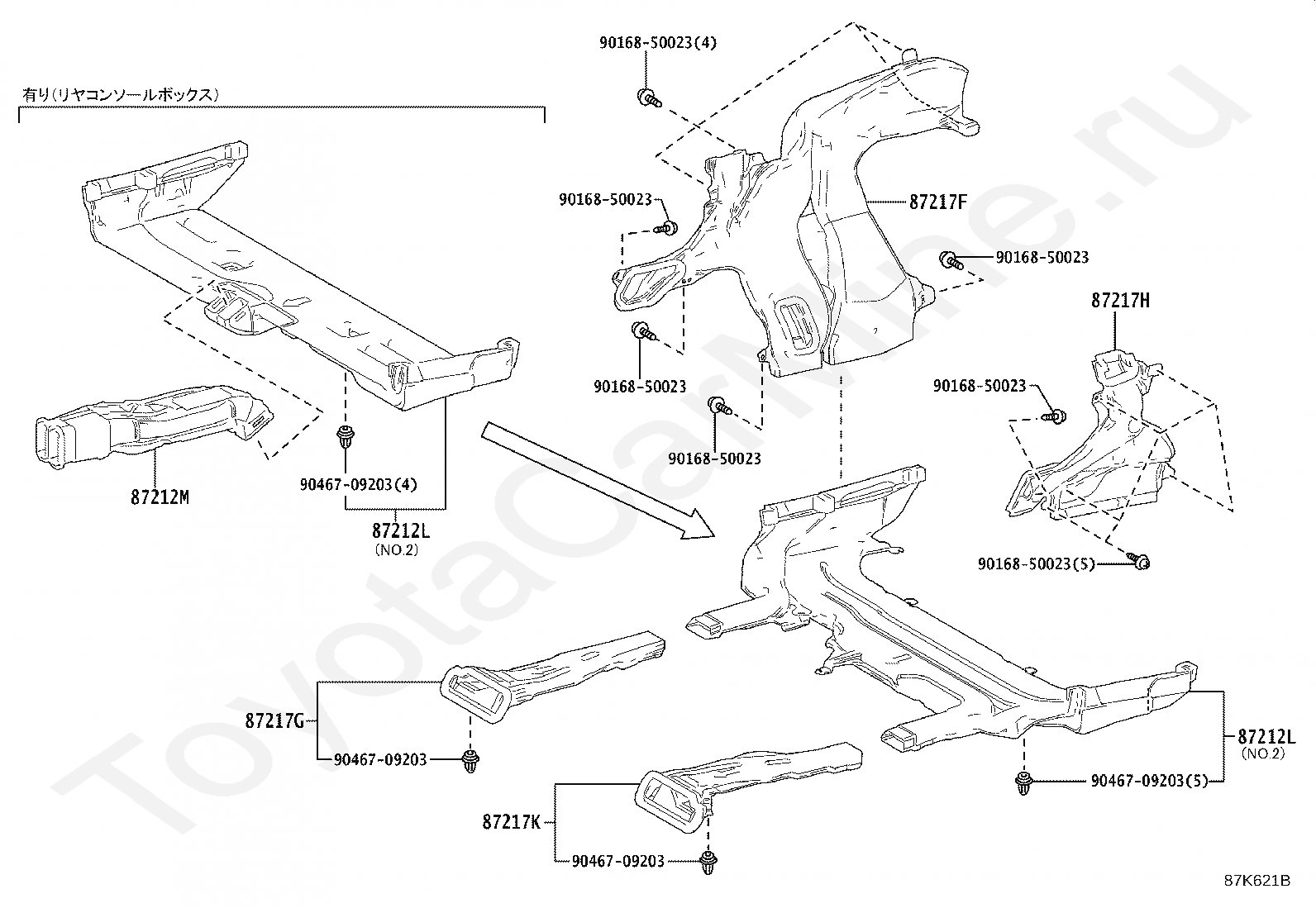

87212L

DUCT, AIR, REAR NO.7

87212L

DUCT, AIR, REAR NO.7

87212M

DUCT, AIR, REAR NO.8

87217F

DUCT, AIR, REAR SIDE NO.3

87217G

DUCT, AIR, REAR SIDE NO.4

87217H

DUCT, AIR, REAR SIDE NO.5

87217K

DUCT, AIR, REAR SIDE NO.6

9016850023

Крепеж

9016850023

Крепеж

9016850023

Крепеж

9016850023

Крепеж

9016850023

Крепеж

9016850023

Крепеж

9016850023

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

9046709203

Крепеж

Код

Описание

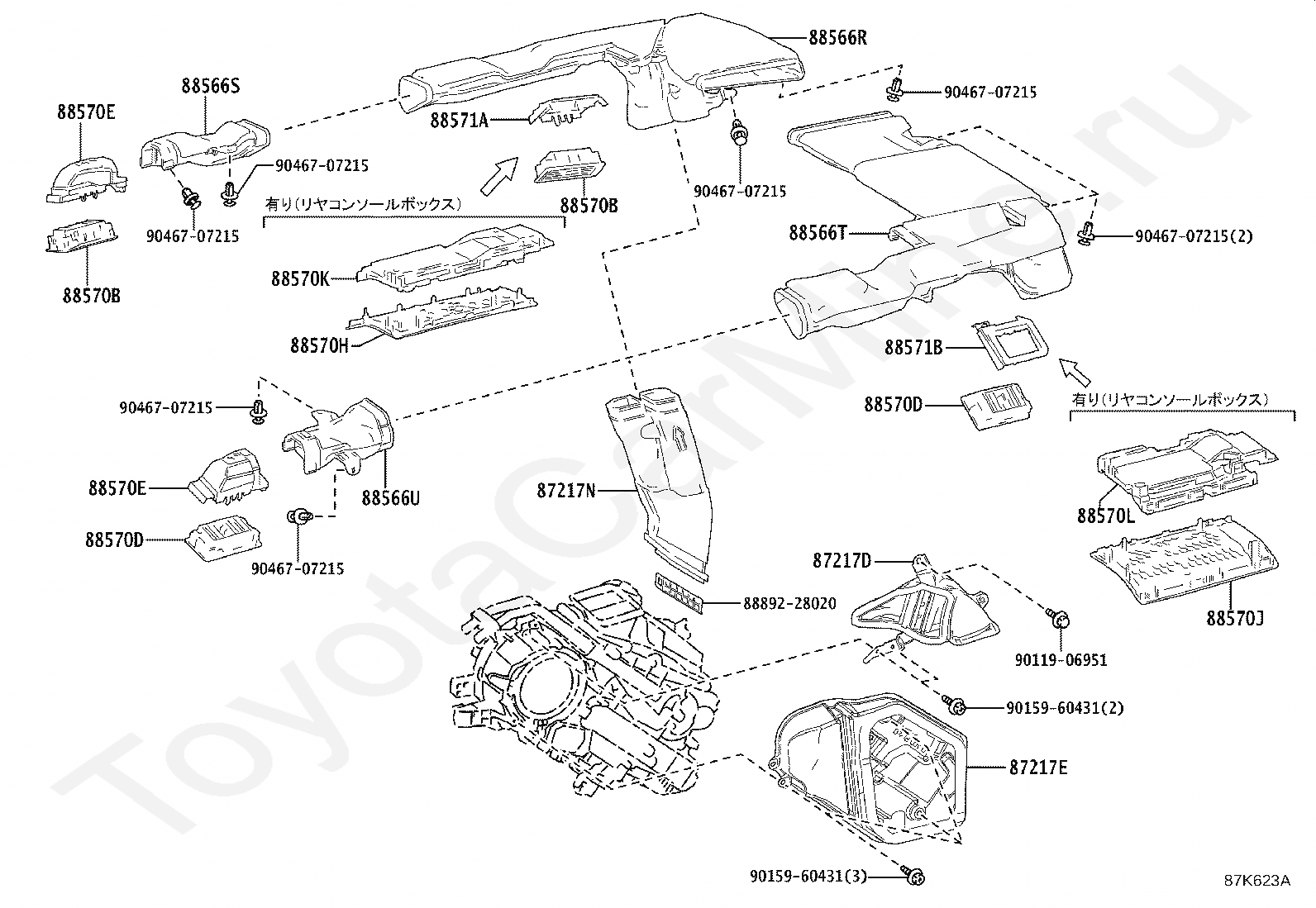

87217D

DUCT, AIR, REAR SIDE NO.1

87217E

DUCT, AIR, REAR SIDE NO.2

87217N

DUCT, AIR, REAR SIDE NO.9

88566R

DUCT, AIR, REAR ROOF NO.1

88566S

DUCT, AIR, REAR ROOF NO.2

88566T

DUCT, AIR, REAR ROOF NO.3

88566U

DUCT, AIR, REAR ROOF NO.4

88570B

GRILLE ASSY, AIR OUTLET, NO.1

88570B

GRILLE ASSY, AIR OUTLET, NO.1

88570D

GRILLE ASSY, AIR OUTLET, NO.2

88570D

GRILLE ASSY, AIR OUTLET, NO.2

88570E

GRILLE ASSY, AIR OUTLET

88570E

GRILLE ASSY, AIR OUTLET

88570H

GRILLE ASSY, AIR OUTLET, NO.3

88570J

GRILLE ASSY, AIR OUTLET, NO.4

88570K

GRILLE ASSY, AIR OUTLET, NO.5

88570L

GRILLE ASSY, AIR OUTLET, NO.6

88571A

GRILLE, AIR OUTLET

88571B

GRILLE, AIR OUTLET

8889228020

Крепеж

9011906951

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046707215

Крепеж

9046707215

Крепеж

Код

Описание

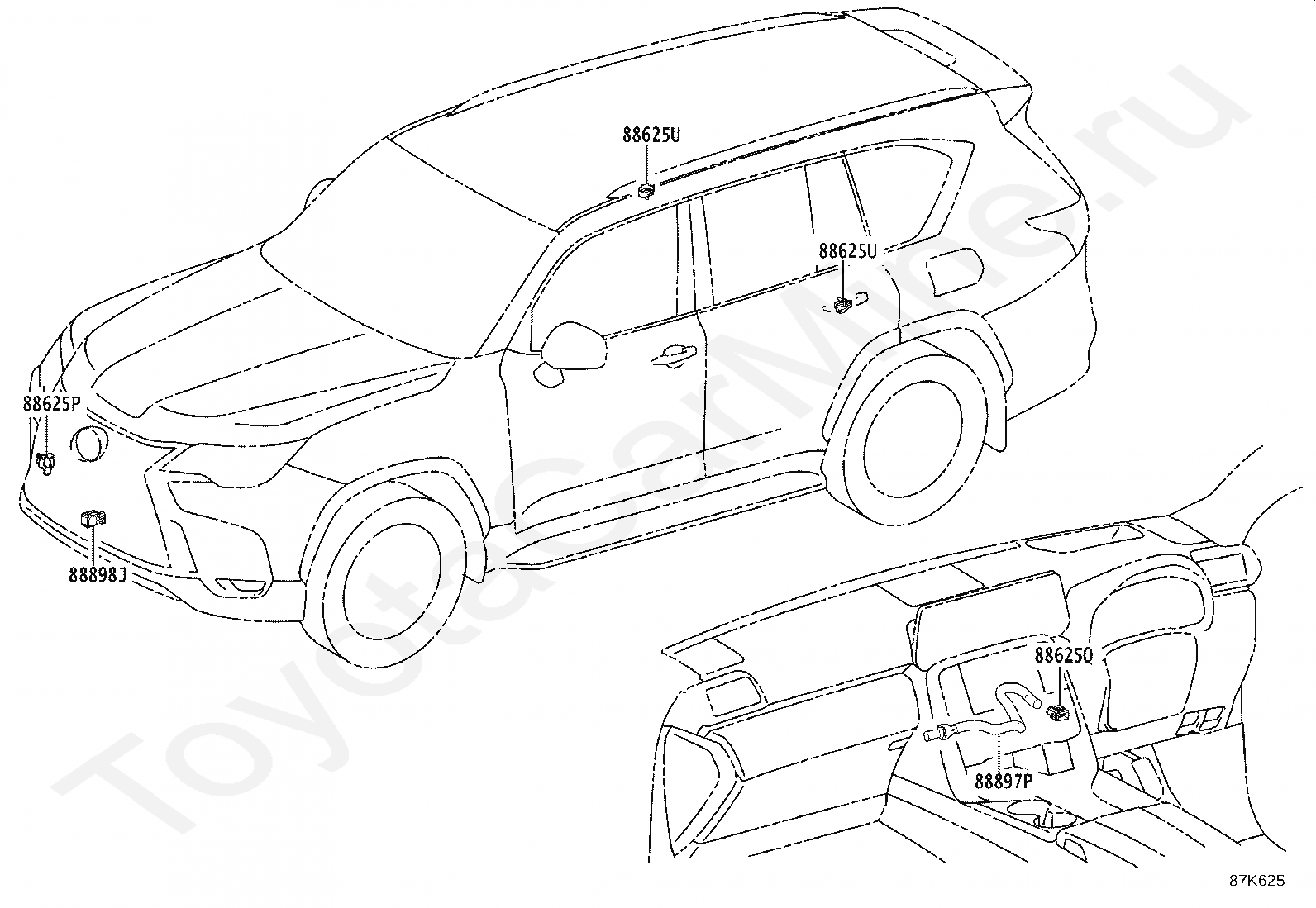

88625P

THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)

88625U

THERMISTOR, COOLER (DUCT SENSOR)

88625U

THERMISTOR, COOLER (DUCT SENSOR)

88897P

ASPIRATOR

88898J

SENSOR, SMOG VENTILATION
