Ходовые запчасти

Каталог

Япония

Модель

MR2

VIN

Дата

1989/12

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

T-BAR ROOF

Класс

GT TYPE

Фрейм

SW20

КПП

механика МКПП, 5 скоростей

Опции

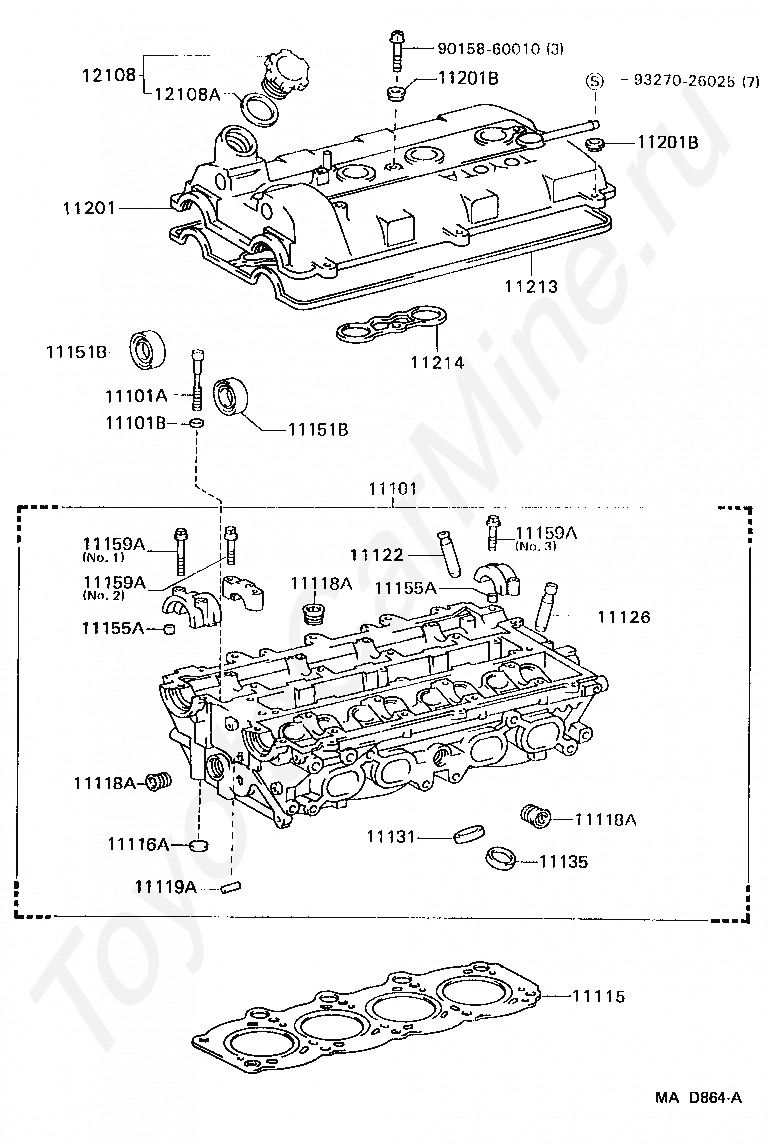

Головка блока цилиндров TOYOTA MR2

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11151B

SEAL, OIL(FOR CAMSHAFT SETTING)

11151B

SEAL, OIL(FOR CAMSHAFT SETTING)

11155A

PIN, RING W/HEAD

11155A

PIN, RING W/HEAD

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11201

COVER SUB-ASSY, CYLINDER HEAD

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11214

GASKET, CYLINDER HEAD COVER, NO.2

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

9015860010

Крепеж

9327026025

Крепеж

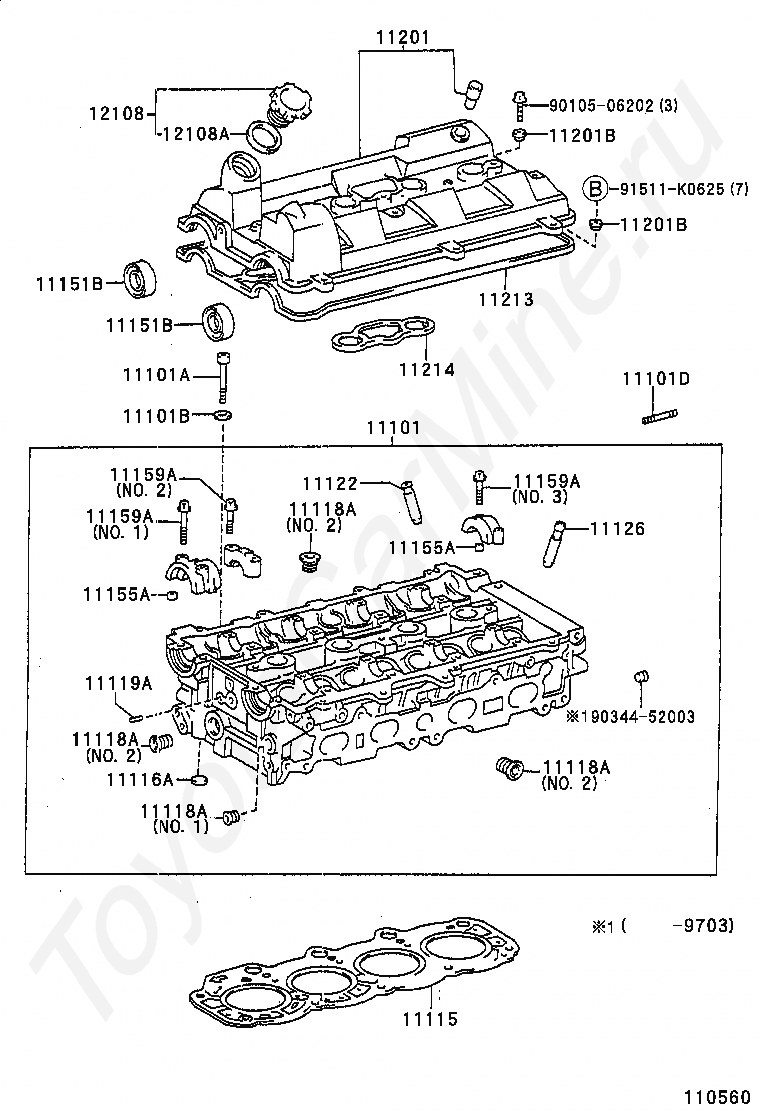

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101D

BOLT, STUD(FOR WATER OUTLET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11118A

PLUG, STRAIGHT, NO.1

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11151B

SEAL, OIL(FOR CAMSHAFT SETTING)

11151B

SEAL, OIL(FOR CAMSHAFT SETTING)

11155A

PIN, RING W/HEAD

11155A

PIN, RING W/HEAD

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11201

COVER SUB-ASSY, CYLINDER HEAD

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11214

GASKET, CYLINDER HEAD COVER, NO.2

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

9010506202

Крепеж

9034452003

Крепеж

91511K0625

Крепеж
